Question: Winch and Grille Guard on Plastic Bumper

[GSD Guy]

New to the forum, have a Mojave and want to add the 7" LEDs (82215386AB) using the Winch and Grille Guard (82215351). Wondering if anyone knows if the Mopar Winch and Grille Guard lines up with the plastic bumper at the attachment sites (are the contours the same, or is the shape of the plastic bumper different than the steel in those areas)??? So long as the contour is the same, I'm sure I can figure out a way to mount it. Don't really want to source a Rubicon steel bumper (cost, added weight, etc.) and don't like the look of the Auxiliary Light Mount Brackets that attach to the frame (82215428). Don't want to go aftermarket front bumper either. Any knowledge in this area is appreciated!! Thanks

Sponsored



[punk'n]

New to the forum, have a Mojave and want to add the 7" LEDs (82215386AB) using the Winch and Grille Guard (82215351). Wondering if anyone knows if the Mopar Winch and Grille Guard lines up with the plastic bumper at the attachment sites (are the contours the same, or is the shape of the plastic bumper different than the steel in those areas)??? ......

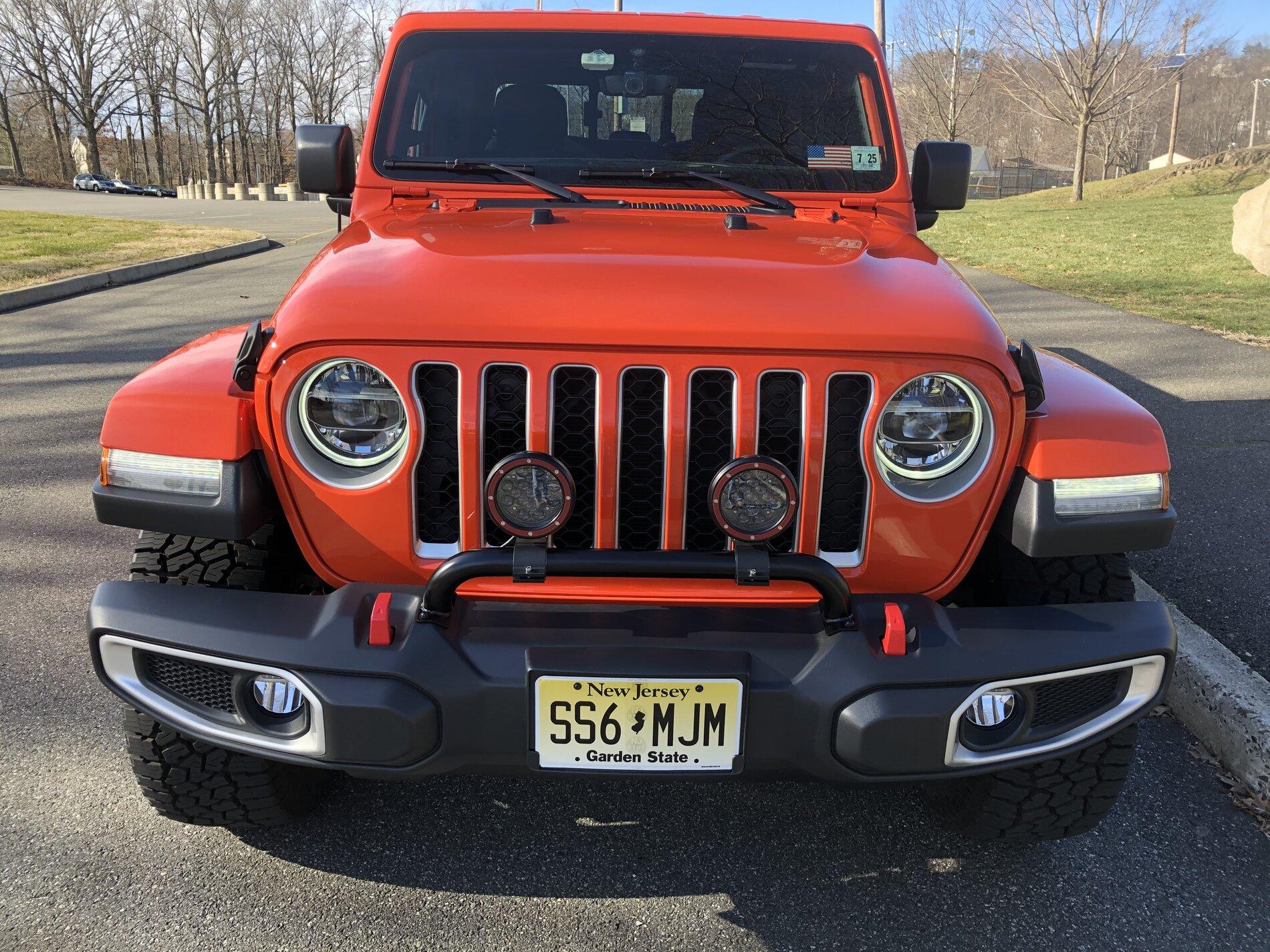

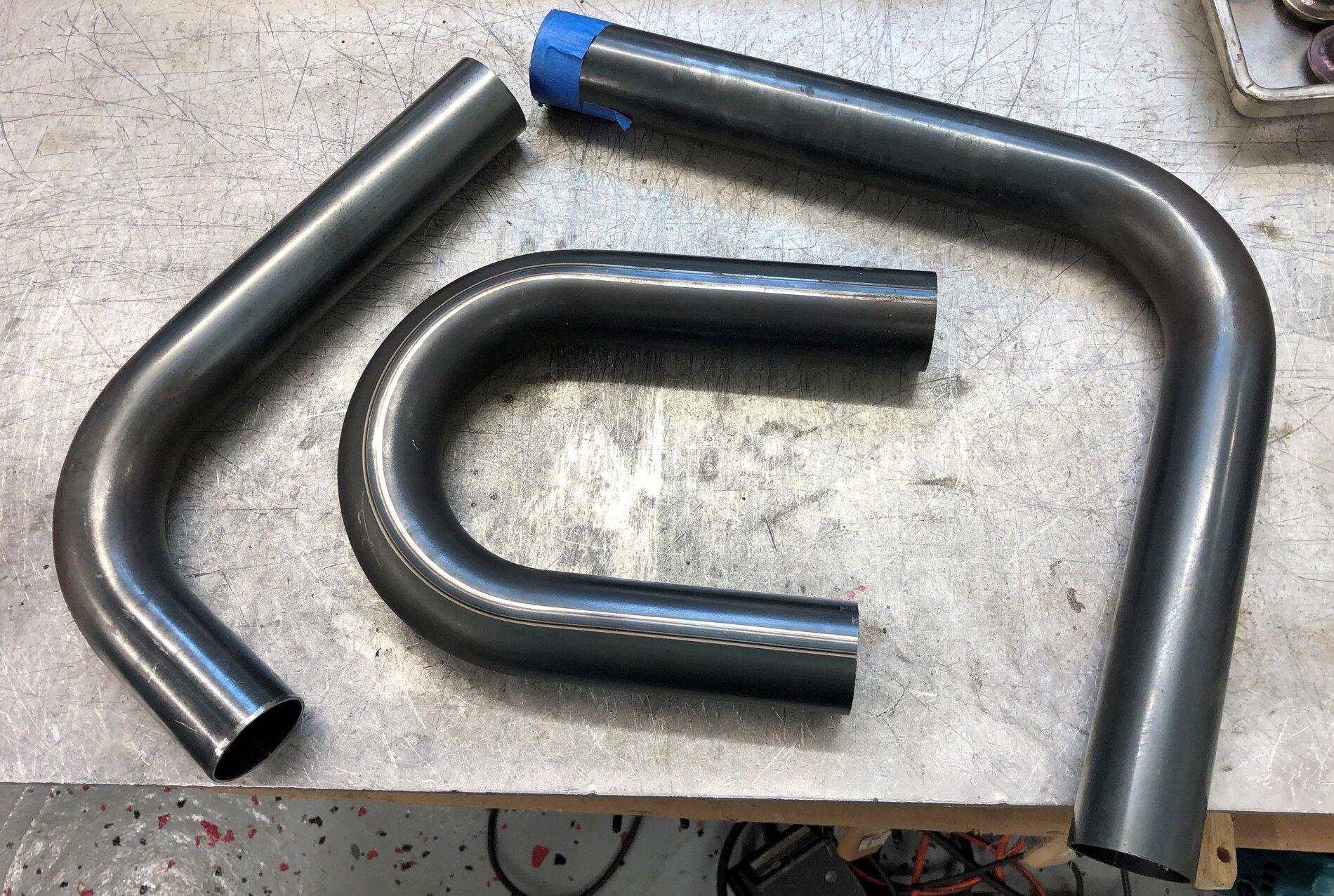

I was wondering the same (Overland plastic bumper) but couldn't get a positive answer. So, while I had my bumper off to paint the front hooks, I fabbed up my own bar with some leftover pipe bends from a prior motorcycle exhaust build.

Of course, this doesn't answer your question so its not too much help. But, I did want to point out that you may want to use some sort of backing plate (see 3rd photo above) to spread out the pressure on the plastic if you bolt one up.

If the Mojave and Overland plastic bumpers are the same, you will see when you attempt this that I bolted through the bumper cover (not too rigid or strong) and then through the inner hard molded plastic (much stronger). Although I was hoping to tie into the metal frame of the bumper, it would have been much more complicated, and this made the mount very rigid anyway.

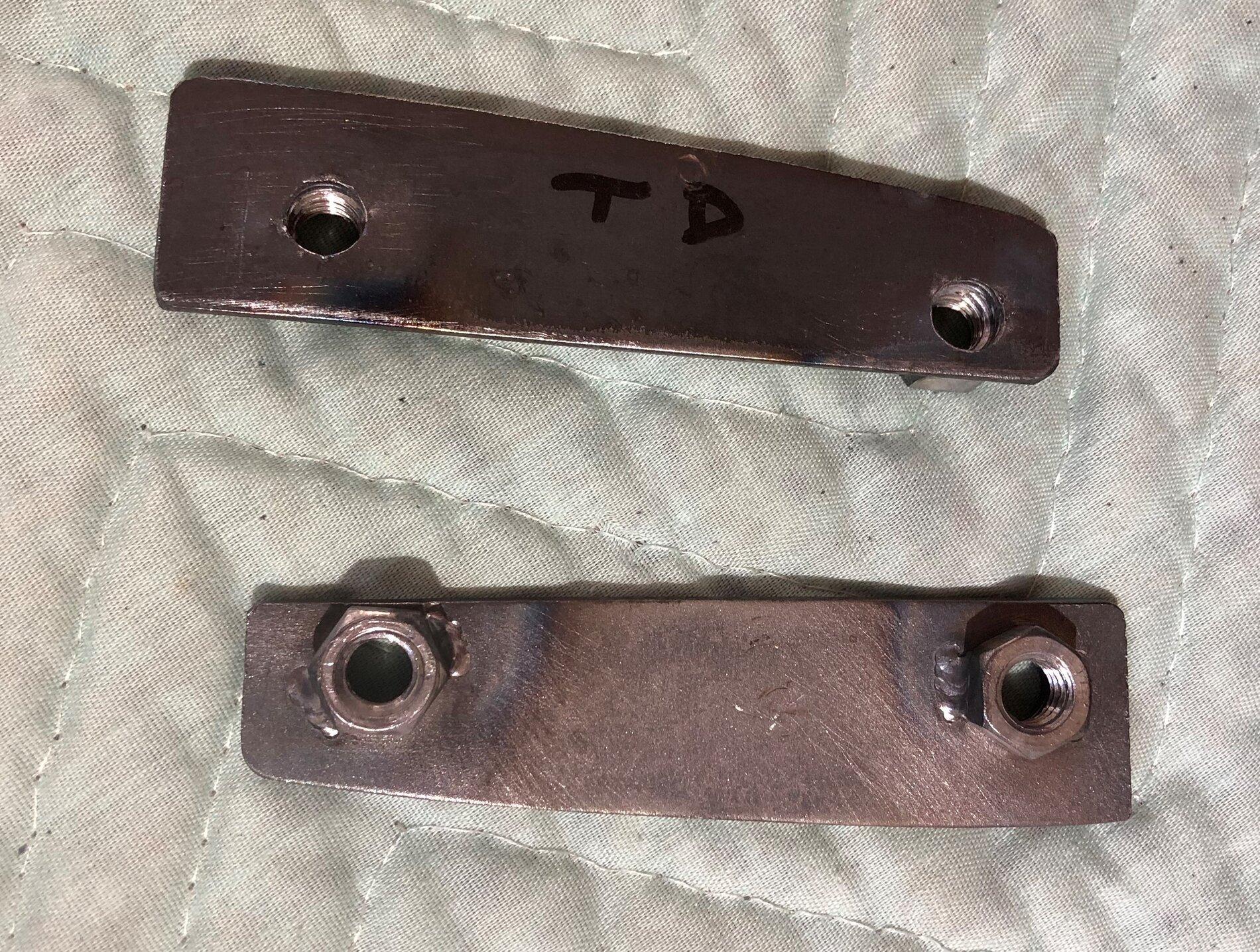

Since I had the bumper off, it was easy to make a template which showed the taper of the pocket the bolts would go through. So, I made some steel backing plates to spread the clamping pressure out (also tacked nuts to the plate so I did not have to hold them while installing but this is not mandatory). Of course, they do not use a backing plate on a metal bumper as its not needed. But you may want to consider making one up for the plastic bumper.

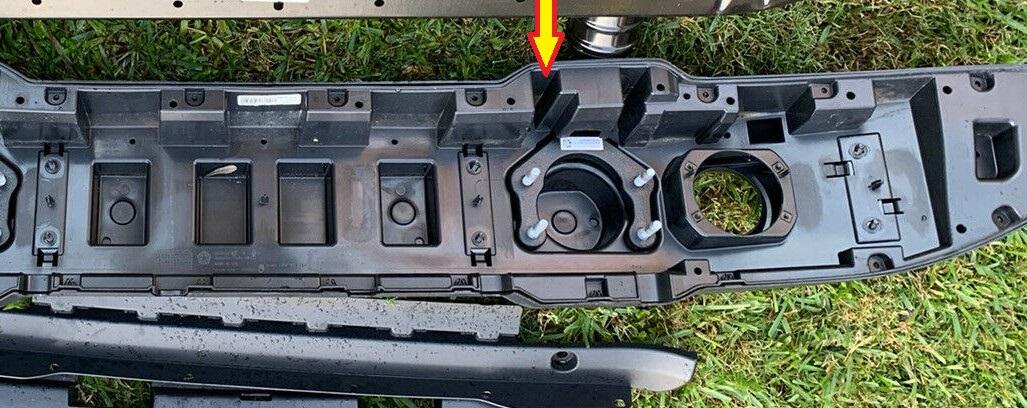

Here's a photo of the back of the bumper's rigid plastic that I swiped off the net to show you where I am referring to:

Anyway, Sorry I couldn't give you a definitive answer but maybe this will still help some.



[ShadowsPapa]

I was wondering the same (Overland plastic bumper) but couldn't get a positive answer. So, while I had my bumper off to paint the front hooks, I fabbed up my own bar with some leftover pipe bends from a prior motorcycle exhaust build.

Of course, this doesn't answer your question so its not too much help. But, I did want to point out that you may want to use some sort of backing plate (see 3rd photo above) to spread out the pressure on the plastic if you bolt one up.

If the Mojave and Overland plastic bumpers are the same, you will see when you attempt this that I bolted through the bumper cover (not too rigid or strong) and then through the inner hard molded plastic (much stronger). Although I was hoping to tie into the metal frame of the bumper, it would have been much more complicated, and this made the mount very rigid anyway.

Since I had the bumper off, it was easy to make a template which showed the taper of the pocket the bolts would go through. So, I made some steel backing plates to spread the clamping pressure out (also tacked nuts to the plate so I did not have to hold them while installing but this is not mandatory). Of course, they do not use a backing plate on a metal bumper as its not needed. But you may want to consider making one up for the plastic bumper.

Here's a photo of the back of the bumper's rigid plastic that I swiped off the net to show you where I am referring to:

Anyway, Sorry I couldn't give you a definitive answer but maybe this will still help some.

VERY nicely done. That looks as good as any commercial mount, IMO - better than some.
Really like the looks of that on the Overland bumper.



[punk'n]

VERY nicely done. That looks as good as any commercial mount, IMO - better than some.
Really like the looks of that on the Overland bumper.

Thank you.

I actually like the Overland bumper, but I was just looking to change it up a little. I didn't need a tank grade front bumper or a huge bar so this was the way to go for me. Plus, I love making things up from leftover parts laying around.



[GSD Guy]

Thank you.

I actually like the Overland bumper, but I was just looking to change it up a little. I didn't need a tank grade front bumper or a huge bar so this was the way to go for me. Plus, I love making things up from leftover parts laying around.

I was wondering the same (Overland plastic bumper) but couldn't get a positive answer. So, while I had my bumper off to paint the front hooks, I fabbed up my own bar with some leftover pipe bends from a prior motorcycle exhaust build.

Of course, this doesn't answer your question so its not too much help. But, I did want to point out that you may want to use some sort of backing plate (see 3rd photo above) to spread out the pressure on the plastic if you bolt one up.

If the Mojave and Overland plastic bumpers are the same, you will see when you attempt this that I bolted through the bumper cover (not too rigid or strong) and then through the inner hard molded plastic (much stronger). Although I was hoping to tie into the metal frame of the bumper, it would have been much more complicated, and this made the mount very rigid anyway.

Since I had the bumper off, it was easy to make a template which showed the taper of the pocket the bolts would go through. So, I made some steel backing plates to spread the clamping pressure out (also tacked nuts to the plate so I did not have to hold them while installing but this is not mandatory). Of course, they do not use a backing plate on a metal bumper as its not needed. But you may want to consider making one up for the plastic bumper.

Here's a photo of the back of the bumper's rigid plastic that I swiped off the net to show you where I am referring to:

Anyway, Sorry I couldn't give you a definitive answer but maybe this will still help some.

No, thank you this is definitely very helpful!! I haven't pulled the bumper off yet to see what is back there so this is a huge help in knowing it's even possible. Looks awesome!! Wish I had the means to weld right now because this would be perfect. Exactly the look I'm going for and definitely don't need a tank front bumper either, like you I like the look of the stock bumper just want to enhance it. Appreciate you taking the time to share!



[Jaxmax]

I guess a winch plate can be made with a backing plate for the winch roller or hawse, why not?....Jack



[punk'n]

No, thank you this is definitely very helpful!! I haven't pulled the bumper off yet to see what is back there so this is a huge help in knowing it's even possible. Looks awesome!! Wish I had the means to weld right now because this would be perfect. Exactly the look I'm going for and definitely don't need a tank front bumper either, like you I like the look of the stock bumper just want to enhance it. Appreciate you taking the time to share!

Not a problem.

If you can get someone who has a 82215351 Grille Guard to measure the distance between the mounting bolts it will give you the answer as you could match the dimensions of the plastic bumper.



[ShadowsPapa]

Not a problem.

If you can get someone who has a 82215351 Grille Guard to measure the distance between the mounting bolts it will give you the answer as you could match the dimensions of the plastic bumper.

You could likely sell a couple of those bars like you made for yourself.......



[punk'n]

I guess a winch plate can be made with a backing plate for the winch roller or hawse, why not?....Jack

I can't see why not. The backer plate would just have to span the width of the tow hooks since they bolt through the metal part of the bumper and to the frame.

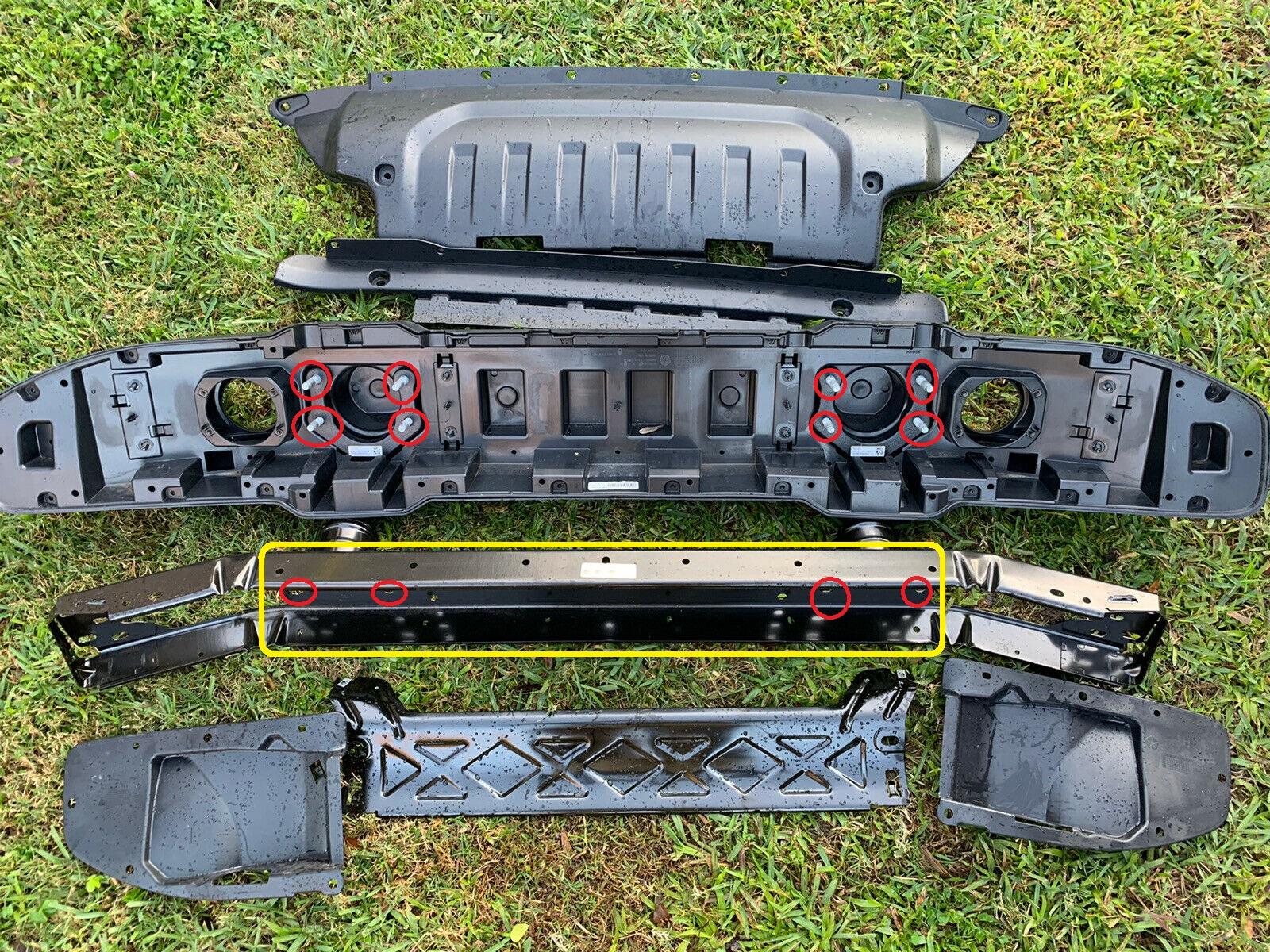

(Below is another pic grabbed of the web to show what I mean. The yellow is to show where plate would be needed and red to show where the hooks bolt through- NOTE four of the holes are not visible in the photo of where the hooks go through the metal of the bumper.)
