Rancho 1.5" LEVEL IT system for the JT

RanchoShocks

Peak Sponsor (Level 2)
Joined
Oct 17, 2016
Messages
36
Reaction score
40
Location
CA
TL/DR
Level your JT and run a 35" tire without any issues.

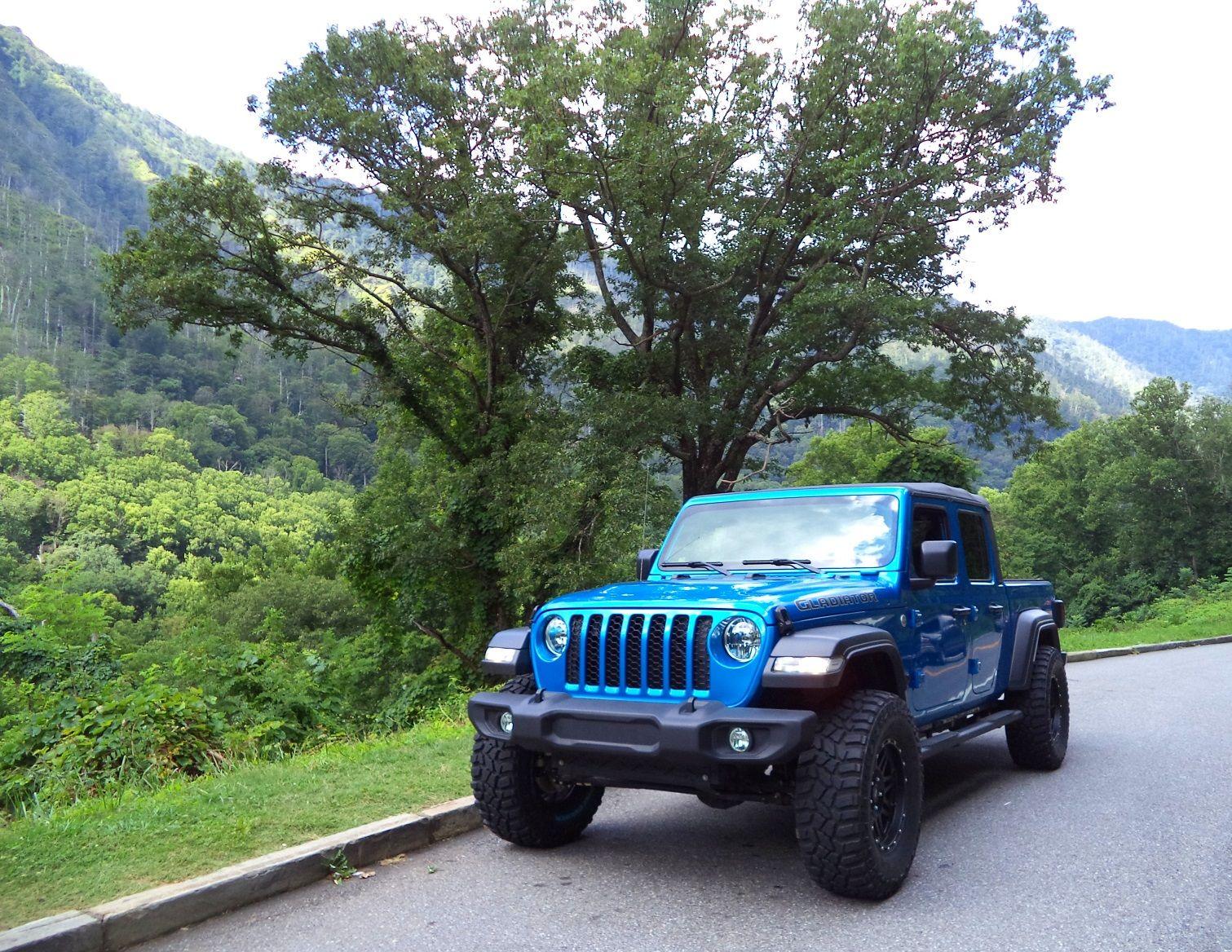

The blue JT is a SPORT S on 35" tires ;)

Experience the versatile, purpose-built Rancho® 1.5-inch “Level It” Suspension Systems for the 2020 Jeep® Gladiator Rubicon. These NEW, 100-percent bolt-on systems from Rancho Performance Suspension and Shocks allow for the use of up to 35-inch tires for capable, all-around performance. The “Level It” System also features a NEW Rancho exclusive innovation to the Jeep Gladiator: Rancho RS9000™XL Shocks with brandnew Dynamic Rebound Spring (DRS) Technology. The new DRS Technology is a unique internal system that includes a precisely tuned metal spring and fortified interior construction to provide additional control, reduce body roll and prevent rod overextension inside the shock. These new systems include a pair of front corner-specific progressive rate coil springs, specifically tuned to provide superior on-road comfort and off-road performance. The corner-specific springs ensure your Jeep Gladiator Rubicon maintains a perfectly level stance and ride. To maintain travel integrity, the 1.5-in. Level It System includes front 2-inch bump stop extensions, and front extended length sway bar end links. These systems are precision engineered to be 100-percent compatible with the Jeep Factory Electronic Stability System. Designed with 35-inch tires and 17-inch wheels with 4.5-inch of backspacing. Kits also allow the reuse of OE wheels and tires. Backed by a Limited Lifetime Warranty. Finish the kit with an optional set of rear RS9000™XL Shocks.
  • Includes front Rancho® RS9000™X shocks with Dynamic Rebound Spring (DRS) technology
  • Front bump stop extensions; front extended sway bar end links
  • Designed with 35-inch tires**
  • Compatible with OE wheels and tires
  • Installs easily – 100-percent bolt-on system and detailed, full-color installation guide included!
**Trimming or modification could be required to provide proper clearance for the 35” development wheel and tire. Actual tire size varies between manufacturers.

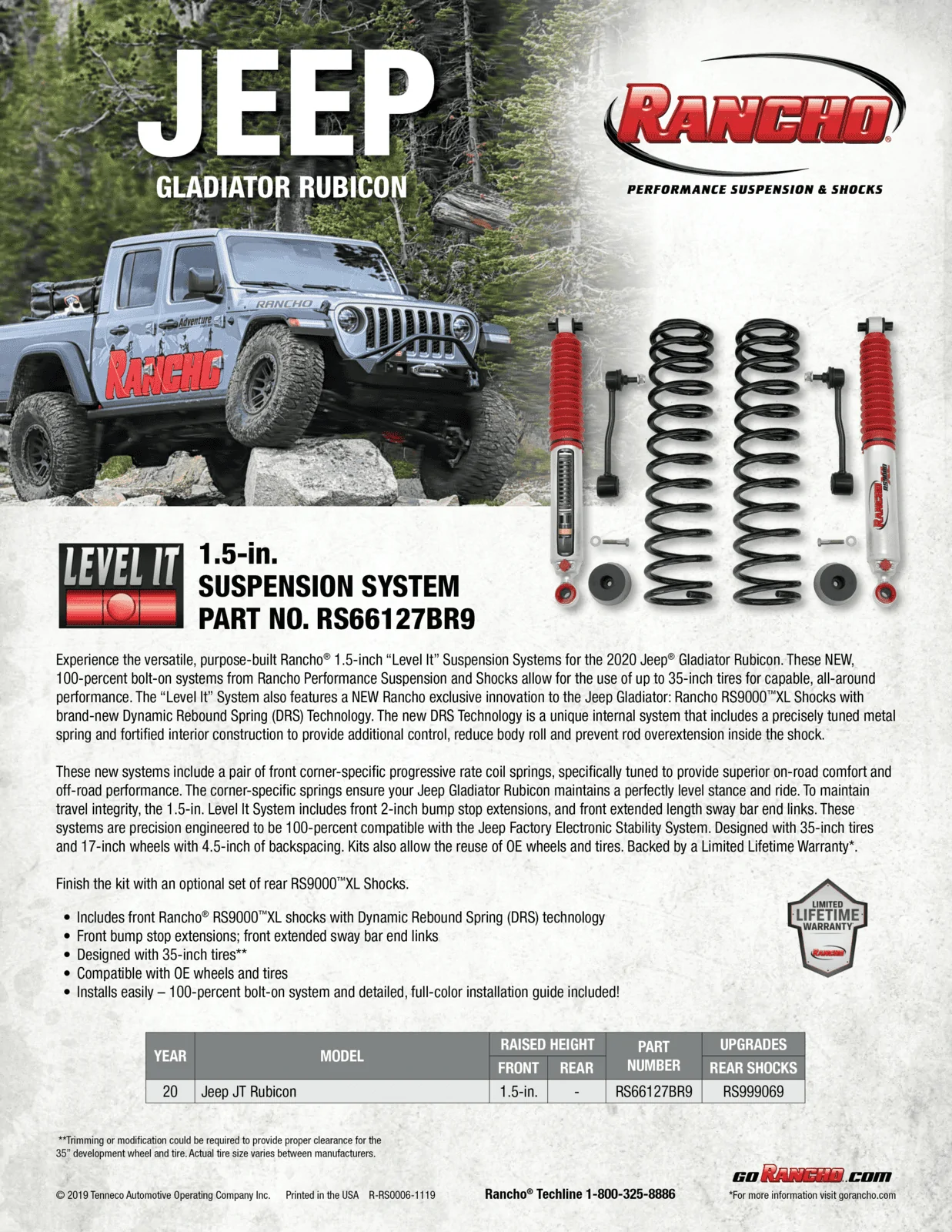

Jeep Suspension Kit RS66127BR9_SellSheet_120319.png


Advertisement



unsocbl

Well-Known Member
First Name
James
Joined
Aug 8, 2020
Messages
329
Reaction score
576
Location
Charlotte TN
Vehicle(s)
2021 Gladiator Mojave

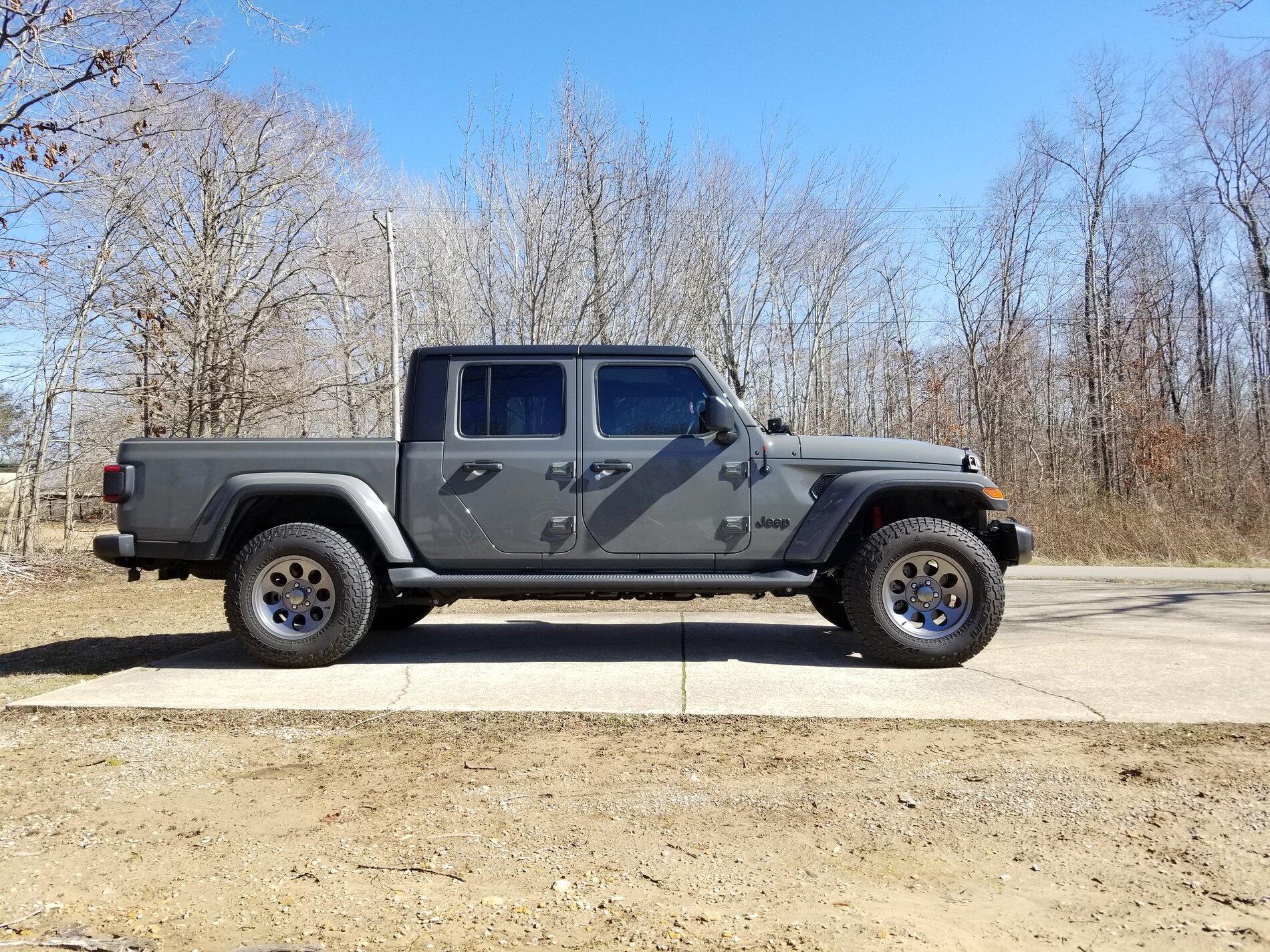

Not affiliated with Rancho, but did use their LevelIt! kit (RS5000 shocks) and love it (pic below with 33" Falken AT's)! Are there RS5000 shocks available now for the Gladiator? Or just the RS9000?

OP
OP
RanchoShocks

RanchoShocks

Peak Sponsor (Level 2)
Joined
Oct 17, 2016
Messages
36
Reaction score
40
Location
CA
Nice!! Looks great and leveled!
For out back
RS55069 OR RS999069 :)

Not affiliated with Rancho, but did use their LevelIt! kit (RS5000 shocks) and love it (pic below with 33" Falken AT's)! Are there RS5000 shocks available now for the Gladiator? Or just the RS9000?


InvertedLogic

Well-Known Member
Joined
Aug 2, 2018
Messages
245
Reaction score
256
Location
Denver, CO
Vehicle(s)
20 JTR
I wish this came with some new rear springs as well! I find the rear stock Rubi springs to be super soft. Paired with low damping its a bit boat like back there.

OP
OP
RanchoShocks

RanchoShocks

Peak Sponsor (Level 2)
Joined
Oct 17, 2016
Messages
36
Reaction score
40
Location
CA
So... folks are running our HD rear springs (and longer shock) but that is suggested with a constant(ISH) load. :)

I wish this came with some new rear springs as well! I find the rear stock Rubi springs to be super soft. Paired with low damping its a bit boat like back there.


gpwrang33

Well-Known Member
Joined
Aug 2, 2020
Messages
90
Reaction score
66
Location
Albany, N.Y.
Vehicle(s)
2000 TJ 2019 Mitsu Outlander 2021 Hydro Blue JTSS MAX TOW
I purchased this level it system awhile ago and haven't had a chance to put it on but as I was looking over the parts the springs don't have any part numbers. How can I tell which one is which? I'd hate to put it all in and find out I mixed the springs.

OP
OP
RanchoShocks

RanchoShocks

Peak Sponsor (Level 2)
Joined
Oct 17, 2016
Messages
36
Reaction score
40
Location
CA
There is no tag on the coil springs?

RS865B left front
RS866B right front

I purchased this level it system awhile ago and haven't had a chance to put it on but as I was looking over the parts the springs don't have any part numbers. How can I tell which one is which? I'd hate to put it all in and find out I mixed the springs.


gpwrang33

Well-Known Member
Joined
Aug 2, 2020
Messages
90
Reaction score
66
Location
Albany, N.Y.
Vehicle(s)
2000 TJ 2019 Mitsu Outlander 2021 Hydro Blue JTSS MAX TOW

gpwrang33

Well-Known Member
Joined
Aug 2, 2020
Messages
90
Reaction score
66
Location
Albany, N.Y.
Vehicle(s)
2000 TJ 2019 Mitsu Outlander 2021 Hydro Blue JTSS MAX TOW
There is no tag on the coil springs?

RS865B left front
RS866B right front
ok so i looked again and the part number is painted on the springs in the middle of them. i was looking for a paper sticker tag or a stamped number towards the ends. so i am good on the springs. all i need now is some time to do the install.

OP
OP
RanchoShocks

RanchoShocks

Peak Sponsor (Level 2)
Joined
Oct 17, 2016
Messages
36
Reaction score
40
Location
CA
YES! This!! We print it on the coil spring now :)
Thanks for the reminder.

ok so i looked again and the part number is painted on the springs in the middle of them. i was looking for a paper sticker tag or a stamped number towards the ends. so i am good on the springs. all i need now is some time to do the install.


mbbq22

Active Member
First Name
M
Joined
Oct 31, 2019
Messages
34
Reaction score
39
Location
DE
Vehicle(s)
2020 Gladiator Rubicon
I was thinking about replacing my teraflex 1.5" spacer leveling kit with this rancho kit. I would likely put a 1" spacer in the rear and add some RS9000 shocks there also... Can you tell me if I may gain a bit more than 1.5" if I'm still with the stock bumper and no winch? Honestly, I've been looking for something a little bit more than 1.5" but not sure I want a 2.5" kit that will likely net me 3"... Let me know your thoughts.

OP
OP
RanchoShocks

RanchoShocks

Peak Sponsor (Level 2)
Joined
Oct 17, 2016
Messages
36
Reaction score
40
Location
CA
It will be More than the 1.5 on a stock suspension but not much over 2.25"
With a bumper/winch pretty true to stated height.
Thanks for your patience on this, was in Moab last week.


I was thinking about replacing my teraflex 1.5" spacer leveling kit with this rancho kit. I would likely put a 1" spacer in the rear and add some RS9000 shocks there also... Can you tell me if I may gain a bit more than 1.5" if I'm still with the stock bumper and no winch? Honestly, I've been looking for something a little bit more than 1.5" but not sure I want a 2.5" kit that will likely net me 3"... Let me know your thoughts.
