So I bought the Rancho differential guards after scraping a lot on the last trail. They have a front skid listed for the gladiator, but it says it fits a Dana 30. As far as I know, all gladiators have a Dana 44 on the front. So I ordered the RS62116 for the front. Bolted up perfectly, but the U-bolt was way too short. I just got a longer u-bolt at the hardware store. Rear (RS62117) fit fine.

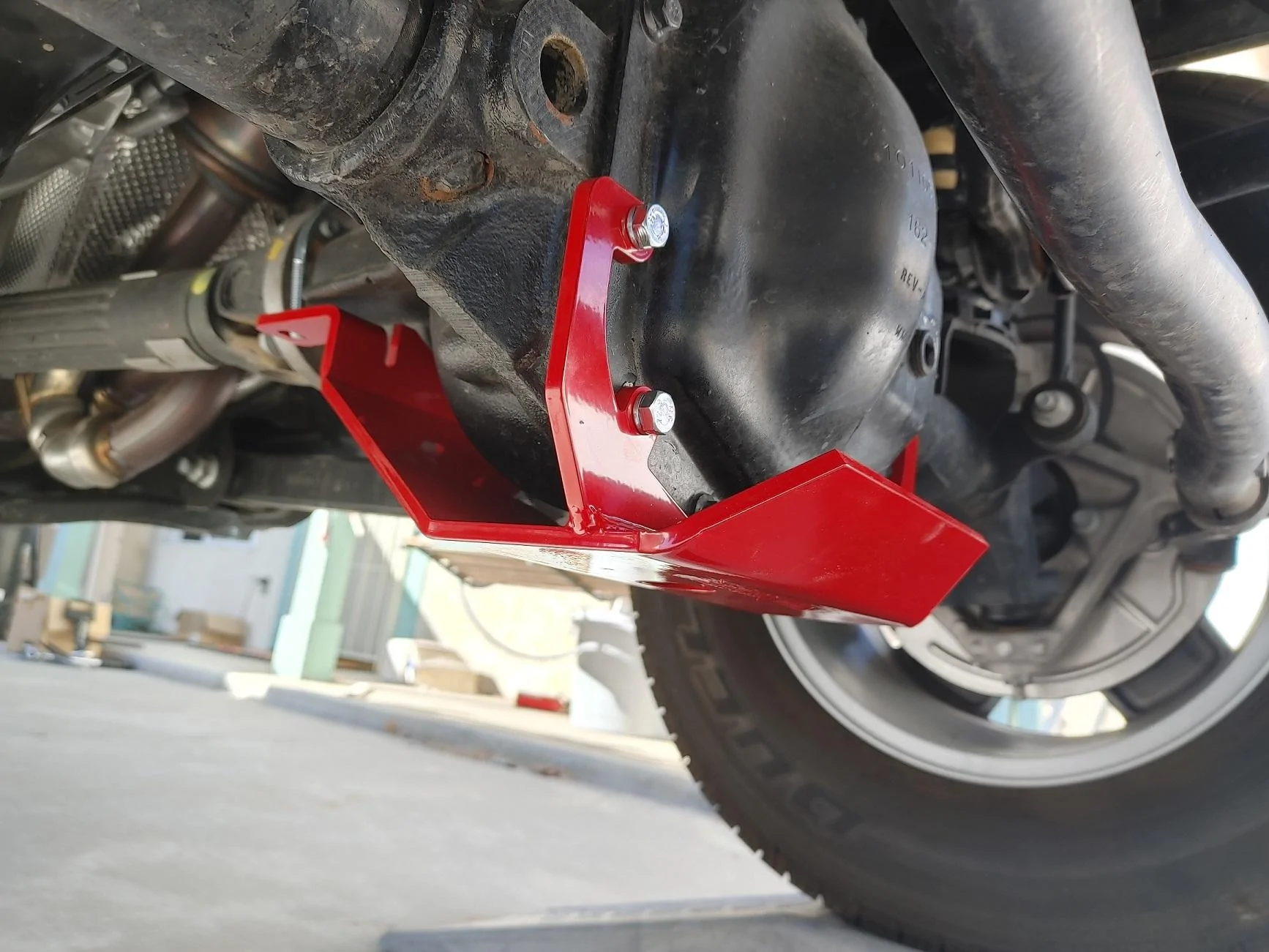

Jeep Gladiator Rancho differential guards 0109211402b_HDR

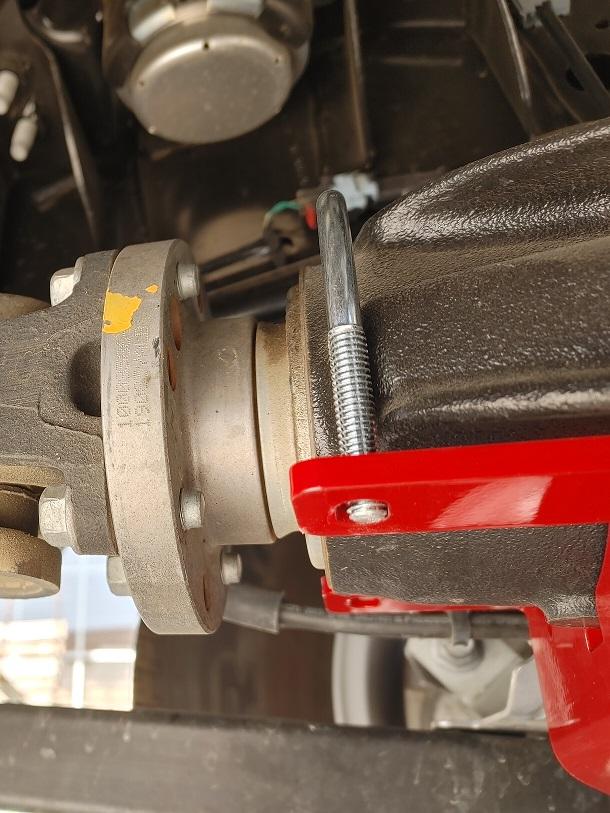

Jeep Gladiator Rancho differential guards 0109211402a_HDR
Sponsored



RodRecket

Well-Known Member
Joined
Sep 13, 2019
Threads
27
Messages
989
Reaction score
1,235
Location
Minnesota
Vehicle(s)
2021 AEV JT370
Good info, thanks for posting part numbers. Have a shot of the rear guard?


Koja

Well-Known Member
First Name
Jeff
Joined
Sep 28, 2019
Threads
21
Messages
204
Reaction score
218
Location
USA
Vehicle(s)
2020 Hydra Blue Gladiator (LEMON), 2021 Hydra blueJT 04 Rubicon, 04 Ultra classic
Occupation
Retired Sailor, what ever i can scrape together

RodRecket

Well-Known Member
Joined
Sep 13, 2019
Threads
27
Messages
989
Reaction score
1,235
Location
Minnesota
Vehicle(s)
2021 AEV JT370
that is the rear diff, hes missing the front diff
mmm looks like the exhaust loop and tie rod is in the first pic. I could be wrong but I think thats the front end....

Are there two loops in our exhaust!? :LOL:


Koja

Well-Known Member
First Name
Jeff
Joined
Sep 28, 2019
Threads
21
Messages
204
Reaction score
218
Location
USA
Vehicle(s)
2020 Hydra Blue Gladiator (LEMON), 2021 Hydra blueJT 04 Rubicon, 04 Ultra classic
Occupation
Retired Sailor, what ever i can scrape together
or i'm wrong, not the first time


Sponsored

OP
OP
Sespe

Sespe

Well-Known Member
Joined
Sep 17, 2019
Threads
9
Messages
247
Reaction score
498
Location
California
Vehicle(s)
Sport S
Occupation
Retired Firefighter
Yes, that was the front. Here's a couple more shots of them.

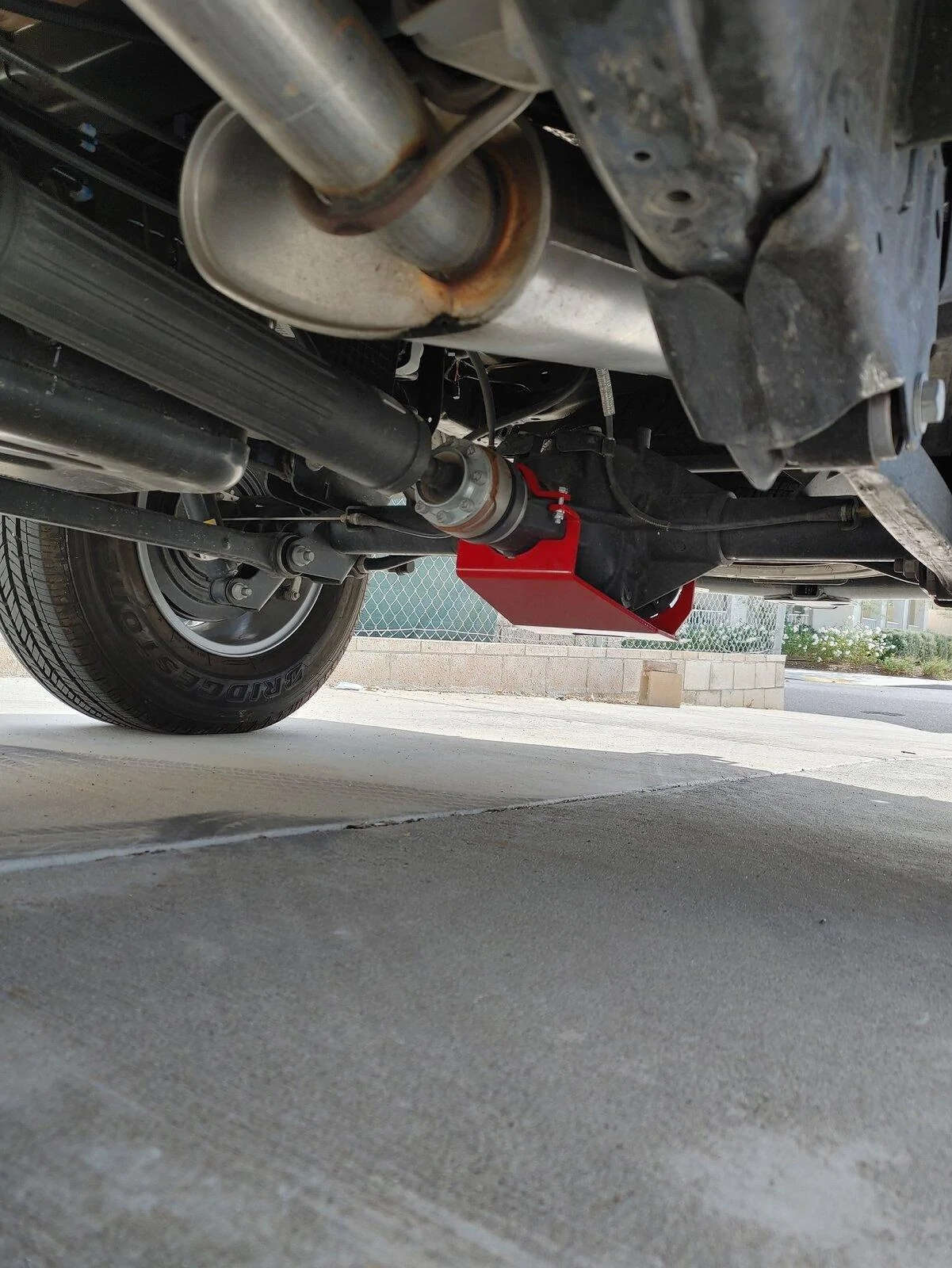

Jeep Gladiator Rancho differential guards 0110211145a_HDR

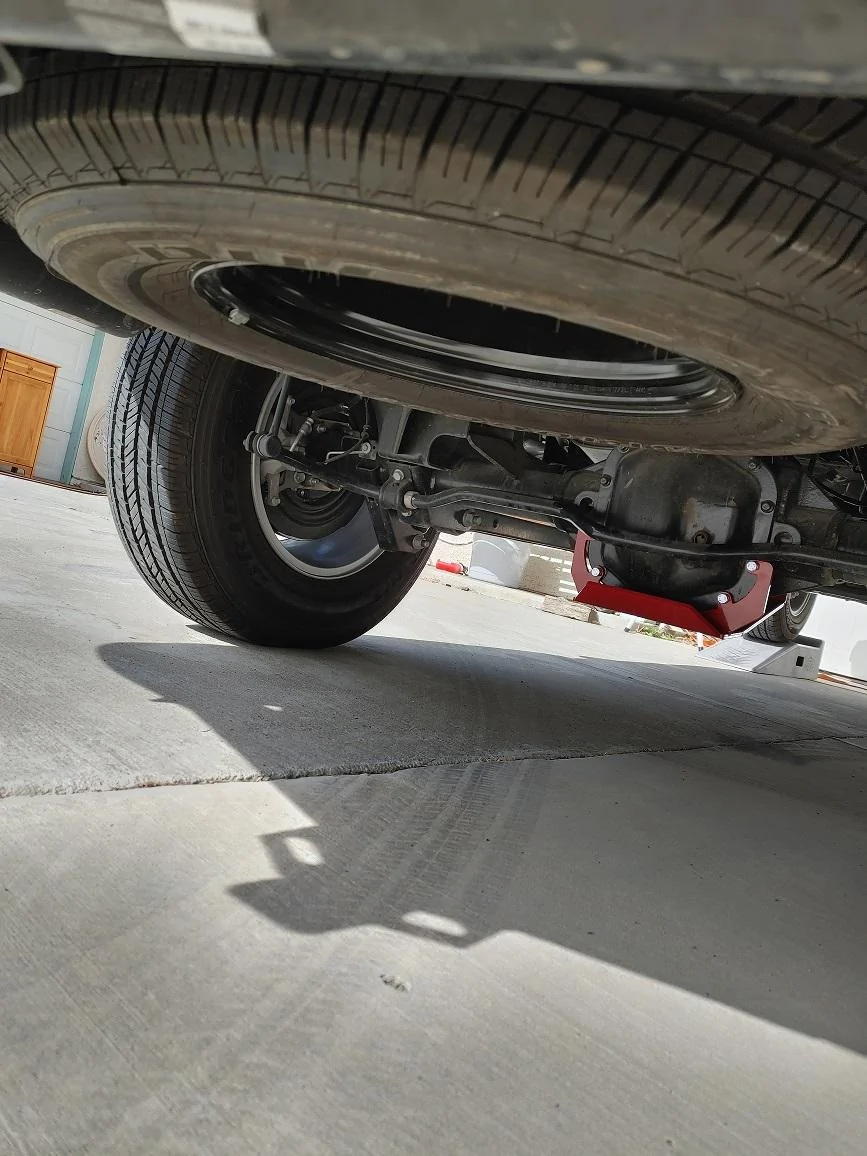

Jeep Gladiator Rancho differential guards 0110211145b_HDR

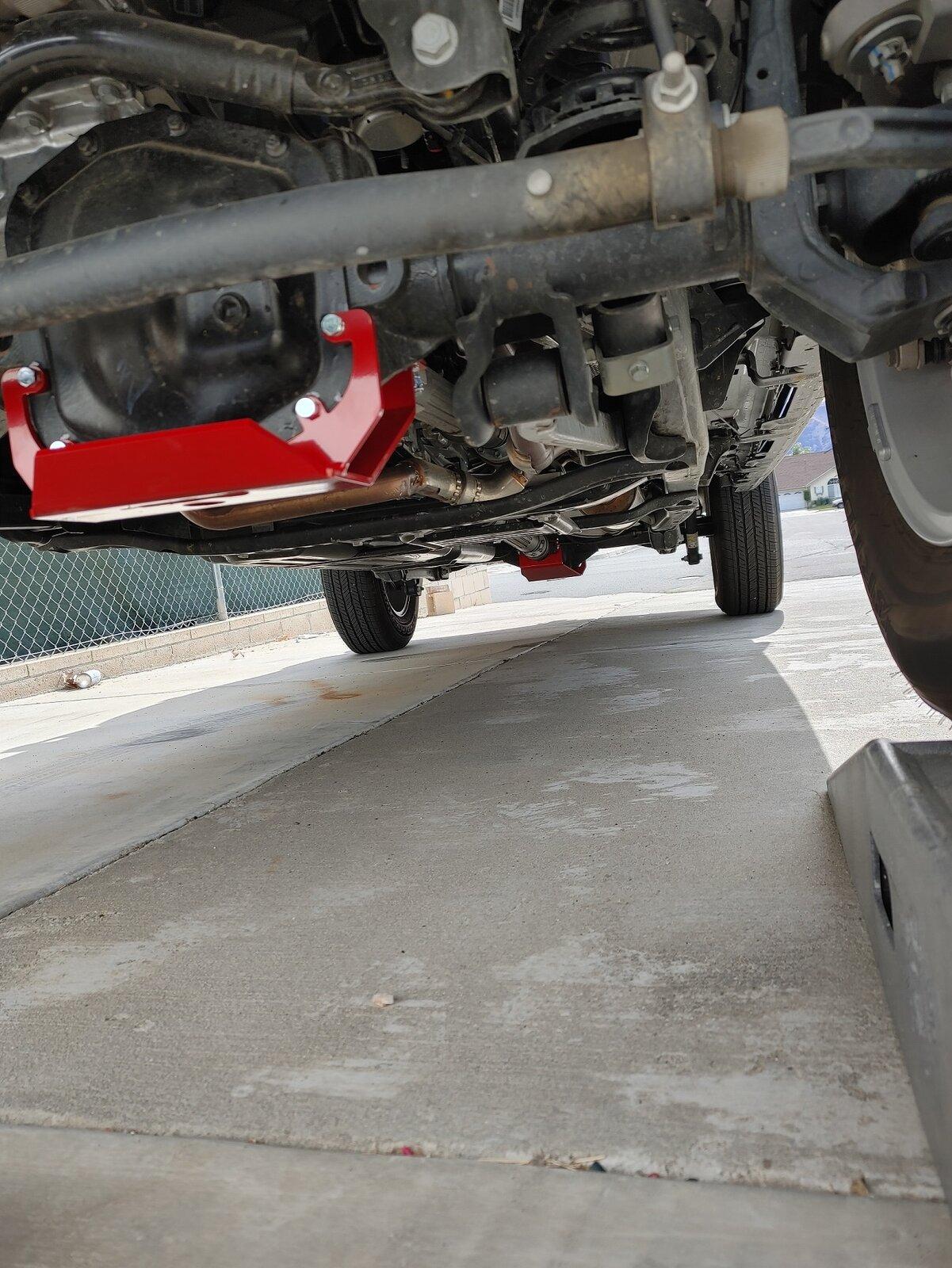

Jeep Gladiator Rancho differential guards 0110211144_HDR


RodRecket

Well-Known Member
Joined
Sep 13, 2019
Threads
27
Messages
989
Reaction score
1,235
Location
Minnesota
Vehicle(s)
2021 AEV JT370
looks like pretty solid protection. thanks for the additional pics


mtudb24

Well-Known Member
First Name
Todd
Joined
Jul 26, 2020
Threads
72
Messages
664
Reaction score
1,071
Location
Michigan
Vehicle(s)
2021 Gladiator Sport S Max Tow
Occupation
Engineering Manager
Vehicle Showcase
1
I had front and rear on my JKUR and they were great. Will be buying soon for the gladiator


kevman65

Well-Known Member
Joined
Mar 8, 2020
Threads
44
Messages
3,021
Reaction score
4,138
Location
H
Vehicle(s)
J
Rancho is a sponsor here on the Board and they have a presence here.

Drop him a message, he won't bite.
