random noise from right front wheel area ( video )

[JEEP_jt_Ssang]

Anyone else have a random pulsing noise coming from the right front like this?

It's 2020 JT and I get JT on this Nov. 13.

This noise occurs at random times and for a short period of seconds when drive slowly.
When driving down the road, I get a loud pulsing noise from the right front.
Speed change does no affect it, turning does not affect it, braking does not affect it.

Anyone knows which part have problem?

Thanks

Sponsored



[davetha]

It sounds like a Walrus dying under your Jeep. It sounds like it could be an issue with the font axle disconnect which is on the passenger side.

What happens if you put it in 4 wheel high? Does the sound go away?



[JEEP_jt_Ssang]

It sounds like a Walrus dying under your Jeep. It sounds like it could be an issue with the font axle disconnect which is on the passenger side.

What happens if you put it in 4 wheel high? Does the sound go away?

When 4 wheel high, it's disappeared.

And when turning left with maximum steering angle, and then sounds occur loudly when I drive with backward gear.



[davetha]

Ok. I listened to the noise a few times. It definitely kind of sounds like maybe the axle shaft rubbing the fad collar..

It might be worth it to unbolt the fad box behind the axle to inspect it, it bring it to the dealer.



[Blade1668]

You probably need to check the "FAD" it may not be fully connecting or disconnecting. The "front axle disconnect" FAD system has been problematic in the past when it was know as "CAD" center axle disconnect but done to assist with getting better fuel mileage.
Being the short time you've had it the dealership should be first to deal with it.



[j.o.y.ride]

Why are you killing whales under your truck?



[Achenxx8]

Any updates on your case?
Mine is a 2021 Rubicon and I started to have the same noise coming from the front today. Sadly.. will be going to the dealer next week



[Suburban Mojave]

Anyone else have a random pulsing noise coming from the right front like this?

It's 2020 JT and I get JT on this Nov. 13.

This noise occurs at random times and for a short period of seconds when drive slowly.
When driving down the road, I get a loud pulsing noise from the right front.
Speed change does no affect it, turning does not affect it, braking does not affect it.

Anyone knows which part have problem?

Thanks

Did you ever get this resolved?
I have a 2021 Mojave and getting exactly the same sound.
Dealer seem to think its brake caliper but I'm not convinced that is what it is.
Just want to explore all resolutions before they start randomly replacing parts.
Thanks in advance.
Ryan.



[cayman42]

I had the same noise, This is what I did.

I have a 2021 Mojave with 1100 miles with the same issue, rubbing and grinding.
I took it in to the dealer and they said there going to replace the intermediate shaft.
The only problem is the shaft is on national backorder so they don't know when there getting the part. Maybe 1-3 months, I was so pissed off after spending close to 60K all in.
I then did some research and found out a lot of people are having this problem.
I wasn't going to wait for them, I found the Bushing (Mopar part # 05252686) and replaced it on the shaft and greased it up myself. I drove the truck 100+ miles today and no more rubbing or grinding. So far so good.



[Tazzy]

I had the same noise, This is what I did.

I have a 2021 Mojave with 1100 miles with the same issue, rubbing and grinding.
I took it in to the dealer and they said there going to replace the intermediate shaft.
The only problem is the shaft is on national backorder so they don't know when there getting the part. Maybe 1-3 months, I was so pissed off after spending close to 60K all in.
I then did some research and found out a lot of people are having this problem.
I wasn't going to wait for them, I found the Bushing (Mopar part # 05252686) and replaced it on the shaft and greased it up myself. I drove the truck 100+ miles today and no more rubbing or grinding. So far so good.

How hard was it to replace? I have the same jeep



[coastiej171]

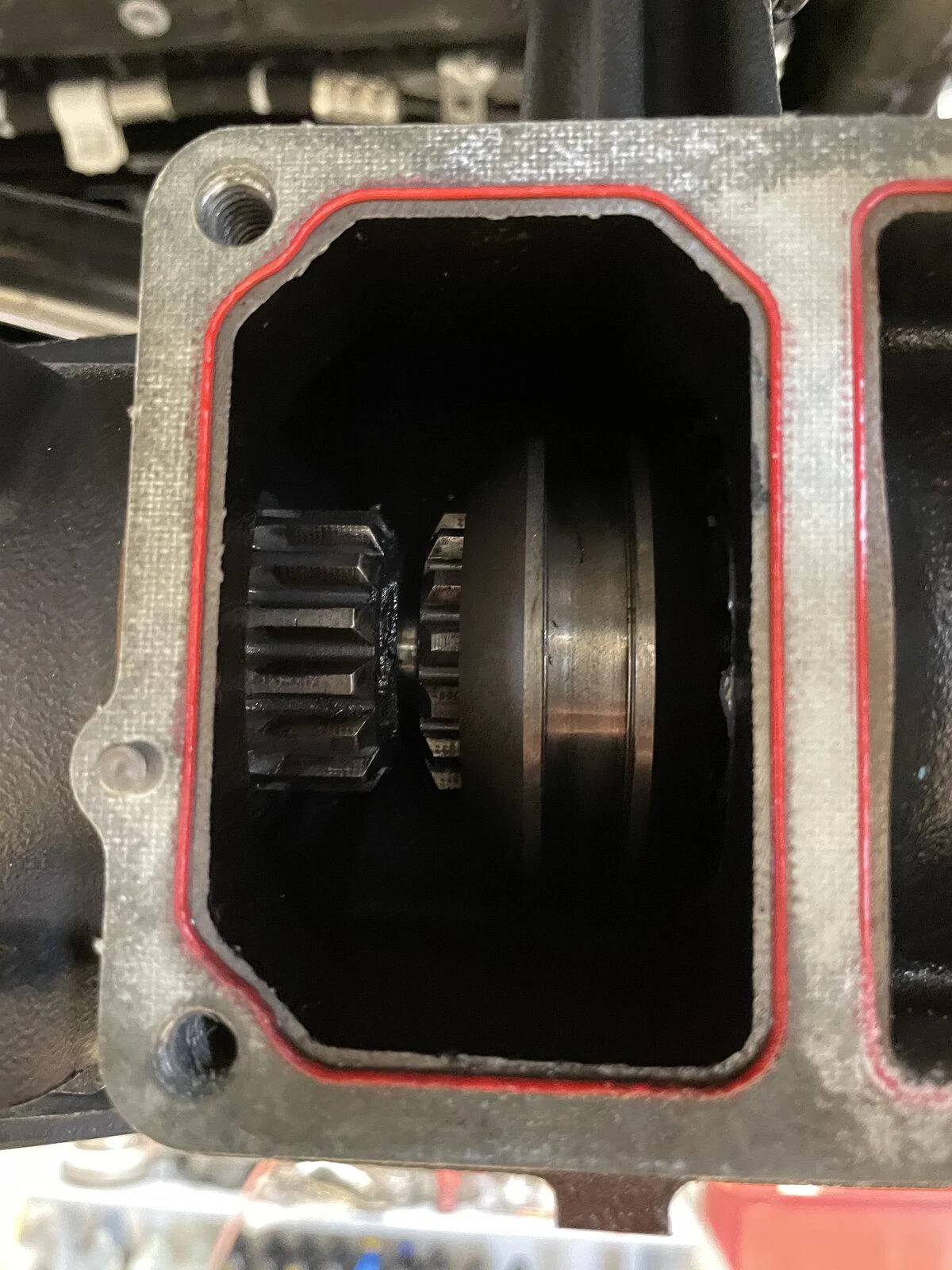

So I myself have a front end noise. It started occurring with only 2500 miles as a squeaking or creaking noise from what sounded like the front right side. It almost sounded like a caliper sticking. After taking it to the dealership and having both calipers and brakes replaced. As soon as I drove off the lot, the same problem existed. I continued driving it to see if the problem would progressively get worse. Eventually it turned to a “tire rub” or “ABS” noise at higher speeds. Long story, I took my jeep back to the dealer this week (6500 miles) and what they found was that the plastic bushing in the electronic 4WD is improperly wearing. There are dozens of STAR cases that jeep knows about, however it doesn’t come up as a TSB when searched for.



[coastiej171]

I had the same noise, This is what I did.

I have a 2021 Mojave with 1100 miles with the same issue, rubbing and grinding.
I took it in to the dealer and they said there going to replace the intermediate shaft.
The only problem is the shaft is on national backorder so they don't know when there getting the part. Maybe 1-3 months, I was so pissed off after spending close to 60K all in.
I then did some research and found out a lot of people are having this problem.
I wasn't going to wait for them, I found the Bushing (Mopar part # 05252686) and replaced it on the shaft and greased it up myself. I drove the truck 100+ miles today and no more rubbing or grinding. So far so good.

Damn, thanks for the info. I’m also wondering how difficult it was to replace



[cayman42]

Damn, thanks for the info. I’m also wondering how difficult it was to replace

It wasn't hard at all, you tube is your friend!



[cayman42]

How hard was it to replace? I have the same jeep

Not hard at all.



[tysongladiator]

It sounds like a Walrus dying under your Jeep. It sounds like it could be an issue with the font axle disconnect which is on the passenger side.

What happens if you put it in 4 wheel high? Does the sound go away?

Not trying to be funny during an unfortunate situation and it hope he gets his issue fixed and taken care of. But, Walrus?!
