In the process of installing a Clayton Overland+ 3.5" lift on my 2021 JTOD. I'm getting ready to drop the rear axle and trying to figure out what this hose is and if it's ok to disconnect it?
It attaches to the axle and then runs up to a plastic clip where it attaches to the underside of the bed. I lose sight of it after that.

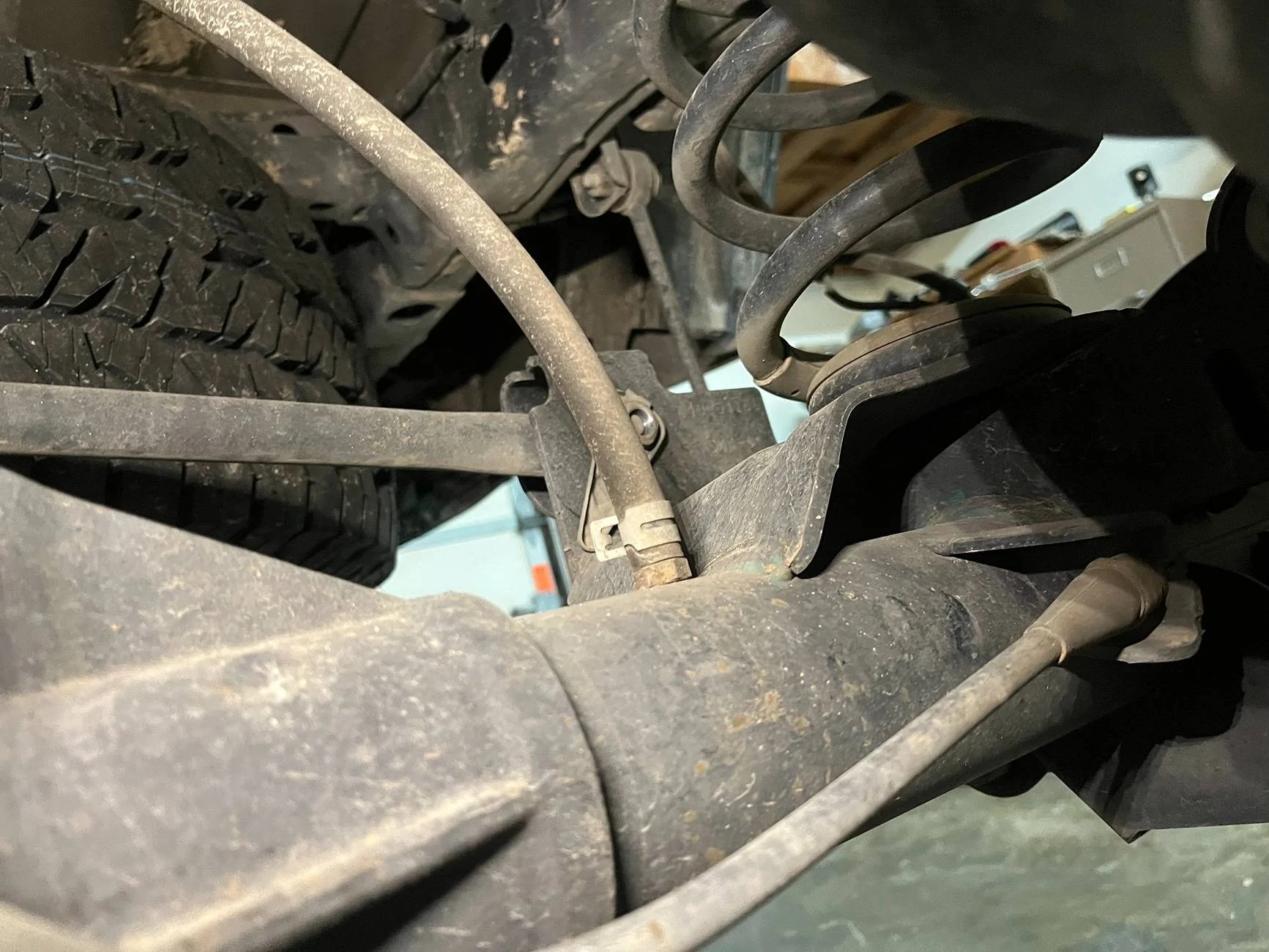

Jeep Gladiator Rear Axle Hose IMG_9871

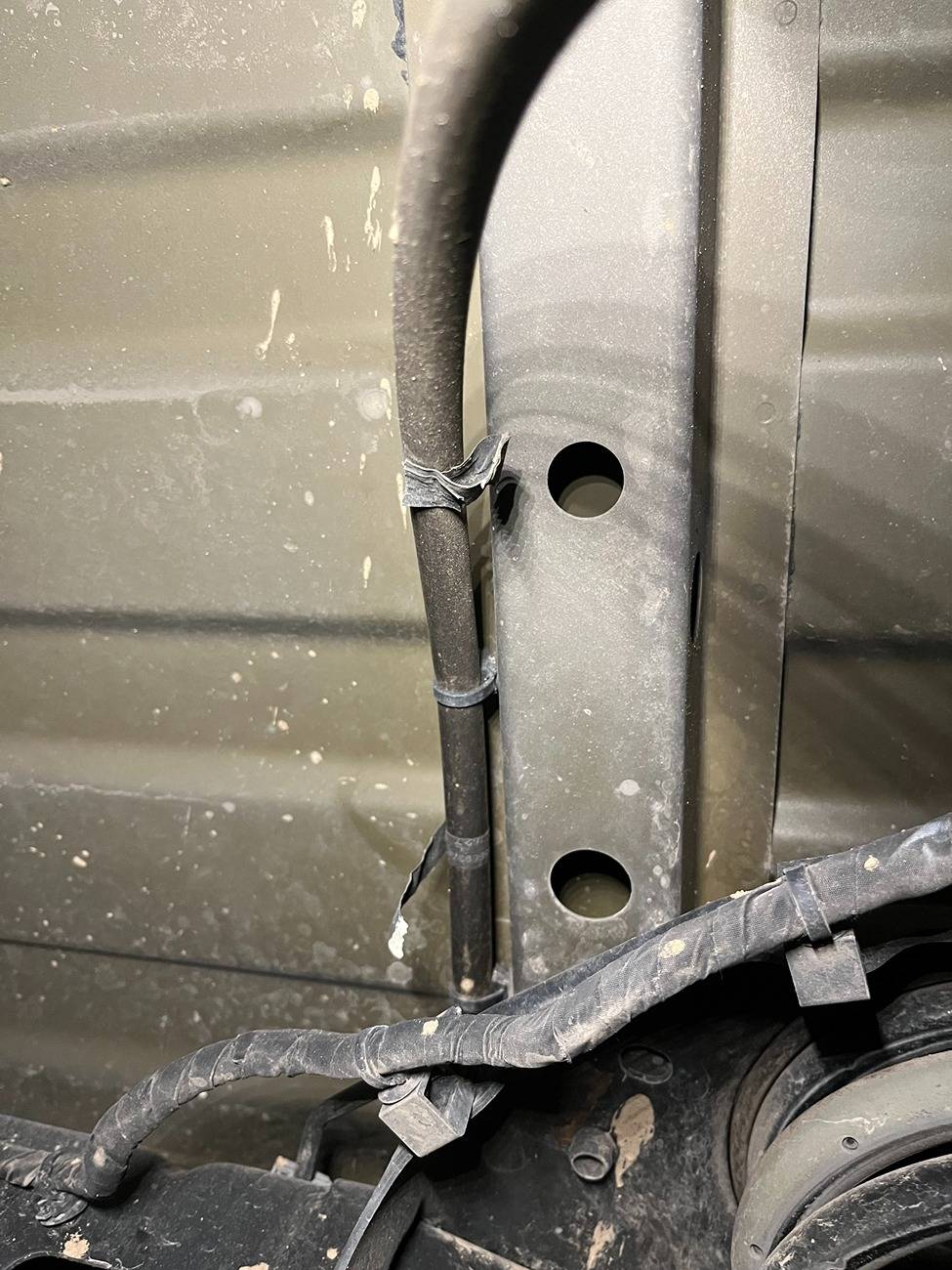

Jeep Gladiator Rear Axle Hose IMG_9872
Sponsored



Rusty PW

Well-Known Member
First Name
Russ
Joined
Jan 10, 2022
Threads
24
Messages
8,271
Reaction score
20,538
Location
Fayette Nam, Pennsyltucky
Website
www.youtube.com
Vehicle(s)
'22 JTRD, '11 370Z Nismo, '07 Honda VFR
Build Thread
Link
Occupation
Muff Diver
It's the breather hose for the axle. Yes you can unclip it. But remember to install it once you're finished.

OP
OP

JTL21

Active Member
Joined
Jun 3, 2024
Threads
4
Messages
37
Reaction score
32
Location
AR
Vehicle(s)
2021 JT Overland Diesel
Occupation
Engineer
It's the breather hose for the axle. Yes you can unclip it. But remember to install it once you're finished.
Thanks, I'll be back at it in the morning!


jac04

Well-Known Member
First Name
Jeff
Joined
Apr 20, 2021
Threads
26
Messages
1,433
Reaction score
2,040
Location
CT
Vehicle(s)
2021 Mojave, 2014 JKRX SWB
Also check to make sure that the breather hose has a little bit of slack at full suspension droop after the lift installation. You don't want that hose being pulled off while wheeling.


kevman65

Well-Known Member
Joined
Mar 8, 2020
Threads
50
Messages
3,694
Reaction score
5,384
Location
H
Vehicle(s)
J
Do not remove the hose. Just unclip what you need for enough slack.

That's how the axle vents.
