Rear Drive Shaft Replacement, Tips Appreciated

[WILDHOBO]

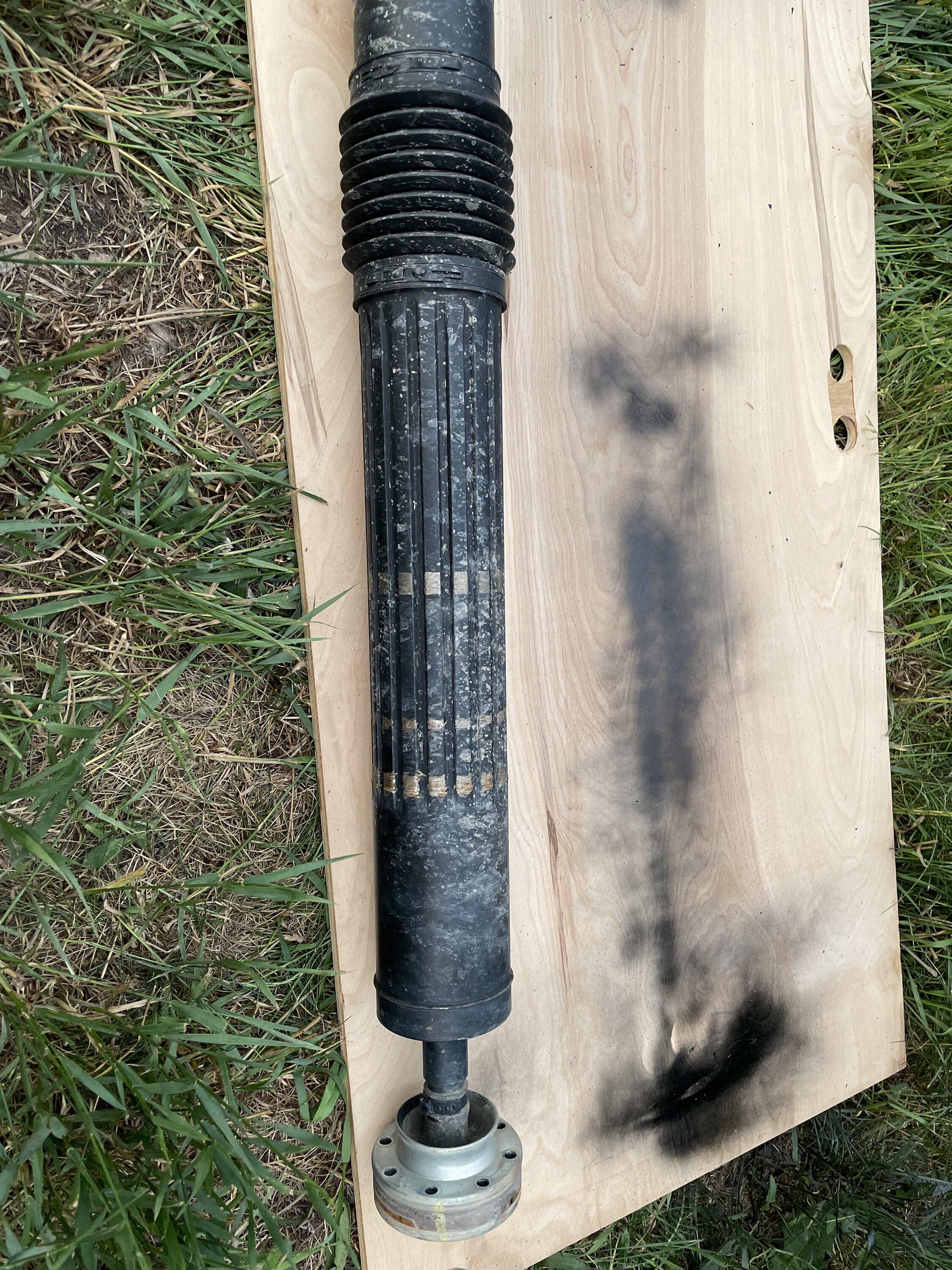

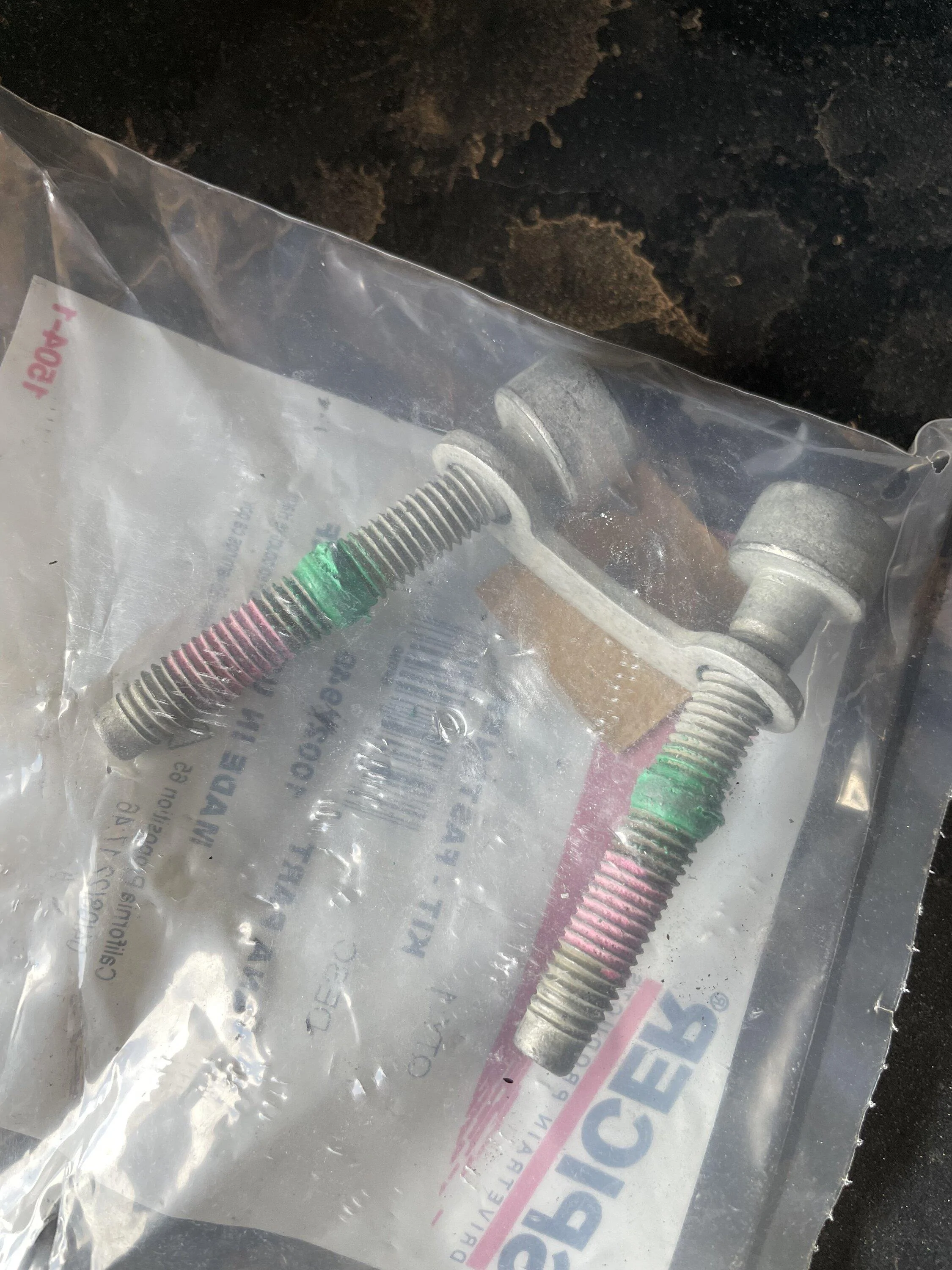

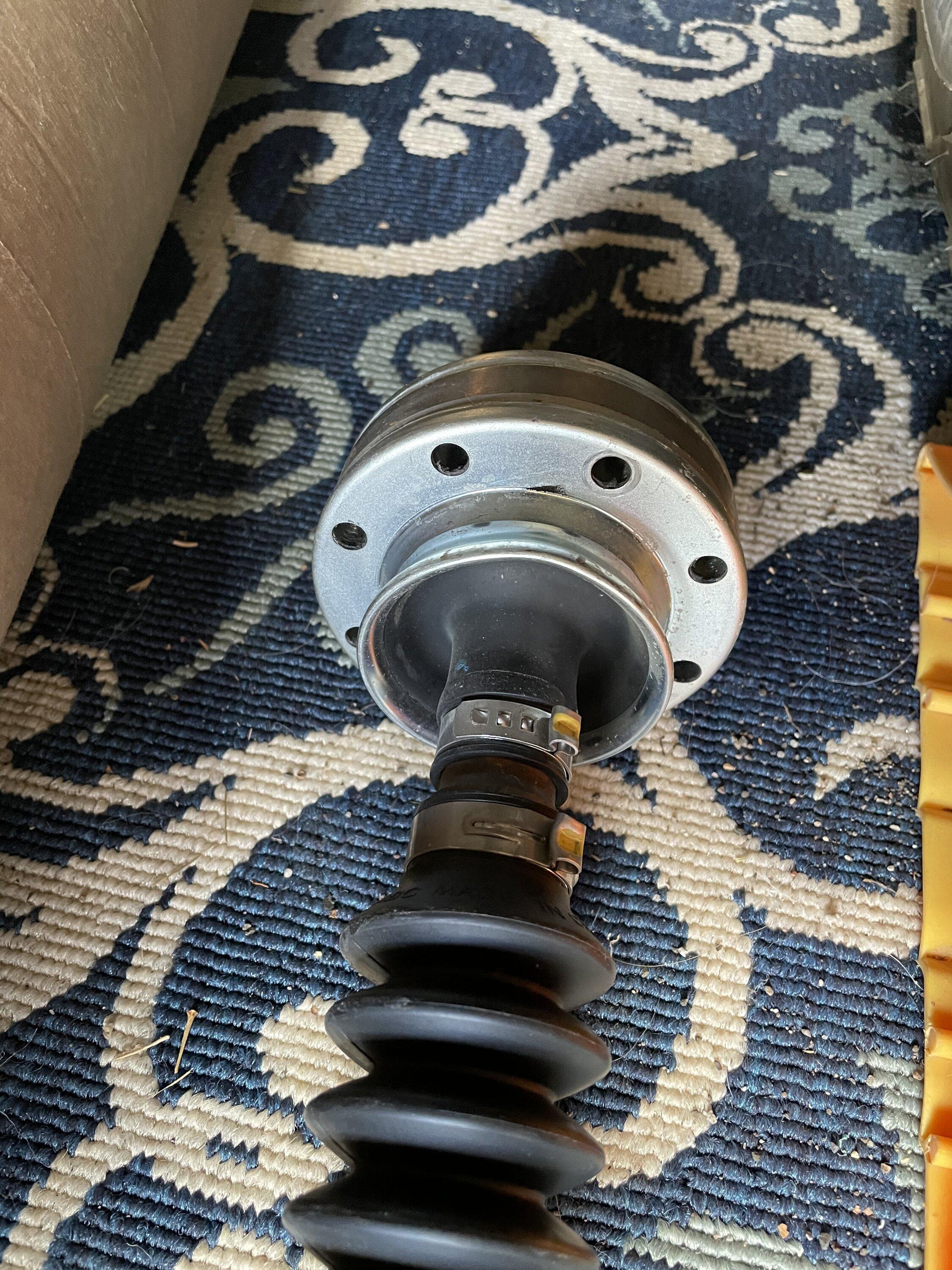

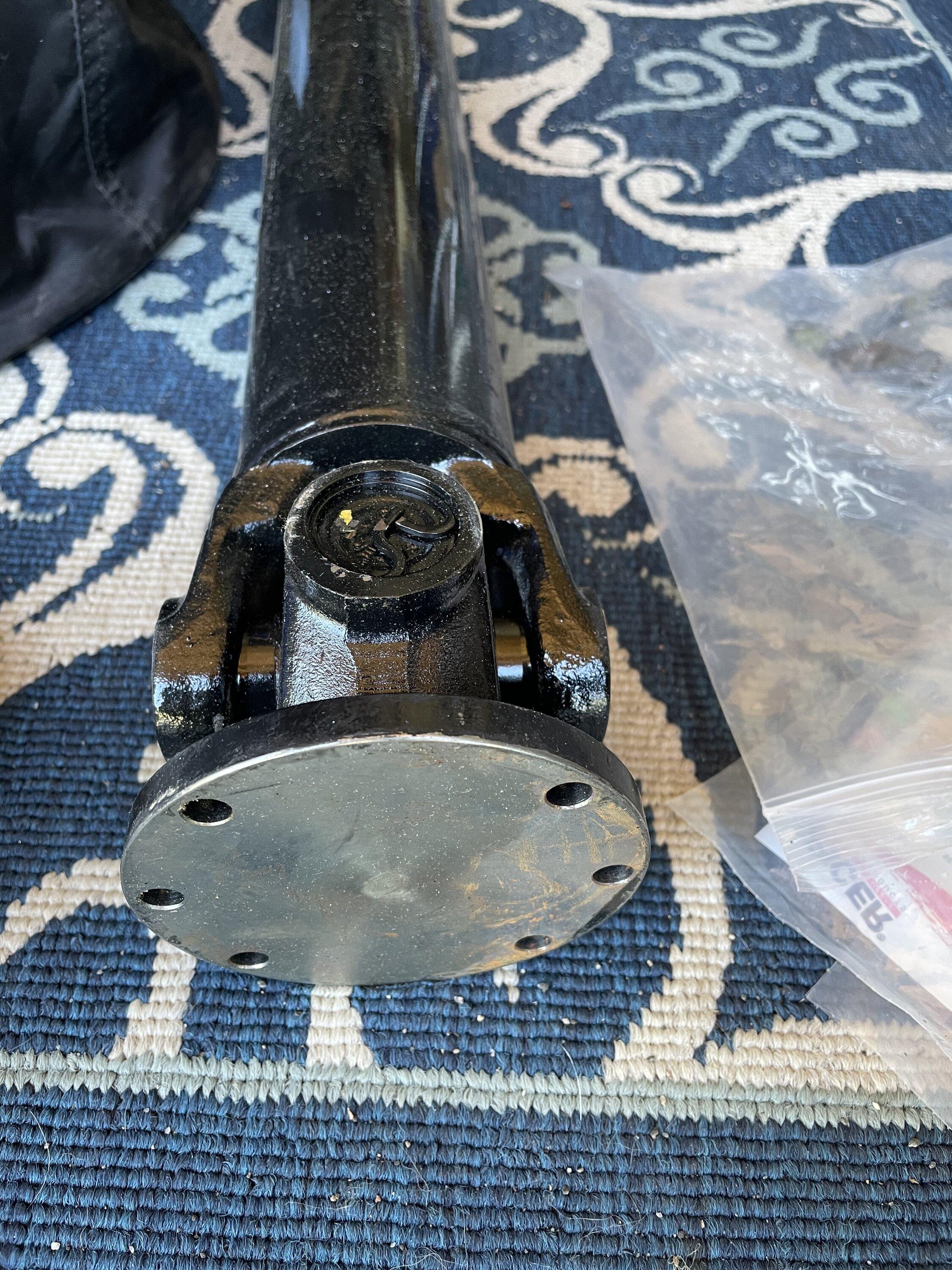

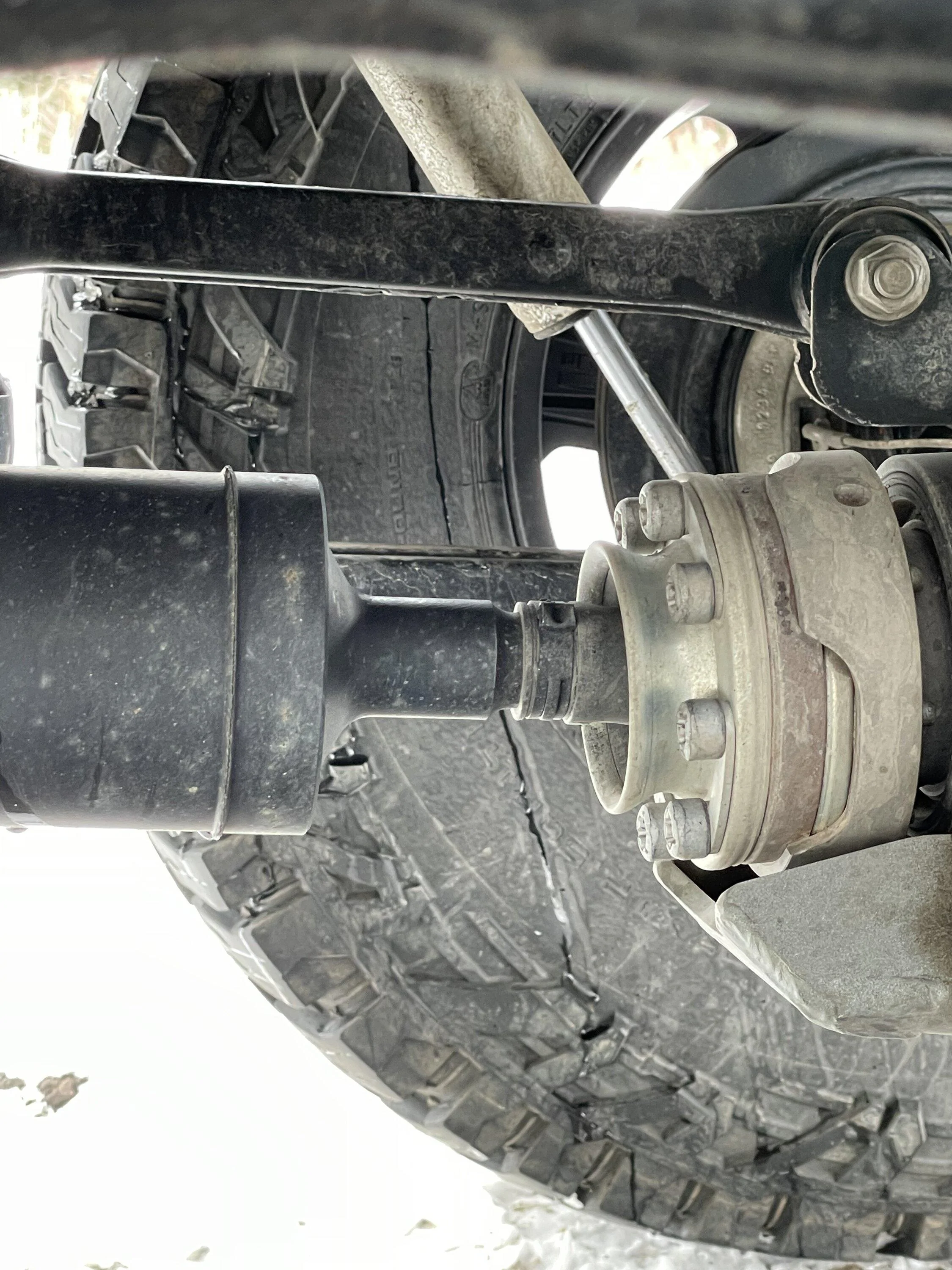

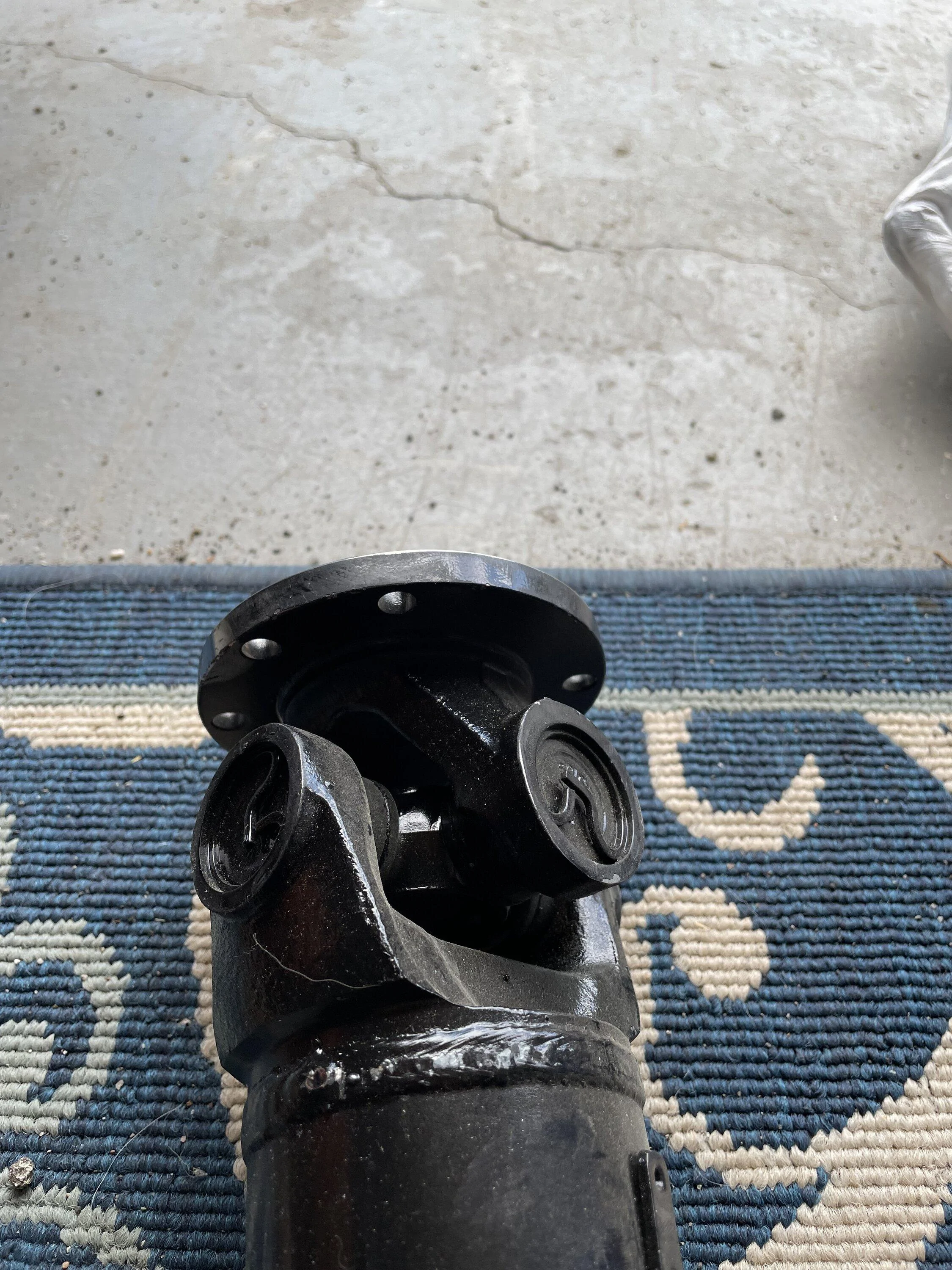

I’m replacing my stock rear drive shaft this weekend, and am looking for tips to avoid surprises after removing the old one. I’m replacing it with a Dana two piece heavy duty 1350 3” OD steel shaft. It’s supposedly a direct bolt on, and is rated for severe off road use and lifts up to 6.5”. I’m at 4” or so in the rear. The transfer case connection is an 8 bolt CV, but includes bolt types I’m not familiar with. I included pictures of the bolts in question, along with pictures of both shaft ends and the existing axle connection. The rear is a 1350 u joint with a flat 6 hole flange. For anyone who has replaced their rear shaft, what needs to be removed from the rear pinion connection to switch to this joint, from the stock 8 bolt CV? Are there any considerations regarding rotation of the transfer case or rear differential I should be aware of? Thanks in advance. The link below shows specs from Dana for the new shaft.

https://d3qx1uccksbb2n.cloudfront.net/docs/10150173_A (JT Rear DS M220 D44 AdvanTEK).pdf

Sponsored



[WILDHOBO]

Bump. Any advice from someone who has replaced their rear drive shaft? The Dana Spicer part number for this replacement drive shaft is 10132305. Thanks.

Edit: I now realize I need to raise the pinion angle to 0-1 degrees, meaning I need to replace my rear control arms with adjustable CA’s. So it’s not happening this weekend. More parts, more huge projects. Damn Jeeps.



[Mac]

No first hand knowledge but from the picture it looks like the replacement only uses 6 of the 8 original bolt locations due to the new style U-joint blocking the two holes.



[WILDHOBO]

No first hand knowledge but from the picture it looks like the replacement only uses 6 of the 8 original bolt locations due to the new style U-joint blocking the two holes.

That I confirmed as expected, as soon as I noticed the same thing. They’re just skipping two holes in the axle flange.



[sass JT]

Do you still have your rear oem driveshaft???



[WILDHOBO]

Do you still have your rear oem driveshaft???

I do. It’s functional and I don’t think it’s off balance at all, but has some significant scrapes.



[sass JT]

Well it’s better than mine lol



[sass JT]



[WILDHOBO]

Well it’s better than mine lol

Holy crap. What the hell did you do?



[sass JT]

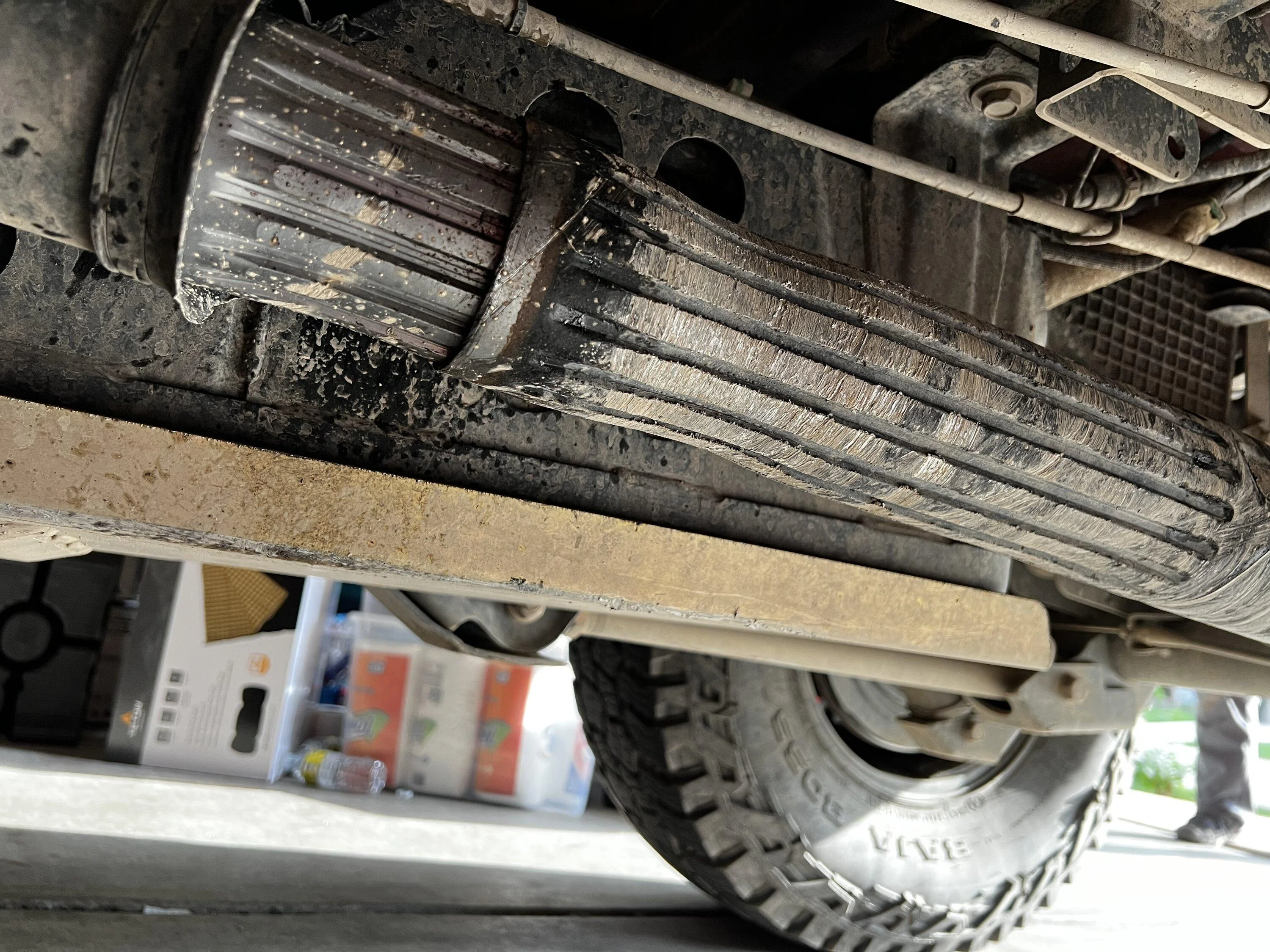

I was at msv/coney flats… it rained for 15 mins before we got to the rock garden. There was a Toyota Stuck on the left side. The middle was to close to him, so I took the right line. I got my wheels up on the rocks, they slipped and I came down on a huge rock on my driveshaft and muffler. I tried moving but was stuck, Had to winch off. So yeah… gah



[WILDHOBO]

I was at msv/coney flats… it rained for 15 mins before we got to the rock garden. There was a Toyota Stuck on the left side. The middle was to close to him, so I took the right line. I got my wheels up on the rocks, they slipped and I came down on a huge rock on my driveshaft and muffler. I tried moving but was stuck, Had to winch off. So yeah… gah

Ouch. It happens, but ouch.



[sass JT]

Yeah… wait till you hear about my muffler debacle with ups… gah… it’s nuts



[sass JT]

Check out the “what’s coming in the mail” section.



[WILDHOBO]

Yeah… wait till you hear about my muffler debacle with ups… gah… it’s nuts

My barrel resonator is pretty beat to hell. It’s not long for this world.



[WILDHOBO]

My barrel resonator is pretty beat to hell. It’s not long for this world.

I’m not sure I care though. It’s the only thing not well protected by my belly skid. Maybe I’ll just have an exhaust shop replace that short section with straight pipe.
