Rear main seal leak?

LOGS

Well-Known Member
Joined
Jul 20, 2016
Threads
13
Messages
206
Reaction score
251
Location
MN
Vehicle(s)
2005 LJ Rubicon
Well sitting in the dealer and was just told the leak I found yesterday is the rear main seal. First time I've heard of a EcoDiesel having this. Of course this dealer doesn't participate in JeepWave so I'm gonna be fucked on a rental and this is my only vehicle. Glad I put trust in Jeep, should have known better.

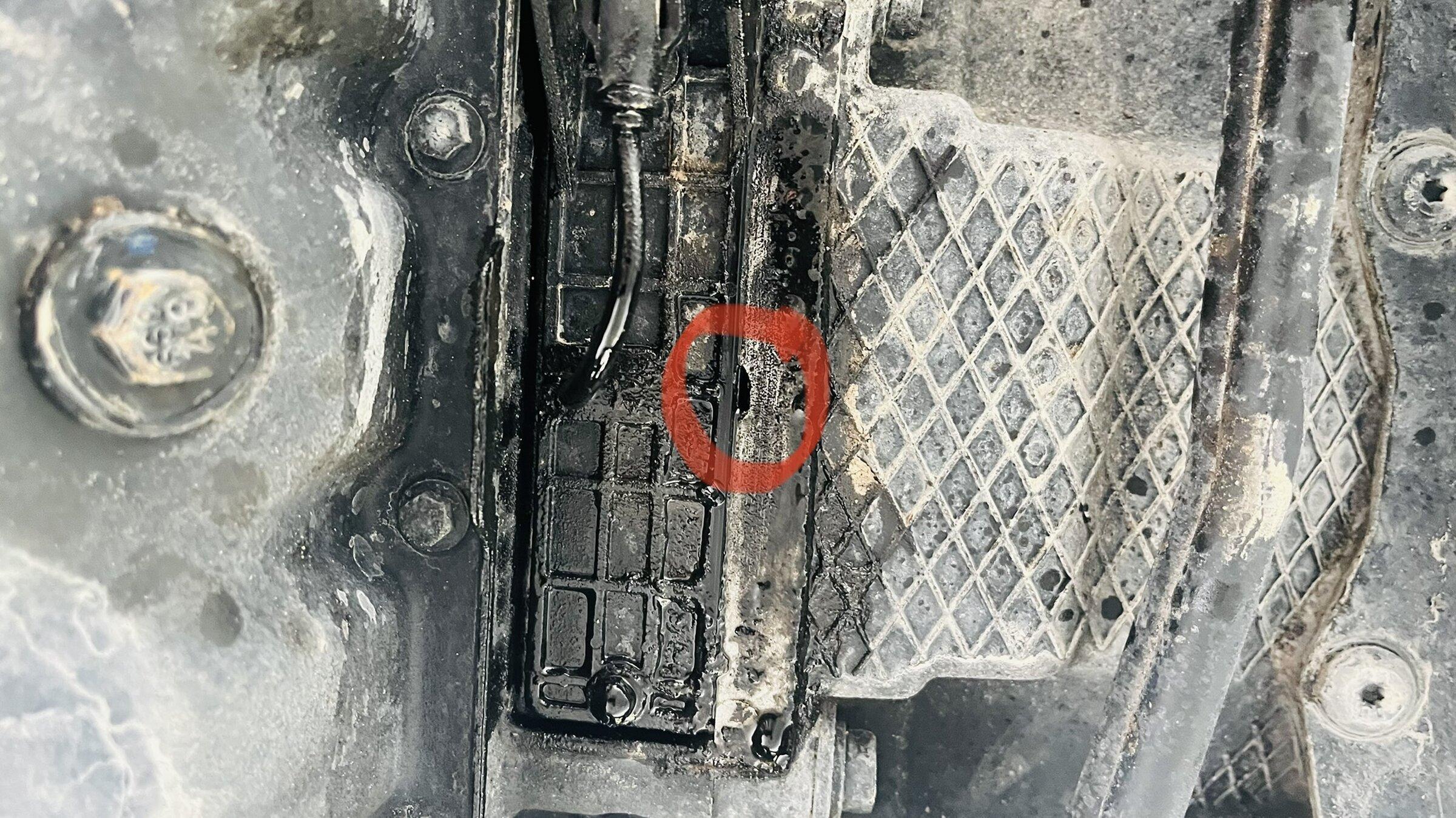

so has anyone else had to replace their rear main? Here's a pic of where I found the leak. Ignore the circle, where I originally that they problem was.

Jeep Gladiator Rear main seal leak? F1597432-5428-4586-B236-25DAF7609BB4
Sponsored



Hootbro

Well-Known Member
Joined
Apr 13, 2019
Threads
33
Messages
6,226
Reaction score
10,315
Location
Delaware
Vehicle(s)
2022 Gladiator Rubicon
Of course this dealer doesn't participate in JeepWave so I'm gonna be fucked on a rental and this is my only vehicle
Sorry to hear.

FWIW, Jeep wave program only covers a same day rental if brought in for scheduled normal service. Does not cover extend stays for warranty repairs.


A 2

Well-Known Member
Joined
Jul 4, 2020
Threads
75
Messages
803
Reaction score
906
Location
N. San Diego
Vehicle(s)
2021 JTRD, 2020 JLU
Build Thread
Link
Occupation
Construction
OP, how is this going for you?

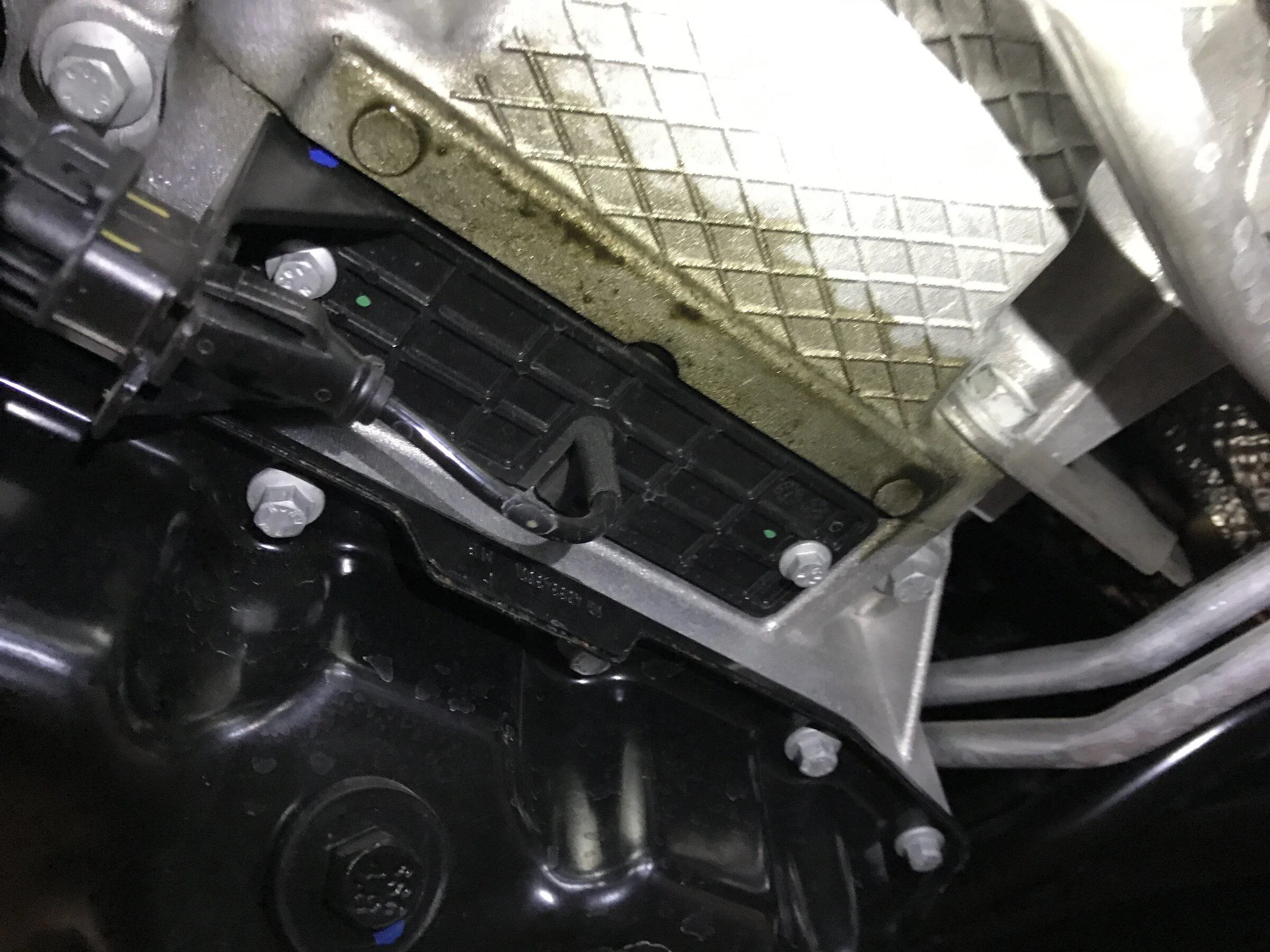

I crawled under the Jeep this morning and found this. The “oil“ is less like oils but feels more like a heavy grease. I wiped it down and going to monitor it. Hoping it’s just assembling grease that’s dripping off
Jeep Gladiator Rear main seal leak? 50A5BA57-7DBE-4A08-93E5-7C270F85588D
under heat?

OP
OP
LOGS

LOGS

Well-Known Member
Joined
Jul 20, 2016
Threads
13
Messages
206
Reaction score
251
Location
MN
Vehicle(s)
2005 LJ Rubicon
OP, how is this going for you?
I crawled under the Jeep this morning and found this. The “oil“ is less like oils but feels more like a heavy grease. I wiped it down and going to monitor it.
Mine was a pretty obvious drip all of a sudden. Still in the shop, supposedly started the work last Thursday. On Monday I'm going to call in and get an update.


CivilJeep

Well-Known Member
First Name
James
Joined
Dec 15, 2020
Threads
18
Messages
260
Reaction score
313
Location
Clover, SC
Vehicle(s)
2022 Gladiator Diesel, 2022 4XE
Occupation
Engineer
OP, how is this going for you?
I crawled under the Jeep this morning and found this. The “oil“ is less like oils but feels more like a heavy grease. I wiped it down and going to monitor it. Hoping it’s just assembling grease that’s dripping off
Jeep Gladiator Rear main seal leak? 50A5BA57-7DBE-4A08-93E5-7C270F85588D
under heat?
Any update on this? Pickup up my new diesel late last week, and noticed a very small oil stain in approximately the same area as your picture (although much smaller). Hope it's just some assembly residue, but I'm going to monitor closely.


Sponsored

A 2

Well-Known Member
Joined
Jul 4, 2020
Threads
75
Messages
803
Reaction score
906
Location
N. San Diego
Vehicle(s)
2021 JTRD, 2020 JLU
Build Thread
Link
Occupation
Construction
I checked last night and the leak is slowly coming back. Like I said, it’s not oily. Thick, almost like grease .

OP
OP
LOGS

LOGS

Well-Known Member
Joined
Jul 20, 2016
Threads
13
Messages
206
Reaction score
251
Location
MN
Vehicle(s)
2005 LJ Rubicon
Got mine back and have had no leaks since(knock on wood). Tech told me it was because something was shoved up against it. The week previously I did have to get pulled out after being pretty badly high centered so that would kinda check out. Makes me want to put skid plates as my next modification.


jeepin48

Well-Known Member
First Name
Jake
Joined
Sep 10, 2020
Threads
10
Messages
418
Reaction score
432
Location
Michigan
Vehicle(s)
JT Overland 3.0L
Occupation
Engineer
The rear main seal is on the crank and that black thing is only a cover and only keep dust out. I dont thing you getting high centered had anything to do with it.


ThatStinging_Jeep

Well-Known Member
First Name
Dylan
Joined
Oct 15, 2019
Threads
19
Messages
579
Reaction score
431
Location
Mansfield Texas
Vehicle(s)
2020 Jeep Gladiator Rubicon In Sting Gray
Vehicle Showcase
1
My jeep does the same...........except my dumbass spilled like a good 2 seconds worth of oil cause I was trying to be cool pouring the oil with no funnel like I usually do........so yeah :CWL: :CWL:


Jefe1018

Well-Known Member
Joined
Mar 4, 2020
Threads
38
Messages
2,433
Reaction score
3,939
Location
NV
Vehicle(s)
21 JT Rubi Ecodiesel
Build Thread
Link

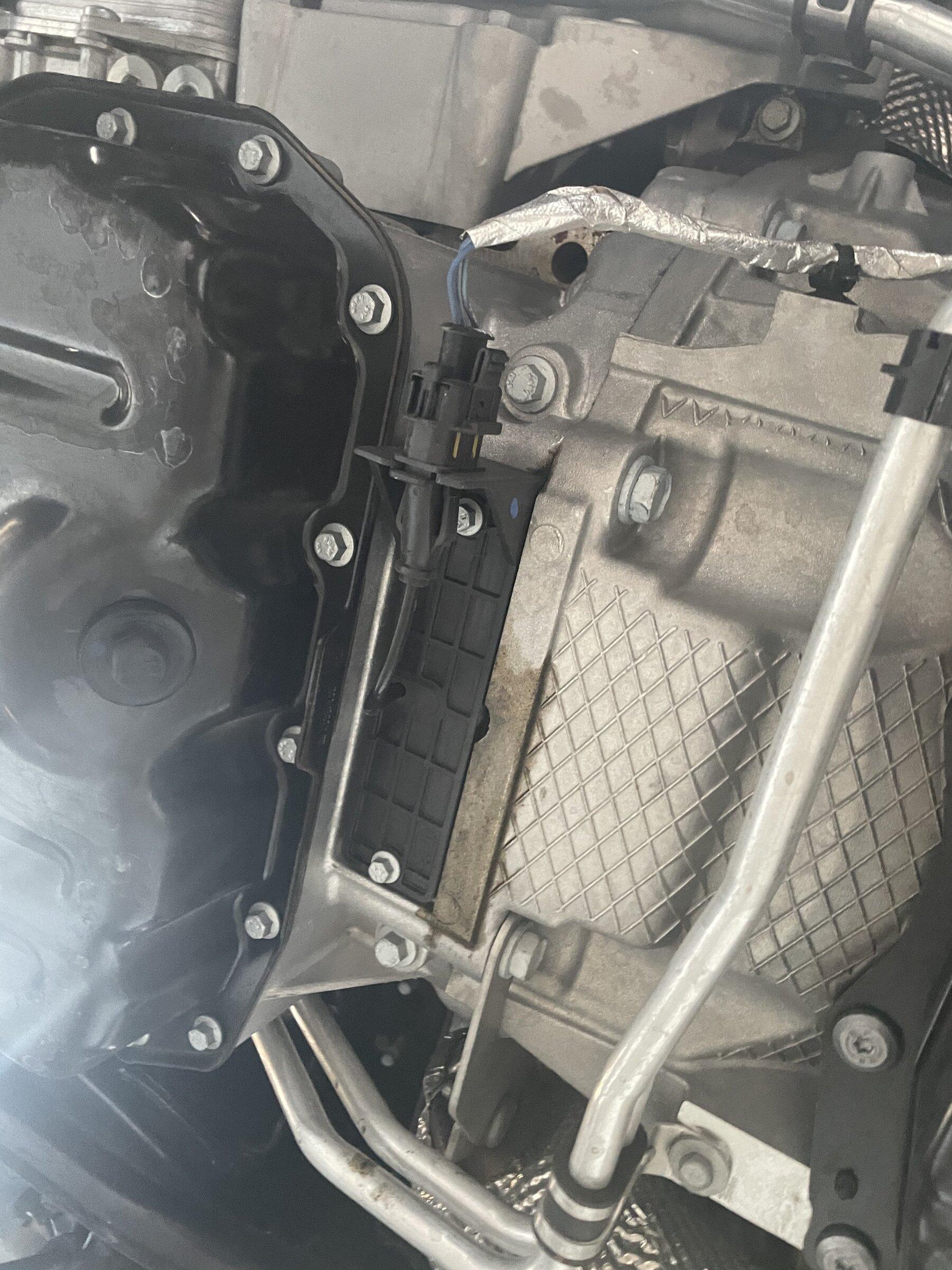

Jeep Gladiator Rear main seal leak? A1658B5B-2795-4746-9DF6-AC8A19D0098B

Doing a routine inspection today, found that I too may be leaking from the rear main seal.


Sponsored

hazzardsky

Member
First Name
Ryan
Joined
Jun 11, 2019
Threads
0
Messages
13
Reaction score
7
Location
PA
Vehicle(s)
JT Rubicon, 17 JK Recon
I just put mine in the shop this week for a similar issue. Tech at local shop mention rear main leak while he was doing the annual state inspection. I wiped it away but it came back after a day or two. Dealership so far says they cant trace it, but they have a rep from stellantis overseeing already since this isnt the first trouble i've had with oil. Hoping for a swift resolution since I was already without the truck for 2.5 months early this year for a turbo replacement



rharr

Well-Known Member
Joined
May 6, 2021
Threads
20
Messages
1,262
Reaction score
1,661
Location
Tucson, AZ
Vehicle(s)
21 JTRD 3" RKK lift, (former) 95 XJ 5sp 8" lift
simple test, put dye in engine oil, if drip shows up with dye it's a seal leak.


22EcoDs

Well-Known Member
Joined
Oct 14, 2021
Threads
15
Messages
1,359
Reaction score
1,545
Location
NY
Vehicle(s)
22jtsD , 06XK, 21KL - Retired(97ZJ,15JKU, 00WJ,)
simple test, put dye in engine oil, if drip shows up with dye it's a seal leak.
What happens if the die shows up in the coolant ? 🥲


cecaa850

Well-Known Member
Joined
Mar 17, 2020
Threads
3
Messages
702
Reaction score
565
Location
South East TX.
Vehicle(s)
2020 Jeep Gladiator 2019 Porsche Macan S 2018 BMW M2
Rear main leak isn't uncommon on ecodiesels. Not a majority of them leak but not unheard of either.
