Rugged Ridge HD Bumper - Overider Bar installation issue

Scruf

Well-Known Member
Joined
Apr 24, 2020
Threads
15
Messages
150
Reaction score
160
Location
Raleigh, NC
Vehicle(s)
2020 Jeep Gladiator, 1997 TJ, 2017 Honda CRF250L
Occupation
Automotive Product Quality Engineer
I installed my Rugged Ridge HD Full Width bumper and Overider bar last weekend.

The overider bar installs through an Upper Bolt Plate, which has two threaded studs sticking out. Also included are M8x1.25 nuts, which go to those studs.

However, the threaded studs are NOT M8x1.25. None of the nuts fit any of the studs. I crossed checked with a known M8x1.25 bolt and the supplied nuts fit, so I know the nuts are M8x1.25.

Has anyone else run into this issue? Any idea what thread the studs actually are?

I called RR and a tech support person is looking into it also.

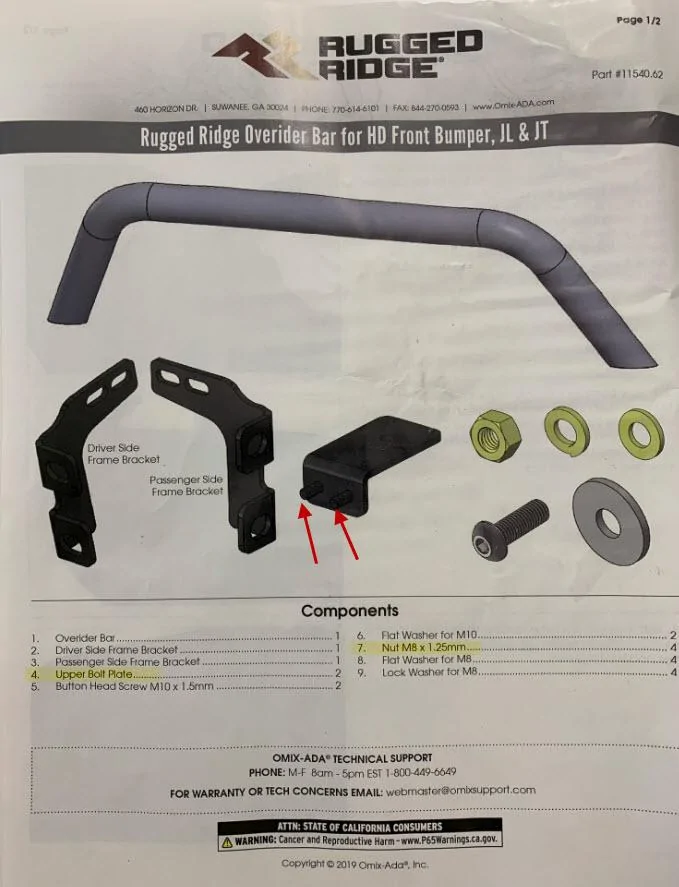

Overider Bar Instructions.jpg
Sponsored



Jeeperjamie

Well-Known Member
First Name
Jamie
Joined
Feb 12, 2020
Threads
131
Messages
4,636
Reaction score
5,193
Location
Kannapolis nc
Vehicle(s)
2020 jeep gladiator
Occupation
Weyerhaeuser
Vehicle Showcase
1
I installed that bumper but don't remember what size the nuts or bolts were. I used the hardware they sent me and it all worked and I got it installed in about 45 minutes to an hour. They may have sent the wrong ones to you
