Simplified wiring diagram for ARB

DankjeeP

New Member
First Name
Keith
Joined
Jan 13, 2021
Messages
4
Reaction score
2
Location
Escondido, CA
Vehicle(s)
'21 JTR ordered, '98 XJ, '17 FLHXS, '02 FLSTFI
Occupation
HW Engineer

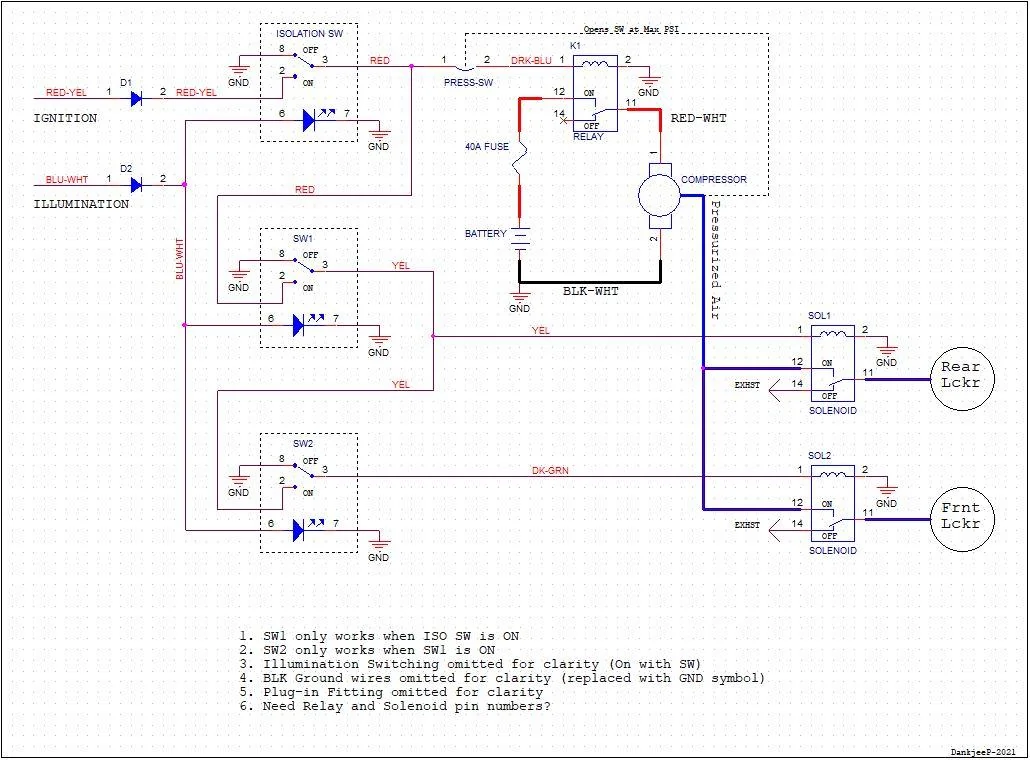

I made this quick schematic of the ARB wire harness. Hopefully someone finds it easier to follow than the one that came in the box.
