Spare tire access

bluetick

Member
First Name
jeff
Joined
Oct 4, 2021
Threads
3
Messages
17
Reaction score
9
Location
New Hampshire
Vehicle(s)
Gladiator
Occupation
writer
It seems pretty simple. Piece together the rod sections and insert into the oval opening between the bumper and tailgate. But it doesn’t connect to anything in there. What am I missing here?
Sponsored



Tiny

Well-Known Member
Joined
Oct 17, 2020
Threads
12
Messages
201
Reaction score
520
Location
Indiana
Vehicle(s)
2020 Gladiator SportS, manual, soft top, black
There is a metal tube inside that plastic hole in the bumper that guides the rod. You should feel it engage and give resistance as you crank down. Are you getting missing that guide?

No matter how many times I wrote this, I could not make it sound any less dirty.....

OP
OP

bluetick

Member
First Name
jeff
Joined
Oct 4, 2021
Threads
3
Messages
17
Reaction score
9
Location
New Hampshire
Vehicle(s)
Gladiator
Occupation
writer
Can't find the hole inside the hole. Can't even imagine trying to get that spare off by the side of the road at night.


jac04

Well-Known Member
First Name
Jeff
Joined
Apr 20, 2021
Threads
25
Messages
1,224
Reaction score
1,736
Location
CT
Vehicle(s)
2021 Mojave, 2014 JKRX SWB
There is nothing that automatically guides the rod into the lowering mechanism. You have to have the rod going in fairly straight, then the white plastic 'cone' guides it in.

Lowering spare starts at about 1:07:



kevman65

Well-Known Member
Joined
Mar 8, 2020
Threads
44
Messages
3,022
Reaction score
4,141
Location
H
Vehicle(s)
J
The extension pieces go in level, but you have to follow the angle (right to left) that the guide hole is set on.

If you start just the pieces through the hole, lay down and look up at behind the rear bumper and you can see the white funnel and guide it in by hand. After you do it a couple of times it becomes second nature.


Sponsored

TEAMSLO

Active Member
Joined
Oct 2, 2021
Threads
4
Messages
39
Reaction score
44
Location
North las vegas
Vehicle(s)
21 gladiator

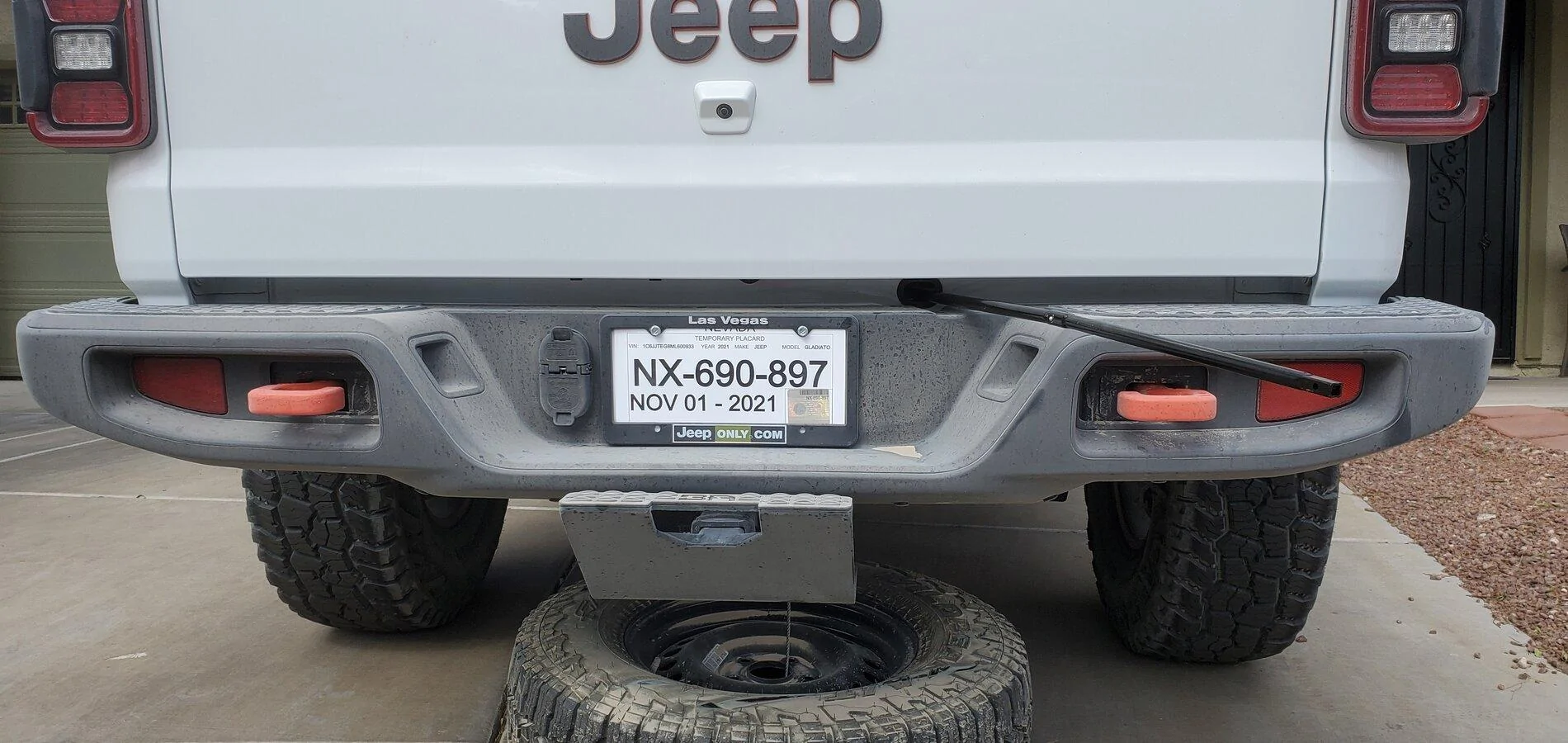

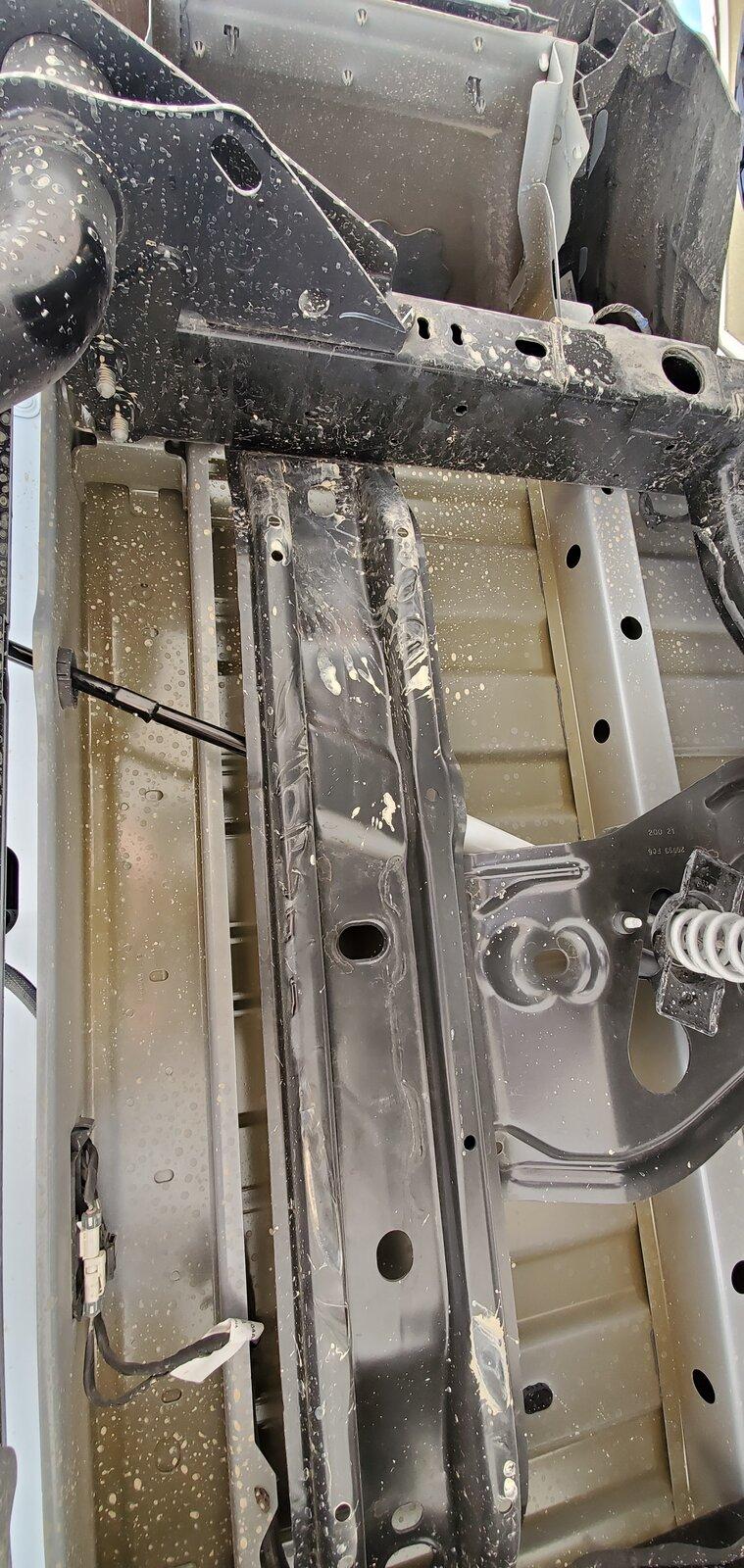

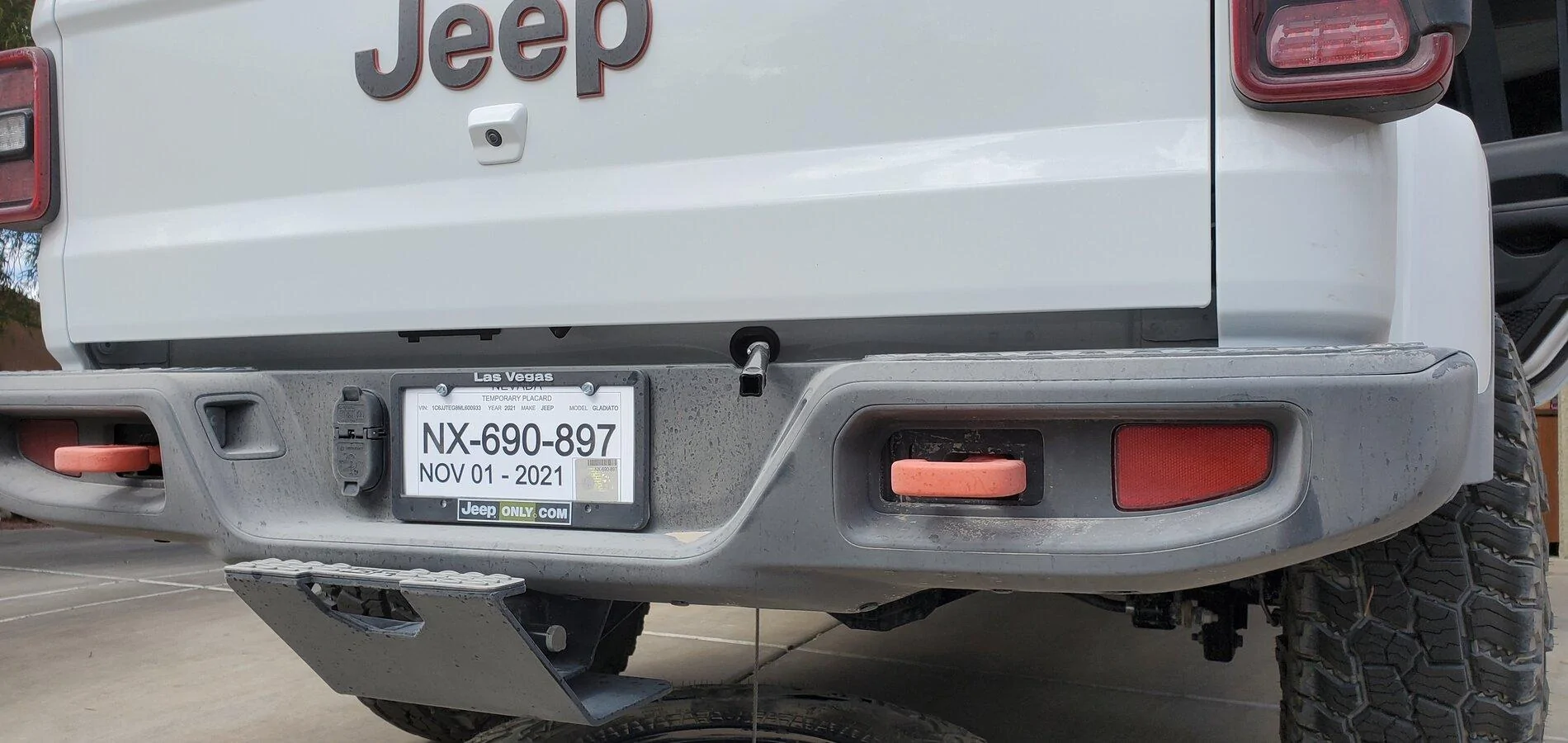

Hope these help.... I went down to remove mine, selling factory wheels n tires. And sure enough.... its at an angle to the left. Hope the pics help somewhat.







j.o.y.ride

Well-Known Member
Joined
May 26, 2020
Threads
96
Messages
2,940
Reaction score
3,884
Location
Foster City
Vehicle(s)
20 Gladiator Overland
If you look up under the truck it's very straight forward.

Or if you put your cell phone flashlight into the hole you see the alignment of the white receiver and you can tell where to angle it.


Hipbilly

Well-Known Member
First Name
Jimmy
Joined
Dec 4, 2019
Threads
9
Messages
286
Reaction score
467
Location
North Little Rock, AR
Vehicle(s)
2020 Gladiator Sport, 2007 FJ Cruiser
Not gonna lie, my first attempt at it brought back memories from nature documentaries, wondering how the act is completed without a guiding hand.....


Chris262

Well-Known Member
First Name
Christopher
Joined
Aug 22, 2021
Threads
0
Messages
163
Reaction score
165
Location
Kenosha, WIsconsin
Vehicle(s)
2021 Jeep Gladiator Rubicon
Occupation
Auto Technician
The square drive that the tool goes into is deep in there. Just make sure you use the end with the wider opening.


kevman65

Well-Known Member
Joined
Mar 8, 2020
Threads
44
Messages
3,022
Reaction score
4,141
Location
H
Vehicle(s)
J
Yup, definitely sounds like a Sex-Ed video.......
