After finding little real info on this, I decided I should throw this on here for someone searching.

Now hold on a minute!! Yes I did mention Max Tow and the reason being is wide axle No Lift info. So mentioned for specificity… why this mention of Max Tow makes so many lose it is just idiotic. Seriously… there are threads on JT specific colors! Come on , how does that have anything to do with ability of the JT? I am glad people are proud of their Gator colors etc… I digress.

THEPOINT AT HAND: 37’s Sport S Max Tow with about (guessing here) 300lbs in the bed … tools, camping gear, bike stuff, and cover/rack set up currently.

only mod that helps “No Lift and 37’s is the is AAL fender chop although I retained my fender liners (pics and write up in my build thread)

so after ordering a lift (3.5 “ Rubicon Express Sport with Mono Shocks but may change too different shock.) I was faced with back order delay and shop work delay… so that happens end of October.

the Max Tow is now no longer a DD, so that changes things for me. I want it set for overlanding trips and my other outdoor activities. Still needs to travel distances in comfort.

So to the point.

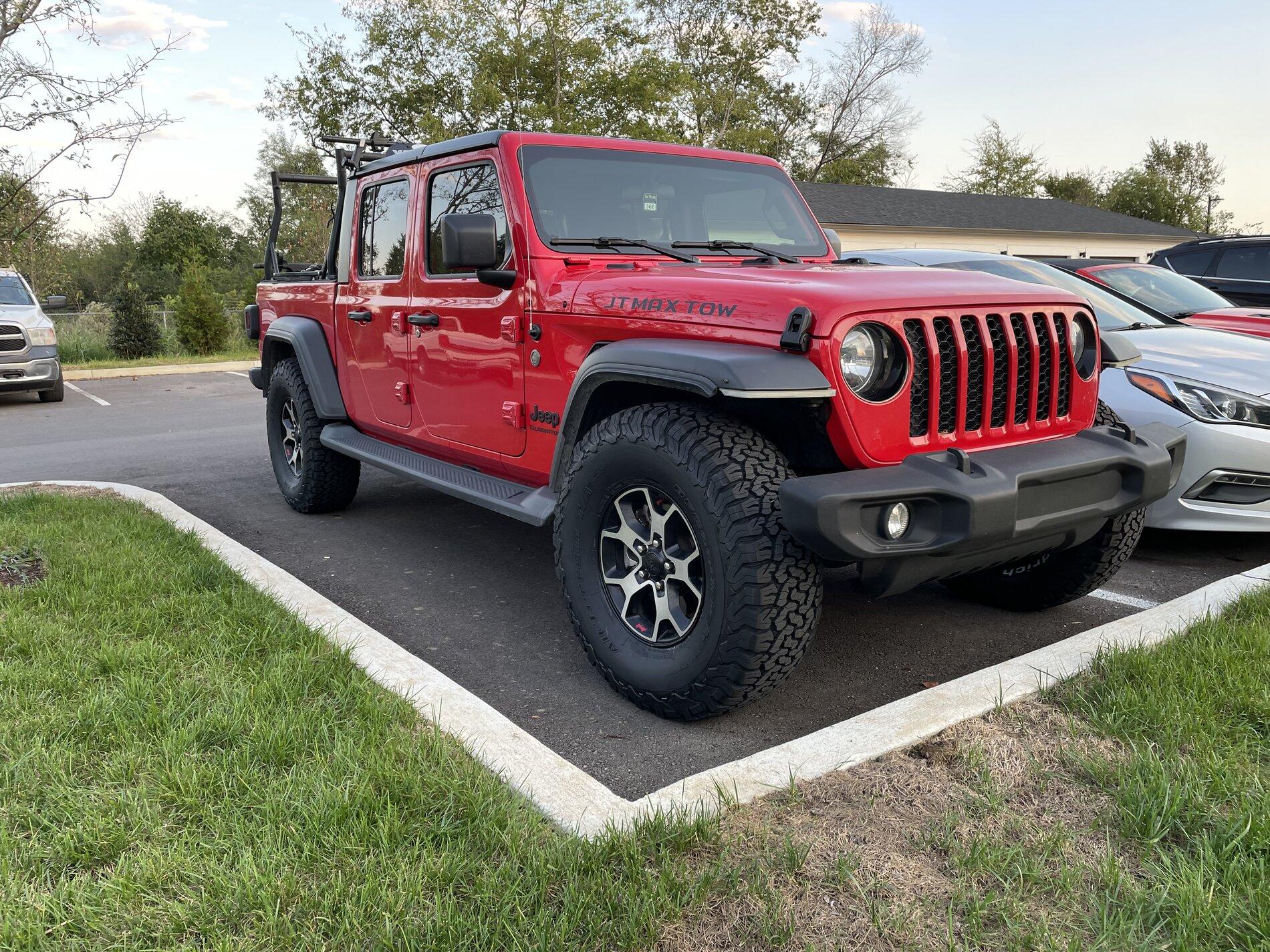

I HAD DISCOUNT TIRE THROW ON THE BFG AT KOs 37x12.50x17 on stock 17x7.5 Wrangler Rubicon Rims (still my favorite).

My usual sales guy, very knowledgeable located in Lebanon TN, his name is Kendall. He said that they could put a 37x12.50x17 on at the shop and on the JT but if I ordered a 35x12.50x17 they could mint them but not put them on the JT 🤔 because of the taller 37 it fit specs for the 7.5 rim width. Interesting as I didn’t know that. I quickly told Kendall that I had no lift and the Sport S Max Tow (he knows his vehicles, all of them it seems) and he replied easily, that is no problem as they will fit and not rub with my front fender chop. Really… 🤔

So Kendall was absolutely right. No rub lock to lock, hit some mild off road on a friends farm, towed about 4000 lbs, have driven about 300 miles with the 37’s and no lift. There was never a rub, nothing in control arms or fenders.

I know off road with some serious flex might cause fender flare spontaneous combustion! But, daily use was fine… seriously.
So woth the wider axles fit is no issue.

The drive: really it does well and 1st gear as low as it is with the automatic, had the Jeep really scoot off of the line. Usually even with the 33 stock Ruby ATs 1st and 2nd gear are mostly skipped by with the 8 speed auto.

fuel mileage as calculated by hand and mind was avg 18mpg down from 20-21 mpg on the stocker 245’s , up from the 285’s 🤔 the 4:10’s seem to like the BFG in 37 form.

The ride is noticeably smoother and very quiet (BFG AT KO2s are awesome!).

towing 4000lbs is fine in the flats and some simple climbs. The auto does down shift more gears but maintains speed easily… seriously the JT seems faster.

I’m getting ready to head out on a 1000+ round trip so will let you know how it does.

I know the Max Tow with the wider axles and the 4:10’s make the 37’s very doable on stock suspension less those fender wings if you have them.
Pleasantly surprised!

I just got my Tazer Mini, so will also let you know how that does.

still I look forward to next phase of build which will see the lift, lockers, gears, reconfigure bed set up, and add a RTT for my hiking biking trip convenience.

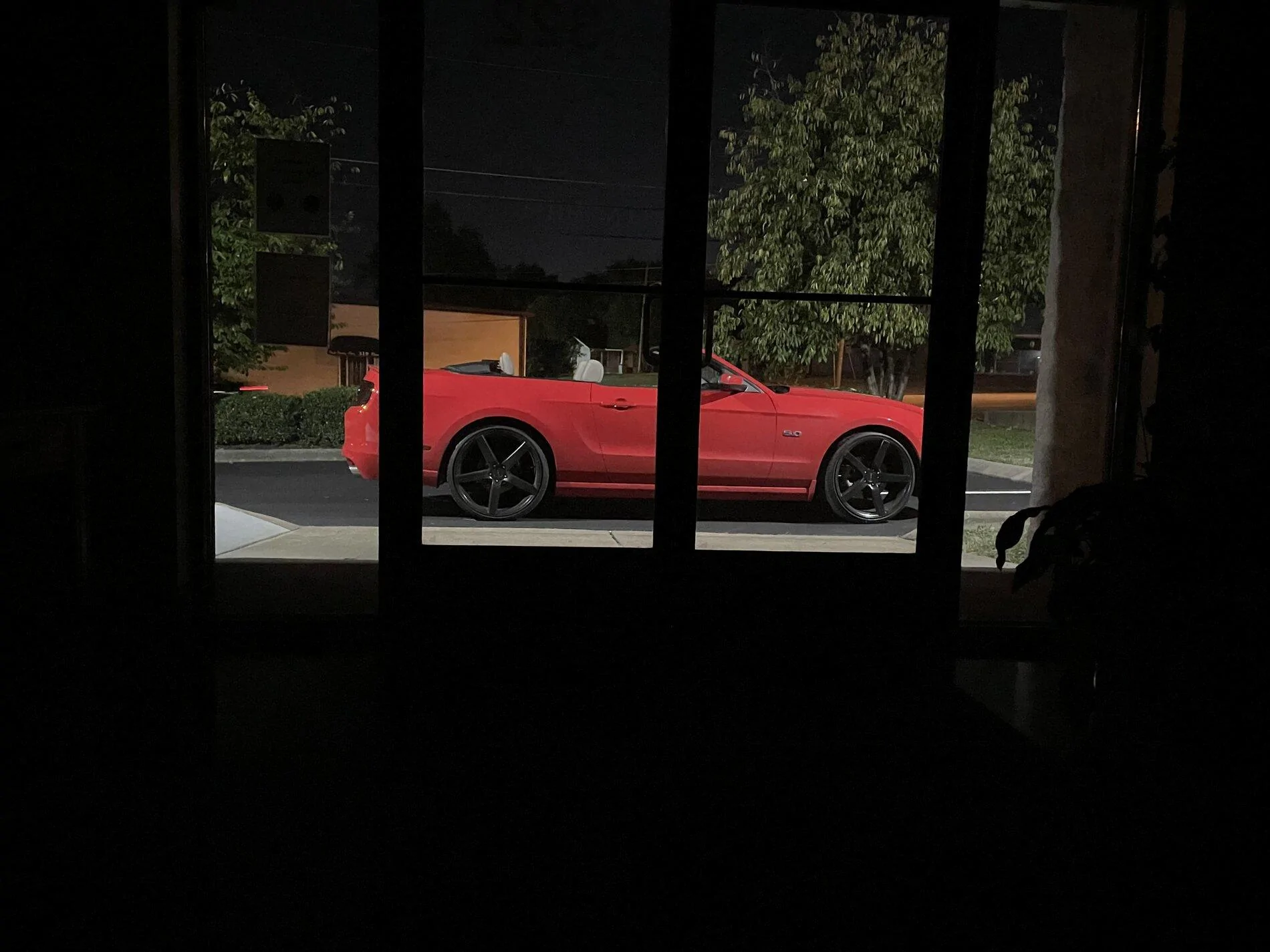

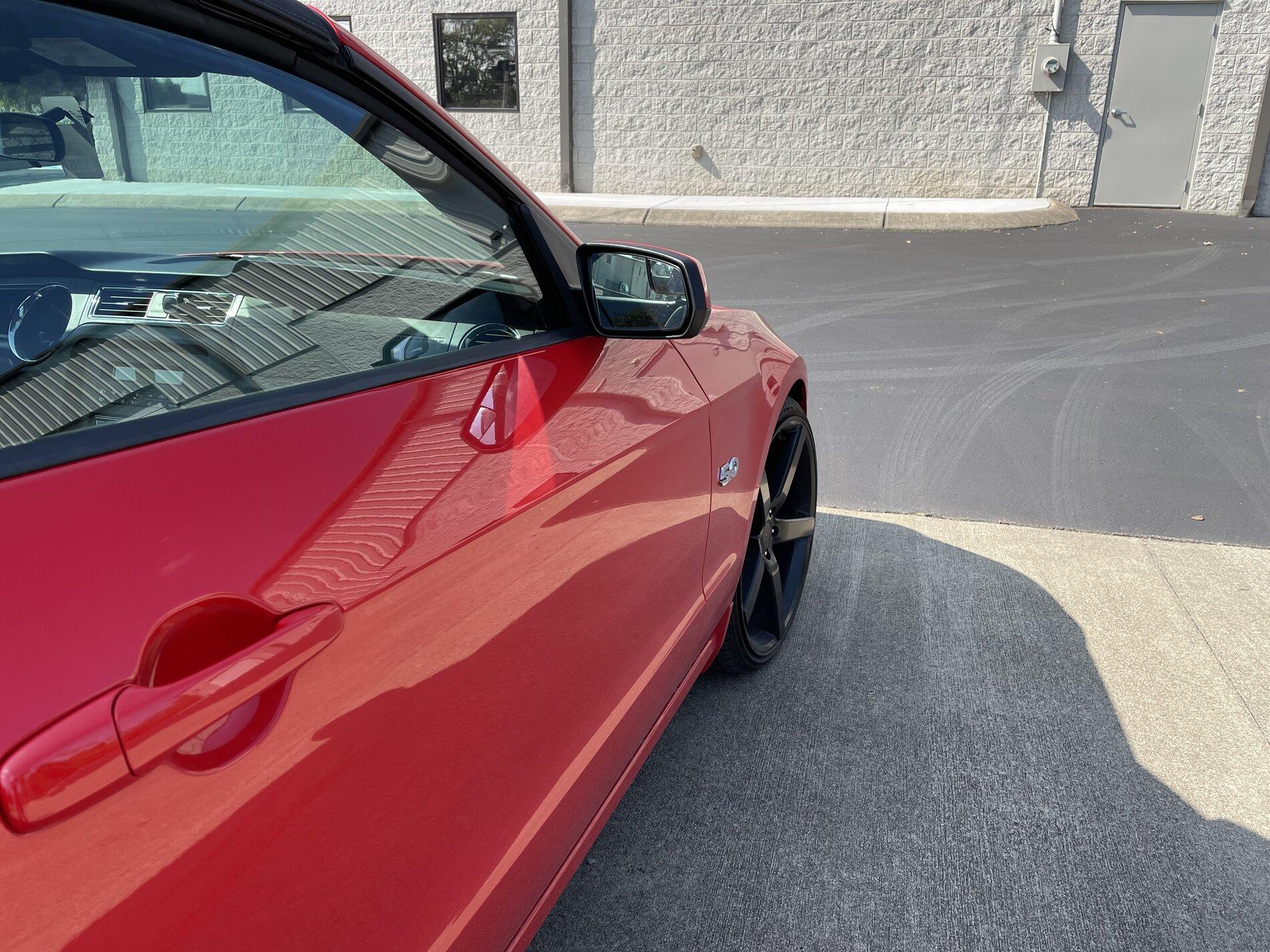

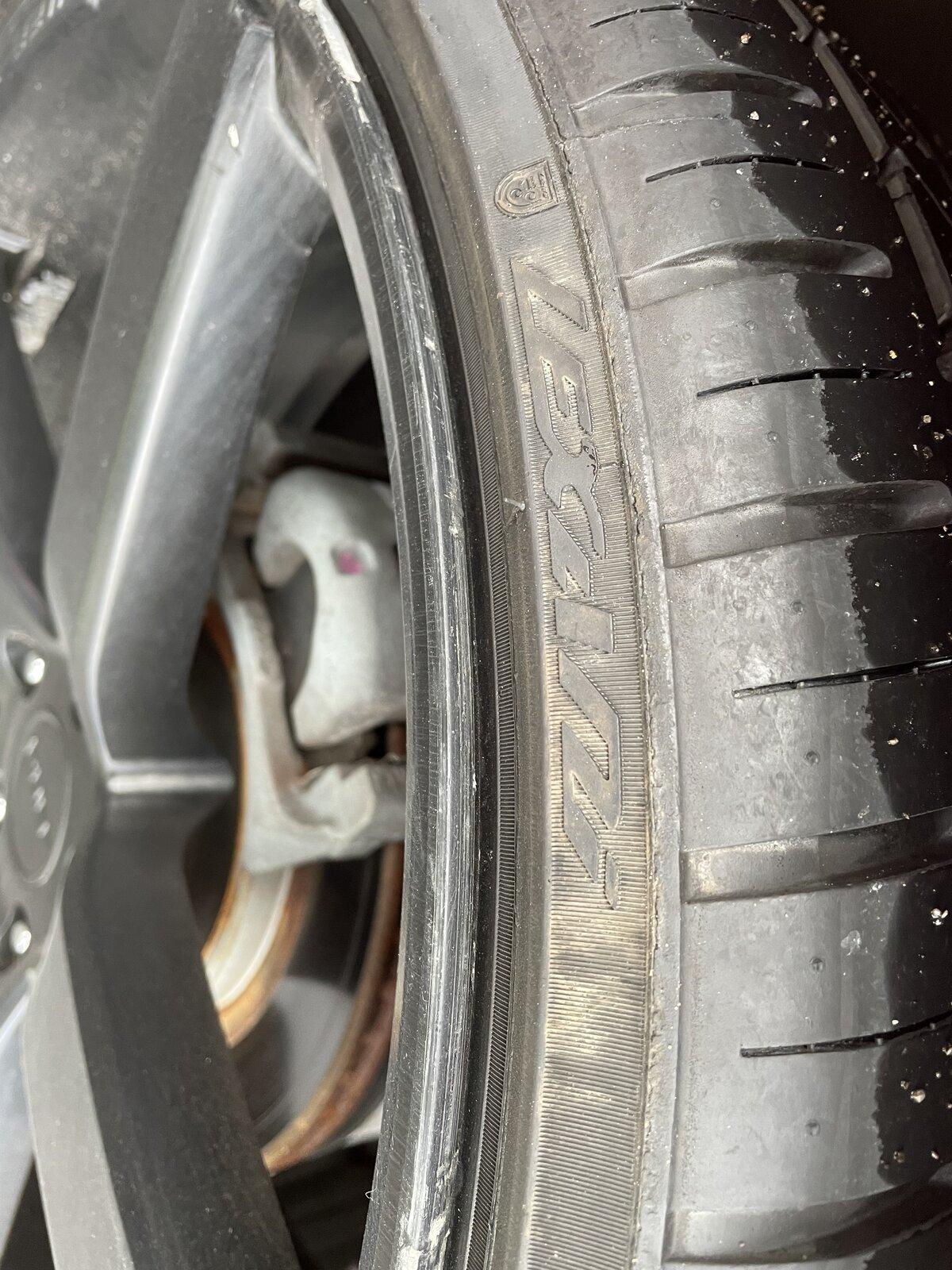

ive added one pic of the new DD… Kendell at Discount Tire took one look at the DDs current 22 inch wheels and 245x30x22 and said “Chinese cheap ass wrong weight specs and width (do not protect rim) that won’t work”… see I told you he knows all cars and tires that work!

so ordered proper (for me) Grand Touring (it is a Mustang 2013 GT 6 speed manual convertible with the 5.0 V8) 20 x 10, 5 spoke wheels squared, with 265x45 x20 Michelin HP all season tires.

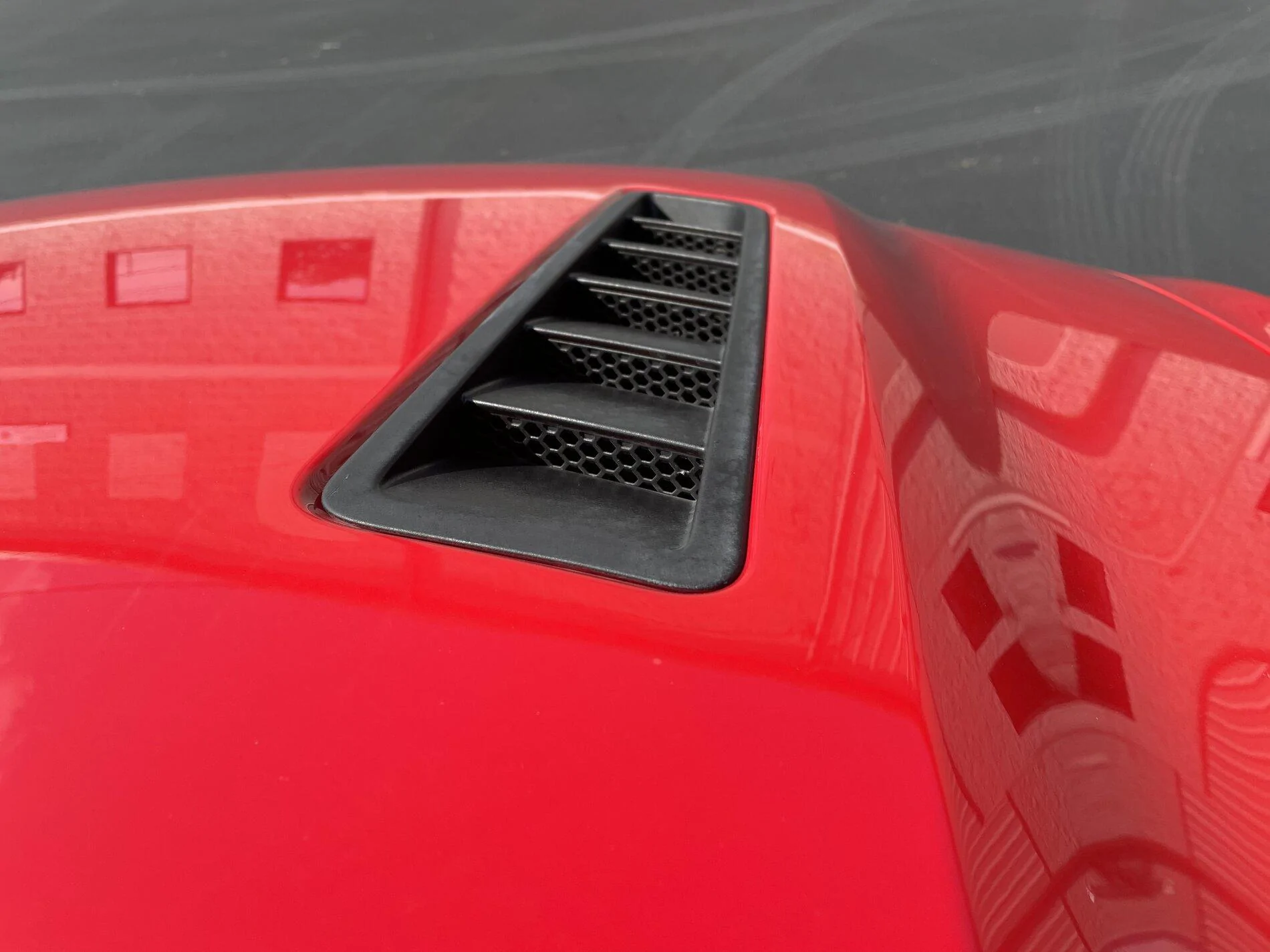

oh yes those are real hood vents, completely stock Mustang GT less the stereo upgrades and wheels/tires.

Jeep Gladiator Sport S Max Tow 37’s No Lift YES IT WORKS! F0D9962A-2D15-476B-99D3-128E1F3B9246


Jeep Gladiator Sport S Max Tow 37’s No Lift YES IT WORKS! DF70D40F-24FD-4277-9FE0-8B11E25291F7


Jeep Gladiator Sport S Max Tow 37’s No Lift YES IT WORKS! 8EAC65B7-A7A4-4EFA-8C6C-1301744F595C


Jeep Gladiator Sport S Max Tow 37’s No Lift YES IT WORKS! E6FFDB2C-945D-4EF9-93F5-B93ECF9DF8FF

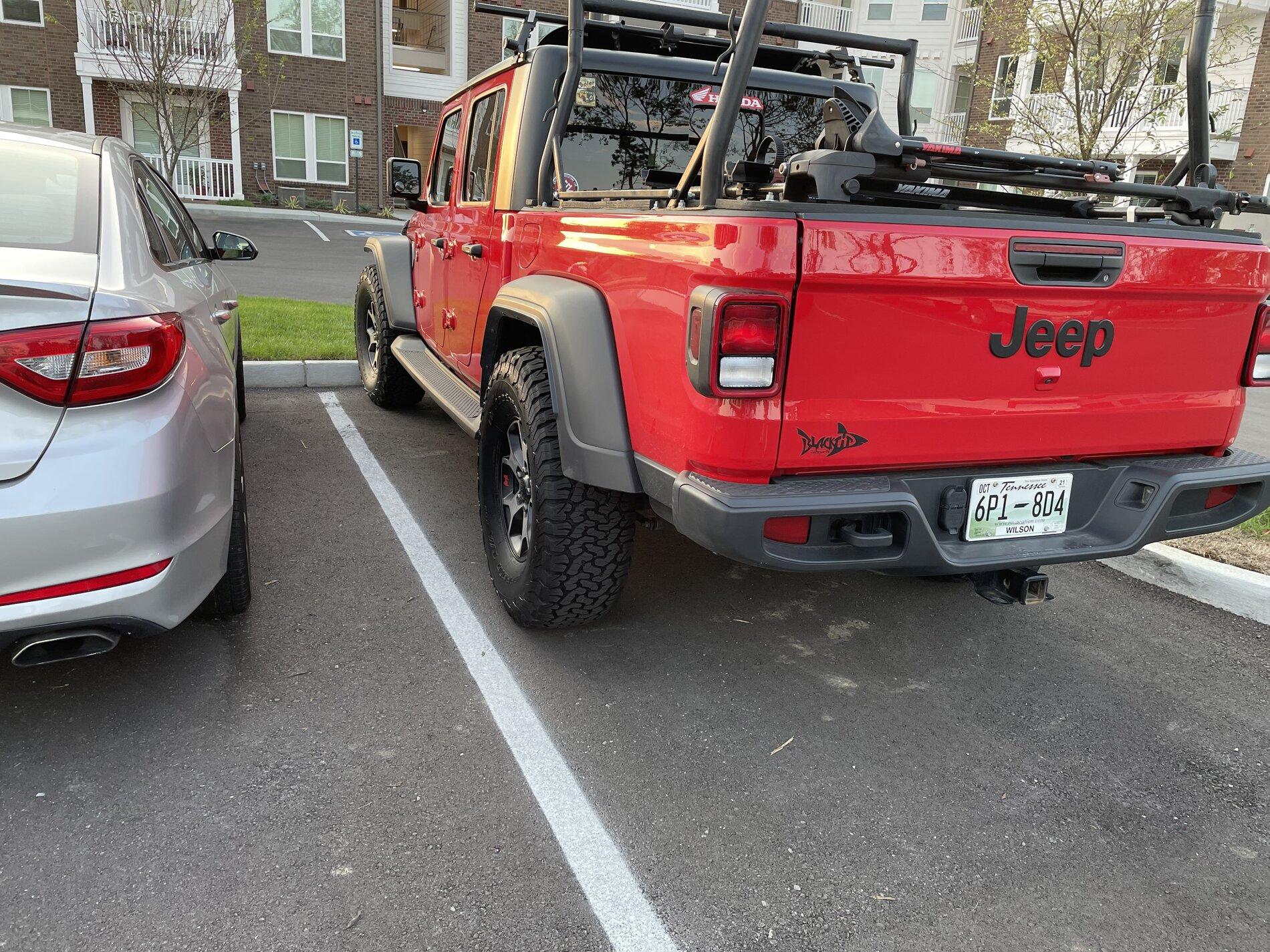

Jeep Gladiator Sport S Max Tow 37’s No Lift YES IT WORKS! 4C04EE64-9775-4E7D-9CD5-CA4226B55B6D


Jeep Gladiator Sport S Max Tow 37’s No Lift YES IT WORKS! 845FE9A9-C421-47BA-9856-0EB410CF16DA
Sponsored



Garemlin

Well-Known Member
Joined
Nov 4, 2017
Threads
90
Messages
1,373
Reaction score
1,950
Location
Delaware
Vehicle(s)
2021 Nacho Willys Gladiator
Yeah they looked pretty stuffed in there. Throw in the Teraflex 1.5" spacer kit and it should give you a little more flex room.

How about some side shots.


Artsifrtsi

Well-Known Member
First Name
Jude
Joined
Apr 28, 2020
Threads
35
Messages
1,373
Reaction score
2,174
Location
Huntsville, AL
Vehicle(s)
2020 Gladiator Overland, 2005 Wrangler X
Build Thread
Link
Occupation
Resident Pompous A-Hole
I know it's just temporary, but does look way to stuffed, even with the fender chop.

And Gat'r is THE best color on the gladiator... LOL :LOL:


Mac

Well-Known Member
Joined
Nov 30, 2017
Threads
33
Messages
2,156
Reaction score
2,303
Location
MA
Vehicle(s)
2020 JT Hydro Blue Max Tow
Cool they mounted them but BFG says the min rim width is 8.5”, also cool they are 3pmsf rated didn’t know that.


Sponsored

OP
OP
XJADDICTION

XJADDICTION

Banned
Banned
Joined
Dec 16, 2017
Threads
11
Messages
821
Reaction score
1,660
Location
TN
Vehicle(s)
2020 JT SS Max Tow, 2005 WK Hemi, 2013 Mustang GT
Occupation
Surgical CSFA
  • Thread starter
  • Banned
  • #6
just FYI purpose only. Yes it’s stuffed but… no rub as stated for those with a sport Max Tow reference. Now on a regular Sport… I am sure you would rub. I have used 7.5” wheels for many rigs with 12.50 tires even aired down to 12 psi with no problems. Do I recommend it, No.

I’m going 3.5” lift for reasons

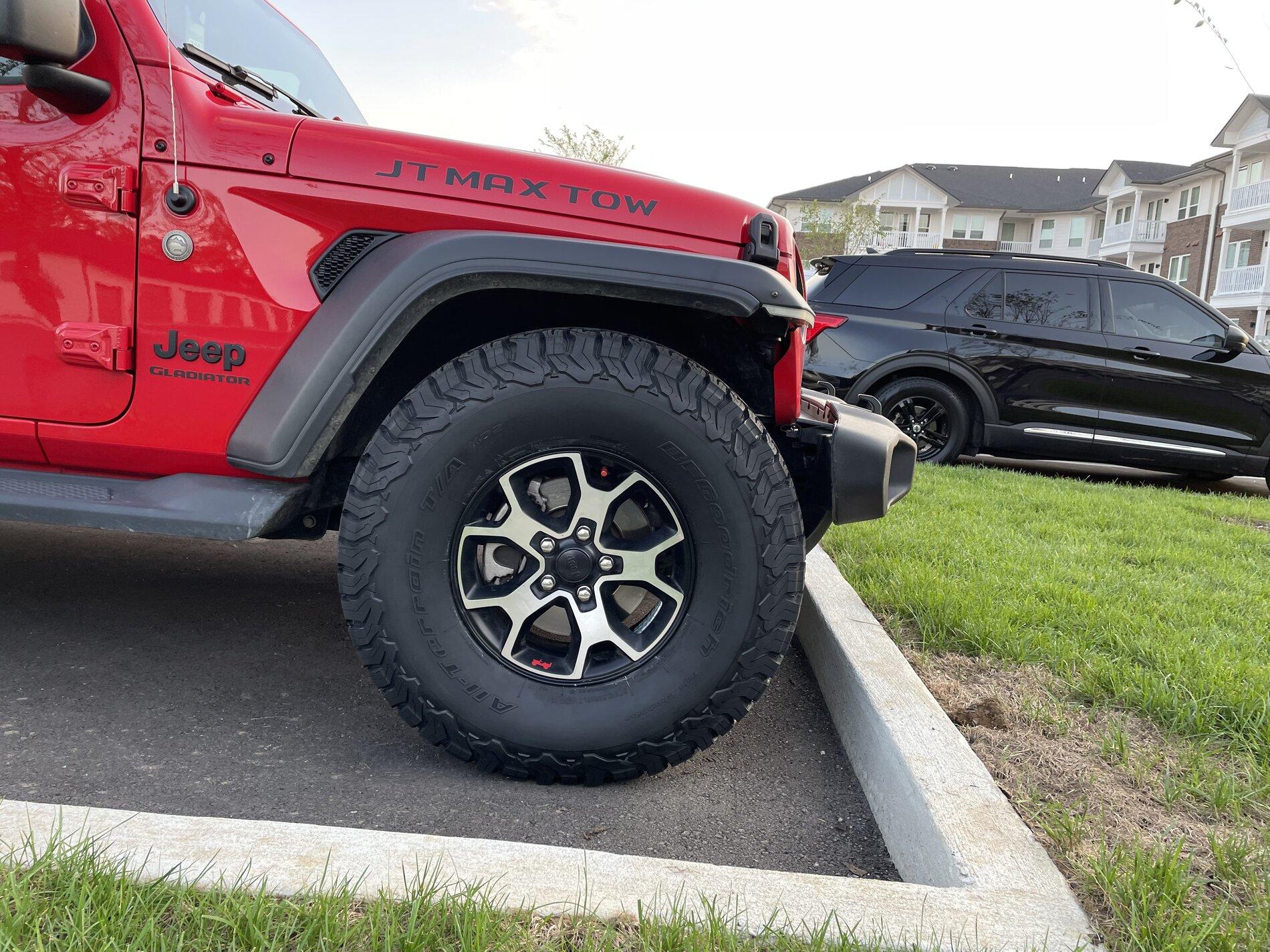

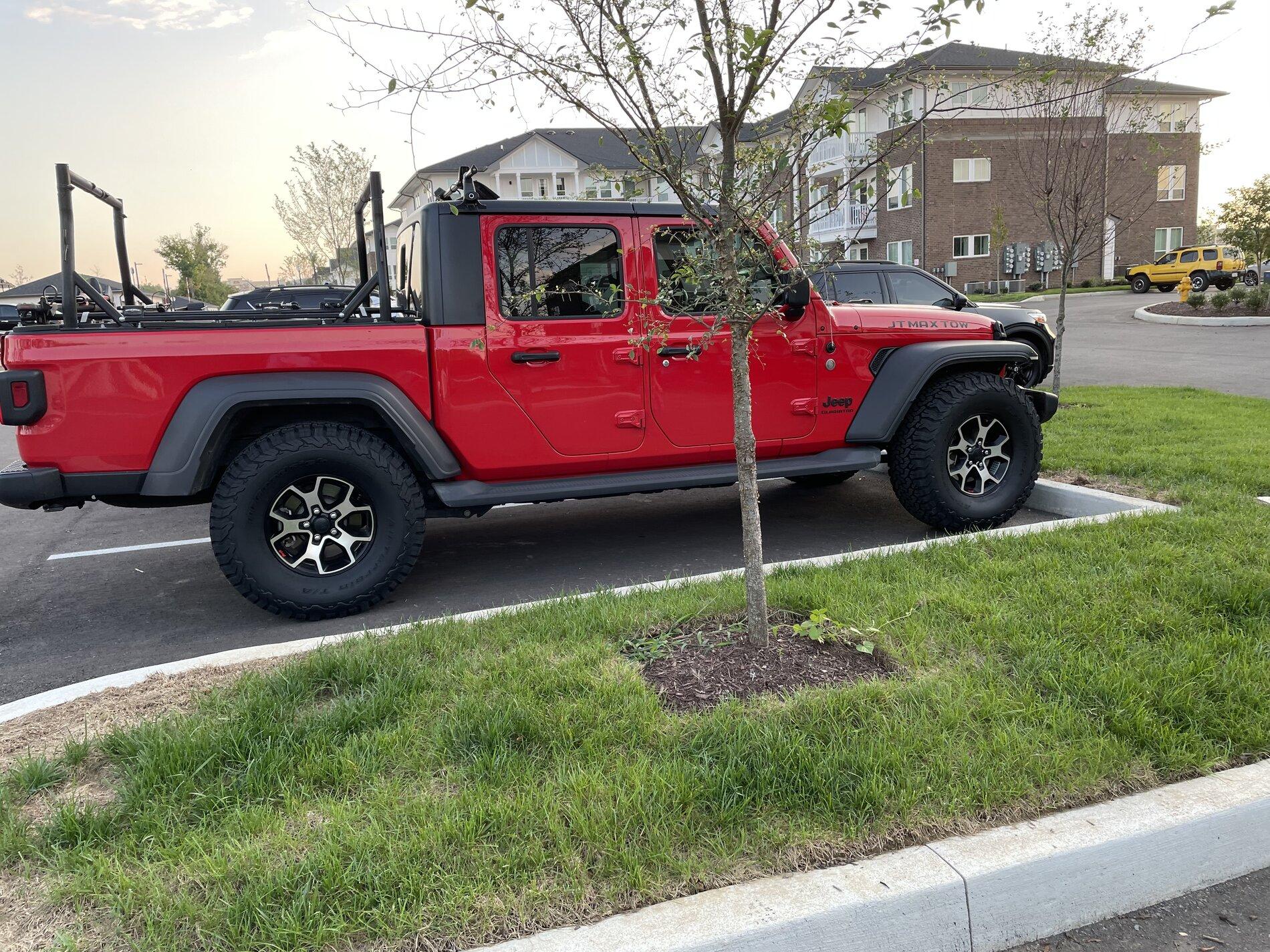

side shots

Jeep Gladiator Sport S Max Tow 37’s No Lift YES IT WORKS! ECE69A86-5A0A-45DC-9284-7E766A8D1ADF


Jeep Gladiator Sport S Max Tow 37’s No Lift YES IT WORKS! D9DBFD68-AB3B-4B56-BBEA-567FEC676273


AleYeah

Well-Known Member
First Name
Jeff
Joined
Aug 8, 2017
Threads
4
Messages
86
Reaction score
91
Location
Greenville, SC
Vehicle(s)
2014 JKU Sport, 1976 VW poptop
Dumb question, but would I be correct in assuming the heavy duty wide axles + gear ratio ensure that the yuge (vs factory) tires can be swapped in with no/negligible hit to towing capability?

@XJADDICTION - Looking forward to seeing it post-lift. It's gonna be sweet.

OP
OP
XJADDICTION

XJADDICTION

Banned
Banned
Joined
Dec 16, 2017
Threads
11
Messages
821
Reaction score
1,660
Location
TN
Vehicle(s)
2020 JT SS Max Tow, 2005 WK Hemi, 2013 Mustang GT
Occupation
Surgical CSFA
  • Thread starter
  • Banned
  • #9
Dumb question, but would I be correct in assuming the heavy duty wide axles + gear ratio ensure that the yuge (vs factory) tires can be swapped in with no/negligible hit to towing capability?

@XJADDICTION - Looking forward to seeing it post-lift. It's gonna be sweet.
No you would be incorrect on that, it will reduce towing capability.
Again the purpose of this post is for those that wonder if this “no lift” would work on 37’s BFG ATs very specific as other truer to size 37’s may rub.

adding gear ratio of 4:88 or better 5:13 will help a lot with towing. I think the tazer mini may help with the shift points. I’ll let all know on that.


AleYeah

Well-Known Member
First Name
Jeff
Joined
Aug 8, 2017
Threads
4
Messages
86
Reaction score
91
Location
Greenville, SC
Vehicle(s)
2014 JKU Sport, 1976 VW poptop
Again the purpose of this post is for those that wonder if this “no lift” would work on 37’s BFG ATs very specific as other truer to size 37’s may rub.
Right on. Not trying to stir anything up. No JT for me yet, so I'm in learning mode...


Sponsored

OP
OP
XJADDICTION

XJADDICTION

Banned
Banned
Joined
Dec 16, 2017
Threads
11
Messages
821
Reaction score
1,660
Location
TN
Vehicle(s)
2020 JT SS Max Tow, 2005 WK Hemi, 2013 Mustang GT
Occupation
Surgical CSFA
Not surprised, Max Tow allows you to do any mod that you want. Should have went 40s.
Does not take long for the Ruby owners jealousy of the Max Tow to show up. 😁


TNJeeper

Well-Known Member
Joined
Sep 18, 2021
Threads
5
Messages
58
Reaction score
41
Location
Nashville
Vehicle(s)
2006 Nissan Xterra
just FYI purpose only. Yes it’s stuffed but… no rub as stated for those with a sport Max Tow reference. Now on a regular Sport… I am sure you would rub. I have used 7.5” wheels for many rigs with 12.50 tires even aired down to 12 psi with no problems. Do I recommend it, No.

I’m going 3.5” lift for reasons

side shots

Jeep Gladiator Sport S Max Tow 37’s No Lift YES IT WORKS! D9DBFD68-AB3B-4B56-BBEA-567FEC676273


Jeep Gladiator Sport S Max Tow 37’s No Lift YES IT WORKS! D9DBFD68-AB3B-4B56-BBEA-567FEC676273
You paid money for the max tow, but you are losing your max tow rating with your lift and large tires. 🤔


07052021

Well-Known Member
First Name
Nick
Joined
Jul 5, 2021
Threads
24
Messages
390
Reaction score
278
Location
Cincinnati
Vehicle(s)
22 Sting Gray Sport S
Occupation
Software Engineer
You paid money for the max tow, but you are losing your max tow rating with your lift and large tires. 🤔
Max Tow is a good base to build on though. Not everyone will tow with Max Tow but they have a higher payload, towing capacity, 4.10 axle ratio, heavy duty cooling, 240 alternator, etc. Honestly, it's a pretty awesome package.

OP
OP
XJADDICTION

XJADDICTION

Banned
Banned
Joined
Dec 16, 2017
Threads
11
Messages
821
Reaction score
1,660
Location
TN
Vehicle(s)
2020 JT SS Max Tow, 2005 WK Hemi, 2013 Mustang GT
Occupation
Surgical CSFA
You paid money for the max tow, but you are losing your max tow rating with your lift and large tires. 🤔
yes but …. The door says 7600lb towing and the insurance companies identify it as a Max Tow.

I have a problem though with my Max Tow..

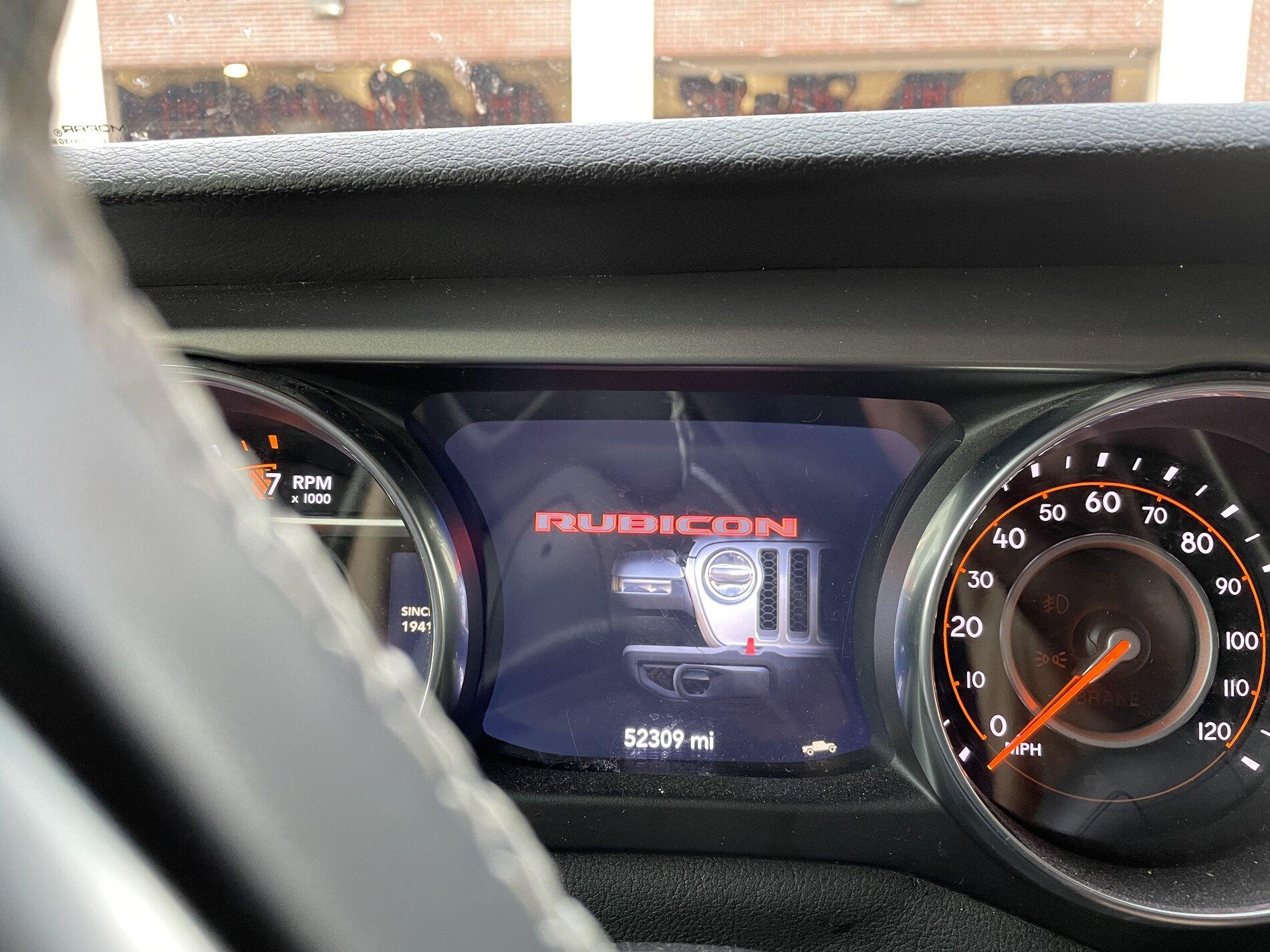

🤔 really weird… it identifies as a Rubicon after just adding the 37’s to the Rubicon rims??? 🤣🤣🤣🤣🤣

Jeep Gladiator Sport S Max Tow 37’s No Lift YES IT WORKS! 4DC6B66D-771E-486D-B5A3-411F10341C38

OP
OP
XJADDICTION

XJADDICTION

Banned
Banned
Joined
Dec 16, 2017
Threads
11
Messages
821
Reaction score
1,660
Location
TN
Vehicle(s)
2020 JT SS Max Tow, 2005 WK Hemi, 2013 Mustang GT
Occupation
Surgical CSFA
Ok back to purpose off this post… what is with all the Max Tow hate…. Especially from a fellow TNer.

I have programmed the Tazer Mini … 😁… may be obvious with that “Rubicon “ start up 🤣🤣🤣🤣

the Tazer is awesome!! I noticed shift points are perfect and the Jeep still has plenty of pep. I highly recommend the Tazer!
