I actually installed the Cascadia 4x4 solar hood panel. ESS instantly worked again and have had no issues since. Been on a few trips with no hiccups. I still plan on swapping it out or deleting the aux all together but not until the yellow auto start light turns on.
I've noticed that my 2022 voltage is always a lot higher than it was in my 2020. It typically runs over 14.7 when it's cool or cold outside, not infrequently it's around 14.9

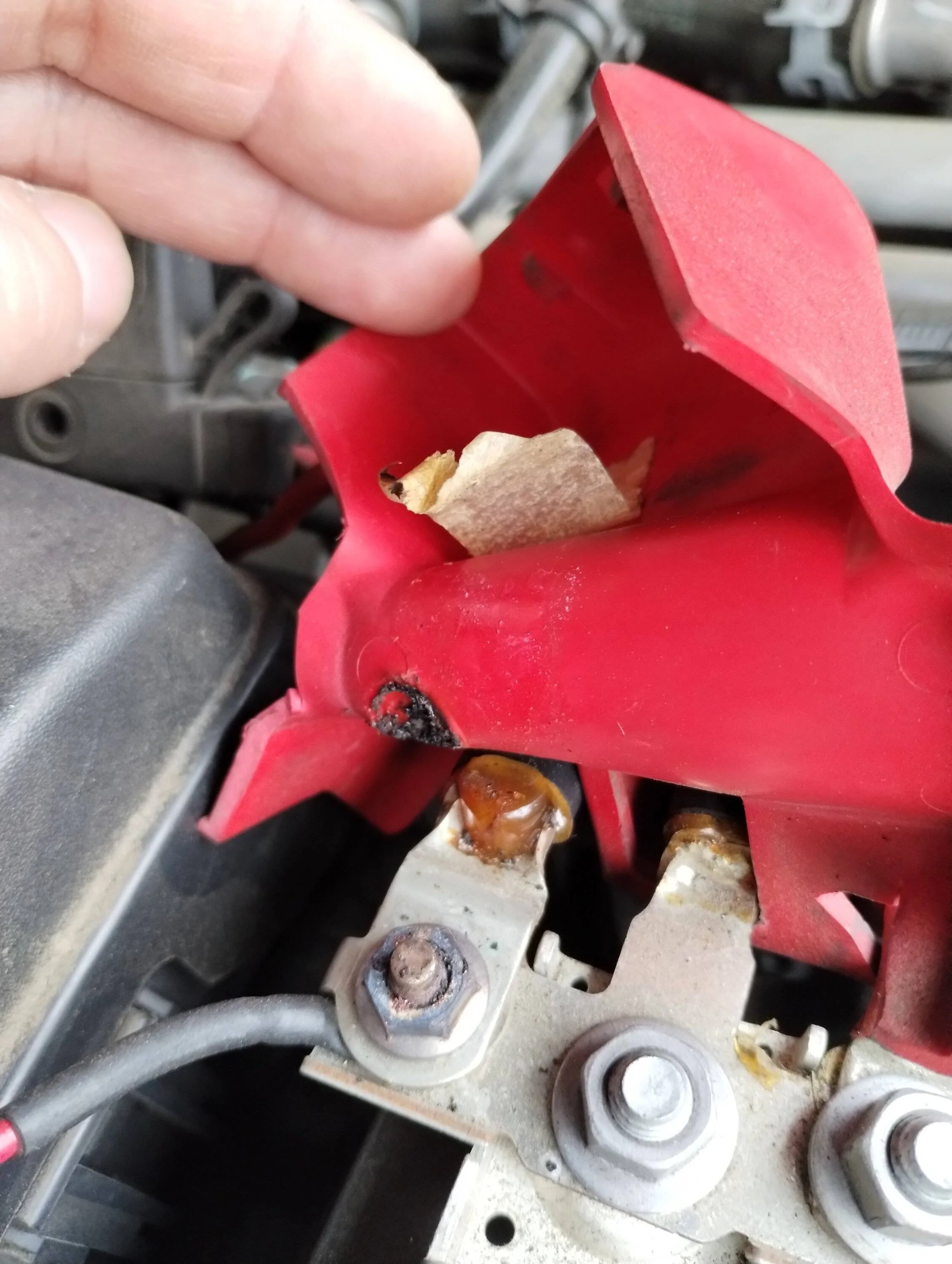

15.7 volts? Yikes.About four months ago I had to replace the aux battery after I started getting a message saying that the aux switches were disabled due to battery charging. The dealer said the aux battery was bad. SInce then I've had no issues, until about two weeks ago. Two weeks ago my ESS stopped working and a couple of times the aux switces have been disabled. Two days ago I monitored the battery voltage for about 15 minutes and the voltage, while idling, would fluctuate from around 13.0 to 15.7 volts, at the same time the engine was idling in tune with the battery fluctuation. I opened the hood and found an orangish/amber colored substance on the end of the power wire at the terminal and a burned spot in the red batteyr terminal cover.
Any ideas on what may be happening to my truck? I'm worried it may catch on fire if I drive it, but it's my daily driver.
I would probably replace that cable. At least clean the terminal. The add-on wire should be on top, not underneath.About four months ago I had to replace the aux battery after I started getting a message saying that the aux switches were disabled due to battery charging. The dealer said the aux battery was bad. SInce then I've had no issues, until about two weeks ago. Two weeks ago my ESS stopped working and a couple of times the aux switces have been disabled. Two days ago I monitored the battery voltage for about 15 minutes and the voltage, while idling, would fluctuate from around 13.0 to 15.7 volts, at the same time the engine was idling in tune with the battery fluctuation. I opened the hood and found an orangish/amber colored substance on the end of the power wire at the terminal and a burned spot in the red batteyr terminal cover.
Any ideas on what may be happening to my truck? I'm worried it may catch on fire if I drive it, but it's my daily driver.
Very true. An added wire should be on top of the others.
Looks like the heat shrink may extend too far on the added connector - impacting the integrity of the connection under the existing connector as mentioned by others.About four months ago I had to replace the aux battery after I started getting a message saying that the aux switches were disabled due to battery charging. The dealer said the aux battery was bad. SInce then I've had no issues, until about two weeks ago. Two weeks ago my ESS stopped working and a couple of times the aux switces have been disabled. Two days ago I monitored the battery voltage for about 15 minutes and the voltage, while idling, would fluctuate from around 13.0 to 15.7 volts, at the same time the engine was idling in tune with the battery fluctuation. I opened the hood and found an orangish/amber colored substance on the end of the power wire at the terminal and a burned spot in the red batteyr terminal cover.
Any ideas on what may be happening to my truck? I'm worried it may catch on fire if I drive it, but it's my daily driver.
I'll check it...that wire was installed by a dealership full of retards so I'm sure they screwed it up

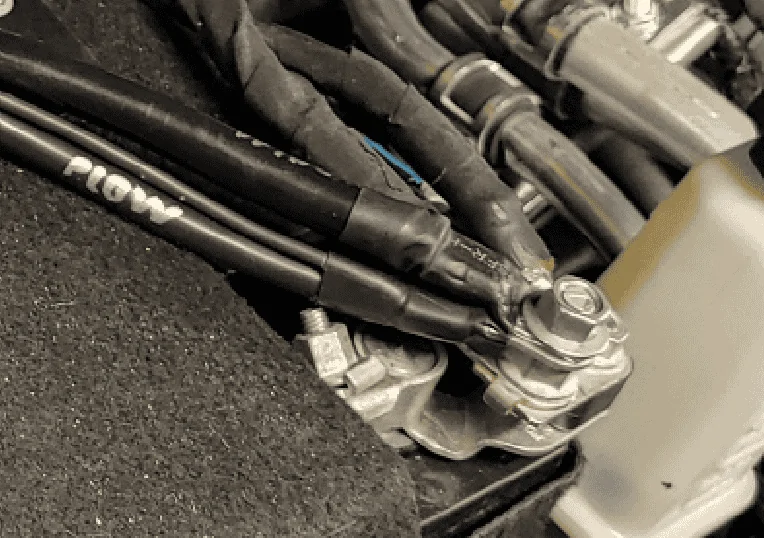

You're clamped down on the insulation of this wire, causing a bad connection that is heating things up, including remelting the heat shrink on the battery cables causing the orange substance.About four months ago I had to replace the aux battery after I started getting a message saying that the aux switches were disabled due to battery charging. The dealer said the aux battery was bad. SInce then I've had no issues, until about two weeks ago. Two weeks ago my ESS stopped working and a couple of times the aux switces have been disabled. Two days ago I monitored the battery voltage for about 15 minutes and the voltage, while idling, would fluctuate from around 13.0 to 15.7 volts, at the same time the engine was idling in tune with the battery fluctuation. I opened the hood and found an orangish/amber colored substance on the end of the power wire at the terminal and a burned spot in the red batteyr terminal cover.
Any ideas on what may be happening to my truck? I'm worried it may catch on fire if I drive it, but it's my daily driver.
And it takes some fair heat to melt that glue/sealer in heat shrink. My heat gun on high will do it, on the next setting down, it barely does it. That means it was really hot. The corroded nut and melted cover is all one needs to see.
Put that added wire on TOP of the others. Make sure the nut doesn't pinch any insulation but is only on the METAL of the wire's end.
