Sway control

AwesomeDad

Well-Known Member
First Name
Jerry
Joined
Jan 21, 2022
Threads
27
Messages
188
Reaction score
179
Location
Tn
Vehicle(s)
2022 JT Rubicon Diesel, VW Passat gas
Occupation
Yes
Since the gladiator has electronic sway control would I need a weight distribution hitch for a 4000lbs trailer? The RV salesman is pushing for one but I haven't seen anyone using one at that weight....

JJ
Sponsored



jt_southwest

Member
First Name
Bil
Joined
Aug 31, 2021
Threads
4
Messages
22
Reaction score
21
Location
Nevada
Vehicle(s)
2021 Jeep Gladiator Rubicon, 2015 Jeep JKUR
Short answer, Yes you should get a weight distribution hitch for a 4K load. The sway control and weight distribution are separate components, although they are sometimes packaged together.

You should also probably have a brake controller for towing that weight as well.


MPMB

Well-Known Member
First Name
Michael
Joined
Apr 30, 2021
Threads
7
Messages
1,283
Reaction score
1,741
Location
Utah
Vehicle(s)
'21 JTR - SG
Occupation
Check your inbox.
Some people recommend a WDH if your trailer weighs 50%+ of the tow vehicle's GVWR. The JT's GVWR is 6250 for the trims with Max Tow.

I think the JT would benefit from a WDH with most trailers.

OP
OP
AwesomeDad

AwesomeDad

Well-Known Member
First Name
Jerry
Joined
Jan 21, 2022
Threads
27
Messages
188
Reaction score
179
Location
Tn
Vehicle(s)
2022 JT Rubicon Diesel, VW Passat gas
Occupation
Yes
Short answer, Yes you should get a weight distribution hitch for a 4K load. The sway control and weight distribution are separate components, although they are sometimes packaged together.

You should also probably have a brake controller for towing that weight as well.
I have the Mopar brake controller, I will look at the WDH....


Sponsored

dcmdon

Well-Known Member
First Name
Don
Joined
Mar 31, 2021
Threads
60
Messages
3,654
Reaction score
4,385
Location
Boston Metro-West, Northern NH
Vehicle(s)
.
At 4k you are kind of at an inflection point.

If your 4k is a load of gravel that you are driving across town, or even a 5k boat trailer you are driving 20 miles to a ramp, a weight distributing hitch is absolutely unnecessary.

If you will be driving hundreds of miles on the interstate. It will be a worthwhile addition.


dcmdon

Well-Known Member
First Name
Don
Joined
Mar 31, 2021
Threads
60
Messages
3,654
Reaction score
4,385
Location
Boston Metro-West, Northern NH
Vehicle(s)
.
I do beleive the manuel says a WDH is needed for anything over 350 LBS tongue weight, so yes you will need one. I highy recommend the Andersen hitch.
I'm just playing devils advocate. I agreee with you that its worth while.

If you have a 4000 trailer with 8% tongue weight, you are at 320 lbs. Which is ok per your manual citation.

But I've learned over decades of towing that I generally like at least 10% on the tongue. The trailer tracks better and is more stable. So I tend to load "tongue heavy".


dcmdon

Well-Known Member
First Name
Don
Joined
Mar 31, 2021
Threads
60
Messages
3,654
Reaction score
4,385
Location
Boston Metro-West, Northern NH
Vehicle(s)
.
Since the gladiator has electronic sway control would I need a weight distribution hitch for a 4000lbs trailer? The RV salesman is pushing for one but I haven't seen anyone using one at that weight....

JJ
Is 4000 lb the empty weight. Or the gross weight?

OP
OP
AwesomeDad

AwesomeDad

Well-Known Member
First Name
Jerry
Joined
Jan 21, 2022
Threads
27
Messages
188
Reaction score
179
Location
Tn
Vehicle(s)
2022 JT Rubicon Diesel, VW Passat gas
Occupation
Yes
Is 4000 lb the empty weight. Or the gross weight?
3400 dry, 4300 max gross and should have about 500LB Tounge weight according to Airstream...

JJ


Jaxmax

Well-Known Member
First Name
Jack
Joined
Jun 28, 2020
Threads
34
Messages
1,906
Reaction score
2,709
Location
Bally, Pa.
Vehicle(s)
Jeeps....... 2021 Mojave , 2019 Wrangler
Occupation
Electrical Manager

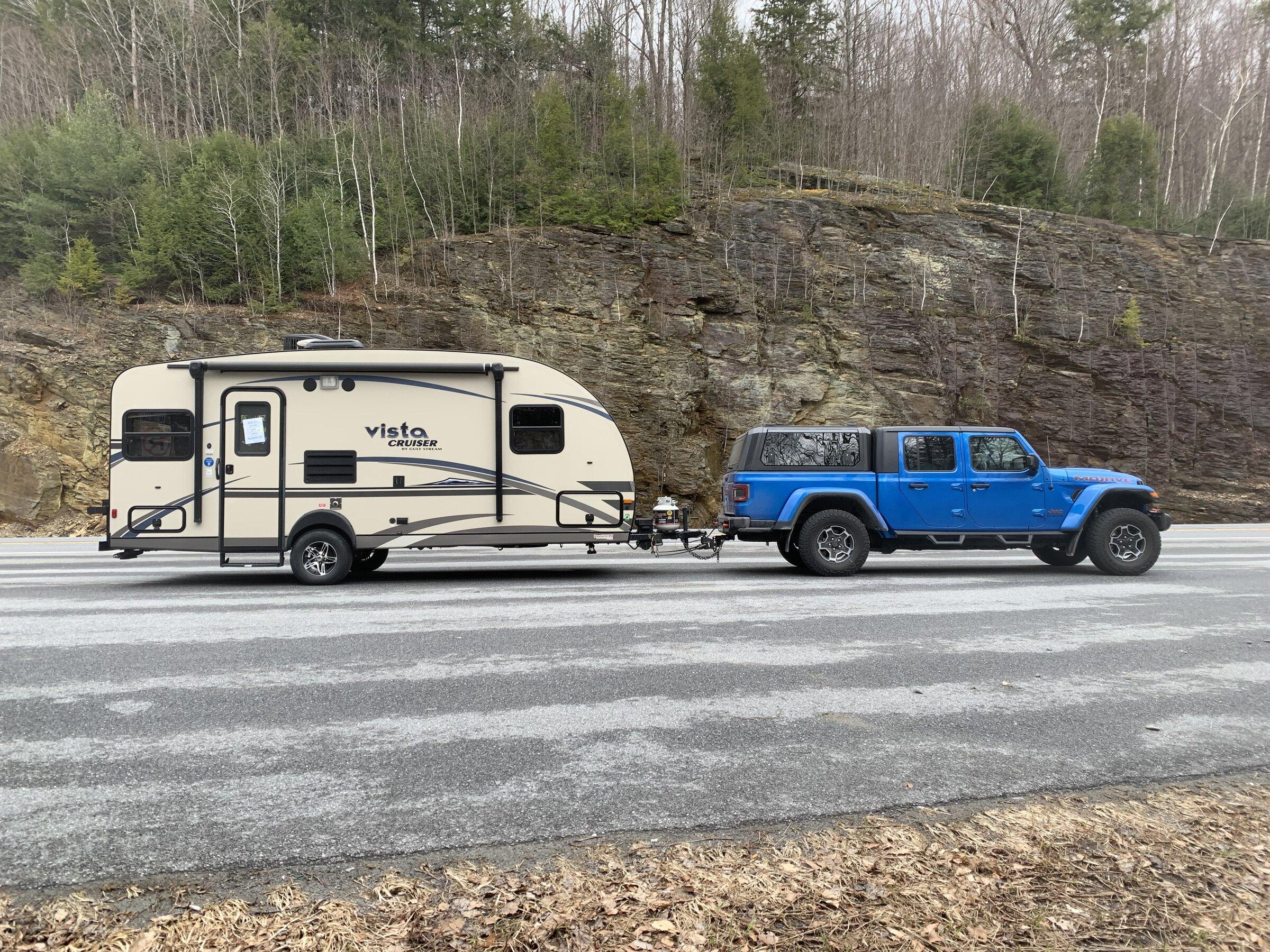

Absolutely, I have a 23’ long camper 3200lbs. Dry and 4100 GVW, used a Blue Ox combination WDH called Sway Pro worked great, talking to Blue Ox factory the bars have to be the right rating, I have 500lb. bars which I should not exceed, next step is 750pounds. Just towed it not set up perfectly for 6.5 hours tried some sway movements on empty straight highways and was very impressed. Whatever WDH someone has will be the best, so yup, mine is the best!…..Jack

Jeep Gladiator Sway control 63B4C123-C326-4F44-921F-7B947D9BA4B2


Sponsored

ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
178
Messages
29,091
Reaction score
34,572
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
For flatbeds/car haulers, not needed. (and for aluminum frames, you'd better not use one)
But for travel trailers/campers, yes. The taller they are, the more they help as well.
WDH is also "more needed" IMO with a single axle trailer.

Sway is the trailer swinging left and right at the rear, weight distribution keeps bounce out of the hitch connection and helps spread the weight out.
I always used a weight distributing hitch when I pulled our campers.
I've never used one with a car hauler.


jeepers29

Well-Known Member
First Name
Joel
Joined
Aug 24, 2021
Threads
10
Messages
1,425
Reaction score
2,219
Location
Georgetown Tx
Vehicle(s)
JKUR, GC
Occupation
Domestic engineer
I'm just playing devils advocate. I agreee with you that its worth while.

If you have a 4000 trailer with 8% tongue weight, you are at 320 lbs. Which is ok per your manual citation.

But I've learned over decades of towing that I generally like at least 10% on the tongue. The trailer tracks better and is more stable. So I tend to load "tongue heavy".
I was always told 10% min. upto 15%, max for tongue weight. I try to keep it close to 10%.


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
178
Messages
29,091
Reaction score
34,572
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
I was always told 10% min. upto 15%, max for tongue weight. I try to keep it close to 10%.
It actually varies with total trailer weight.......... as low as 8, as high as 15.
I run 8 to 10% at the recommendation of Aluma.

OP
OP
AwesomeDad

AwesomeDad

Well-Known Member
First Name
Jerry
Joined
Jan 21, 2022
Threads
27
Messages
188
Reaction score
179
Location
Tn
Vehicle(s)
2022 JT Rubicon Diesel, VW Passat gas
Occupation
Yes
For flatbeds/car haulers, not needed. (and for aluminum frames, you'd better not use one)
But for travel trailers/campers, yes. The taller they are, the more they help as well.
WDH is also "more needed" IMO with a single axle trailer.

Sway is the trailer swinging left and right at the rear, weight distribution keeps bounce out of the hitch connection and helps spread the weight out.
I always used a weight distributing hitch when I pulled our campers.
I've never used one with a car hauler.

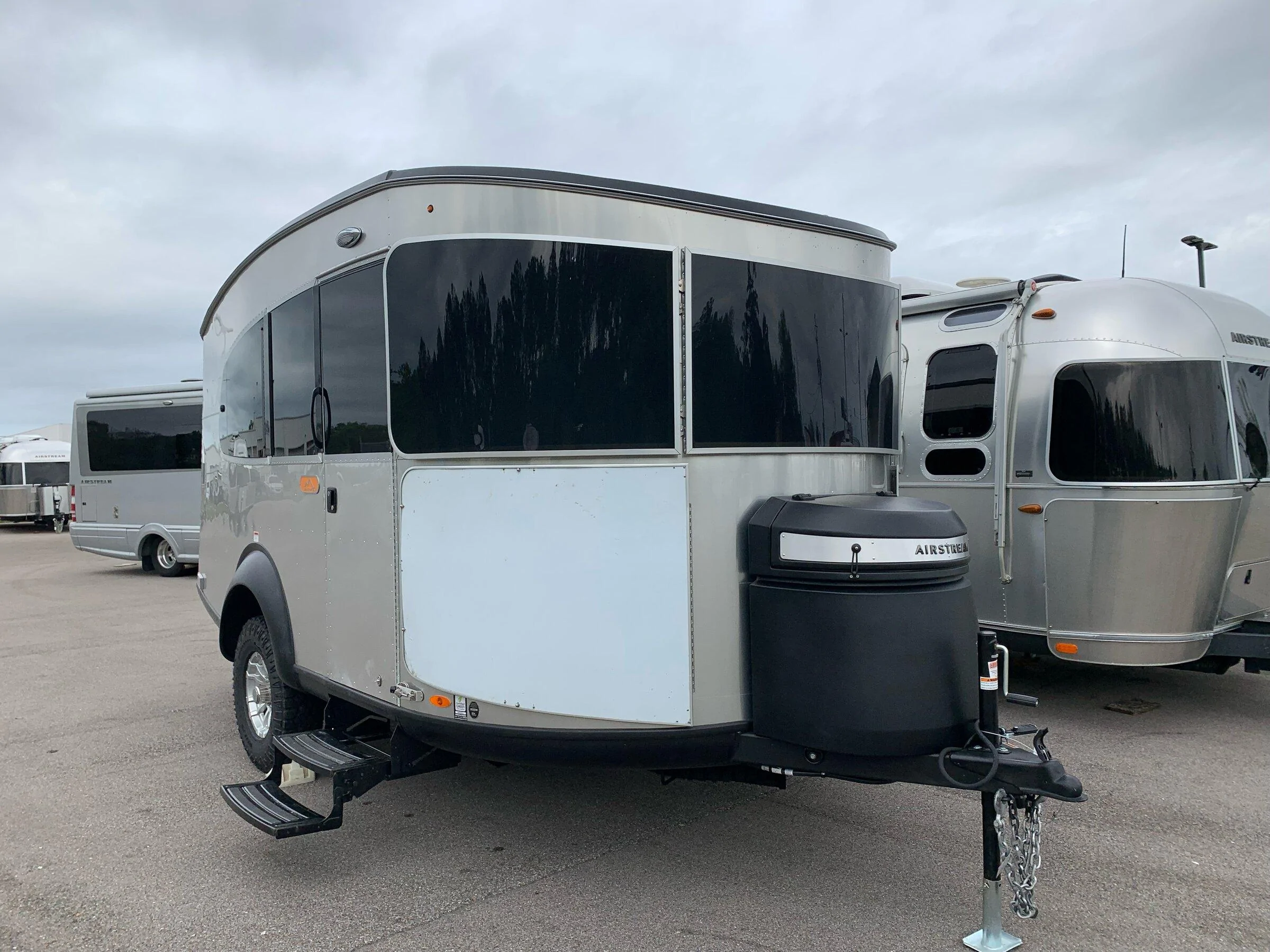

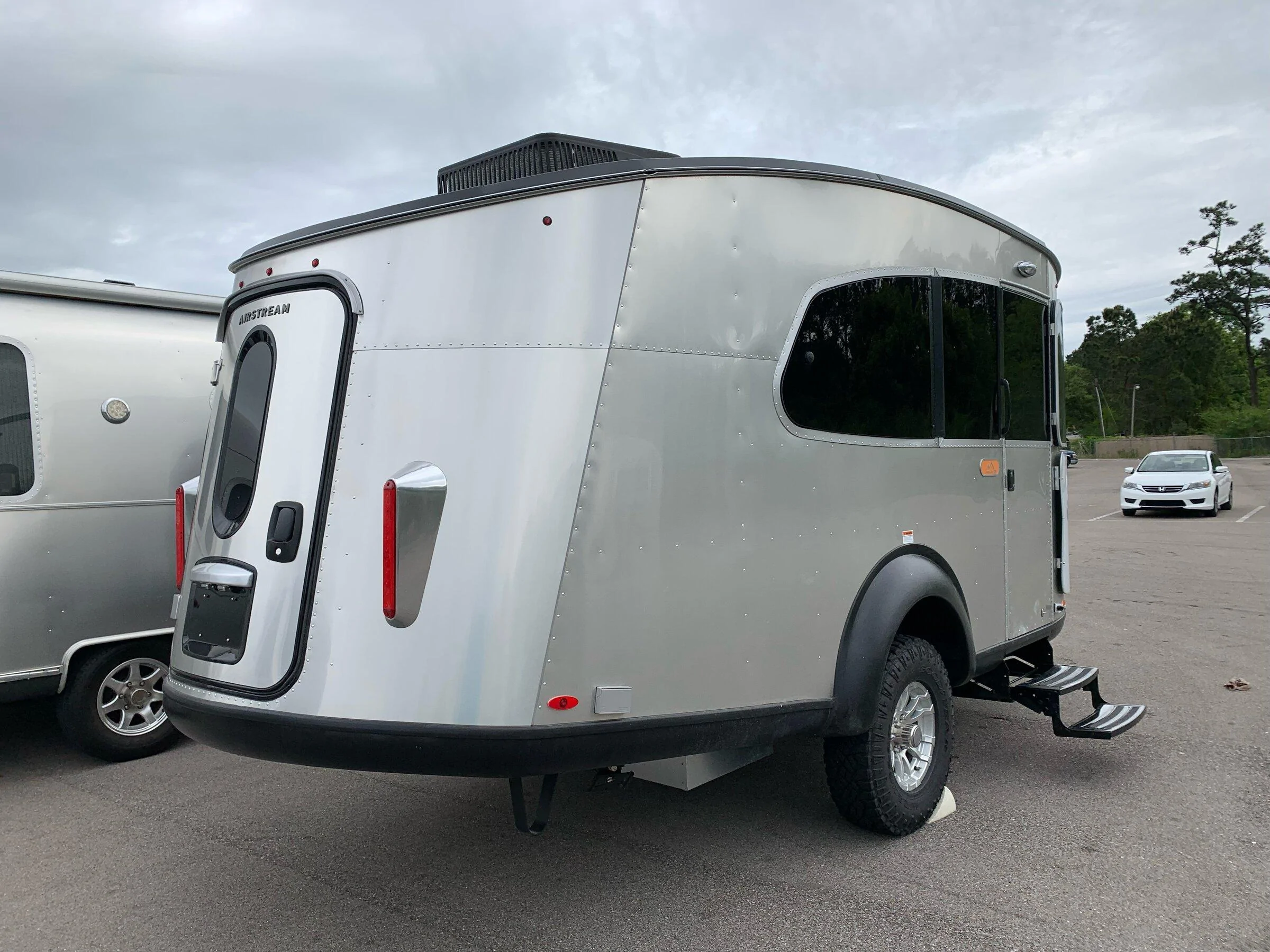

Here it is...











Jaxmax

Well-Known Member
First Name
Jack
Joined
Jun 28, 2020
Threads
34
Messages
1,906
Reaction score
2,709
Location
Bally, Pa.
Vehicle(s)
Jeeps....... 2021 Mojave , 2019 Wrangler
Occupation
Electrical Manager
That is nice ,very aero, going to tow great, I would still do the WDH though. Enjoy the camper!.....Jack
