I got the new jeep steel taillights but I can't figure out the wiring for the factory harness. Can someone help?

I have the below figured put except for the last 2.

Yellow- brake turn
White/orange-marker/taillight
White/brown- reverse

White - ???
Gray- ????
Sponsored



ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
178
Messages
29,081
Reaction score
34,559
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
I got the new jeep steel taillights but I can't figure out the wiring for the factory harness. Can someone help?

I have the below figured put except for the last 2.

Yellow- brake turn
White/orange-marker/taillight
White/brown- reverse

White - ???
Gray- ????
At least one has to be ground.

OP
OP
Penmoe23

Penmoe23

Member
First Name
Matt
Joined
Jan 5, 2020
Threads
1
Messages
9
Reaction score
3
Location
Newalla,ok
Vehicle(s)
2020 gladiator
Yeah there are a few black that are ground. I didn't list that one because I am 100% on it lol


Dougstdig

Well-Known Member
First Name
Doug
Joined
Sep 5, 2017
Threads
19
Messages
1,350
Reaction score
1,285
Location
FL
Vehicle(s)
‘21 JTRD - '08 Dodge Ram 2500 4x4

Sponsored

Joined
Oct 6, 2021
Threads
1
Messages
15
Reaction score
3
Location
Wisconsin
Vehicle(s)
2021 Gladiator High Altitude
I have the Oracle bumper reverse lights using the Oracle plug and play adapter. I am adding an LED identification bar to the tailgate that I will want on with the tail lights only.

Instead of tapping into the vehicle wiring could I tap into the Oracle harness wires at pin 2 position for power from tail lights and pin 6 or 7 for ground?


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
178
Messages
29,081
Reaction score
34,559
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
I have the Oracle bumper reverse lights using the Oracle plug and play adapter. I am adding an LED identification bar to the tailgate that I will want on with the tail lights only.

Instead of tapping into the vehicle wiring could I tap into the Oracle harness wires at pin 2 position for power from tail lights and pin 6 or 7 for ground?
That's what I'd do.

6 or 7 for ground, 2 is side marker so should work.


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
178
Messages
29,081
Reaction score
34,559
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
Thank you!

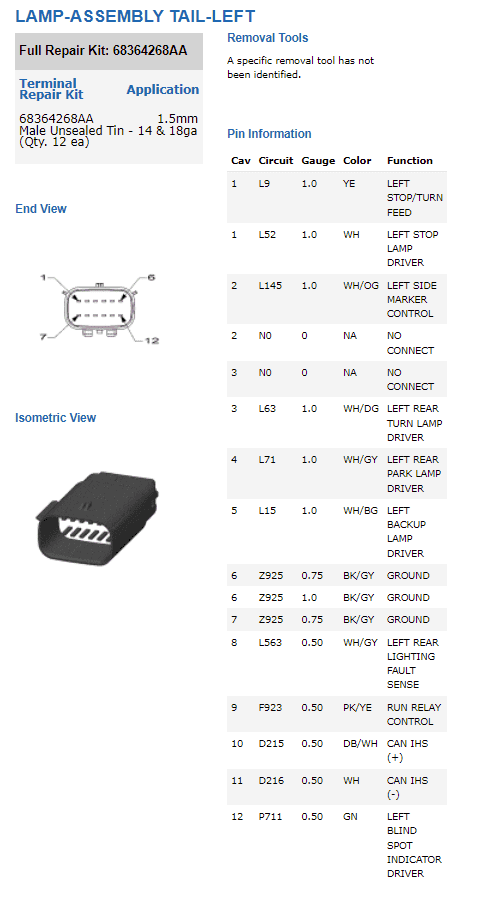

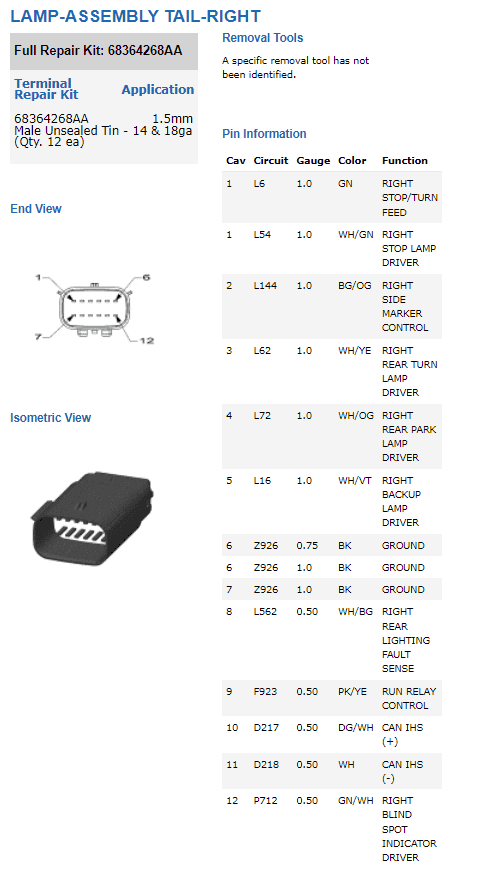

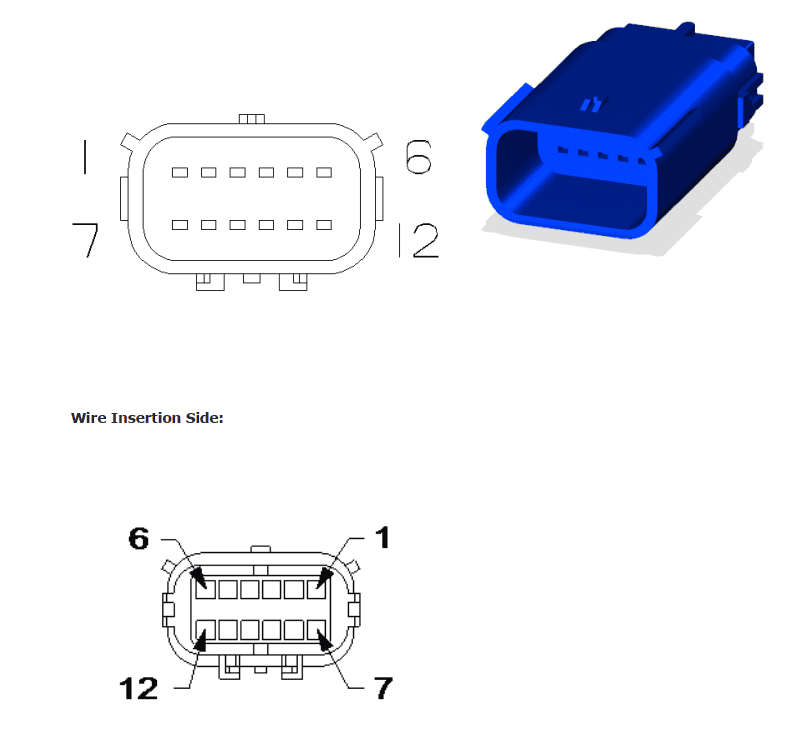

No problem. The wires/pins will be EASY to ID because Oracle is using the backup light signal at #5 and the ground at #6
6 will be a corner, 5 will be next to it in that line. So you can very easily count over from 6 to 5 and find #2 over from there in the same "row".

Jeep Gladiator Tail light wiring diagram 1671811442694
