I need some quick advise! Here's a time line of events leading up to the current situation:

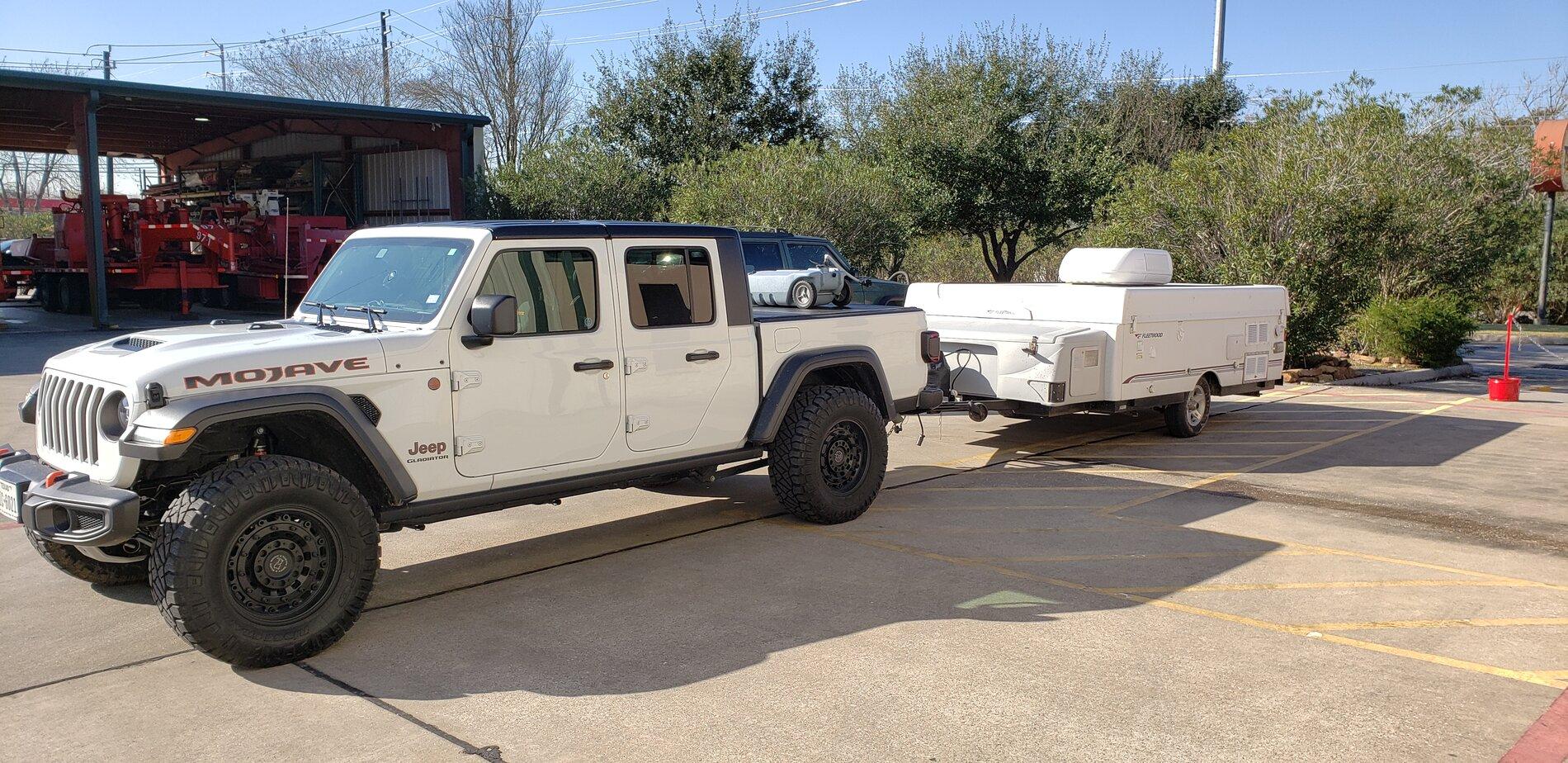

Bought a new pop up camper yesterday and left the trailer light connection hooked up over night. Came out this morning and the truck was deader than a door nail.

Jumped the truck off:

The "service start/stop system" display came up along with the @! symbol.

This was affecting my uconnect as well not letting me set the ac to any specific temp just taking it from whatever temp straight to hi or low.

Tried letting it run for a while, then tried disconnecting the battery hoping for some sort of reset (was reading 14.x volts at the time before the battery disconnect).

Some genius at work said you have to touch the positive and negative leads together to completely clear the computer.

As soon as he did that and I saw the spark between the leads I told him that was a BAD idea as there was a secondary battery (for the start/stop system) still active on those leads.

This is where the fun began.

Now I'm reading 11.x volts, the battery light is on as well and I'm getting the message that the vehicle will be shutting itself down soon.

I take the pop-up camper attached and park it in a safe place at the shop, then as I'm pulling away from it to park the truck next to the shop, it starts to die.

I threw the truck into neutral to coast to a stop, then put it in park.

When I hit the start button to turn the truck off, the display was telling me that the vehicle was still in gear (it was not). Couldn't turn it off (engine wasn't running, but the ignition was in the "run" position). Front windows down, Tazer still installed and married, and my only recourse that I can think of is take it to the dealership.

At this point, I can remove the Tazer but can not un-marry it. What the heck do I do now?

2021 Mojave with 3000 miles on it!






Advertisement



CerOf

Well-Known Member
Joined
Jan 1, 2021
Messages
58
Reaction score
61
Location
Dallas
Vehicle(s)
‘21 JTRD
I need some quick advise! Here's a time line of events leading up to the current situation:

Bought a new pop up camper yesterday and left the trailer light connection hooked up over night. Came out this morning and the truck was deader than a door nail.

Jumped the truck off:

The "service start/stop system" display came up along with the @! symbol.

This was affecting my uconnect as well not letting me set the ac to any specific temp just taking it from whatever temp straight to hi or low.

Tried letting it run for a while, then tried disconnecting the battery hoping for some sort of reset (was reading 14.x volts at the time before the battery disconnect).

Some genius at work said you have to touch the positive and negative leads together to completely clear the computer.

As soon as he did that and I saw the spark between the leads I told him that was a BAD idea as there was a secondary battery (for the start/stop system) still active on those leads.

This is where the fun began.

Now I'm reading 11.x volts, the battery light is on as well and I'm getting the message that the vehicle will be shutting itself down soon.

I take the pop-up camper attached and park it in a safe place at the shop, then as I'm pulling away from it to park the truck next to the shop, it starts to die.

I threw the truck into neutral to coast to a stop, then put it in park.

When I hit the start button to turn the truck off, the display was telling me that the vehicle was still in gear (it was not). Couldn't turn it off (engine wasn't running, but the ignition was in the "run" position). Front windows down, Tazer still installed and married, and my only recourse that I can think of is take it to the dealership.

At this point, I can remove the Tazer but can not un-marry it. What the heck do I do now?

2021 Mojave with 3000 miles on it!

Could you have shorted out the battery or a cell in the battery?

I’d take the battery out and get it tested.

I’ve seen electrical systems get real funny when a battery has issues.

I don’t know much about the second start/stop battery in these things, but it could also have an issue.


johnparjr

Well-Known Member
First Name
John
Joined
Sep 5, 2020
Messages
391
Reaction score
392
Location
Roseville
Vehicle(s)
2020 Jeep Gladiator Mojave
Just take the module off if you can't unmarry it and don't mention anything if they ask if you did anything just say no I really doubt they will even know you did anything with a Tazer


kooltoys

Well-Known Member
First Name
Tony Johansmeyr
Joined
Dec 19, 2020
Messages
63
Reaction score
27
Location
west coast Florida
Vehicle(s)
2021 JTHAD, 1990 300zx TT 5spd, FXSTB
Occupation
All About AV llc
all modern car do stupid shit( really cazy behaviors) when battery is low charge or going bad.. charge battery over night, should fix your issues


Pepe

Well-Known Member
Joined
Dec 21, 2020
Messages
134
Reaction score
100
Location
RI
Vehicle(s)
2020 Gladiator
My guess https://www.jlwranglerforums.com/forum/threads/internal-fuses-in-the-pdc.15456/

I shorted my battery during a winch install and this is what blew.
Yes, good chance one of the 150 amp fuses in the Fuse array is blown, amongst other possible issues..

Indeed, if you disconnect the positive cable on the Main battery and that cable touches metal, gets shorted, you will see the one of the 150 amp fuses, in the 68368853AA Mopar Z Case Fuse Array get blown.

Here is a pic of the fuse array with the plastic covering removed from it. Note, the blown
150 amp fuse.. Fuse was blown when pos cable on main battery, touched nearby metal. 8-(
fuse array - blown.jpg

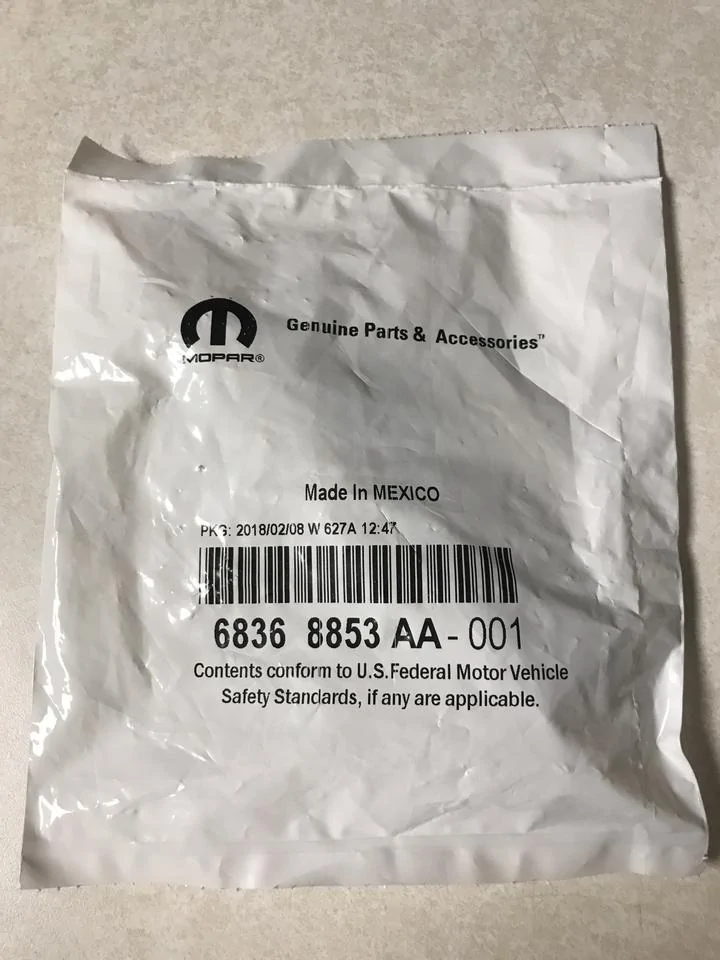

Fuse Array... retails for about $60+-.
fuse array.jpg

Last edited:
OP

Blake Thomas

New Member
First Name
Blake
Joined
Nov 24, 2020
Messages
3
Reaction score
1
Location
77346
Vehicle(s)
2021 Jeep Gladiator Mojave
  • Thread starter
  • Thread Starter
  • #7
Yes, good chance the 150 amp fuse in the Fuse array is blown, amongst other possible issues..

Indeed, if you disconnect the positive cable on the Main battery and that cable touches metal, gets shorted, you will see the 150 amp fuse, in the 68368853AA Mopar Z Case Fuse Array get blown.

Here is a pic of the fuse array with the plastic covering removed from it. Note, the blown
150 amp fuse.. Fuse was blown when pos cable on main battery, touched nearby metal. 8-(
View attachment 127507

Fuse Array... retails for about $70+-.
fuse array.jpg
Yes sir. Already saved those images for purchase to have a spare on hand as advised. Thanks again! 😁


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Messages
7,214
Reaction score
5,898
Location
Runnells, Iowa
Vehicle(s)
2020 JT Overland; 2018 Grand Cherokee; 2004 Grand Cherokee Special Edition; 1970 Javelin(sold); 1973 Javelin; 1982 Eagle SX4
Occupation
Retired auto tech, frmr gov't ntwrk security admin
Vehicle Showcase
3
Wow - hope he didn't blow your alternator doing that BS. What a crock.
One should always charge the batteries with a good battery charger, not rely on dead batteries charging via alternator after a jump. That's bad.
Any time the batteries are dead - charge them. Don't jump and rely on the charging system.
I've got pictures of alternators sent to me for restoration with the diodes blown clean apart, tops blown clear off. Someone decided to do something silly.

Besides, as has been said, when you pull a cable off the main battery, the lower battery is still connected - meaning with the system and alternator.
Hope fuses are all that's blown.


CerOf

Well-Known Member
Joined
Jan 1, 2021
Messages
58
Reaction score
61
Location
Dallas
Vehicle(s)
‘21 JTRD
Fascinating read about the PDC and the fuse.

I googled and they can be had for less than $50. I might pick one up to keep as a spare in the Jeep. That’s one of those things that will leave you stranded off-road it seems.

OP

Blake Thomas

New Member
First Name
Blake
Joined
Nov 24, 2020
Messages
3
Reaction score
1
Location
77346
Vehicle(s)
2021 Jeep Gladiator Mojave
  • Thread starter
  • Thread Starter
  • #10
Yes, good chance the 150 amp fuse in the Fuse array is blown, amongst other possible issues..

Indeed, if you disconnect the positive cable on the Main battery and that cable touches metal, gets shorted, you will see the 150 amp fuse, in the 68368853AA Mopar Z Case Fuse Array get blown.

Here is a pic of the fuse array with the plastic covering removed from it. Note, the blown
150 amp fuse.. Fuse was blown when pos cable on main battery, touched nearby metal. 8-(
View attachment 127507

Fuse Array... retails for about $60+-.
fuse array.jpg
Should I just replace the fuse array and trickle charge the batteries over the next couple of day bypassing taking it to the dealer all together? I have access to those chargers...


WK2JT

Well-Known Member
First Name
Darren
Joined
Mar 11, 2020
Messages
255
Reaction score
213
Location
Denver
Vehicle(s)
JT Overland
Vehicle Showcase
1
I think you would have been fine by charging the batteries after jumping. When the batteries get low, the start/stop function will temporarily suspend operation until there is enough charge. As others have said, vehicles will do goofy things and throw strange error messages when the charge is low.

I’ve only had to unplug my Tazer when taking it in. There is some confusing information out there. However, zautomotive told me I only need to unmarry if I was switching vehicles. Otherwise, just unplug for dealer visits.

Hope replacing the fuse and charging gets you back up and running. Keep us posted.


Pepe

Well-Known Member
Joined
Dec 21, 2020
Messages
134
Reaction score
100
Location
RI
Vehicle(s)
2020 Gladiator
I think you would have been fine by charging the batteries after jumping. When the batteries get low, the start/stop function will temporarily suspend operation until there is enough charge. As others have said, vehicles will do goofy things and throw strange error messages when the charge is low.

I’ve only had to unplug my Tazer when taking it in. There is some confusing information out there. However, zautomotive told me I only need to unmarry if I was switching vehicles. Otherwise, just unplug for dealer visits.

Hope replacing the fuse and charging gets you back up and running. Keep us posted.
I believe you misunderstood what you say ZAutomotive said. You might want to ask Joe at ZAutomotive again. He recommends unmarry and removal of Tazer JL hardware when the vehicle goes to the Service Department..

Here is a post that while is a little dramatic, does explain the concern of leaving the Tazer JL married... and well, how the Tazer JL works lets say... Read the whole post.... pay attention to the last 2 paragraphs.
https://www.jlwranglerforums.com/forum/threads/tazer-mini-needs-to-stay-married.61293/post-1310209


brianinca

Well-Known Member
First Name
Brian
Joined
Jun 8, 2020
Messages
513
Reaction score
418
Location
USA
Vehicle(s)
2020 Gladiator Rubicon
Occupation
IT Manager
I've never unmarried my Tazer, just removed it, for multiple services including the TSB for the steering box. I know they flashed the ROM at the time, or the workorder said they did. Not a peep about anything.

Edit to add: I'd include there were two Samsung tablet Bluetooth profiles on my Uconnect when I went to re-add my iPad, so I know they were mucking in the guts with diagnostics and or flash updates.

I believe you misunderstood what you say ZAutomotive said. You might want to ask Joe at ZAutomotive again. He recommends unmarry and removal of Tazer JL hardware when the vehicle goes to the Service Department..

Here is a post that while is a little dramatic, does explain the concern of leaving the Tazer JL married... and well, how the Tazer JL works lets say... Read the whole post.... pay attention to the last 2 paragraphs.
https://www.jlwranglerforums.com/forum/threads/tazer-mini-needs-to-stay-married.61293/post-1310209


Pepe

Well-Known Member
Joined
Dec 21, 2020
Messages
134
Reaction score
100
Location
RI
Vehicle(s)
2020 Gladiator
I've never unmarried my Tazer, just removed it, for multiple services including the TSB for the steering box. I know they flashed the ROM at the time, or the workorder said they did. Not a peep about anything.

Edit to add: I'd include there were two Samsung tablet Bluetooth profiles on my Uconnect when I went to re-add my iPad, so I know they were mucking in the guts with diagnostics and or flash updates.
@brianinca

Well, what you did is not in your / your JT's best interests...

This is not rocket science lets say.. DO, take the time to read the post I linked to earlier. The info in that post is relevant.

Do as you wish but the guy/gal that is up to speed on this stuff will unmarry and remove the Tazer JL. As mentioned, even Joe @ ZAutomotive will tell you in general it is best to unmarry and remove the hardware. Only takes about 4 mins to do this.... only prudent to do so.

IF, if you doubt it is best to unmarry and pull the hardware, I suggest you reach out to Joe at ZAutomotive and have him verify lets say, what is in the post I linked to... and also his feeling on whether to unmarry and remove the hardware.. I know if you communicate with JOE, himself, directly, that he will tell you unmarry and remove hardware.

Suggest you buy the SWG extension cable from ZAutomotive so you don't have so much angst about pulling the hardware and reconnecting the 2 cables.
https://www.zautomotive.com/product/sgw-extension-cable/


Pepe

Well-Known Member
Joined
Dec 21, 2020
Messages
134
Reaction score
100
Location
RI
Vehicle(s)
2020 Gladiator
snip:
Edit to add: I'd include there were two Samsung tablet Bluetooth profiles on my Uconnect when I went to re-add my iPad, so I know they were mucking in the guts with diagnostics and or flash updates.
The "two Samsung tablet Bluetooth profiles" you saw were undoubtedly related to the Samsung devices the Service Writer's used the day your JT was there. The Service Writer's are pushed by FCA to use the tablets when logging in a vehicle. The wiTECH ll, that the tech uses/used, for diagnostics and updates, does not leave a footprint in UConnect as those tablets did.

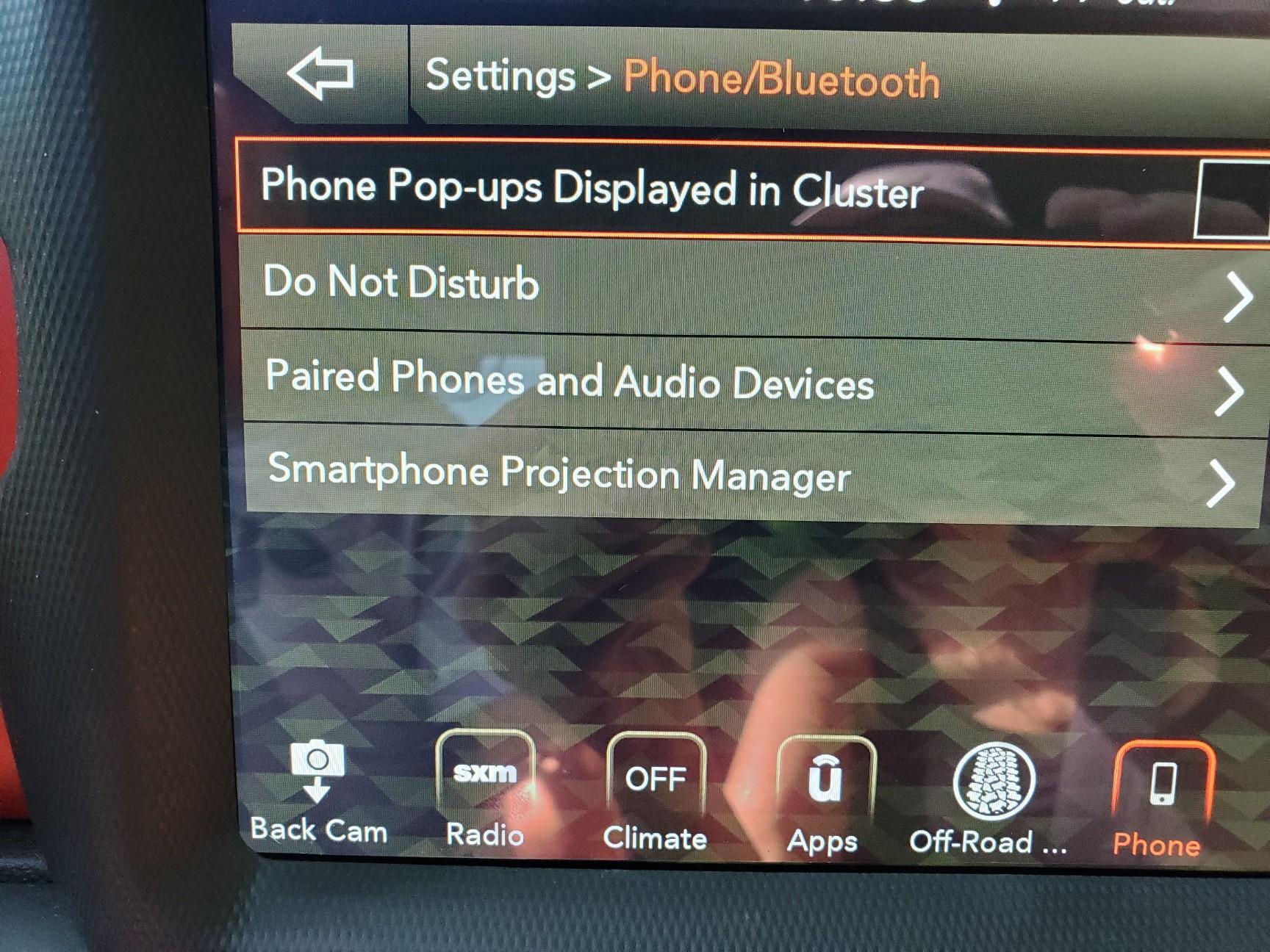

By the way, if you ever have trouble with your Smartphone, ipad, etc., in regard to your JT, do go to "Projection Manager", Paired Phones and Audio Devices in UConnect, and remove any and all devices in Projection Manager and then repair the devices you want. More often then not doing this will remedy issues you may have.
