Thise 12.5" wide tires fit the factory wheels without rubbing?
315/70R17 on stock Rubicon wheels. 1” teraflex spacer installed up front, 1/2” teraflex spacer in the rear. No rubbing anywhere.

Sponsored



jwilson2899

Well-Known Member
First Name
Jeff
Joined
Nov 11, 2019
Threads
18
Messages
779
Reaction score
910
Location
Front Royal, VA
Vehicle(s)
2020 Gladiator Rubicon Launch Edition
Occupation
System Engineer
Vehicle Showcase
1

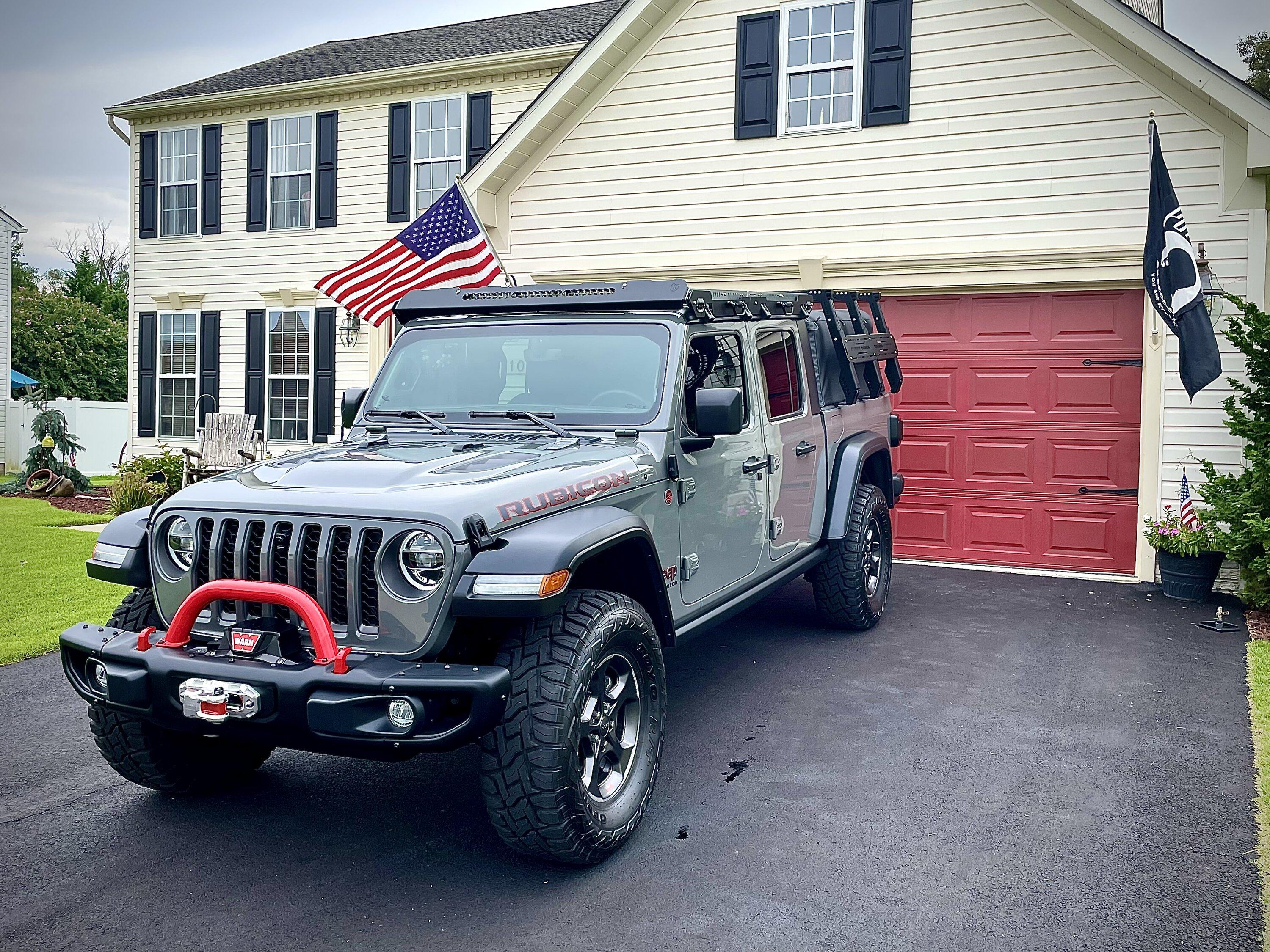

315/70R17 on stock Rubicon wheels. 1” teraflex spacer installed up front, 1/2” teraflex spacer in the rear. No rubbing anywhere.

Jeep Gladiator Teraflex 1.5 Inch Front Leveling Kit 167BCEEF-A0C5-4864-946F-223C32C2EC94
I like that way that looks a lot. Do you have a part number or link to the rear TF spacers? I can find 1/2" ones for JL, but not JT.


'22JTRD

Well-Known Member
First Name
Dale
Joined
Sep 8, 2022
Threads
7
Messages
114
Reaction score
205
Location
Treasure Coast
Vehicle(s)
2022 Jeep JT Rubicon
Occupation
Real Estate

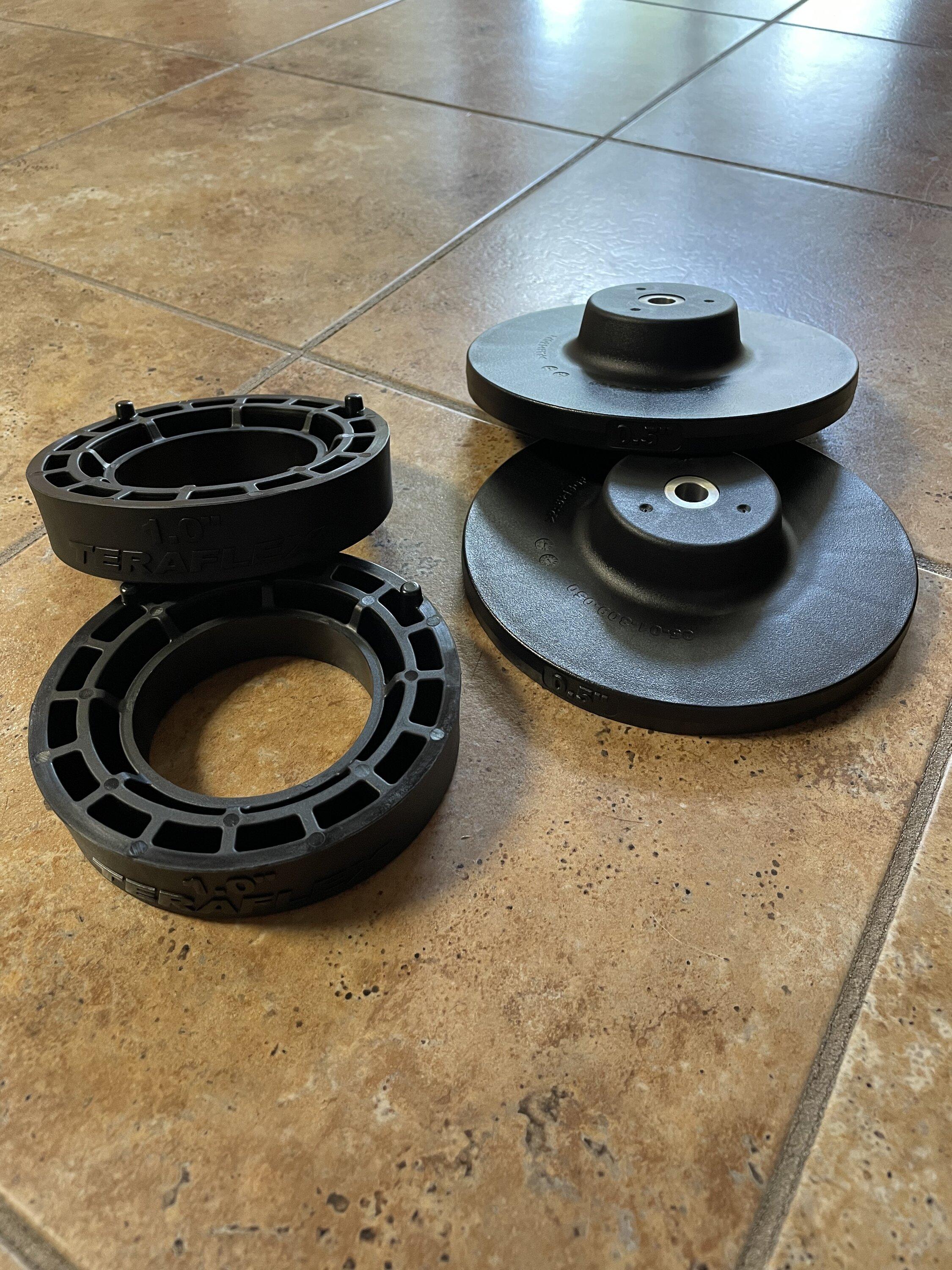

My son and I installed the ( front only ) Teraflex 1.5" Leveling Kit and Teraflex 2" Shock Extension Kit.

Figure this puts us back to within 1/2" of OEM shock travel.

It took right at 1 hour start to finish, including re-centering the steering wheel.

Put a 4' level on the bed rail and the rear end side of the bubble was just touching the center/level line.

Nitto Trail Grappler M/T 35"×12.50×17"
OEM Optional 7.5" wheels

No Rub and Full Articulation

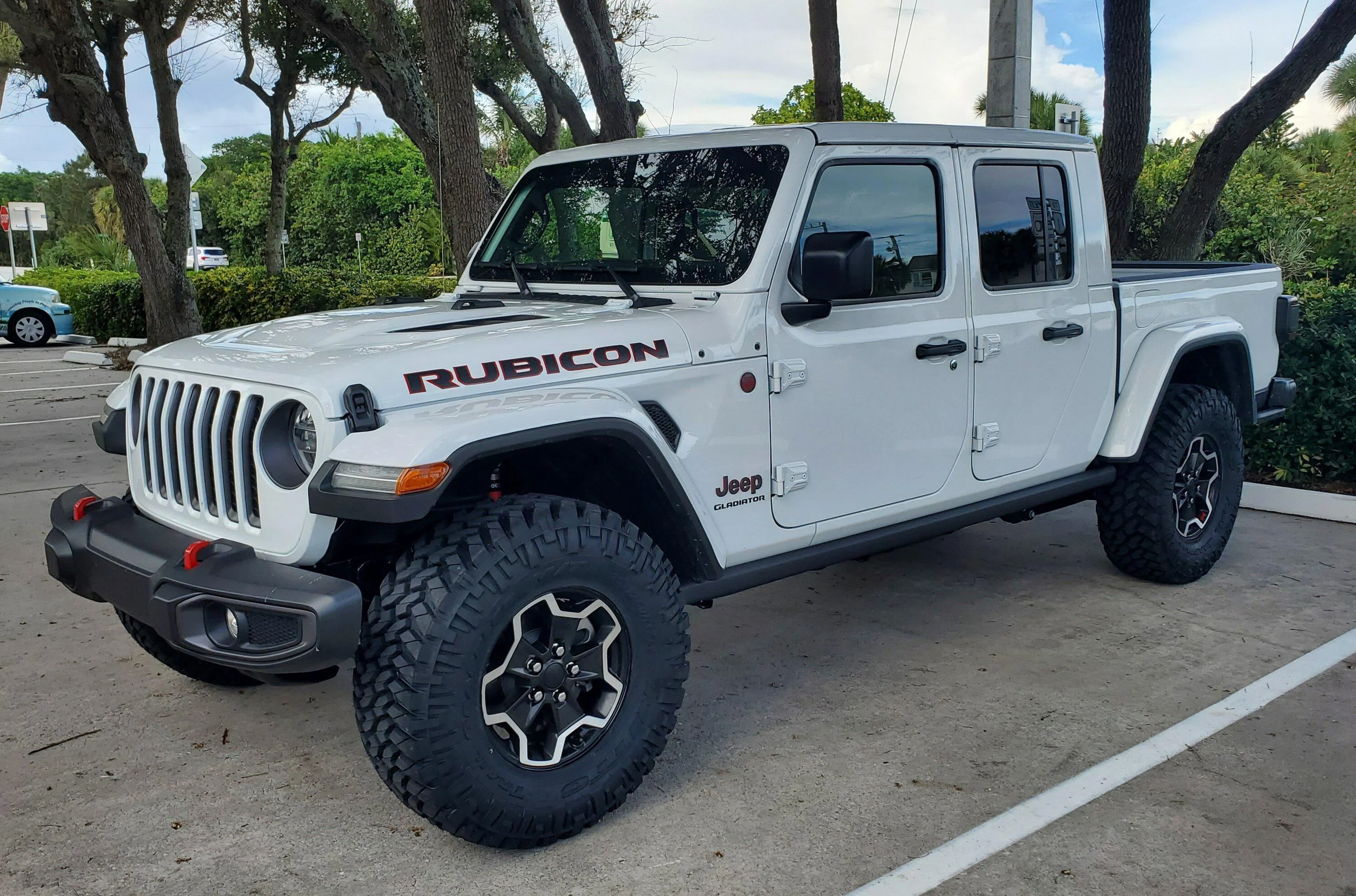

Before Pic

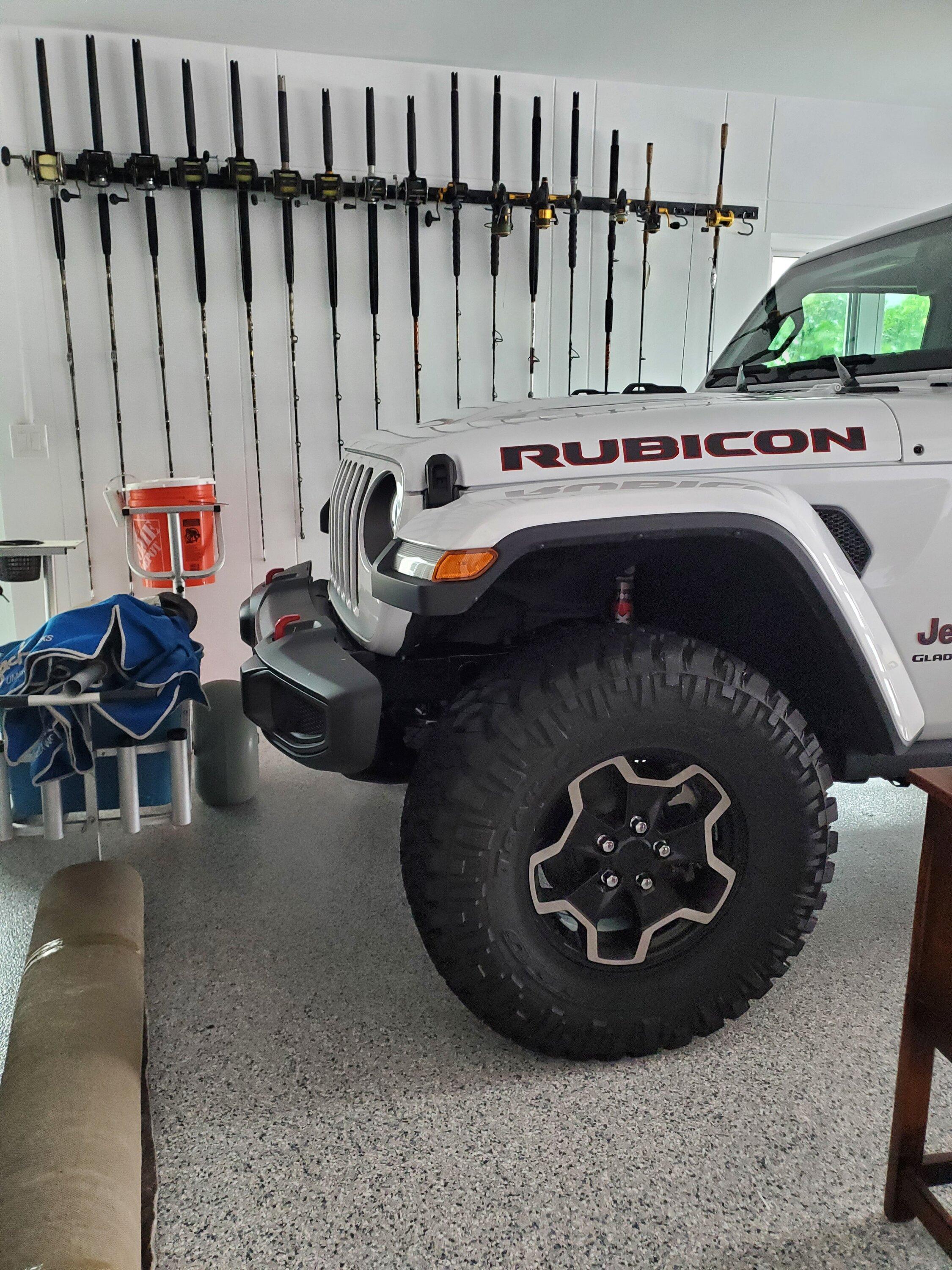

After Pic ( will retake in Before location after Ian )


Sponsored

troopertrek

Well-Known Member
First Name
Nate
Joined
Jul 10, 2021
Threads
1
Messages
52
Reaction score
68
Location
United States
Vehicle(s)
21 JTR; 20 VW Tiguan SEL R-Line; 06 Mustang GT
I like that way that looks a lot. Do you have a part number or link to the rear TF spacers? I can find 1/2" ones for JL, but not JT.
I just called them direct when I got them. I couldn’t find a part number anywhere online, but they were happy to help on the phone.


jwilson2899

Well-Known Member
First Name
Jeff
Joined
Nov 11, 2019
Threads
18
Messages
779
Reaction score
910
Location
Front Royal, VA
Vehicle(s)
2020 Gladiator Rubicon Launch Edition
Occupation
System Engineer
Vehicle Showcase
1
I just called them direct when I got them. I couldn’t find a part number anywhere online, but they were happy to help on the phone.
Thanks, I’ll give them a shout. Do you remember if the spacer went on top or bottom?


troopertrek

Well-Known Member
First Name
Nate
Joined
Jul 10, 2021
Threads
1
Messages
52
Reaction score
68
Location
United States
Vehicle(s)
21 JTR; 20 VW Tiguan SEL R-Line; 06 Mustang GT
I like that way that looks a lot. Do you have a part number or link to the rear TF spacers? I can find 1/2" ones for JL, but not JT.
Jeep Gladiator Teraflex 1.5 Inch Front Leveling Kit 0D1A2381-3CDC-402B-949F-0962CEB7CFCF

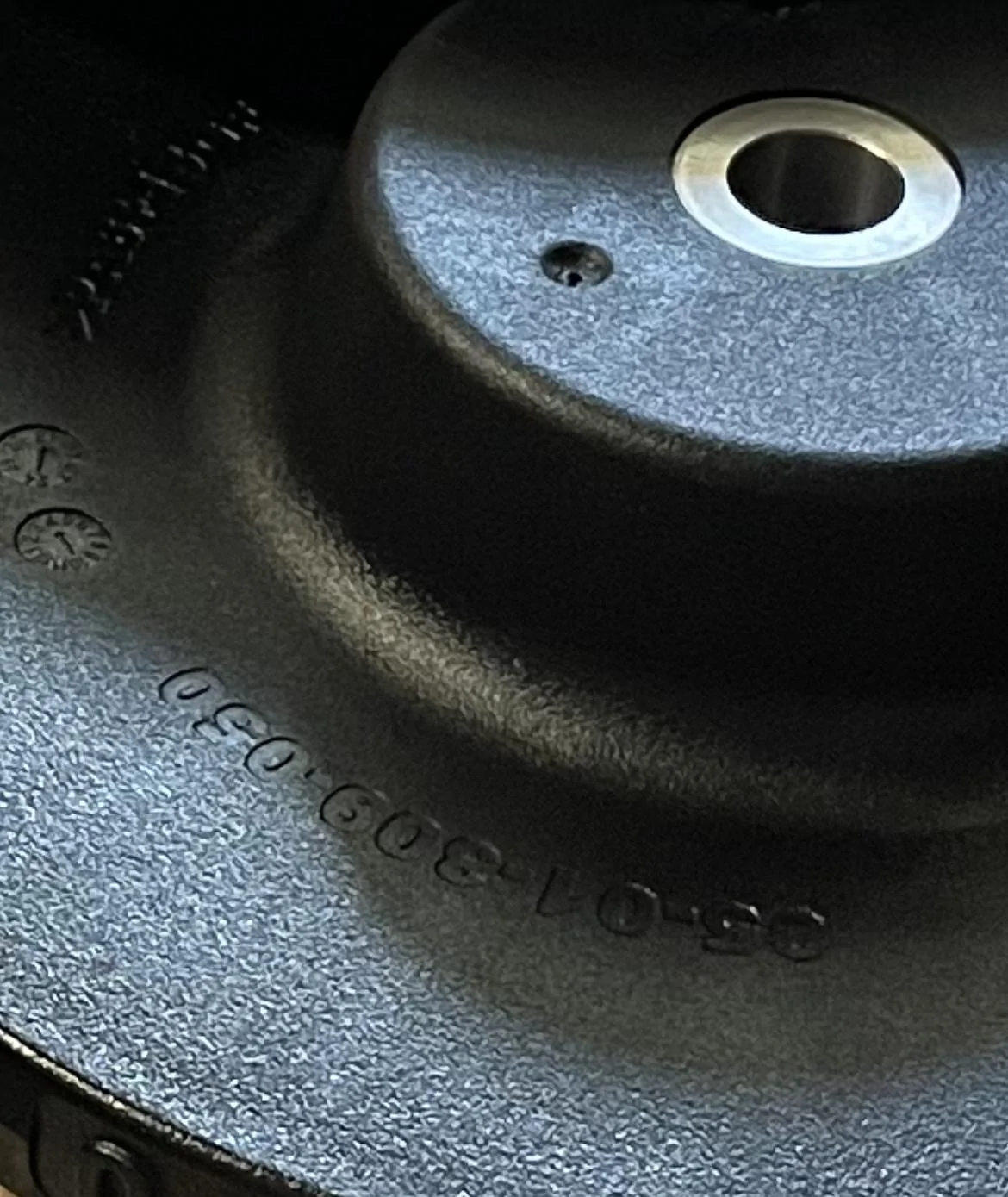

Part # perhaps. I can’t make out the first number, it’s either a 3 or a 0.

x5-01-309-050


Sponsored

jwilson2899

Well-Known Member
First Name
Jeff
Joined
Nov 11, 2019
Threads
18
Messages
779
Reaction score
910
Location
Front Royal, VA
Vehicle(s)
2020 Gladiator Rubicon Launch Edition
Occupation
System Engineer
Vehicle Showcase
1
OP
OP
Trauma PA

Trauma PA

Well-Known Member
First Name
Robert
Joined
Jul 2, 2018
Threads
29
Messages
1,297
Reaction score
1,417
Location
Southwest Florida
Vehicle(s)
2021 JT Willys, 2021 Audi Q3
Occupation
Trauma Surgery Physician Assistant
Hope you are OK after Ian

We are gonna be ok over here in Vero Beach
Thanks Dale.
We are ok. Was quite the storm and quite nerve wracking but our lives are safe and our home survived with only minor damages such as losing our pool cage and many shingles missing. Fortunately the storm surge was not as bad as predicted where our home lies so no flooding.


SoK66

Well-Known Member
First Name
Jerry
Joined
Nov 15, 2020
Threads
3
Messages
90
Reaction score
63
Location
Durango, CO
Vehicle(s)
2021 Jeep Gladiator Sport (3)
Occupation
Land Tours Manager, Jeep Tour Guide
I didn't read through all the posts here so sorry if this has been covered. I put the TF 1.5" spacer kit on my new '23 Willys to level it out and get rid of that rake. I did notice the reduction in caster almost immediately, so I just installed the Mopar 2" kit front lower control arms and based upon first impressions highly recommend them. Drives straight as an arrow, no wandering as it had been doing, steering feel is much more precise.

I did the install in my garage and gave up on the new torque instructions for the upper and lower arm bolts. I used my 1/2" pneumatic impact to remove the lower bolts and it zipped them right off. I was expecting more of a struggle. The new arms went on like a breeze, and I torqued using the TF kit specs. Ran them to the torque spec with a torque wrench, then marked the approximate additional twist with a paint mark, then used the impact wrench to get the actual additional twist. The struggle came when I torqued the uppers. I was able to loosen them easily with a ratcheting breaker bar, there was no way any of them had been torqued to 41 / 37 ft lbs and then turned 185 / 135 degrees more. It was absolutely impossible for me to take them up that far without risk of injury, so I just used the old spec of 80 ft lbs axle & frame sides and let it go. I'm positive that's what they must have been from the factory. We'll see if that causes any issues.
