Teraflex Leveled Mojave & Rubicon JT pics

[The Custom Jeep Builder]

We live and breath Jeep so that you know our recommendations come from REAL WORLD experience and not just something we read on the Internet.

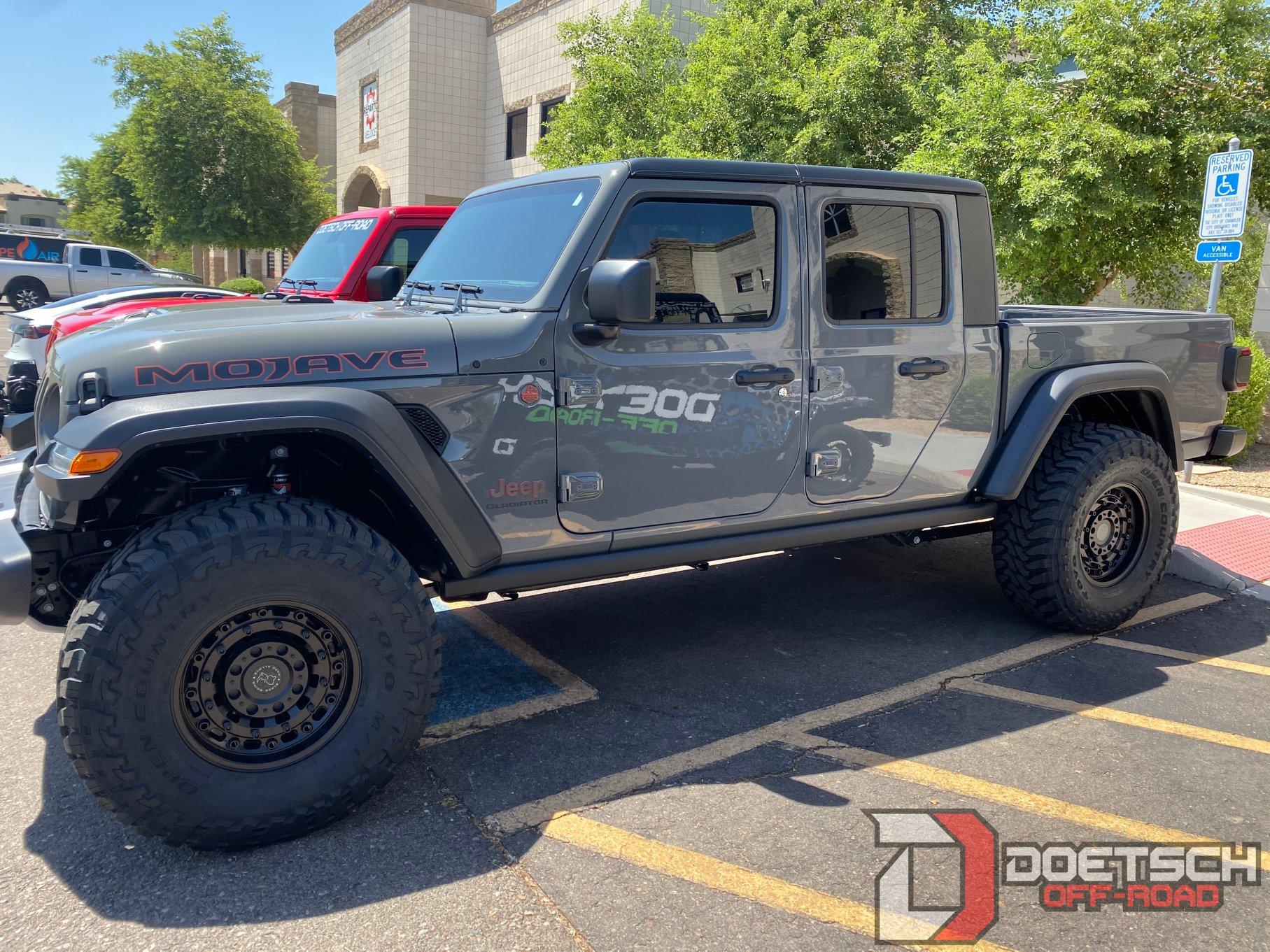

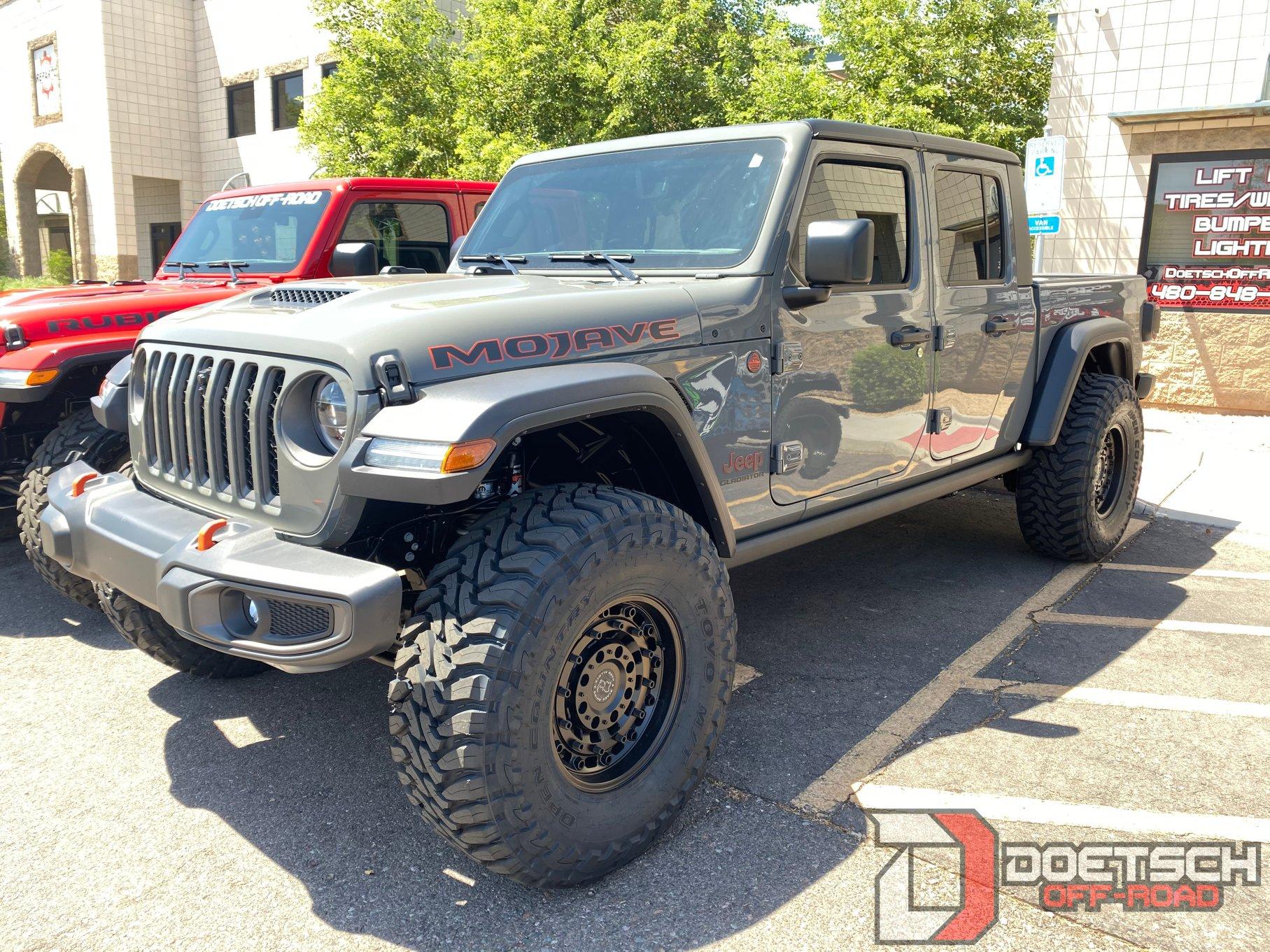

Dave S. brought us his Mojave Gladiator for a front 1.5"
TeraFlex Suspensions
level kit along with a set of 37x13.50R17 TOYO MT tires and 17x9.5 Arsenal
Black Rhino Wheels
!

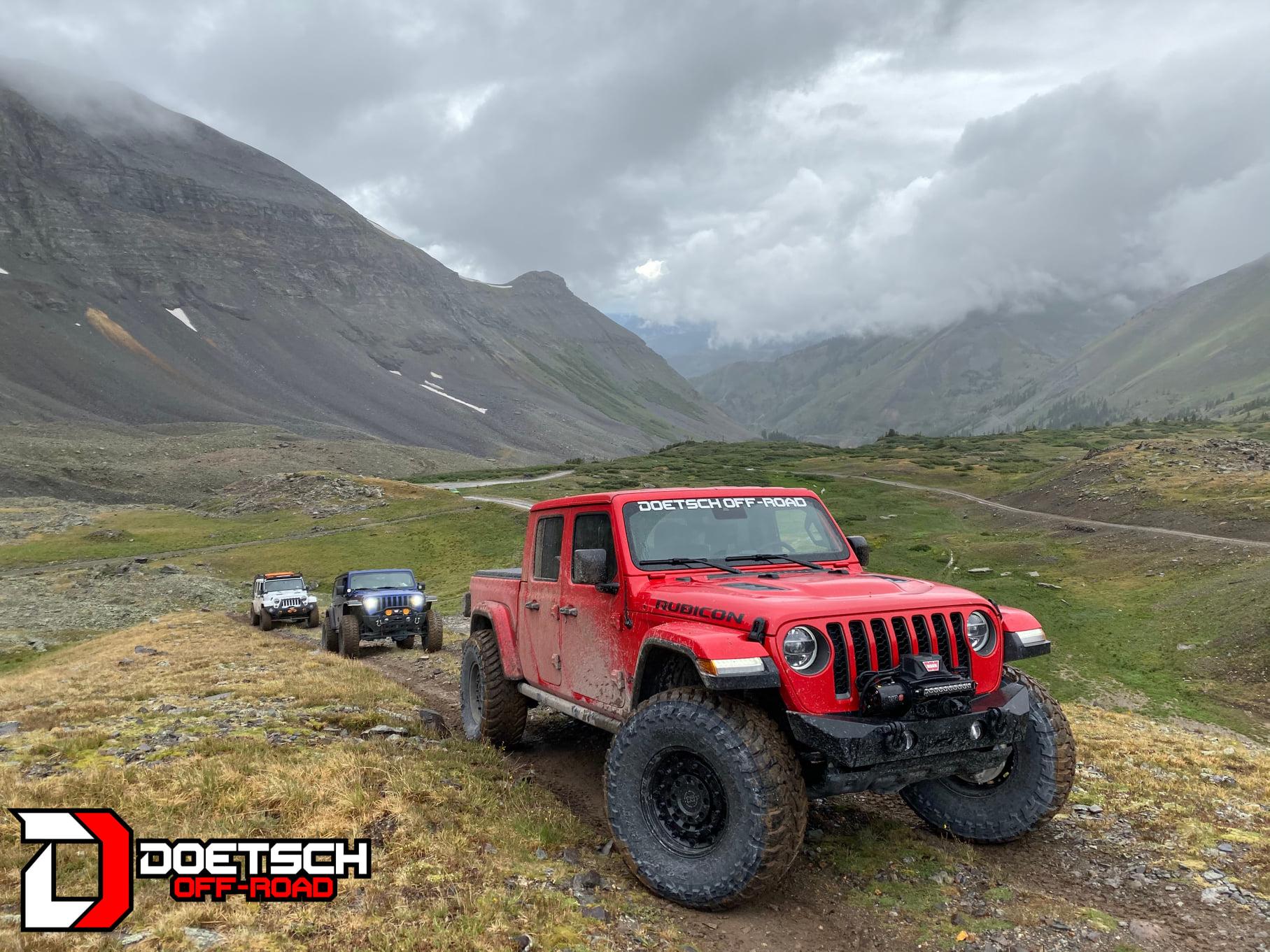

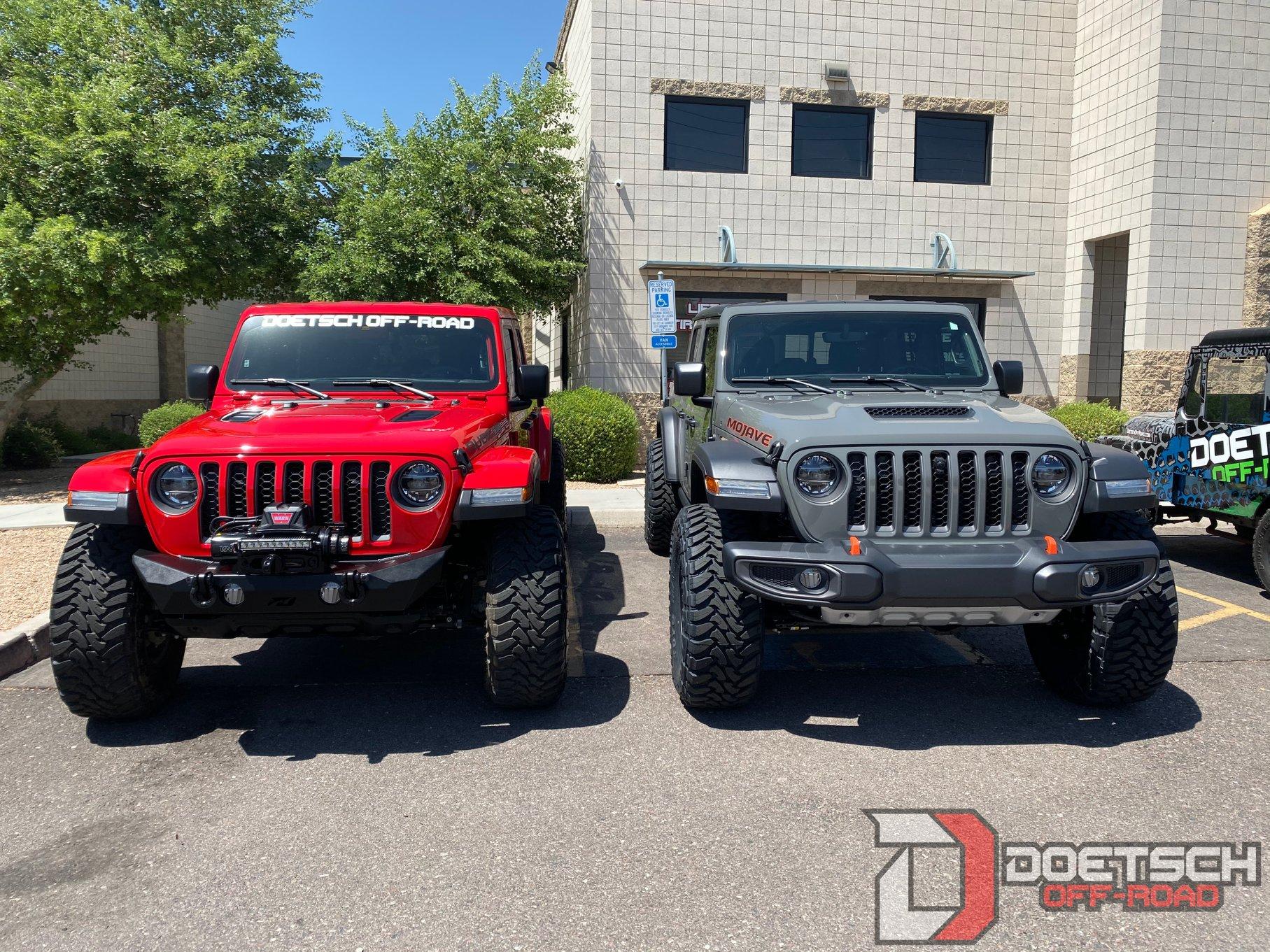

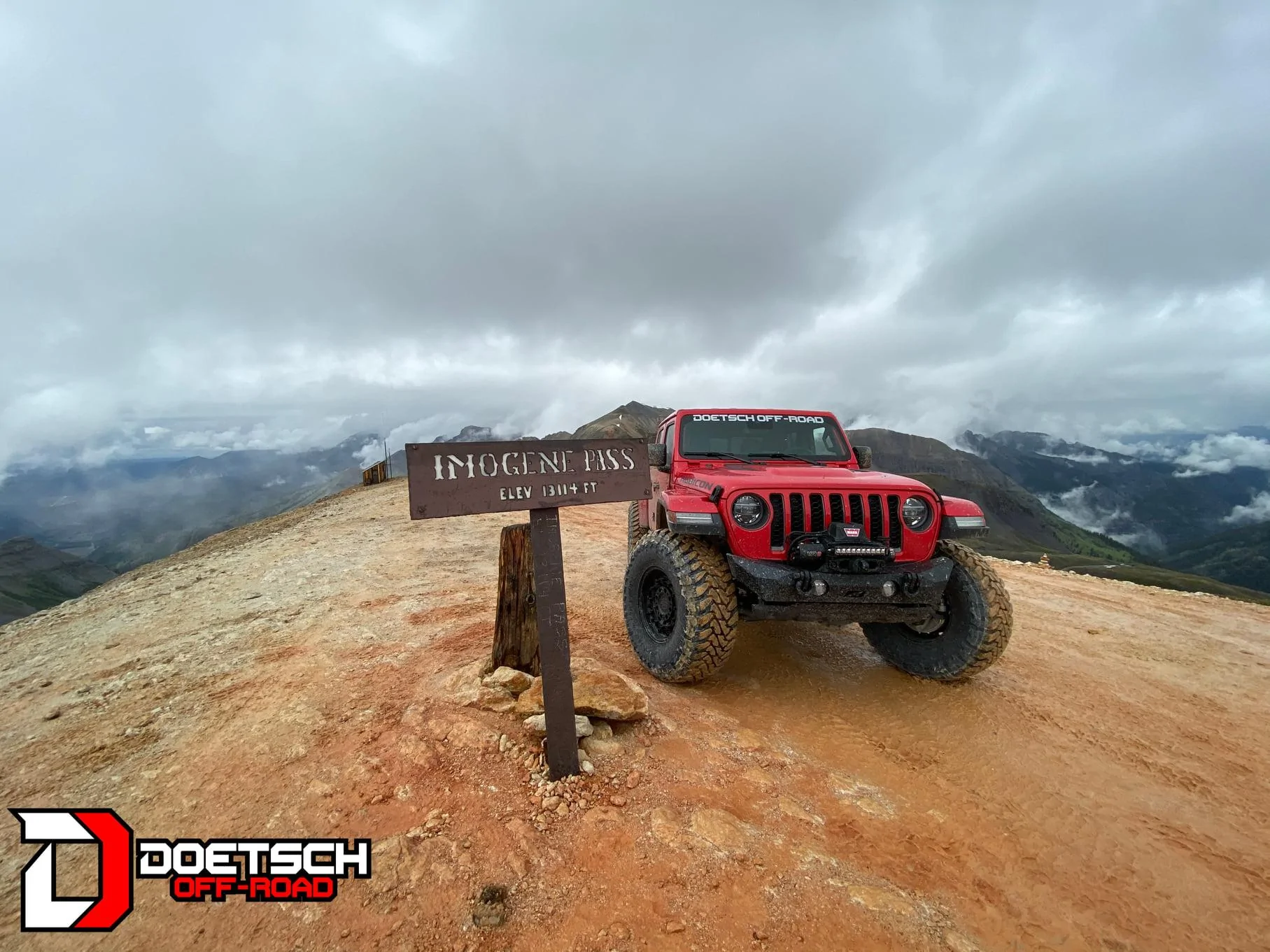

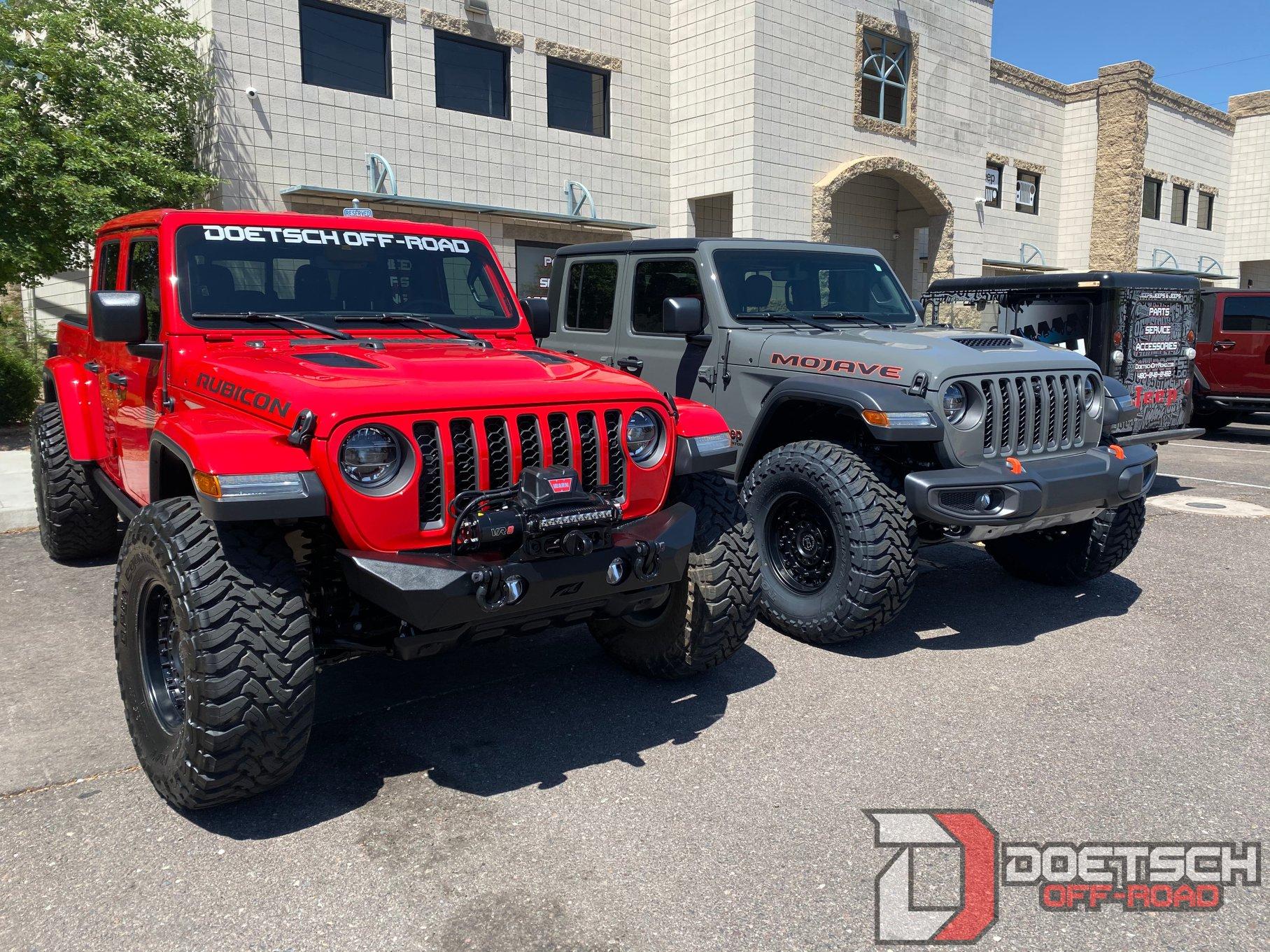

Here are some comparison pics of the exact same set up on one of our shop Jeep JT Rubicons that just finished a 4-day trek through Colorado to test out the setup...

Sponsored



[SloW8]

How did it do wheeling? Any rub issues?



[JeepXJ3]

Teraflex 1.5in
Steer Smarts XD tracbar



[Eherbaugh]

We live and breath Jeep so that you know our recommendations come from REAL WORLD experience and not just something we read on the Internet.
Dave S. brought us his Mojave Gladiator for a front 1.5"
TeraFlex Suspensions
level kit along with a set of 37x13.50R17 TOYO MT tires and 17x9.5 Arsenal
Black Rhino Wheels
!
Here are some comparison pics of the exact same set up on one of our shop Jeep JT Rubicons that just finished a 4-day trek through Colorado to test out the setup...

So does it sit level or does the rear squat?



[tinfoilhat]

We live and breath Jeep so that you know our recommendations come from REAL WORLD experience and not just something we read on the Internet.
Dave S. brought us his Mojave Gladiator for a front 1.5"
TeraFlex Suspensions
level kit along with a set of 37x13.50R17 TOYO MT tires and 17x9.5 Arsenal
Black Rhino Wheels
!
Here are some comparison pics of the exact same set up on one of our shop Jeep JT Rubicons that just finished a 4-day trek through Colorado to test out the setup...

Did you use shock relocation brackets with the leveling kit?



[The Custom Jeep Builder]

Did you use shock relocation brackets with the leveling kit?

The shocks actually have enough in them to do without. In the pics above, it was tested over 4 days on the trails of Colorado flawlessly. They are an option though.



[TJDave]

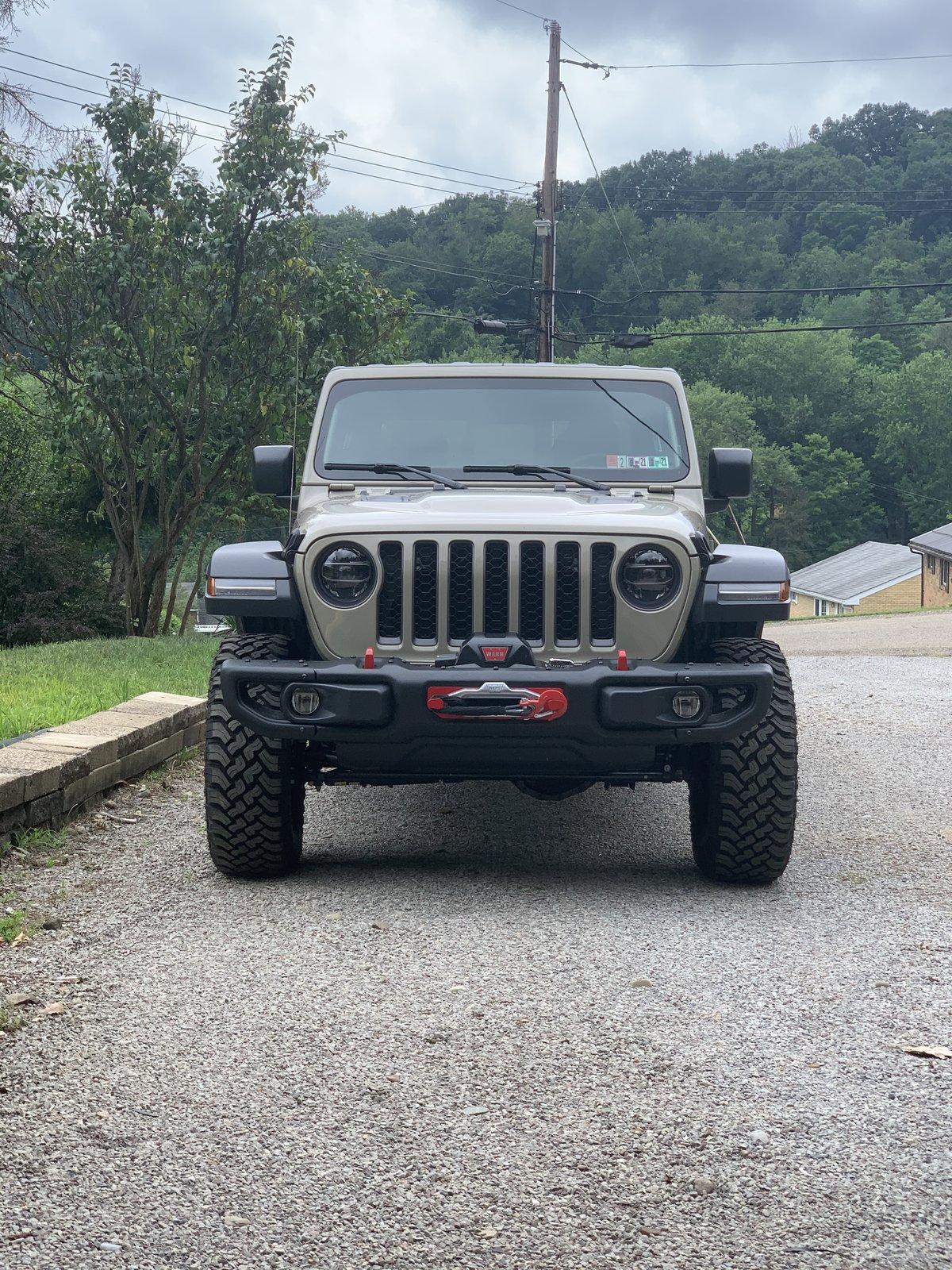

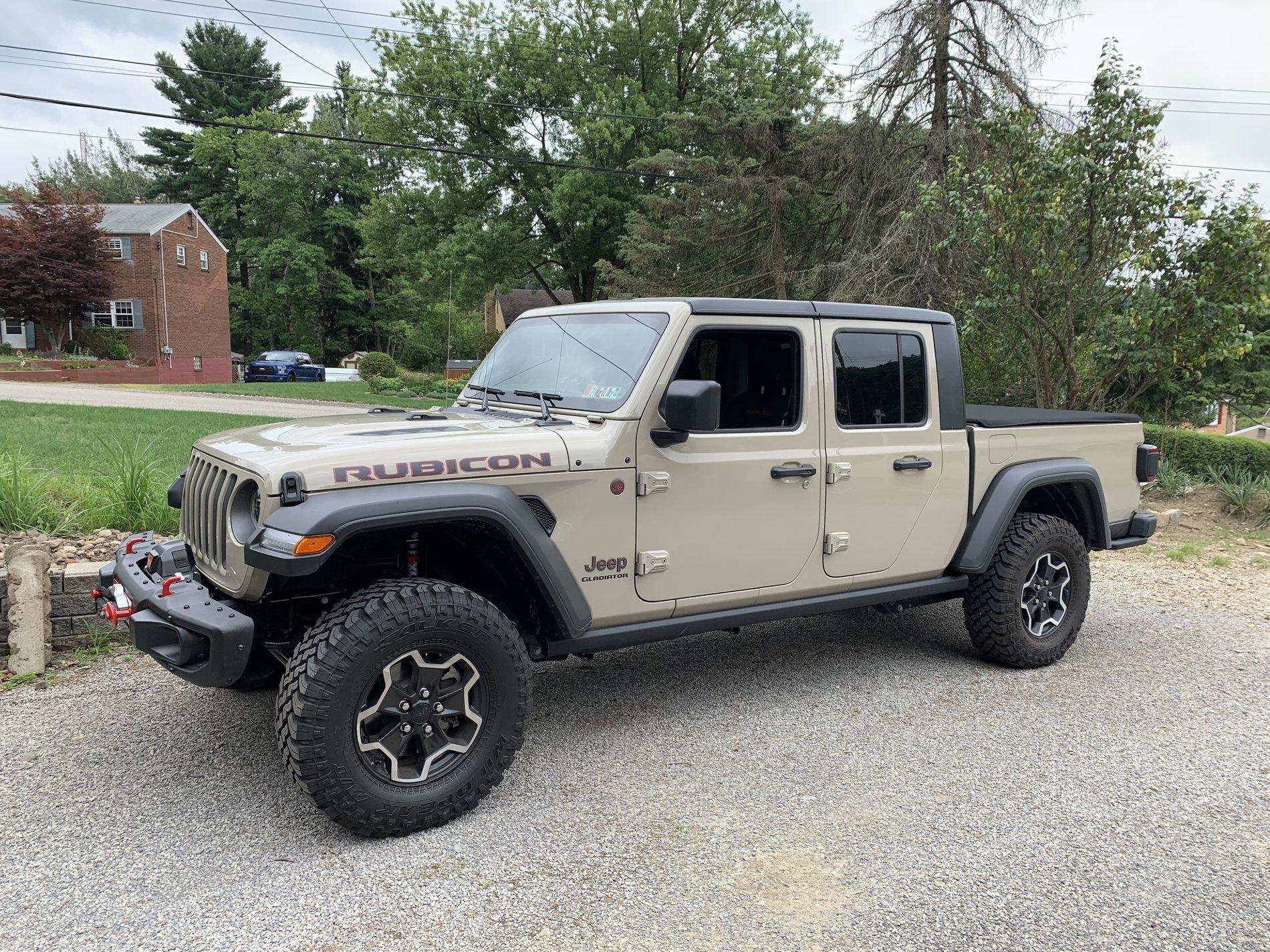

White JTR: Teraflex 1.5" front, Daystar .75" rear, 35's.
Mojito JLUR: Stock suspension, fender chop, 37's.



[zpenning]

We live and breath Jeep so that you know our recommendations come from REAL WORLD experience and not just something we read on the Internet.
Dave S. brought us his Mojave Gladiator for a front 1.5"
TeraFlex Suspensions
level kit along with a set of 37x13.50R17 TOYO MT tires and 17x9.5 Arsenal
Black Rhino Wheels
!
Here are some comparison pics of the exact same set up on one of our shop Jeep JT Rubicons that just finished a 4-day trek through Colorado to test out the setup...

anything else that’s needed for the kit for the Mojave. Shock extension brackets etc...



[AdrianVall]

We live and breath Jeep so that you know our recommendations come from REAL WORLD experience and not just something we read on the Internet.
Dave S. brought us his Mojave Gladiator for a front 1.5"
TeraFlex Suspensions
level kit along with a set of 37x13.50R17 TOYO MT tires and 17x9.5 Arsenal
Black Rhino Wheels
!
Here are some comparison pics of the exact same set up on one of our shop Jeep JT Rubicons that just finished a 4-day trek through Colorado to test out the setup...

Had to bring this thread back up, as I ordered the Teraflex level kit for my Mojave. I keep reading that shock relocation brackets are required, but after seeing this, it doesn't seem necessary? Am I ok with installing the Teraflex leveling kit without any issues?



[FitfulGoat]

Had to bring this thread back up, as I ordered the Teraflex level kit for my Mojave. I keep reading that shock relocation brackets are required, but after seeing this, it doesn't seem necessary? Am I ok with installing the Teraflex leveling kit without any issues?

It may add some benefit but I’ve had mine on with no relocation brackets and have been fine.



[BBETTS1024]

Had to bring this thread back up, as I ordered the Teraflex level kit for my Mojave. I keep reading that shock relocation brackets are required, but after seeing this, it doesn't seem necessary? Am I ok with installing the Teraflex leveling kit without any issues?

Did you get the 1.5 level kit the 2.5 spacer lift or the 3.5 spacer lift? I am pretty sure these guys are running the 1.5 level kit which does not require new shocks or shock relocation brackets. The other two however teraflex recommends new shocks. Pretty sure they don't give you an "or" option because they do not offer a full set of shock extension brackets for the JT. I went with the 2.5 lift and had them send me the 1.5 rear lift from the 3.5" kit because the Rubicon has less rake than sport/overland to begin with (similar to your Mojave) and used the front brackets from the JL kit and the rear shock brackets from EVO. This is a similar lift to what the guys over at epic adventure outfitters did on their Mojave.



[AdrianVall]

It may add some benefit but I’ve had mine on with no relocation brackets and have been fine.

Well that's good to hear. I ordered the 1.5" level, but only plan to use 1" front and rear. Did you use the full 1.5" on the front? It appears that you have a Rubicon, which isn't the same as the Mojave.



[AdrianVall]

Did you get the 1.5 level kit the 2.5 spacer lift or the 3.5 spacer lift? I am pretty sure these guys are running the 1.5 level kit which does not require new shocks or shock relocation brackets. The other two however teraflex recommends new shocks. Pretty sure they don't give you an "or" option because they do not offer a full set of shock extension brackets for the JT. I went with the 2.5 lift and had them send me the 1.5 rear lift from the 3.5" kit because the Rubicon has less rake than sport/overland to begin with (similar to your Mojave) and used the front brackets from the JL kit and the rear shock brackets from EVO. This is a similar lift to what the guys over at epic adventure outfitters did on their Mojave.

I got the 1.5" level kit, but keep reading Mojave's are specific and need shock relocation brackets. However, it appears from the first post on this thread that with the 1.5" level, it is not necessary? Just need to confirm this before I take it to get installed.



[FitfulGoat]

Well that's good to hear. I ordered the 1.5" level, but only plan to use 1" front and rear. Did you use the full 1.5" on the front? It appears that you have a Rubicon, which isn't the same as the Mojave.

I used the full 1.5”. Although they are different in some ways everything I have seen on the levels kits under 2” no additional brackets are required and that includes the Mojave.
