Too much offset?

[Clancaster23]

Looking to swap out the stock wheels on my Willys Sport for a set of 20" wheels with 35" tires. Specs are below of the wheels. Mainly wondering if the -25 offset is ok. I will have a leveling kit installed by the time I get them so fitting the 35s is not a concern. I like the wider stance but want to be sure they won't rub anything or have any problems.


Backspacing: 4.5
Bolt Pattern: 5x5
Offset: -25mm
Wheel Diameter: 20
Wheel Width: 10
Hub Bore: 78.10
Load Rating: 2500

Sponsored



[Vtur]

Your stock wheel specs is 17x7.5 +45
New wheel is 20x10 -25

With the same offset, the wheel will poke out & inward 1.25"

-25 offset will move the wheel 2.75" outward from stock + 1.25" wheel width= 4" total poke and 1.50" less inward from stock wheels.

Clearance wise, it's good but the poke is quite excessive. May endurance harsh ride.



[Clancaster23]

I think that's a bit much. I'm thinking I might want to stay somewhere around 0 offset. I'd like about 1.5" to 2" beyond the fenders.



[Clancaster23]

What was posted above means they will stick out past the fenders 4" correct? Or is it 1.5? Not sure I'm reading it right.



[GRDIESEL]

Yes - this calculator shows 3.96”.

Willtheyfit.com

Here is the link that will show you the difference visually.



[Russel]

Looking to swap out the stock wheels on my Willys Sport for a set of 20" wheels with 35" tires. Specs are below of the wheels. Mainly wondering if the -25 offset is ok. I will have a leveling kit installed by the time I get them so fitting the 35s is not a concern. I like the wider stance but want to be sure they won't rub anything or have any problems.


Backspacing: 4.5
Bolt Pattern: 5x5
Offset: -25mm
Wheel Diameter: 20
Wheel Width: 10
Hub Bore: 78.10
Load Rating: 2500

You will have a lot of tire poke.



[Lunentucker]

That's a stupid amount of unnecessary offset.
https://tiresize.com/wheel-offset-calculator/



[Russel]

If you want to take out windshields and rock chip the side of your rig it will be a good fit. To each his own. But I am kind of tired of have rock chips and broken windshields on my rigs. Not to mention tthe safety of pedestrians. . Many folks run there trucks like that here in Tucson. Zero enforcement here even with laws on the books.
So think about wheel and tire choice with a sense of consideration for others.



[Orange01z28]

I have that much



[Clancaster23]

I went with a +10 wheel. Thanks for the advice all.



[Vtur]

Also get some hub centric rings or you might find your wheel on the side of the road.



[Clancaster23]

Custom offsets says i don't need rings since the wheels I'm getting are lug centric.



[xman1564]

I think that's a bit much. I'm thinking I might want to stay somewhere around 0 offset. I'd like about 1.5" to 2" beyond the fenders.

alot of offset will trash your ball joints fast, i went with aev borah wheels, offset is well thought out close to stock and with 37s and 32k miles im still factory on ball joints with a ton of off road miles??



[Jimko71]

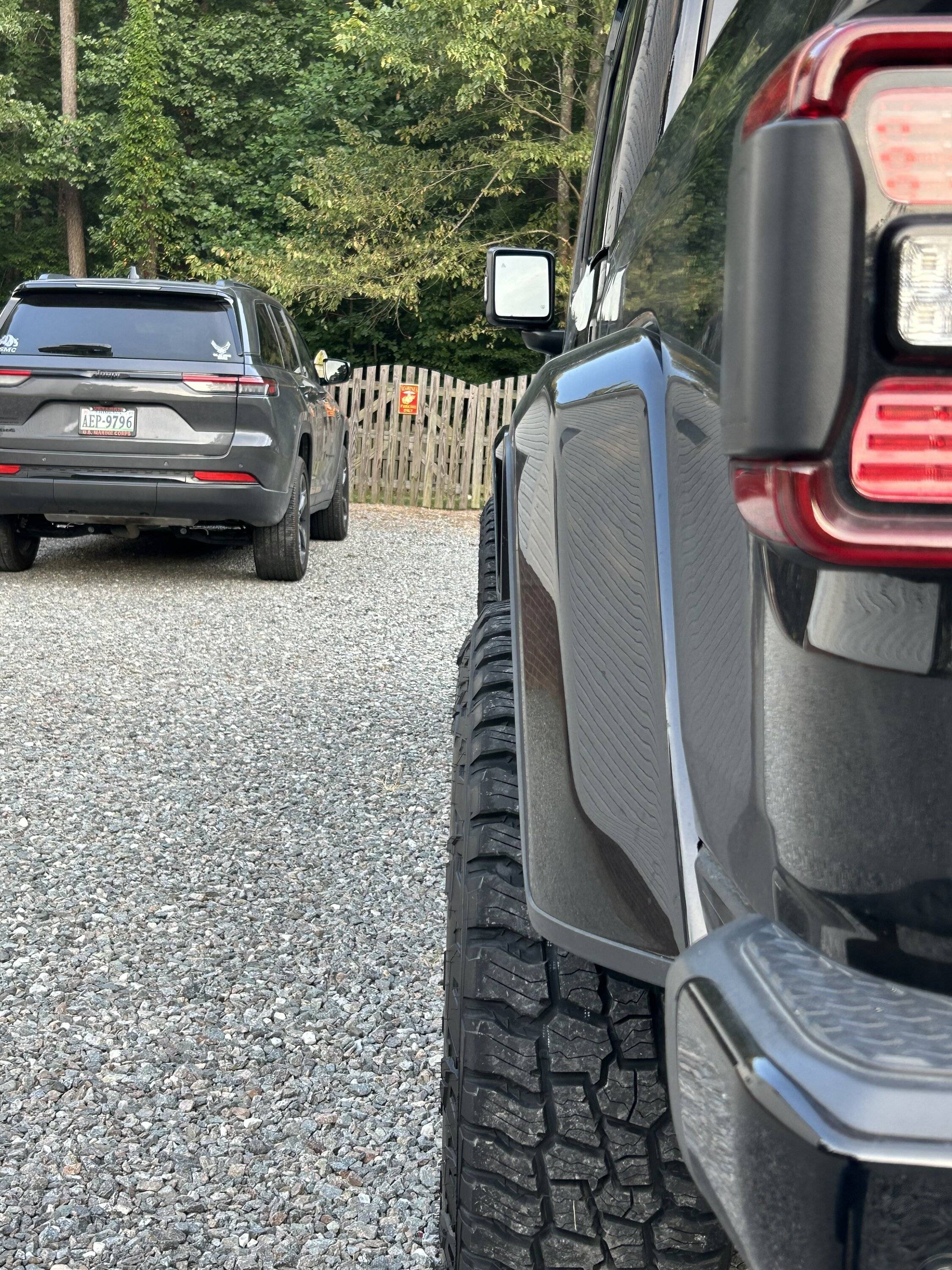

I went with a +10 wheel. Thanks for the advice all.

+10 is what I went with and I think it is perfect.



[Clancaster23]

What size tires on that?
