Towing w/ Big Axles - 40s

CavFab_MFG

Summit Sponsor (Level 3)
Joined
Oct 6, 2020
Threads
13
Messages
110
Reaction score
82
Location
Chattanooga, TN
Vehicle(s)
2021 JT
Occupation
CavFab

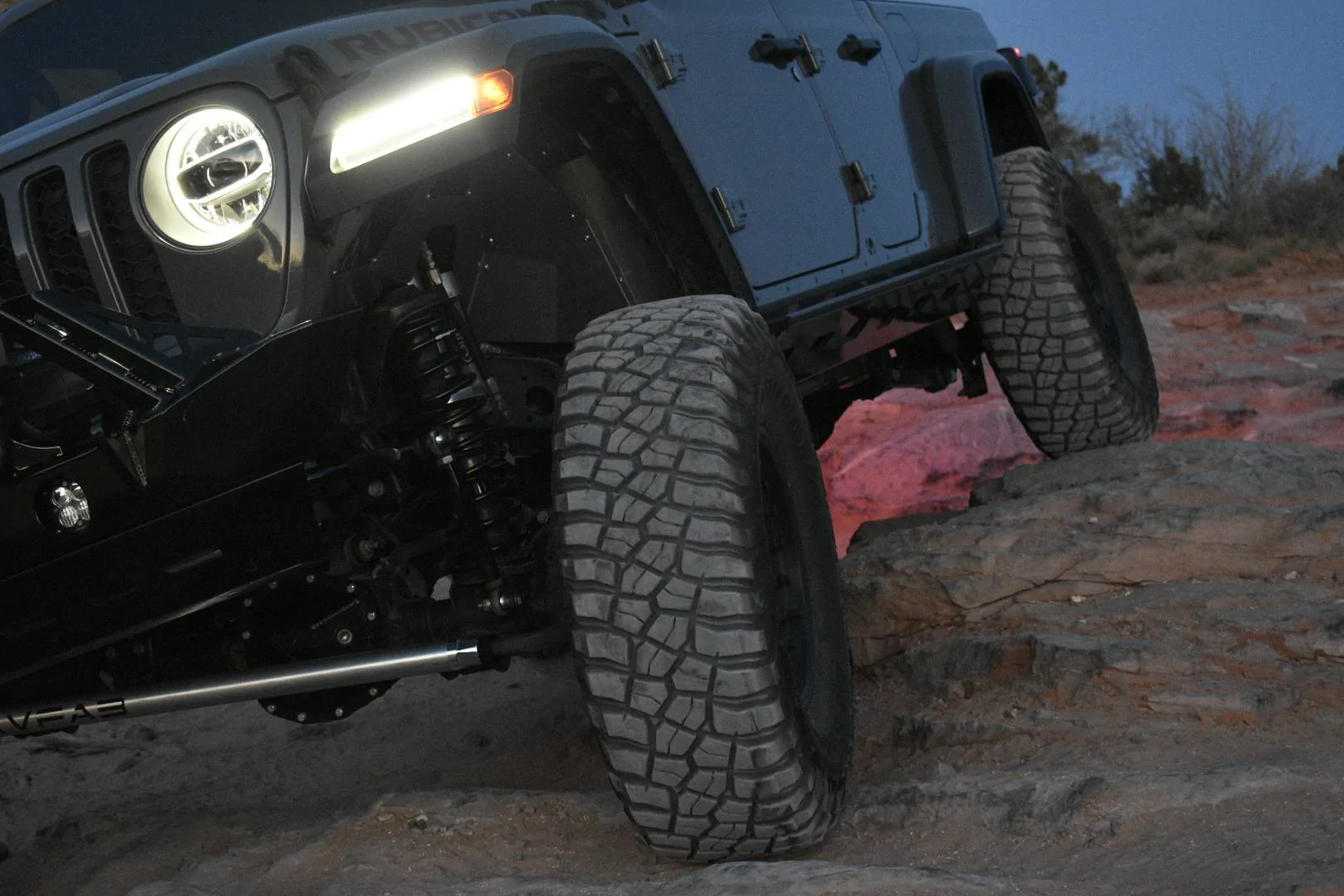

Our 2021 JT with the 3.6 and we are looking at pulling a small airstream. Im interested to hear from those that have towed with 40s and larger axles.
Jeep Gladiator Towing w/ Big Axles - 40s _DSC0467_1.JPG
Sponsored



Ericshere03

Well-Known Member
First Name
Eric
Joined
Jan 3, 2020
Threads
27
Messages
472
Reaction score
284
Location
Feenicks
Vehicle(s)
2021 Gladiator Ecodiesel and 2021 Wrangler 4xe
Ha! Good question … I have an ecodiesel and 23CB Airstream. I was going to regear and upgrade to 37’s BUT, I’m beginning to think AT LEAST a rear semi float Dana 60 (ultimate Dana 60) might be a good idea.


Labswine

Well-Known Member
First Name
Steven
Joined
Jun 18, 2020
Threads
25
Messages
937
Reaction score
1,343
Location
West Chester, Pennsylvania
Vehicle(s)
2020 Gladiator Overland, 2019 GC Ltd
Occupation
Retired Chemist
Doesn't matter the gearing. Yeah, better gearing will get you there but, remember that with the extra weight of those tires, your towing capacity will go down. Look carefully at the weight of your trailer (loaded with all you want or need) then subtract the extra weight of your tires and yourselves to make sure your trailer is still well within your 6K lb towing capacity.


Panthers65

Well-Known Member
First Name
Brent
Joined
Aug 23, 2021
Threads
43
Messages
483
Reaction score
481
Location
Atlanta, GA
Vehicle(s)
NA
Occupation
Account Manager
Not 40's, but I pull my boat regularly on 37's and 5.13's.

not something I'd want to do every day, but the Jeep does fine. Boat is between 5500 and 6000 loaded up. You know you're on a hill and the mileage sucks, but its only 1-2X a month in the summer and only about an hour to the lake


cjlooney23

Member
First Name
Craig
Joined
Nov 11, 2024
Threads
1
Messages
7
Reaction score
7
Location
Oregon
Vehicle(s)
Gladiator s
This is a great topic.... mine is a 23' S with a 3.6, i'm on 35's and thinking of regearing to 4.56. have been looking at small trailers in the 17' 3000lb range... loaded probably 4k+. have done some envelope math, and figure w/tires my gearing went from 3.73 to somewhere in the 3.50ish range, so 4.10 would only get me about back to 3.70ish....
hence 4.56, does that sound workable?


Sponsored

MudderNuker

Well-Known Member
First Name
Jose
Joined
May 20, 2023
Threads
16
Messages
427
Reaction score
489
Vehicle(s)
'21 JTR
Occupation
Retired@52
This is a great topic.... mine is a 23' S with a 3.6, i'm on 35's and thinking of regearing to 4.56. have been looking at small trailers in the 17' 3000lb range... loaded probably 4k+. have done some envelope math, and figure w/tires my gearing went from 3.73 to somewhere in the 3.50ish range, so 4.10 would only get me about back to 3.70ish....
hence 4.56, does that sound workable?
I used this online calculator from tiresize.com and going from 33" to 35" decreases the effective ratio of 4.1 gears to 3.83 so you are close in calculations. I felt the change after going to 35" but it wasn't terrible as some make you think. Would I like to regear to 4.88? Yes, but after adding an AFE Scorcher GT module, it helped quite a bit, so regearing is in the back burner for now. Shifting feels better and the truck isn't hunting for gears or downshifting as much as post tires, pre Scorcher, when towing our Geo Pro 19BH which is about 4,000LBS loaded.
Jeep Gladiator Towing w/ Big Axles - 40s 1734276607772-ia


Zachanadandy

Well-Known Member
First Name
Zach
Joined
Oct 17, 2023
Threads
3
Messages
1,160
Reaction score
1,683
Location
Patterson, ca
Vehicle(s)
2023 gladiator Mojave
Occupation
Electrical foreman
Doesn't matter the gearing. Yeah, better gearing will get you there but, remember that with the extra weight of those tires, your towing capacity will go down. Look carefully at the weight of your trailer (loaded with all you want or need) then subtract the extra weight of your tires and yourselves to make sure your trailer is still well within your 6K lb towing capacity.
I would agree on stock axles, but when they say larger axles I'm assuming they are 60s at a minium. That's a much higher load capacity than the stock axles, much larger brakes than stock, and all of the added weight is unsprung and therefore not affecting the load carrying capabilities of the frame/ chassis itself. I know the official gcwr doesn't change but their mods would make me more comfortable towing at the limit than I'd be in a bone stock gladiator.


Panthers65

Well-Known Member
First Name
Brent
Joined
Aug 23, 2021
Threads
43
Messages
483
Reaction score
481
Location
Atlanta, GA
Vehicle(s)
NA
Occupation
Account Manager
I would agree on stock axles, but when they say larger axles I'm assuming they are 60s at a minium. That's a much higher load capacity than the stock axles, much larger brakes than stock, and all of the added weight is unsprung and therefore not affecting the load carrying capabilities of the frame/ chassis itself. I know the official gcwr doesn't change but their mods would make me more comfortable towing at the limit than I'd be in a bone stock gladiator.
From a practical standpoint, completely agree. There's 100 things you can do to make towing more comfortable, but at the end of the day liability and legal issues are what they are, and you have to remember the GCWR. Get in a wreck while towing and I promise the insurance lawyers will look for every single excuse to deny your claim, it's what they are paid to do.

I could swap an entire f350 drivetrain to a gladiator and extend the wheelbase to the f350 length, but if my VIN number still says 12,800, it's 12,800.


Zachanadandy

Well-Known Member
First Name
Zach
Joined
Oct 17, 2023
Threads
3
Messages
1,160
Reaction score
1,683
Location
Patterson, ca
Vehicle(s)
2023 gladiator Mojave
Occupation
Electrical foreman
From a practical standpoint, completely agree. There's 100 things you can do to make towing more comfortable, but at the end of the day liability and legal issues are what they are, and you have to remember the GCWR. Get in a wreck while towing and I promise the insurance lawyers will look for every single excuse to deny your claim, it's what they are paid to do.

I could swap an entire f350 drivetrain to a gladiator and extend the wheelbase to the f350 length, but if my VIN number still says 12,800, it's 12,800.
Of course any wreck big enough to warrant a full on investigation is big enough that travel trailer is a pile of kindling so good luck getting an accurate weight of exactly how much I was towing anyway. This debate has gone on on forums for years and I've yet to see one example of a denied claim. Even if you're illegally towing over the limit, you're still covered. Just like if you're driving over the speed limit, made an unsafe lane change, or even if you're drunk. Insurance covers illegal and stupid both, which is pretty much the cause of every accident anyway.


bleda2002

Well-Known Member
Joined
May 11, 2021
Threads
24
Messages
2,494
Reaction score
4,015
Location
34655
Vehicle(s)
2021 JTR Firecracker Red
I tow on 39's and 5.13's with the 3.6. The camper at about 4500-4800 pounds tows fine. It does 60-65 on the highway no issues (and at a decent 10ish mpgs even). It does have to work for it and in the mountains of tennessee it was not overly happy. There was a 8.5% grade we went up that I could only do 35 up but it is what it is and it still got up and over and did the rest of the trip no drama.


Sponsored

Zachanadandy

Well-Known Member
First Name
Zach
Joined
Oct 17, 2023
Threads
3
Messages
1,160
Reaction score
1,683
Location
Patterson, ca
Vehicle(s)
2023 gladiator Mojave
Occupation
Electrical foreman
The basic hillbilly math below for torque loss from bigger tires is an estimate but will give you an idea of what tires add to the load on the engine:
difference in tire size/OG tire size*rated torque

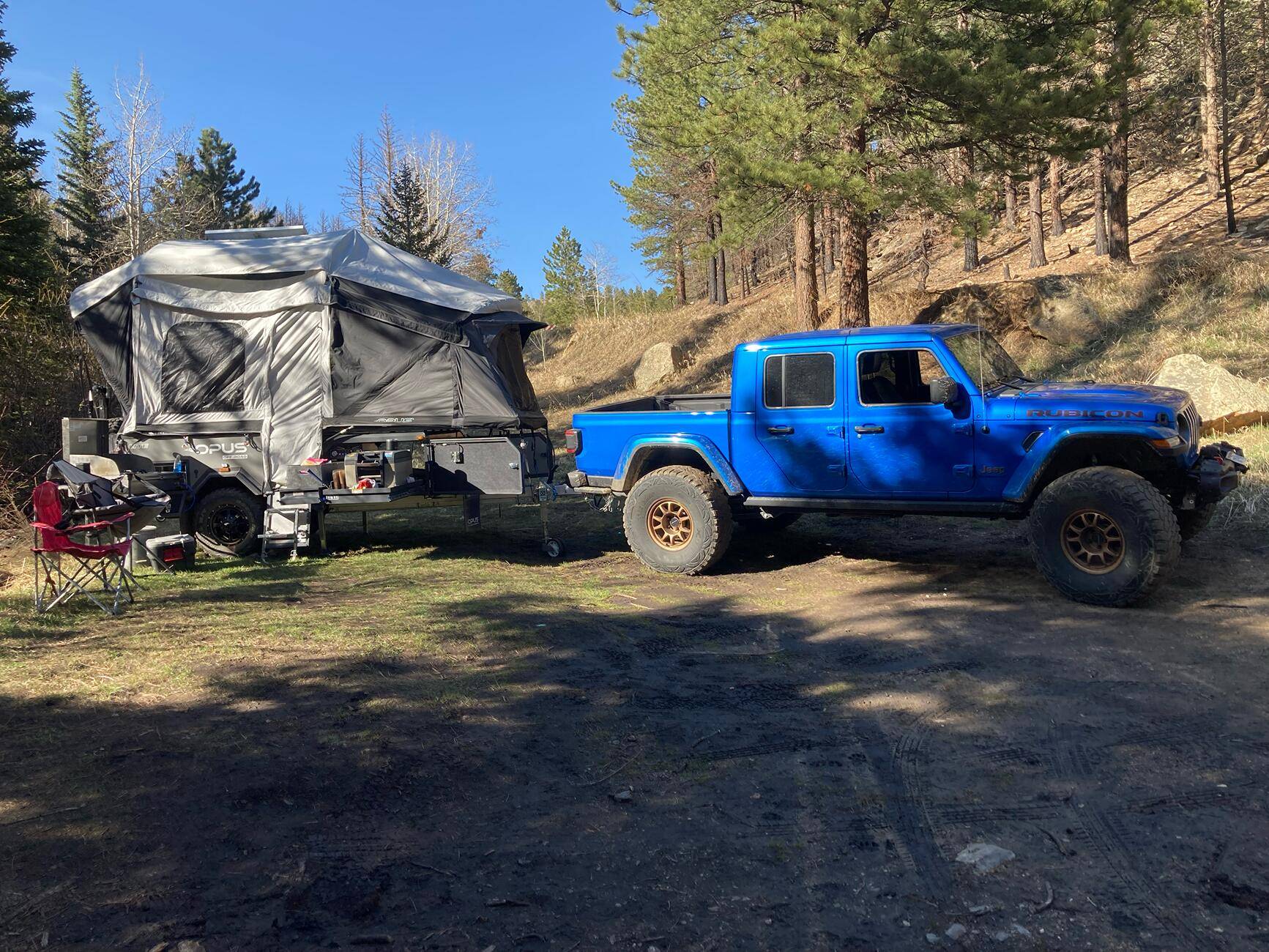

My truck, I pull a 2600ish Opus on 40's with stock gearing (3.73)
7/33*420=89.09 lb ft loss. Which is 21%... And I'm not geared so I have to take that right out of my GVW rating to compensate. My Opus is at the upper limit of what I should try to pull with my current setup. ( truck is 6200 by itself which is 250 from the GVWR of just the truck, take 21% off the 5K tow rating of the Eco D down to 4K and then to be safe, not more than 70% of max tow, is 2800 lbs, which is just over what my trailer is. I'm maxed out at this point.
Asking the engine to turn a bigger diameter merry go round adds significant leverage against the motor crank for it to overcome. Plus the whole tire/wheel package is heavier as well.
My truck does it but not particularly well. Always watching the engine oil temp and boost temps cuz it doesn't take long for those to crank up when hitting a hill here in CO. I see 250+ engine oil and 245 coolant every time I pull up to the tunnel here from each side when I make my trips to Moab. Just gotta back out of it and find a speed it will hold (usually 50) and chug my way over.


Hope that helps.
CHEERS!

Your math and description of load on the engine would make perfect sense if it was direct drive or the transmission was in the same gear at a given speed for the given load. Fortunately there's an 8 speed which will easily compensate for the larger diameter tire by simply downshifting. Every JLU comes with a 3500lb tow rating and they come stock with everything from 32" tires to 35s. Everything from 3.45 axle gears to 4.88s. Almost as though the transmission is compensating for both gearing and tie size... because it is. The fact that the JLU ecodiesels and the saharas with 3.45s and the v6 got the same tow rating is enough proof that the tow rating isn't gearing or power related. As you've noted they are coming system limited, which shouldn't be an issue on the baby hills back east.


Zachanadandy

Well-Known Member
First Name
Zach
Joined
Oct 17, 2023
Threads
3
Messages
1,160
Reaction score
1,683
Location
Patterson, ca
Vehicle(s)
2023 gladiator Mojave
Occupation
Electrical foreman
But your input torque isn't fixed. Under your explanation we could run 3.21s and 40s just as well as 5.13s. Torque to the wheels is affected by both gearing and tie diameter.


Zachanadandy

Well-Known Member
First Name
Zach
Joined
Oct 17, 2023
Threads
3
Messages
1,160
Reaction score
1,683
Location
Patterson, ca
Vehicle(s)
2023 gladiator Mojave
Occupation
Electrical foreman
The engine is the limiting factor. It only gives what it has. Gearing helps but it’s still gonna work harder while I’m holding that 20” pipe wrench on the axle instead of the 16” it came with. I get at least 15% better mpg on the Og tires over the 40’s with the same load, or no load for that matter.

Edit:
Some Redneck on YouTube should test the pipe wrench theory while I eat my popcorn. 🥴
The engine isn't the limiting factor when there's gearing. The same reason old Toyota crawlers ran 37"+ tires no problem with 80hp...and 2 transfer cases. Is it harder to turn a bigger tires? Obviously. Will you likely run in a gear or 2 lower at a given speed with the much bigger tires if you didn't regear your axles? Of course. Is your engine working harder soley because of the tires? Hell no, the biggest reason we get crap mileage in the 1st place is aerodynamics and lifting and going to 40s just took bad aero and made it absolutely atrocious. In city driving when regeared I find I get basically the same fuel economy on 37s as I did on 33s, on the freeway forget about it. It's in the toilet because I'm pushing a lifted brick on big tires at 85mph through a whole bunch of wind.


Krobarr

Well-Known Member
First Name
stanley
Joined
Jan 26, 2021
Threads
6
Messages
96
Reaction score
71
Location
Edmonton, Alberta
Vehicle(s)
2020 Jeep Gladiator Rubicon
Occupation
Mobile Crane Operator

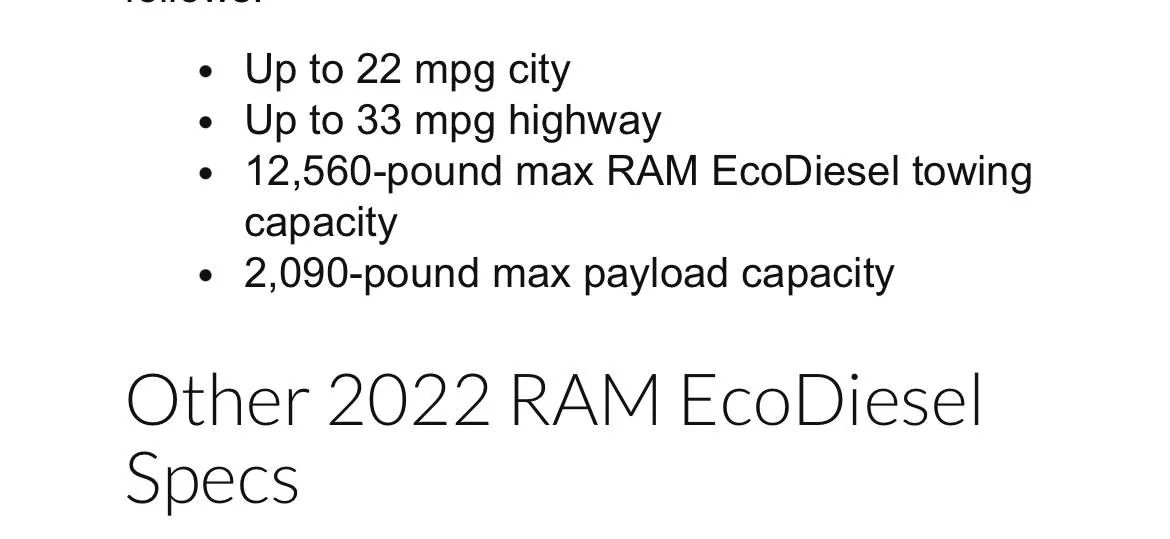

For the people commenting here that they think the engine is the limiting factor and being worried about pulling max weight (6,000 lbs on JTD), why is the towing capacity of a Ram 1500 Eco Diesel 12,000 lbs +? These diesel engines are work horses, that’s why they’re used in commercial transport of heavy loads!
Jeep Gladiator Towing w/ Big Axles - 40s IMG_2378
