Now I know you’re saying not another controller question.... but I haven’t seen what I need to see yet. So I’m making a decision to go aftermarket and not wait for one. So the question is which controller did you go with and why? I’m leaning towards one that I hide the controller and have the knob on the dash. And really want it to be plug and play, or as close as I can get! Thanks for taking the time to read this, and for the help.



Advertisement





WXman

Banned
Joined
Mar 1, 2017
Messages
2,026
Reaction score
2,188
Location
Bluegrass region of Kentucky
Vehicle(s)
2020 Jeep Gladiator
Occupation
Meteorology and Transportation
The reason I went with this one ^^^ is because it was 100% plug and play (after a very simple swap of two pins in the Ram 1500 harness) and it only took up the space of a dime on the dash of the truck. Oh, and it is proportional OR user defined.

The Curt controller like this one is much larger and harder to find a place to mount.


jwilson2899

Well-Known Member
First Name
Jeff
Joined
Nov 11, 2019
Messages
457
Reaction score
496
Location
Front Royal, VA
Vehicle(s)
2020 Gladiator Rubicon Launch Edition, 2004 Wrangler Unlimited
Occupation
System Engineer
Vehicle Showcase
1
I did the Redarc because I had it in my Tacoma and swiped it before the sale. I lied the size and made my own factory solution with help from posts and PMs with @NORDNDED and @KVJ. Just spent 1250 miles towing my new camping trailer and it did great the whole way.


OP

TheNewWampsCat

Well-Known Member
First Name
Mitch
Joined
Sep 23, 2019
Messages
129
Reaction score
106
Location
Kentucky
Vehicle(s)
2011 Ram 1500
  • Thread starter
  • Thread Starter
  • #5
Thanks for the replies. The redarc is probably what I’ll be going with. And again thanks!


Combolc

Well-Known Member
First Name
Brandon
Joined
Aug 3, 2019
Messages
101
Reaction score
61
Location
Maryland
Vehicle(s)
Jeep Gladiator, Toyota 4runner
Adding some more Redarc love.

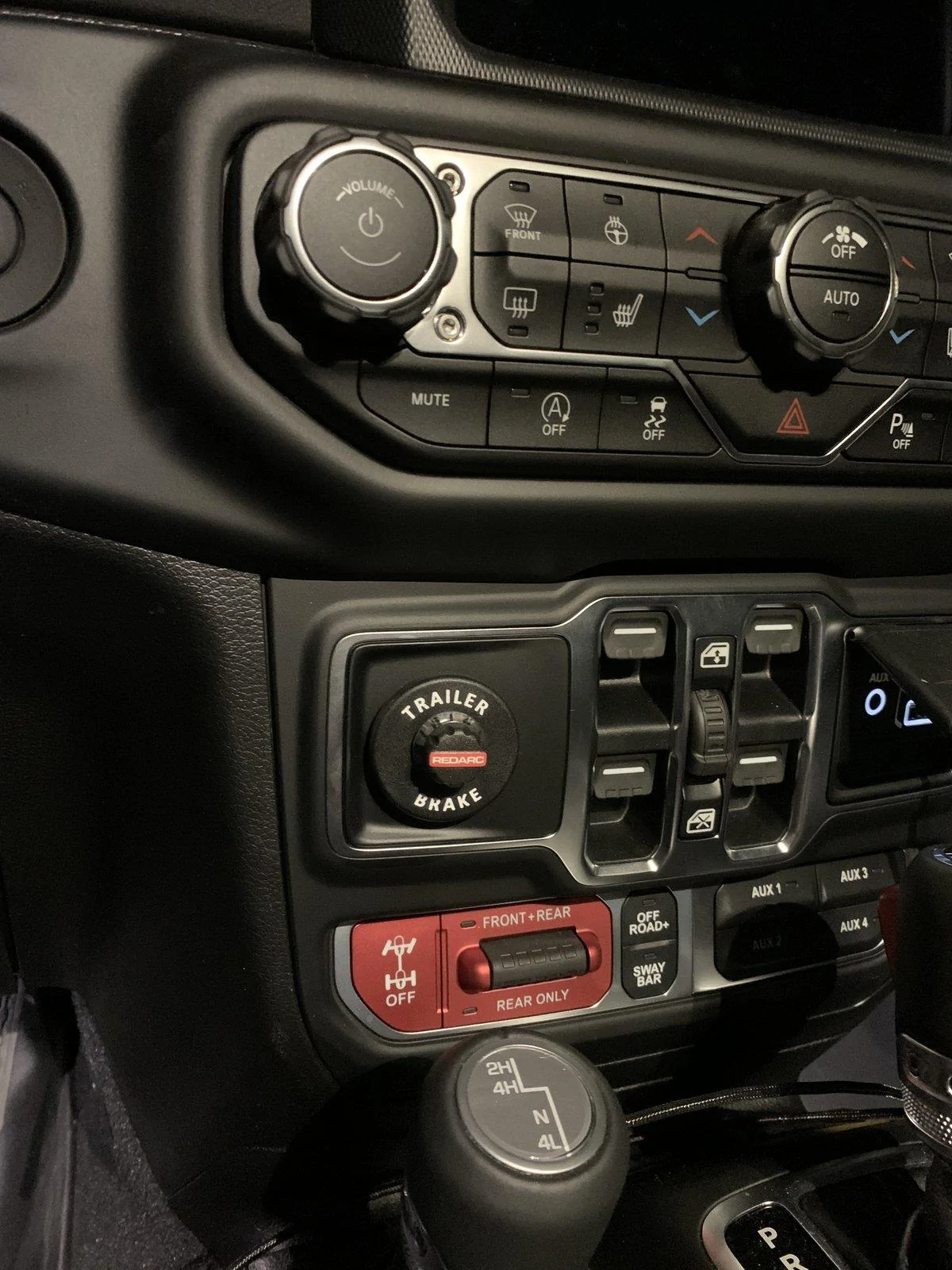

Redarc for me, I have one on my 4runner as well as my JT and it works amazing. It can be mounted cleanly on the dash and looks factory as shown above. Redarc also has great support and the controller offers multiple braking modes. It's definitely worth the money.

I mounted mine in the blank where locker button would be





Blade1668

Well-Known Member
First Name
Darrell
Joined
Jan 7, 2020
Messages
599
Reaction score
360
Location
N. AL.
Vehicle(s)
90XJ, 91XJ, 91MJ, 05 LJ, 20 JT
Occupation
Army now a Civ. working for Army
Vehicle Showcase
1
Where did Jeep hide the factory brake controller plug? In a Max Tow truck anyone?


wvyankee2

Well-Known Member
First Name
Marty
Joined
Apr 28, 2020
Messages
229
Reaction score
250
Location
West Virginia
Vehicle(s)
2020 Gladiator Overland
Occupation
Refinery Operator
Vehicle Showcase
2
Where did Jeep hide the factory brake controller plug? In a Max Tow truck anyone?

I believe it replaces the 12V accessory socket. So behind it. Dealer ordered mine last week when I bought my Gladiator. Waiting on arrival.


jwilson2899

Well-Known Member
First Name
Jeff
Joined
Nov 11, 2019
Messages
457
Reaction score
496
Location
Front Royal, VA
Vehicle(s)
2020 Gladiator Rubicon Launch Edition, 2004 Wrangler Unlimited
Occupation
System Engineer
Vehicle Showcase
1
Where did Jeep hide the factory brake controller plug? In a Max Tow truck anyone?
It‘s under the dash, near the brake pedal.



Blade1668

Well-Known Member
First Name
Darrell
Joined
Jan 7, 2020
Messages
599
Reaction score
360
Location
N. AL.
Vehicle(s)
90XJ, 91XJ, 91MJ, 05 LJ, 20 JT
Occupation
Army now a Civ. working for Army
Vehicle Showcase
1
Thanks for the info Jeff W.
I see it now, it replaces the 12v outlet and uses it's plug wiring for trailer brake controller, I was expecting a separate plug for it. ☹ I use my 12v outlet too. So I'm not pulling out factory 12v outlet, off to getting busy wiring in the other 12v outlets. I already wired up 2 in bed of Aux switch and planned on 2 more in cab off same switch plus a USB power port. I guess I need to hit up auto parts store (s) for few connectors. 12v fridge needs a stand alone plug anyway. I normally end up installing a few more outlets in most of my vehicles.
My confusion on that plug location really screwed up my project planning. Friday was my pickup concrete and land improvement. Yesterday was for JT stuff, today was to be follow up projects; mowing grass and cleaning up sheds, RV and bolting down new bunk boards for boat trailer. Damn vacation time go's fast and sucks with what's going on. I'd had this time off planned out in Dec.

Last edited:

Blade1668

Well-Known Member
First Name
Darrell
Joined
Jan 7, 2020
Messages
599
Reaction score
360
Location
N. AL.
Vehicle(s)
90XJ, 91XJ, 91MJ, 05 LJ, 20 JT
Occupation
Army now a Civ. working for Army
Vehicle Showcase
1
I believe it replaces the 12V accessory socket. So behind it. Dealer ordered mine last week when I bought my Gladiator. Waiting on arrival.
Not behind the 12v port, I had the dash all pulled out looking for a open plug, FYI Curt has a correctly wired adapter harness now with blocking diodes installed.... If using Curt.


Solemap

New Member
First Name
Paul
Joined
Apr 9, 2020
Messages
4
Reaction score
8
Location
Mentor, OH
Vehicle(s)
202 Gladiator Sport S Max Tow
Thanks for the info Jeff W.
I see it now, it replaces the 12v outlet and uses it's plug wiring for trailer brake controller, I was expecting a separate plug for it. ☹ I use my 12v outlet too. So I'm not pulling out factory 12v outlet, off to getting busy wiring in the other 12v outlets. I already wired up 2 in bed of Aux switch and planned on 2 more in cab off same switch plus a USB power port. I guess I need to hit up auto parts store (s) for few connectors. 12v fridge needs a stand alone plug anyway. I normally end up installing a few more outlets in most of my vehicles.
My confusion on that plug location really screwed up my project planning. Friday was my pickup concrete and land improvement. Yesterday was for JT stuff, today was to be follow up projects; mowing grass and cleaning up sheds, RV and bolting down new bunk boards for boat trailer. Damn vacation time go's fast and sucks with what's going on. I'd had this time off planned out in Dec.

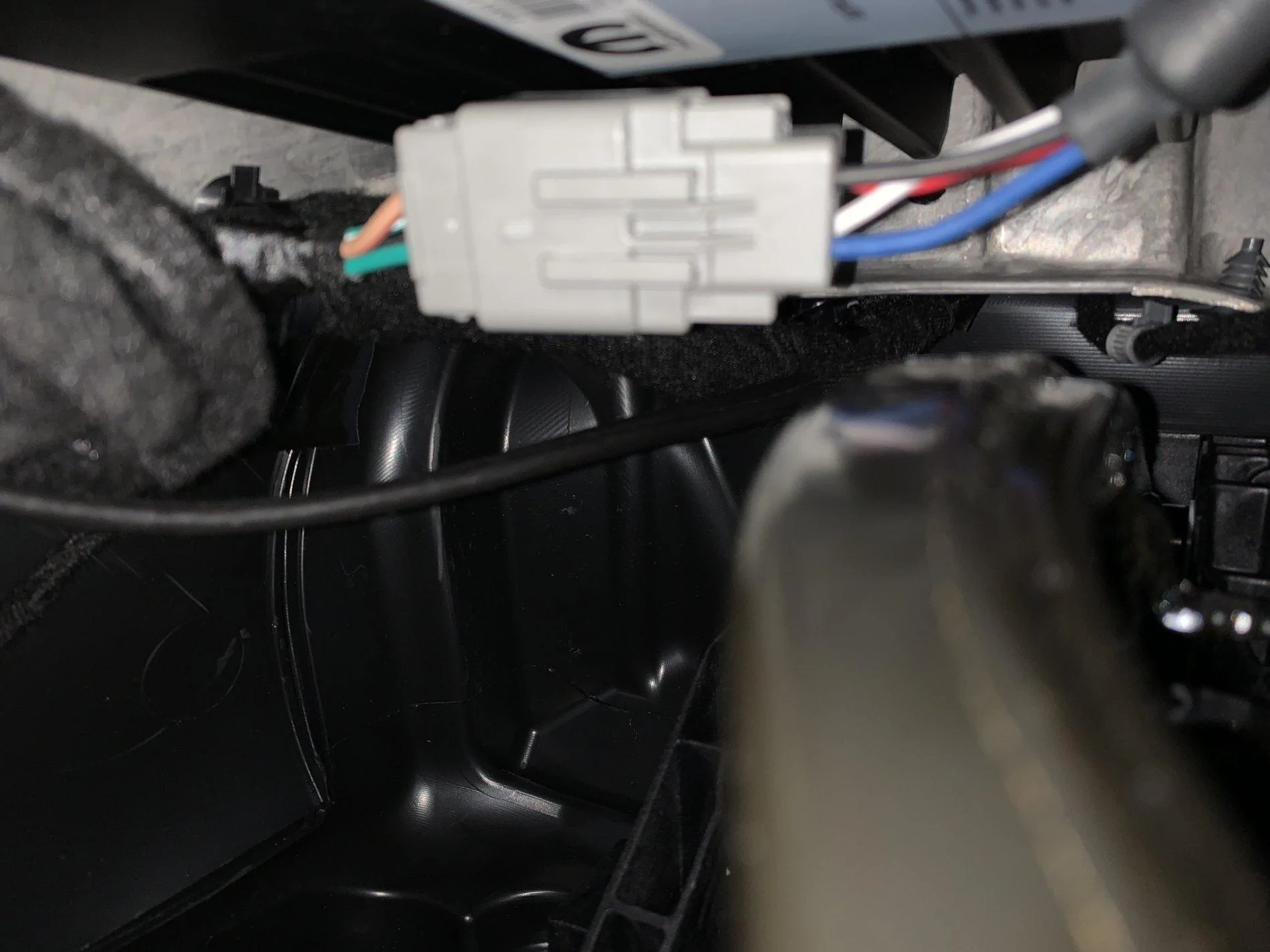

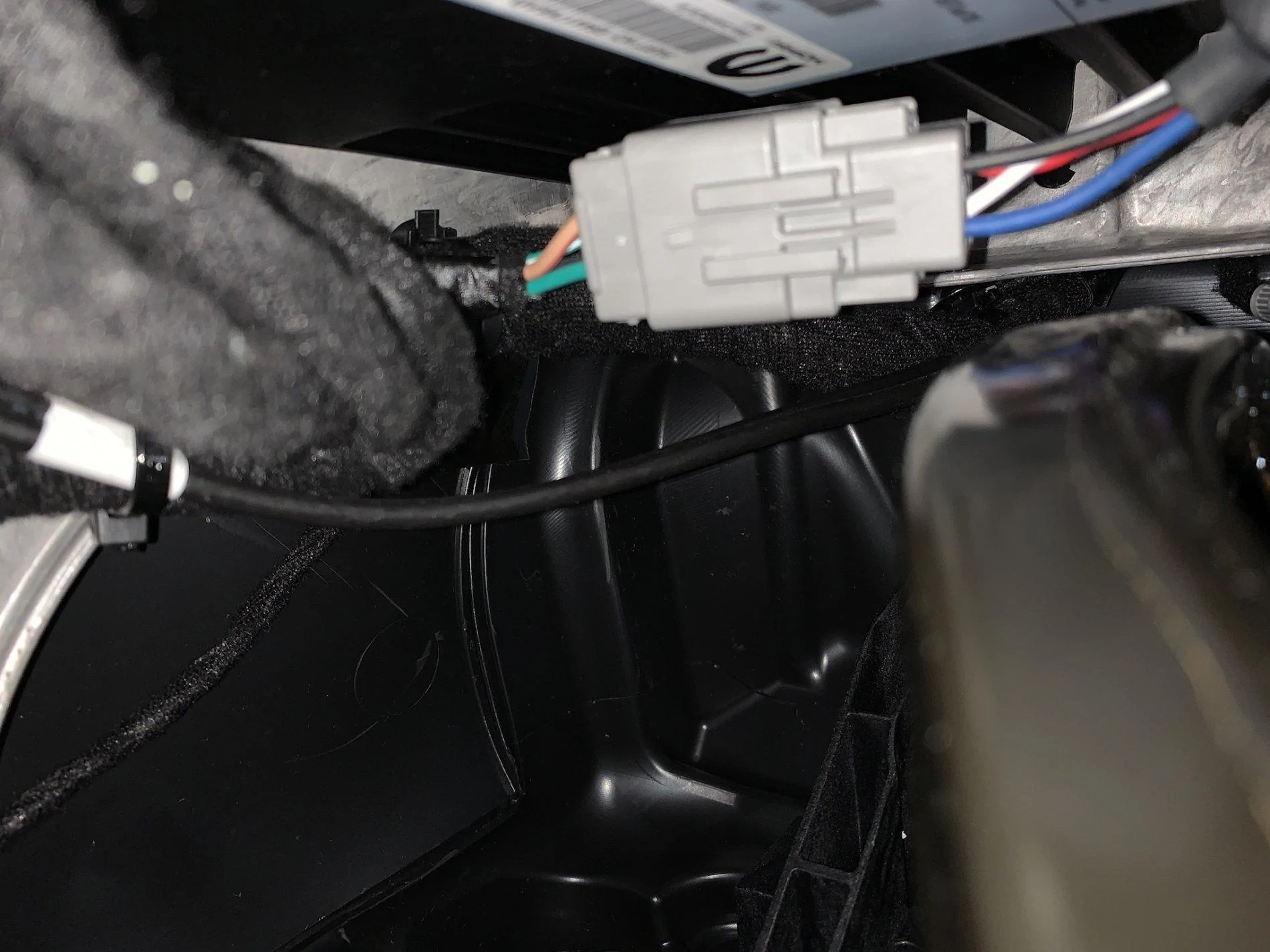

There is a separate plug for the brake controller. Mine was taped to the wiring harness under the driver's side dash. It was on the far left above my left foot. I also installed the RedArc similar to Combolc's install.


SwampNut

Well-Known Member
First Name
Carlos
Joined
Apr 20, 2020
Messages
922
Reaction score
848
Location
Peoria AZ
Vehicle(s)
2020 Gladiator Launch Edition
Occupation
Geek
Mine was tucked way up high, had to search. It helps if you remember that you can slide the seat all the way back to make more room. And remove that dash cover, it pops right out with some effort.

You need this harness, I had to order it from a trailer dealer and it took two days:

https://www.etrailer.com/p-3073-P.html

I'm using it with a Prodigy P2.


Blade1668

Well-Known Member
First Name
Darrell
Joined
Jan 7, 2020
Messages
599
Reaction score
360
Location
N. AL.
Vehicle(s)
90XJ, 91XJ, 91MJ, 05 LJ, 20 JT
Occupation
Army now a Civ. working for Army
Vehicle Showcase
1
Paul; That's probably why I wasn't locating it I expected it near the center for easy connection the the vapor wear OEM one.
Carlos; Thanks I'd like to be able to move the seat back further with me driving it it's at rear position. That part # and link should help someone else looking. I have the Curt one already, but I wasn't locating that connector. Mine might have been extra wrapped up. The Aux switch can wiring was taped up across and back to center console then taped to other wiring.
A big part of reason I didn't find it, I was thinking about to many different projects at the time too probably.

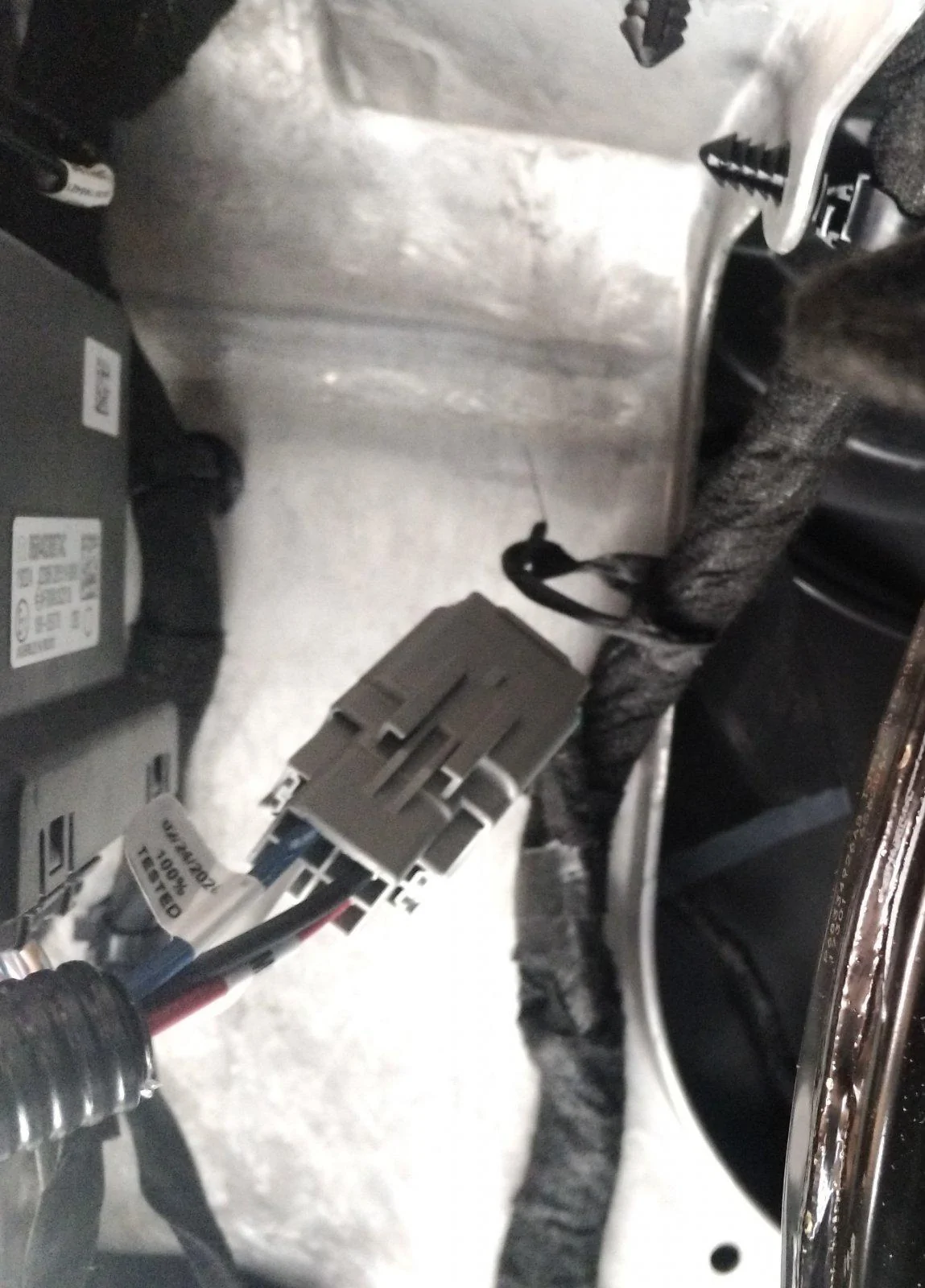

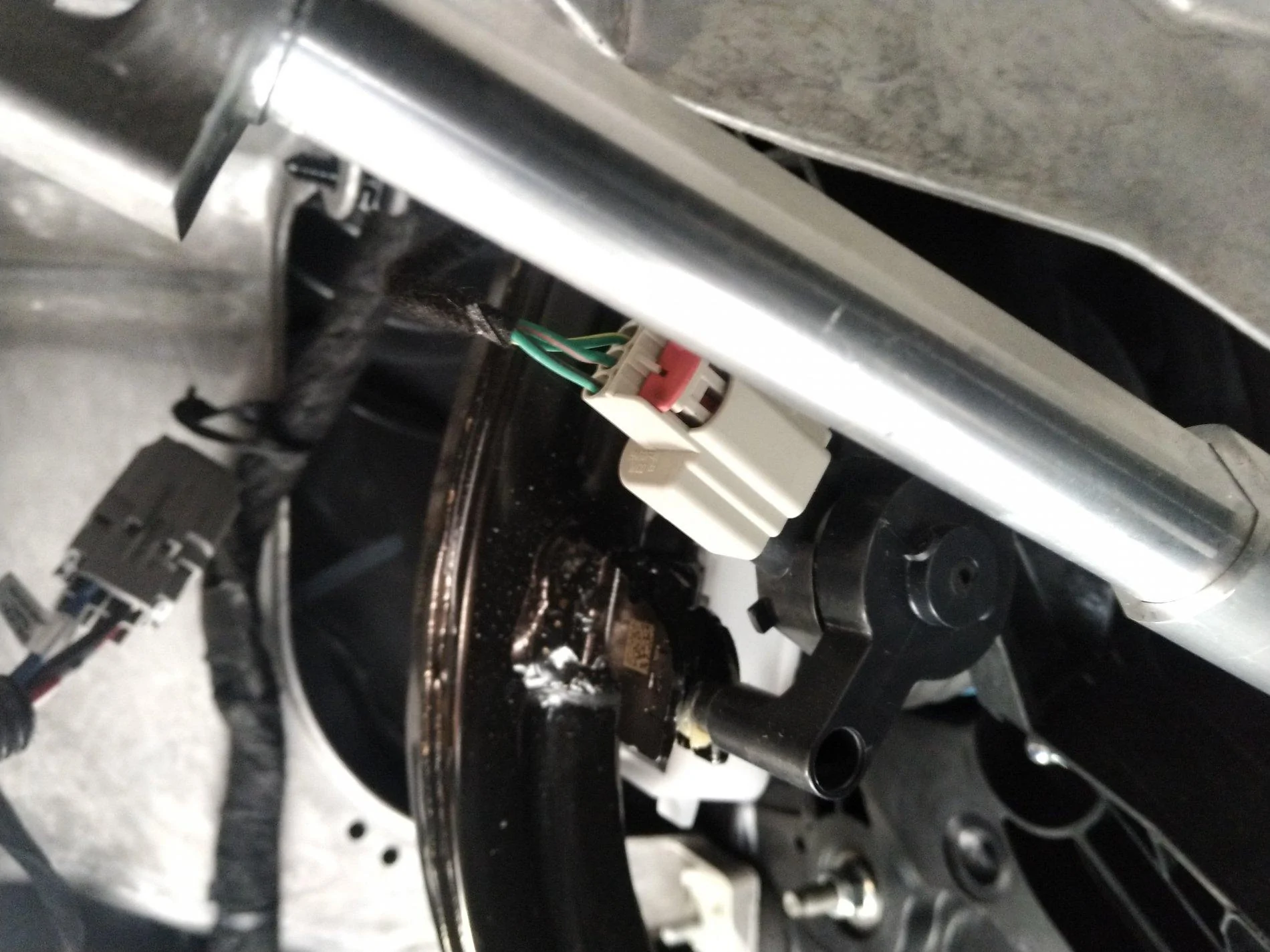

Thanks again to all... I'll add photos for next one. First is the plug-in and other one is to show where it's located at close to left side fender.
