trailer break control harness ?

rigger 17

Active Member
First Name
Richard
Joined
Jul 14, 2019
Threads
1
Messages
39
Reaction score
17
Location
shelby , michigan
Vehicle(s)
gladiator
I am unsure of the correct wire harness to plug into the under the dash plug for the break controller . Is it Tekonsha 3014-p or 3024 adapter harness ? The trailer I will be getting weights #3000 and a single axle .Any break controller suggestion ? FYI Mopar has nothing available at this time for the Gladiator ! Thanks
Sponsored



Phljeeper

Well-Known Member
First Name
Paul
Joined
Jul 31, 2016
Threads
28
Messages
601
Reaction score
580
Location
West Chester, PA
Vehicle(s)
2020 Jeep Gladiator Rubicon
Occupation
I work
Vehicle Showcase
1

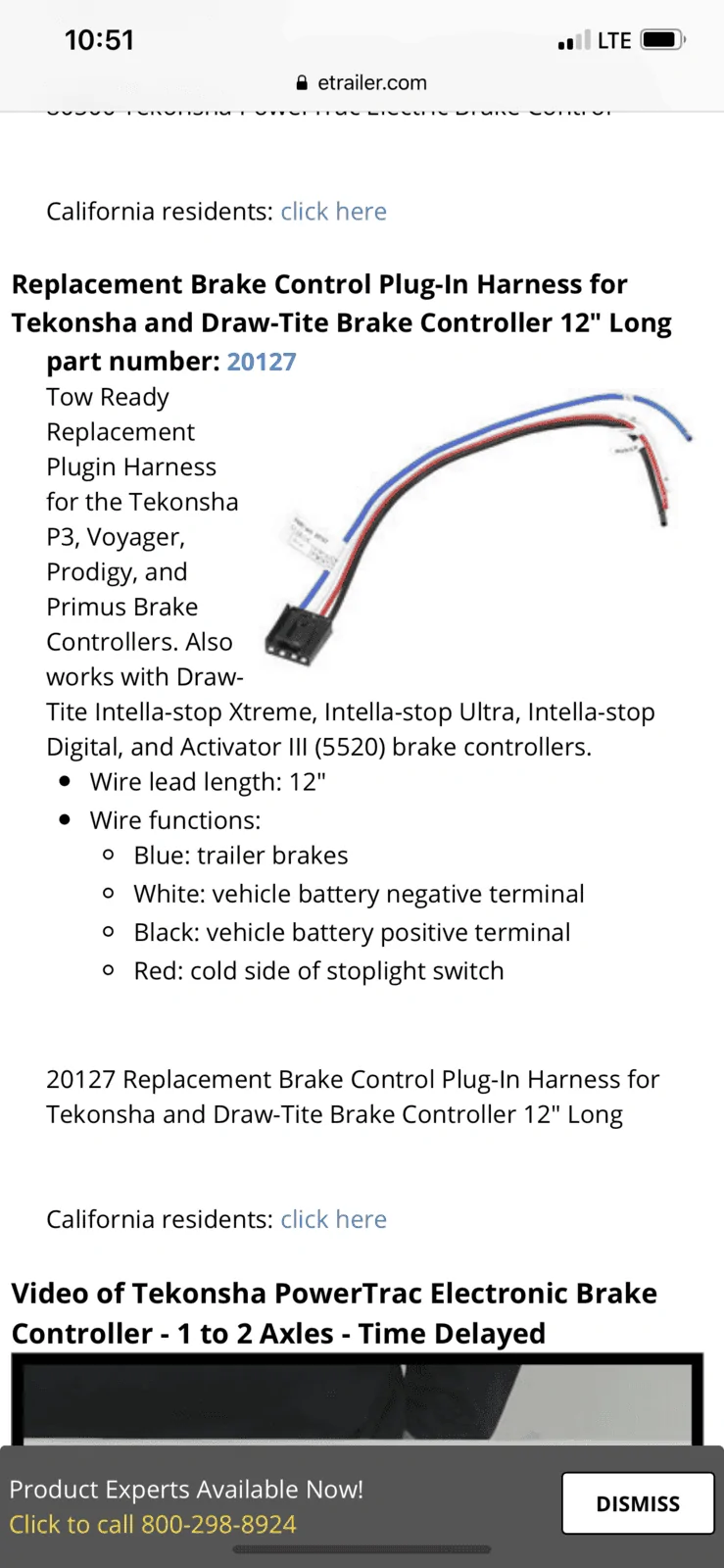

It looks like you can get it on etrailer.



Bobzdar

Well-Known Member
Joined
Apr 3, 2019
Threads
7
Messages
508
Reaction score
618
Location
Richmond
Vehicle(s)
2020 Gladiator Rubicon, 1989 grand wagoneer
I am unsure of the correct wire harness to plug into the under the dash plug for the break controller . Is it Tekonsha 3014-p or 3024 adapter harness ? The trailer I will be getting weights #3000 and a single axle .Any break controller suggestion ? FYI Mopar has nothing available at this time for the Gladiator ! Thanks
It's the 3014-P. I use a Hopkins agility controller that I already had, but I'd just get a tekonsha as it'll be plug and play with the harness.


tweak89

Well-Known Member
First Name
Leroy
Joined
Jun 14, 2019
Threads
17
Messages
146
Reaction score
391
Location
Houston
Vehicle(s)
2020 Gladiator, 2002 Thunderbird
I am unsure of the correct wire harness to plug into the under the dash plug for the break controller . Is it Tekonsha 3014-p or 3024 adapter harness ? The trailer I will be getting weights #3000 and a single axle .Any break controller suggestion ? FYI Mopar has nothing available at this time for the Gladiator ! Thanks

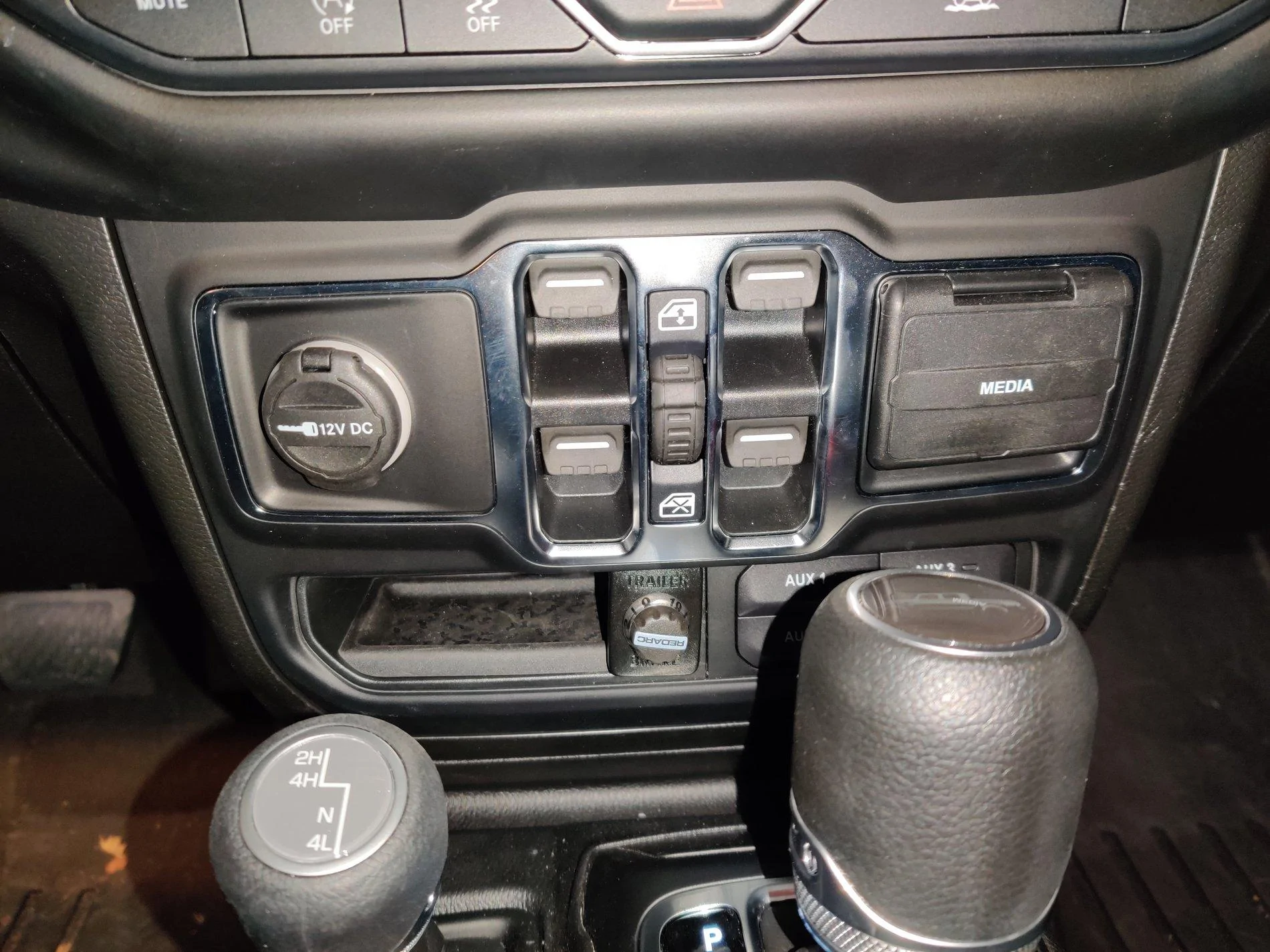

The adaptor you need will depend on the BRAND of controller you end up with. I just installed a Curt Spectrum controller so the harness was Curt #51459 (which will work with pretty much and Curt controller). Looks great, IMO and matches the other panel components. Like the Redarc, it has a separate module. Unlike the Redarc, you can install it without putting any holes in your dash if you choose too.




Rcrupper

New Member
First Name
Robert
Joined
Aug 5, 2019
Threads
0
Messages
4
Reaction score
1
Location
Houston
Vehicle(s)
2007 wrangler
The adaptor you need will depend on the BRAND of controller you end up with. I just installed a Curt Spectrum controller so the harness was Curt #51459 (which will work with pretty much and Curt controller). Looks great, IMO and matches the other panel components. Like the Redarc, it has a separate module. Unlike the Redarc, you can install it without putting any holes in your dash if you choose too.


looks great, almost factory..


Sponsored

giskard

Well-Known Member
First Name
Cameron
Joined
Dec 17, 2018
Threads
0
Messages
161
Reaction score
127
Location
Thief River Falls, MN
Vehicle(s)
2018 BMW i3s
Yeah, that looks pretty slick. Were you able to mount it in the existing 12v outlet hole (without having to drill it out)?


tweak89

Well-Known Member
First Name
Leroy
Joined
Jun 14, 2019
Threads
17
Messages
146
Reaction score
391
Location
Houston
Vehicle(s)
2020 Gladiator, 2002 Thunderbird
Yeah, that looks pretty slick. Were you able to mount it in the existing 12v outlet hole (without having to drill it out)?
No drilling was needed, thought the 12v outlet is a pain in the rear to remove.


PsyRN

Well-Known Member
First Name
Eric
Joined
May 13, 2019
Threads
23
Messages
454
Reaction score
522
Location
Santa Rosa
Vehicle(s)
2020 StingGray JTR, 2016 Bonneville T120 Black
No drilling was needed, thought the 12v outlet is a pain in the rear to remove.
was the adapter harness plug-n-play? I'm liking this option more then the Redarc because it doesn't have the brand all over it like the Redarc, if for nothing else.


tweak89

Well-Known Member
First Name
Leroy
Joined
Jun 14, 2019
Threads
17
Messages
146
Reaction score
391
Location
Houston
Vehicle(s)
2020 Gladiator, 2002 Thunderbird
was the adapter harness plug-n-play? I'm liking this option more then the Redarc because it doesn't have the brand all over it like the Redarc, if for nothing else.
Yes, the harness was straight plug and play, no wire swapping.


RickyR

Well-Known Member
Joined
Jul 1, 2019
Threads
21
Messages
140
Reaction score
117
Location
Charleston, SC
Vehicle(s)
2020 JTR Black , 2004 LJ D60's 39.5 IRoKs AMC 401 V-8
Yes, the harness was straight plug and play, no wire swapping.
I just spoke with Curt they say the plug 51459 doesn't work on the Gladiator, but is made for cherokee. I don't doubt you, but why wouldn't they say it fits both? Surely they know about the JT? I also read that there is a slight error when using the adaptive cruise control. Any experience with this as well? Thanks


Sponsored

tweak89

Well-Known Member
First Name
Leroy
Joined
Jun 14, 2019
Threads
17
Messages
146
Reaction score
391
Location
Houston
Vehicle(s)
2020 Gladiator, 2002 Thunderbird
I just spoke with Curt they say the plug 51459 doesn't work on the Gladiator, but is made for cherokee. I don't doubt you, but why wouldn't they say it fits both? Surely they know about the JT? I also read that there is a slight error when using the adaptive cruise control. Any experience with this as well? Thanks
Well, I've had zero issues, but then again, I don't have the adaptive cruise. I did not use the Curt website to find the part #, I got it using e-trailer's website.


Mr._Bill

Well-Known Member
First Name
Bill
Joined
Jul 22, 2019
Threads
29
Messages
5,152
Reaction score
5,403
Location
North Las Vegas, NV
Vehicle(s)
2020 Jeep Gladiator Overland - 2013 Nissan Leaf SV
Vehicle Showcase
1
Well, I've had zero issues, but then again, I don't have the adaptive cruise. I did not use the Curt website to find the part #, I got it using e-trailer's website.
I have the Curt 51457 saved in my Amazon cart. It is supposed to work on the Wranglers and RAM trucks. I'm guessing it will work for the Gladiator when I'm ready to buy.


Combolc

Well-Known Member
First Name
Brandon
Joined
Aug 3, 2019
Threads
7
Messages
110
Reaction score
74
Location
Maryland
Vehicle(s)
Jeep Gladiator, Toyota 4runner
I am unsure of the correct wire harness to plug into the under the dash plug for the break controller . Is it Tekonsha 3014-p or 3024 adapter harness ? The trailer I will be getting weights #3000 and a single axle .Any break controller suggestion ? FYI Mopar has nothing available at this time for the Gladiator ! Thanks


This is the harness I used and was recommended by Redarc

https://www.etrailer.com/p-C51459.html?hhyear=2020&hhmake=Jeep&hhmodel=Gladiator

I am picking up a Nobo tomorrow so I will see how it works


OP
OP

rigger 17

Active Member
First Name
Richard
Joined
Jul 14, 2019
Threads
1
Messages
39
Reaction score
17
Location
shelby , michigan
Vehicle(s)
gladiator
That is a great place for the break controller : NO knee bumping there ! The RV dealer near my keeps showing me the NoBo and the Geo Pro .Have not decided yet but both are nice campers


Combolc

Well-Known Member
First Name
Brandon
Joined
Aug 3, 2019
Threads
7
Messages
110
Reaction score
74
Location
Maryland
Vehicle(s)
Jeep Gladiator, Toyota 4runner
That is a great place for the break controller : NO knee bumping there ! The RV dealer near my keeps showing me the NoBo and the Geo Pro .Have not decided yet but both are nice campers
She towed great
