Trickle charge auxiliary battery?

YooperCracker

Well-Known Member
First Name
John
Joined
Dec 18, 2023
Threads
9
Messages
58
Reaction score
37
Location
Northwest Arkansas
Vehicle(s)
2022 Jeep Gladiator MT6, 2011 Ford Ranger MT5
Unlike folks that are (understandably!) irritated by it, I actually want my Start/Stop system to function (yeah, I'm a tree hugging, Jeep loving, Prius hating liberal - a weird combination, I know). After an infrequent long road trip, start/stop will start working, but after a couple of days of just doing chores around town, it becomes unavailable. This seems to be a common problem.

Would it be possible to trickle charge the ESS battery? If so, is there an easy way to do this? From looking at the wiring diagram in this forum, there is a post(?) labeled N1 that I think I could hook the positive lead from my solar trickle charger (with the negative hooked to body ground). Is this a bad idea? If not, how do I identify the doohickey labeled N1?
Sponsored



Stuntman Mike

Well-Known Member
First Name
Joerg
Joined
Sep 9, 2023
Threads
5
Messages
394
Reaction score
765
Location
Essen, Germany
Vehicle(s)
2022 JTOD, 2005 TJ 4.0, 1980 MB 450 SLC
Occupation
Rotating Equipment Consultant
If you connect a battery maintainer your auxilliary battery should be charged together with the main battery. As far as I know ...

OP
OP

YooperCracker

Well-Known Member
First Name
John
Joined
Dec 18, 2023
Threads
9
Messages
58
Reaction score
37
Location
Northwest Arkansas
Vehicle(s)
2022 Jeep Gladiator MT6, 2011 Ford Ranger MT5
^ That kinda makes sense. Sometimes, I'm not the most logical


Panthers65

Well-Known Member
First Name
Brent
Joined
Aug 23, 2021
Threads
43
Messages
483
Reaction score
481
Location
Atlanta, GA
Vehicle(s)
NA
Occupation
Account Manager
Yep it will work fine.

I don't really care about all the other stuff, but I do consider the ESS system to be an indicator and I do want it working as well.

on your 7-pin plug on the back of the Jeep, the + is always connected straight to the battery and the - is a good ground. I've seen several people wire a battery maintainer/trickle charger to a 7-pin trailer plug with just those two wires and use it as a way to hook your battery maintainer up without having to pop the hood every time. Just don't forget to take it out before driving away!


Sponsored

OP
OP

YooperCracker

Well-Known Member
First Name
John
Joined
Dec 18, 2023
Threads
9
Messages
58
Reaction score
37
Location
Northwest Arkansas
Vehicle(s)
2022 Jeep Gladiator MT6, 2011 Ford Ranger MT5
You folks are the best! Here is my jury-rigged system, which seems to be working. Now I need to buy the plug and such referenced above.

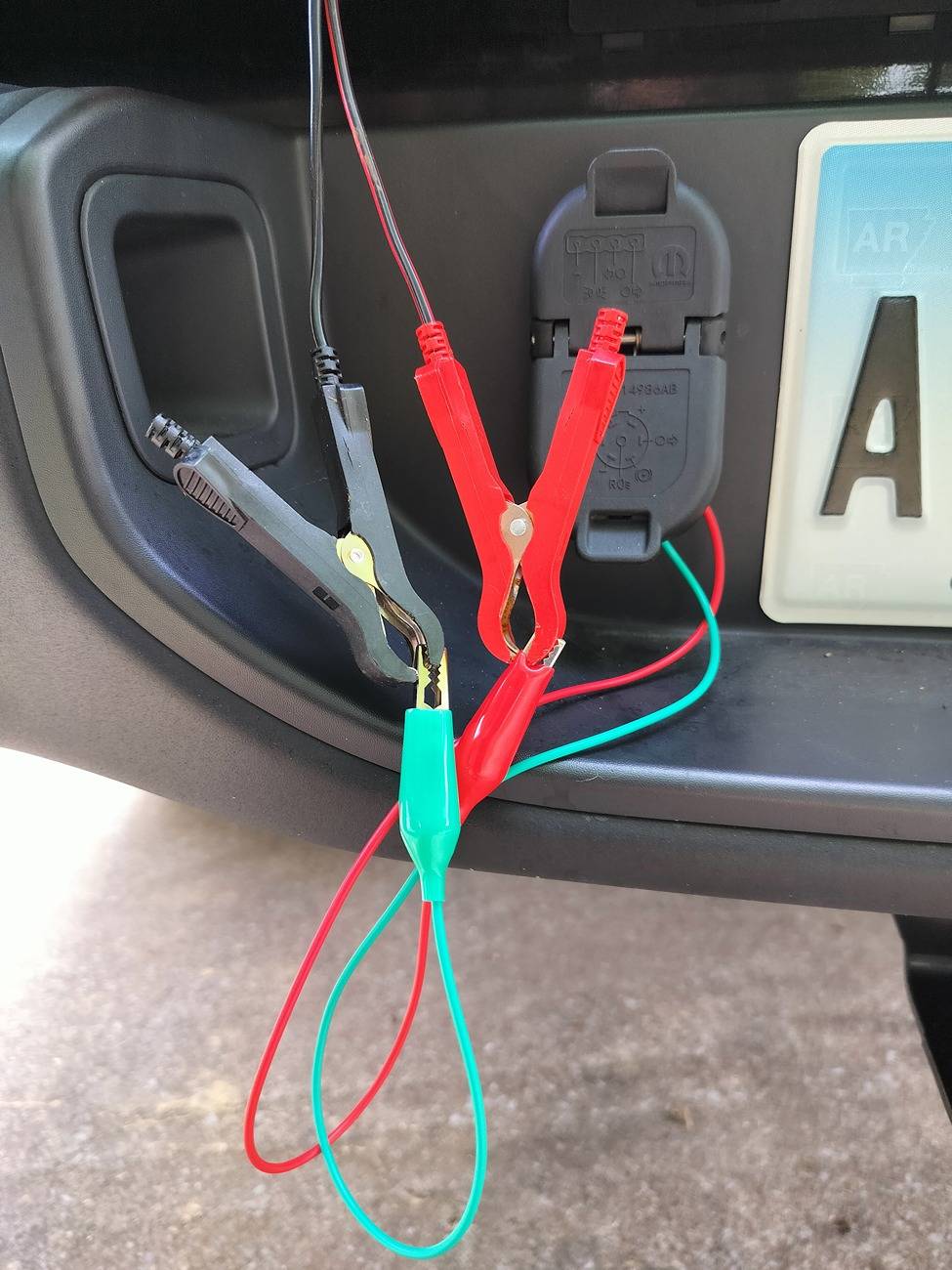

Jeep Gladiator Trickle charge auxiliary battery? IMG20240801083820


Jeep Gladiator Trickle charge auxiliary battery? IMG20240801083739


I have the wires draped across the backup camera so I'll see them when I back out of the driveway (in case I forget to remove the system).


Blade1668

Well-Known Member
First Name
Darrell
Joined
Jan 7, 2020
Threads
12
Messages
2,726
Reaction score
2,502
Location
N. AL.
Vehicle(s)
90XJ, 91XJ, 91MJ, 05 LJ, 20 JT
Build Thread
Link
Vehicle Showcase
1
You folks are the best! Here is my jury-rigged system, which seems to be working. Now I need to buy the plug and such referenced above.

I have the wires draped across the backup camera so I'll see them when I back out of the driveway (in case I forget to remove the system).
A quick way is a 7 pin trailer connector and wire it. I wired one back before there was ones on the market for alternative uses. Main use was for a light duty 2000 pound winch power. Dang that was a long time back. 🙄
Good plan on leaving the wires that way and the solar charger controller. I had a solar charger that killed my 4wheeler battery twice... I just figured the first battery was old and quit, then replaced to kill that one too.
FYI I got a laugh out of your intro bio. :like::LOL:


JTGuy

Well-Known Member
First Name
Pascual
Joined
Jul 23, 2023
Threads
38
Messages
904
Reaction score
831
Location
San Dimas CA
Vehicle(s)
20022 Jeep Gladiator
Occupation
Manager
I let my ESS work a few days before a trip as it checks some computer functions. Then I do.a trickle charge and turn the ESS off for the trip.

OP
OP

YooperCracker

Well-Known Member
First Name
John
Joined
Dec 18, 2023
Threads
9
Messages
58
Reaction score
37
Location
Northwest Arkansas
Vehicle(s)
2022 Jeep Gladiator MT6, 2011 Ford Ranger MT5
Got the 7-pin plug as advised. Stop-start is working!

Jeep Gladiator Trickle charge auxiliary battery? IMG20240811151707


Sponsored

Frenzyrider

Well-Known Member
First Name
Ess
Joined
Jul 12, 2020
Threads
19
Messages
222
Reaction score
96
Location
NorCal
Vehicle(s)
Jeep
Occupation
Svc
Does the 7 pin +ive connect directly to aux battery? I am trying to understand when you are on the move then which battery powers the trailer.


Freems

Well-Known Member
First Name
Mike
Joined
Mar 13, 2023
Threads
7
Messages
489
Reaction score
644
Location
Boise Idaho
Vehicle(s)
2020 Gladiator Sport 2022 Bronco Sport
Occupation
Retired
When you Charge your JT it’s charges both main and aux batterys, they are hooked together in parallel.
