    Number: TSB 23-017-19
    Group: 23 - Body
    Date: May 23, 2019
    Subject: Rear Seat Back Squeak
    Overview: This bulletin involves lubricating the plastic overmold area on both rear seat latches

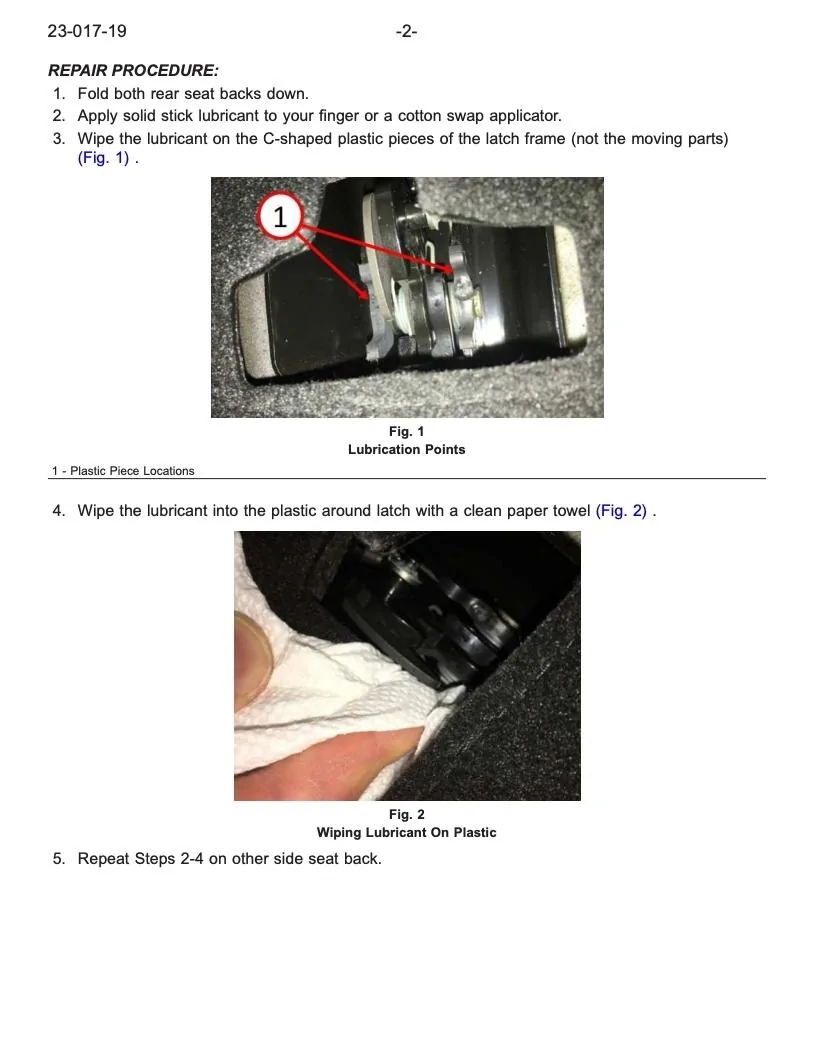

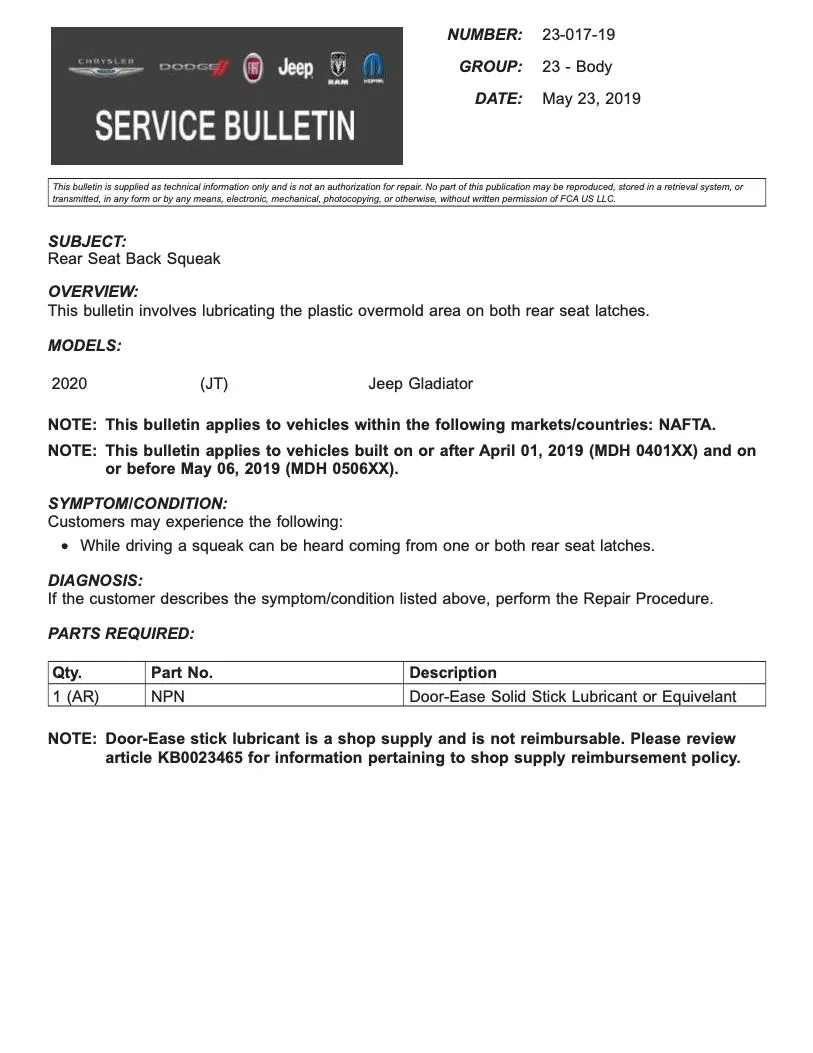

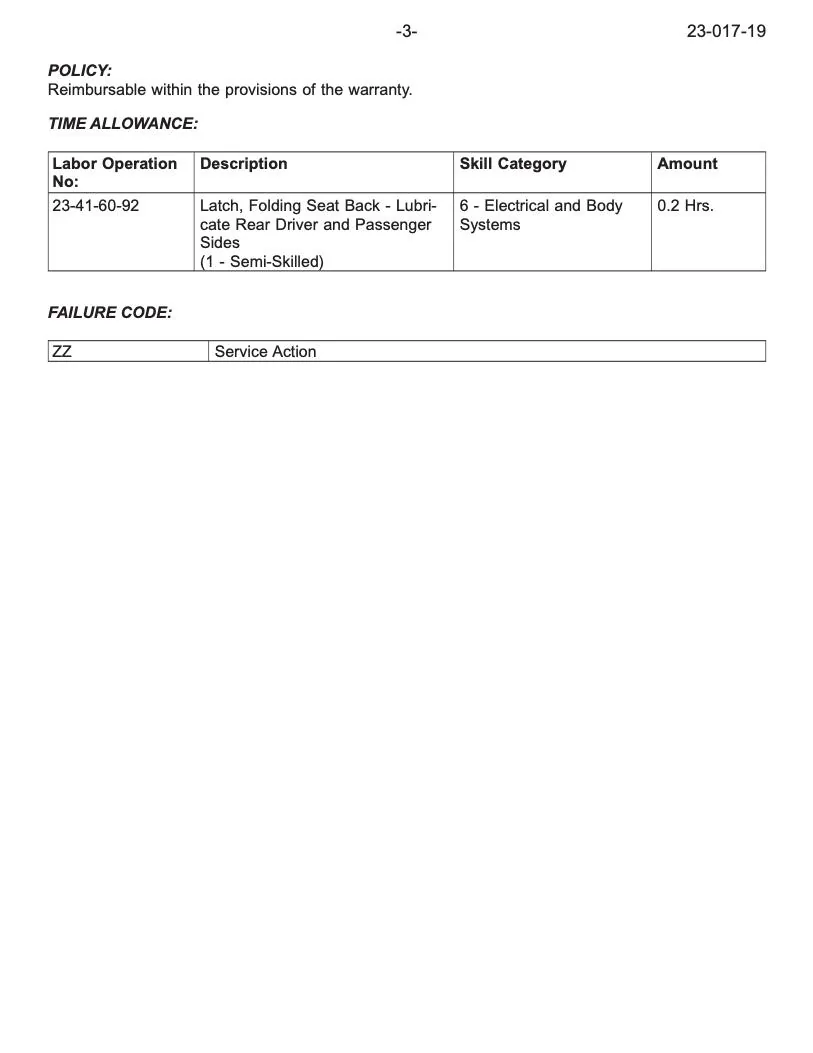

    JT_tsb_23_017_19_page_1.jpg JT_tsb_23_017_19_page_2.jpg JT_tsb_23_017_19_page_3.jpg

  2. ralphjjr

    ralphjjr Well-Known Member

    First Name:
    Ralph
    Vehicle(s):
    2020 Jeep Gladator Launch Edition | 2017 Jeep Grand Cherokee Limited
    Joined:
    Nov 30, 2018
    Location:
    Central NJ
    Posts:
    1,674
    Liked:
    1,470
    Interesting. LoL who reports these!!

    I don't think I've experienced this one.

  3. JTguy2020

    JTguy2020 Well-Known Member

    First Name:
    Glenn
    Vehicle(s):
    2020 Jeep Gladiator Sport S
    Joined:
    Jul 4, 2019
    Location:
    South Florida FTLD
    Posts:
    344
    Liked:
    151
    Occupation:
    Marketing | Jeep Parts Accessories Co.
    Garage Profiles:
    1
    I sure haven’t ‍♂️

  4. WXman

    WXman Well-Known Member

    Vehicle(s):
    2020 Jeep Gladiator
    Joined:
    Mar 1, 2017
    Location:
    Bluegrass region of Kentucky
    Posts:
    1,128
    Liked:
    1,139
    Occupation:
    Meteorology and Transportation
    I had a terrible squeak/pop noise from the passenger rear. It would drive me mad, especially on rough roads. Turns out the hard top wasn't perfectly square on the body when they torqued it down on the line. I had to loosen all the bolts, shift the top a few millimeters, and re-torque to spec. Noise gone.

  5. nooch135

    nooch135 Member

    First Name:
    Nooch
    Vehicle(s):
    2020 JTR
    Joined:
    Dec 20, 2018
    Location:
    Florida
    Posts:
    13
    Liked:
    35
    Occupation:
    Divemaster, Cigar Smoker, Trouble Maker
    Too funny. I've had a squeak for about three weeks that I couldn't figure out where it was coming from. I could tell it was coming from the rear seat area. Since I couldn't pin point it myself while driving, I asked my wife to sit in the back seat to see if she could find it while we were driving. Of course with her on the rear seat the damn thing wouldn't squeak. I saw this bulletin and put some lube on the area as described in the bulletin. Yep....no more squeaks!!!
