Underbody pictures?

TTEChris

Well-Known Member
First Name
Chris
Joined
May 17, 2017
Threads
21
Messages
503
Reaction score
1,729
Location
Houston, TX
Website
tankcustoms.com
Vehicle(s)
2021 JTD
Occupation
Jeep
Has anyone come across underbody pictures of the diesel Gladiator?
I'm curious how they packaged the DEF tank and all the emissions equipment.
Sponsored



TheSolarWizard

Well-Known Member
First Name
Memphis
Joined
Aug 5, 2019
Threads
79
Messages
2,299
Reaction score
2,213
Location
sun belt
Vehicle(s)
3.0 JT
Occupation
Solar & EV infrastructure
Haven’t seen them surface and to my knowledge zero have been delivered as of yet


TheSolarWizard

Well-Known Member
First Name
Memphis
Joined
Aug 5, 2019
Threads
79
Messages
2,299
Reaction score
2,213
Location
sun belt
Vehicle(s)
3.0 JT
Occupation
Solar & EV infrastructure
Do you think a flat aluminum skid is doable with what they’ve set up here?

OP
OP
TTEChris

TTEChris

Well-Known Member
First Name
Chris
Joined
May 17, 2017
Threads
21
Messages
503
Reaction score
1,729
Location
Houston, TX
Website
tankcustoms.com
Vehicle(s)
2021 JTD
Occupation
Jeep
Do you think a flat aluminum skid is doable with what they’ve set up here?
No, I don't think so. There are quite a few components that hang a bit lower than the 3.6l


Sponsored

WMWHV

Well-Known Member
First Name
Matt
Joined
Nov 25, 2018
Threads
24
Messages
275
Reaction score
279
Location
Houston, TX
Vehicle(s)
2021 Gladiator Rubicon EcoDiesel, 1947 Willys CJ2A
Build Thread
Link
I have not had much free time since picking mine up this week, but am taking today off to play with it, get the LineX sprayed in the bed, replace the tonneau and maybe do a few more things. I will slide under it and try to get some pictures. If there are particular spots people want to see, let me know. Since I did not have the gas version, I not be very good at picking up differences between the two.


TheSolarWizard

Well-Known Member
First Name
Memphis
Joined
Aug 5, 2019
Threads
79
Messages
2,299
Reaction score
2,213
Location
sun belt
Vehicle(s)
3.0 JT
Occupation
Solar & EV infrastructure
I have not had much free time since picking mine up this week, but am taking today off to play with it, get the LineX sprayed in the bed, replace the tonneau and maybe do a few more things. I will slide under it and try to get some pictures. If there are particular spots people want to see, let me know. Since I did not have the gas version, I not be very good at picking up differences between the two.
if you have or are willing to purchase a set of those drive up ramps, some underbody pics from as far away as possible under near as well as from the side would be awesome.


WMWHV

Well-Known Member
First Name
Matt
Joined
Nov 25, 2018
Threads
24
Messages
275
Reaction score
279
Location
Houston, TX
Vehicle(s)
2021 Gladiator Rubicon EcoDiesel, 1947 Willys CJ2A
Build Thread
Link
if you have or are willing to purchase a set of those drive up ramps, some underbody pics from as far away as possible under near as well as from the side would be awesome.

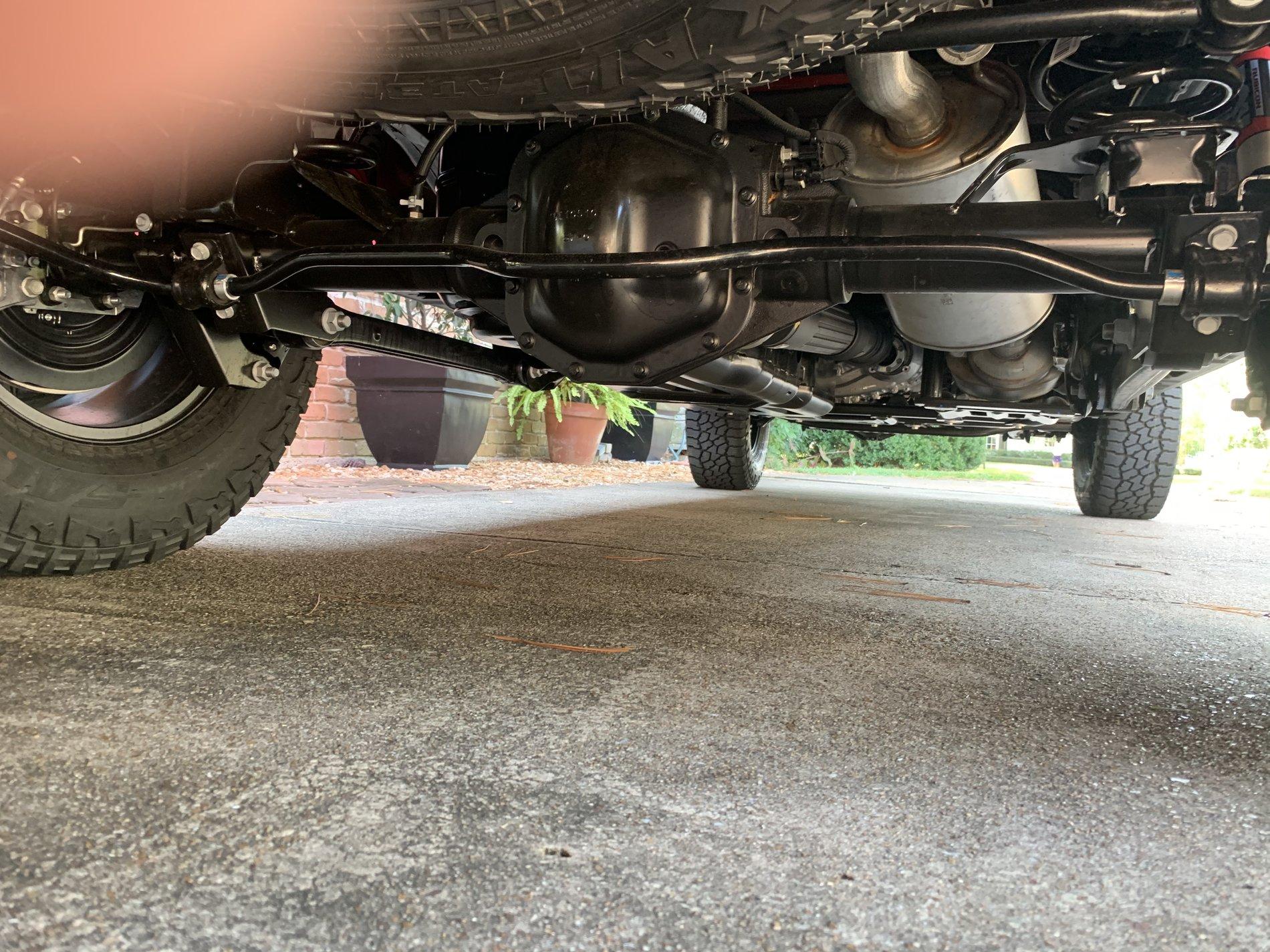

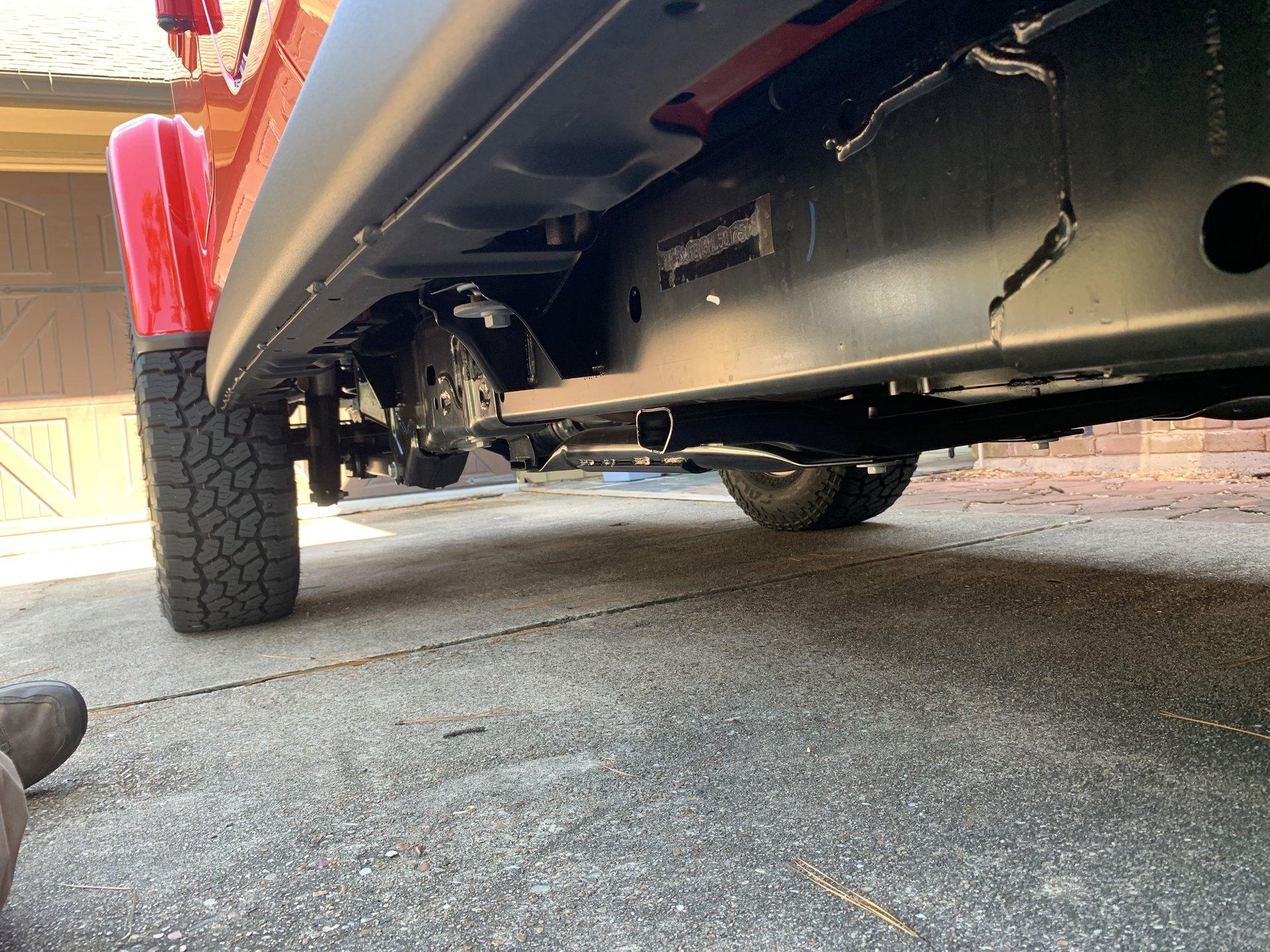

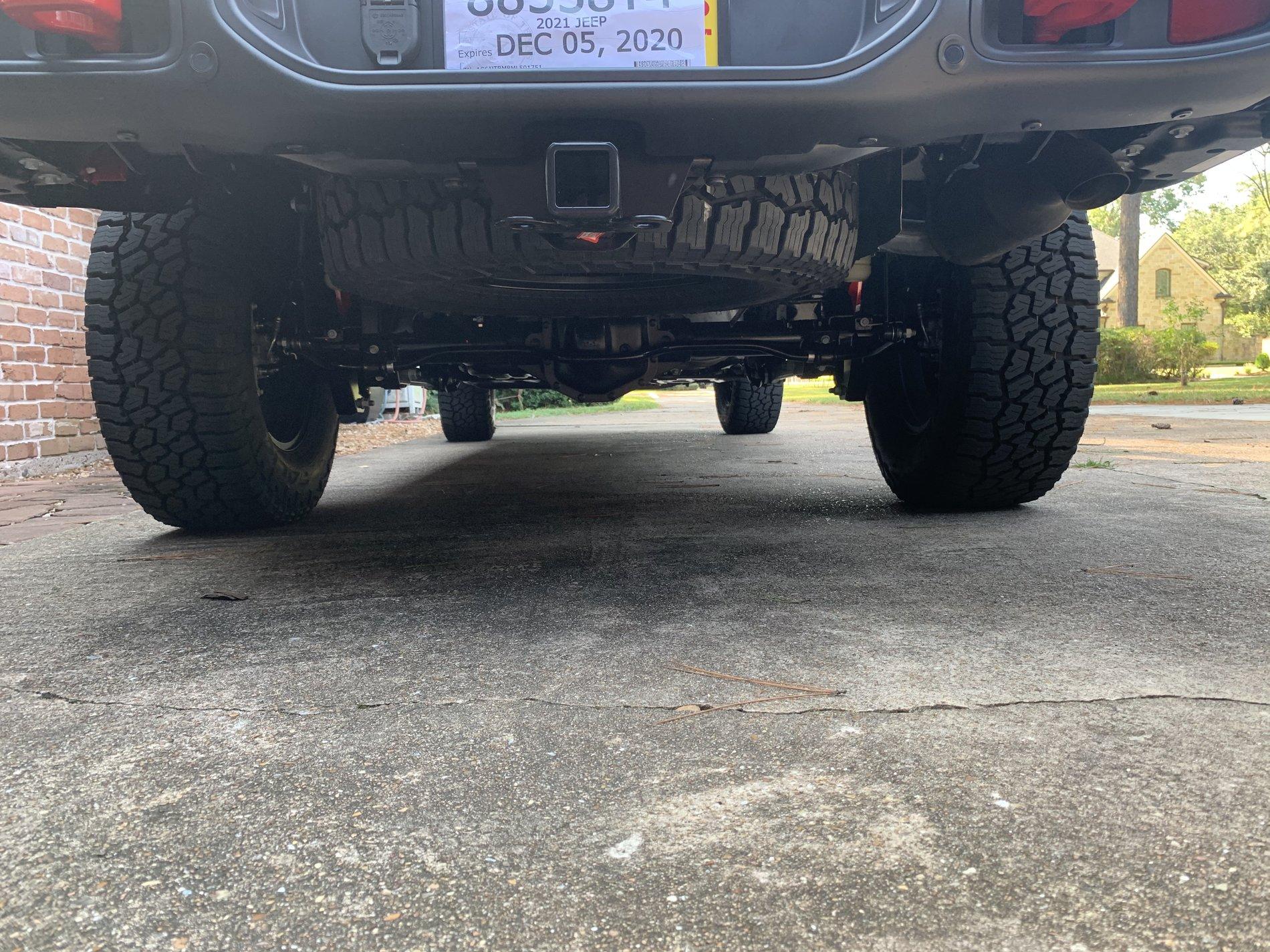

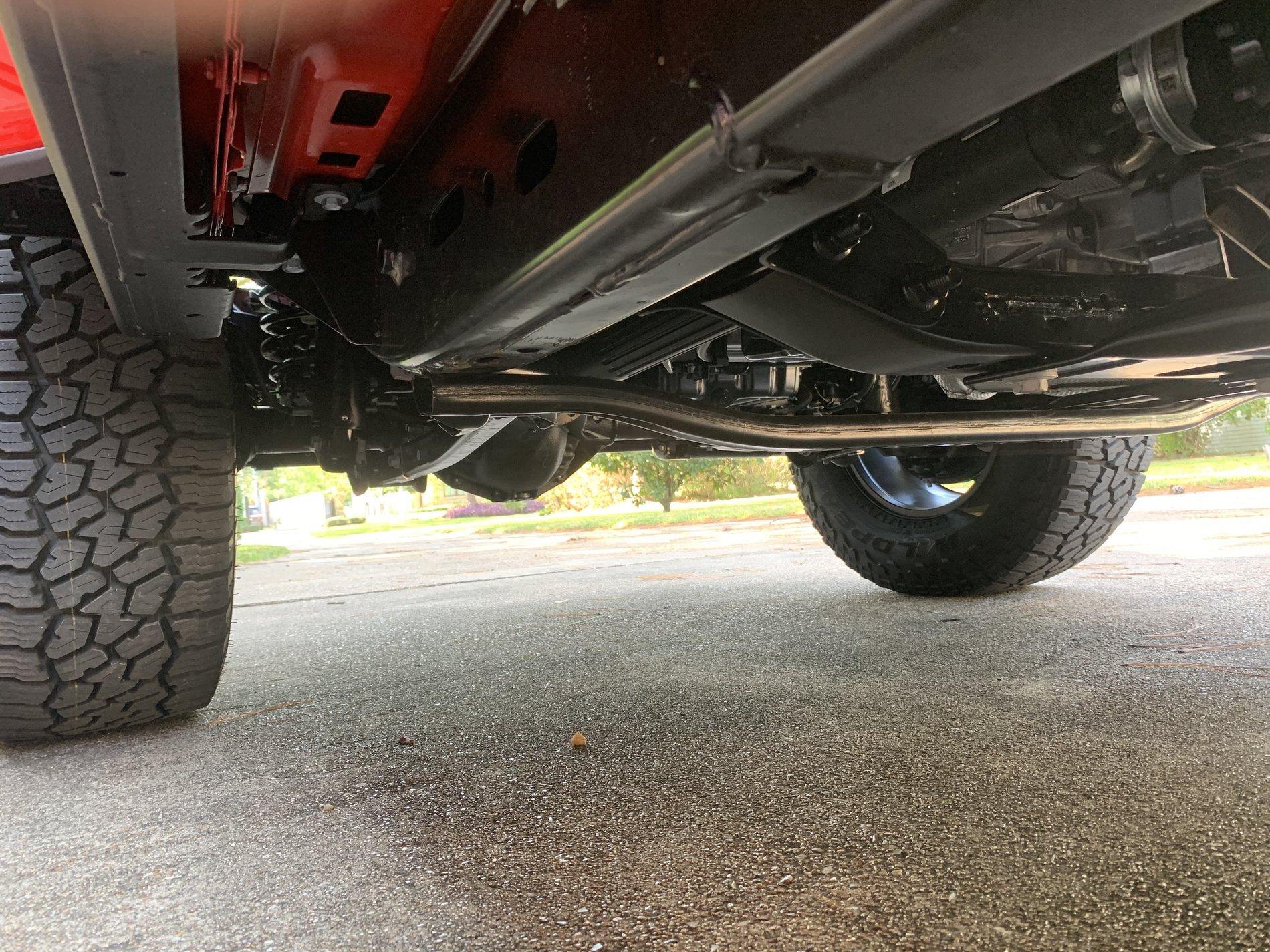

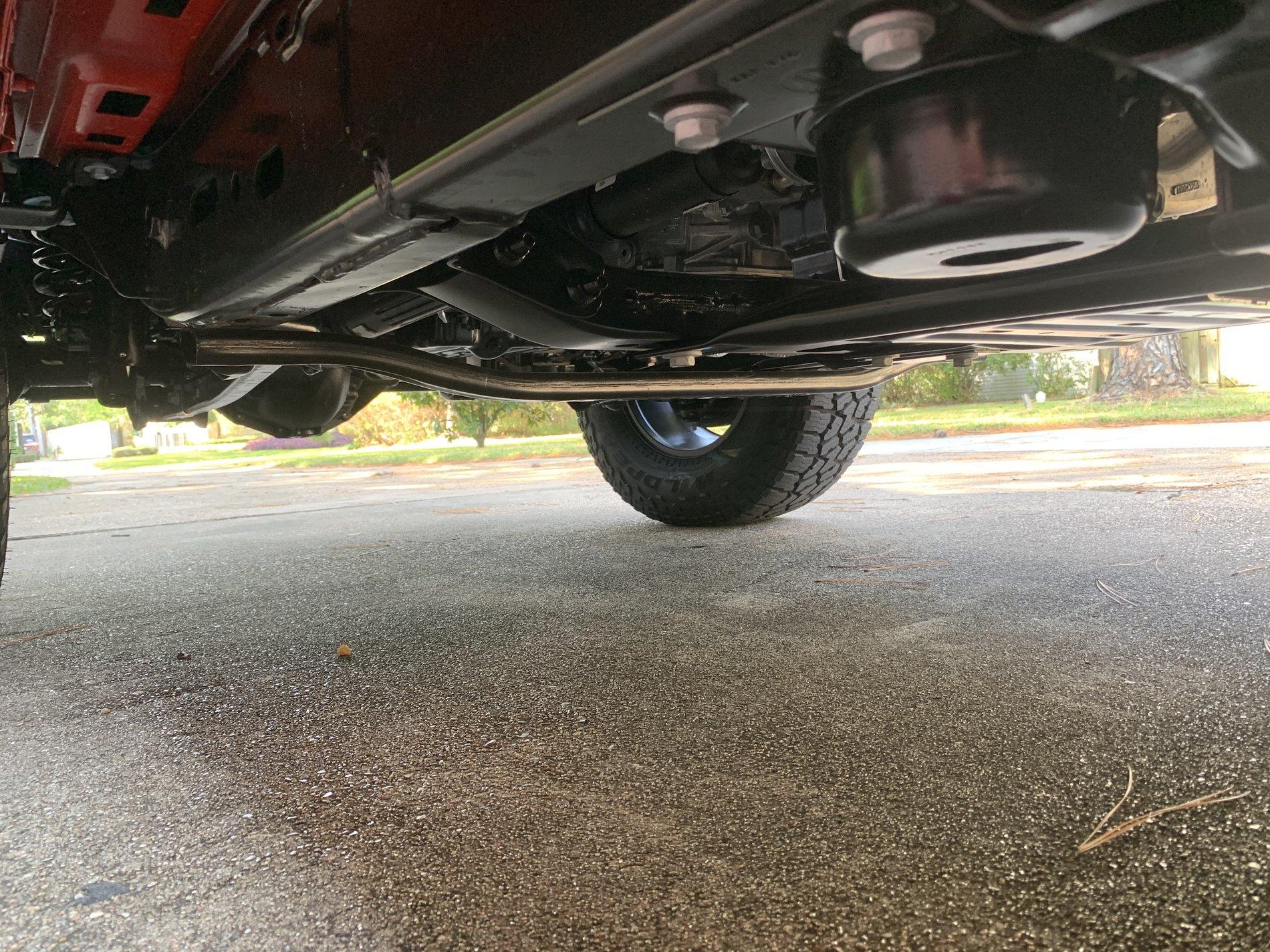

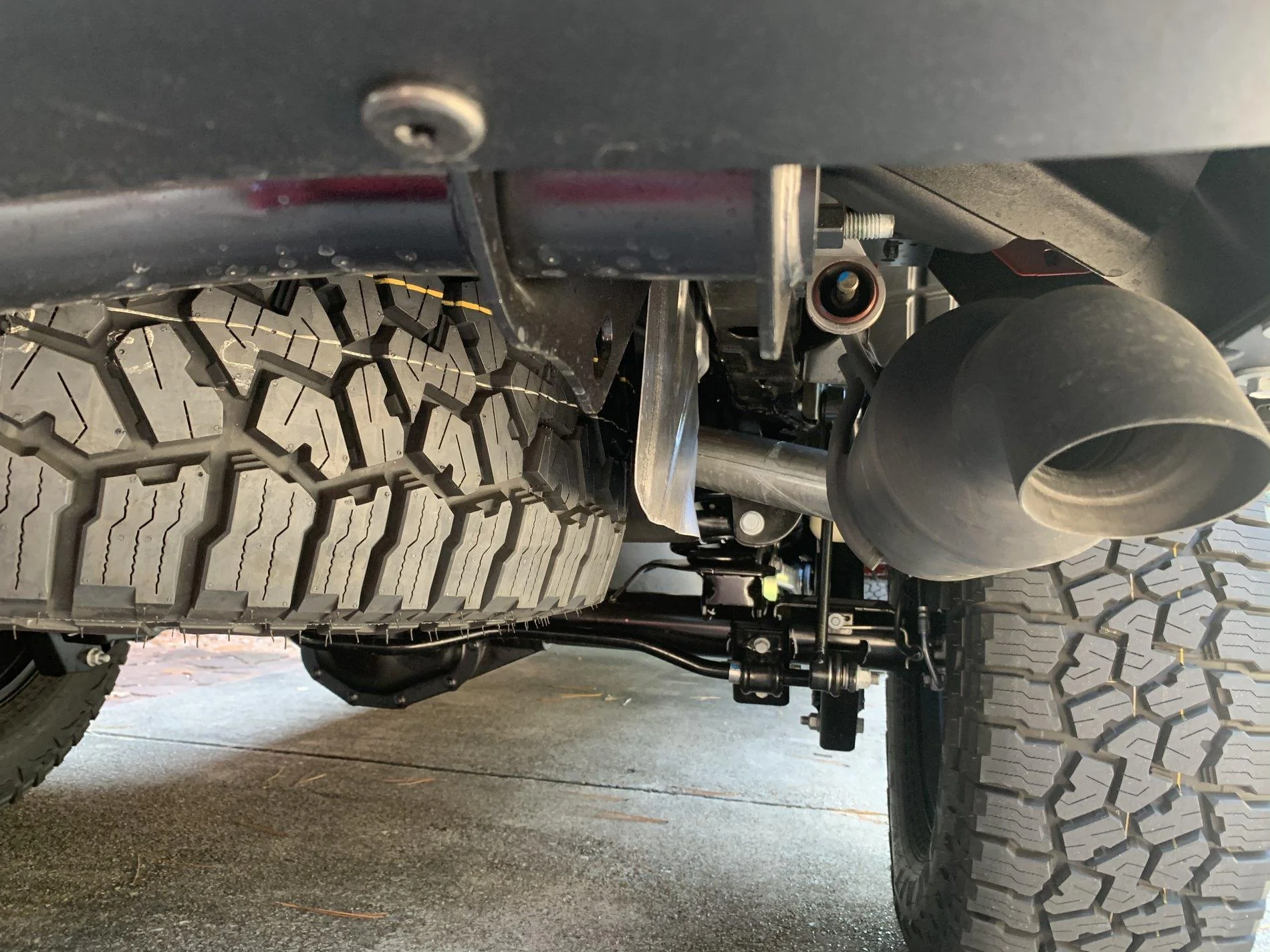

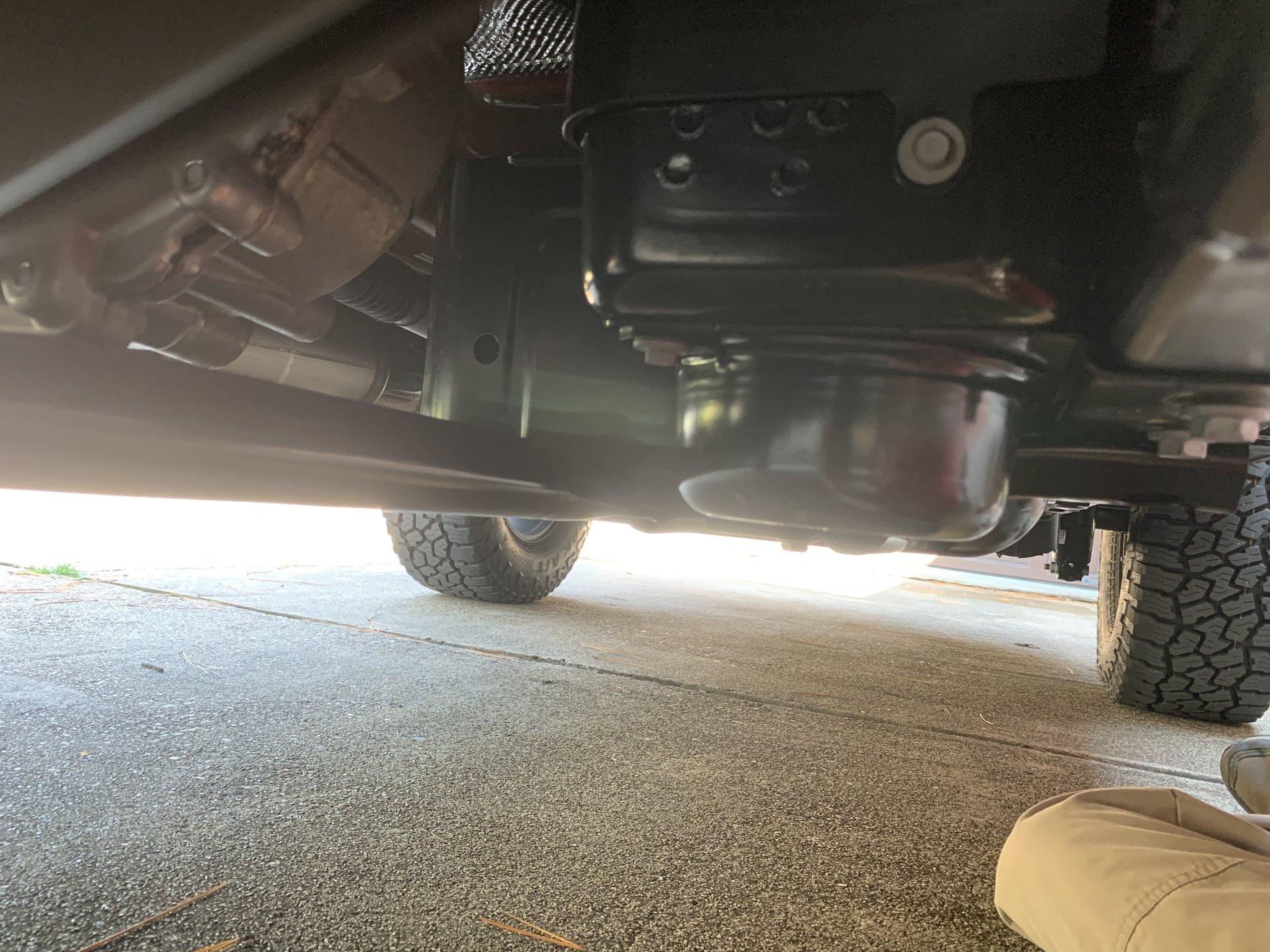

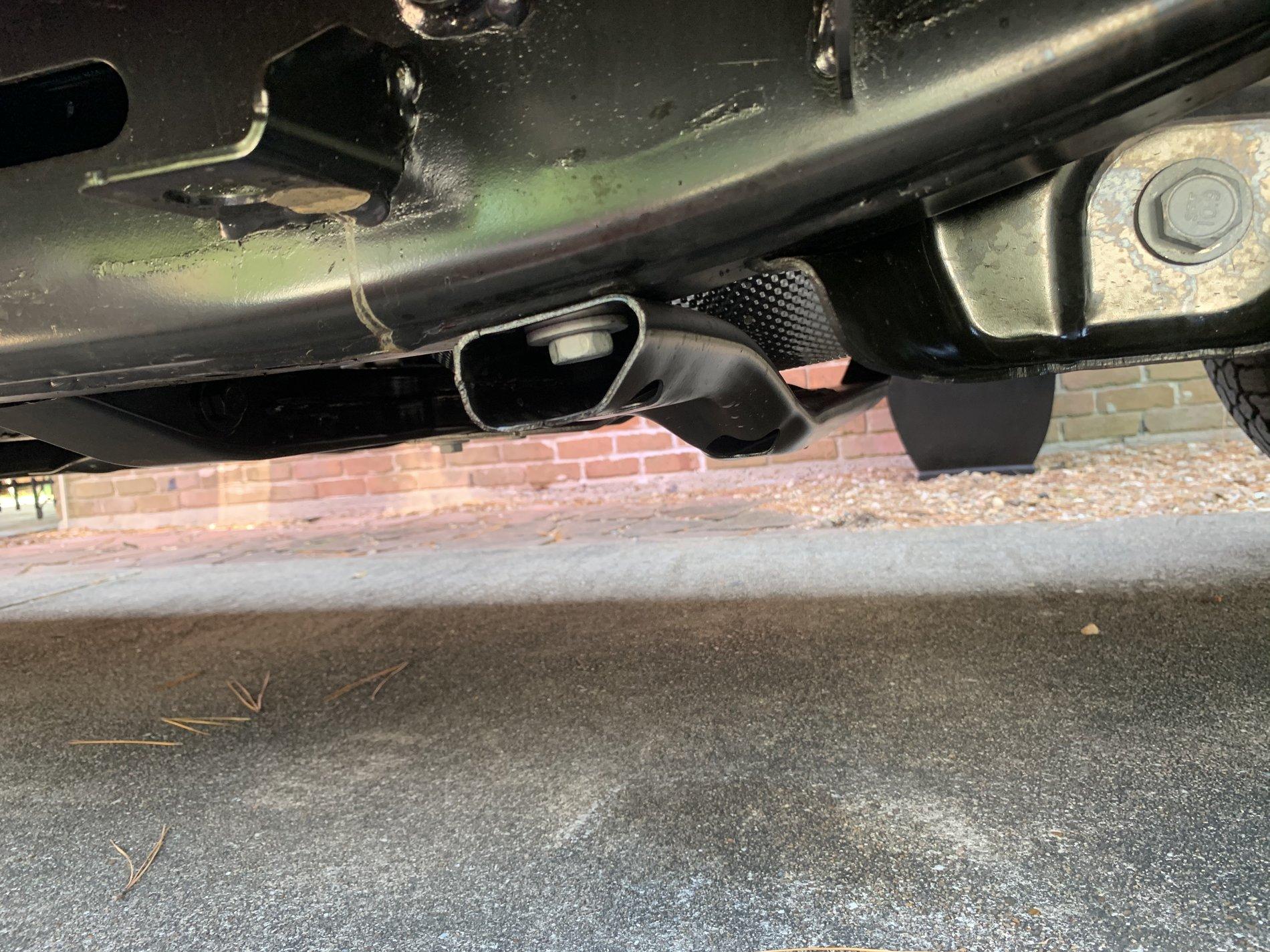

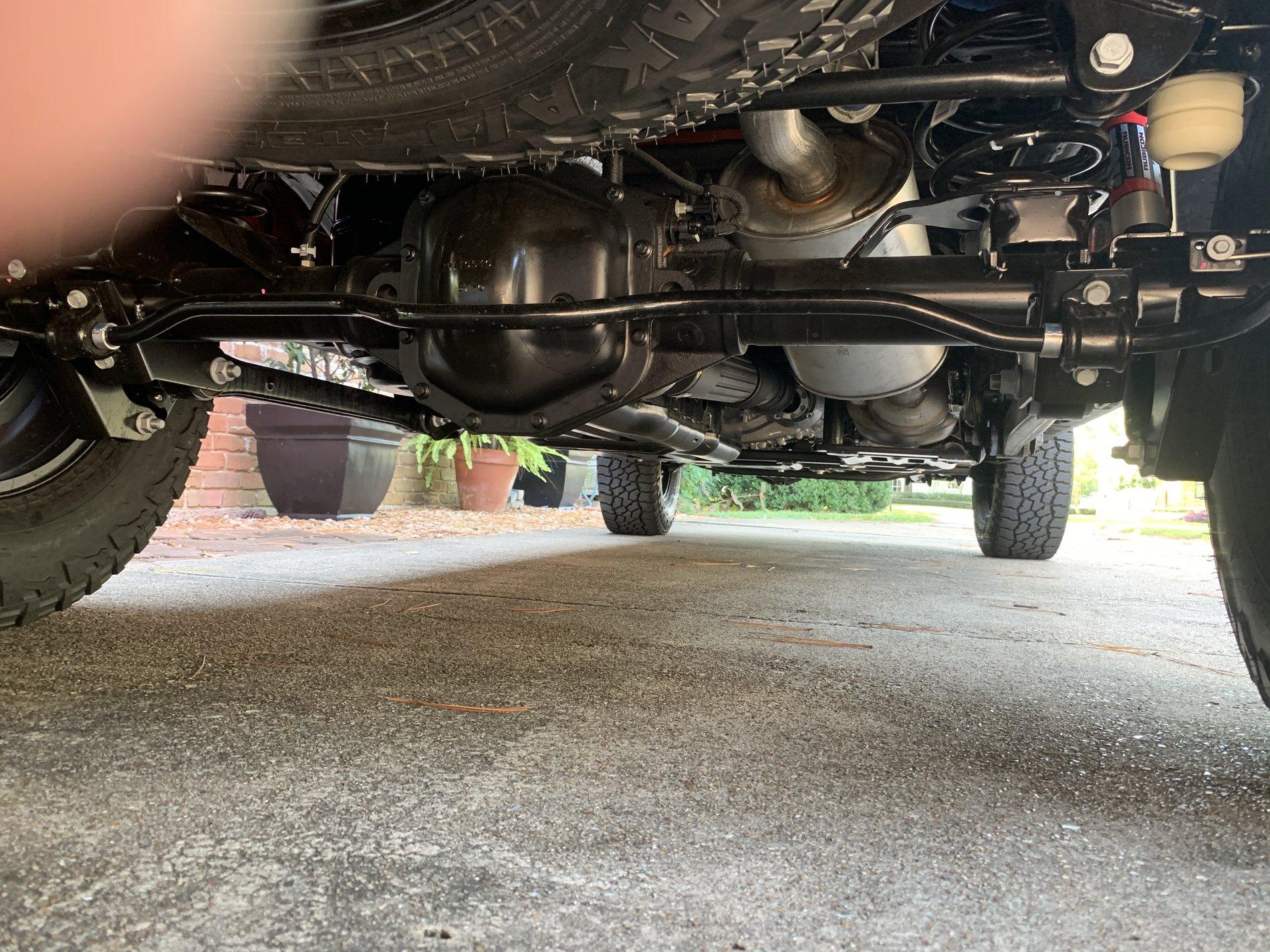

I have been busy pimping it up, so no time to put it on the ramps, but here are some pictures, including a couple of bonus shots of my finger over the lens. I am too lazy to go back outside and re-shoot them.

Jeep Gladiator Underbody pictures? IMG_3324(1)
Jeep Gladiator Underbody pictures? IMG_3329(1)
Jeep Gladiator Underbody pictures? IMG_3328(1)
Jeep Gladiator Underbody pictures? IMG_3323(1)
Jeep Gladiator Underbody pictures? IMG_3321(1)
Jeep Gladiator Underbody pictures? IMG_3322(1)
Jeep Gladiator Underbody pictures? IMG_3325(1)
Jeep Gladiator Underbody pictures? IMG_3326(1)
Jeep Gladiator Underbody pictures? IMG_3327(1)



Last edited:

WXman

Banned
Banned
Joined
Mar 1, 2017
Threads
69
Messages
3,102
Reaction score
4,067
Location
Bluegrass region of Kentucky
Vehicle(s)
2021 Jeep Gladiator Overland EcoDiesel
Occupation
Meteorology and Transportation

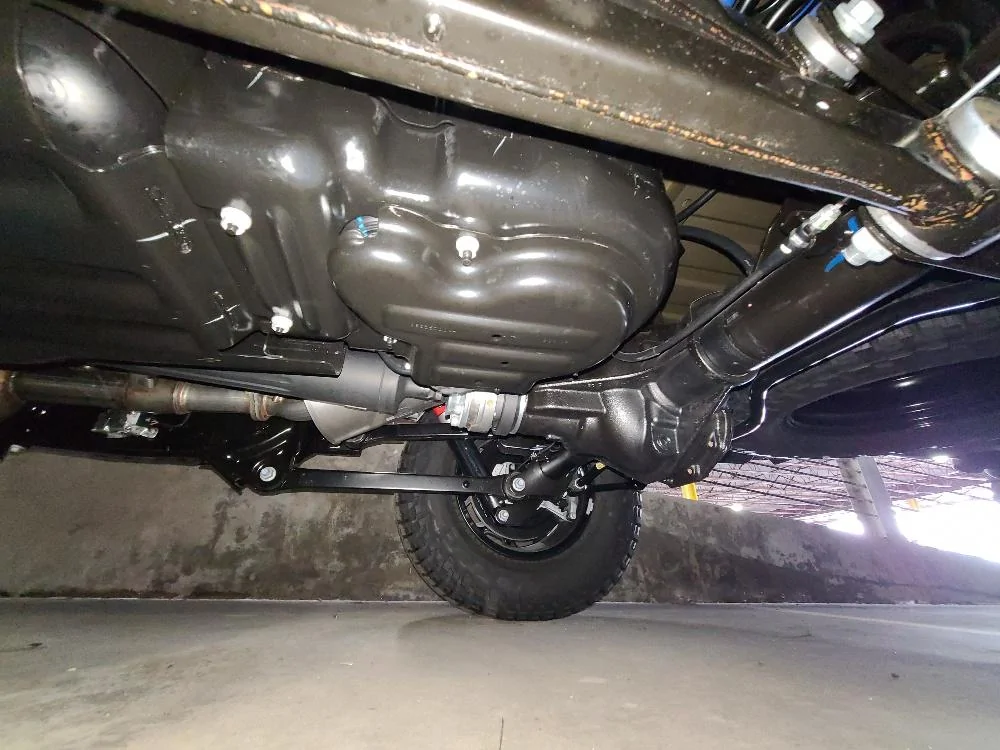

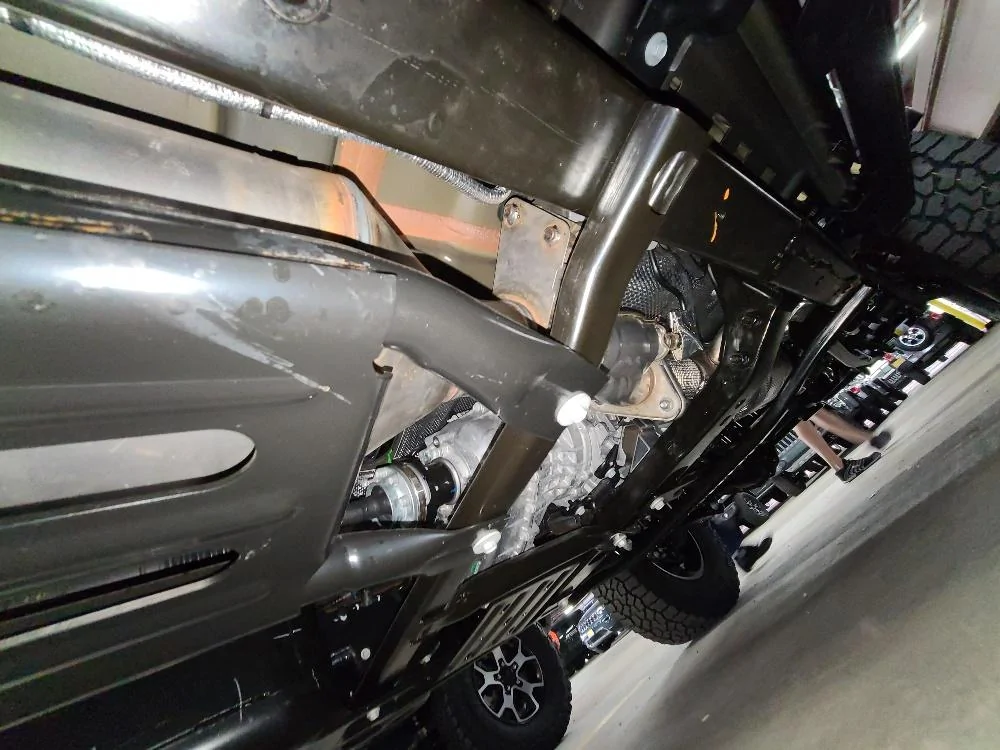

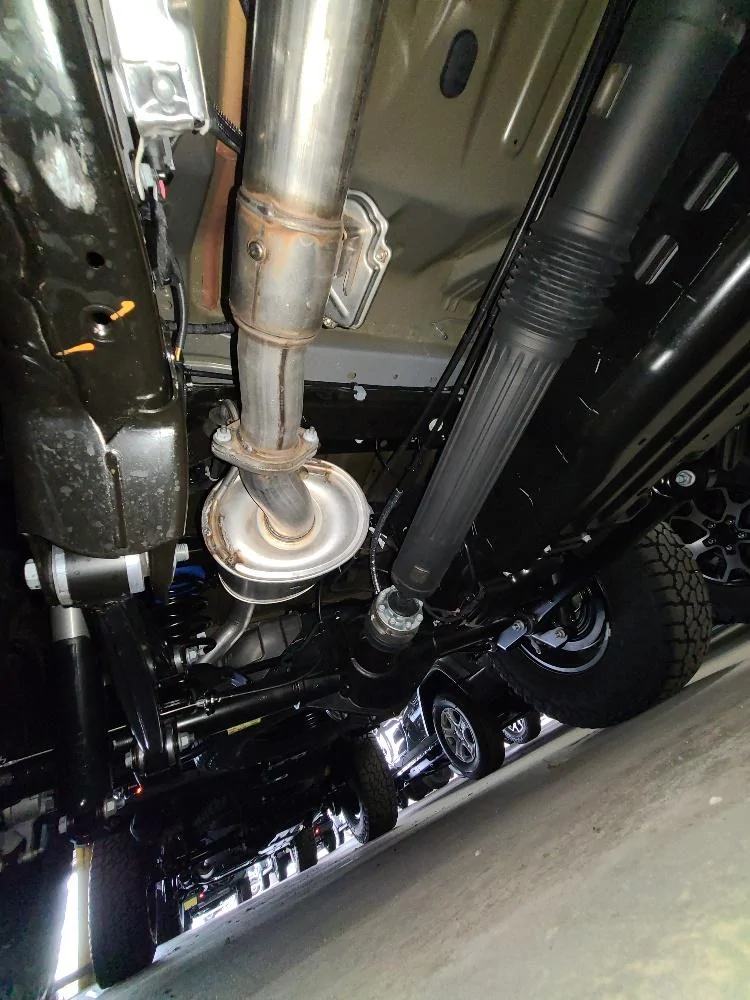

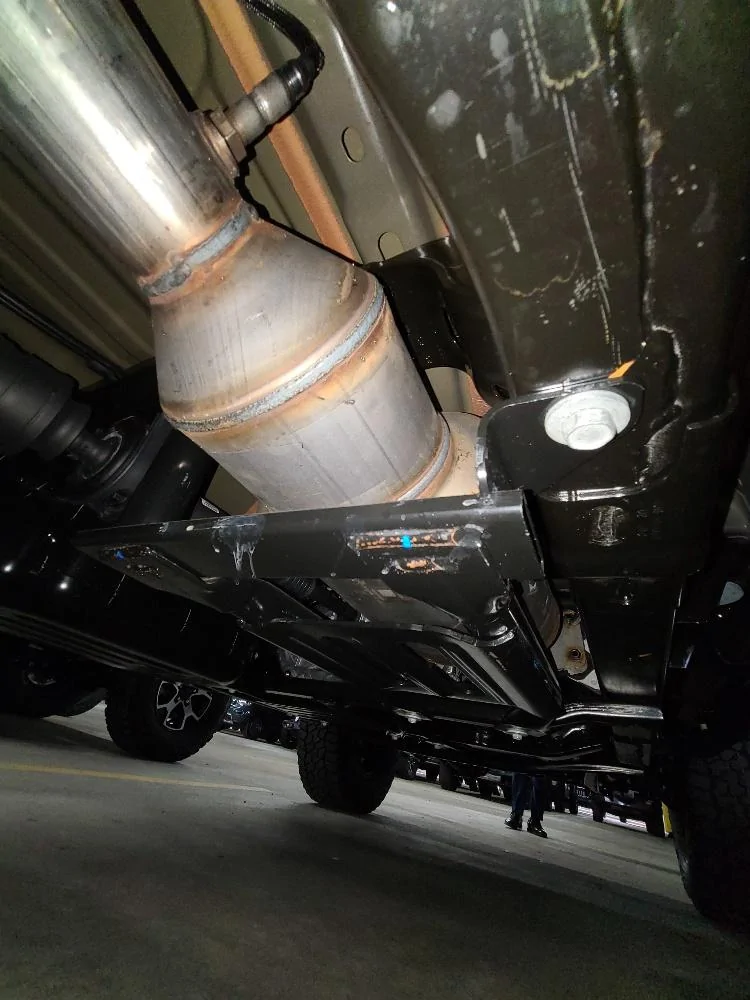

Stopped by the dealer today and snapped a few photos. I'm glad the DEF tank/muffler doesn't hang as low as the JLU.

Jeep Gladiator Underbody pictures? IMG_3320(1)
Jeep Gladiator Underbody pictures? IMG_3320(1)
Jeep Gladiator Underbody pictures? IMG_3320(1)
Jeep Gladiator Underbody pictures? IMG_3320(1)
Jeep Gladiator Underbody pictures? IMG_3320(1)
Jeep Gladiator Underbody pictures? IMG_3320(1)

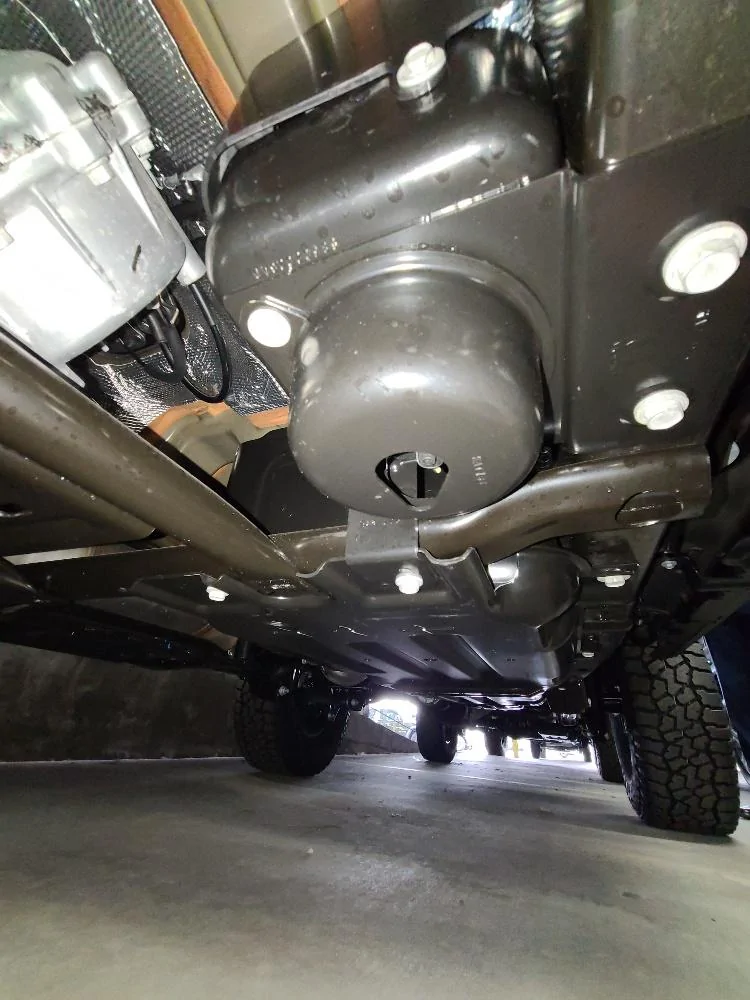

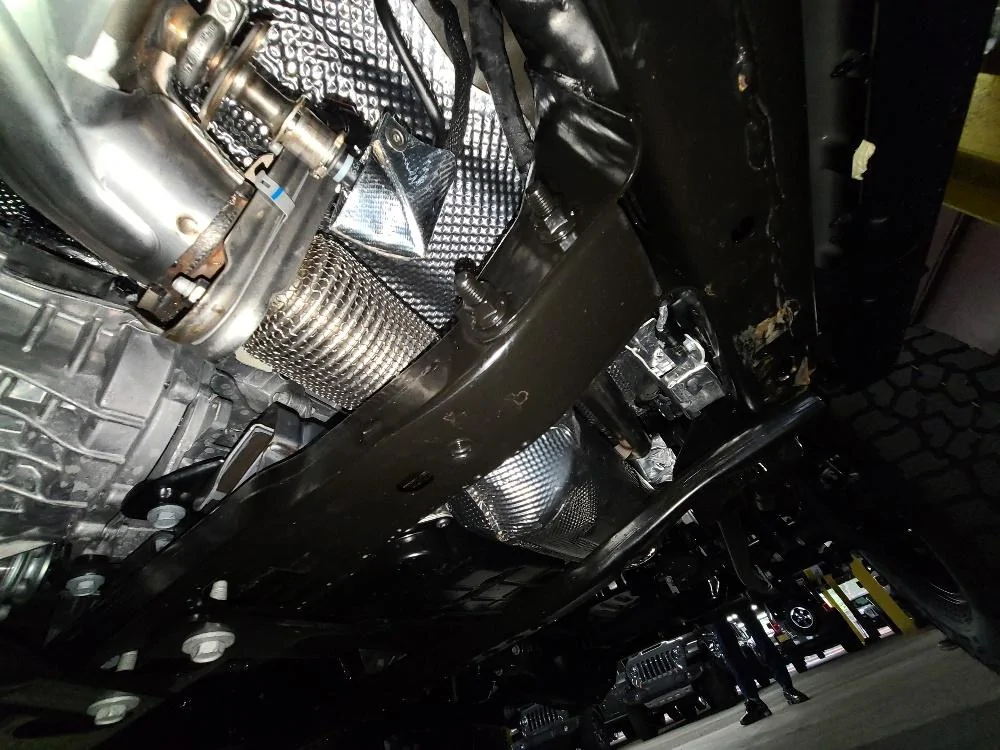

Thanks for the pics. In the sixth picture you can see the butterfly valve for the low pressure EGR operation. I was wondering how Jeep packaged this on the JT. Looks similar to the Ram packaging.

I'm highly suspicious that this device is the reason throttle response is so unpredictable on this new powertrain. One can imagine that having a valve altering exhaust flow on the fly would wreak havoc on driveability. A lot of people blame the lag and non-linear throttle on the turbo, but I'm becoming more suspicious of this butterfly valve and tuning software instead.


Thunder Cloud

Active Member
First Name
Doug
Joined
Oct 25, 2019
Threads
8
Messages
43
Reaction score
19
Location
Portsmouth, NH
Vehicle(s)
2020 Gladiator, 2007 Ram 3500 MC DRW, 2002 Mustang
Occupation
GE Aviation
I see the flipped the fuel tank and exhaust side to side. I always thought it was odd that the 3.6 gas tank was on the opposite side of the fill...
