Updated - Gladiator EcoDiesel Bottoming Out Poll 2 - Spring Part Numbers

If your Gladiator Diesel is bottoming out, what are the part numbers on your front springs?

  • Never bottomed out - RF - 6376AA / LF -6376AA

    Votes: 0 0.0%
  • Never bottomed out - RF - 6377AA / LF -6376AA

    Votes: 0 0.0%

  • Total voters
    14

am1978

Well-Known Member
First Name
Adam
Joined
Jun 26, 2018
Messages
728
Reaction score
484
Location
MD
Vehicle(s)
2021 JTRD, 2018 JLU Sahara
Occupation
Homebrewer
If your Gladiator Diesel bottoms out then please select a poll choice if your part numbers are already listed.
Use this one.

If your part numbers are not listed then please post your part numbers below and I’ll update and add them to the poll choices. You can check back in a day or so to select your poll choice so we can get a count.

I think we only need the front spring part numbers here.

List of springs by Model:
*Rubicon: RF - 6378AA / LF - 6377AA
*Sport S: RF - 6376AA / LF -6376AA
*Rubicon: RF - 6377AA / LF -6376AA
*Overland: RF - 6377AA / LF -6377AA

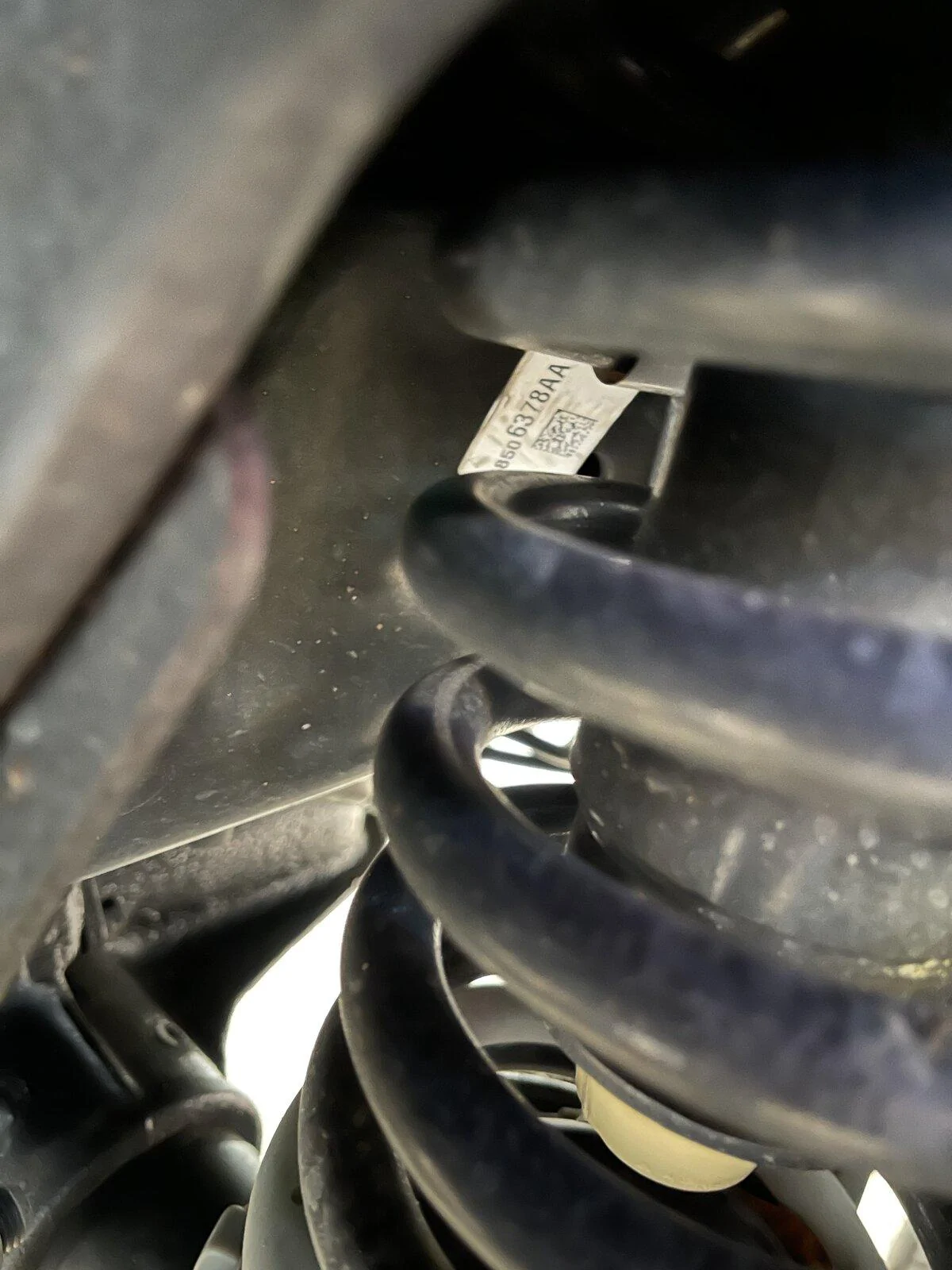

My 2021 Rubicon (late May build—yes, bottoms out) springs here RF/LF:
Advertisement


Last edited:
OP
OP
am1978

am1978

Well-Known Member
First Name
Adam
Joined
Jun 26, 2018
Messages
728
Reaction score
484
Location
MD
Vehicle(s)
2021 JTRD, 2018 JLU Sahara
Occupation
Homebrewer

portalgun

Well-Known Member
First Name
Joel
Joined
Jan 19, 2019
Messages
75
Reaction score
73
Location
Green Bay
Vehicle(s)
21 JT Rubicon Diesel, 02 S2000, 15 4Runner

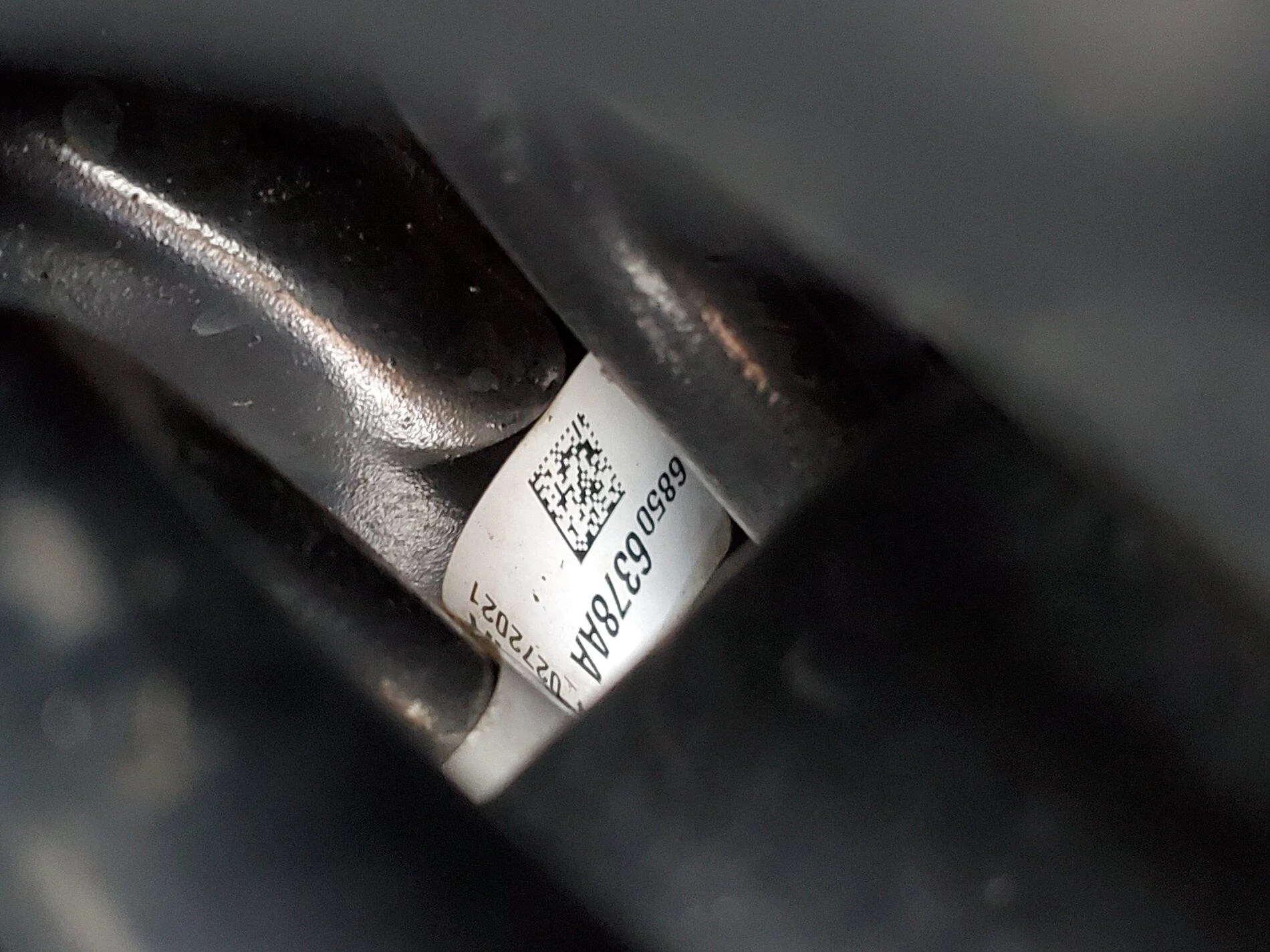

Rubicon diesel here with 6378aa on the driver side front. Couldn't find a sticker on the passenger side. I've never bottomed out yet, order was placed in late July 2021 and picked it up in Oct 2021.


Last edited:

OrangeCJ

Well-Known Member
Joined
Jan 11, 2021
Messages
75
Reaction score
57
Location
Washington
Vehicle(s)
1971 CJ5 Renegade II, 2021 Gladiator Diesel Rubi
Oops, I need to change my vote... can you add this option?

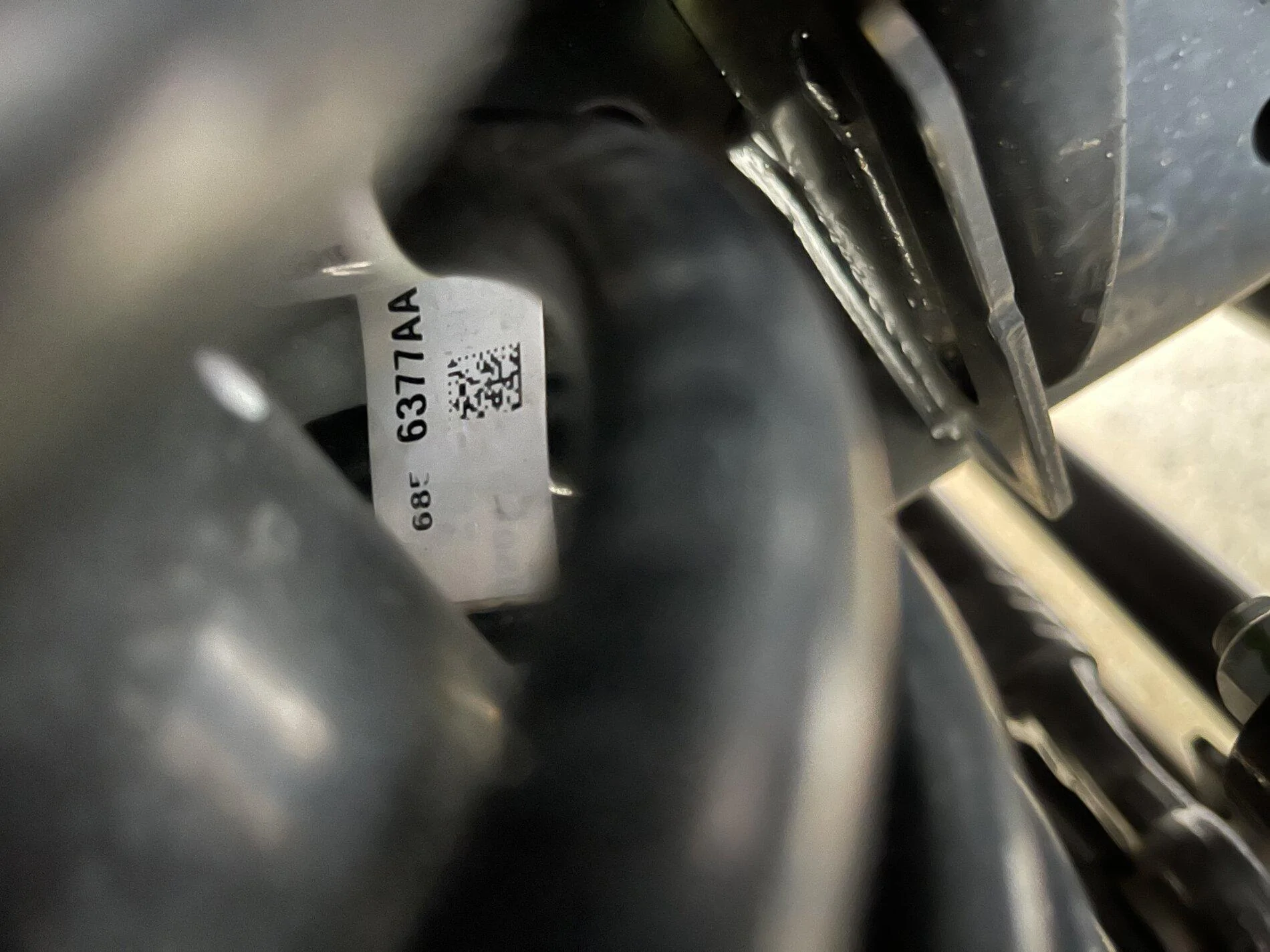

6377AA on the Driver
6376AA on the Passenger

Rubicon

Last edited:

WXman

Well-Known Member
Joined
Mar 1, 2017
Messages
2,993
Reaction score
3,737
Location
Bluegrass region of Kentucky
Vehicle(s)
2021 Jeep Gladiator Overland EcoDiesel
Occupation
Meteorology and Transportation
Overland here. 377AA on right and left both. 68509231AB shocks. Perfect ride, no bottoming.


WXman

Well-Known Member
Joined
Mar 1, 2017
Messages
2,993
Reaction score
3,737
Location
Bluegrass region of Kentucky
Vehicle(s)
2021 Jeep Gladiator Overland EcoDiesel
Occupation
Meteorology and Transportation
I also think that it's weird that some jeeps have different part numbers on left and right side and some don't.

OP
OP
am1978

am1978

Well-Known Member
First Name
Adam
Joined
Jun 26, 2018
Messages
728
Reaction score
484
Location
MD
Vehicle(s)
2021 JTRD, 2018 JLU Sahara
Occupation
Homebrewer
OP
OP
am1978

am1978

Well-Known Member
First Name
Adam
Joined
Jun 26, 2018
Messages
728
Reaction score
484
Location
MD
Vehicle(s)
2021 JTRD, 2018 JLU Sahara
Occupation
Homebrewer

Free2roam

Well-Known Member
First Name
Robert
Joined
Mar 1, 2021
Messages
1,070
Reaction score
1,138
Location
89521
Vehicle(s)
Gladiator
Occupation
Fabricator by trade/ Maintenance Mechanic
Sport S Ecodiesel non max tow bottoms out. Same number both sides


WXman

Well-Known Member
Joined
Mar 1, 2017
Messages
2,993
Reaction score
3,737
Location
Bluegrass region of Kentucky
Vehicle(s)
2021 Jeep Gladiator Overland EcoDiesel
Occupation
Meteorology and Transportation
OP
OP
am1978

am1978

Well-Known Member
First Name
Adam
Joined
Jun 26, 2018
Messages
728
Reaction score
484
Location
MD
Vehicle(s)
2021 JTRD, 2018 JLU Sahara
Occupation
Homebrewer
Oops, I need to change my vote... can you add this option?
6377AA on the Driver
6376AA on the Passenger

Rubicon
You and I have Rubicons and have different springs. Mine is a 2021, built at the end of May.

OP
OP
am1978

am1978

Well-Known Member
First Name
Adam
Joined
Jun 26, 2018
Messages
728
Reaction score
484
Location
MD
Vehicle(s)
2021 JTRD, 2018 JLU Sahara
Occupation
Homebrewer
I also think that it's weird that some jeeps have different part numbers on left and right side and some don't.
Also strange that a couple of us have diesel rubicons and we have different springs.

@JeepCares should probably figure this one out and let us know why.


WXman

Well-Known Member
Joined
Mar 1, 2017
Messages
2,993
Reaction score
3,737
Location
Bluegrass region of Kentucky
Vehicle(s)
2021 Jeep Gladiator Overland EcoDiesel
Occupation
Meteorology and Transportation
Also, if you have the bottoming out issue, post your front shock part #.

If we've got guys with identical coils and shocks and some are complaining about bottoming out and others don't, then clearly either 1. there are faulty parts involved or 2. some folks aren't really bottoming out
