Warn VR EVO 12S & Control Pack Relocation

bsteg7

Well-Known Member
Joined
Feb 19, 2021
Threads
15
Messages
57
Reaction score
41
Location
Norcal
Vehicle(s)
Sold my JKUR and just got a JTR.
Occupation
Work

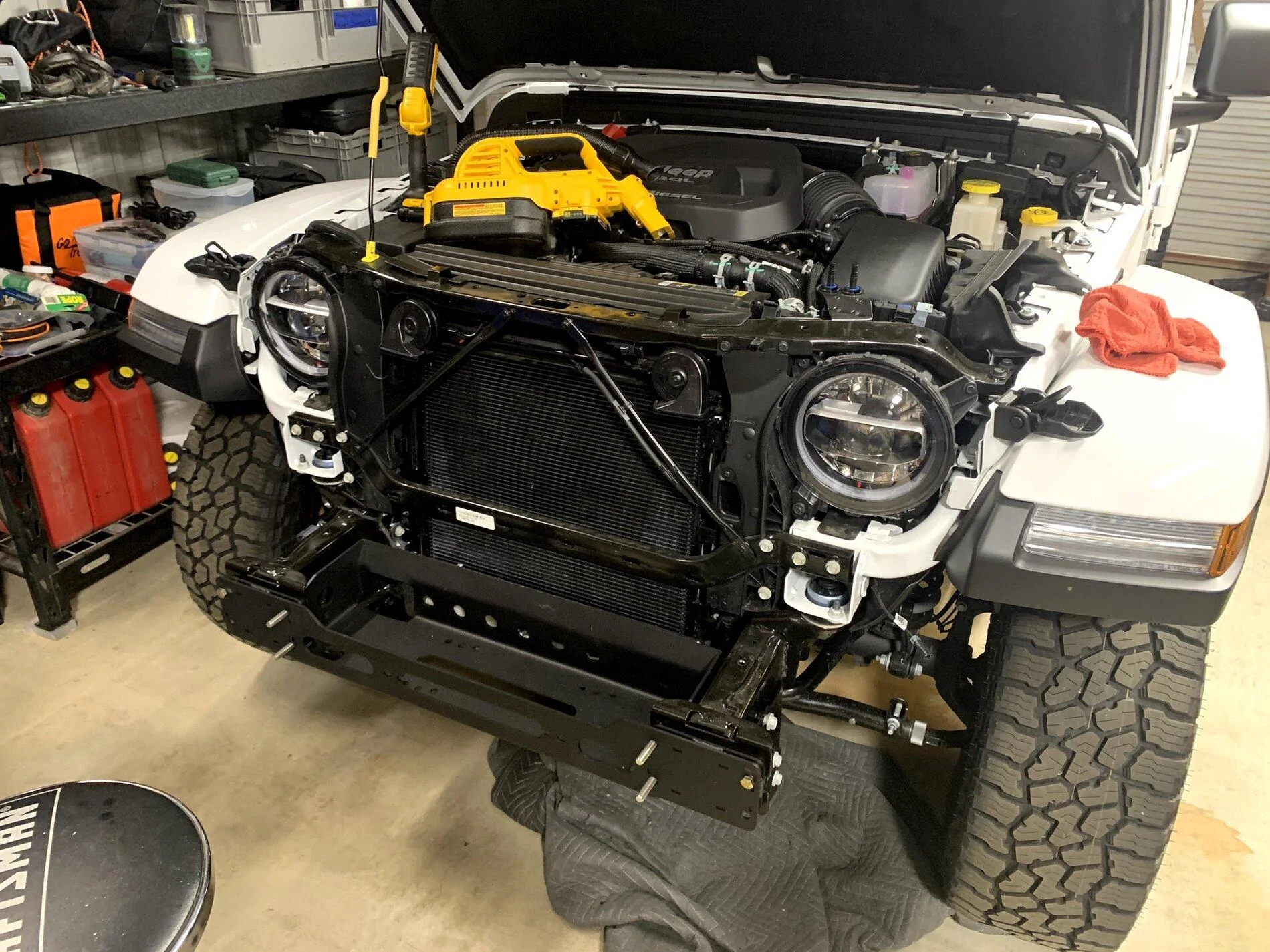

Installing a Warn VR EVO 12S and a Genright Aluminum Stubby I wanted to do a control pack relocation for a clean look and unobstructed airflow but warn does not yet offer a kit so I made my own. The control pack itself was easy to take off but to large to mount anywhere reasonable near the battery. I shopped around for a nice bracket to mount the electrical goodies that live inside the control pack but found none I liked so I decided to make my own.

Jeep Gladiator Warn VR EVO 12S & Control Pack Relocation IMG_0330

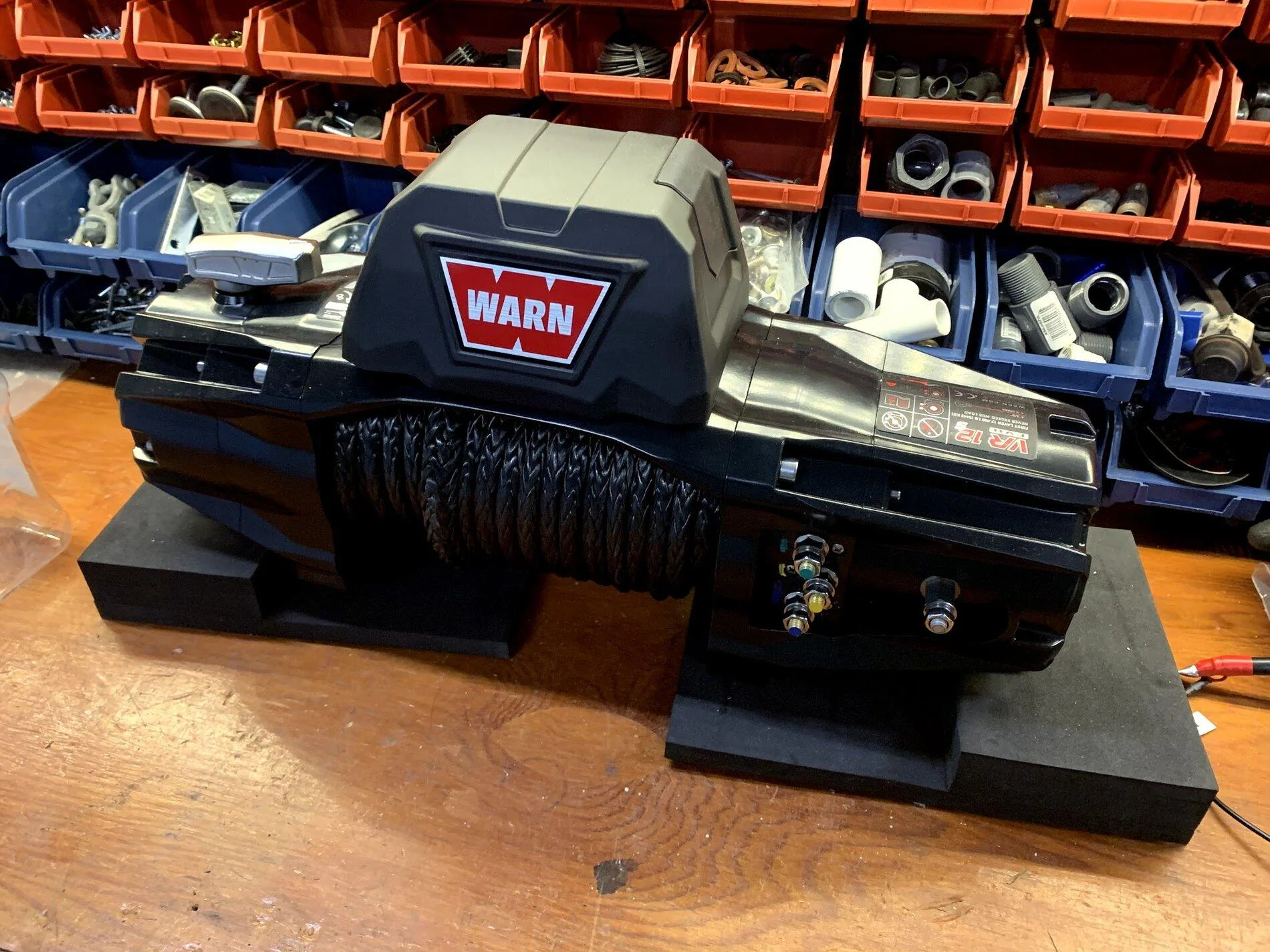

Jeep Gladiator Warn VR EVO 12S & Control Pack Relocation IMG_0320

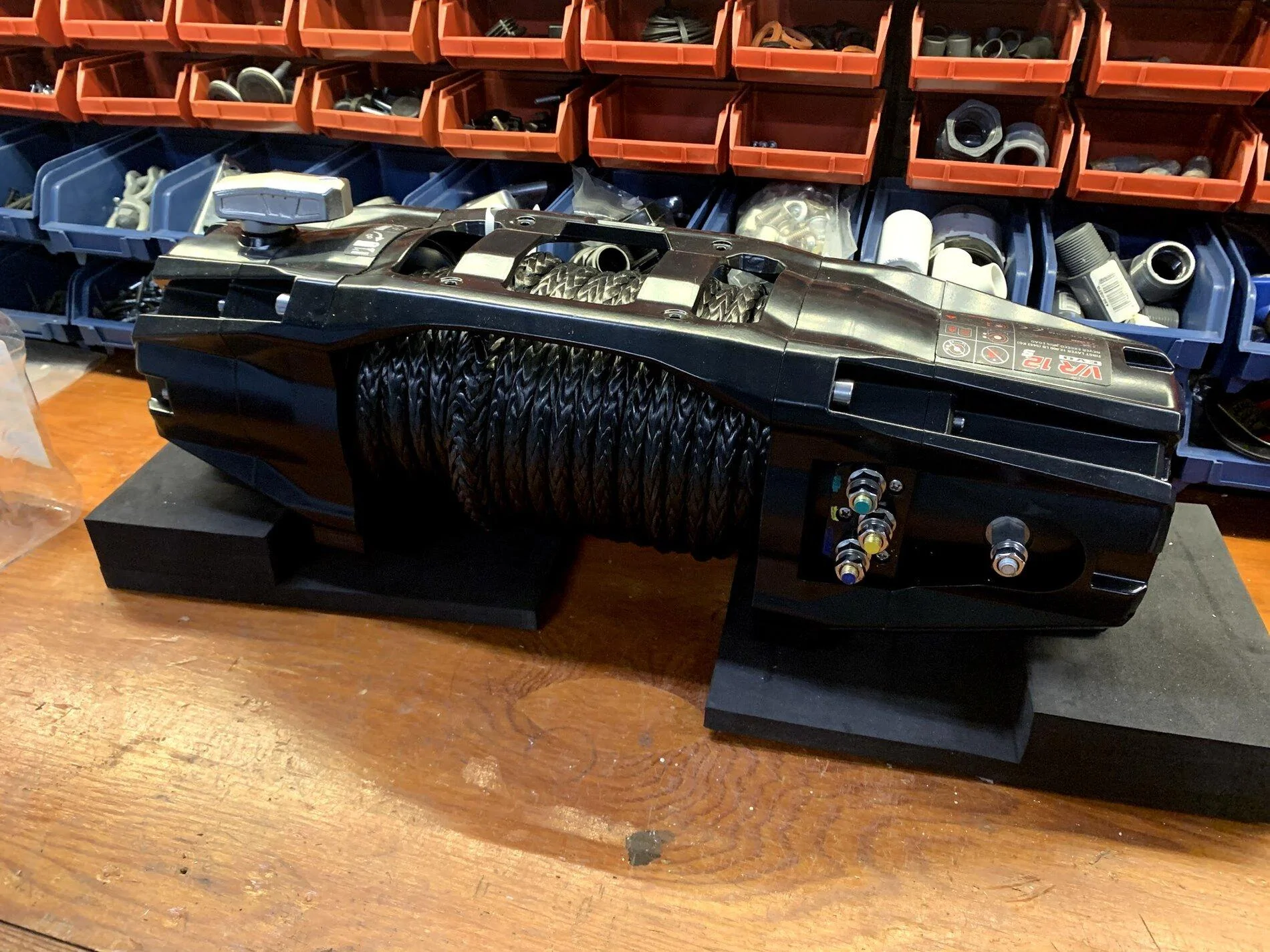

Control Pack Off

Jeep Gladiator Warn VR EVO 12S & Control Pack Relocation IMG_0321

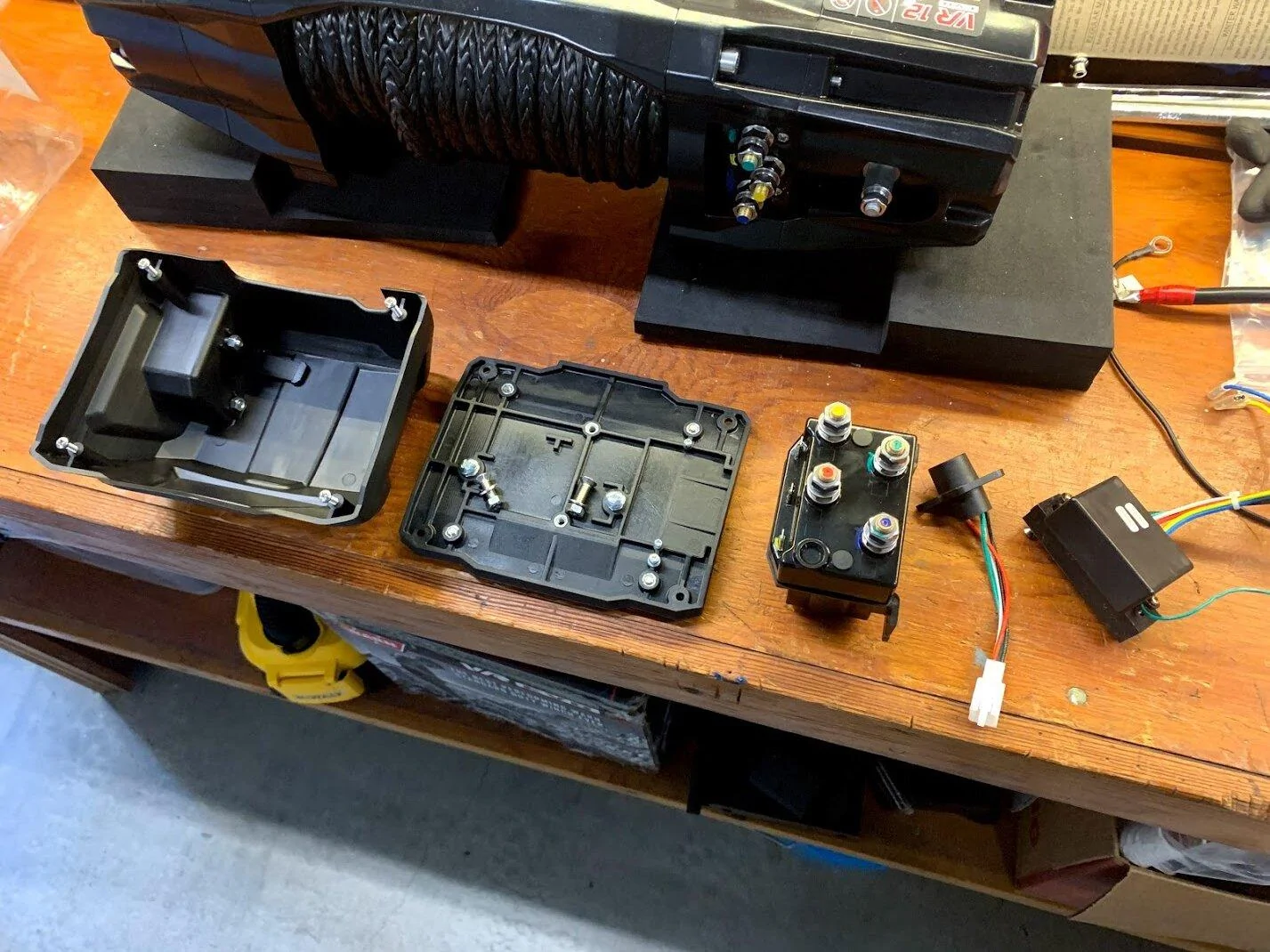

Control pack goodies that will tuck in nicely beside the batteries with the right bracket.

Jeep Gladiator Warn VR EVO 12S & Control Pack Relocation IMG_0322

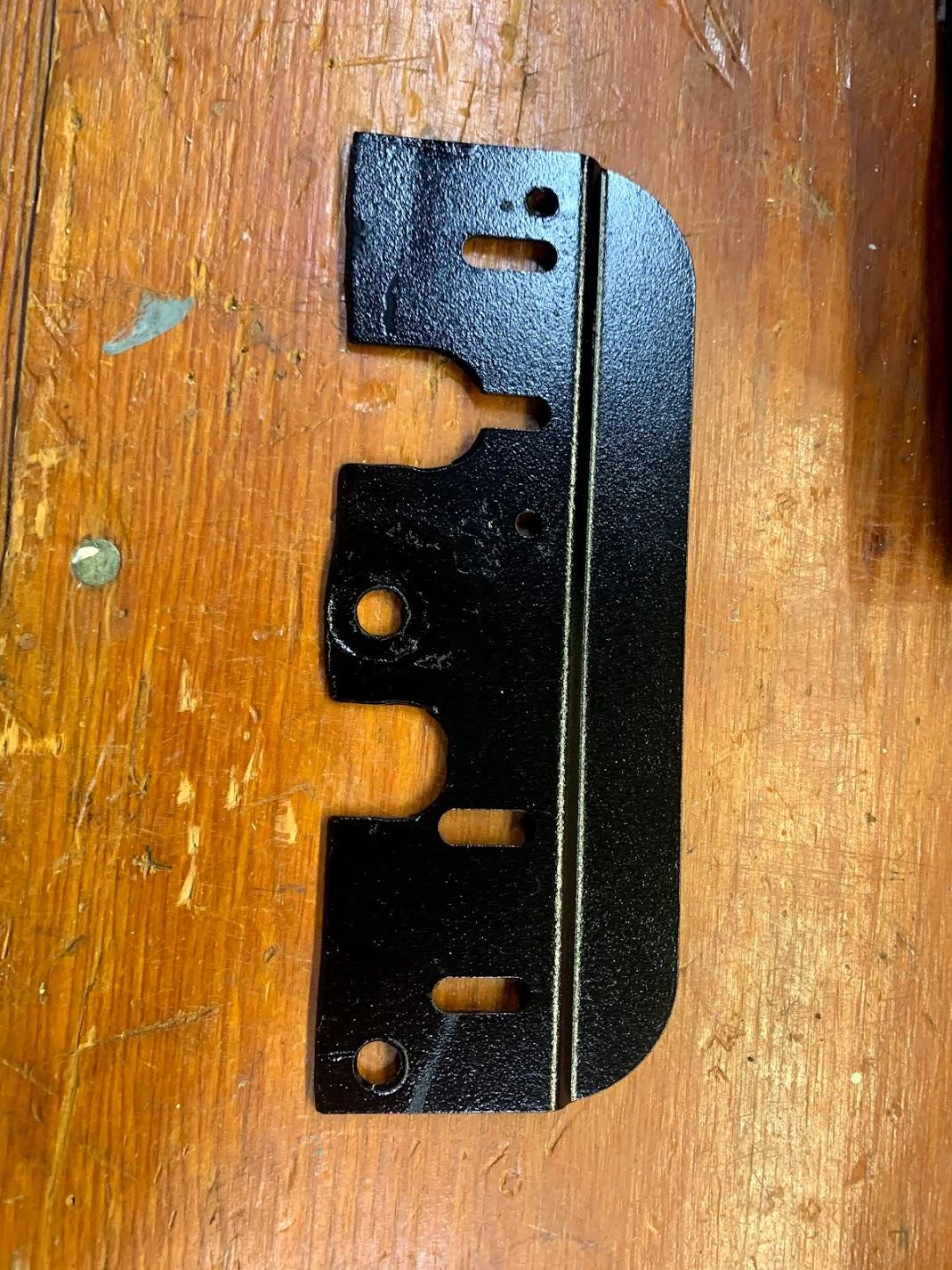

Bracket fabbed from scrap.

Jeep Gladiator Warn VR EVO 12S & Control Pack Relocation IMG_0324

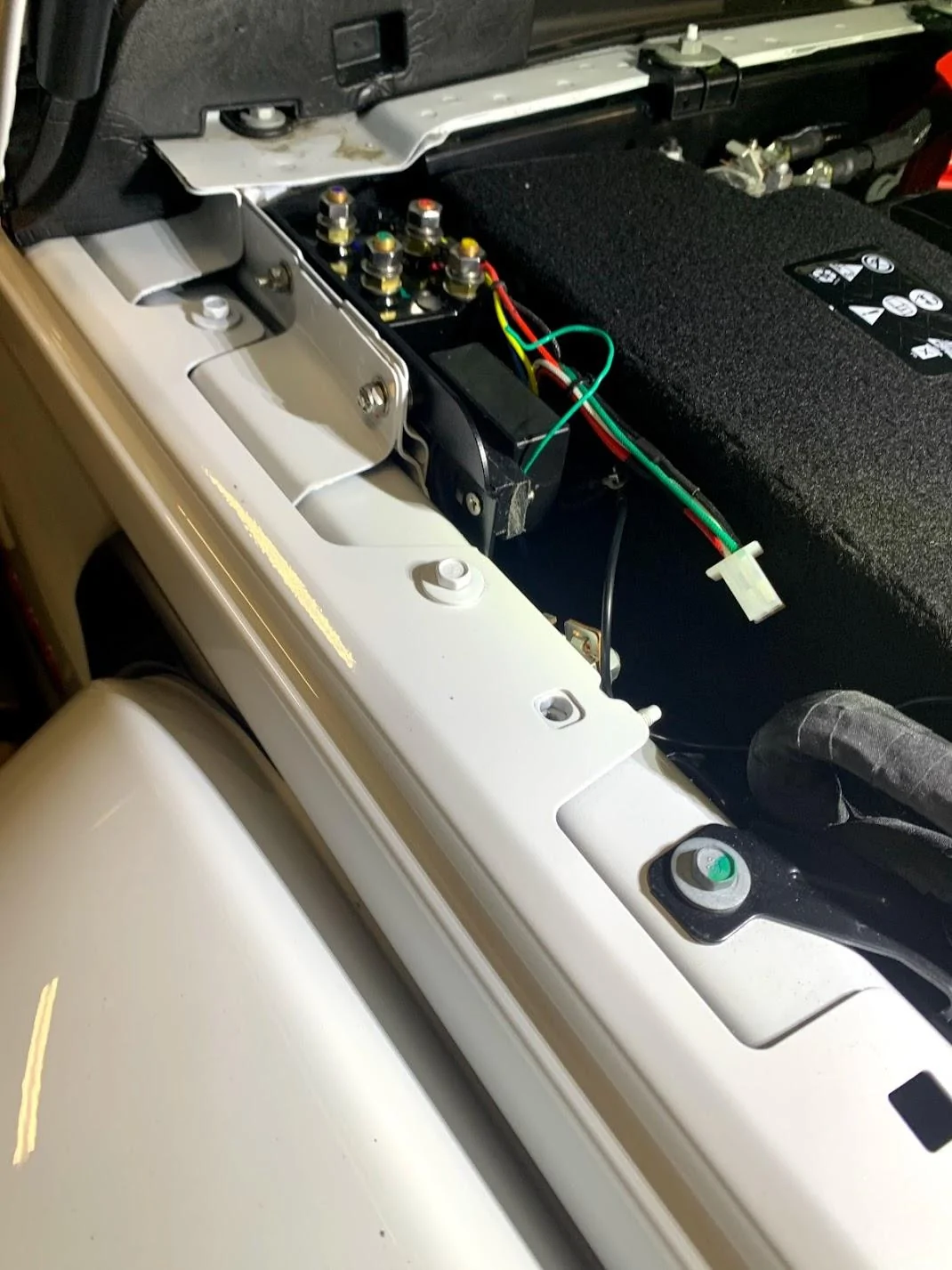

Solenoid and receiver mounted. Remote socket to follow.

Jeep Gladiator Warn VR EVO 12S & Control Pack Relocation IMG_0329
Sponsored



FLUndertaker

Well-Known Member
Joined
Aug 9, 2020
Threads
83
Messages
1,049
Reaction score
1,229
Location
Oklahoma
Vehicle(s)
2020 Jeep Gladiator Sport, 1986 Jeep CJ7
Very nice! When you’ve got it perfected let me know and I’ll buy one from you. I’m running the same winch and it’s a damn tight fit against the grill.


TomH

Well-Known Member
First Name
Tom
Joined
Nov 6, 2020
Threads
1
Messages
122
Reaction score
131
Location
Kentucky
Vehicle(s)
2020 Jeep Gladiator
Occupation
IT

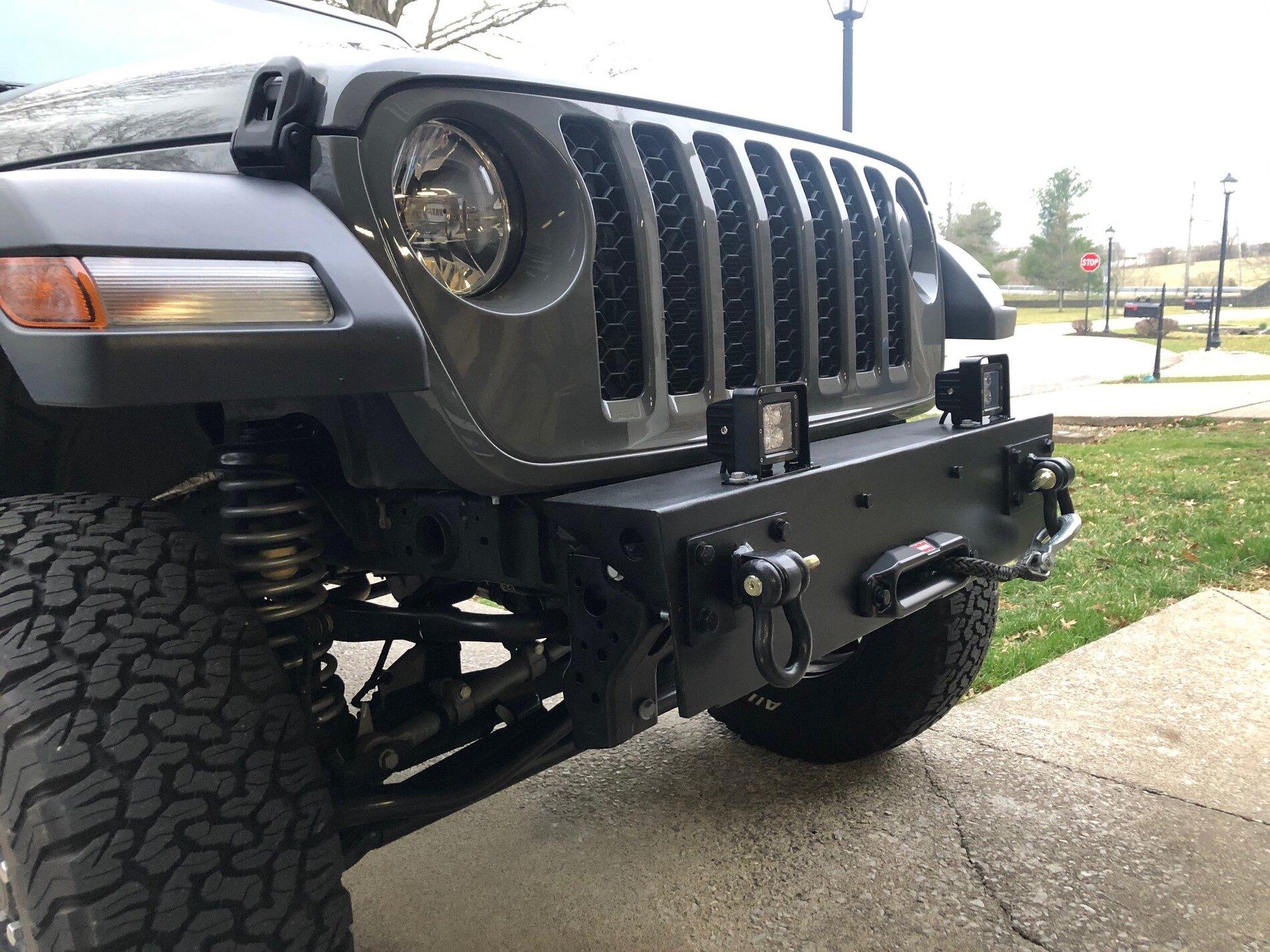

I did the same thing with my 10S. Nice work!

OP
OP
bsteg7

bsteg7

Well-Known Member
Joined
Feb 19, 2021
Threads
15
Messages
57
Reaction score
41
Location
Norcal
Vehicle(s)
Sold my JKUR and just got a JTR.
Occupation
Work

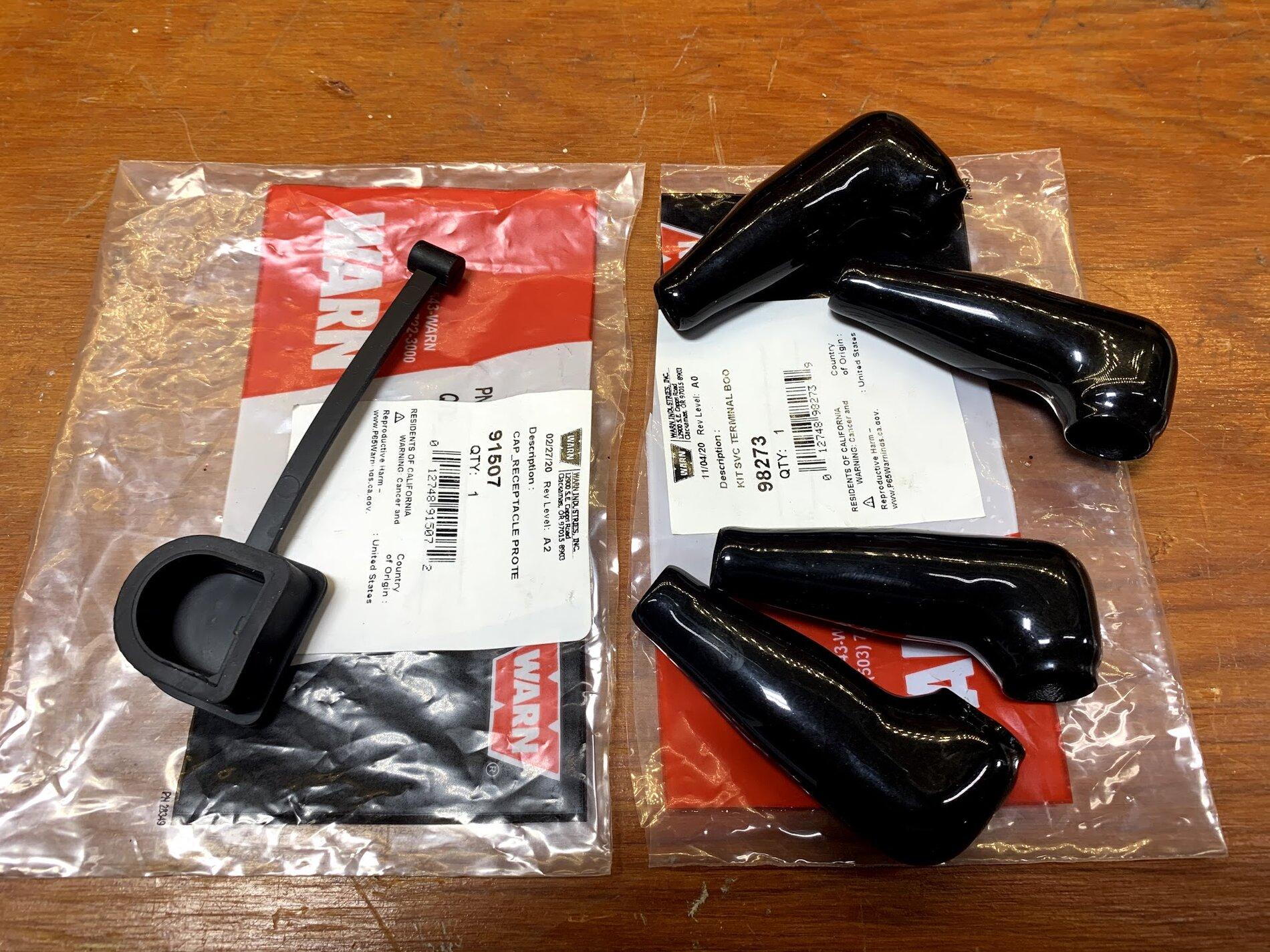

Bought these for a clean install.

Jeep Gladiator Warn VR EVO 12S & Control Pack Relocation 1

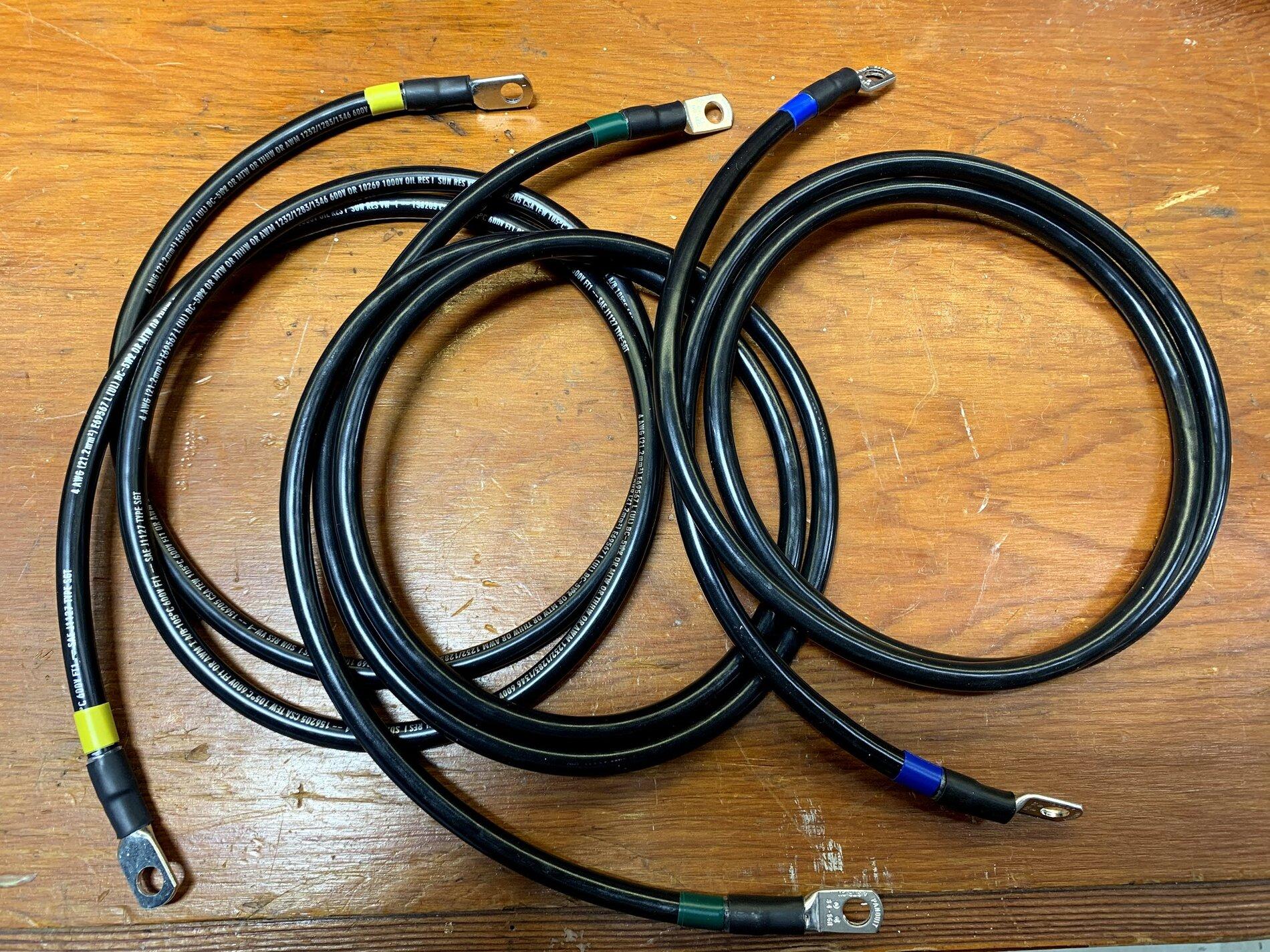

Longer wires needed.

Jeep Gladiator Warn VR EVO 12S & Control Pack Relocation 2

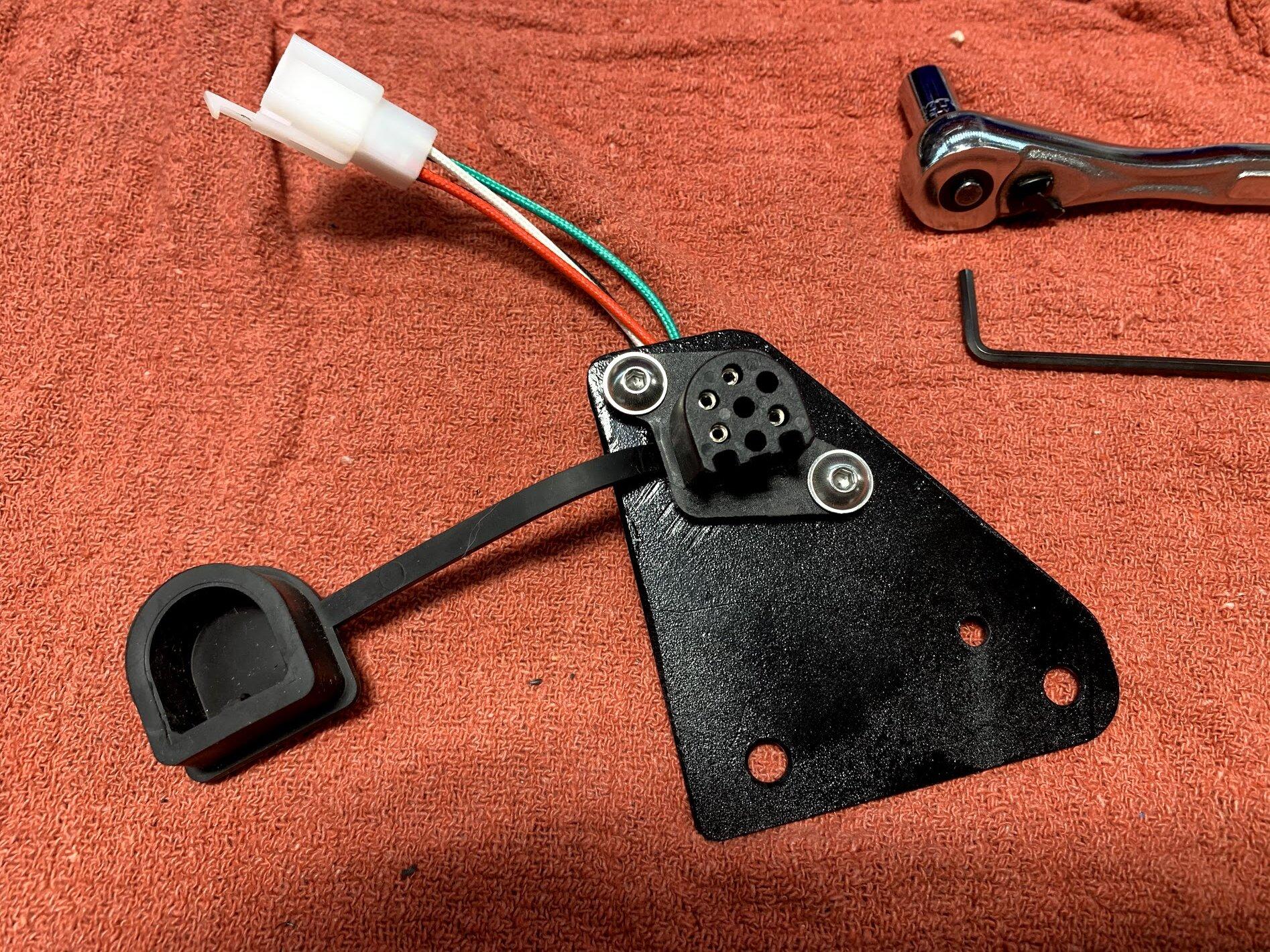

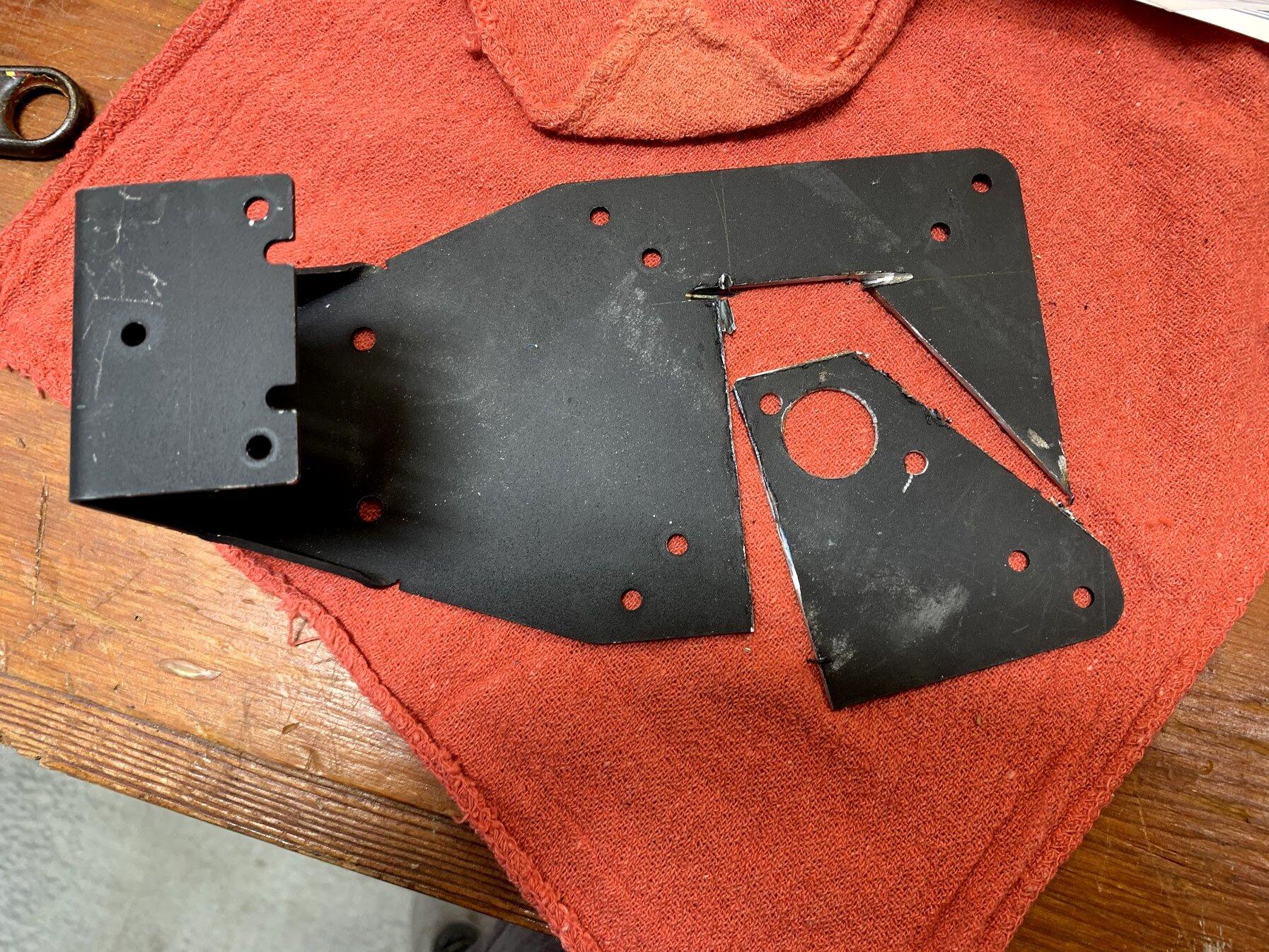

Had to fab another bracket for the remote socket from some scrap.

Jeep Gladiator Warn VR EVO 12S & Control Pack Relocation 3

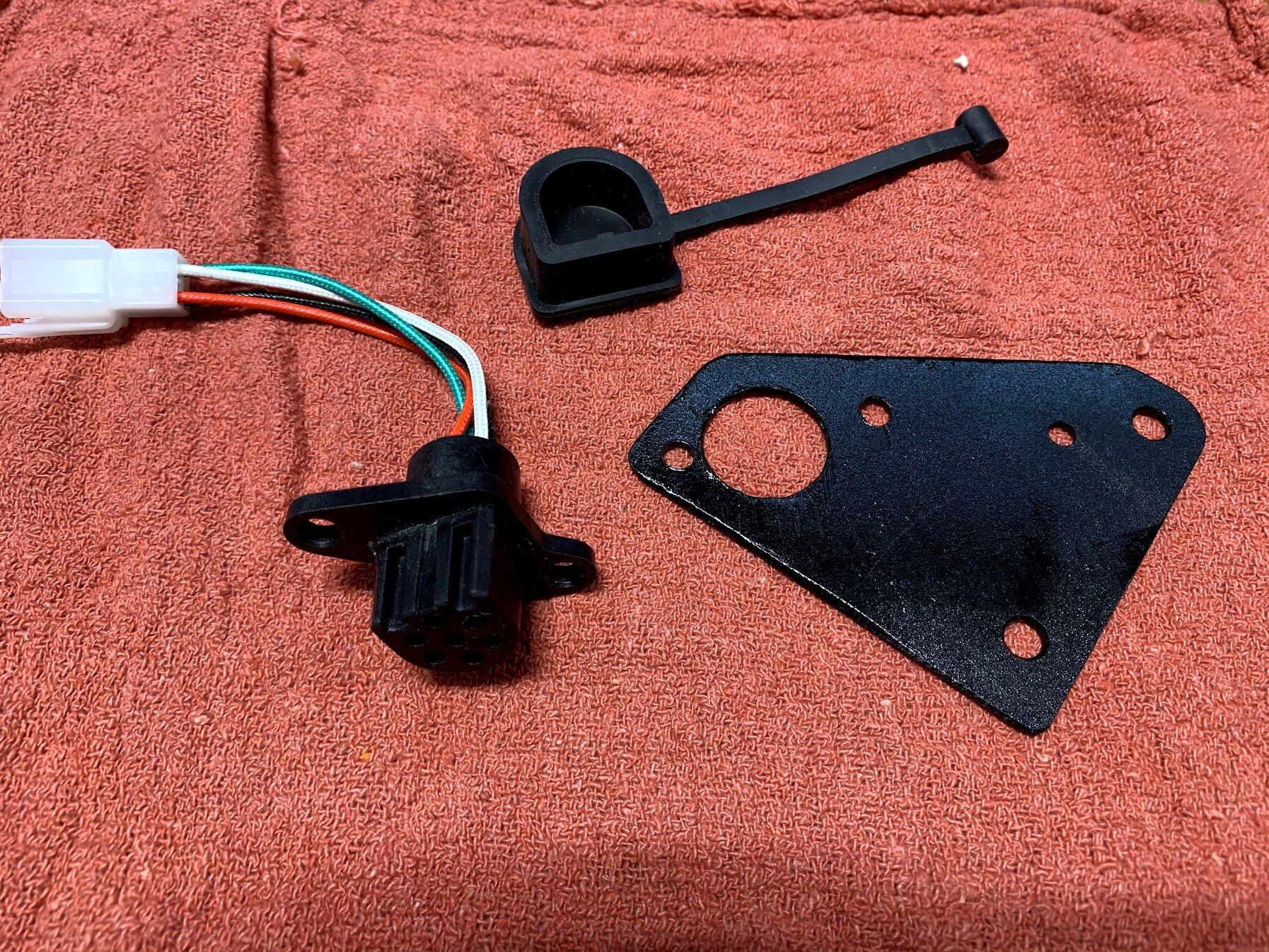

Jeep Gladiator Warn VR EVO 12S & Control Pack Relocation 4

Jeep Gladiator Warn VR EVO 12S & Control Pack Relocation 5

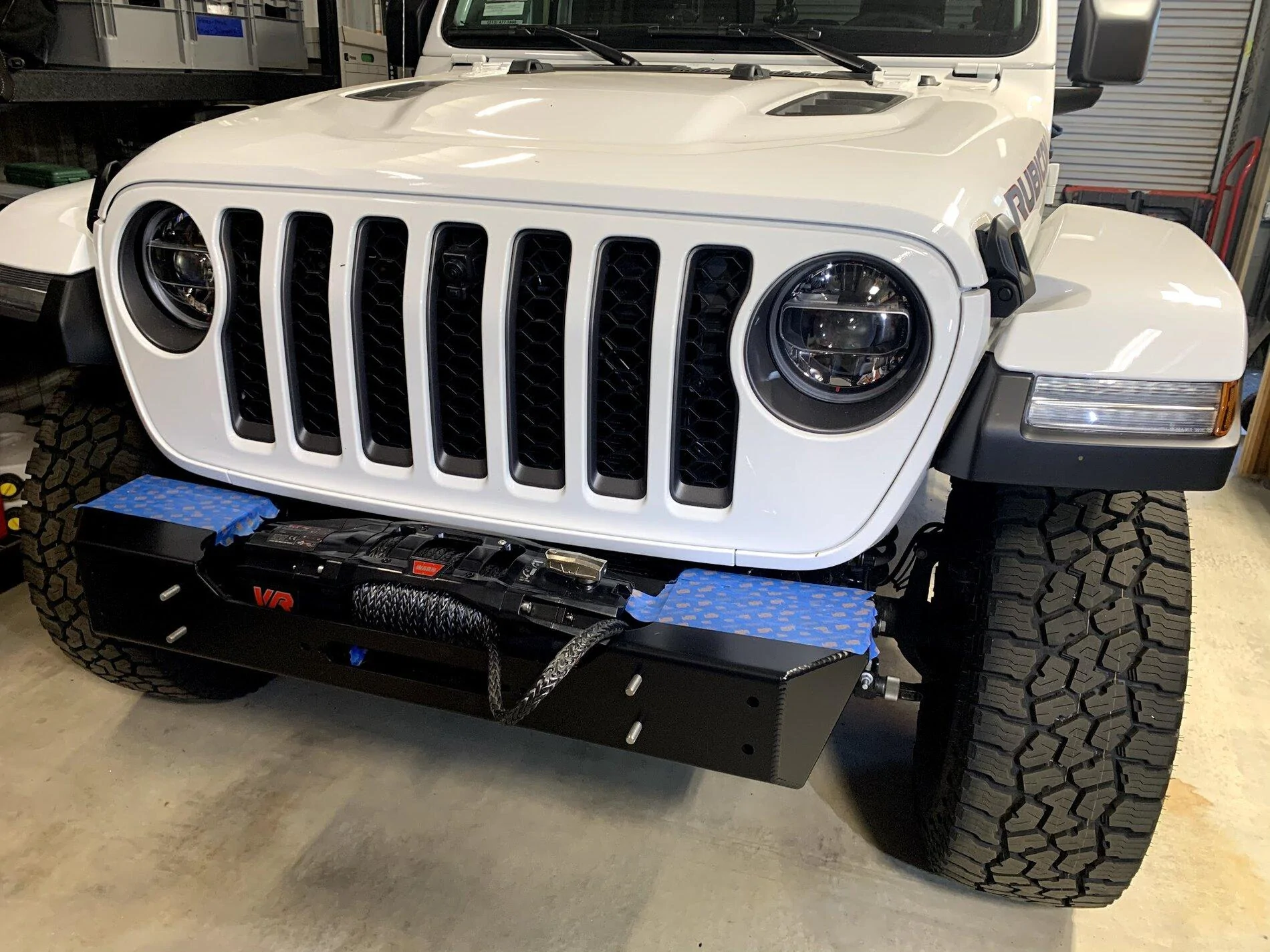

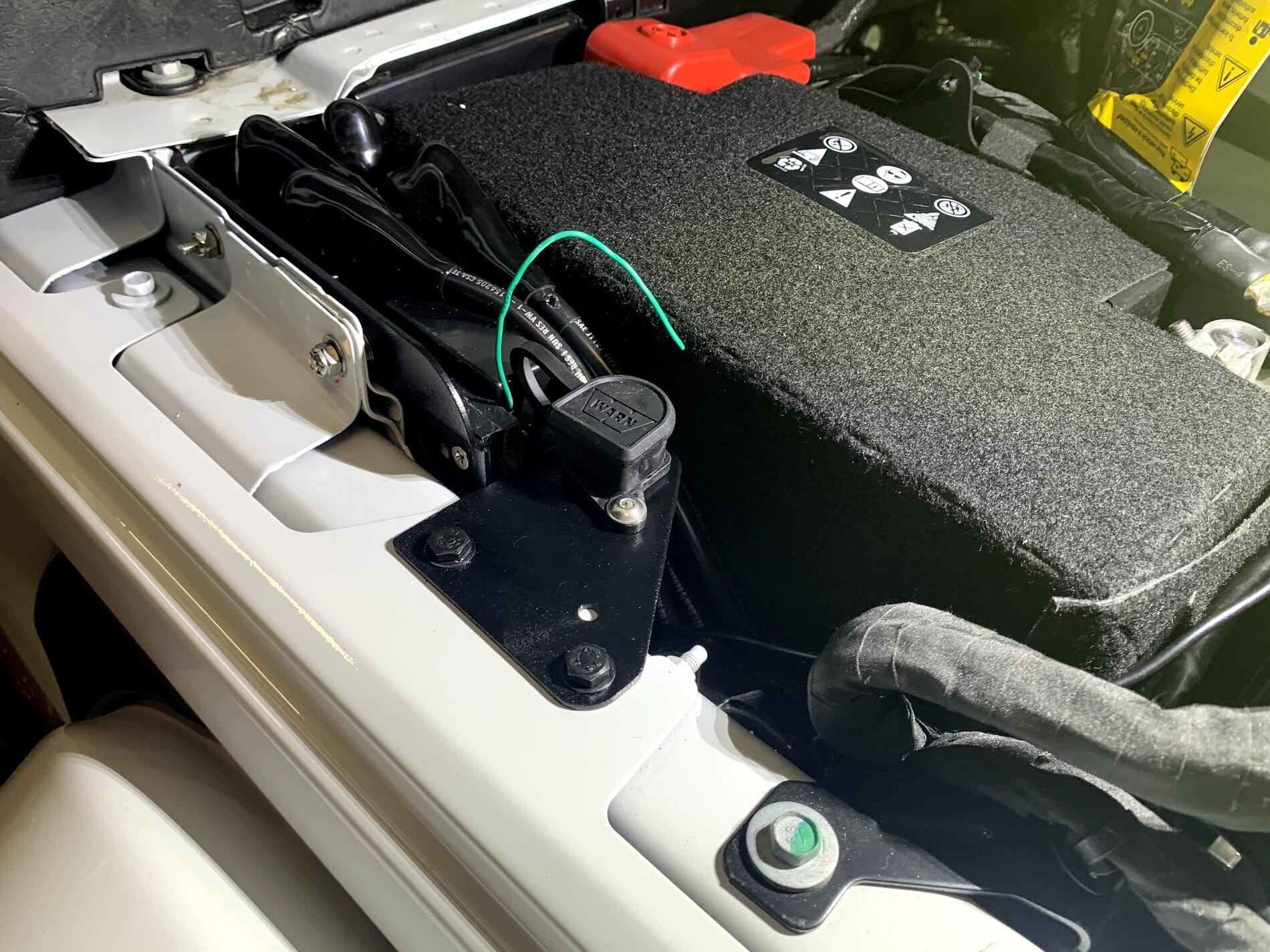

Turned out pretty clean. My son called it a 'sleeper' winch since its not big, bold, and gaudy like the Warn Power Plant we had blocking airflow to our JKU.

Jeep Gladiator Warn VR EVO 12S & Control Pack Relocation IMG_0349
Jeep Gladiator Warn VR EVO 12S & Control Pack Relocation IMG_0350


Works like a champ first try!!

Last edited:

AEsco48

Well-Known Member
First Name
AndresE
Joined
Oct 12, 2020
Threads
60
Messages
349
Reaction score
173
Location
Denver, CO
Vehicle(s)
2021 Rubicon Diesel
Occupation
Mech Engineer/MBA/Entrepreneur
I did the same thing with my 10S. Nice work!
Did you just leave the hole open above the winch? I’m concerned about sun damage to the rope.


Sponsored

Olaugh

New Member
First Name
Brian
Joined
Apr 9, 2023
Threads
0
Messages
2
Reaction score
0
Location
Los Angeles
Vehicle(s)
21 Gladiator Mojave
Occupation
Architect

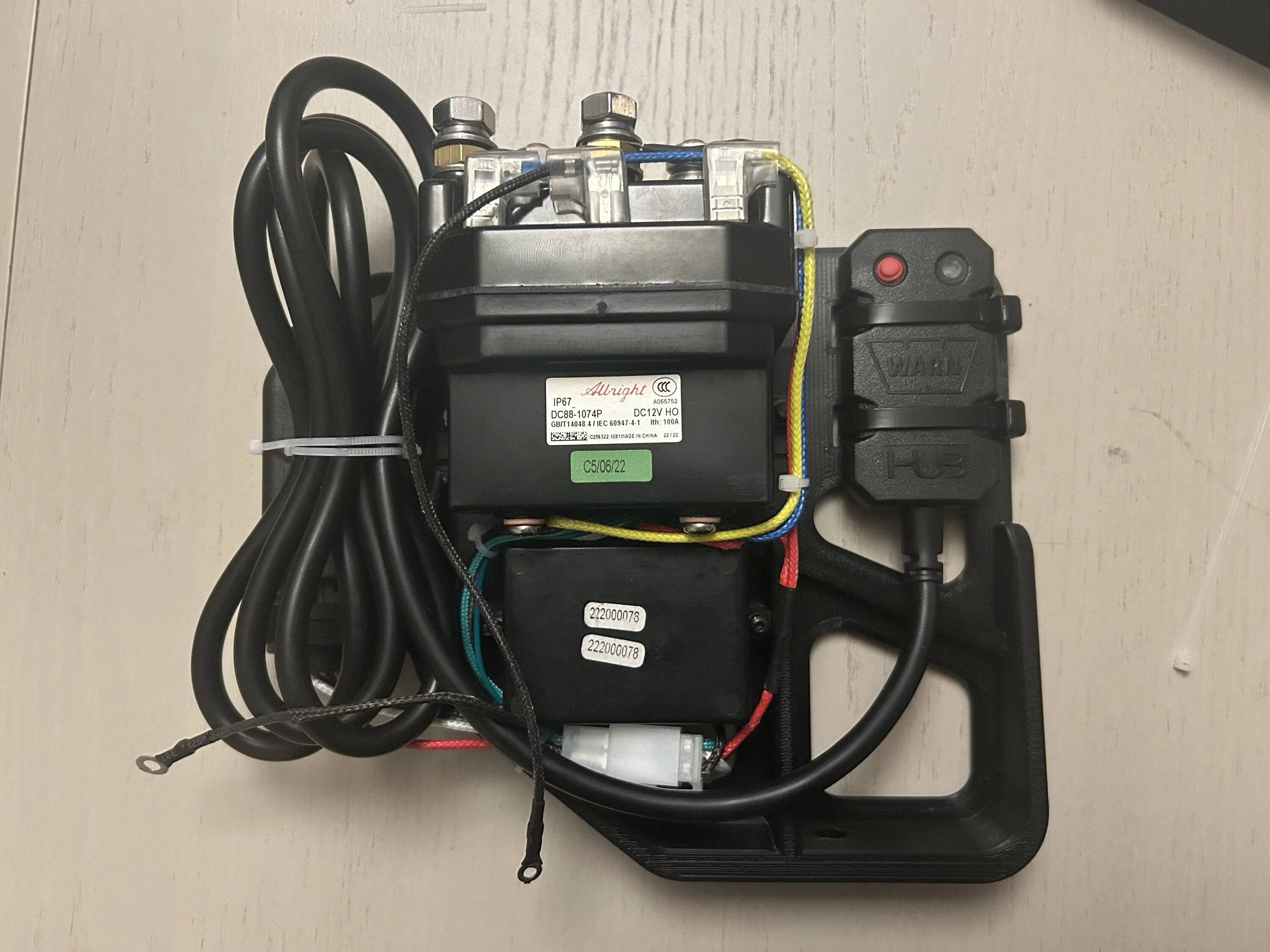

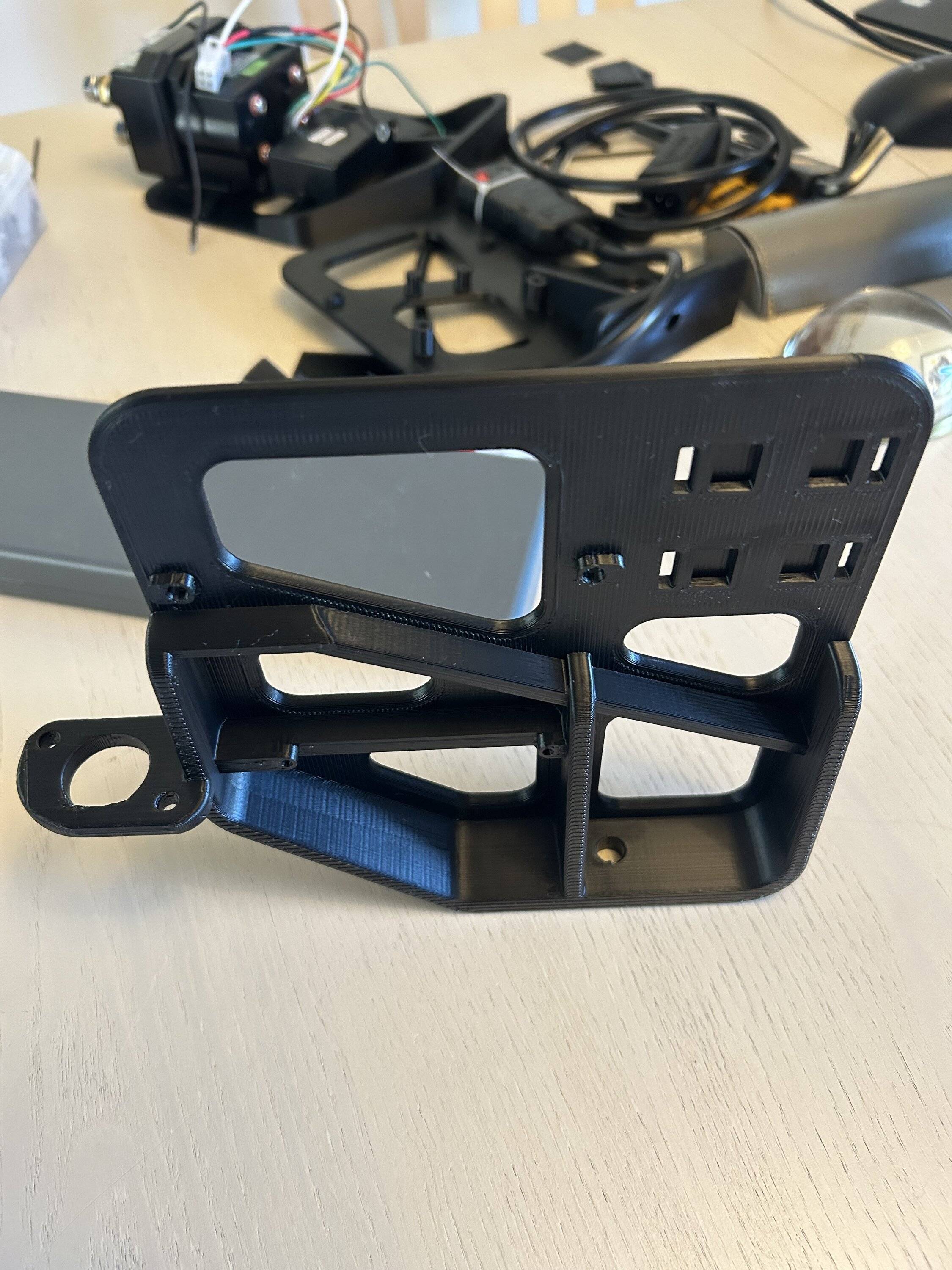

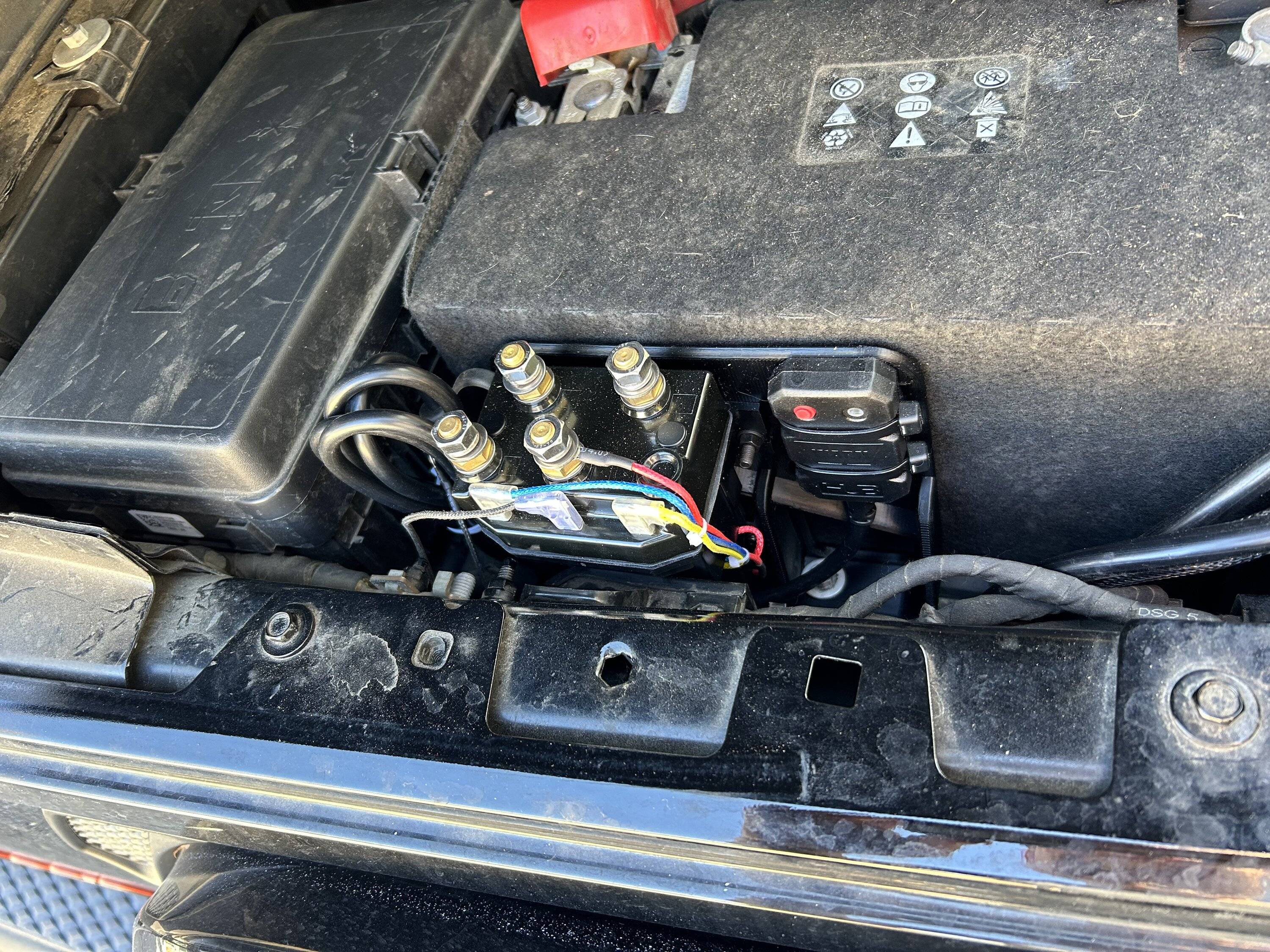

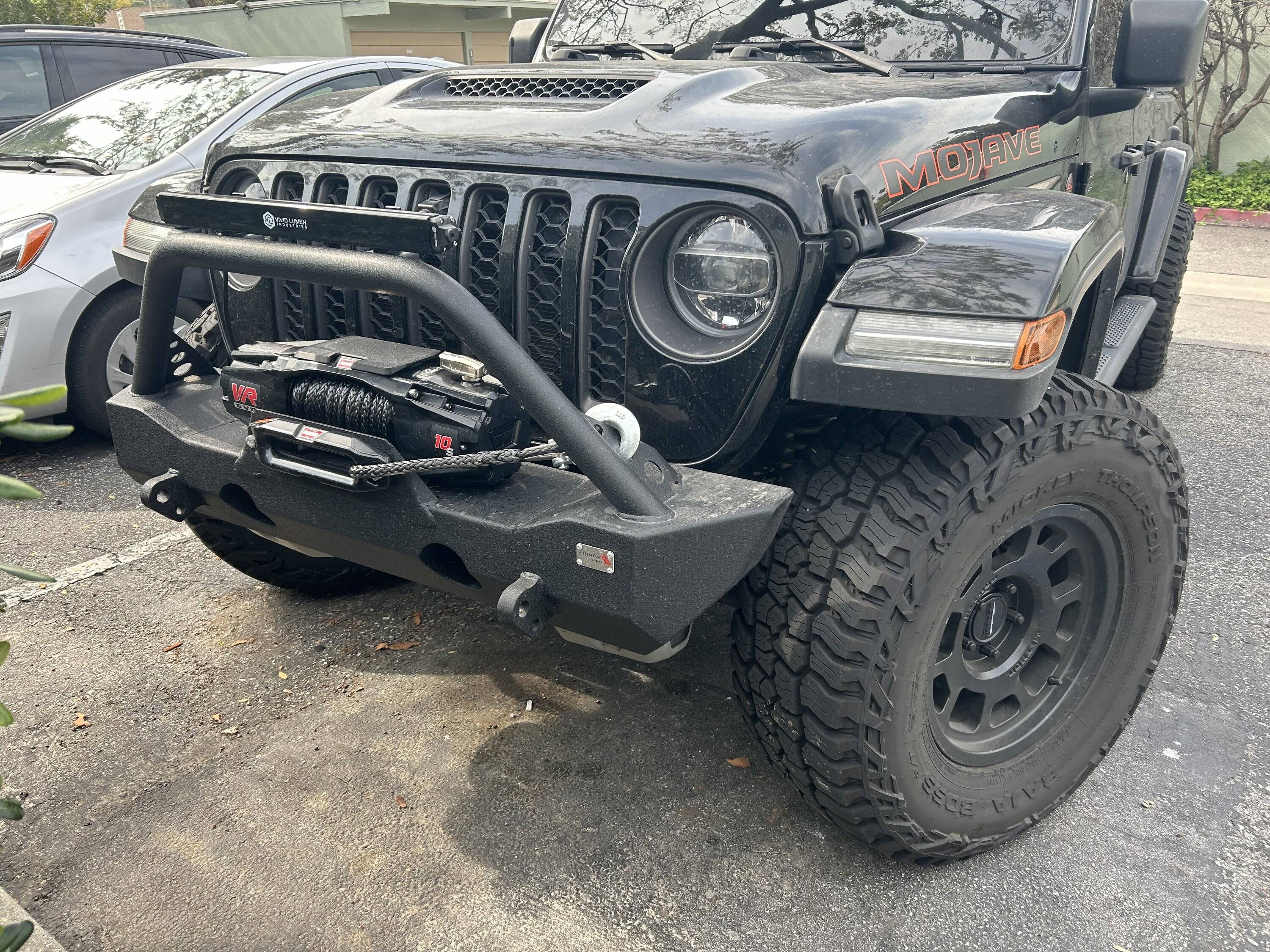

Thanks for the inspiration. I did a control pack relocation on my 10S with custom designed 3D printed ABS bracket that bolts simply onto the battery side bracket with 1 bolt. Added a wireless remote as well. Lastly polished it all off with a printed bolt-on cover to protect the synthetic winch cable from sun damage.

Jeep Gladiator Warn VR EVO 12S & Control Pack Relocation IMG_2954
Jeep Gladiator Warn VR EVO 12S & Control Pack Relocation IMG_2955
Jeep Gladiator Warn VR EVO 12S & Control Pack Relocation IMG_2998
Jeep Gladiator Warn VR EVO 12S & Control Pack Relocation IMG_3003


Jaxmax

Well-Known Member
First Name
Jack
Joined
Jun 28, 2020
Threads
34
Messages
1,906
Reaction score
2,709
Location
Bally, Pa.
Vehicle(s)
Jeeps....... 2021 Mojave , 2019 Wrangler
Occupation
Electrical Manager
Really, really nice job on that bracket…..Jack
