Weird triangular / T50 torx driveline bolts?

[fourfa]

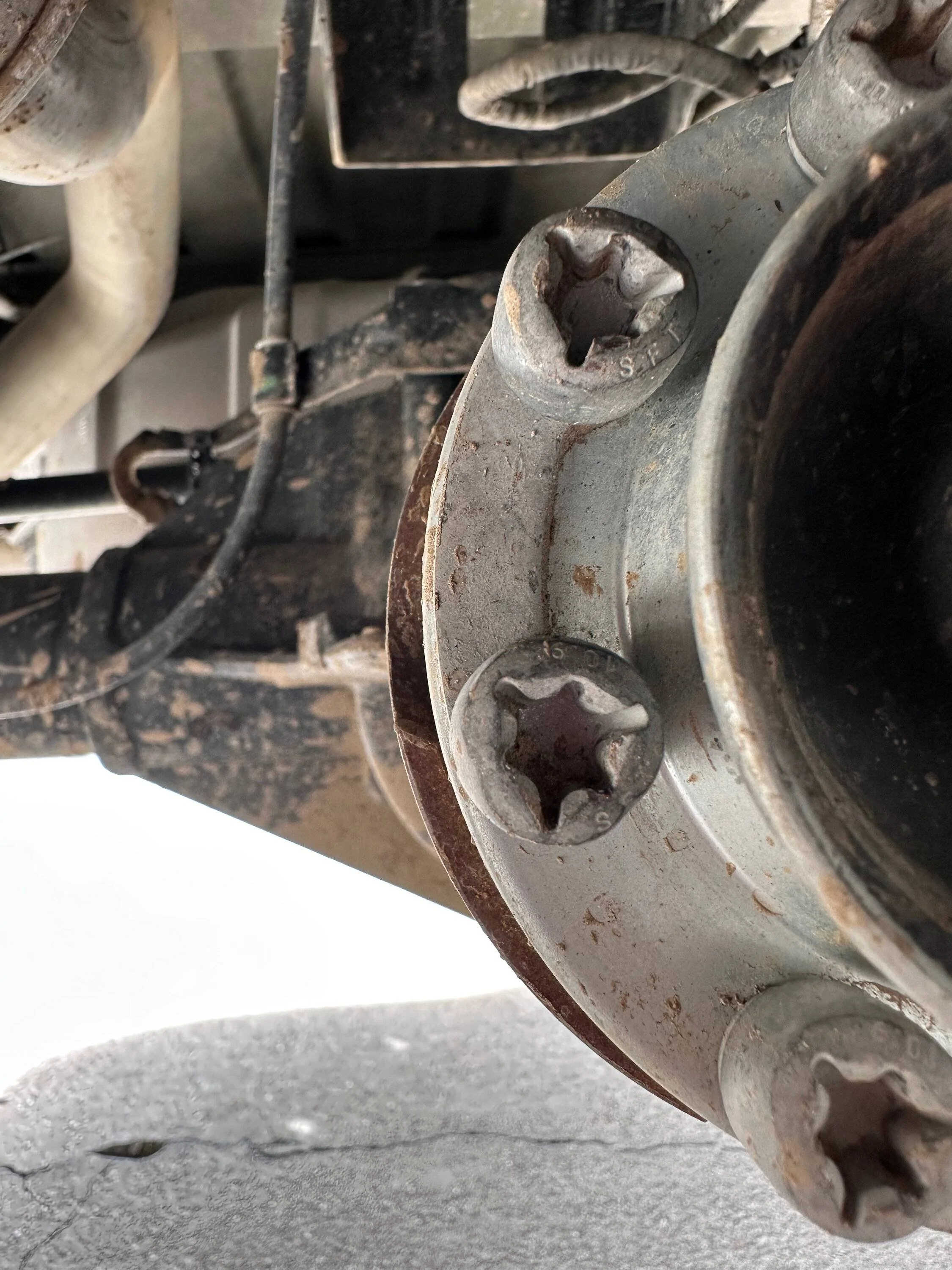

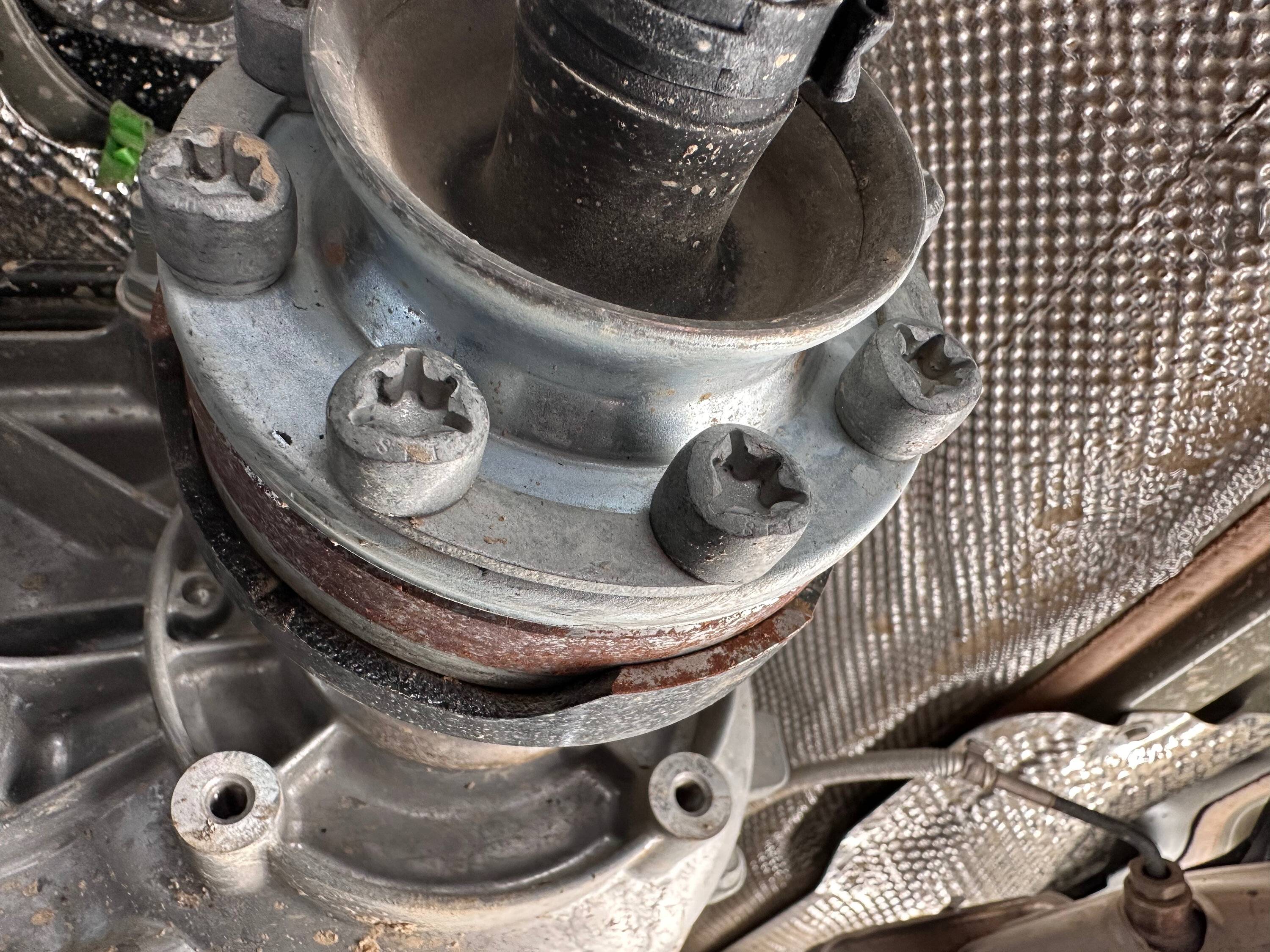

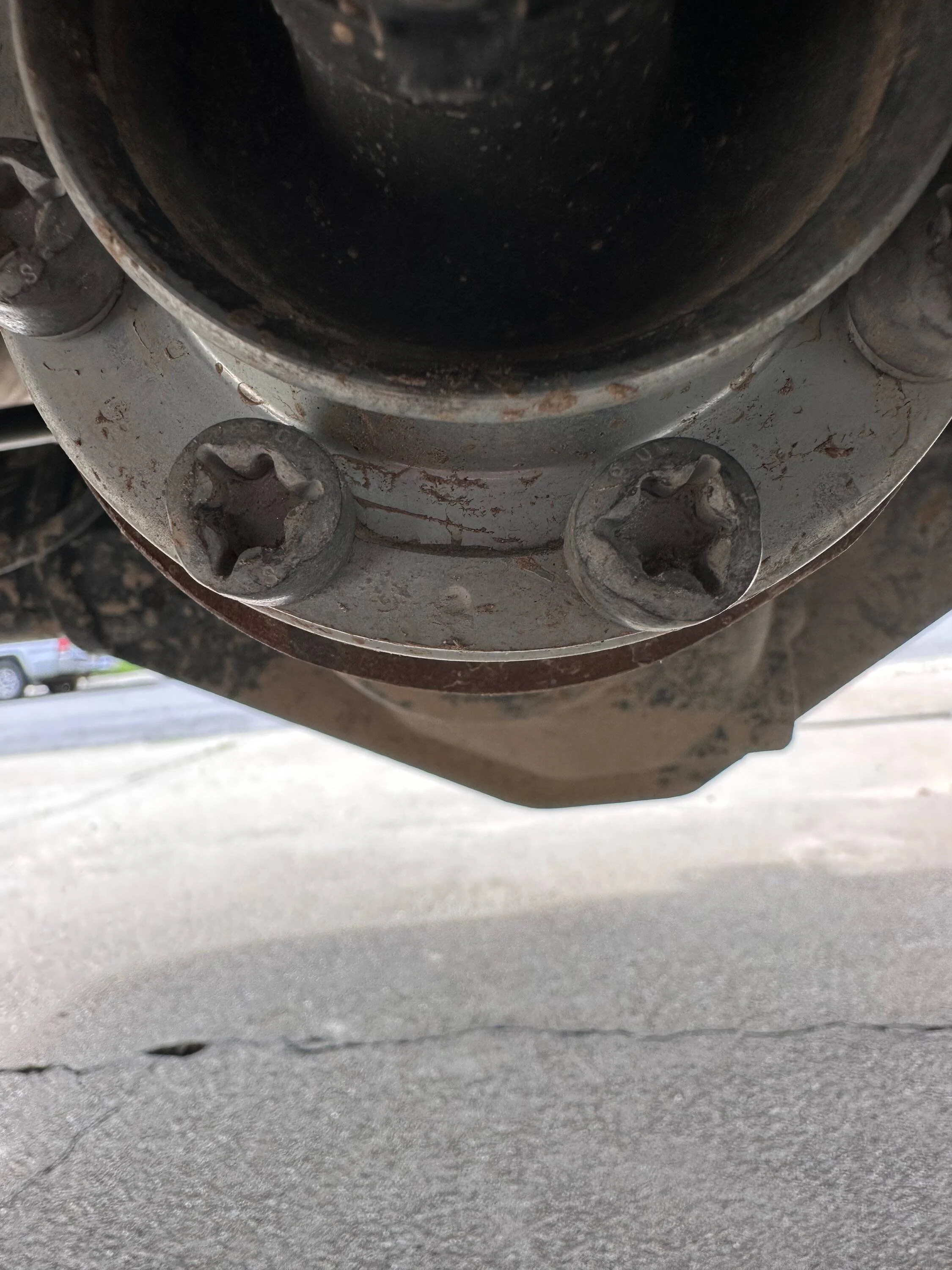

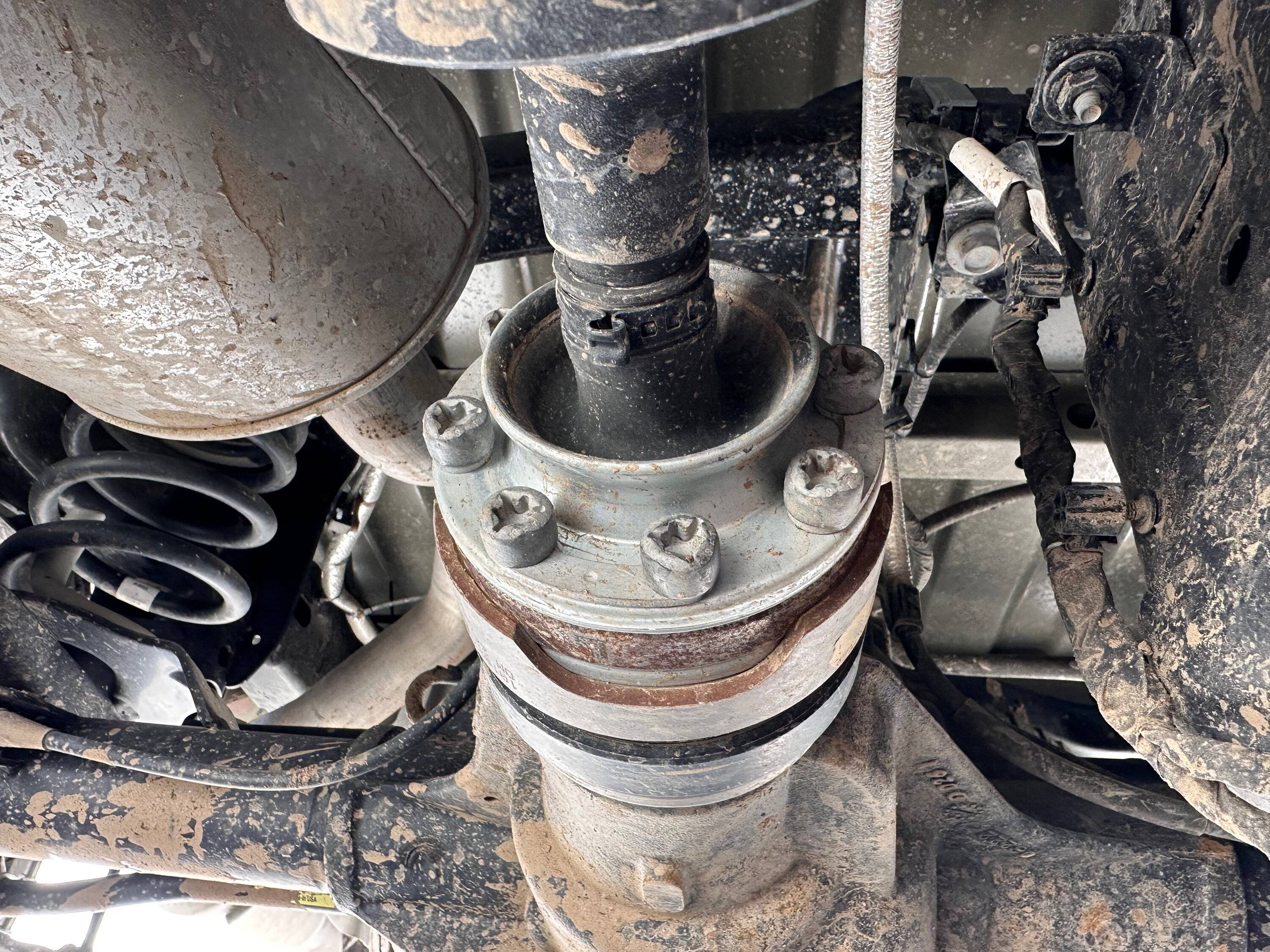

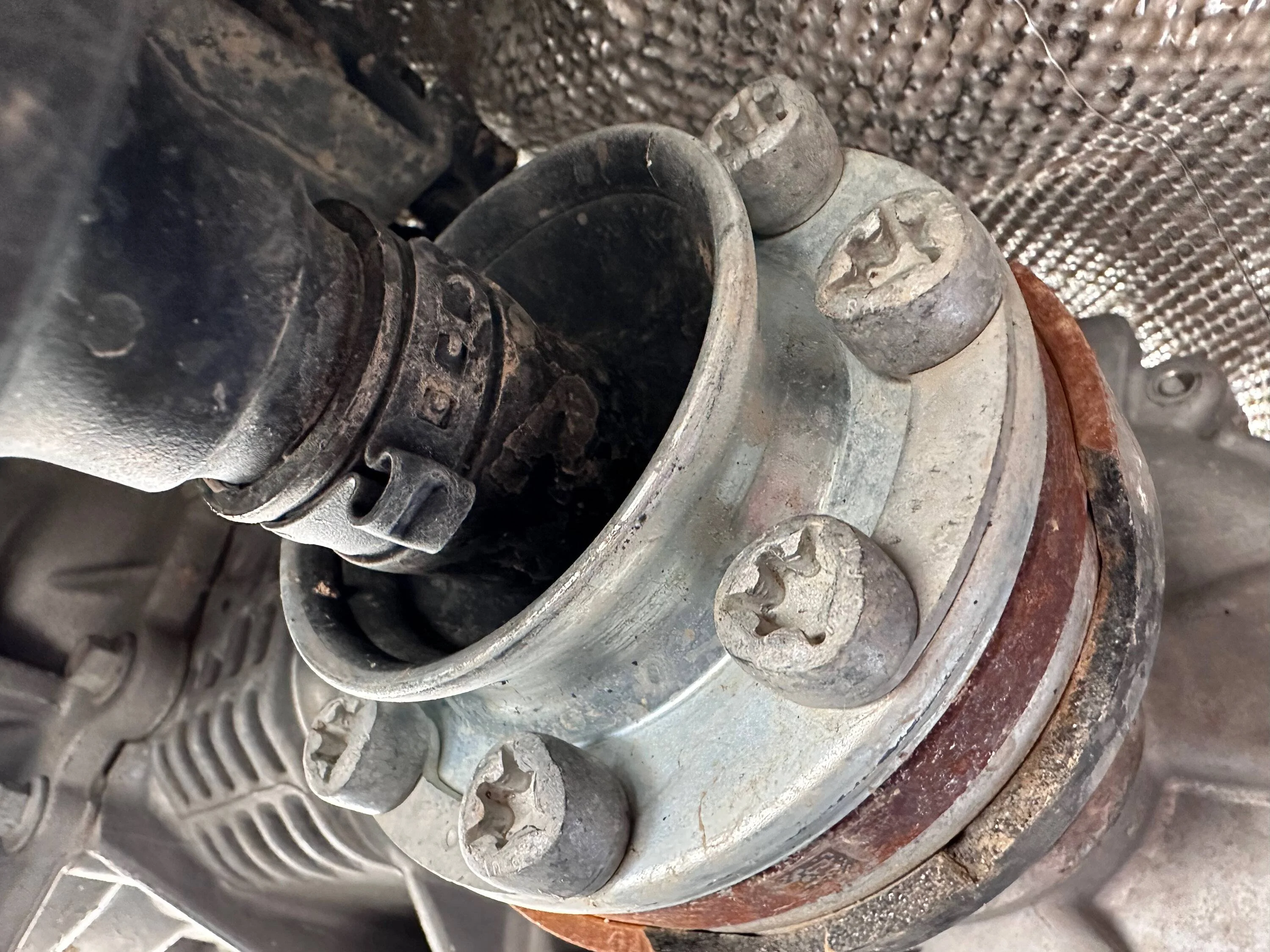

Building out my trail tool kit... I was expecting SAE 12-point bolts on the axle and transfer case flanges based on other JL/JT posts I've seen. But my 2022 JTRD has got these strange quasi-triangular socket head bolts on both transfer case outputs, and the rear diff (front diff, oddly, has totally normal looking hex head bolts). They're definitely not exactly round, with a bit of taper on three edges. Bunch of photos attached

Torx T50 fits right in there, but a little looser than I'd expect (the next larger one I've got, T55, is far too big). Is there supposed to be a special driver for these? Were they short of normal bolts one day?

Having broken a driveshaft in my previous truck, I want to be able to remove these on the trail and looks like T50 will do that... Just checking if this is something totally weird or no

Sponsored



[Animal]

Watching this just because I've never seen a fastener head like that and wanna know. ?



[fourfa]

Stamped SFT 10.9. 10.9 is clear. Not finding anything about SFT



[Vtur]

It take a standard torx bit.



[darkhorse13]

Correct, they are T50. I think there's a hardened version of this bit that's recommended but I used a regular one with a hand wrench to remove them. I didn't feel comfortable using my impact wrench on them until they were loosened. Going against best practice, I chose to re-use them and thus I made sure not to strip them.

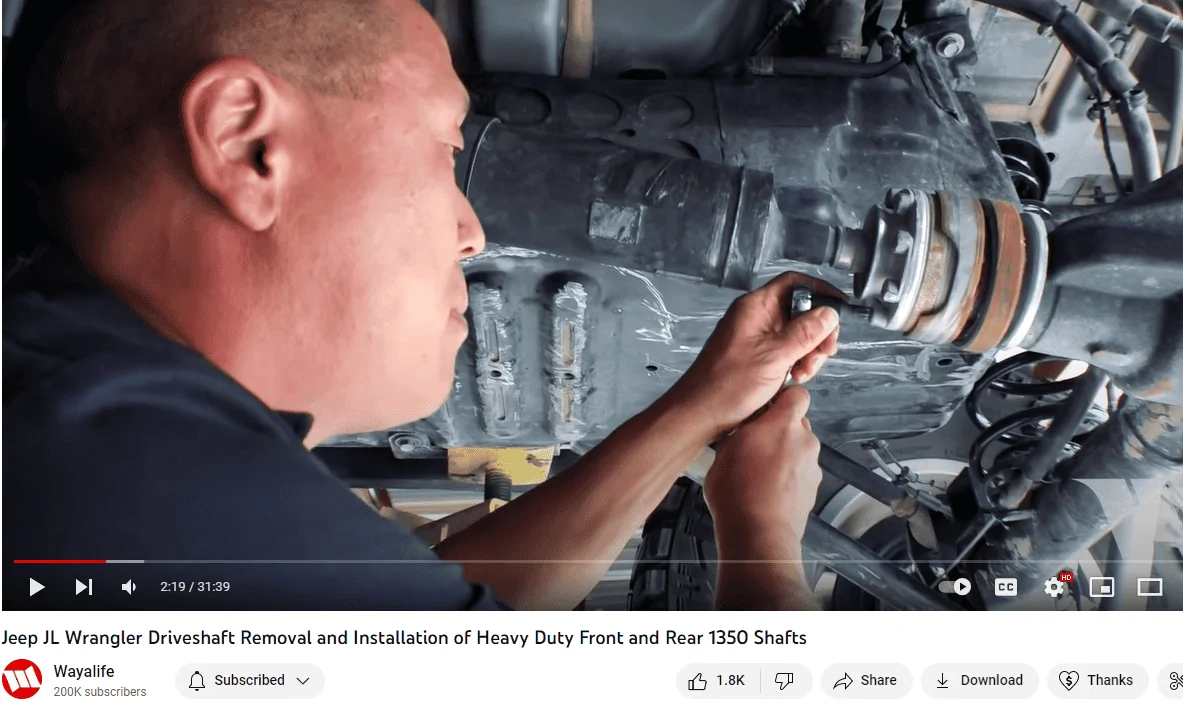

you can become YouTube certified by watching this



[JTenn]

That's normal. I have 2 sets of drive shafts in the shop and they're all like that. Some engineer justifying their job to come up with something functionally identicle but visually completely different. Lol



[Vtur]

Correct, they are T50. I think there's a hardened version of this bit that's recommended but I used a regular one with a hand wrench to remove them. I didn't feel comfortable using my impact wrench on them until they were loosened. Going against best practice, I chose to re-use them and thus I made sure not to strip them.

I did the same. It has some good threadlock on them bolts.



[fourfa]

OK, thanks for the quick peace of mind. T50 and cross this off my list



[taintedsaint]

When I put Adams shafts in I remember those were a nightmare. Bolt is about 2.5" long and had 1.5" covered in thread locker. That head has a name but it escapes me. I used a harden torque bit T50 and impact driver. Not the big impact gun, 3/8 impact driver. It was still a bear.



[fourfa]

so... add a torch to the trail toolbag, is what I'm hearing



[jjmstang]

Torx Plus they are called



[toddarama]

add a torch to the trail toolbag

just tuck it in between the welder and plasma cutter?



[Lost1wing]

Torx Plus they are called

I have a set of each but I wasn't sure if you can you either one without doing damage. So I looked it up and found another tool called a poly drive. It resembles the torx plus. Who knew.
