what size are the gladiator welded bed bolts

Grandpa Randy

Member
First Name
Randy
Joined
Aug 18, 2019
Threads
1
Messages
7
Reaction score
3
Location
54838
Vehicle(s)
2020 Jeep Gladiator
Occupation
Retired Deputy Sheriff

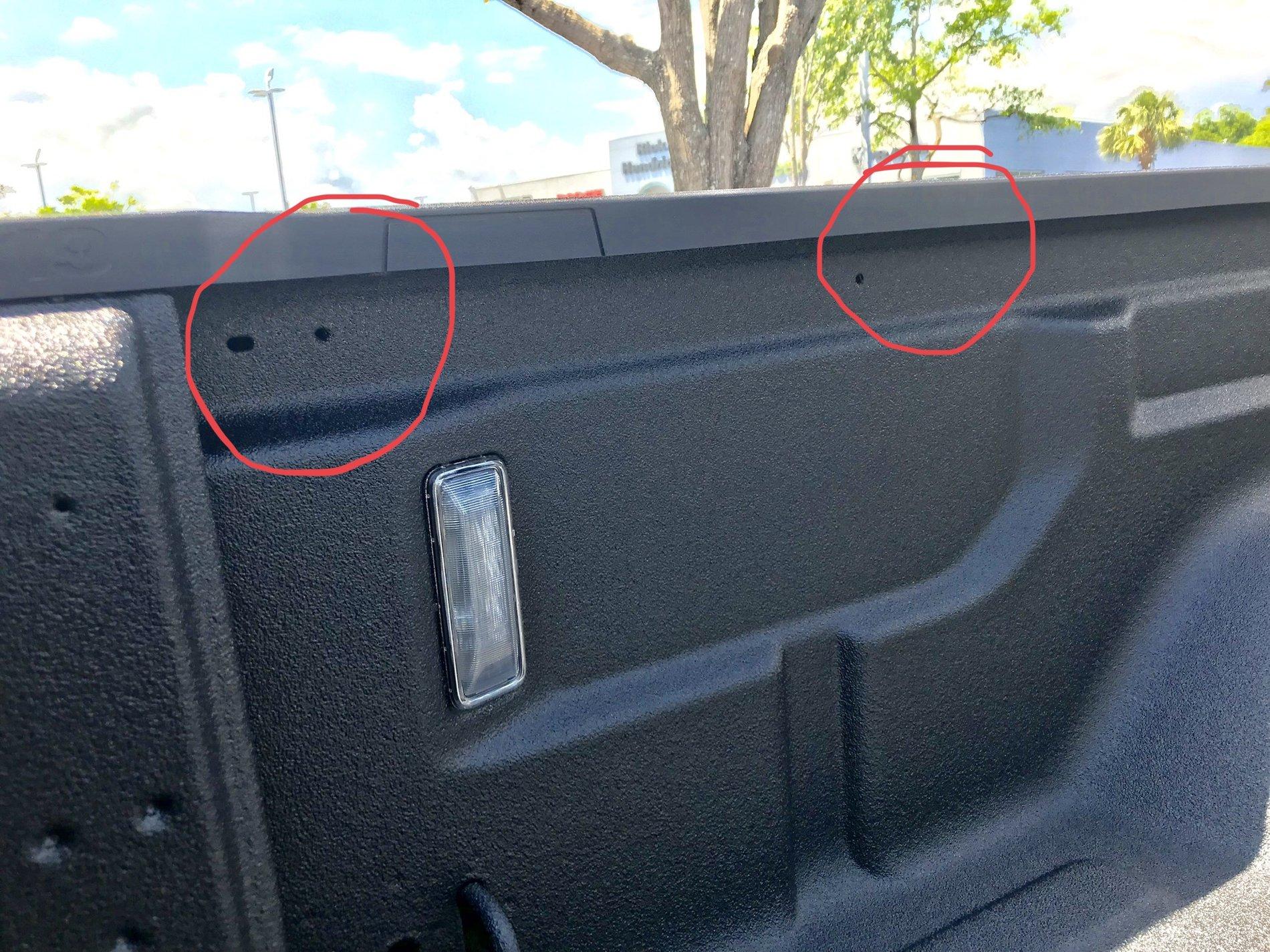

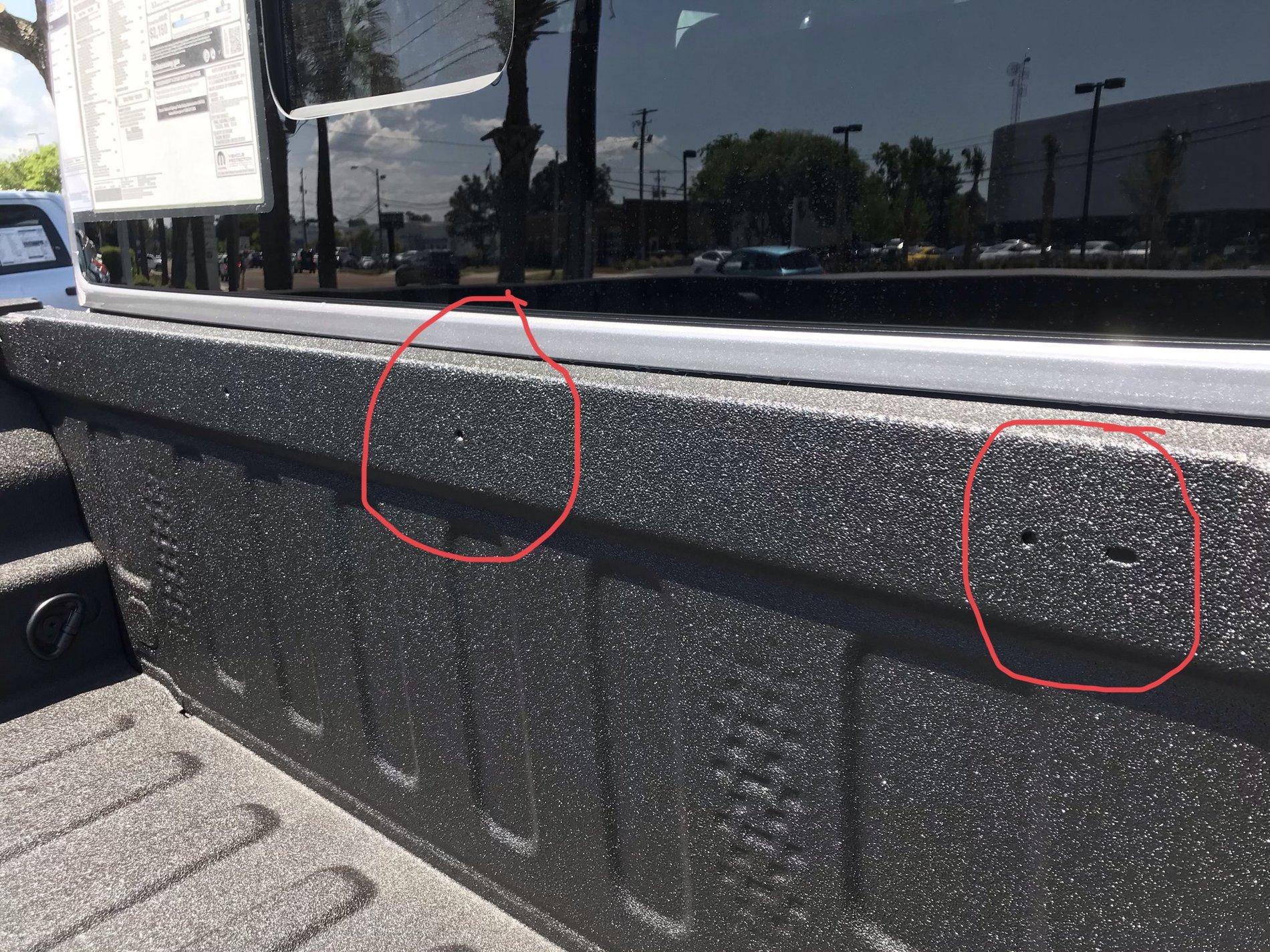

Does anyone know what size are the gladiator welded bed bolts are in the front of the (bed) box? I see there's two different size bolts welded to the box, apparently for a railing install. I have a couple items to attach and was needing to know what size screws or bolts to purchase. Thank-you..!!
Sponsored


Last edited:

mrdinks

Member
First Name
Randy
Joined
Jul 28, 2019
Threads
2
Messages
15
Reaction score
13
Location
Texas
Vehicle(s)
2020 jeep Gladiator
Occupation
Retired Firefighter / EMT
Looking for the same thing. Jeep dealer was no help


Rokon

Well-Known Member
First Name
Bob
Joined
Jun 18, 2019
Threads
18
Messages
480
Reaction score
703
Location
Maine
Vehicle(s)
Gladiator Rubicon
Looking for the same thing. Jeep dealer was no help
Are you guys referring to the threaded nuts for the tie down ring mounting at the lower front corners of the bed? Or the ones for the cargo mount rails along the top edge of the bed sides?
There are also two at the top corners of the front of the bed for the soft tonneau mounts.
A picture would help.....there are no threaded bolts welded in that I know of.....


Moriarty

Well-Known Member
First Name
Ken
Joined
Apr 27, 2019
Threads
0
Messages
101
Reaction score
148
Location
Stagecoach, NV
Vehicle(s)
2020 JTR Gobi gas, 2022 JT Willys Gobi gas
Does anyone know what size are the gladiator welded bed bolts are in the front of the (bed) box? I see there's two different size bolts welded to the box, apparently for a railing install. I have a couple items to attach and was needing to know what size screws or bolts to purchase. Thank-you..!!
Trail Rail system bolts are M6x1.0 (4 per side and 4 along the front) this does not include the nut certs on the sides near the top of the tailgate. The front corner bolts use by the factory tonneau cover are M8x1.25. Hope this helps, length of bolts depends on your project.

OP
OP
Grandpa Randy

Grandpa Randy

Member
First Name
Randy
Joined
Aug 18, 2019
Threads
1
Messages
7
Reaction score
3
Location
54838
Vehicle(s)
2020 Jeep Gladiator
Occupation
Retired Deputy Sheriff
Trail Rail system bolts are M6x1.0 (4 per side and 4 along the front) this does not include the nut certs on the sides near the top of the tailgate. The front corner bolts use by the factory tonneau cover are M8x1.25. Hope this helps, length of bolts depends on your project.
Thank-you..!!!!


Sponsored

CAL32

Well-Known Member
First Name
Chris
Joined
Sep 16, 2019
Threads
0
Messages
80
Reaction score
35
Location
07417
Vehicle(s)
Jeep Gladiator Sport S Sting Gray/Toyota 4Runner Limited Pearl White
Thank-you..!!!!
Do you have any pics of what you installed there? I was looking to install some add'l anchor points instead of putting in the entire trail rail system...


lhawkwing

New Member
First Name
Jeffrey
Joined
Oct 15, 2019
Threads
0
Messages
1
Reaction score
0
Location
Parma
Vehicle(s)
Gladiator Sport
Trail Rail system bolts are M6x1.0 (4 per side and 4 along the front) this does not include the nut certs on the sides near the top of the tailgate. The front corner bolts use by the factory tonneau cover are M8x1.25. Hope this helps, length of bolts depends on your project.
Thank you, from another.

Just came here today to look for this info, and found this on my first search. Wanted to know so I can work on cleaning out the threads from the bolt holes for the tonneau cover. And now know the size for the trail rail bolt holes as well.

Again, thanks.


Pprzyby

Member
Joined
Apr 22, 2019
Threads
0
Messages
10
Reaction score
33
Location
Milwuakee, WI
Vehicle(s)
2005 TJ, 2020 Gladiator Sport S
Do you have any pics of what you installed there? I was looking to install some add'l anchor points instead of putting in the entire trail rail system...

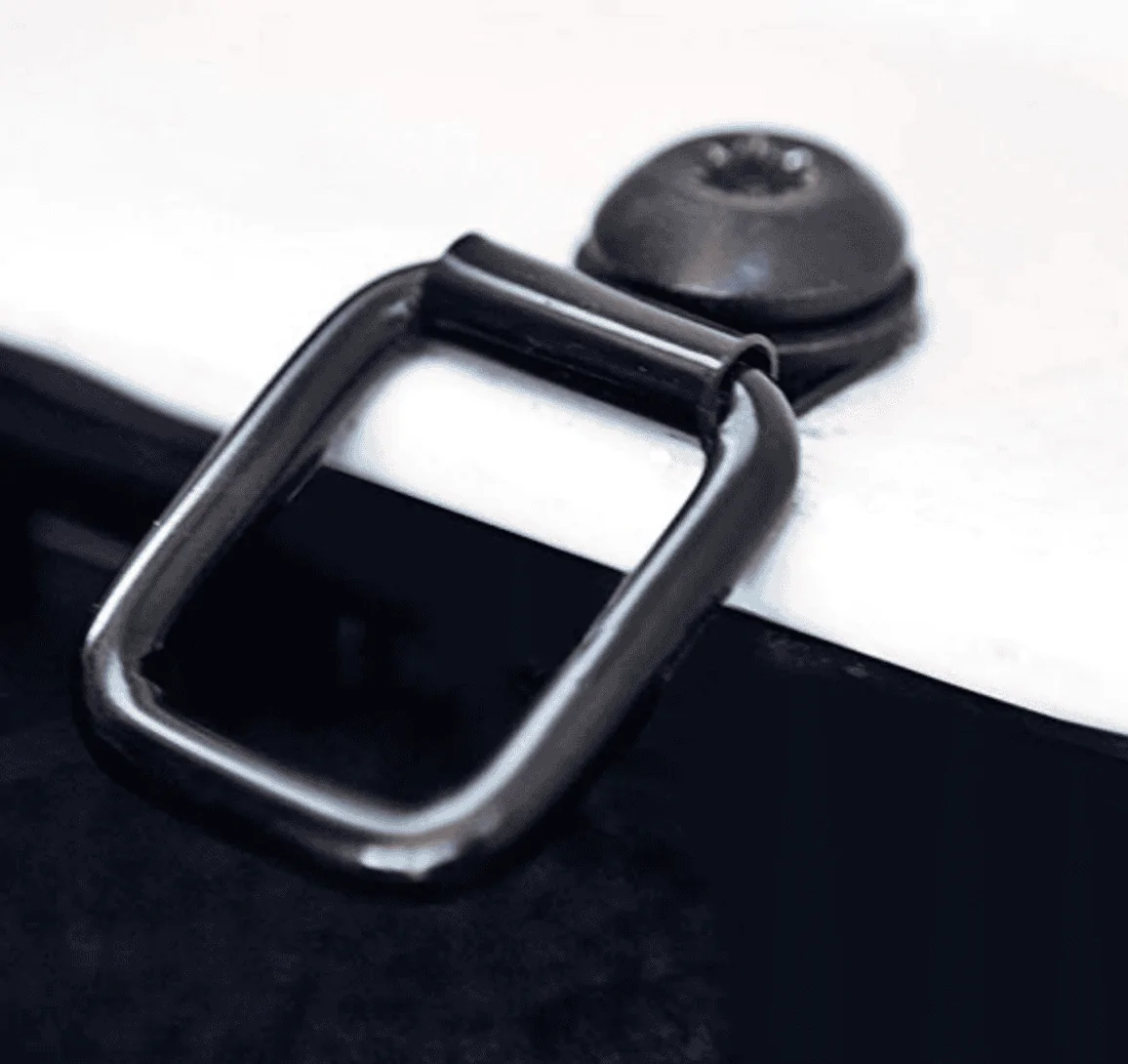

I just installed some stainless eye bolts I purchased on amazon.


Sponsored

ericism

Member
First Name
Eric
Joined
Apr 7, 2021
Threads
0
Messages
9
Reaction score
26
Location
Utah
Vehicle(s)
2021 Jeep Gladiator Overland
Trail Rail system bolts are M6x1.0 (4 per side and 4 along the front) this does not include the nut certs on the sides near the top of the tailgate. The front corner bolts use by the factory tonneau cover are M8x1.25. Hope this helps, length of bolts depends on your project.

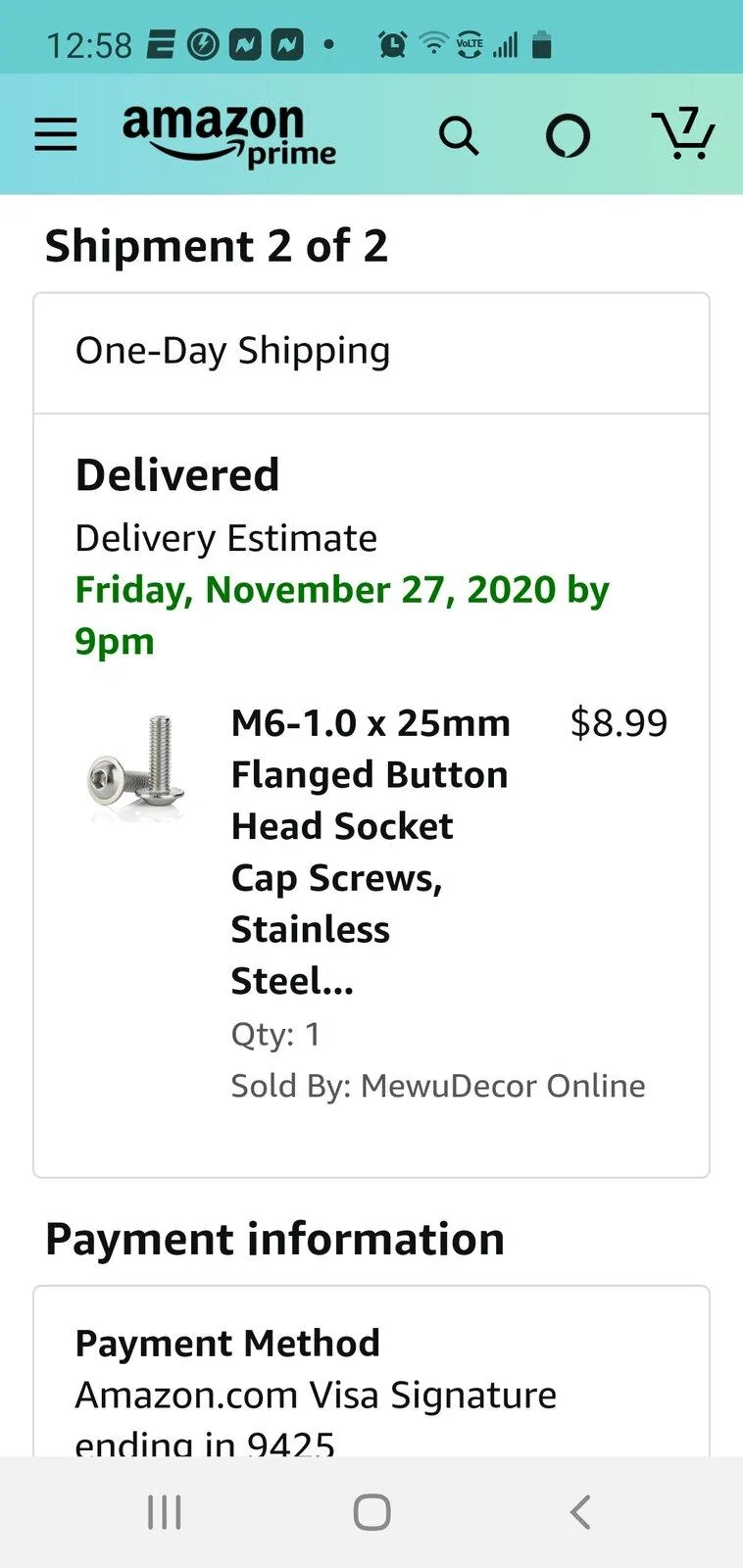

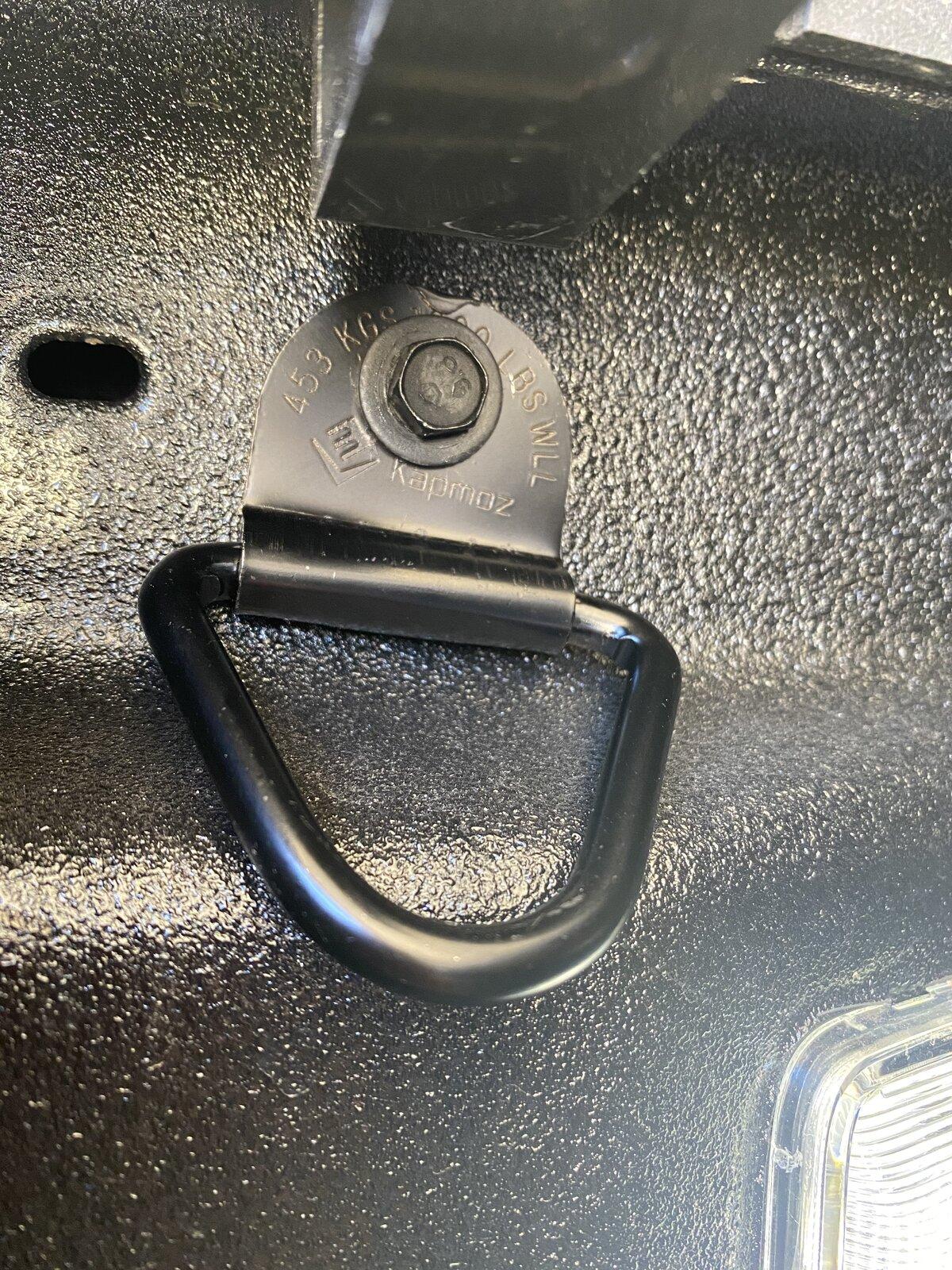

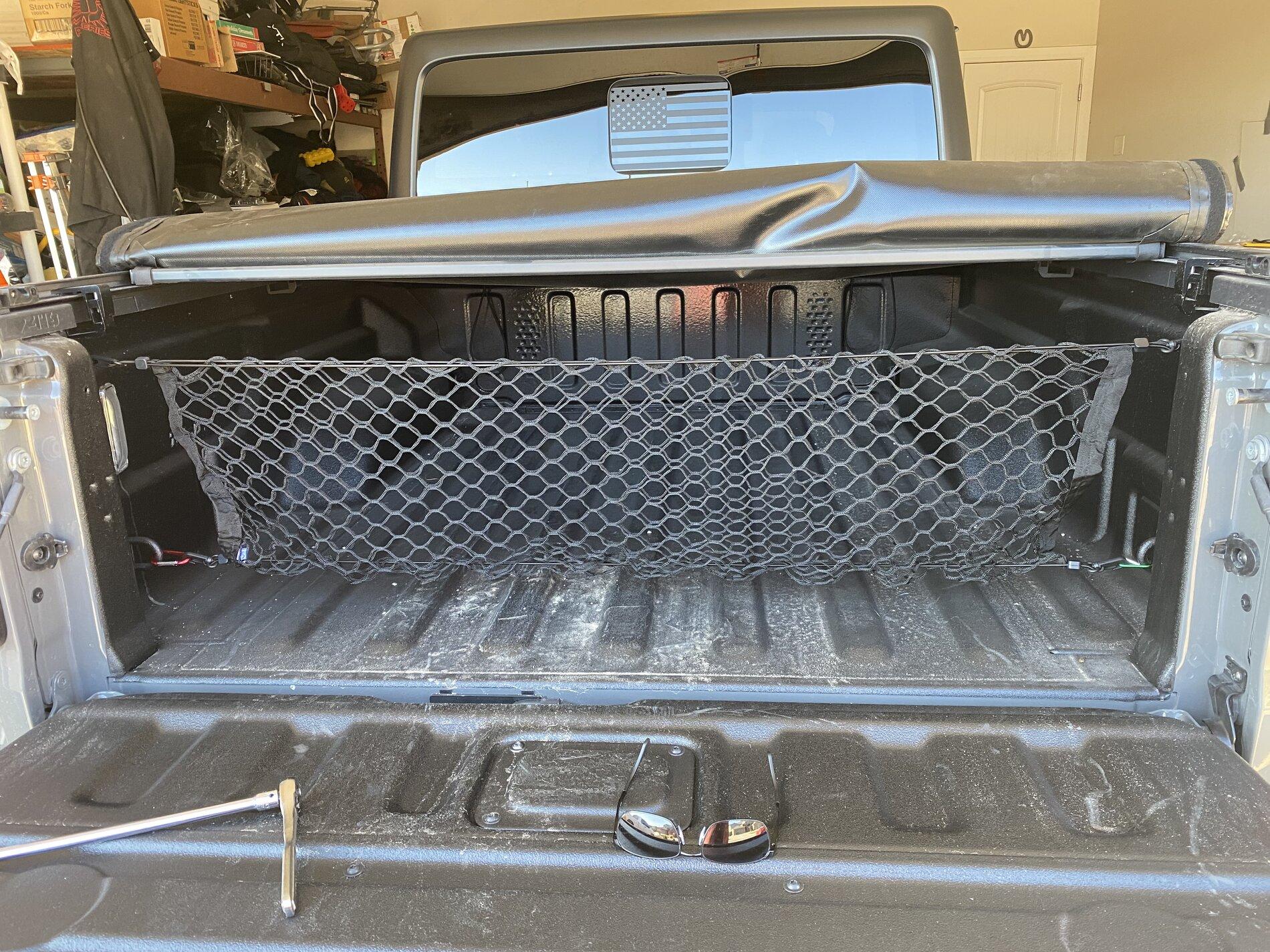

Thanks!! I installed a couple tie down points and needed this exact information.





whiteglad

Well-Known Member
First Name
Joe
Joined
Feb 12, 2020
Threads
13
Messages
1,149
Reaction score
1,003
Location
Vegas
Vehicle(s)
2022 Gladiator Mojave
Please be aware that almost all stainless bolts are low grade. I prefer high grade, strong bolts with a little grease on threads, painted heads.
