Where to wire switch? No factory AUX switch package.

[paulsoncall]

I’m mounting an ARB compressor under the hood and want to keep the switch next to the compressor. I do not have the factory AUX switch package or else I’d tap right into that. Where would you recommend I connect the power to the switch so that the compressor only comes on when the vehicle is on accessory or run? Is there something I can tap into under the hood? Thanks!

Sponsored



[Jackpaul]

I’m mounting an ARB compressor under the hood and want to keep the switch next to the compressor. I do not have the factory AUX switch package or else I’d tap right into that. Where would you recommend I connect the power to the switch so that the compressor only comes on when the vehicle is on accessory or run? Is there something I can tap into under the hood?


I am mounting a single ARB compressor under the hood this weekend. I have a metal single rocker bracket that I am mounting to one of the bolts to secure the pump then just a single power wire with fuse to the battery…pretty much everything except the rocker bracket came with the pump.



[paulsoncall]

I’m mounting an ARB compressor under the hood and want to keep the switch next to the compressor. I do not have the factory AUX switch package or else I’d tap right into that. Where would you recommend I connect the power to the switch so that the compressor only comes on when the vehicle is on accessory or run? Is there something I can tap into under the hood?


I am mounting a single ARB compressor under the hood this weekend. I have a metal single rocker bracket that I am mounting to one of the bolts to secure the pump then just a single power wire with fuse to the battery…pretty much everything except the rocker bracket came with the pump.

Are you mounting the power for the switch to the battery as well?



[Jackpaul]

Are you mounting the power for the switch to the battery as well?

Yes, power on to the pump when throwing the switch. Not dependent on accessory or engine on (could change if issues are noted).



[MPMB]

I put in a switch panel to run my lights that's only on with ACC/Run.

I did this by putting in an "Add a Circuit" (search AMZN for 'micro add a circuit') in the 12V plug circuit in the fuse box (#51 or something).

Depending on the amps needed for the compressor, this might be a way to go.



[kevman65]

IF I remember it right, battery to fuse, fuse to relay, relay to switch. No other power source needed.

Disclaimer, not an electrician, not an automotive wiring Guru, just another self wrencher.



[Jackpaul]

IF I remember it right, battery to fuse, fuse to relay, relay to switch. No other power source needed.

Disclaimer, not an electrician, not an automotive wiring Guru, just another self wrencher.

yup



[Jackpaul]

I’m mounting an ARB compressor under the hood and want to keep the switch next to the compressor. I do not have the factory AUX switch package or else I’d tap right into that. Where would you recommend I connect the power to the switch so that the compressor only comes on when the vehicle is on accessory or run? Is there something I can tap into under the hood? Thanks!

How did this go for you? Mine was super straight forward, however, after bumping it on accidentally once I ended up tapping the cigar lighter for power with ignition. Thanks MPMB



[paulsoncall]

I’m waiting for my mount. Should be here on Friday. Will let you know.



[Gobi1Kenobi]

I bought a mount from Wayaalife and mounted it into the engine bay. Wired an 8-switch rocker panel inside.



[paulsoncall]

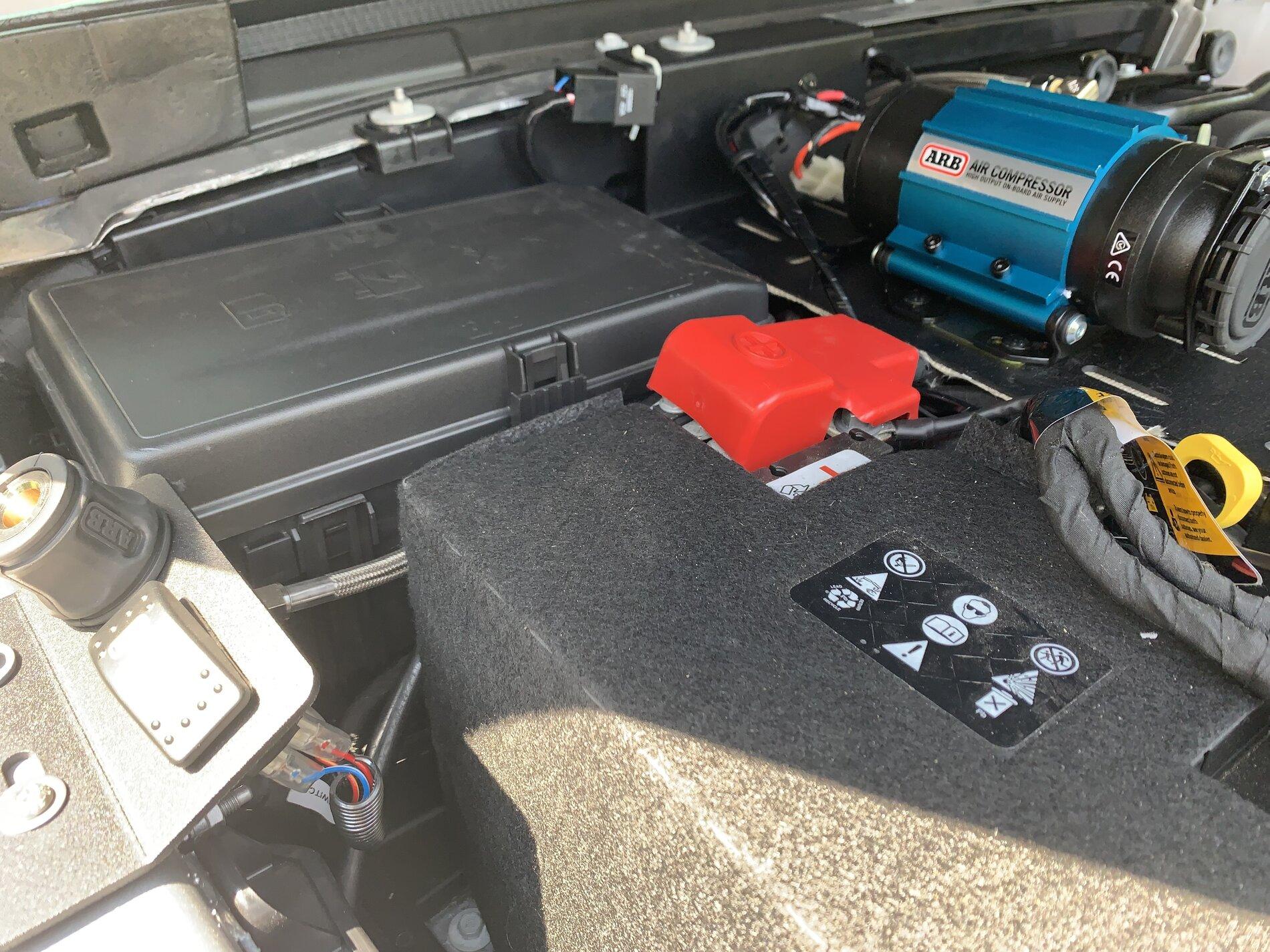

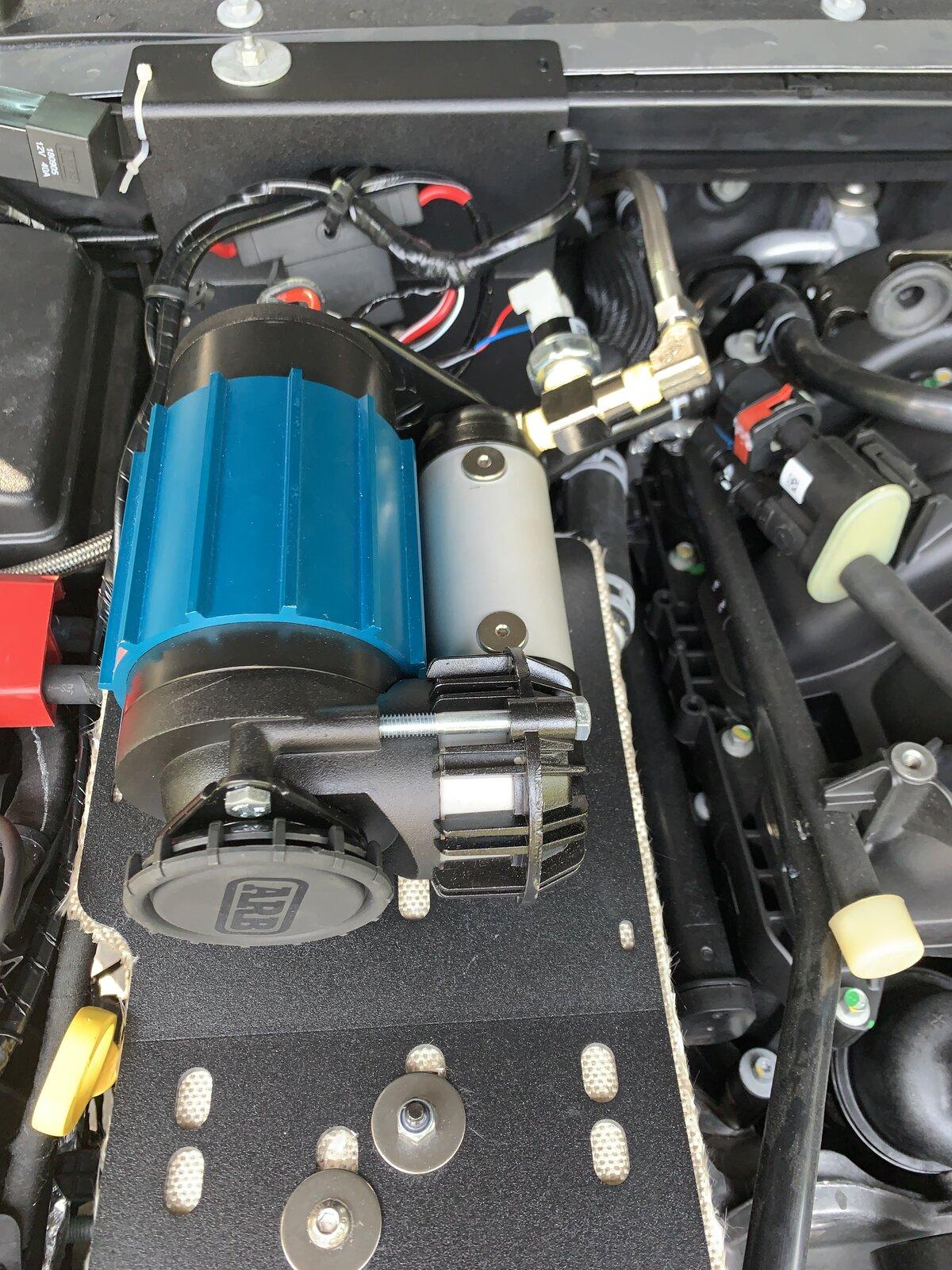

Finally got mine done. I ended up using a fuse tap for the switch and hooked it into the cigar lighter fuse. Stripped out all of the unnecessary wiring that was there for the lockers and it made the cabling a lot more manageable. I’m happy with it.



[Jackpaul]

Finally got mine done. I ended up using a fuse tap for the switch and hooked it into the cigar lighter fuse. Stripped out all of the unnecessary wiring that was there for the lockers and it made the cabling a lot more manageable. I’m happy with it.

Looks great!!
