Who is running an ARB twin compressor off the 40amp Aux switch?

Etoimos

Well-Known Member
First Name
Keith
Joined
Dec 3, 2018
Threads
17
Messages
445
Reaction score
608
Location
In the mountains
Website
adventuresofetoimos.com
Vehicle(s)
2020 JTR , 2012 JKUR
Vehicle Showcase
2
How many of you are running an ARB twin compressor off the 40amp Aux switch? Had any issues with maxing out the switch amperage?
Sponsored



Rockabillyroy

Well-Known Member
Joined
Nov 8, 2020
Threads
15
Messages
825
Reaction score
870
Location
CA
Vehicle(s)
JT
How many of you are running an ARB twin compressor off the 40amp Aux switch? Had any issues with maxing out the switch amperage?
Most people wire on and off to the aux switches and power the compressor directly to the battery. Which isn't a problem at all.

The compressor itself, I believe have 50 amp in line fuses.

Last edited:

CrazyCooter

Well-Known Member
First Name
Tony
Joined
Nov 1, 2020
Threads
10
Messages
1,892
Reaction score
1,959
Location
Far NorCal
Website
www.overlandvehicledynamics.com
Vehicle(s)
1991 JEEP YJ, 2021 JTR Ecodiesel
Occupation
Specialty Off Road Shop Owner
Most people wire on and off to the aux switches and power the compressor directly to the battery. Which isn't a problem at all.

The compressor itself, I believe have 50 amp in line fuses.
This is what I did.....figured with a pair of 40A fuses, no way the oe wiring was going to fly!

OP
OP
Etoimos

Etoimos

Well-Known Member
First Name
Keith
Joined
Dec 3, 2018
Threads
17
Messages
445
Reaction score
608
Location
In the mountains
Website
adventuresofetoimos.com
Vehicle(s)
2020 JTR , 2012 JKUR
Vehicle Showcase
2
Did any of you put a relay on the power going to the compressor? I'll be installing it on the front wall of the bed (bed is covered) and would prefer not to have 40amps of power running hot back there all the time.

My thought is to put a relay as close to the battery as possible and control that relay with one of the Aux switches. Thoughts?


Sponsored

BLK HOLE

Well-Known Member
First Name
Zach
Joined
Jun 6, 2019
Threads
17
Messages
1,274
Reaction score
2,321
Location
San Antonio
Vehicle(s)
2020 JTR, 2012 JKUR
Vehicle Showcase
1
Single or double doesn't matter...you're really just running a relay switch from the Aux switch (compressor runs from direct battery power).. I don't recall the dual's really amp but it isn't over 40amps. I run my single ARB off the 15amp one, for example.

*I would NOT bypass the provided ARB relay harness.


Freebooter

Well-Known Member
First Name
Brad
Joined
Aug 8, 2020
Threads
9
Messages
233
Reaction score
488
Location
Beaufort, NC
Vehicle(s)
2020 Mojave, 2020 124 Spider Abarth
Occupation
Almost Retired
I am going to use a 80 amp Blue Sea circuit breaker near the battery. Then run 6ga to positive and negative buss bars. Where and how have not been determined yet.


XraytecH

Well-Known Member
First Name
Bernie
Joined
Jan 14, 2021
Threads
170
Messages
1,523
Reaction score
2,102
Location
South San Francisco
Vehicle(s)
2021 Jeep Gladiator Sport
Occupation
Xraytech
Vehicle Showcase
1

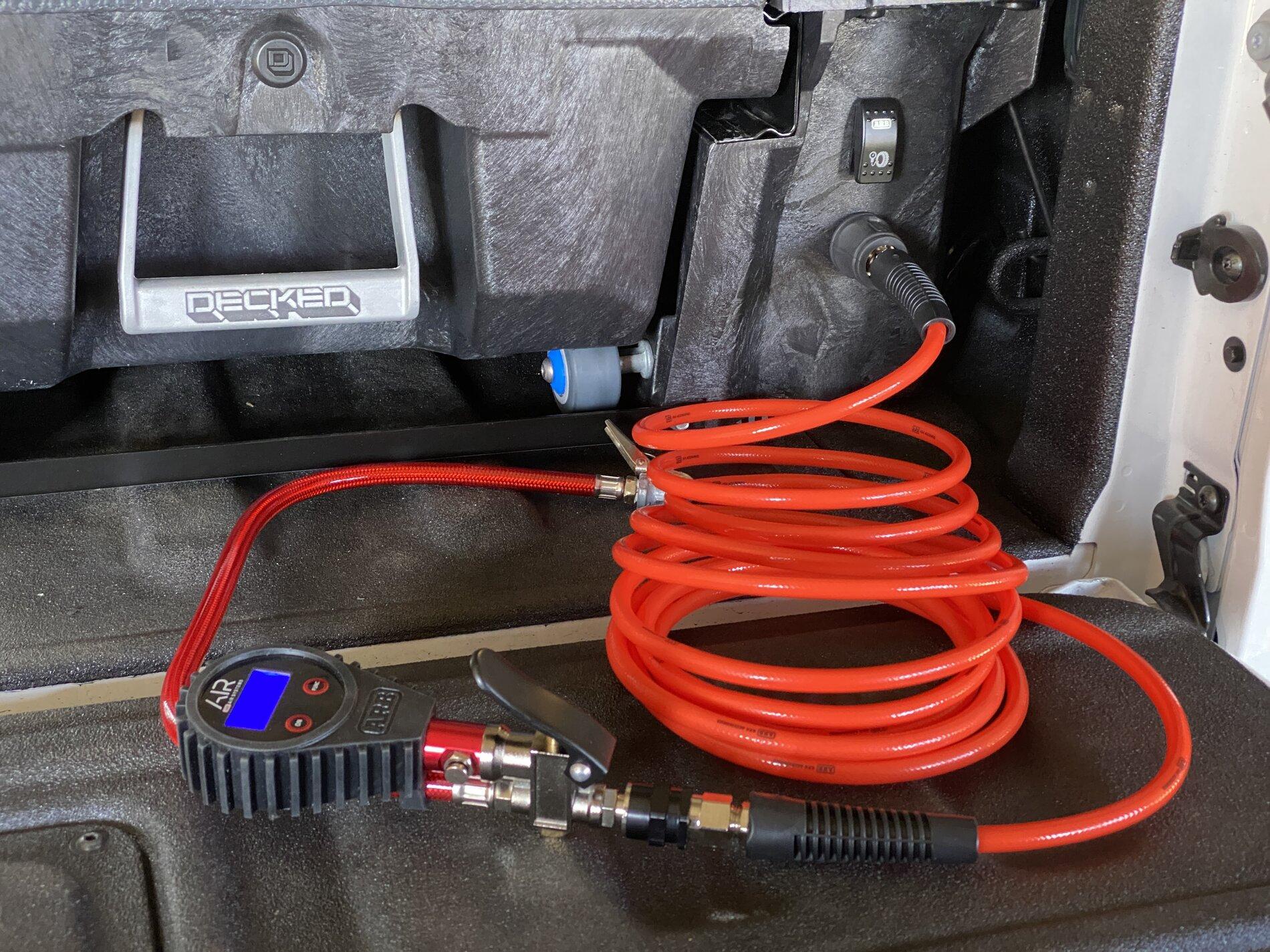

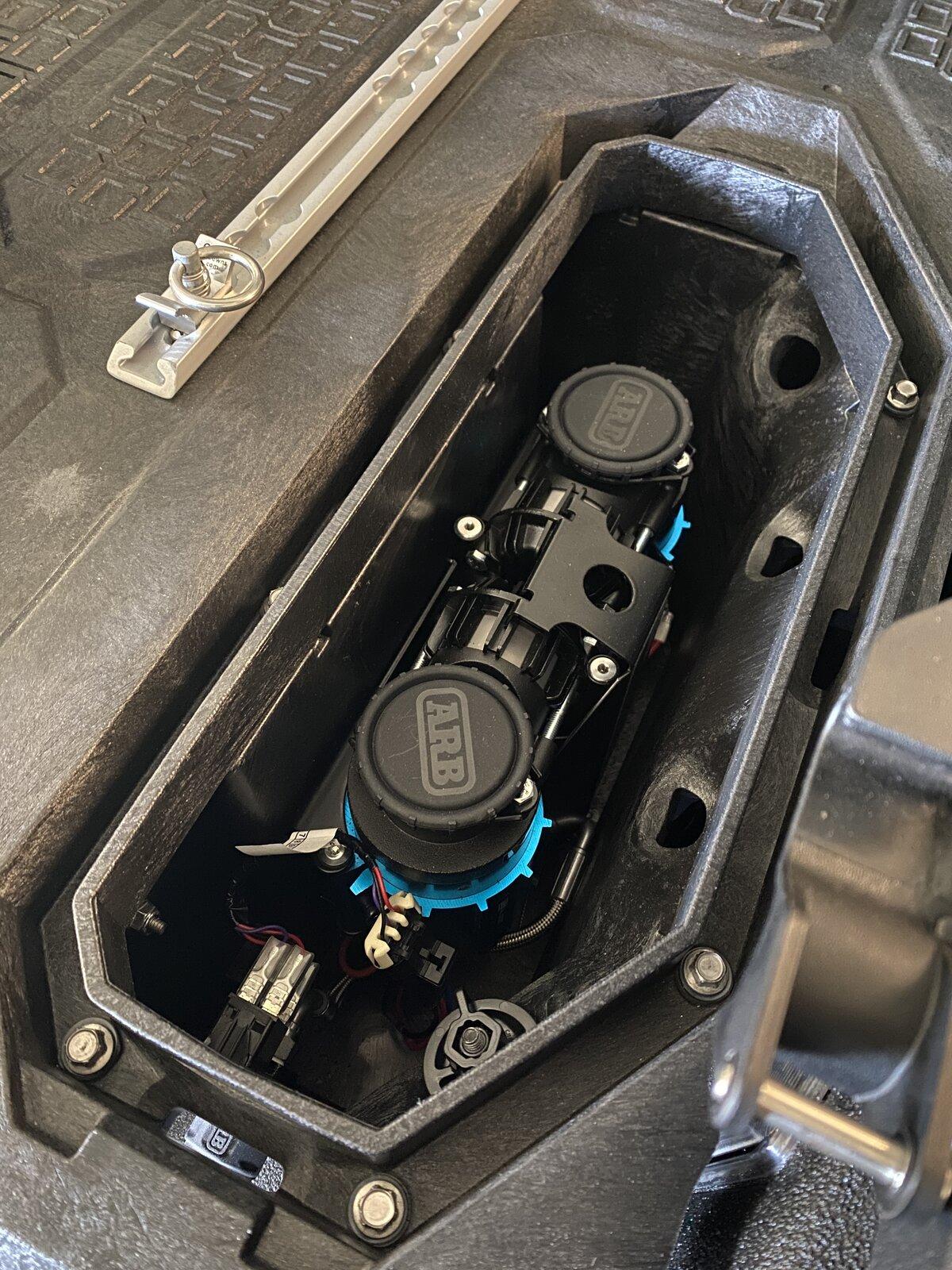

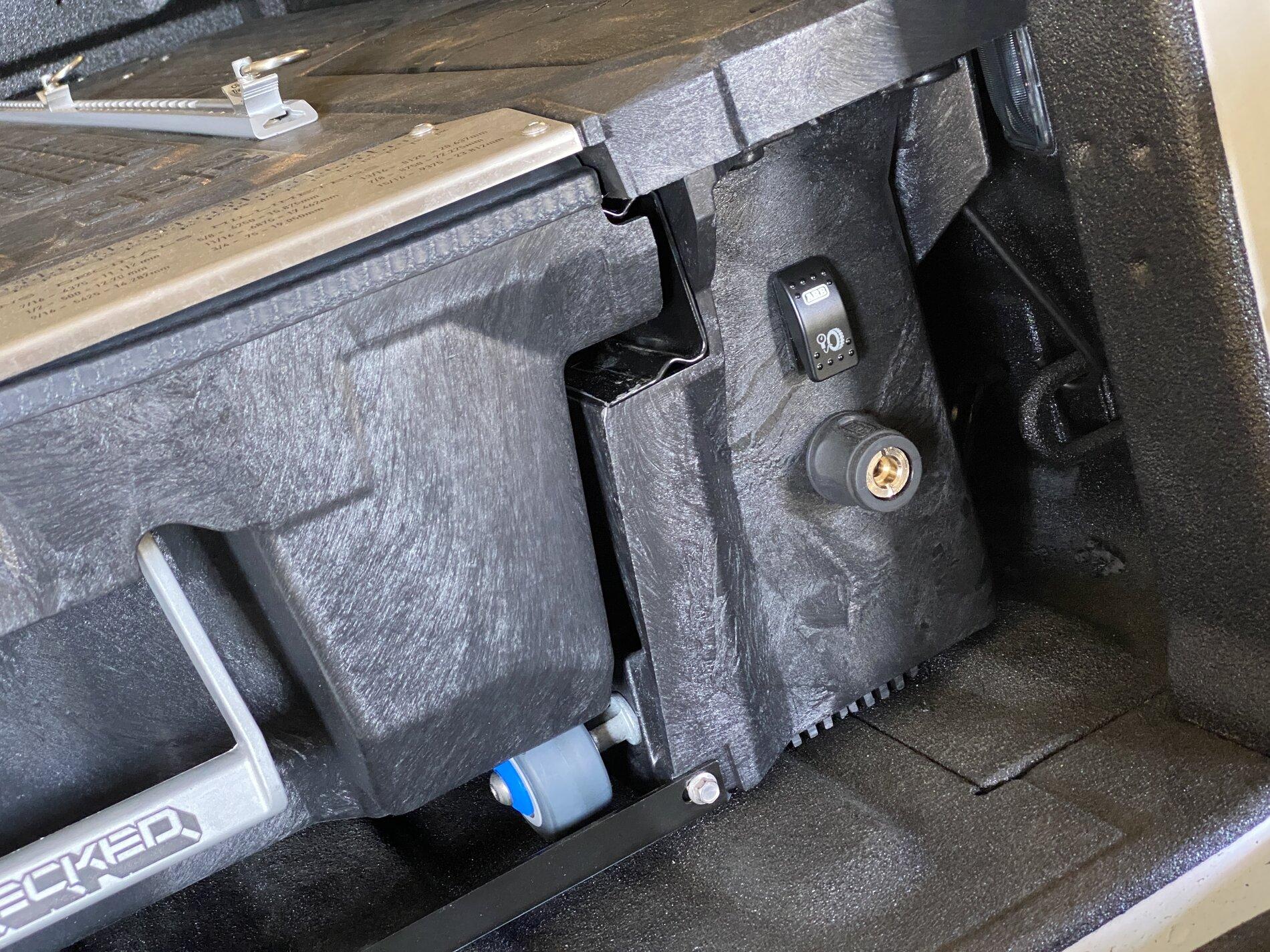

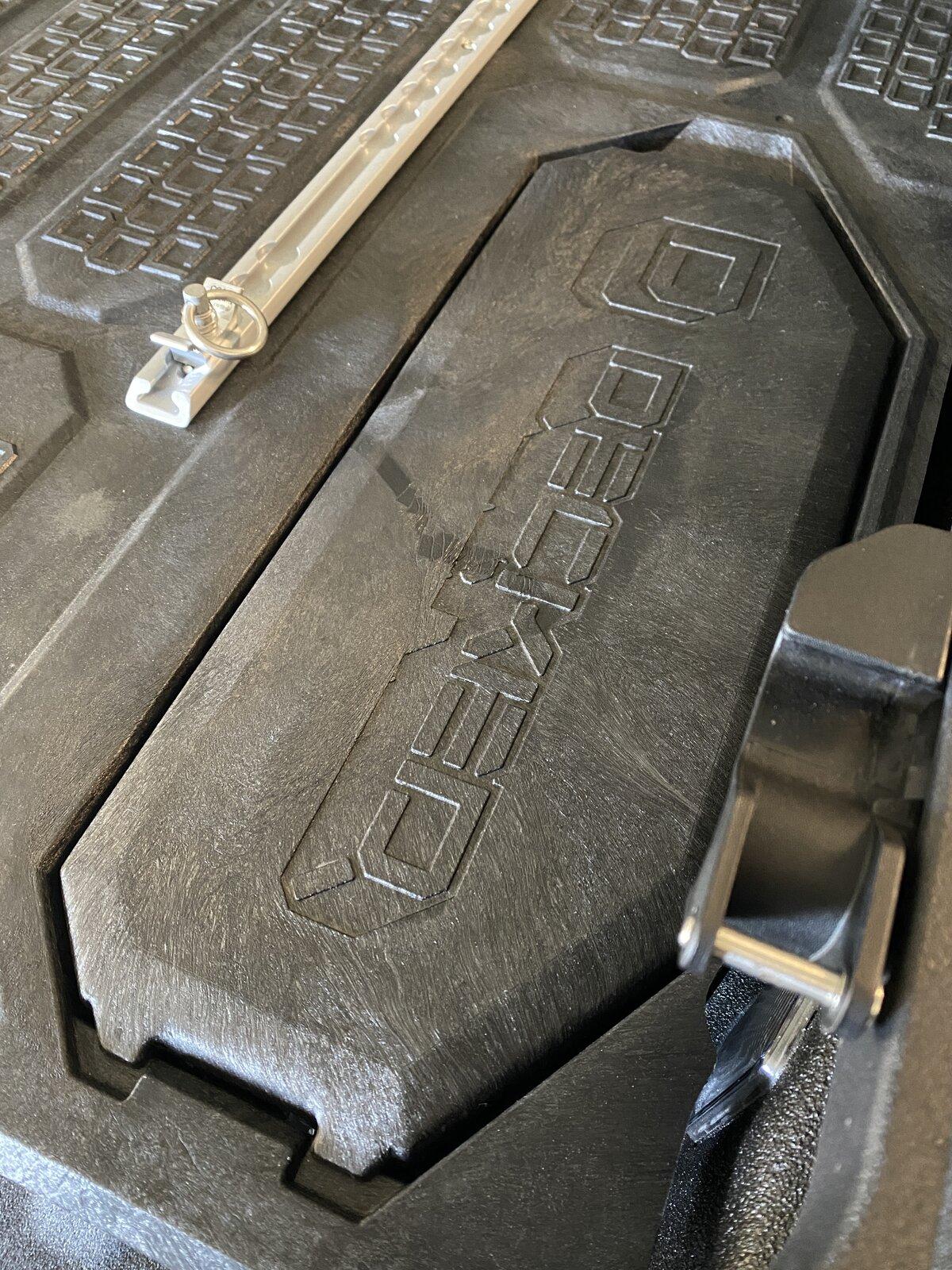

I kinda freaked out when I saw the power wires had two 40amp fuses. So I changed my installation plans and just put a rocker switch near the air chuck. Didn't occur to me that I can extend the rocker switch wires to the axillary switch bank. Anyways, what's done is done, makes more sense to have the switch outside the cab and near the chuck I think.

Jeep Gladiator Who is running an ARB twin compressor off the 40amp Aux switch? 1D999824-B25E-4577-82CA-331CDDAACF6D

Jeep Gladiator Who is running an ARB twin compressor off the 40amp Aux switch? 1A7EB662-390E-43A6-AD19-C6F764DC7483

Jeep Gladiator Who is running an ARB twin compressor off the 40amp Aux switch? BECD89B9-6786-4989-B5E1-BCBA3214AE1C

Jeep Gladiator Who is running an ARB twin compressor off the 40amp Aux switch? 8FE3B86E-CAFD-4B76-B013-2CFCF82EB102
