Wiring Harness for outlet in bed, when cargo package isn't ordered..

NJKen

Well-Known Member
First Name
Ken
Joined
May 14, 2019
Threads
23
Messages
175
Reaction score
160
Location
NJ
Vehicle(s)
2021 Gladiator Rubicon 2020 Gladiator Rubicon
This is a tall ask I know... Anyone that has their Jeep with the factory outlet in the bed, can you snap a pic (if you have access to it) of the backside of the outlet? I'm curious about how easy this will be to retrofit, I remember on my old SRT8 for the Euro tail lights all the wiring was already there. I'm wondering if the same holds true on this.
Sponsored



RedTRex

Well-Known Member
First Name
Rick
Joined
Aug 25, 2017
Threads
13
Messages
1,973
Reaction score
1,449
Location
Jacksonville, FL
Vehicle(s)
2013 JKU / 2014 WK2 Diesel
This is a tall ask I know... Anyone that has their Jeep with the factory outlet in the bed, can you snap a pic (if you have access to it) of the backside of the outlet? I'm curious about how easy this will be to retrofit, I remember on my old SRT8 for the Euro tail lights all the wiring was already there. I'm wondering if the same holds true on this.
Good question


Skyhawk1755

Active Member
First Name
Chad
Joined
May 11, 2019
Threads
4
Messages
42
Reaction score
31
Location
Oklahoma
Vehicle(s)
Chevy 1500, Chevy Equinox , Honda VTX 1300, Stingray 180 RX
Occupation
General manager
I'm pretty sure the wiring is there. The factory only makes one wiring harness so it speeds up production.


Chance_P

Well-Known Member
Joined
Apr 8, 2019
Threads
38
Messages
436
Reaction score
561
Location
Colorado
Vehicle(s)
JTR
I'm also curious about this.

I read somewhere that the rear outlet uses the same inverter as the interior 120v outlet. Anyone have more details on that?


Sponsored

OP
OP
NJKen

NJKen

Well-Known Member
First Name
Ken
Joined
May 14, 2019
Threads
23
Messages
175
Reaction score
160
Location
NJ
Vehicle(s)
2021 Gladiator Rubicon 2020 Gladiator Rubicon
So far to retrofit with Mopar parts...

We know we need the outlet for the bed and the button in the cab.


ACAD_Cowboy

Well-Known Member
First Name
Francis
Joined
May 1, 2019
Threads
22
Messages
1,414
Reaction score
1,953
Location
NY
Vehicle(s)
15 jkur
The cab and bed outlets share the same 400W so you are limited to 400W/0W through 0W/400W. This is not to say you couldn't add your own and just use the bed mounted connection point.


Kjm18

Well-Known Member
First Name
Kyle
Joined
Jun 7, 2019
Threads
9
Messages
435
Reaction score
374
Location
MD
Vehicle(s)
Sting Gray JT Rubicon - Delivered 7/23
Occupation
Attorney
What are you guys planning to use the outlet for? I'd imagine you can't run a power tool on it, so what exactly are we supposed to do with it?


Sponsored

OP
OP
NJKen

NJKen

Well-Known Member
First Name
Ken
Joined
May 14, 2019
Threads
23
Messages
175
Reaction score
160
Location
NJ
Vehicle(s)
2021 Gladiator Rubicon 2020 Gladiator Rubicon
What are you guys planning to use the outlet for? I'd imagine you can't run a power tool on it, so what exactly are we supposed to do with it?
I bring a PA speaker for college football tailgating. This will power that so I don’t have to bring out the inverter.

It will also power the strobe light for this hitch attachment.


Slapping_Rabbits

Well-Known Member
First Name
Nirzwan
Joined
Apr 27, 2019
Threads
30
Messages
959
Reaction score
801
Location
Havre de grace md
Vehicle(s)
Jeep gladiator Rubicon, triumph rocket iii roadster


I bring a PA speaker for college football tailgating. This will power that so I don’t have to bring out the inverter.

It will also power the strobe light for this hitch attachment.
That video was awesome! So that is what that pole is for!

OP
OP
NJKen

NJKen

Well-Known Member
First Name
Ken
Joined
May 14, 2019
Threads
23
Messages
175
Reaction score
160
Location
NJ
Vehicle(s)
2021 Gladiator Rubicon 2020 Gladiator Rubicon
Ok, just an update to this... I just ordered part #68312754AB today and once it comes in, I will update to see if it is possible to do. Well anythings possible so I will update on how difficult everything was.


AggieJeep

Well-Known Member
First Name
Mark
Joined
Apr 3, 2019
Threads
6
Messages
469
Reaction score
766
Location
Houston, TX
Vehicle(s)
2020 Gladiator Firecracker Red LE, 2012 JKUR Call of Duty, 1967 M715 (military Gladiator)
Vehicle Showcase
1
400 watts isn’t going to do anything heavy, but it will run chargers for power tools. I find that very handy.

I’m liking the pole too. I wonder what that package goes for.


Jake

Well-Known Member
First Name
Jake
Joined
Nov 29, 2018
Threads
68
Messages
1,869
Reaction score
1,517
Location
Charleston,SC
Vehicle(s)
Gladiator Sport

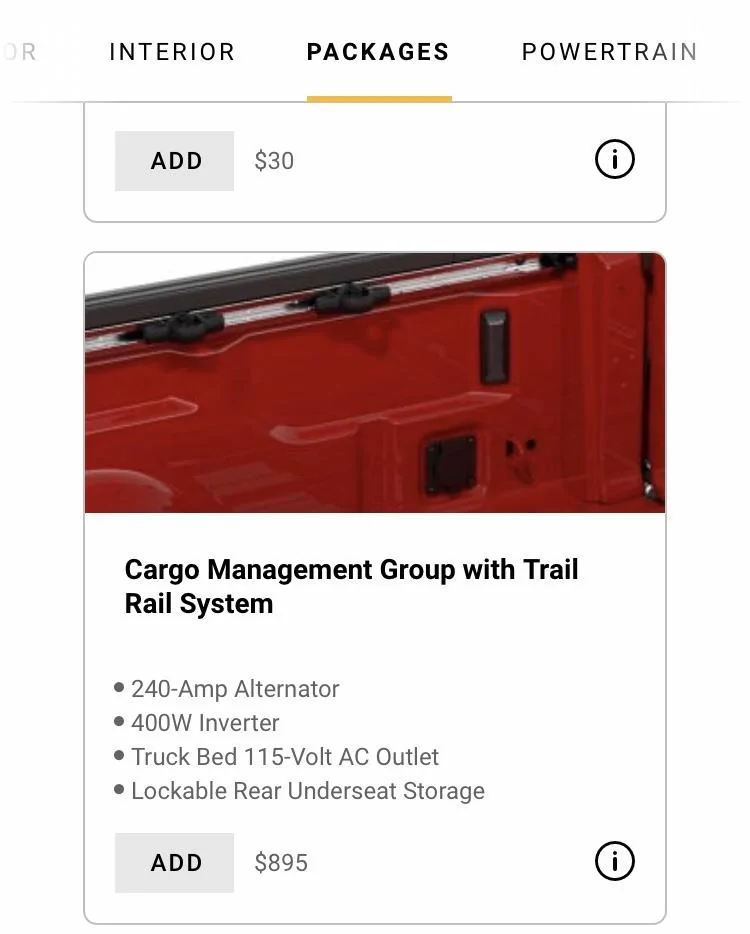

See attached, comes with the trail rail system. $895.00 Can’t get on base Sport model.
400 watts isn’t going to do anything heavy, but it will run chargers for power tools. I find that very handy.

I’m liking the pole too. I wonder what that package goes for.
