Decided to switch up the placement of the remote chuck for my on board air! Currently my ARB compressor is located in the drivers wheel well.

Parts:
6SS58TZZAC - OEM 4xE cowl
68467793AD - OEM 4xE charging door
ARB 171314 Remote hose kit
ARB 0740203 Stainless Steel hose

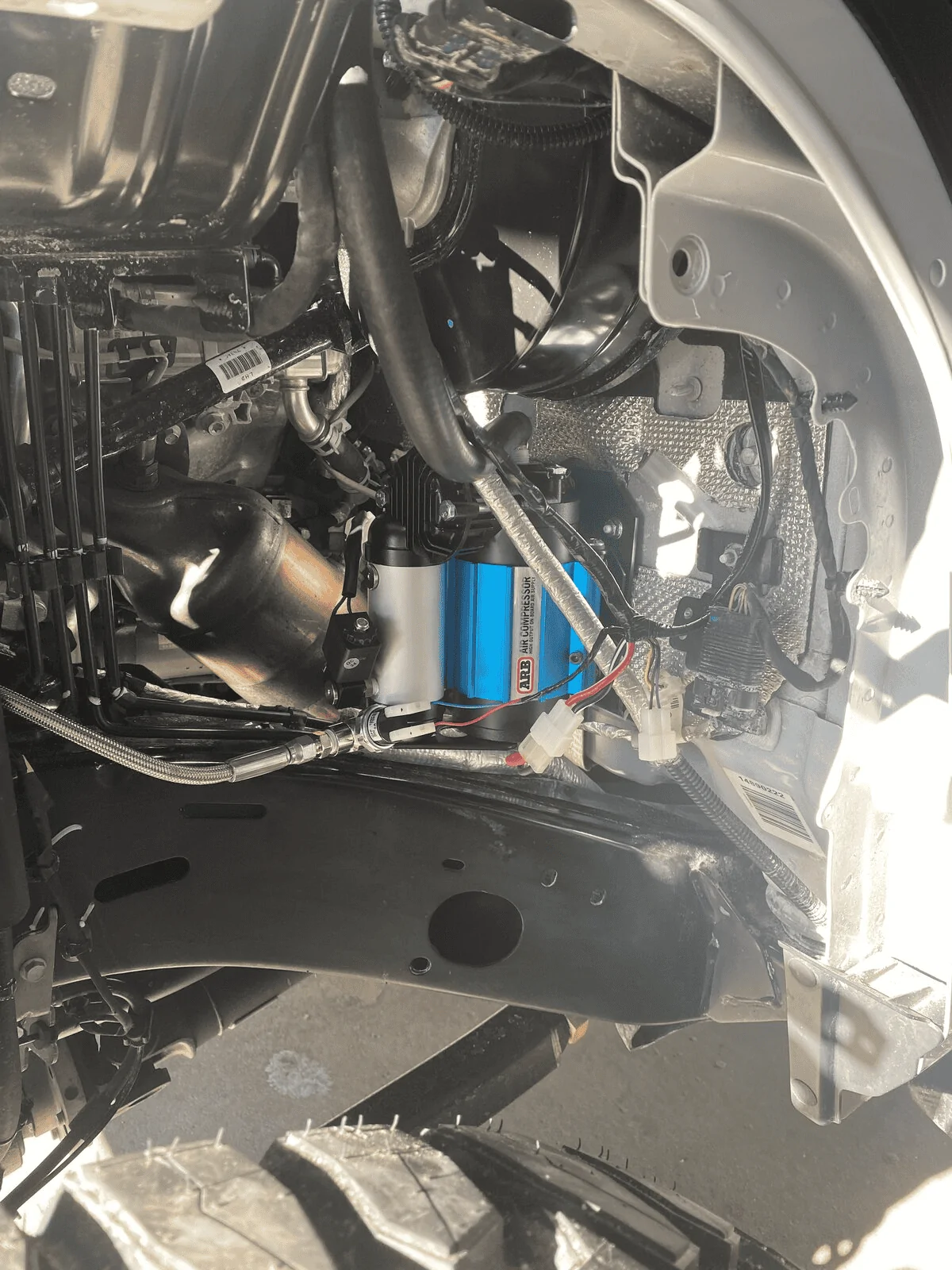

Placement of compressor:

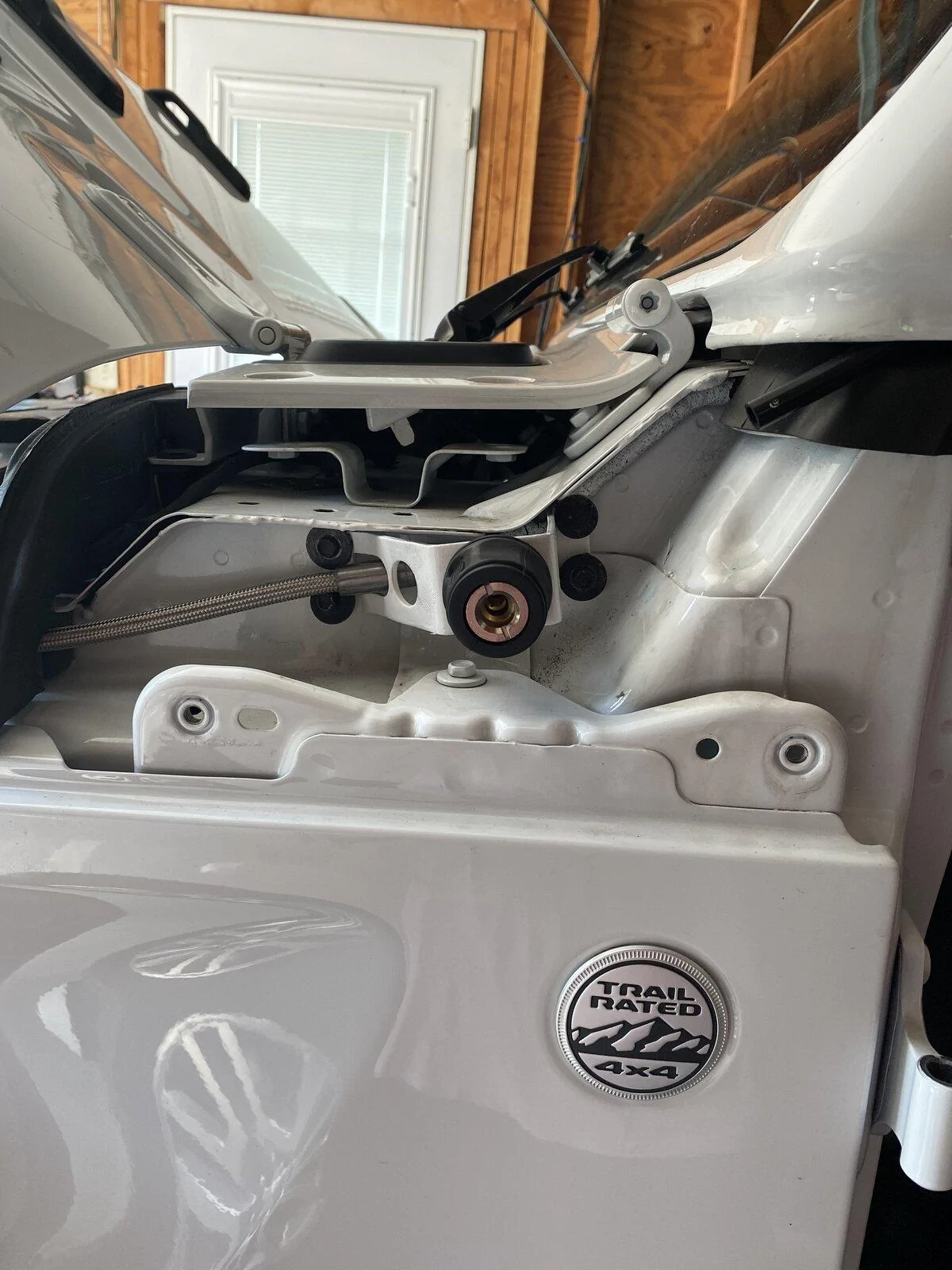

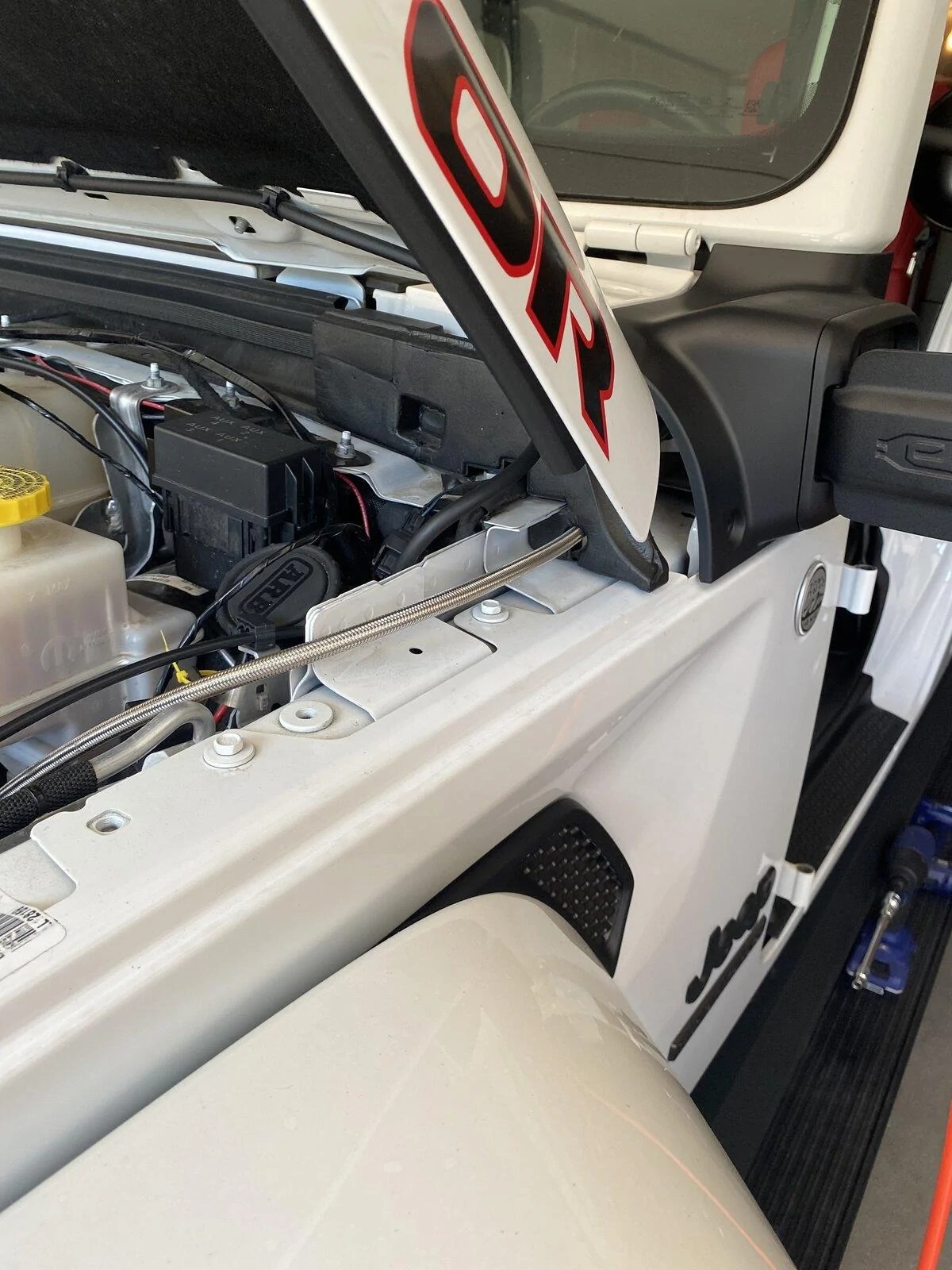

ARB stainless steel hose routed up to cowl:

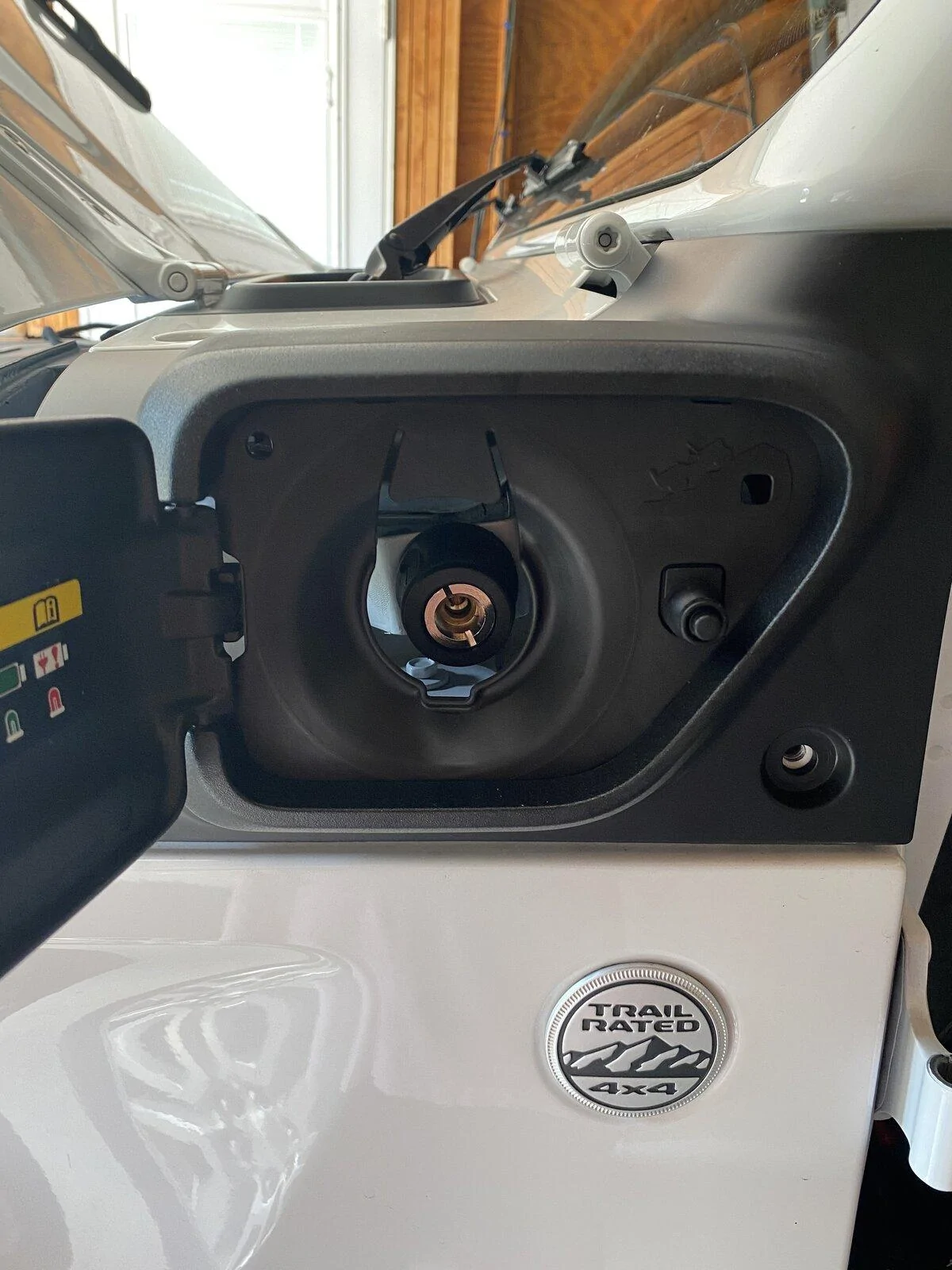

ARB remote chuck mounting bracket:

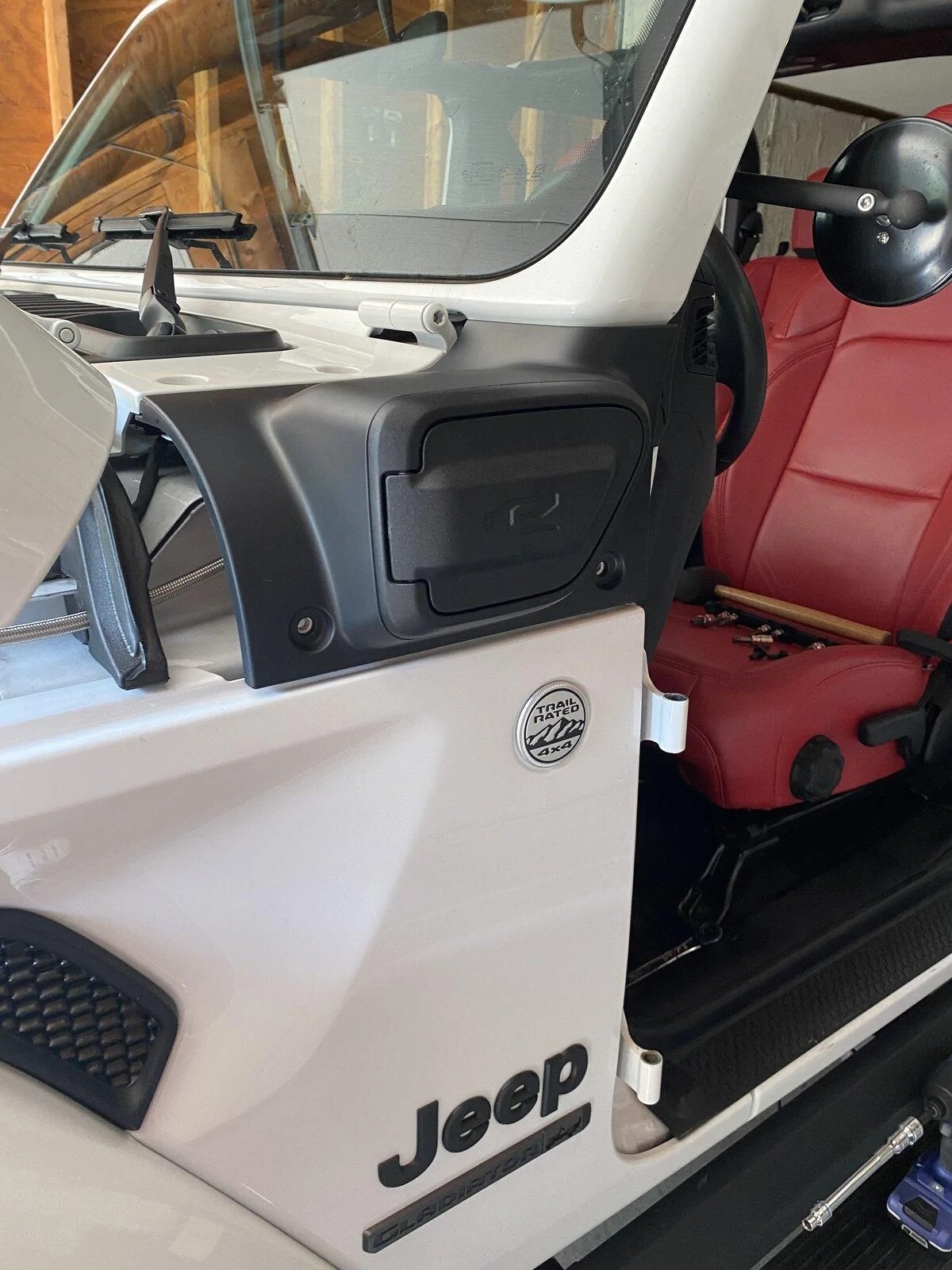

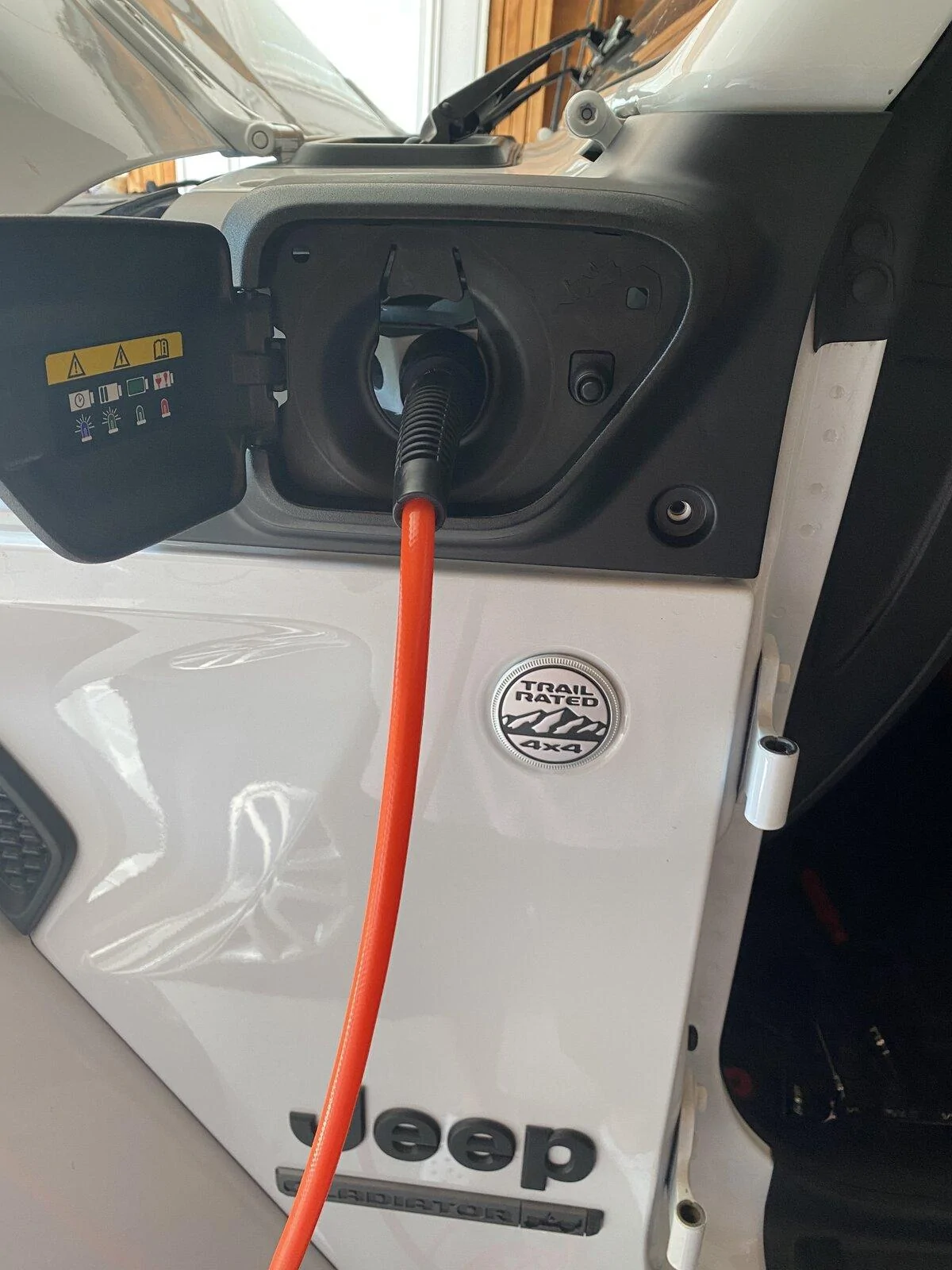

It's not perfectly centered but there is no issues accessing the chuck or removing the hose when needed. I'm not some master fabricator but if you are, you could design a bracket that would raise it a little bit:


Still needs some paint, then it will be complete!


Advertisement



Clv22p

Well-Known Member
First Name
Chris
Joined
Sep 9, 2019
Messages
229
Reaction score
303
Location
Nashville, TN
Vehicle(s)
2021 Mojave
You are going to end up on a "spy shots" blog somewhere confirming that the 4xe Gladiator is coming.


booneja

Well-Known Member
Joined
Jul 6, 2020
Messages
340
Reaction score
266
Location
VI, canada
Vehicle(s)
2020 Gladiator Sport (hers) and Overland (His)
Occupation
RCAF Veteran/ Engineer
Vehicle Showcase
1
I had this exact same idea, may I ask how much the cowl and door were? 4XE is not avail in Canada yet, according to my local dealer. going to be getting two as likely the wife will want the same once I do it to mine, lol

Edit: Just got word that these parts are now available in Canad, but Sweet Jeezus are they costly here $500 for all the parts necessary to install.....according to them there are three parts the two mentioned in this post and another, I'm going to the parts department to find out what they are, MTF.

Last edited:
OP
OP
mjoneil

mjoneil

Well-Known Member
First Name
Matt
Joined
Sep 2, 2020
Messages
122
Reaction score
267
Location
MA
Vehicle(s)
'20 Gladiator Sport S, '17 Camaro SS, '10 BMW 328
Build Thread
Link

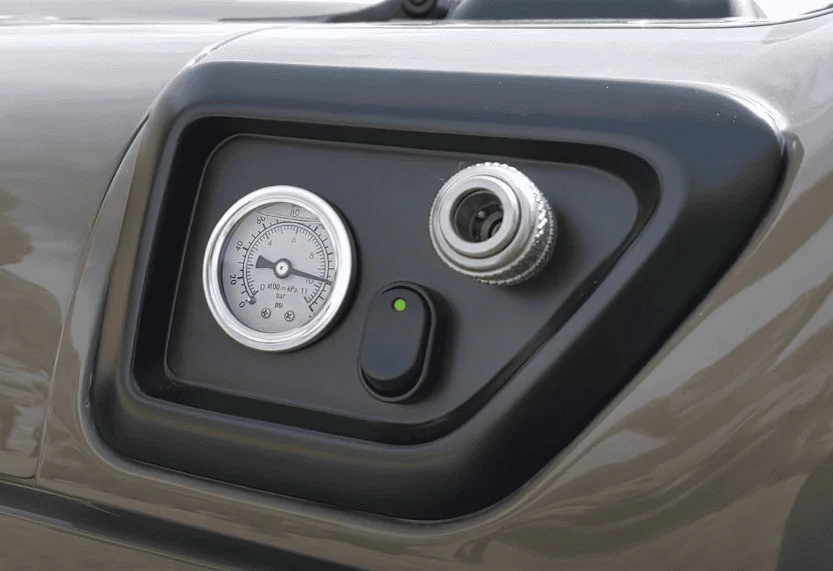

Someone had a whole kit with switches and the connector hose all flush mounted. It wasn't the 4xe exactly but same idea.

yeah someone had shown that to me! It's from Jeeps wayout concept which was shown in early 2019. Don't think anything came from it though... maybe opportunity for an aftermarket company


OP
OP
mjoneil

mjoneil

Well-Known Member
First Name
Matt
Joined
Sep 2, 2020
Messages
122
Reaction score
267
Location
MA
Vehicle(s)
'20 Gladiator Sport S, '17 Camaro SS, '10 BMW 328
Build Thread
Link
If you wanted to I bet you could get the interior panel with the opening out of there, and grind down some ABS to fit and then have at it.
Yeah i've never worked with ABS but believe me I wish I could make something clean like the wayout concept.


spectre6000

Well-Known Member
Joined
Apr 18, 2021
Messages
357
Reaction score
358
Location
Mountains above Denver
Vehicle(s)
pending

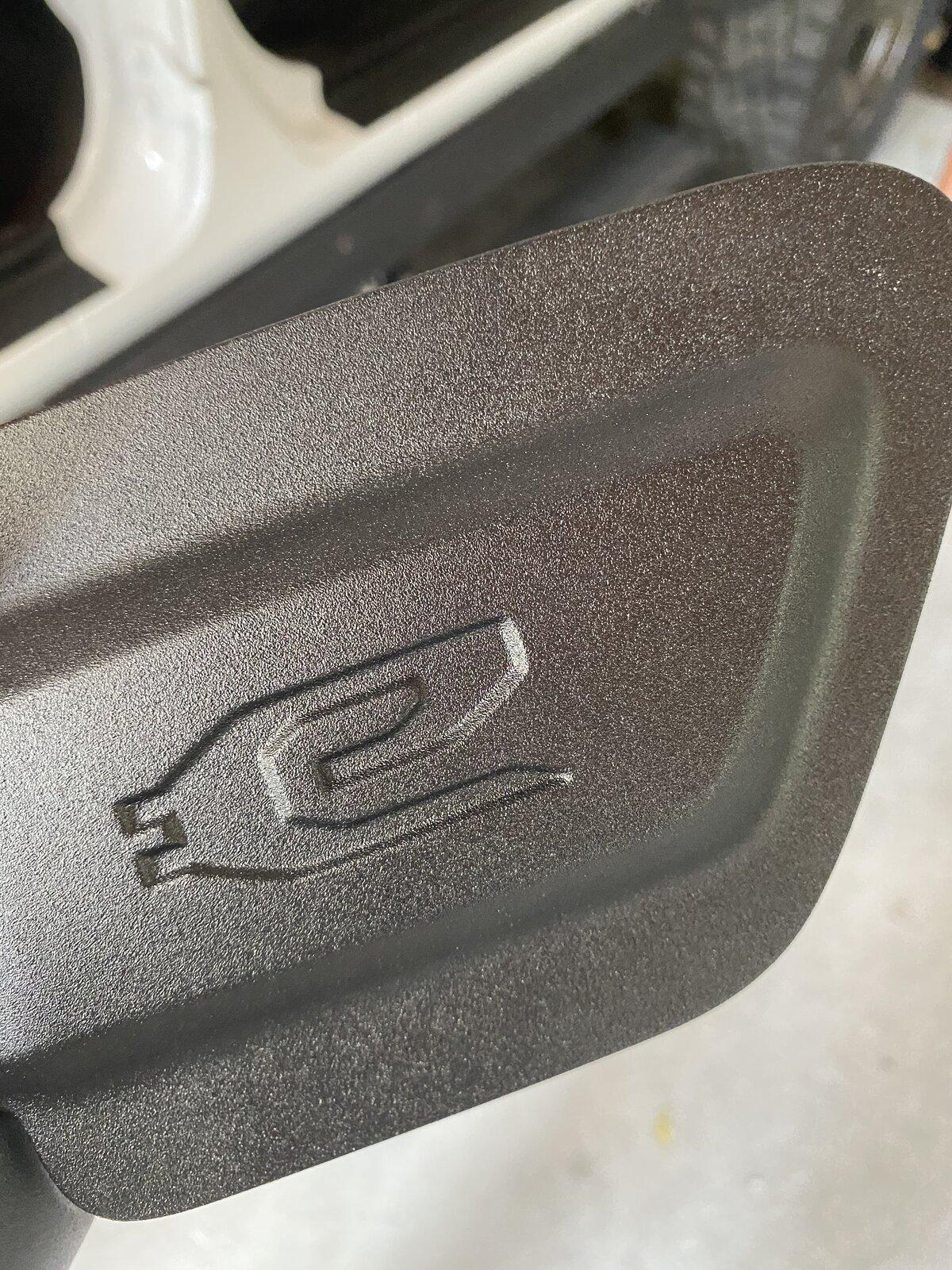

Fill the "e" logo before paint. If you have the skills, cutting in a patch to smooth it out would be even better.
