Finally got around to installing my winch. I chose the Zeak 13,000 after seeing many good reviews.

Used the Rugged Ridge Winch plate (easy install)

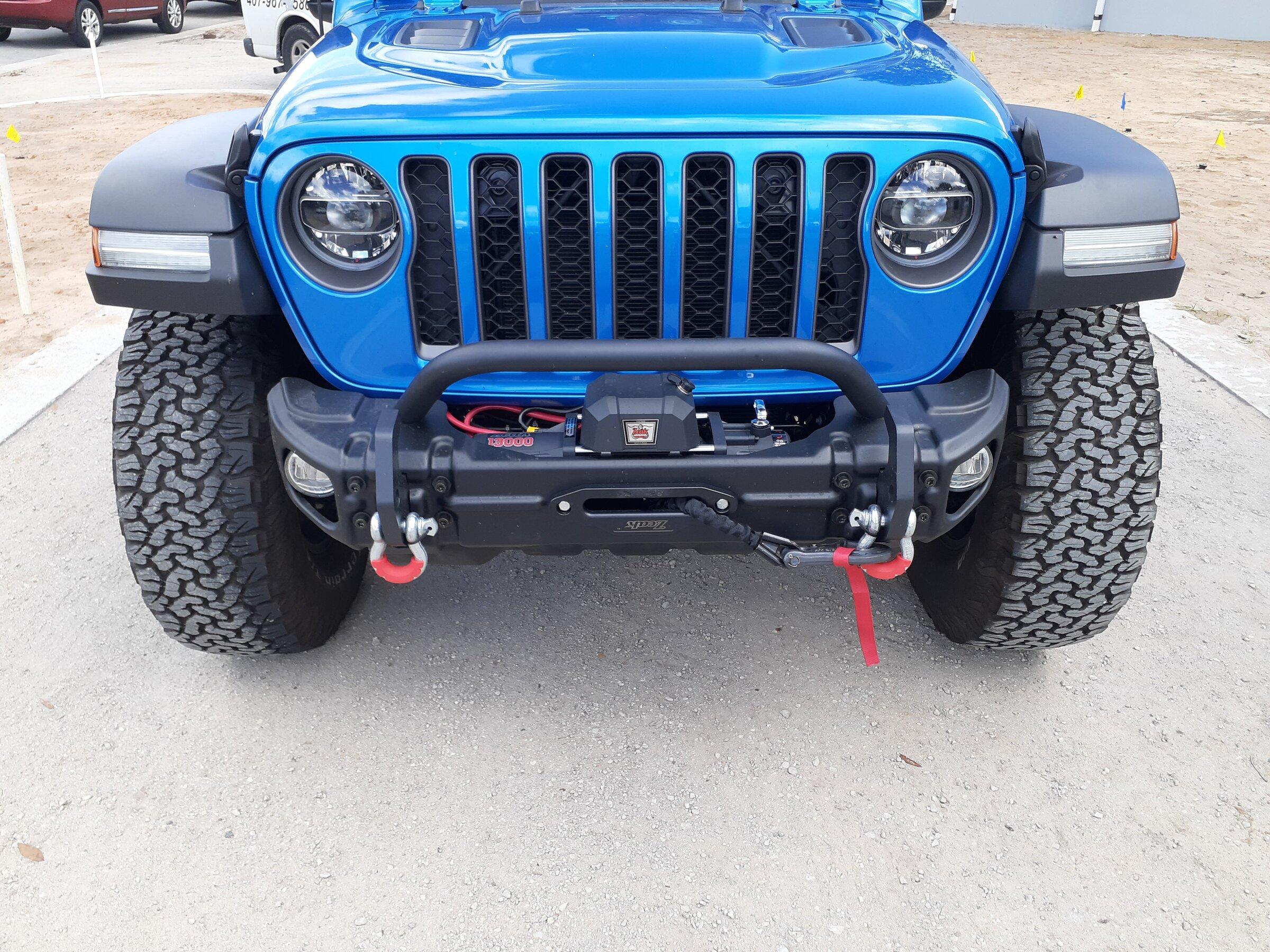

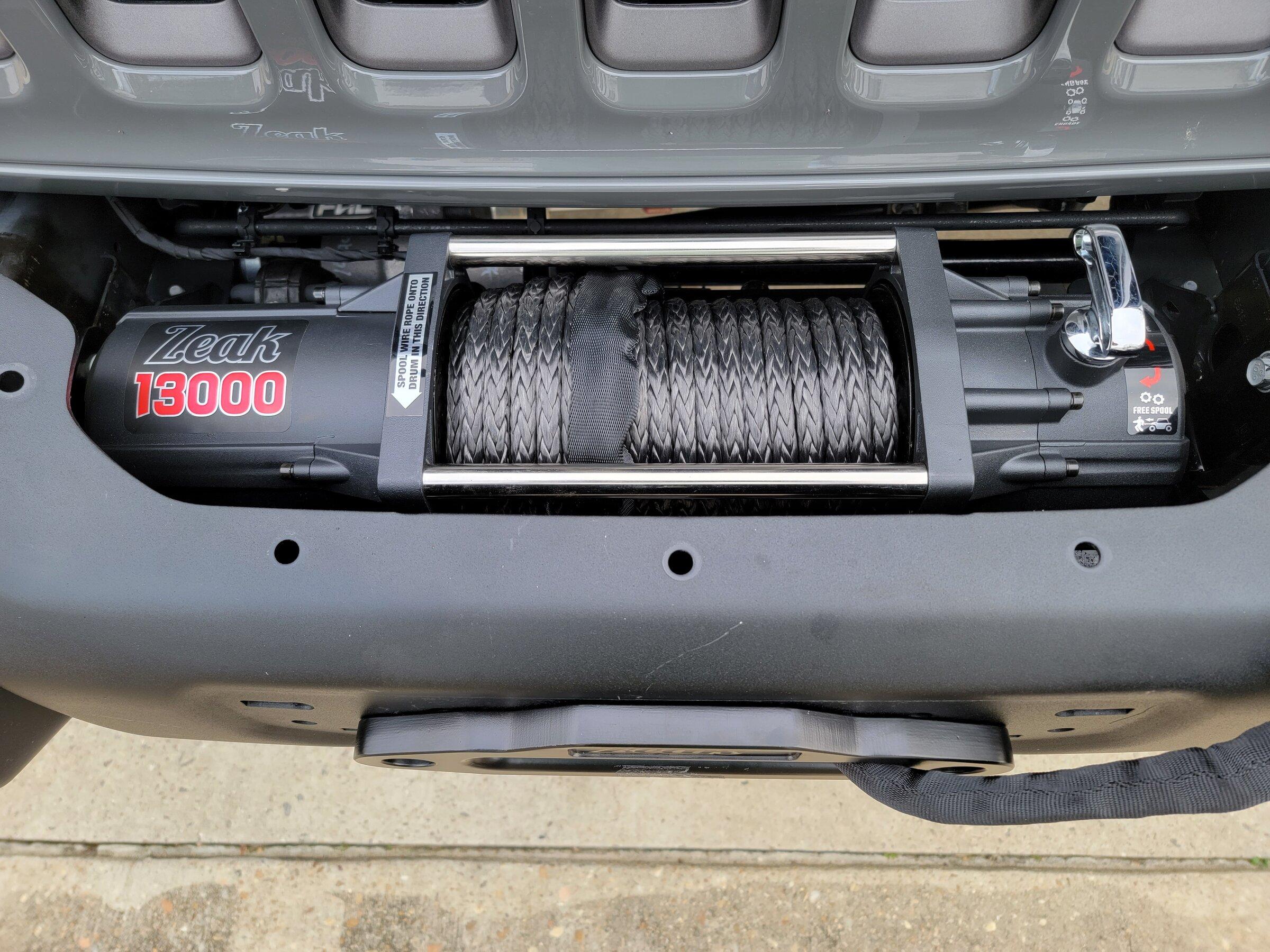

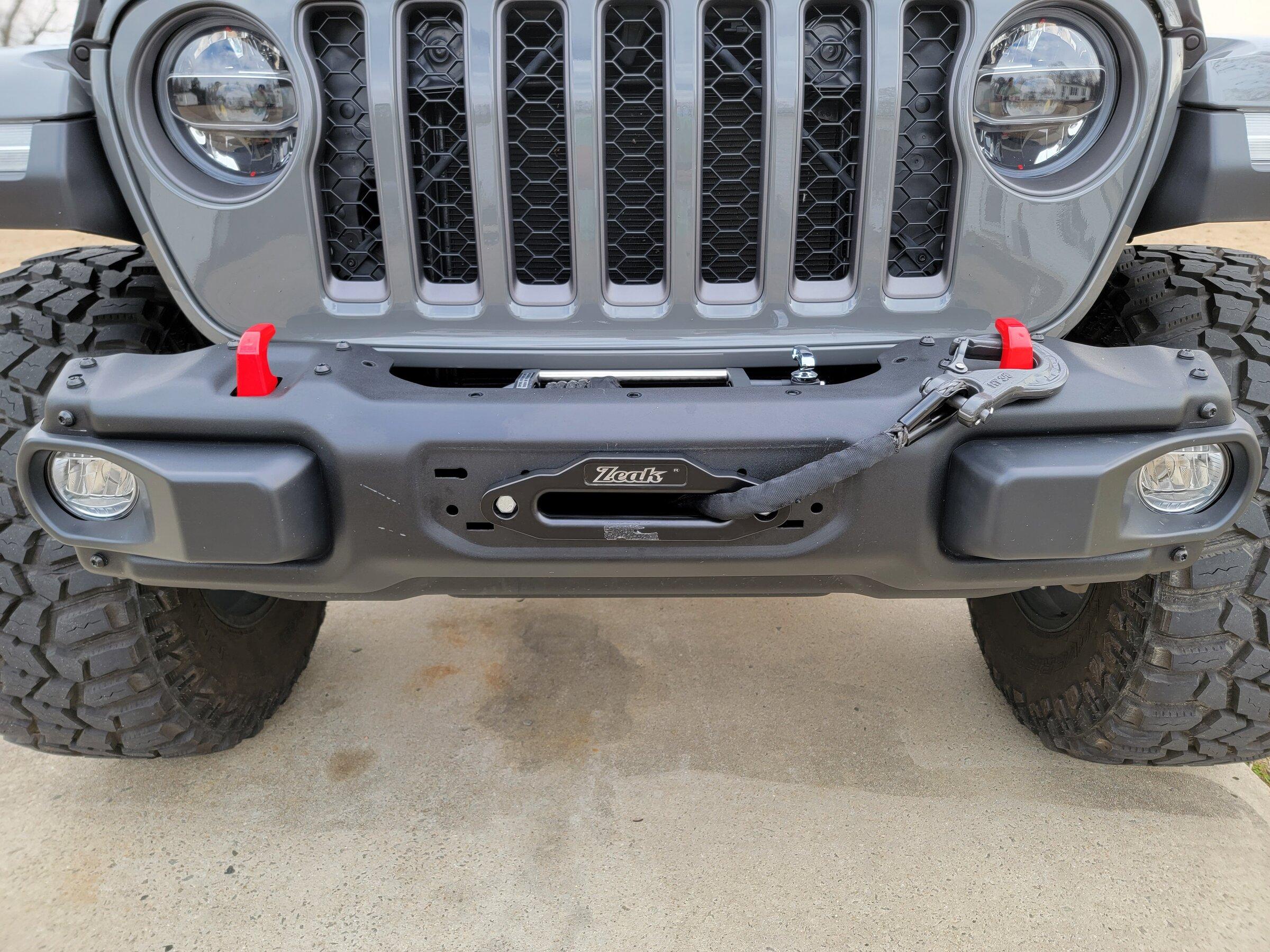

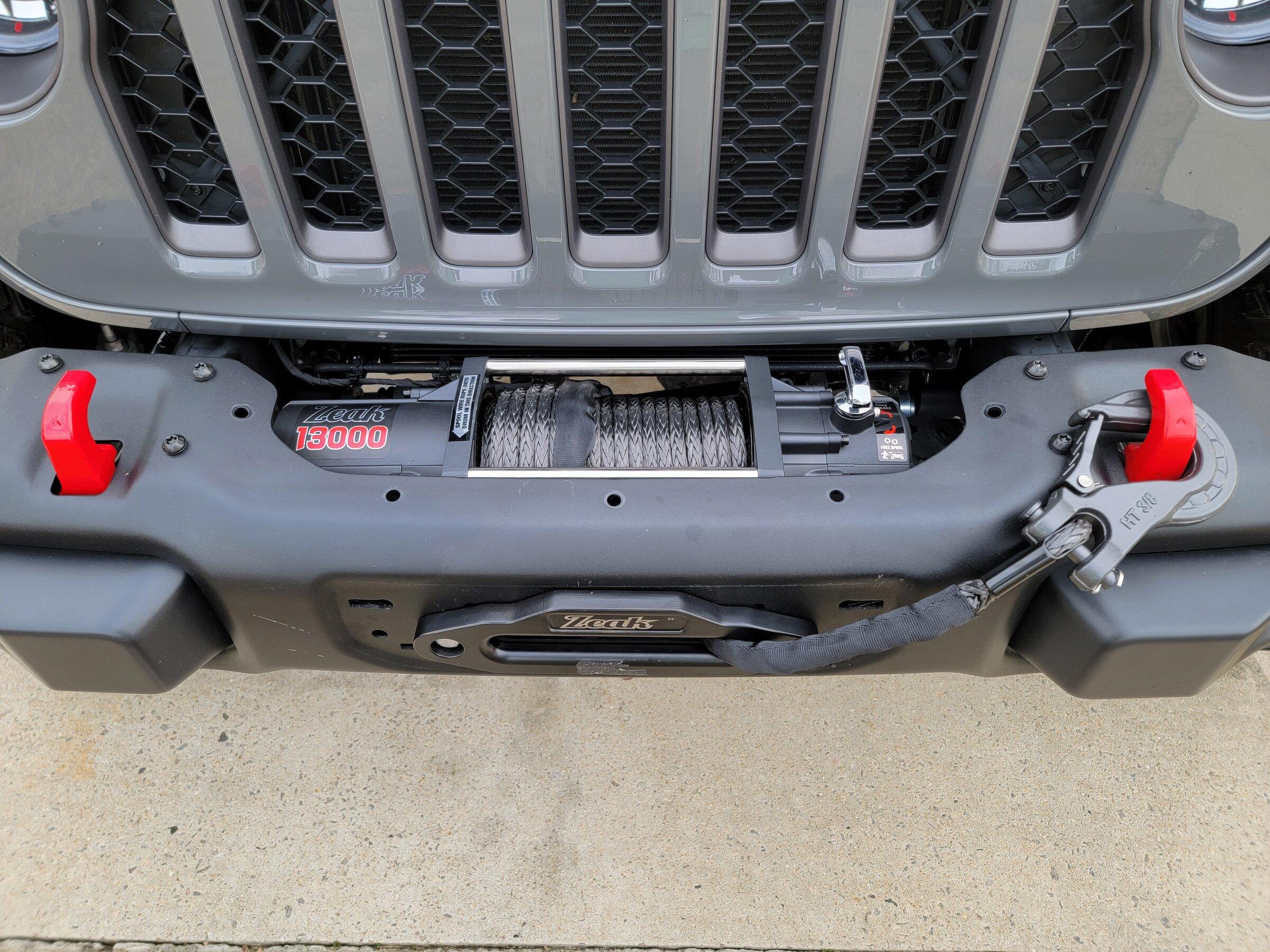

Jeep Gladiator Zeak Winch Install / Rugged Ridge Winch plate installed 20220212_153616


Jeep Gladiator Zeak Winch Install / Rugged Ridge Winch plate installed 20220212_153612


Jeep Gladiator Zeak Winch Install / Rugged Ridge Winch plate installed 20220212_153605
Sponsored



Gvsukids

Well-Known Member
First Name
Justin
Joined
Mar 7, 2020
Threads
22
Messages
4,948
Reaction score
4,608
Location
Grand Rapids
Website
www.youtube.com
Vehicle(s)
2020 Gladiator Sport S Max Tow
Occupation
Delivery Driver
Rusty's winch plate provides a plate to cover the front holes and nuts to reinstall the torx bolts on the top of the bumper.

OP
OP
Simple Man

Simple Man

Well-Known Member
First Name
David
Joined
Mar 23, 2021
Threads
18
Messages
93
Reaction score
82
Location
North Carolina
Vehicle(s)
2021 Gladiator Rubicon / 3.5 Metal Cloak Lift
Occupation
T&D Operations Supervisor
Rusty's winch plate provides a plate to cover the front holes and nuts to reinstall the torx bolts on the top of the bumper.
Thanks bud

OP
OP
Simple Man

Simple Man

Well-Known Member
First Name
David
Joined
Mar 23, 2021
Threads
18
Messages
93
Reaction score
82
Location
North Carolina
Vehicle(s)
2021 Gladiator Rubicon / 3.5 Metal Cloak Lift
Occupation
T&D Operations Supervisor
Rusty's winch plate provides a plate to cover the front holes and nuts to reinstall the torx bolts on the top of the bumper.
Sent them a message.....

If they can't sell only that plate .... I will just fab something from the original plate that was there.


Gvsukids

Well-Known Member
First Name
Justin
Joined
Mar 7, 2020
Threads
22
Messages
4,948
Reaction score
4,608
Location
Grand Rapids
Website
www.youtube.com
Vehicle(s)
2020 Gladiator Sport S Max Tow
Occupation
Delivery Driver

Sponsored

Pescatoral Pursuit

Banned
Banned
First Name
Chuck
Joined
Jun 19, 2021
Threads
73
Messages
1,301
Reaction score
1,825
Location
Orlando!
Vehicle(s)
‘06 F-150, ‘15 CTS, ‘21 JT Urban Rubicon Diesel
Occupation
Plumba
Got the same winch. Haven't done any heavy work with it yet. I'm a little nervous at what I'd consider an inadequate amount of cast aluminum where the winch bolts to the plate.
3250# of force at each point with those weinie cap screws?
Got a picture of the control box mount? I moved mine forward an inch so the wires would clear.




OP
OP
Simple Man

Simple Man

Well-Known Member
First Name
David
Joined
Mar 23, 2021
Threads
18
Messages
93
Reaction score
82
Location
North Carolina
Vehicle(s)
2021 Gladiator Rubicon / 3.5 Metal Cloak Lift
Occupation
T&D Operations Supervisor
Got the same winch. Haven't done any heavy work with it yet. I'm a little nervous at what I'd consider an inadequate amount of cast aluminum where the winch bolts to the plate.
3250# of force at each point with those weinie cap screws?
Got a picture of the control box mount? I moved mine forward an inch so the wires would clear.

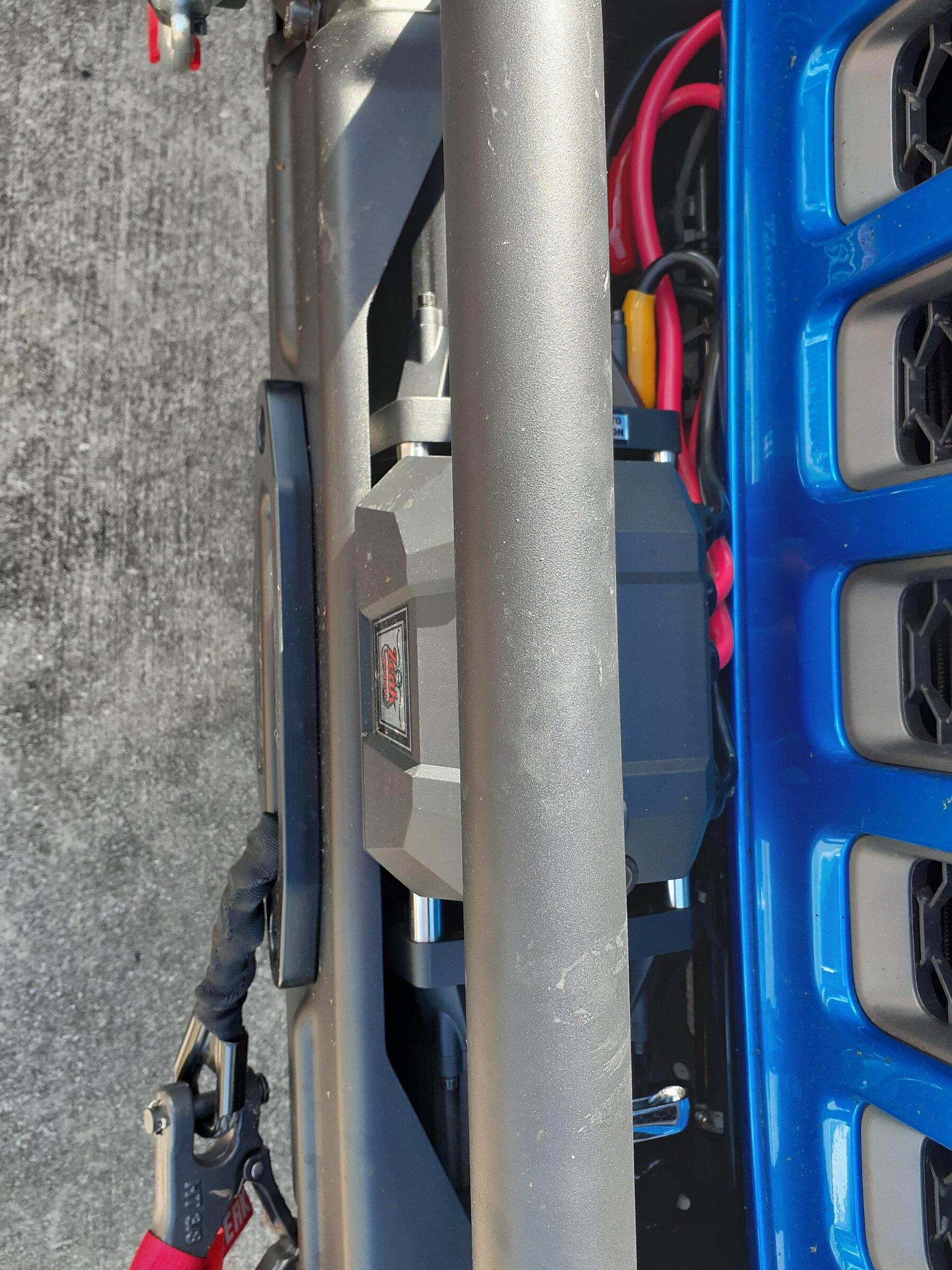

Jeep Gladiator Zeak Winch Install / Rugged Ridge Winch plate installed 20220101_135727


Jeep Gladiator Zeak Winch Install / Rugged Ridge Winch plate installed 20220101_135727

Haven't mounted the control box yet. My plan is to mount it under the hood


Pescatoral Pursuit

Banned
Banned
First Name
Chuck
Joined
Jun 19, 2021
Threads
73
Messages
1,301
Reaction score
1,825
Location
Orlando!
Vehicle(s)
‘06 F-150, ‘15 CTS, ‘21 JT Urban Rubicon Diesel
Occupation
Plumba
I don't have anything to compare as far as the mounting structure is concerned but it's not really passing the eye test.
As a preventative measure, I picked up several blocks and other than the lightest of recoveries, I'll be using double and triple line pulls, and also incorporating remote anchor points when available in order to minimize the load on the winch and I don't mean just the winch motor.

This guy has great tutorials on winch setups:



Haven't mounted the control box yet. My plan is to mount it under the hood
You'll have fun with that.

OP
OP
Simple Man

Simple Man

Well-Known Member
First Name
David
Joined
Mar 23, 2021
Threads
18
Messages
93
Reaction score
82
Location
North Carolina
Vehicle(s)
2021 Gladiator Rubicon / 3.5 Metal Cloak Lift
Occupation
T&D Operations Supervisor

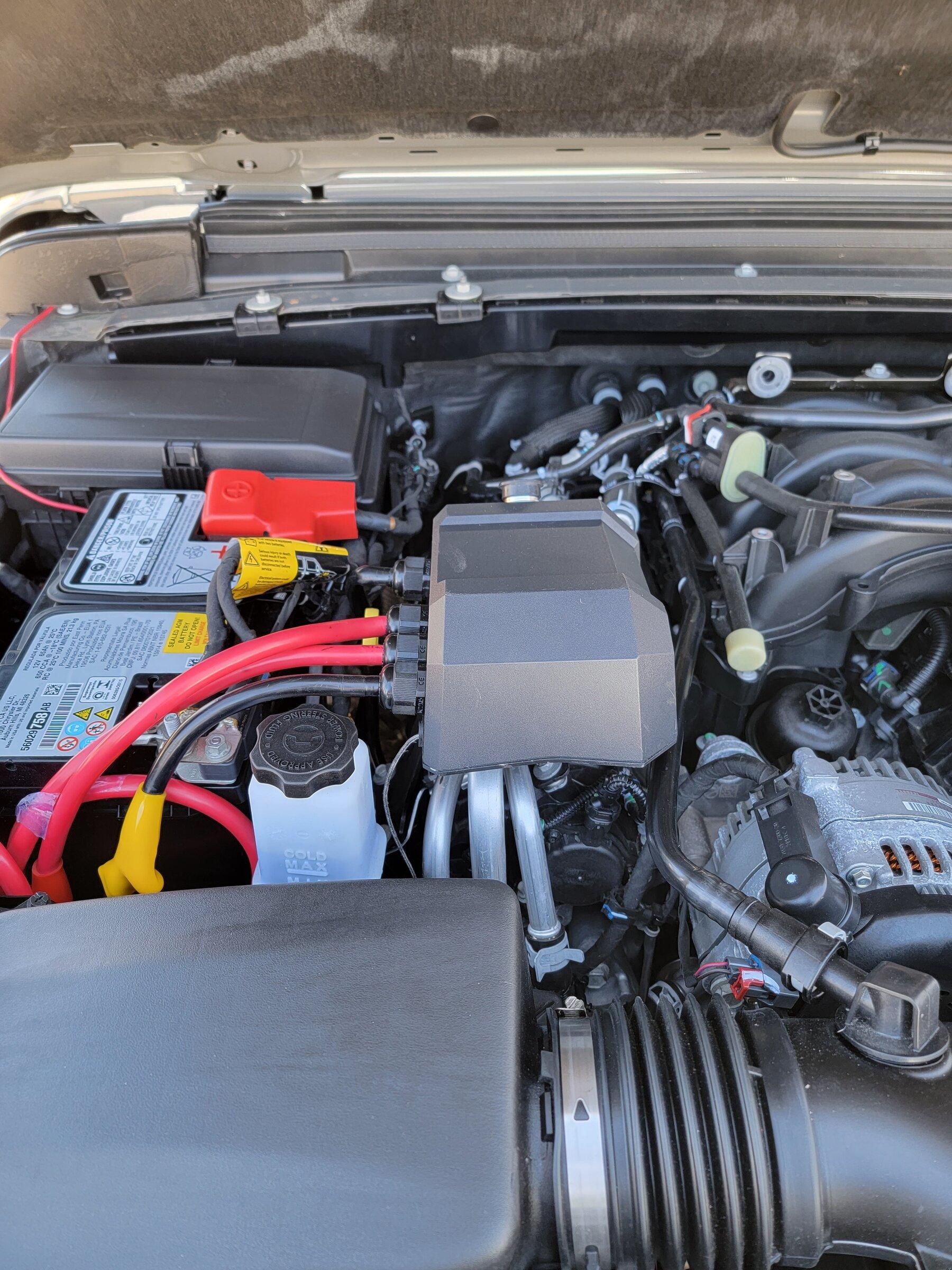

Followed a members idea and mounted the control box on top of the motor. Clears the Rubicon hood

Jeep Gladiator Zeak Winch Install / Rugged Ridge Winch plate installed 20220215_130657

OP
OP
Simple Man

Simple Man

Well-Known Member
First Name
David
Joined
Mar 23, 2021
Threads
18
Messages
93
Reaction score
82
Location
North Carolina
Vehicle(s)
2021 Gladiator Rubicon / 3.5 Metal Cloak Lift
Occupation
T&D Operations Supervisor

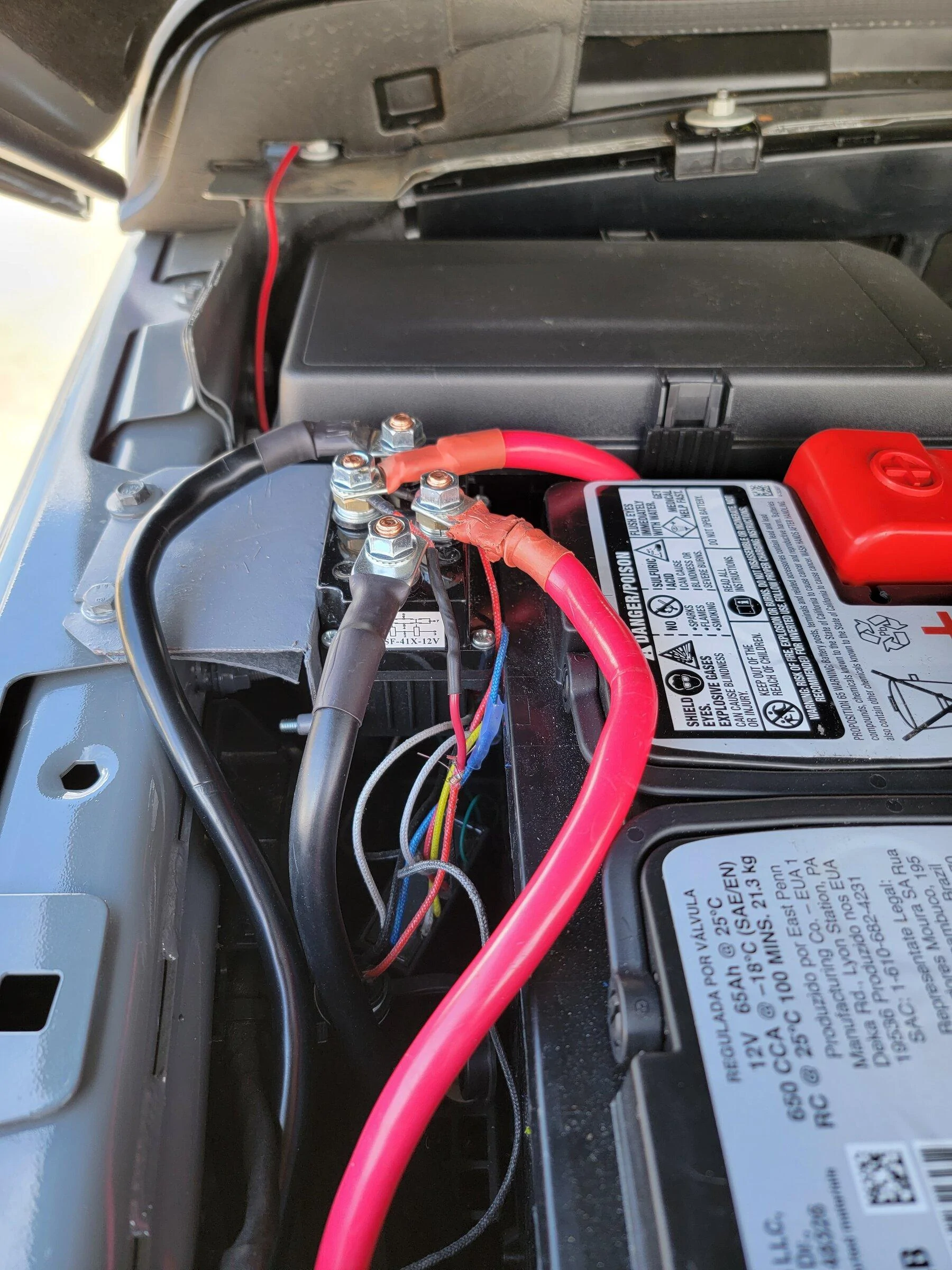

Made some changes because I did not like how hot the control box got.

Fabbed up a bracket and mounted just the solenoid between the battery and fender.

Going to extend the (wired) control switch to the front bumper and drill a hole in the bumper for the plug.

Just need to tidy up the wires

Jeep Gladiator Zeak Winch Install / Rugged Ridge Winch plate installed 20220218_130901

OP
OP
Simple Man

Simple Man

Well-Known Member
First Name
David
Joined
Mar 23, 2021
Threads
18
Messages
93
Reaction score
82
Location
North Carolina
Vehicle(s)
2021 Gladiator Rubicon / 3.5 Metal Cloak Lift
Occupation
T&D Operations Supervisor

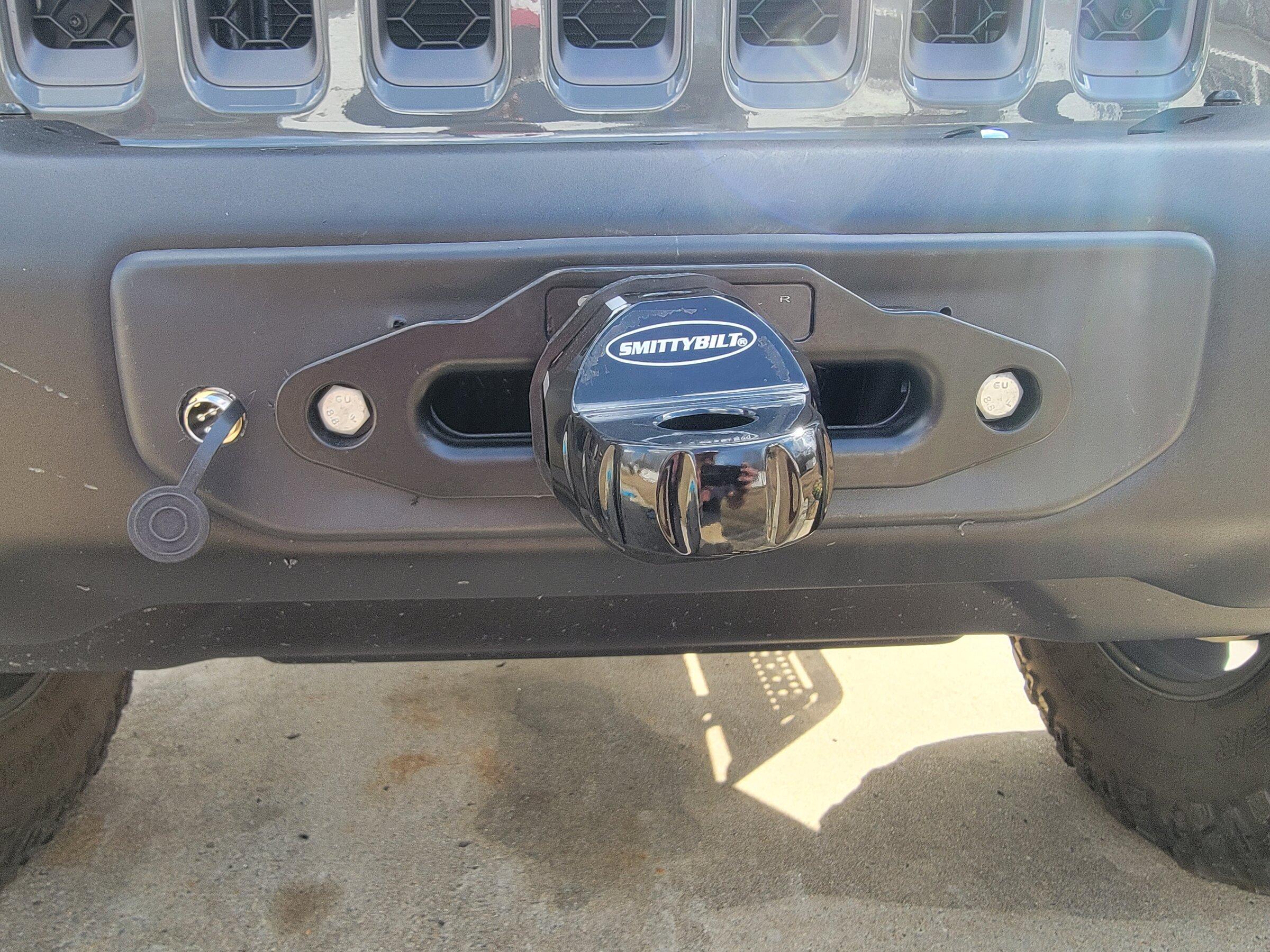

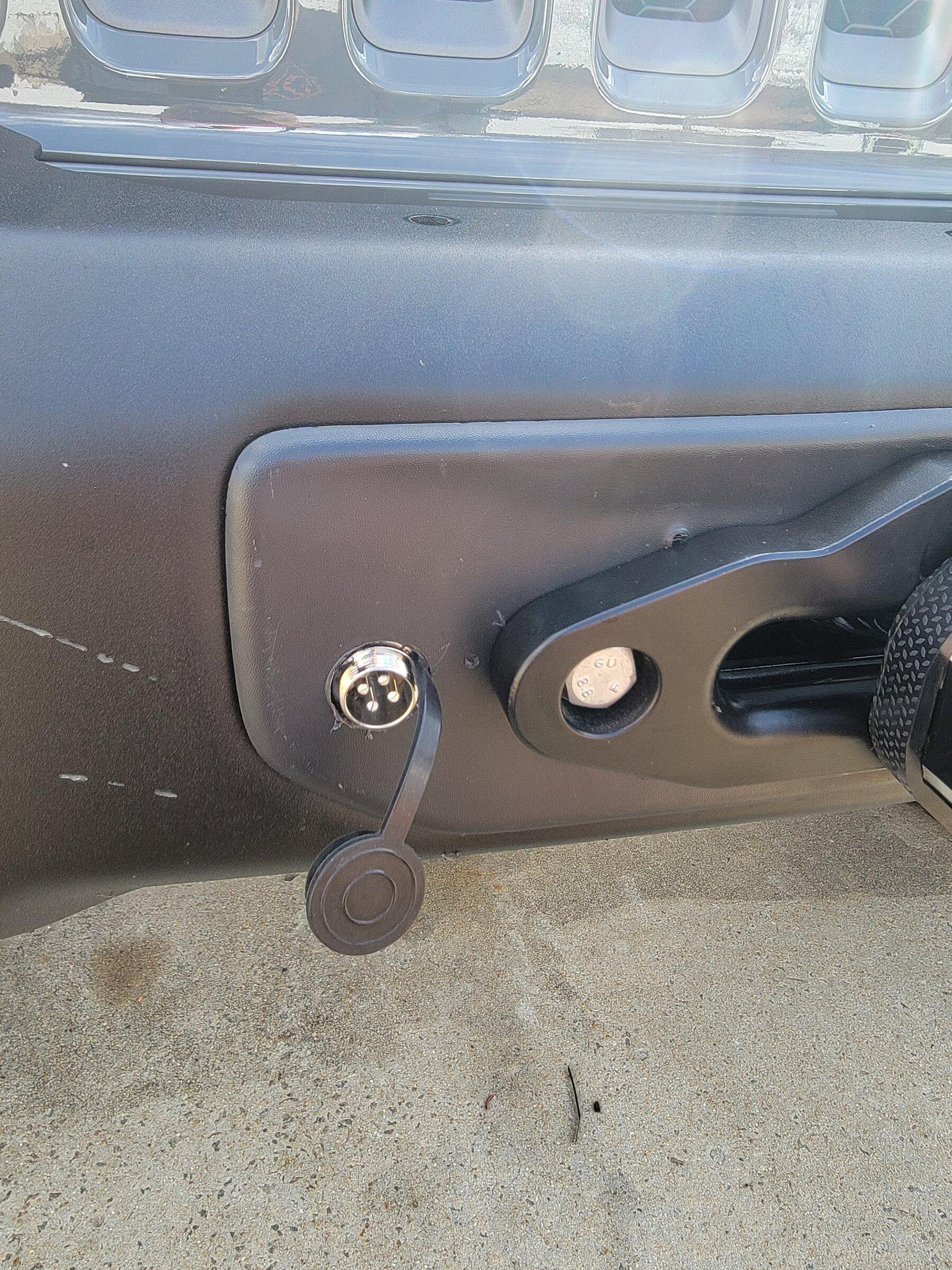

Extended the control plug wires and located the plug to the front bumper.
