Small update - I want to share this info for all European version Gladiator owners.

EU Overland is very different form US Overland.
EU Gladiator got not only Mojave hood but also Mojave cast iron knuckles on front axle and Mojave reinforced frame!

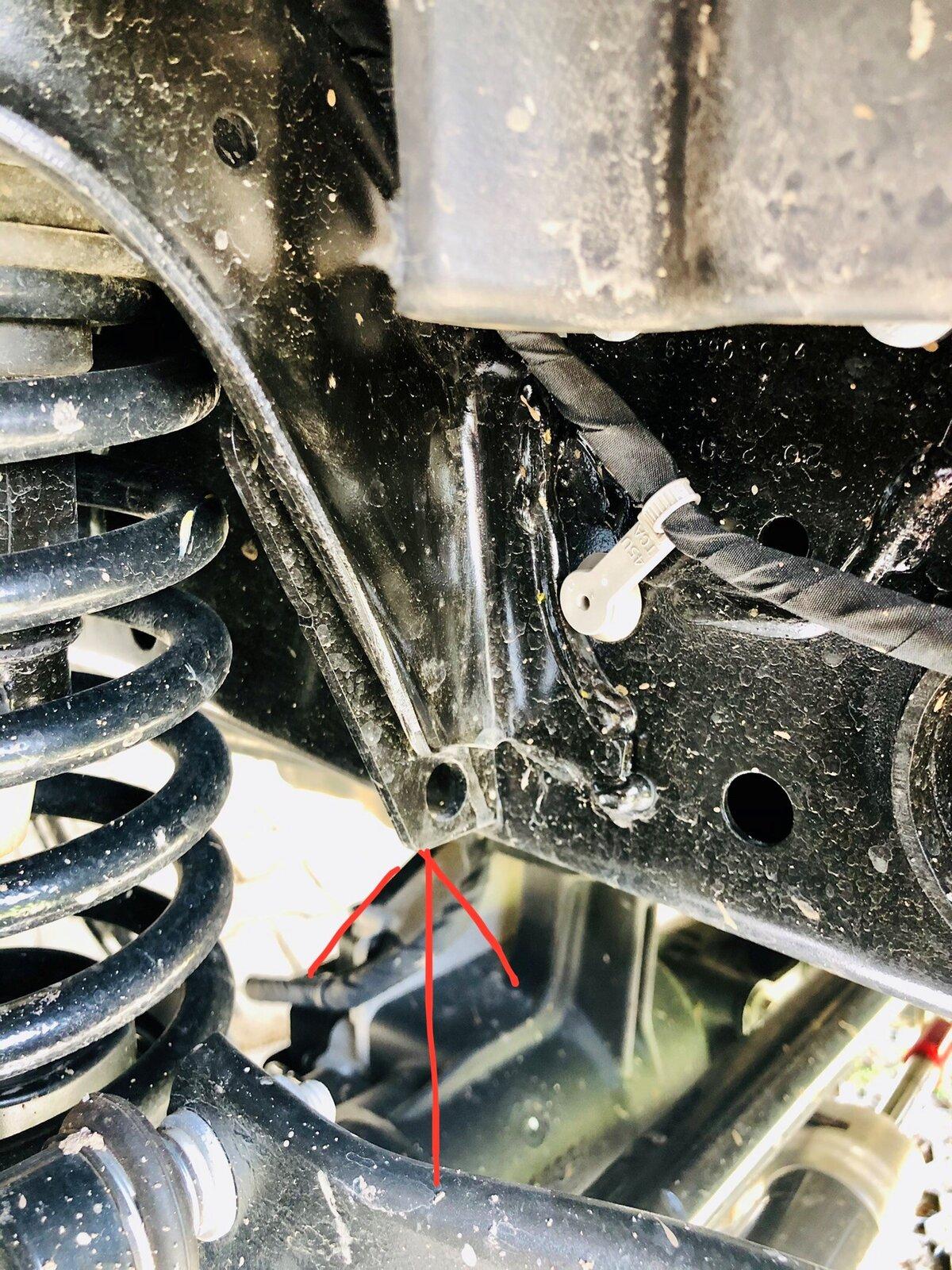

This means that if you want to use Synergy Front Track Bar and Sector Shaft Brace than you have to cut this coil bucket gusset.

I wonder if Synergy will make Mojave specyfic brace. This would be nice.

Sponsored



[Giersz]

Small movie I was able to make together with JR-Wheels



[jeepit]

interesting



[Giersz]

Bed molle panels? Extremely useful. Unfortunately not very popular in EU.
I was unable to find light Aluminium panels with bolt on installation (no drilling). I decided to make my own project and start manufacturing such panels

1. Set of 3 side specific pan
2. Lightweight Aluminium
3. Only 5.8kg for whole set
4. Black powder coated
5. Easy installation without drilling

If you are looking for such panels in Europe, feel free to contact me.
It is no problem to deliver them anywhere in EU.



[Giersz]

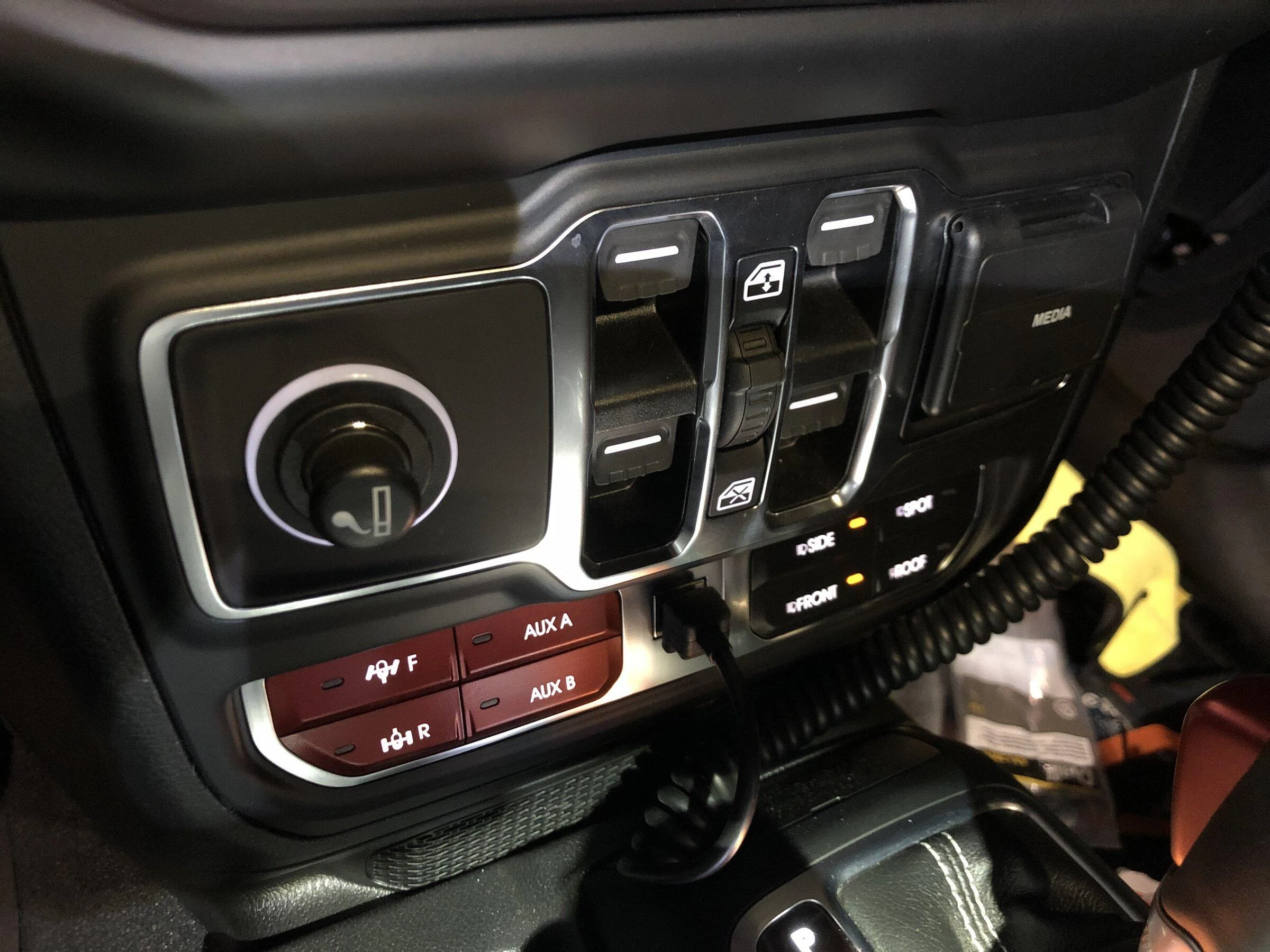

I managed to put my hands on a set of LASFIT switches.
I really like the clean look and way how it works.

Looks like factory and also switch backlit is on only when lights are on. Like factory switches.

Locker switches can work in two modes.
Safe mode - only in 4LO - if no 4LO, swith will not activate and gives warning beep. If activated in 4LO and changed to 4Hi it will be automatically deactivated.
Normal mode - as a normal switch

Central RJ45 port fits my CB Radio for even cleaner installation.

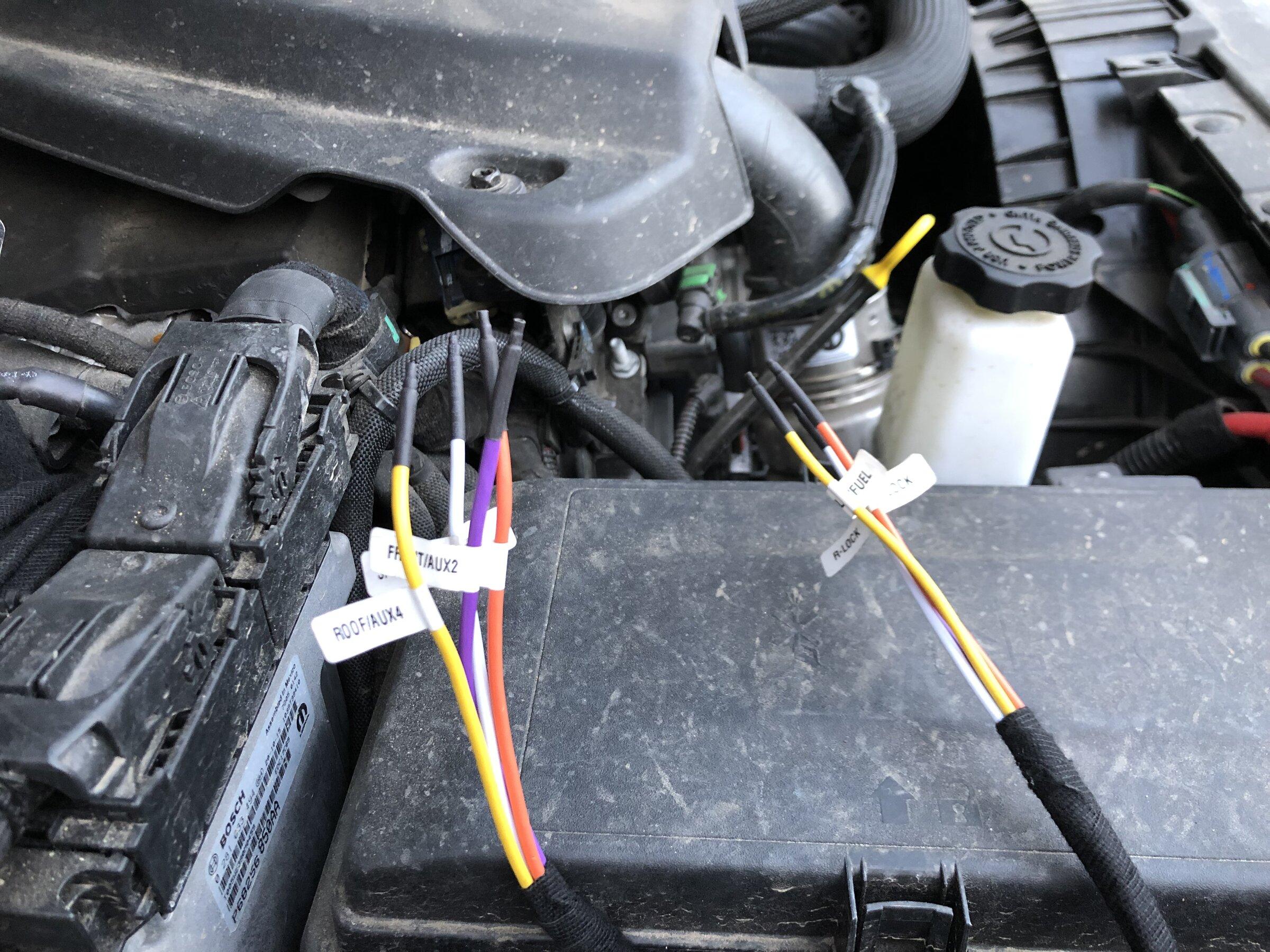

Lasfit Diesel setup:

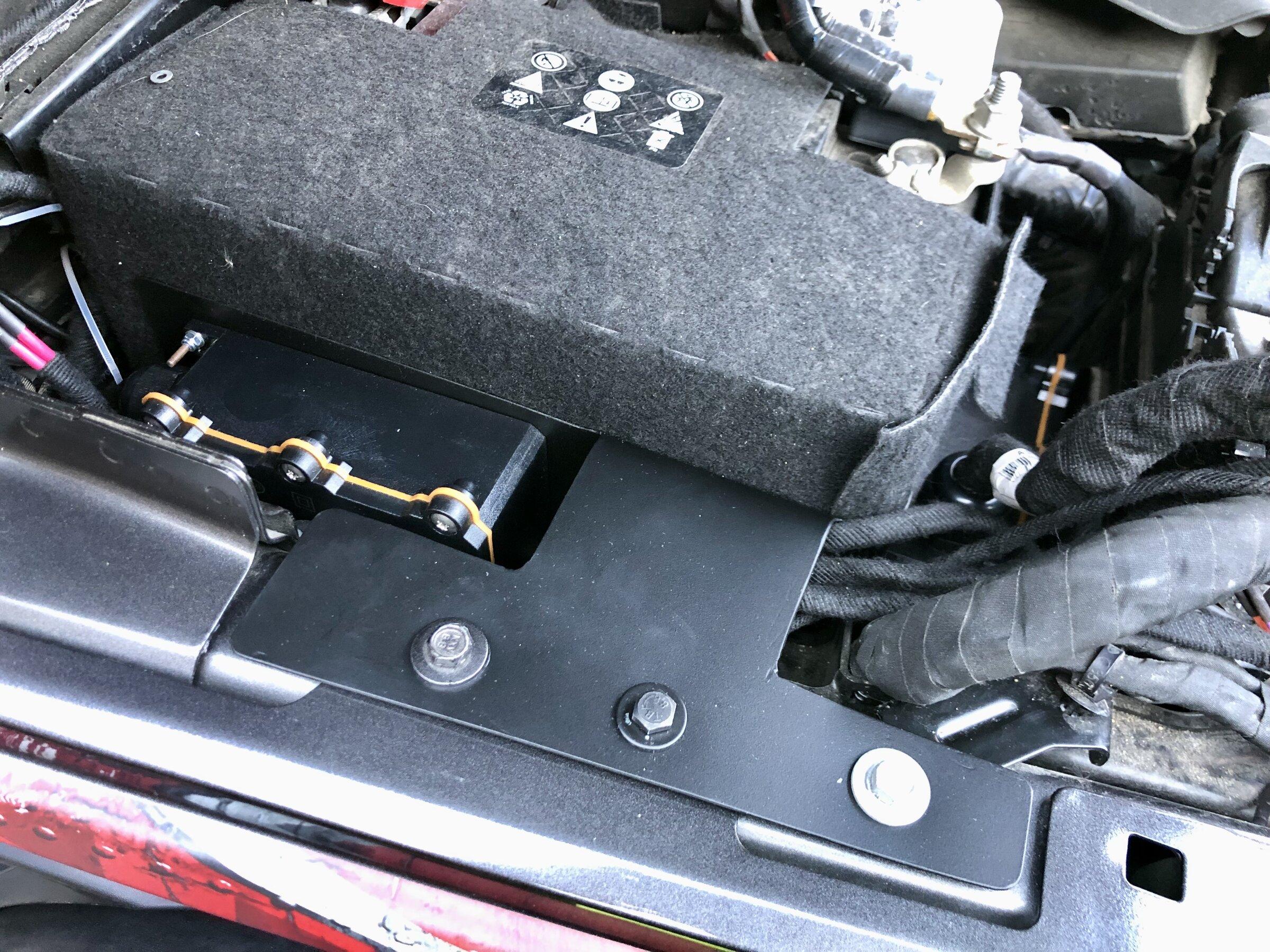

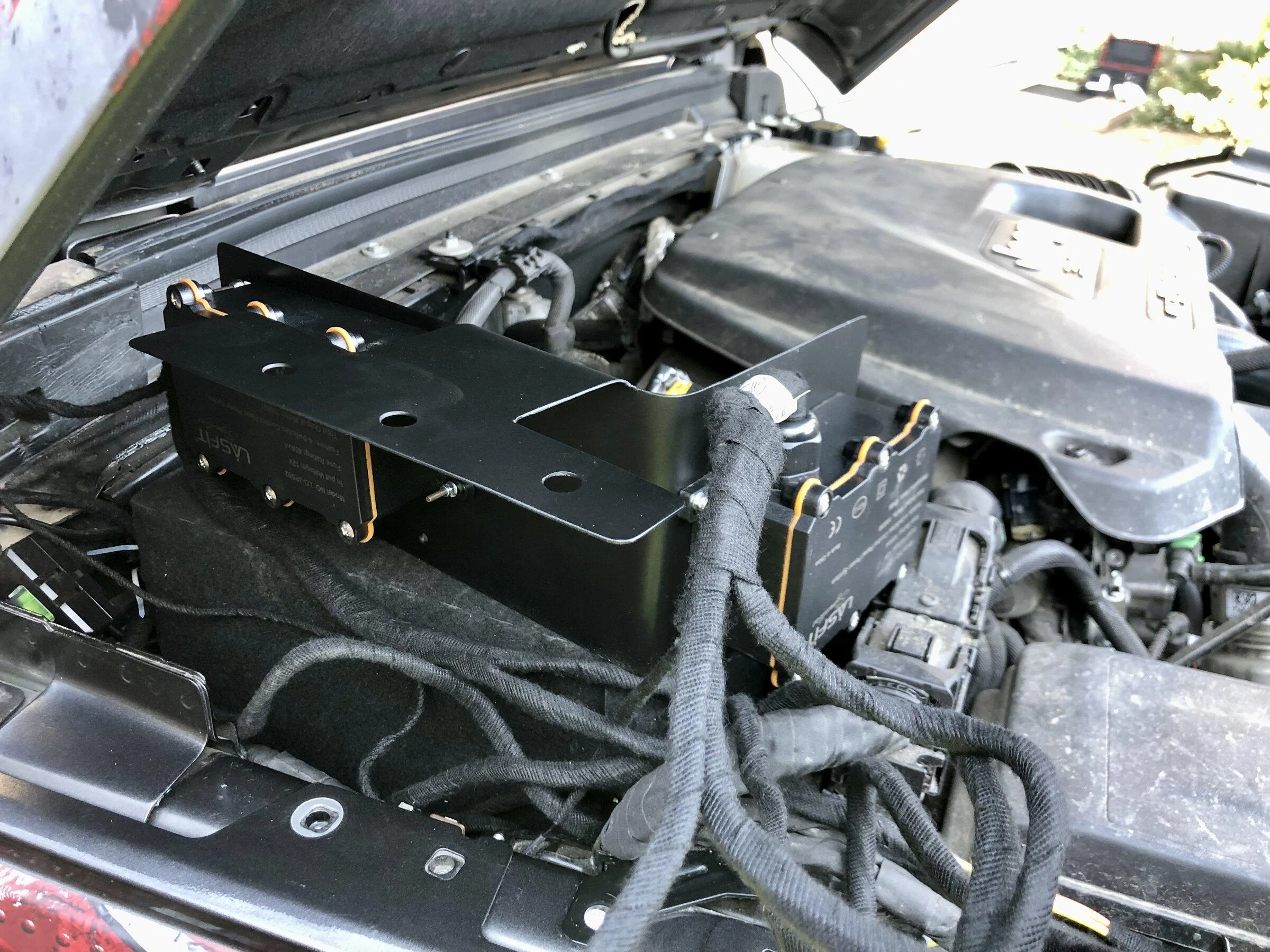

This set is designed fir gas models so i had to be a little creativeBiggest challenge was to find place for relay box so that wire harness will fit. Place where it should go was not available and also wire was impossible to install as it was designed. I changed the side and found perfect locations. Some play with angle grinder, black paint and I am very pleased how it turned out.

Next step - installation of ARB Solis dimmable lights.
