Aftermarket bumpers not fitting skid plates.

canyonrat

Well-Known Member
First Name
Jerry
Joined
Jul 23, 2019
Threads
8
Messages
276
Reaction score
387
Location
Knoxville, TN
Vehicle(s)
2020 Gator Gladiator Rubicon, 2005 Jeep TJ RME

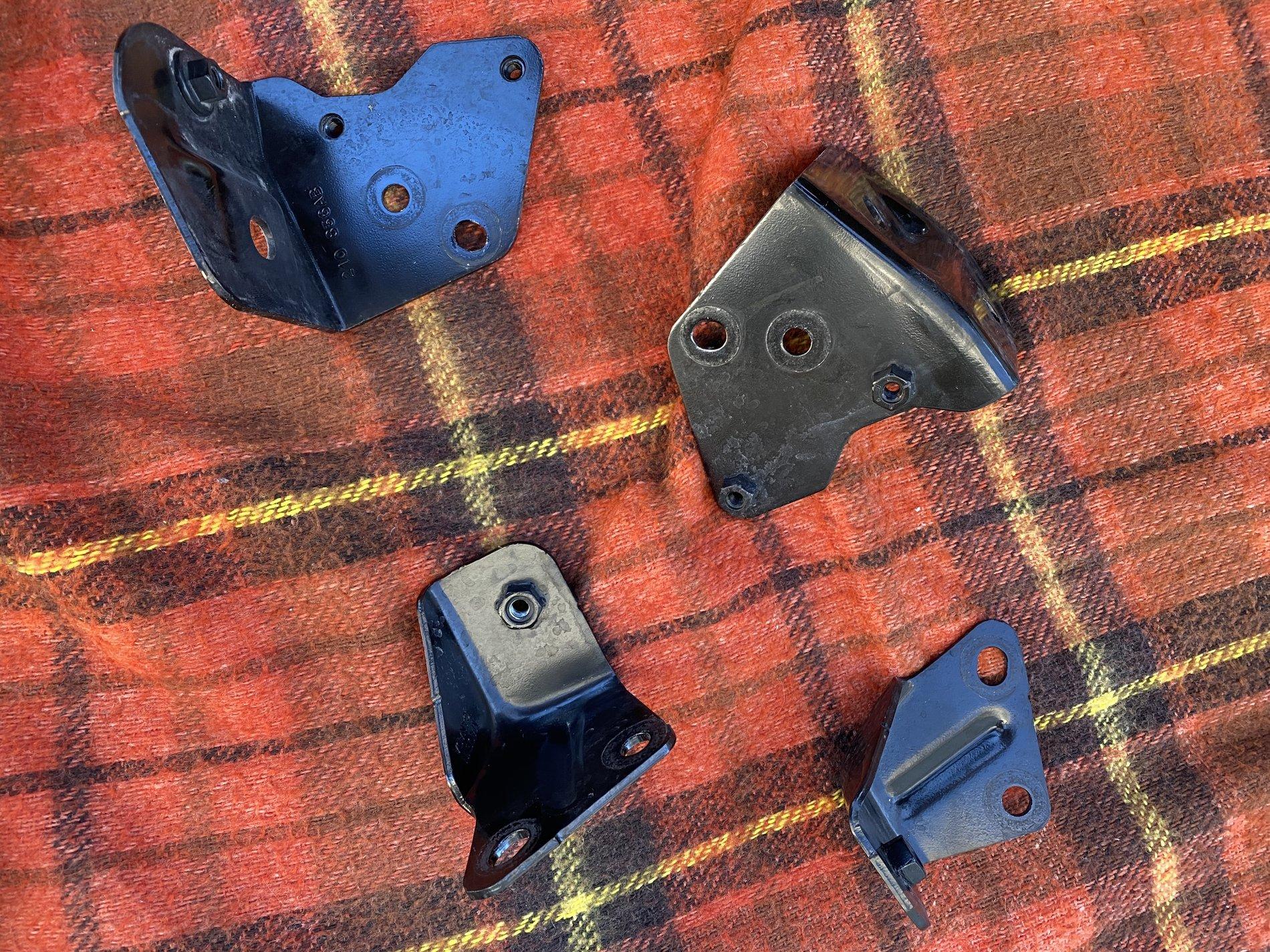

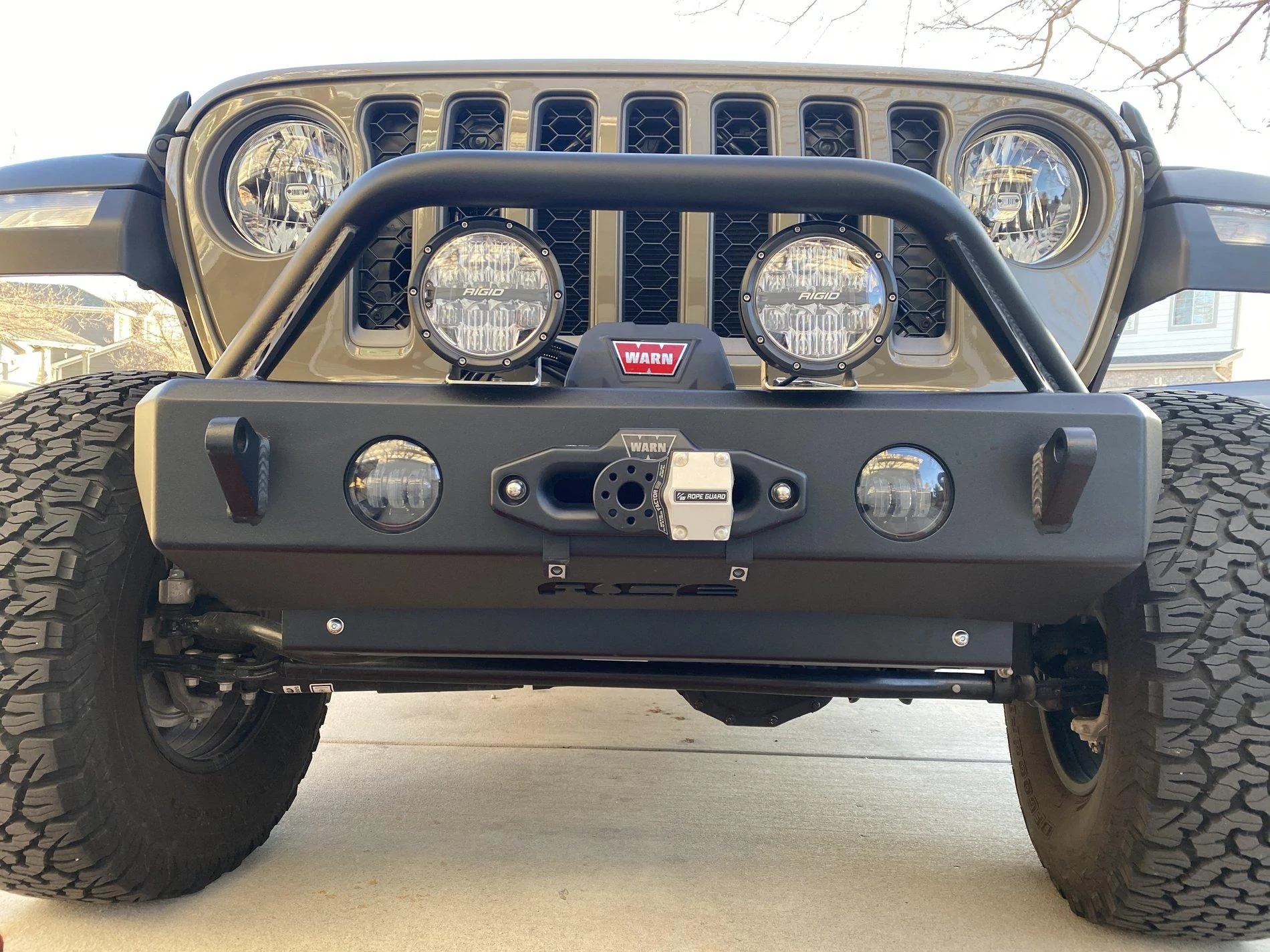

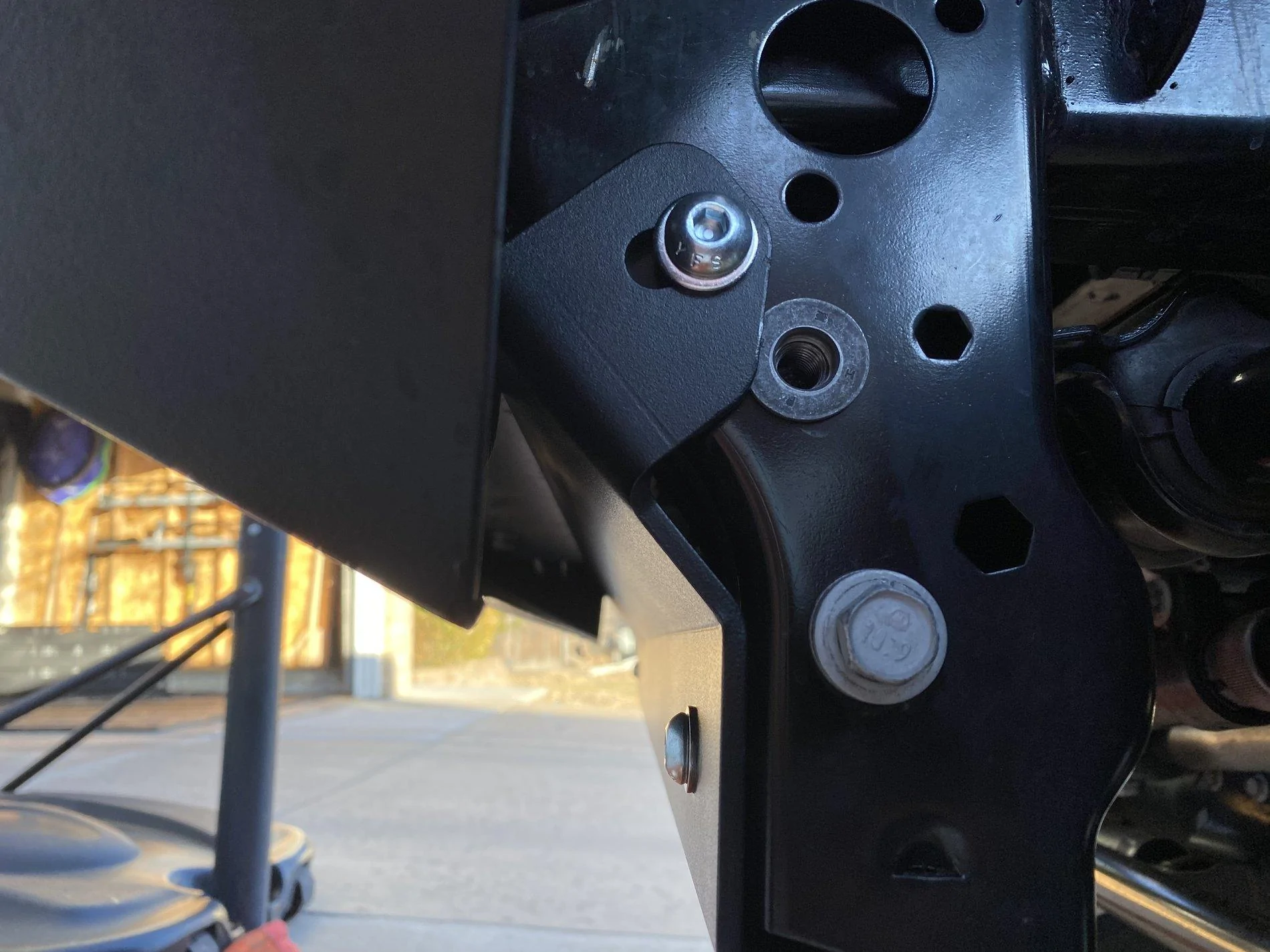

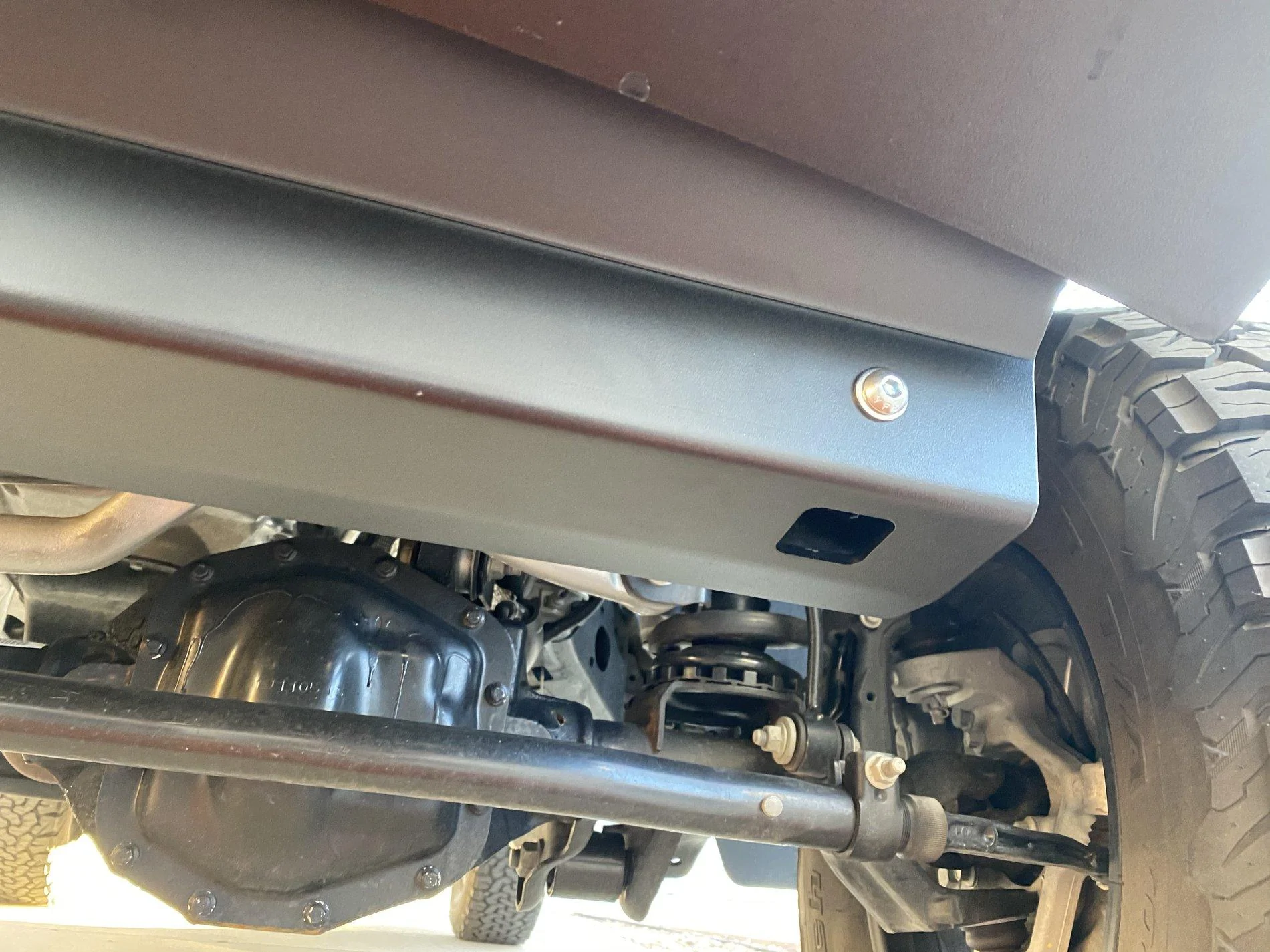

Here is the JCR skid with my Ace bumper, tucks in behind it just nice. On the blanket are the 4 brackets I removed to make room for attachment. I understand now that the square cutouts in the bottom of the skid are so you can place the nuts on the back of the front bolts.

Only complaint is the hardware they shipped does not look like stainless or galvanized. And they did not include any washers so I added 4 stainless washers to the setup. It seems pretty clean and minimal which I like not adding a lot of weight, and sitting so close to the frame might work with other 3rd-party bumpers as well.

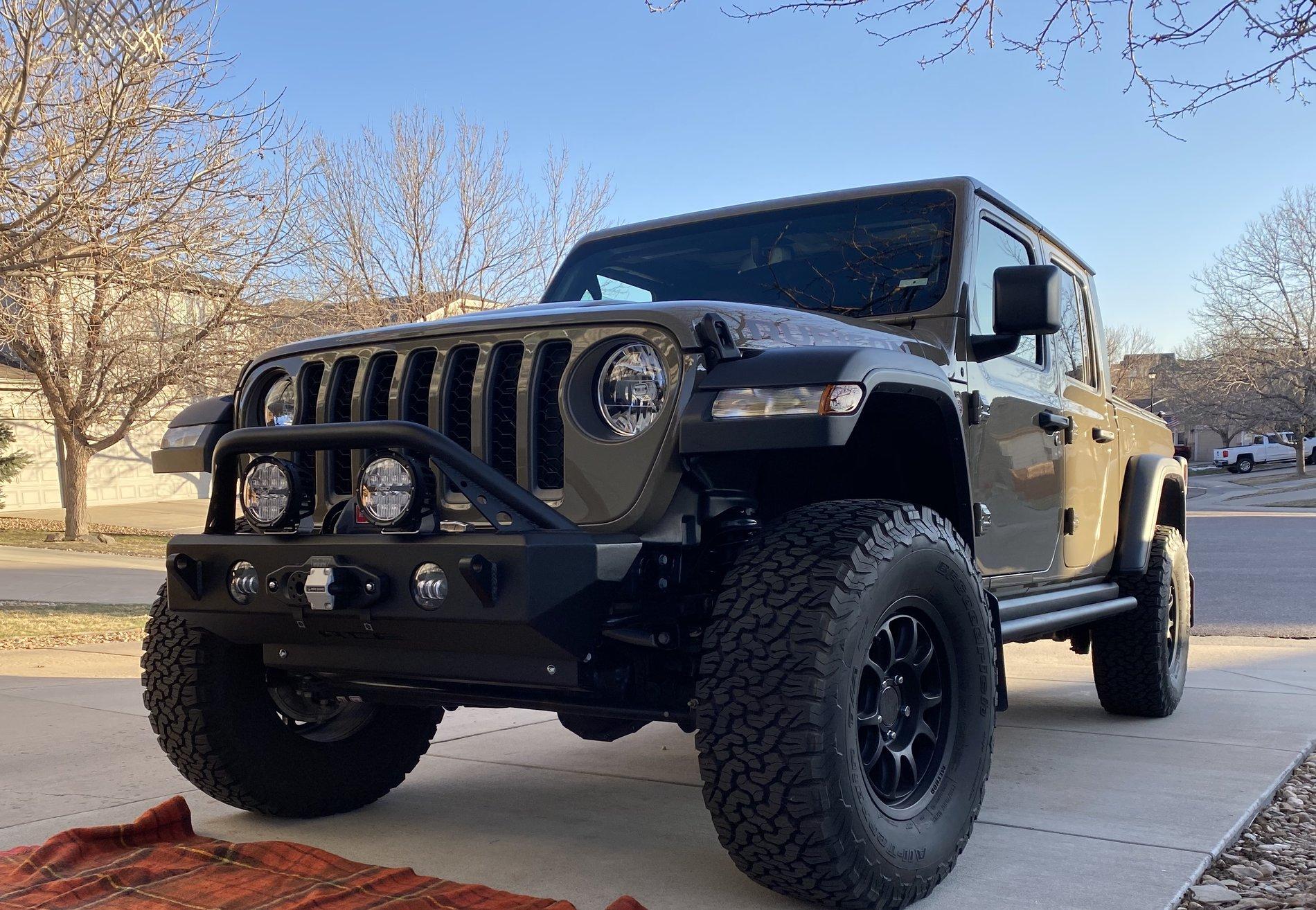

You can see in the one photo the powder coat is not a match, Ace has a brown-tone black and JCR has a blue-tone black. But sitting underneath in shade and being so plain it kind of looks like a frame cross-member so in real life the difference is not noticable.
Sponsored



Bbannongmu

Well-Known Member
First Name
JTR.Spartacus
Joined
Jan 18, 2020
Threads
26
Messages
1,874
Reaction score
2,155
Location
Earth
Website
m.facebook.com
Vehicle(s)
2020 Jeep Gladiator Rubicon
Build Thread
Link
Occupation
Certified Emergency Manager
Vehicle Showcase
1
Here is the JCR skid with my Ace bumper, tucks in behind it just nice. On the blanket are the 4 brackets I removed to make room for attachment. I understand now that the square cutouts in the bottom of the skid are so you can place the nuts on the back of the front bolts.

Only complaint is the hardware they shipped does not look like stainless or galvanized. And they did not include any washers so I added 4 stainless washers to the setup. It seems pretty clean and minimal which I like not adding a lot of weight, and sitting so close to the frame might work with other 3rd-party bumpers as well.

You can see in the one photo the powder coat is not a match, Ace has a brown-tone black and JCR has a blue-tone black. But sitting underneath in shade and being so plain it kind of looks like a frame cross-member so in real life the difference is not noticable.
thanks. That does look cleaner than the factory skid. Just Empty Every Pocket.......
