Hauling dogs? What’s your setup?

GlacierGladiator

Well-Known Member
Joined
Sep 25, 2019
Threads
31
Messages
619
Reaction score
849
Location
98244
Vehicle(s)
2020 Gator Gladiator Rubicon, 2018 Subaru Legacy, 2012 Mercedes Sprinter
Build Thread
Link
Vehicle Showcase
1
You got a closeup pic of the setup?
Here you go! I can provide links to serious people that are interested.

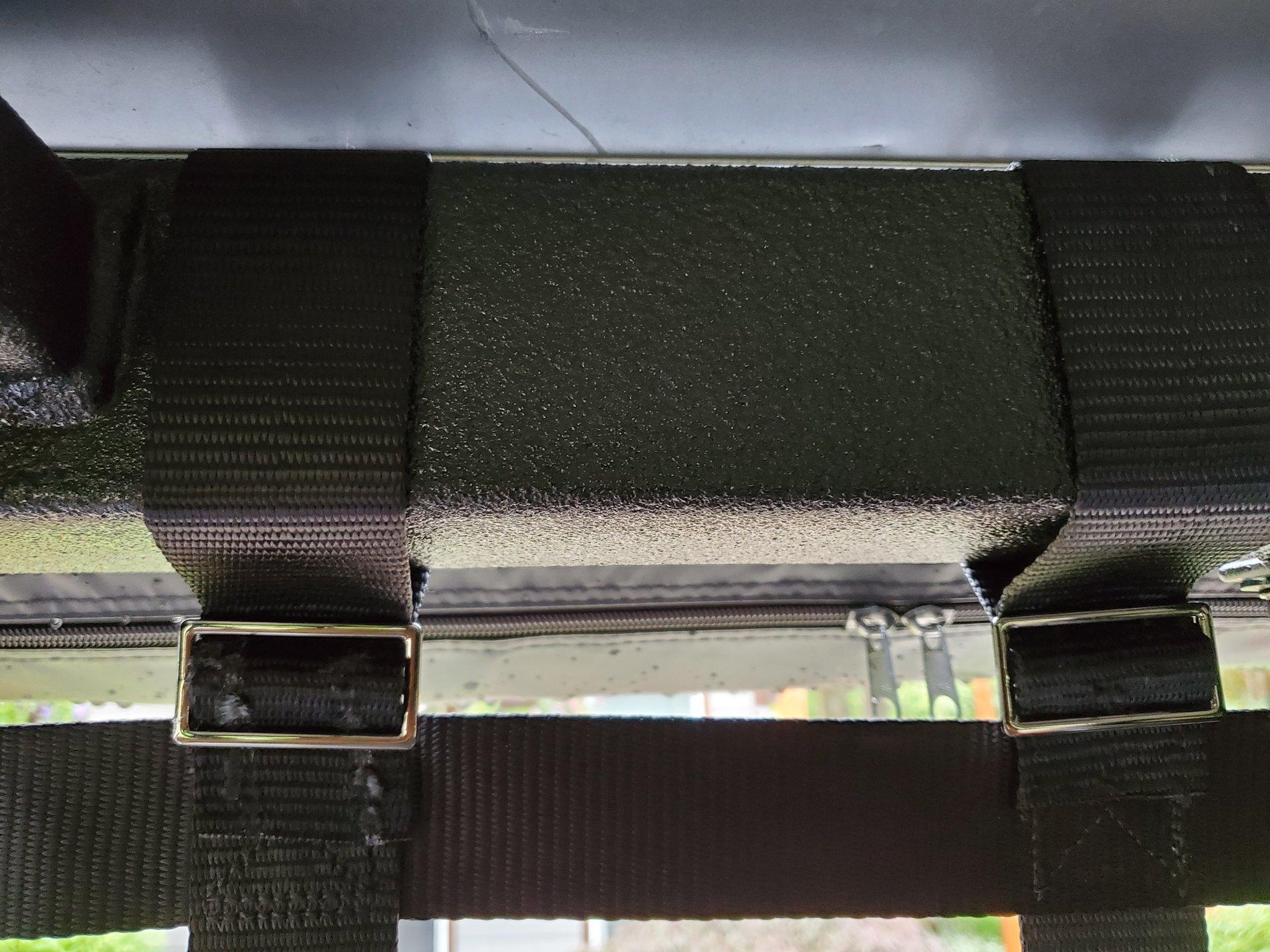

These are the buckles I use to secure the cargo net once I loop it around the rack. buckles purchased on amazon.
Jeep Gladiator Hauling dogs? What’s your setup? 20200812_180746

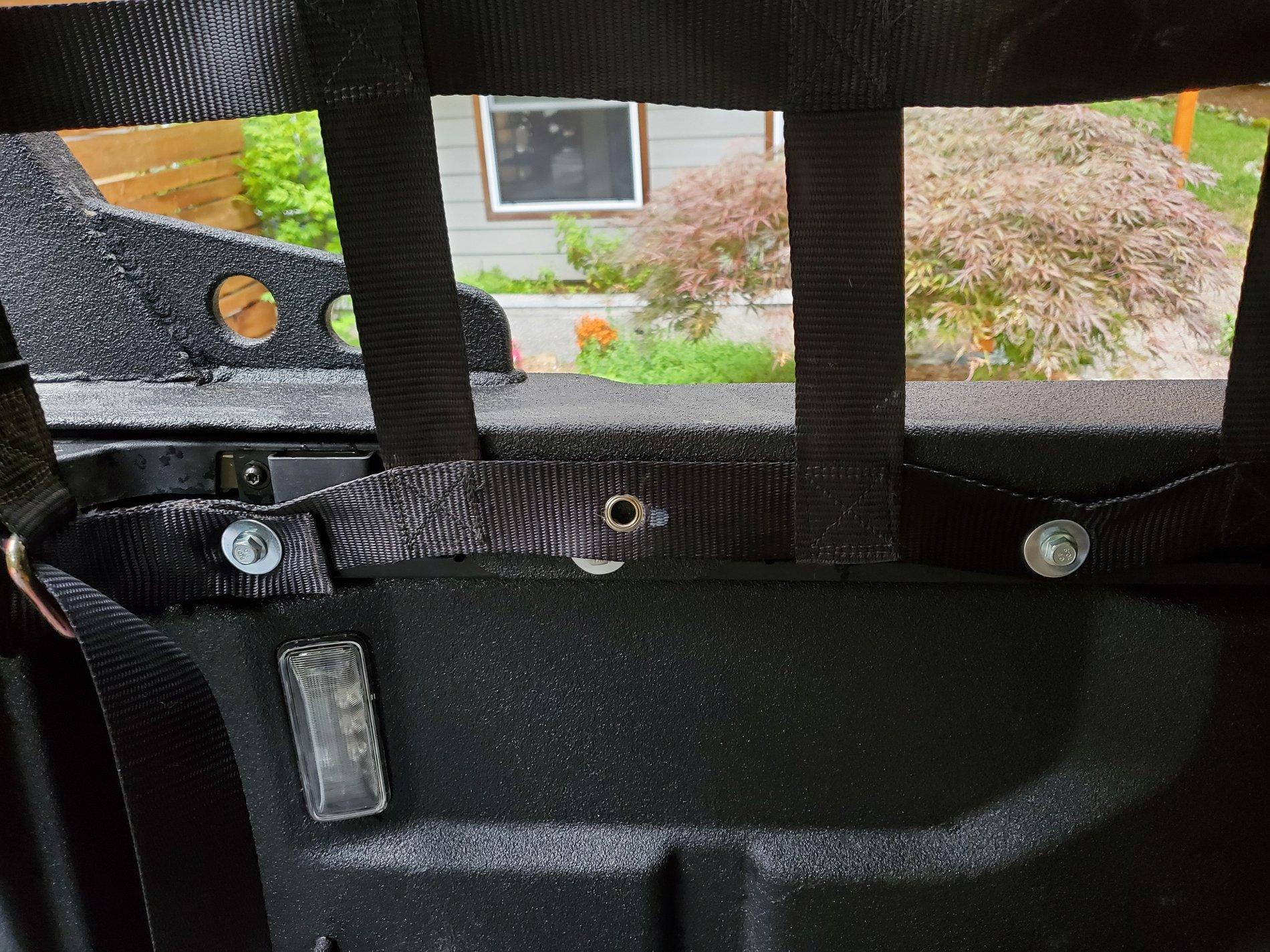

I attach it to the trail rails thru grommets I installed in the cargo net. Bolt goes thru grommet into a cam in the trail rail
Jeep Gladiator Hauling dogs? What’s your setup? 20200812_180756

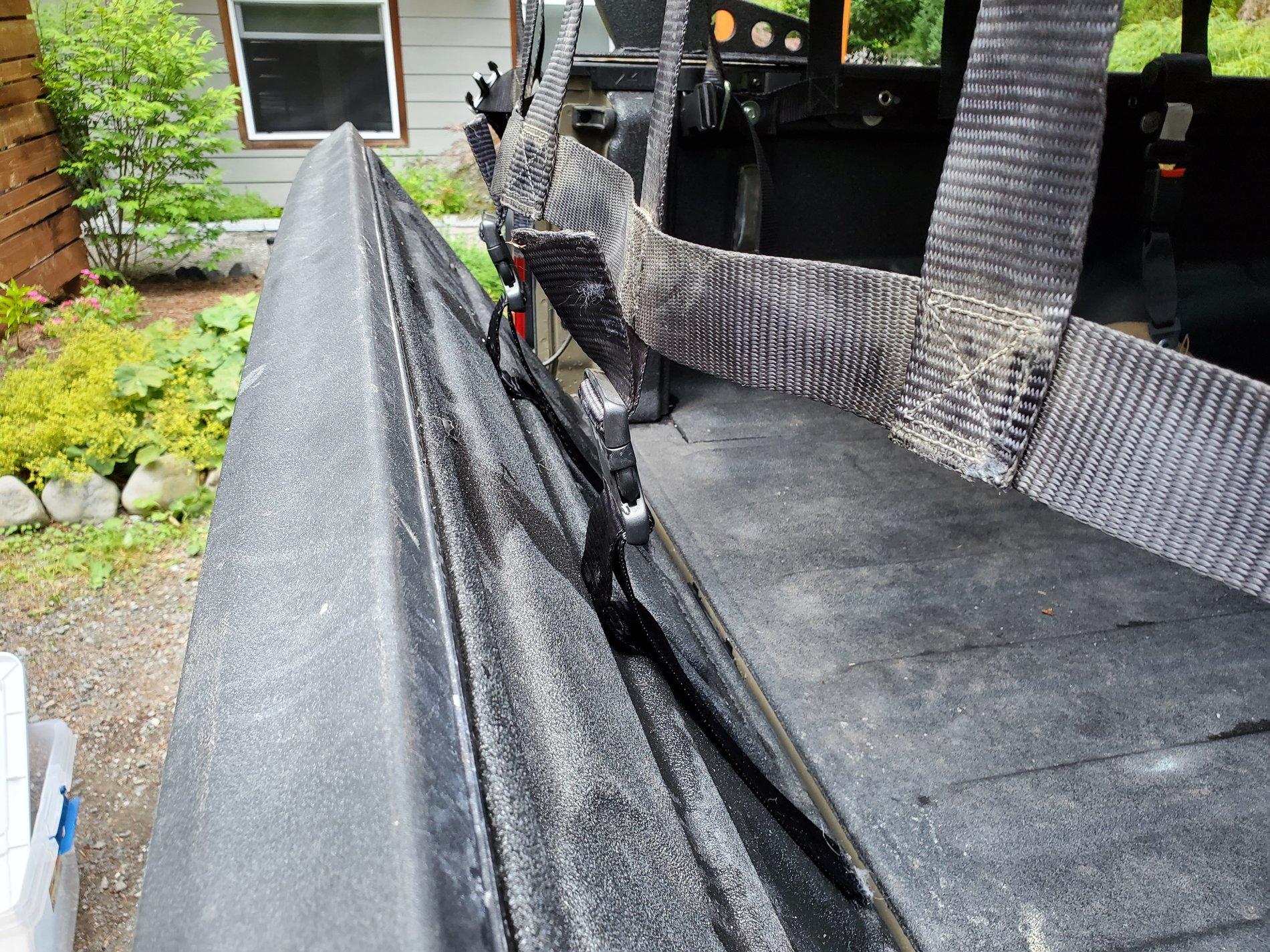

the back panel has quick release buckles that clip to the tailgate so this cargo panel is secured & does not flop around in the wind
Jeep Gladiator Hauling dogs? What’s your setup? 20200812_180922

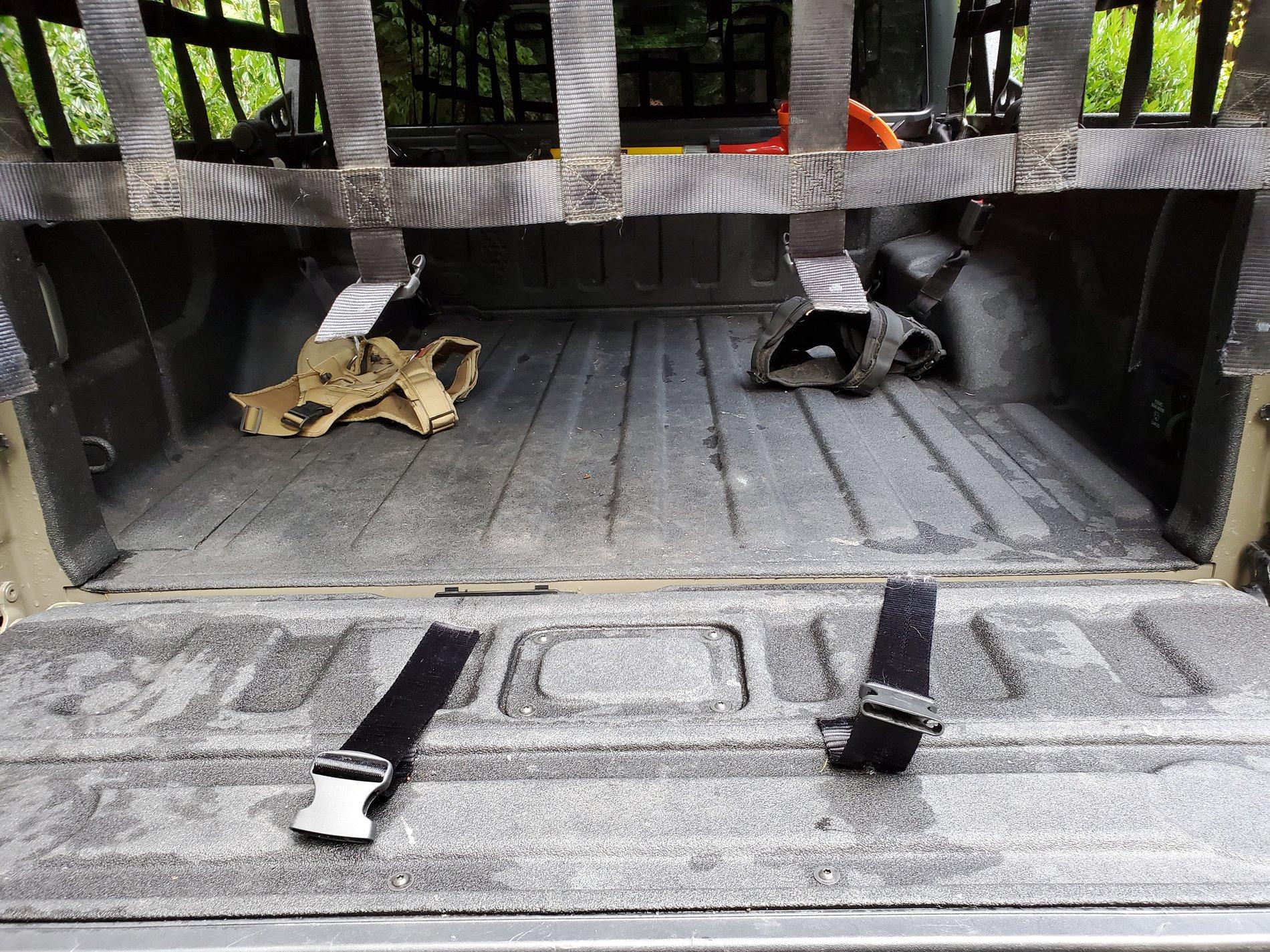

These are the second half of the buckles attached to the tailgate. Grommets in the strap and factory torx tailgate bolts
Jeep Gladiator Hauling dogs? What’s your setup? 20200812_180934

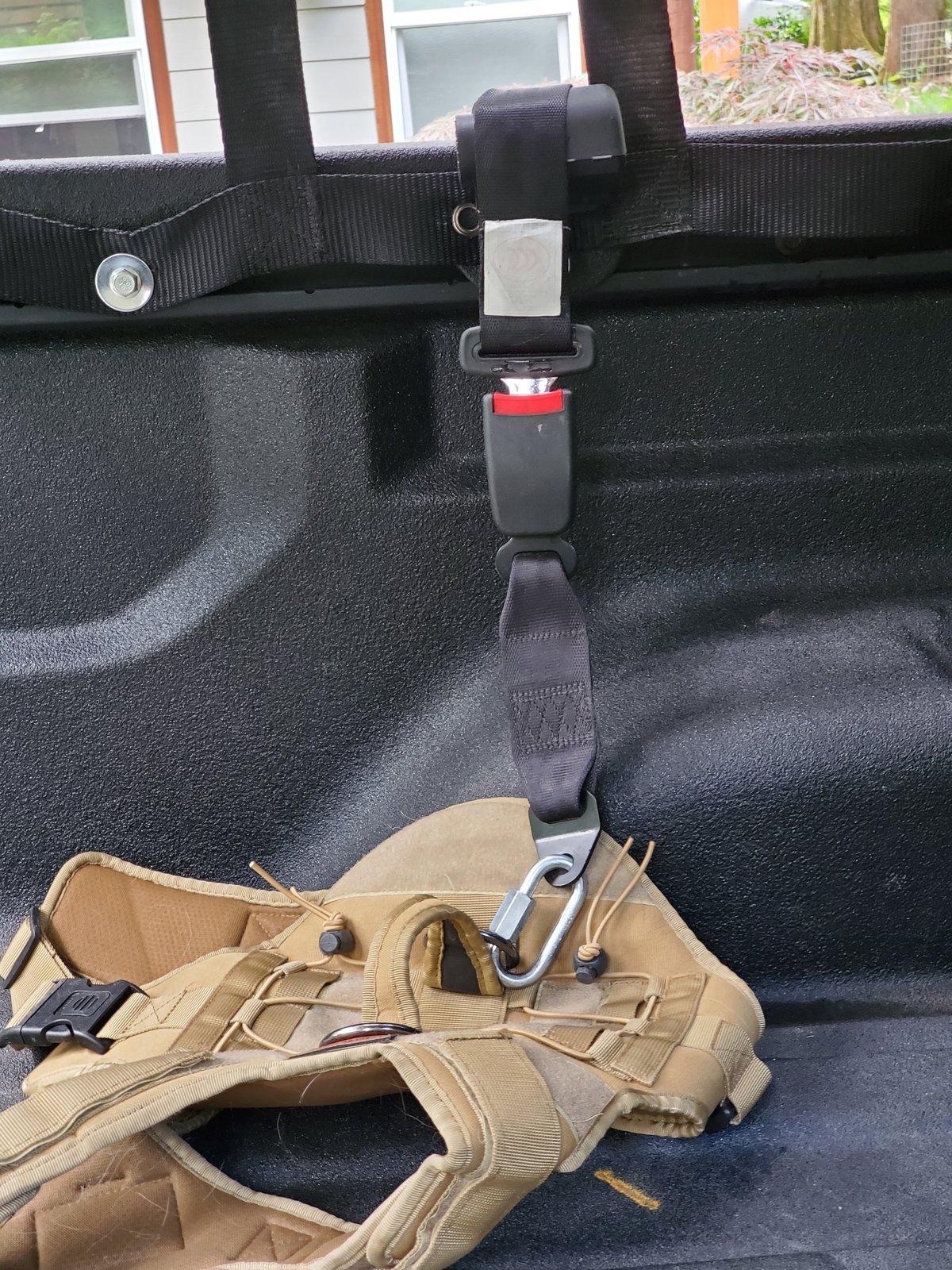

These are the lap belts that attach to the dogs harness. Belts are bolted thru the bolt that secures the rack to the trail rail
Jeep Gladiator Hauling dogs? What’s your setup? 20200812_180954

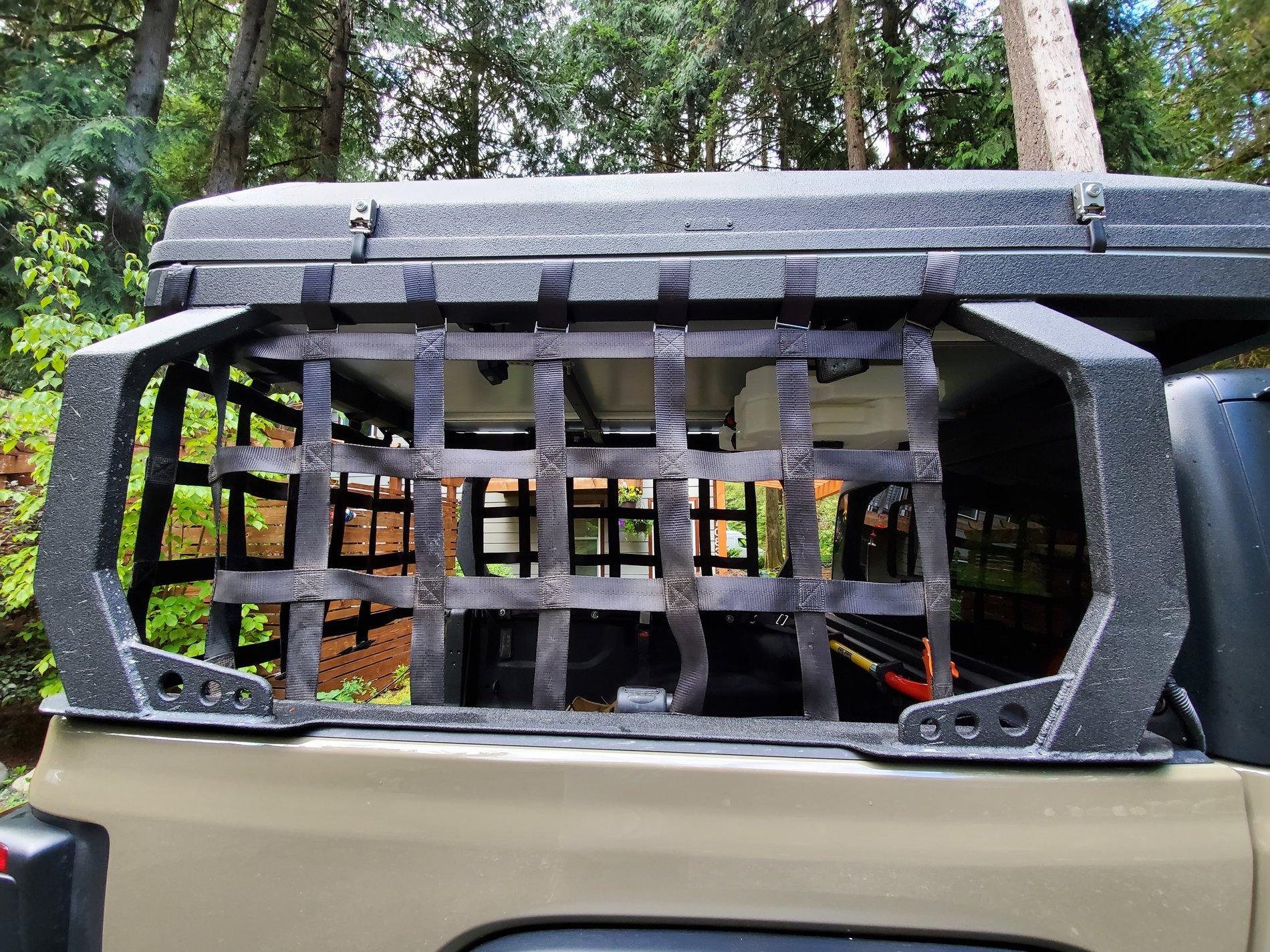

This is what the cargo panel looks like from the outside
Jeep Gladiator Hauling dogs? What’s your setup? 20200812_181022
Sponsored


Last edited:
OP
OP

Rara03p

Member
First Name
Rachel
Joined
Jul 30, 2020
Threads
1
Messages
19
Reaction score
14
Location
Orlando
Vehicle(s)
Gladiator
Here you go! I can provide links to serious people that are interested.
These are the buckles I use to secure the cargo net once I loop it around the rack. buckles purchased on amazon.
Jeep Gladiator Hauling dogs? What’s your setup? 20200812_181022

I attach it to the trail rails thru grommets I installed in the cargo net. Bolt goes thru grommet into a cam in the trail rail
Jeep Gladiator Hauling dogs? What’s your setup? 20200812_181022

the back panel has quick release buckles that clip to the tailgate so this cargo panel is secured & does not flop around in the wind
Jeep Gladiator Hauling dogs? What’s your setup? 20200812_181022

These are the second half of the buckles attached to the tailgate. Grommets in the strap and factory torx tailgate bolts
Jeep Gladiator Hauling dogs? What’s your setup? 20200812_181022

These are the lap belts that attach to the dogs harness. Belts are bolted thru the bolt that secures the rack to the trail rail
Jeep Gladiator Hauling dogs? What’s your setup? 20200812_181022

This is what the cargo panel looks like from the outside
Jeep Gladiator Hauling dogs? What’s your setup? 20200812_181022
Here you go! I can provide links to serious people that are interested.
These are the buckles I use to secure the cargo net once I loop it around the rack. buckles purchased on amazon.
Jeep Gladiator Hauling dogs? What’s your setup? 20200812_181022

I attach it to the trail rails thru grommets I installed in the cargo net. Bolt goes thru grommet into a cam in the trail rail
Jeep Gladiator Hauling dogs? What’s your setup? 20200812_181022

the back panel has quick release buckles that clip to the tailgate so this cargo panel is secured & does not flop around in the wind
Jeep Gladiator Hauling dogs? What’s your setup? 20200812_181022

These are the second half of the buckles attached to the tailgate. Grommets in the strap and factory torx tailgate bolts
Jeep Gladiator Hauling dogs? What’s your setup? 20200812_181022

These are the lap belts that attach to the dogs harness. Belts are bolted thru the bolt that secures the rack to the trail rail
Jeep Gladiator Hauling dogs? What’s your setup? 20200812_181022

This is what the cargo panel looks like from the outside
Jeep Gladiator Hauling dogs? What’s your setup? 20200812_181022

Awesome. This is so helpful. It’s been a month and still waiting on my darn rack. I’m ready to cancel the order and just find something else at this point.


GlacierGladiator

Well-Known Member
Joined
Sep 25, 2019
Threads
31
Messages
619
Reaction score
849
Location
98244
Vehicle(s)
2020 Gator Gladiator Rubicon, 2018 Subaru Legacy, 2012 Mercedes Sprinter
Build Thread
Link
Vehicle Showcase
1
Awesome. This is so helpful. It’s been a month and still waiting on my darn rack. I’m ready to cancel the order and just find something else at this point.
Yeah i knew from the get go that racks were going to take forever to trickle in for the JT so that is why I went the custom route. Hope your rack comes soon!


MarkN

Well-Known Member
First Name
Mark
Joined
Dec 10, 2019
Threads
11
Messages
152
Reaction score
267
Location
New Mexico
Vehicle(s)
2020 Gladiator Rubi

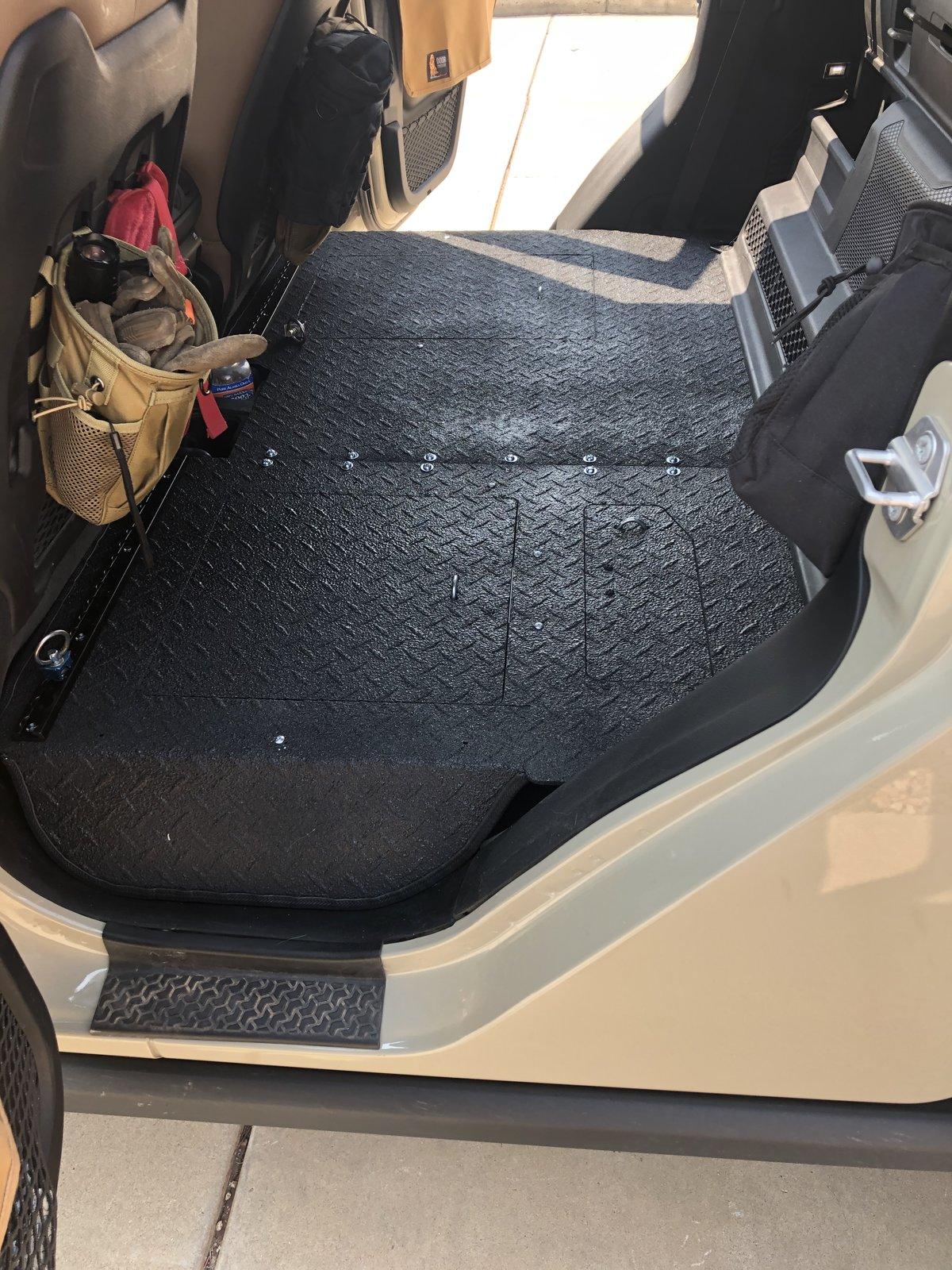

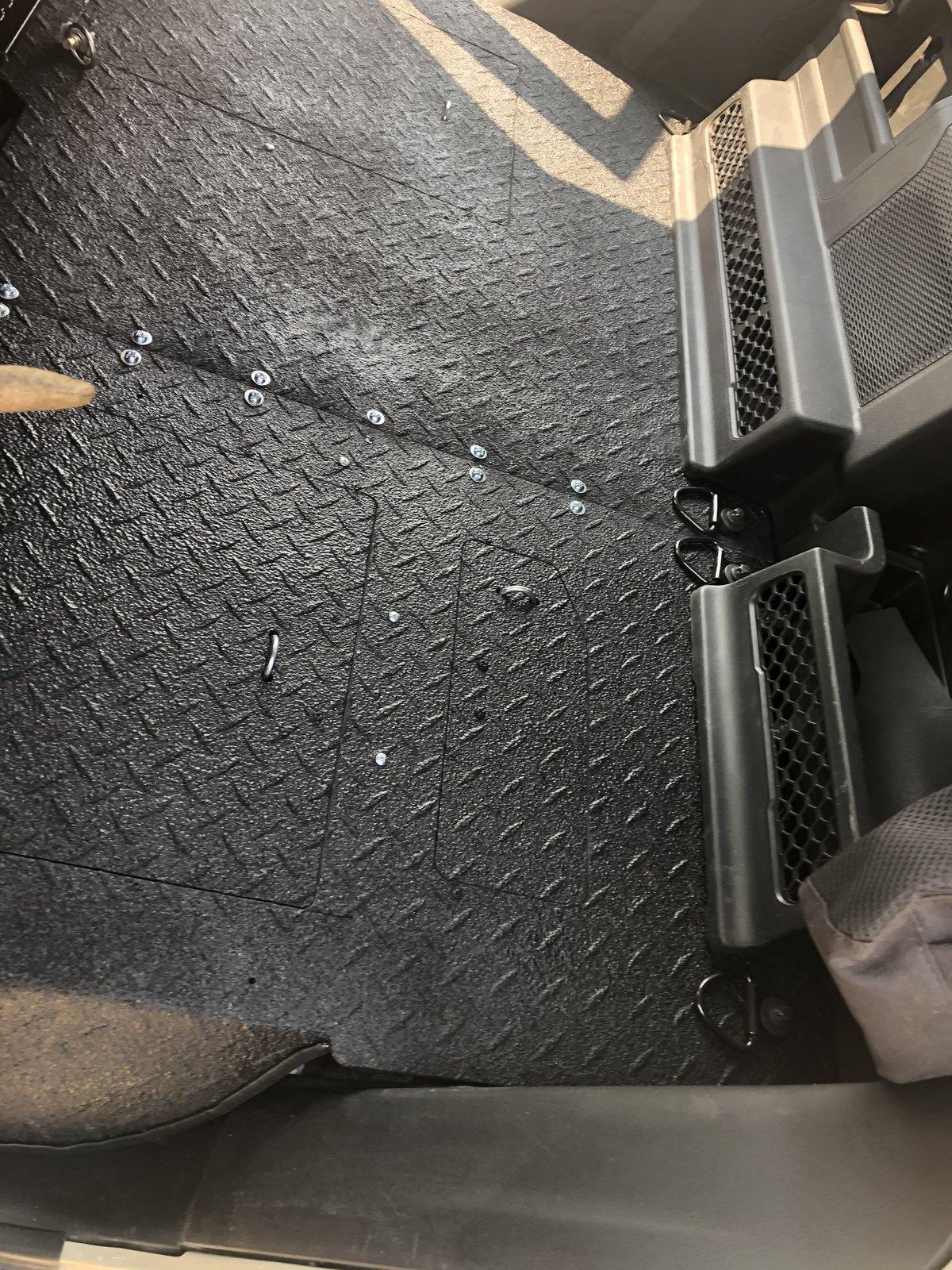

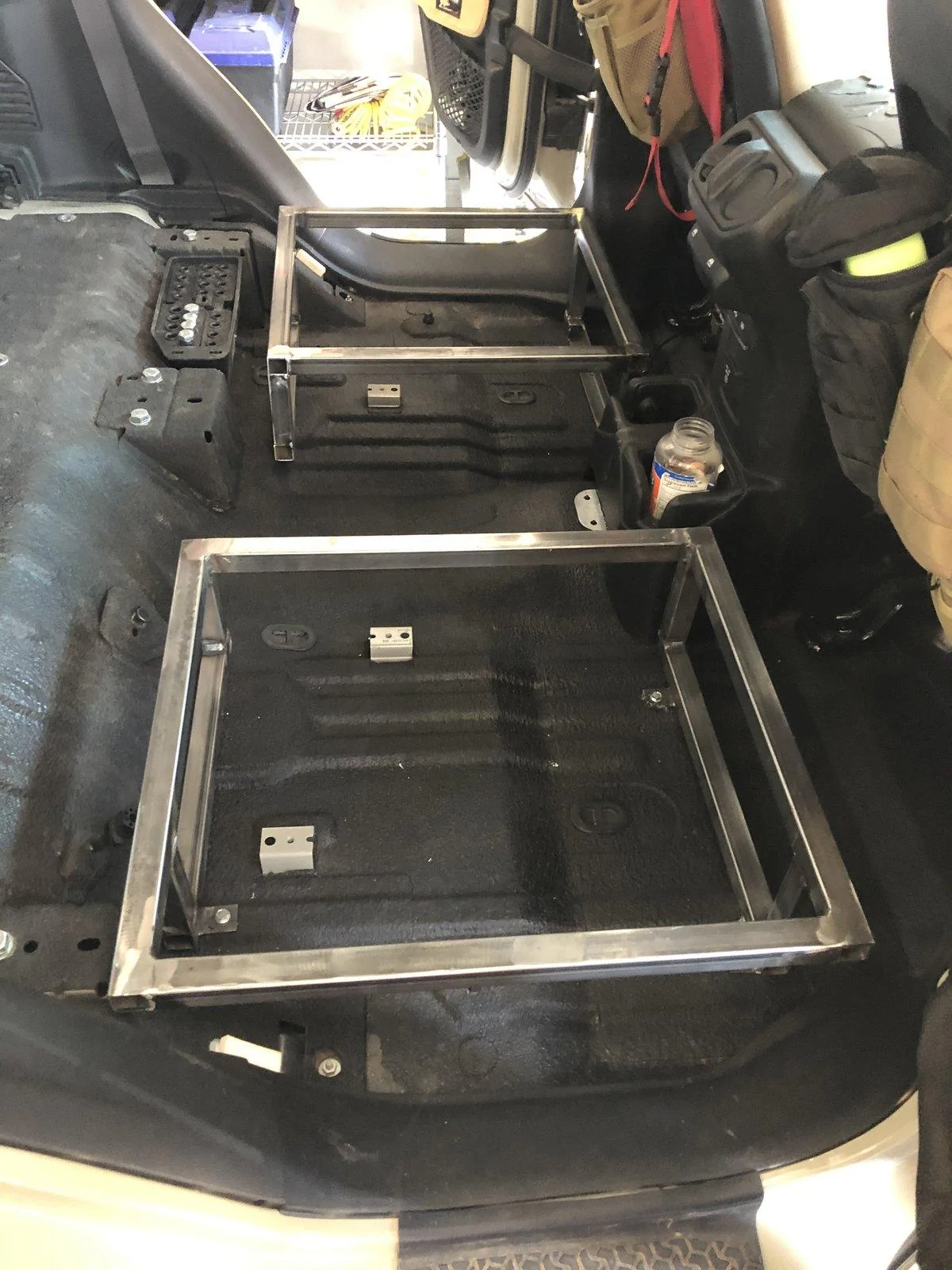

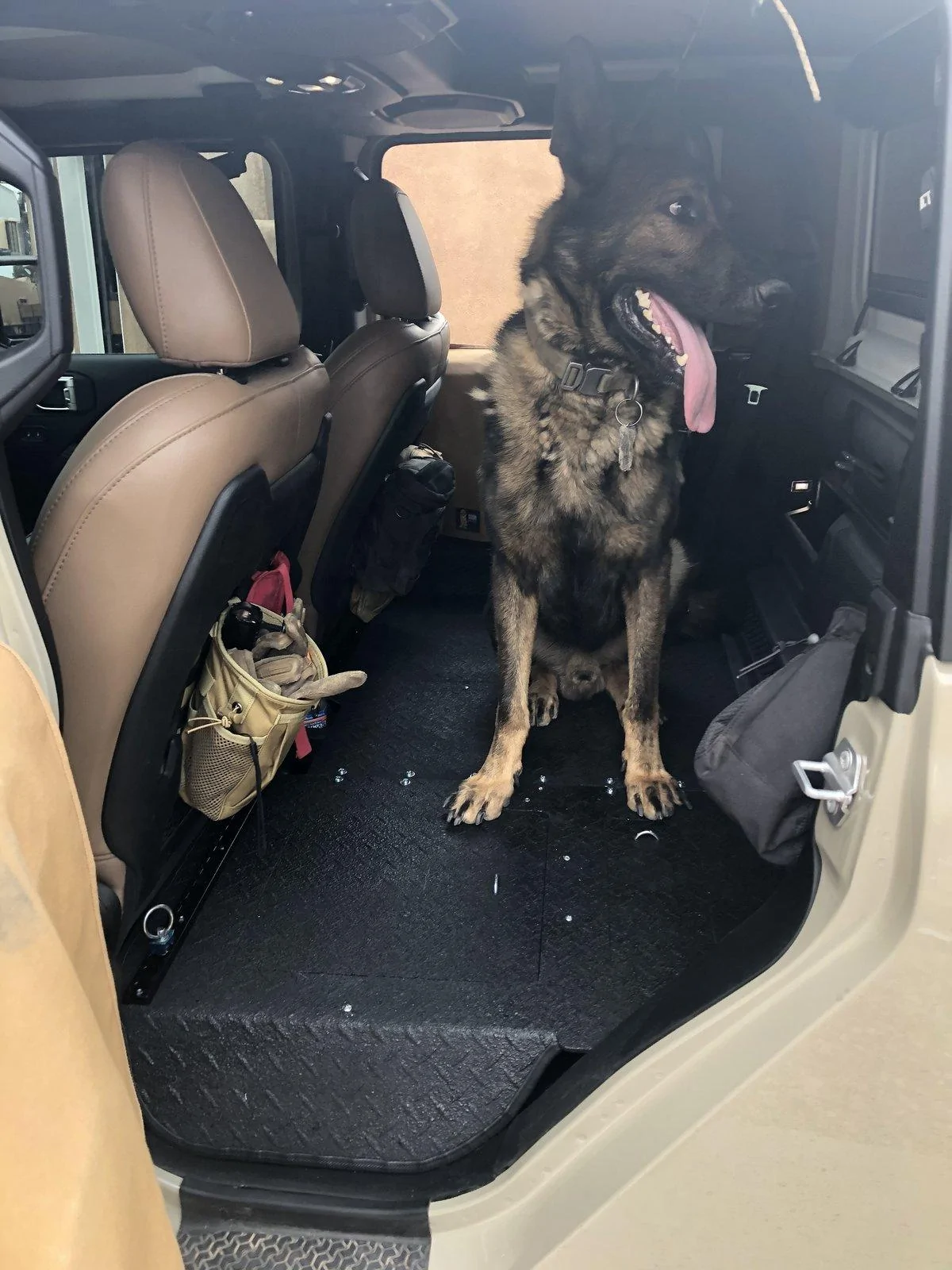

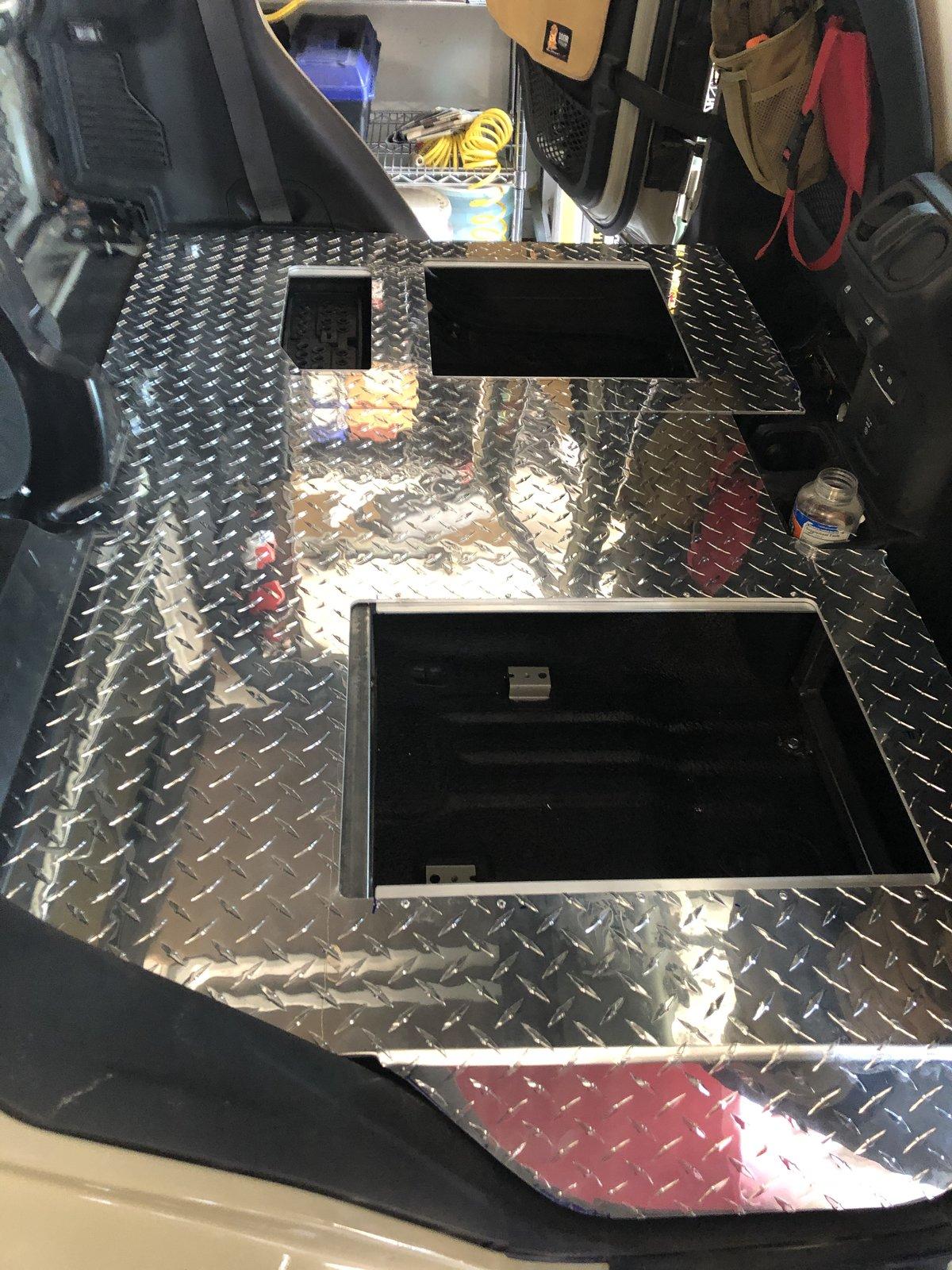

We have a GSD and no kids, so we don’t need the back seats. When I got the truck the first thing I did was remove the rear seats, remove the carpeting, and sprayed the entire floor with Lizard Skin. I put Weathertech floor mats in the front. Now it’s easy to sweep up the dog hair. I built this deck out of 3/16 aluminum diamond plate and sprayed the top surface with Lizard Skin. The support for the decking is made of 1” square tube. I got tiedown rings and put them under the four floor bolts and the six bolts holding the back roof on, so I have plenty of tie down options. It’s easier for the dog to get in and out, and he s got a stable platform to move around on. The total cost was about $650. The main cost $550 was getting the aluminum with water jet cut out. I made cardboard templates for the water jet. I built it with the 60/40 split so I can remove either side and put the seat back.










OP
OP

Rara03p

Member
First Name
Rachel
Joined
Jul 30, 2020
Threads
1
Messages
19
Reaction score
14
Location
Orlando
Vehicle(s)
Gladiator
We have a GSD and no kids, so we don’t need the back seats. When I got the truck the first thing I did was remove the rear seats, remove the carpeting, and sprayed the entire floor with Lizard Skin. I put Weathertech floor mats in the front. Now it’s easy to sweep up the dog hair. I built this deck out of 3/16 aluminum diamond plate and sprayed the top surface with Lizard Skin. The support for the decking is made of 1” square tube. I got tiedown rings and put them under the four floor bolts and the six bolts holding the back roof on, so I have plenty of tie down options. It’s easier for the dog to get in and out, and he s got a stable platform to move around on. The total cost was about $650. The main cost $550 was getting the aluminum with water jet cut out. I made cardboard templates for the water jet. I built it with the 60/40 split so I can remove either side and put the seat back.










Looks Great!!


Sponsored

dano

Member
First Name
Dano
Joined
Aug 16, 2020
Threads
1
Messages
14
Reaction score
1
Location
usa
Vehicle(s)
2020 overland
Rara03p

what are the door protectors I can see the bottom of them hanging down?


Orange01z28

Well-Known Member
First Name
Andrew
Joined
Aug 19, 2020
Threads
63
Messages
1,350
Reaction score
1,693
Location
Queen Creek Arizona
Vehicle(s)
2020 JT Sport S
Jeep Gladiator Hauling dogs? What’s your setup? 6E253114-1A06-44CF-99EA-127ADD094E62

He does what he wants


MarkN

Well-Known Member
First Name
Mark
Joined
Dec 10, 2019
Threads
11
Messages
152
Reaction score
267
Location
New Mexico
Vehicle(s)
2020 Gladiator Rubi
Rara03p

what are the door protectors I can see the bottom of them hanging down?
They are Weathertech door protectors. The work great and keep the dog collar and tags from scratching the panels. They clean up easy. I got them on Amazon.


GlacierGladiator

Well-Known Member
Joined
Sep 25, 2019
Threads
31
Messages
619
Reaction score
849
Location
98244
Vehicle(s)
2020 Gator Gladiator Rubicon, 2018 Subaru Legacy, 2012 Mercedes Sprinter
Build Thread
Link
Vehicle Showcase
1
LOL, totally does look like my dog! He's half Belgian Malinois and half lab.
My dog is bull mastiff & Tibetan mastiff mix.
