My Build: 2023 Jeep Rubicon Gladiator on 40's

[NotInStock]

Sounds about right. More homework time. If you can post whatever you find out on the travel length. Very interested……..

Well without actually talking to EVO and just looking at their website gets me this

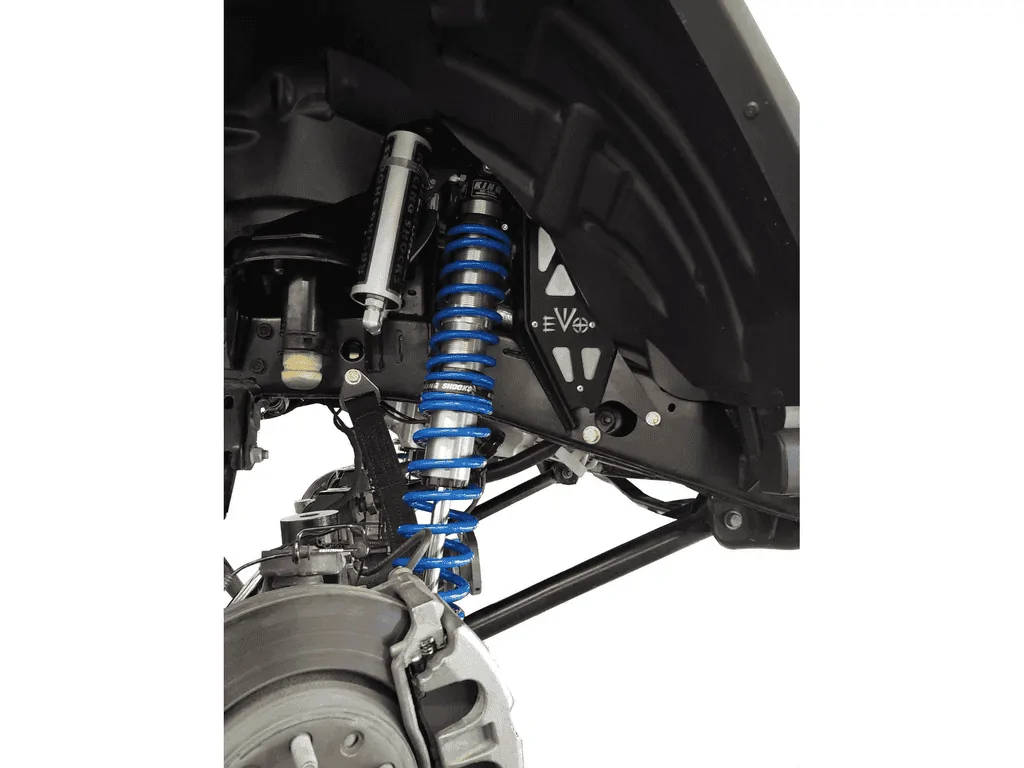

This PIC from EVO's website can see the front shock tilted back at an angle and using the factory coil bucket as a reference being the factory coil spring is approx 5" OD. The factory location would be just outside the bucket and here probably about 6" or so away.

And from the specs of a King Coilover 2.5"x12" shock shows the following (taken from the Accu-Tune website):

Product Brand: King
Product Body Diameter: 2.5
Product Piston Rod Diameter: 7/8"
Product Series: Performance Race
Product Travel: 12"
Product Adjuster: Internal Bypass
Product Disk Swapping: Yes
Product Spring Swapping: Yes
Product Collapsed Length: 20.65"
Product Extended Length: 32.65"
Product Mounting Size: 1/2 x 1.50

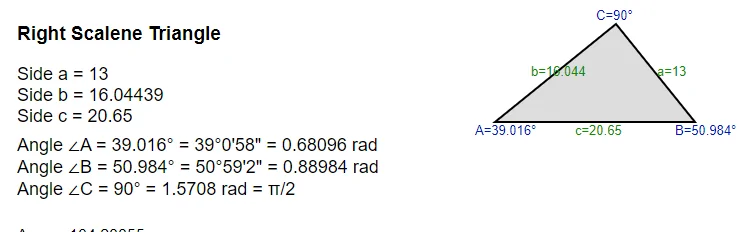

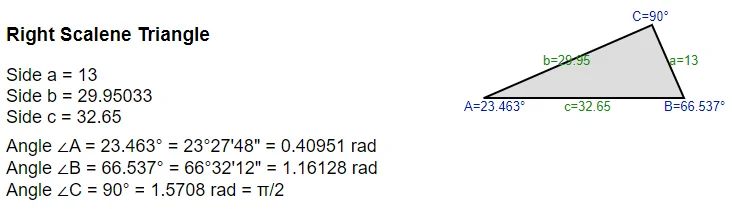

Now using some simple Trig to get triangulation data (Honestly just grab a triangle calculator on the web, www.calculator.net/triangle-calculator.html) gives you something like this:

So based on my calculations to achieve roughly 14" of travel with a 12" shock, using the dimensions of the King 2.5" x 12" coilover shock you would need to place the shock at least 13 inches offset to path of travel.

So, in looking I do not know if the mount is quite getting it 13 or more inches offset from the stock location. I would think the next would be to give EVO a call... But doing the calculations without actually calling them is fun....

Sponsored



[RK Racing]

Well without actually talking to EVO and just looking at their website gets me this

This PIC from EVO's website can see the front shock tilted back at an angle and using the factory coil bucket as a reference being the factory coil spring is approx 5" OD. The factory location would be just outside the bucket and here probably about 6" or so away.

And from the specs of a King Coilover 2.5"x12" shock shows the following (taken from the Accu-Tune website):

Product Brand: King
Product Body Diameter: 2.5
Product Piston Rod Diameter: 7/8"
Product Series: Performance Race
Product Travel: 12"
Product Adjuster: Internal Bypass
Product Disk Swapping: Yes
Product Spring Swapping: Yes
Product Collapsed Length: 20.65"
Product Extended Length: 32.65"
Product Mounting Size: 1/2 x 1.50

Now using some simple Trig to get triangulation data (Honestly just grab a triangle calculator on the web, www.calculator.net/triangle-calculator.html) gives you something like this:

So based on my calculations to achieve roughly 14" of travel with a 12" shock, using the dimensions of the King 2.5" x 12" coilover shock you would need to place the shock at least 13 inches offset to path of travel.

So, in looking I do not know if the mount is quite getting it 13 or more inches offset from the stock location. I would think the next would be to give EVO a call... But doing the calculations without actually calling them is fun....

I’m actually a Tool and Die maker (43 years now) and I do trig almost every day so I perfectly understand what you’re saying…. Evo is about 15 minutes away from me and Rebel is about 45 minutes away from me. Convenient. I’ve been at Rebel’s shop over 30 times the last couple of years and about every six weeks they have a “”Jeep’s and Java”” at their shop on Saturday morning. There are lots of hard-core vehicles to examine in person. Rebel has been going off Roading with all of their vehicles now for a long time (they have lot’s of video’s of them off roading) and I don’t plan on doing anything as hard-core as them, so if it works for them it’s way more than good enough for me. If you know what I’m saying… lol



[NotInStock]

I’m actually a Tool and Die maker (43 years now) and I do trig almost every day so I perfectly understand what you’re saying…. Evo is about 15 minutes away from me and Rebel is about 45 minutes away from me. Convenient. I’ve been at Rebel’s shop over 30 times the last couple of years and about every six weeks they have a “”Jeep’s and Java”” at their shop on Saturday morning. There are lots of hard-core vehicles to examine in person. Rebel has been going off Roading with all of their vehicles now for a long time (they have lot’s of video’s of them off roading) and I don’t plan on doing anything as hard-core as them, so if it works for them it’s way more than good enough for me. If you know what I’m saying… lol

Absolutely... I actually live probably around 45 mins from Rebel (lived maybe 3 blocks away from them 15 yrs ago) and around 30 mins to EVO. I live in Eastvale, CA which is next to Corona/Chino. I need to get on that mail list to know their next event as I would love to take a look. Personally I have a 2016 JKUR that I replaced with my 2023 JTDR. I will be selling the 2016 to pay for new toys for my 2016.

I guess as a "Tool and Die" maker you have access to equipment that can pretty much fabricate anything you need. I do have good friend back from my High School days that has a CNC Machine company but I would have to drive all the way to Magic Mountain area to use it.

I like the looks of Rebels with the tubes and also I think their version for bumpstops is far simpler as a bolt on instead of a cut and weld in, but the added travel is tempting. However, until I go long arm I probably will not see it.



[RK Racing]

Absolutely... I actually live probably around 45 mins from Rebel (lived maybe 3 blocks away from them 15 yrs ago) and around 30 mins to EVO. I live in Eastvale, CA which is next to Corona/Chino. I need to get on that mail list to know their next event as I would love to take a look. Personally I have a 2016 JKUR that I replaced with my 2023 JTDR. I will be selling the 2016 to pay for new toys for my 2016.

I guess as a "Tool and Die" maker you have access to equipment that can pretty much fabricate anything you need. I do have good friend back from my High School days that has a CNC Machine company but I would have to drive all the way to Magic Mountain area to use it.

I like the looks of Rebels with the tubes and also I think their version for bumpstops is far simpler as a bolt on instead of a cut and weld in, but the added travel is tempting. However, until I go long arm I probably will not see it.

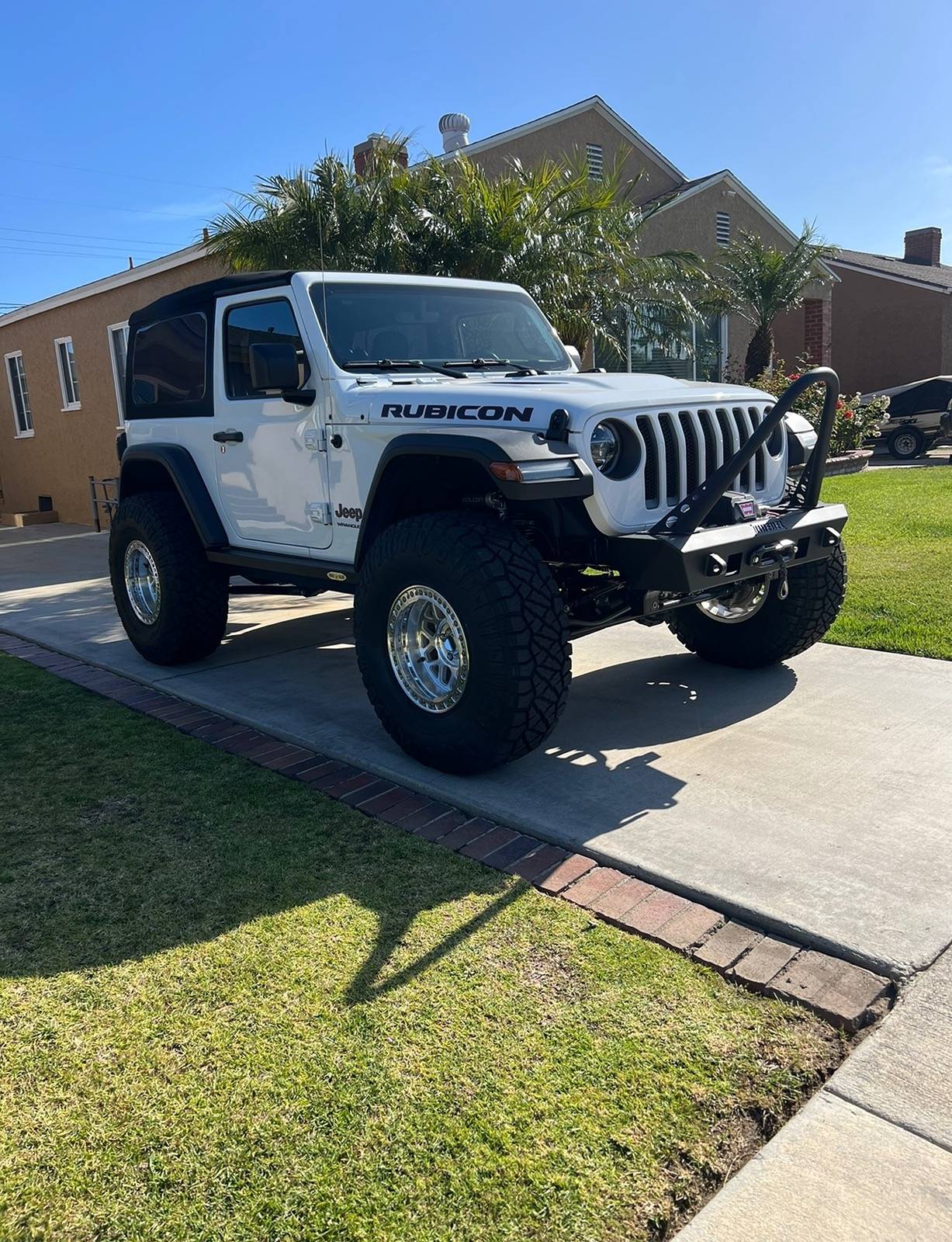

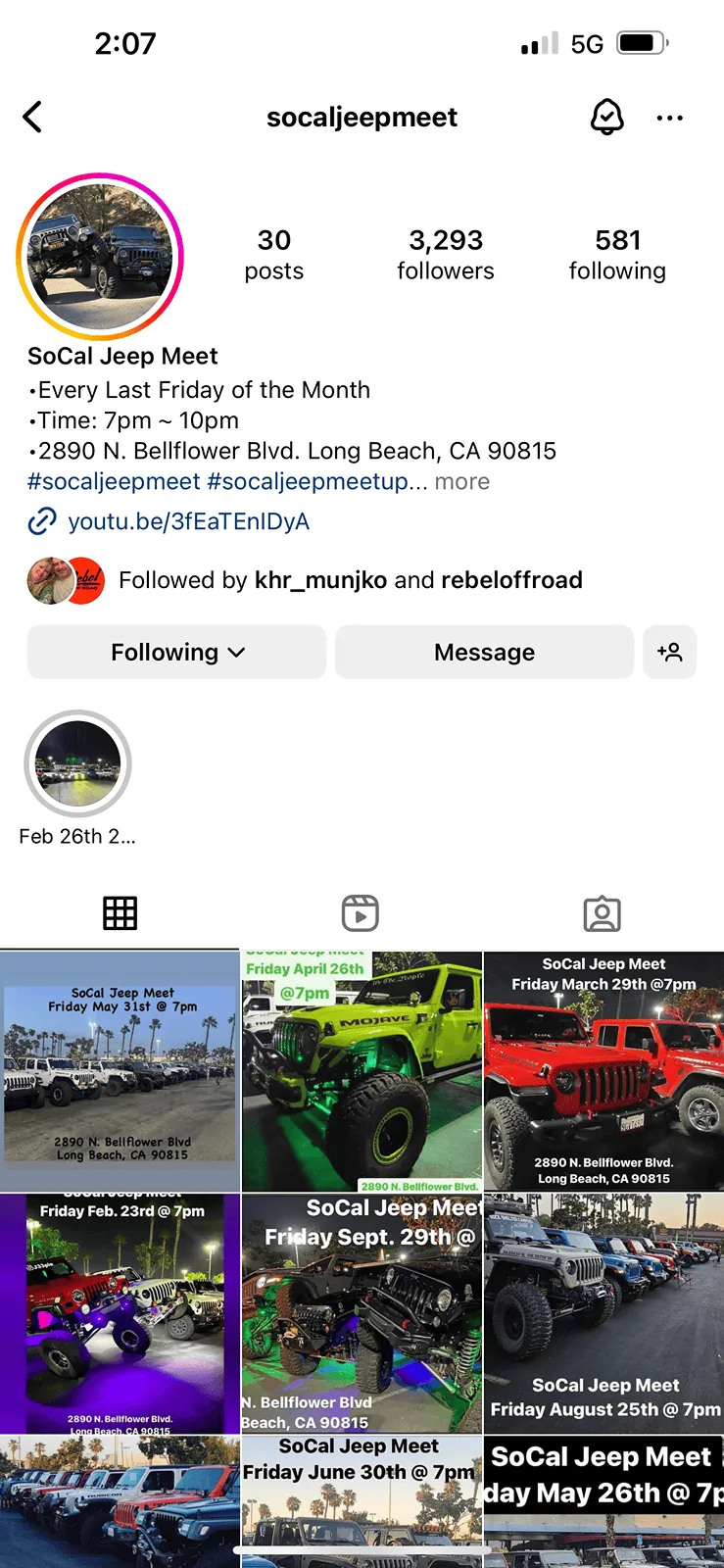

Tool & Die…. Yes. But I have limited time per day or per week to work on my projects….. I’m in Hawthorne. Right next to El Segundo and Manhattan Beach. I know exactly where you live, a friend of mine lives over there. Also, the last Friday of the month in Long Beach is a event where there is 75 to 150 jeeps there from all over. From the valley to Riverside to San Diego people come down to Long Beach on the last Friday of the month.
