I will measure straps later today......



Advertisement





BilletRUBI

Member
First Name
Dave
Joined
Aug 10, 2020
Messages
20
Reaction score
40
Location
Thomasville, GA
Vehicle(s)
Current: 2020 Jeep Gladiator Rubicon Previous: 1983 Jeep CJ-5 Renegade
Great! Thanks! I’m going to be gathering up supplies and hope to get it done before this weather turns cold!

OP
DaleG

DaleG

Well-Known Member
First Name
Dale
Joined
Sep 5, 2020
Messages
116
Reaction score
154
Location
N Fort Myers, Florida
Website
www.disinfecting4u.com
Vehicle(s)
2020 Gladiator Overland, 2019 Infiniti QX50, 2015 Cruisers Yacht 45 Cantius
Occupation
Self Employed
  • Thread starter
  • Thread Starter
  • #33

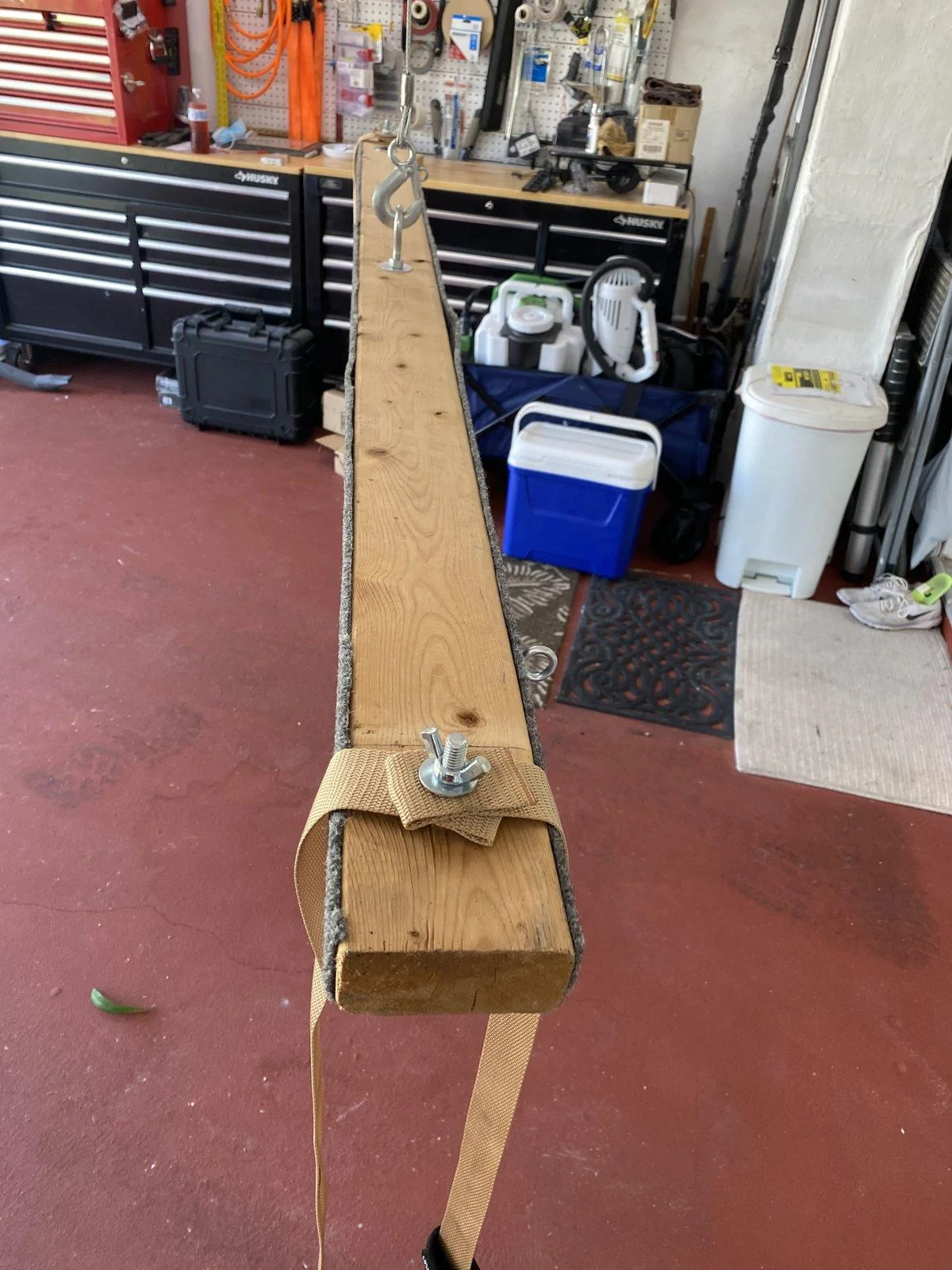

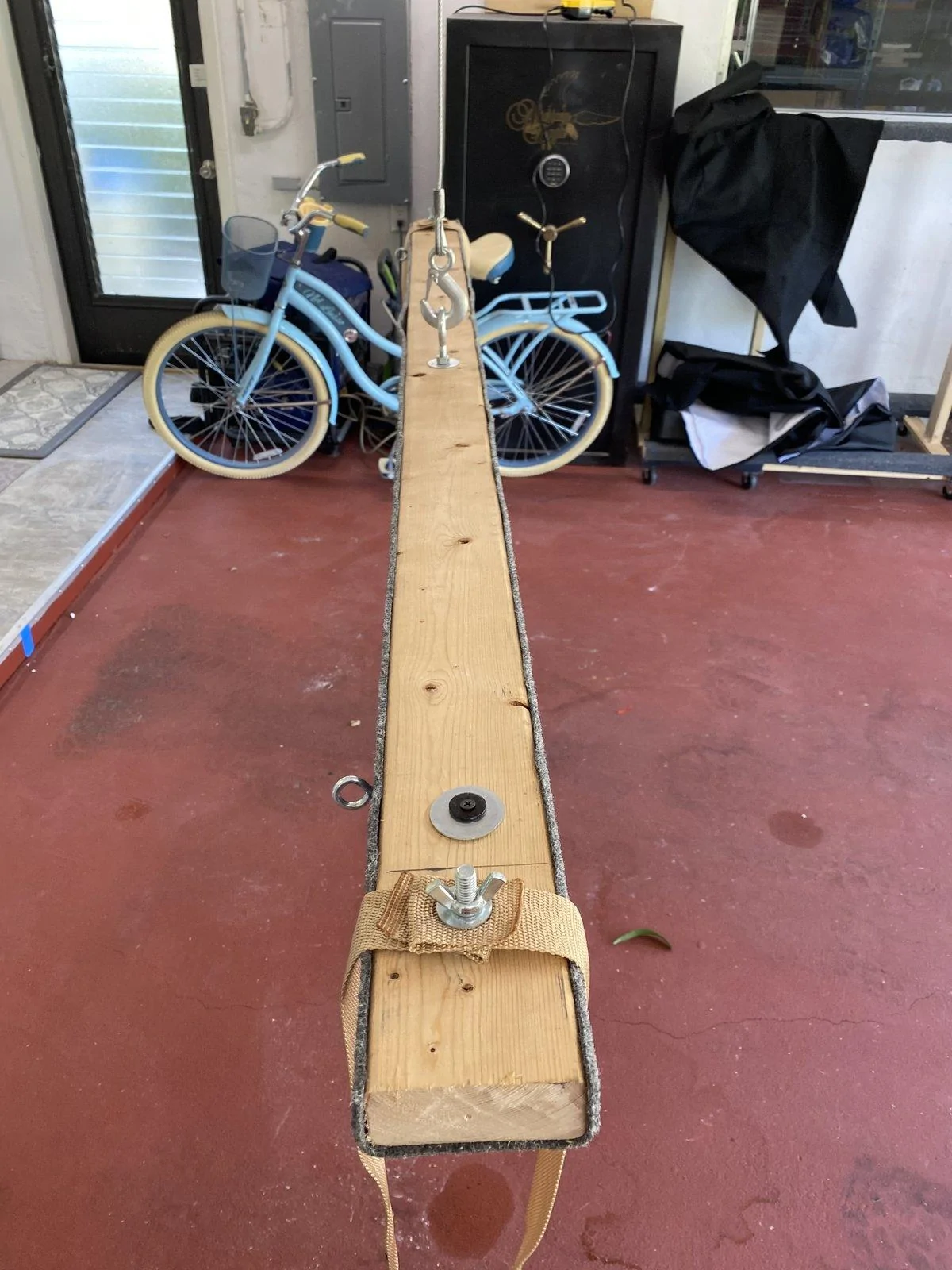

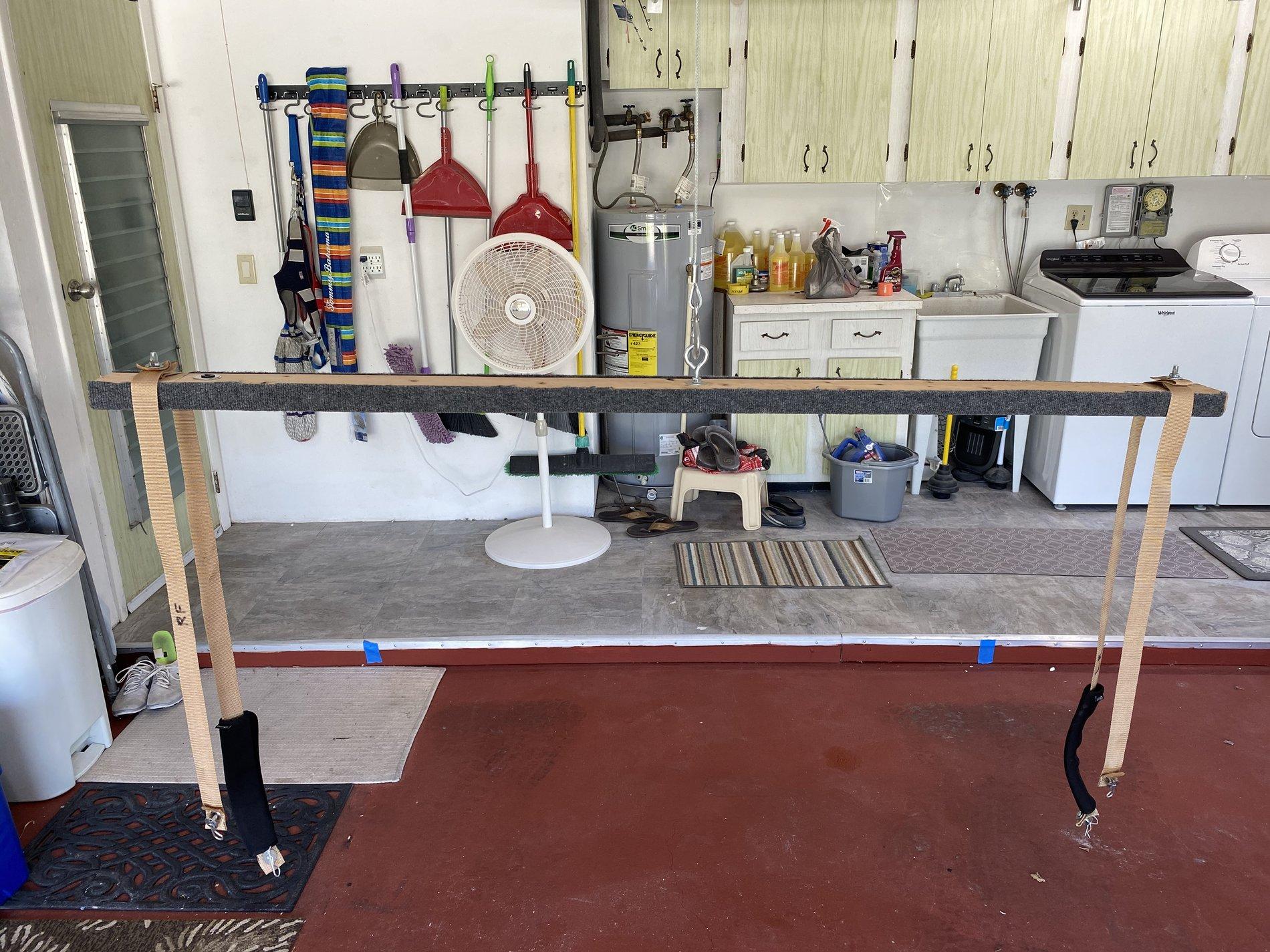

Main bar is 72”, front straps are 32.5” each and rear straps are 39” each. All strap measurements are center of metal grommet to center of metal grommet.

The main bar at 72” gives you a nice handhold on each end for guiding.
straps are mounted 3” from each end of the main bar.







BilletRUBI

Member
First Name
Dave
Joined
Aug 10, 2020
Messages
20
Reaction score
40
Location
Thomasville, GA
Vehicle(s)
Current: 2020 Jeep Gladiator Rubicon Previous: 1983 Jeep CJ-5 Renegade
Main bar is 72”, front straps are 32.5” each and rear straps are 39” each. All strap measurements are center of metal grommet to center of metal grommet.

The main bar at 72” gives you a nice handhold on each end for guiding.
straps are mounted 3” from each end of the main bar.
Appreciate it Dale! I'm ordering the parts from Amazon today.

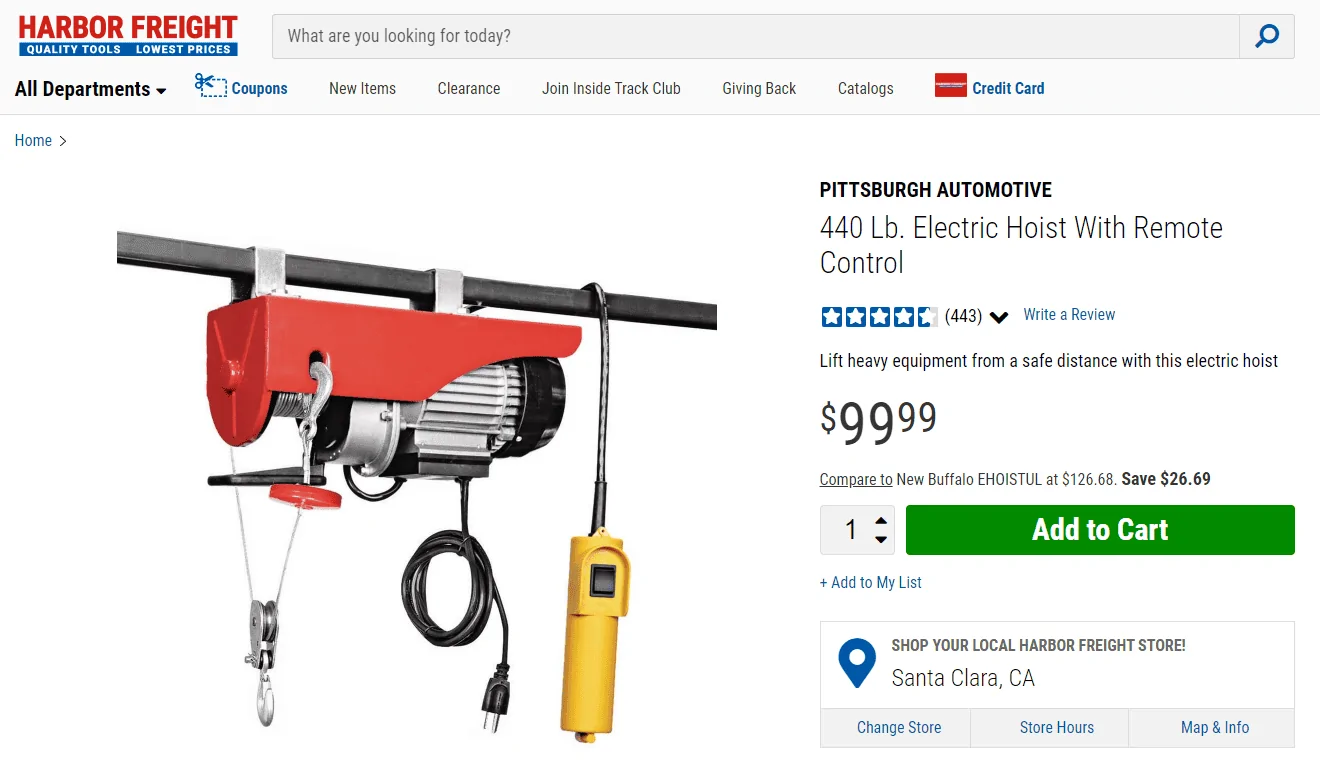

I'm thinking about using the Harbor Freight 440 Lb Electric Hoist...



I'm thinking that this should be fine as the top only weighs 75 lbs. Thoughts?

OP
DaleG

DaleG

Well-Known Member
First Name
Dale
Joined
Sep 5, 2020
Messages
116
Reaction score
154
Location
N Fort Myers, Florida
Website
www.disinfecting4u.com
Vehicle(s)
2020 Gladiator Overland, 2019 Infiniti QX50, 2015 Cruisers Yacht 45 Cantius
Occupation
Self Employed
  • Thread starter
  • Thread Starter
  • #35
Appreciate it Dale! I'm ordering the parts from Amazon today.

I'm thinking about using the Harbor Freight 440 Lb Electric Hoist...



I'm thinking that this should be fine as the top only weighs 75 lbs. Thoughts?
I did’t use that one because of low clearance on my ceiling and needed to put the winch on the wall.....your choice needs to mounted to the ceiling and lift strait up. It will be more than sufficient if you have the clearance (Tall ceiling)


BilletRUBI

Member
First Name
Dave
Joined
Aug 10, 2020
Messages
20
Reaction score
40
Location
Thomasville, GA
Vehicle(s)
Current: 2020 Jeep Gladiator Rubicon Previous: 1983 Jeep CJ-5 Renegade
I did’t use that one because of low clearance on my ceiling and needed to put the winch on the wall.....your choice needs to mounted to the ceiling and lift strait up. It will be more than sufficient if you have the clearance (Tall ceiling)
Makes sense. I do need the top to come as close to the ceiling as possible. I thought I could mount it high on the back wall of the garage and run directly to the pulley. I did watch a video of the 440 lb hoist and didn't like how jerky the operation was, so I will probably go the same route as you did.


txGlad

Member
First Name
Kevin
Joined
Aug 14, 2020
Messages
9
Reaction score
6
Location
nTX
Vehicle(s)
Z06 Vette
Occupation
TX Semiconductors
I did’t use that one because of low clearance on my ceiling and needed to put the winch on the wall.....your choice needs to mounted to the ceiling and lift strait up. It will be more than sufficient if you have the clearance (Tall ceiling)

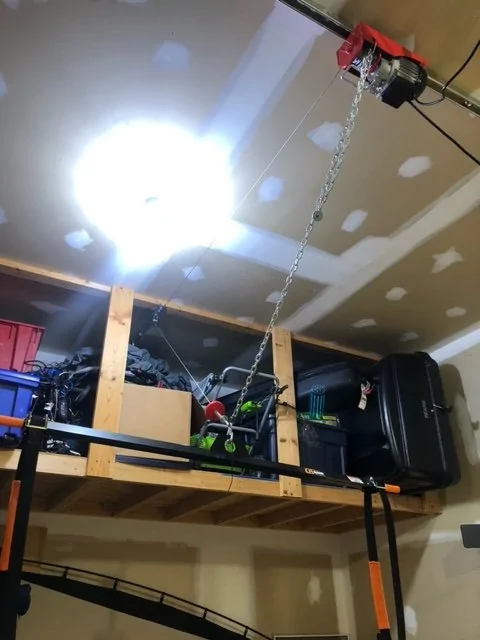

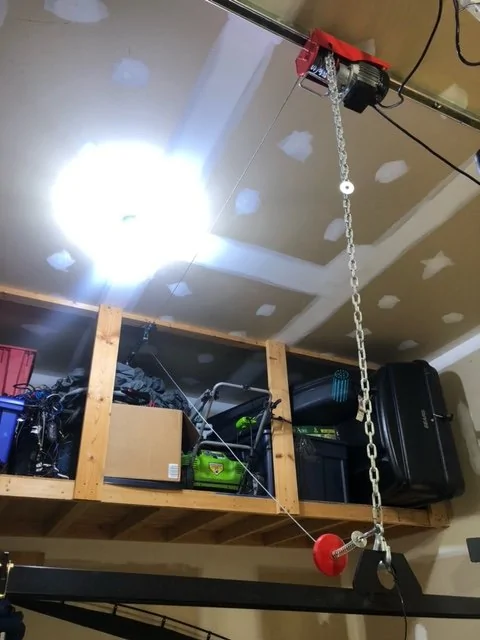

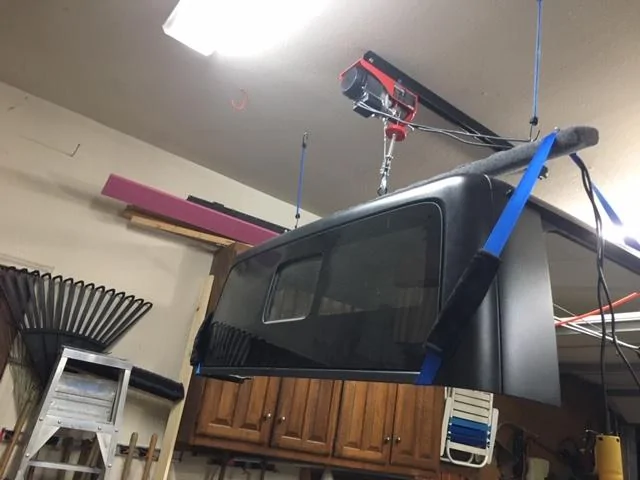

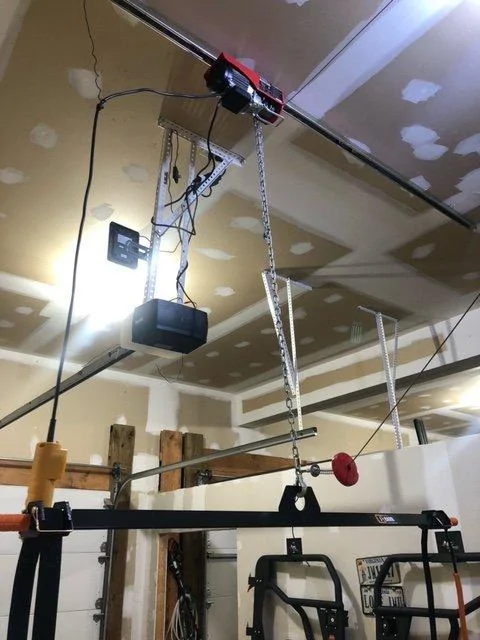

DaleG, thank you very much for the detailed instructions and measurements. I used your design with a couple of mods for my application and had it working last week. I ended up using the HF 440lb hoist mentioned above and mounted it an a trolley using a section of Unistrut. This allows me to pull off the top and slide it back about 3 feet further into my garage. Again, thanks for the "heavy lifting" on this project.

OP
DaleG

DaleG

Well-Known Member
First Name
Dale
Joined
Sep 5, 2020
Messages
116
Reaction score
154
Location
N Fort Myers, Florida
Website
www.disinfecting4u.com
Vehicle(s)
2020 Gladiator Overland, 2019 Infiniti QX50, 2015 Cruisers Yacht 45 Cantius
Occupation
Self Employed
  • Thread starter
  • Thread Starter
  • #38
DaleG, thank you very much for the detailed instructions and measurements. I used your design with a couple of mods for my application and had it working last week. I ended up using the HF 440lb hoist mentioned above and mounted it an a trolley using a section of Unistrut. This allows me to pull off the top and slide it back about 3 feet further into my garage. Again, thanks for the "heavy lifting" on this project.
Nicely done! I like the trolly idea!

OP
DaleG

DaleG

Well-Known Member
First Name
Dale
Joined
Sep 5, 2020
Messages
116
Reaction score
154
Location
N Fort Myers, Florida
Website
www.disinfecting4u.com
Vehicle(s)
2020 Gladiator Overland, 2019 Infiniti QX50, 2015 Cruisers Yacht 45 Cantius
Occupation
Self Employed
  • Thread starter
  • Thread Starter
  • #39
DaleG, thank you very much for the detailed instructions and measurements. I used your design with a couple of mods for my application and had it working last week. I ended up using the HF 440lb hoist mentioned above and mounted it an a trolley using a section of Unistrut. This allows me to pull off the top and slide it back about 3 feet further into my garage. Again, thanks for the "heavy lifting" on this project.
By the way, where in N Texas? We moved from Rockwall to SW Florida (Fort myers area) back in April.


txGlad

Member
First Name
Kevin
Joined
Aug 14, 2020
Messages
9
Reaction score
6
Location
nTX
Vehicle(s)
Z06 Vette
Occupation
TX Semiconductors
By the way, where in N Texas? We moved from Rockwall to SW Florida (Fort myers area) back in April.
We were practically neighbors. We live on the north side of Garland in the Firewheel area.

OP
DaleG

DaleG

Well-Known Member
First Name
Dale
Joined
Sep 5, 2020
Messages
116
Reaction score
154
Location
N Fort Myers, Florida
Website
www.disinfecting4u.com
Vehicle(s)
2020 Gladiator Overland, 2019 Infiniti QX50, 2015 Cruisers Yacht 45 Cantius
Occupation
Self Employed
  • Thread starter
  • Thread Starter
  • #41
We were practically neighbors. We live on the north side of Garland in the Firewheel area.
I was raised and grew up in South Garland and we raised our kids in Rowlett and Rockwall. At 59 I decided I was tired of N Texas winters and we came to SW Florida.


txGlad

Member
First Name
Kevin
Joined
Aug 14, 2020
Messages
9
Reaction score
6
Location
nTX
Vehicle(s)
Z06 Vette
Occupation
TX Semiconductors
I was raised and grew up in South Garland and we raised our kids in Rowlett and Rockwall. At 59 I decided I was tired of N Texas winters and we came to SW Florida.
Very nice. We've raised our kids here and all went through GISD.
