Wire gauge and fuse size help

Blade1668

Well-Known Member
First Name
Darrell
Joined
Jan 7, 2020
Threads
12
Messages
3,273
Reaction score
3,158
Location
N. AL.
Vehicle(s)
90XJ, 91XJ, 91MJ, 05 LJ, 20 JT
Build Thread
Link
Vehicle Showcase
1
Thanks for the info. Do you have a link or more info on the grey connector?
Here is two of them.

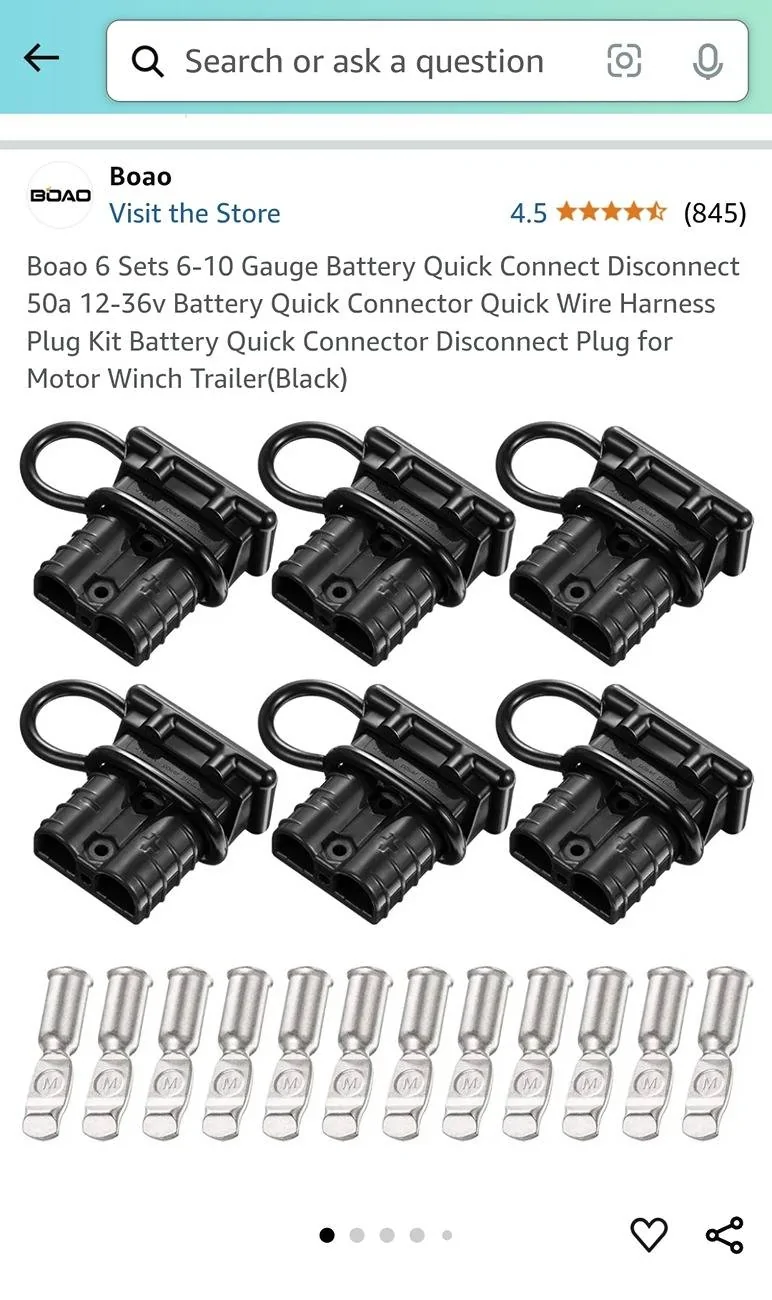

Jeep Gladiator Wire gauge and fuse size help Screenshot_20250102_193255_Amazon Shopping

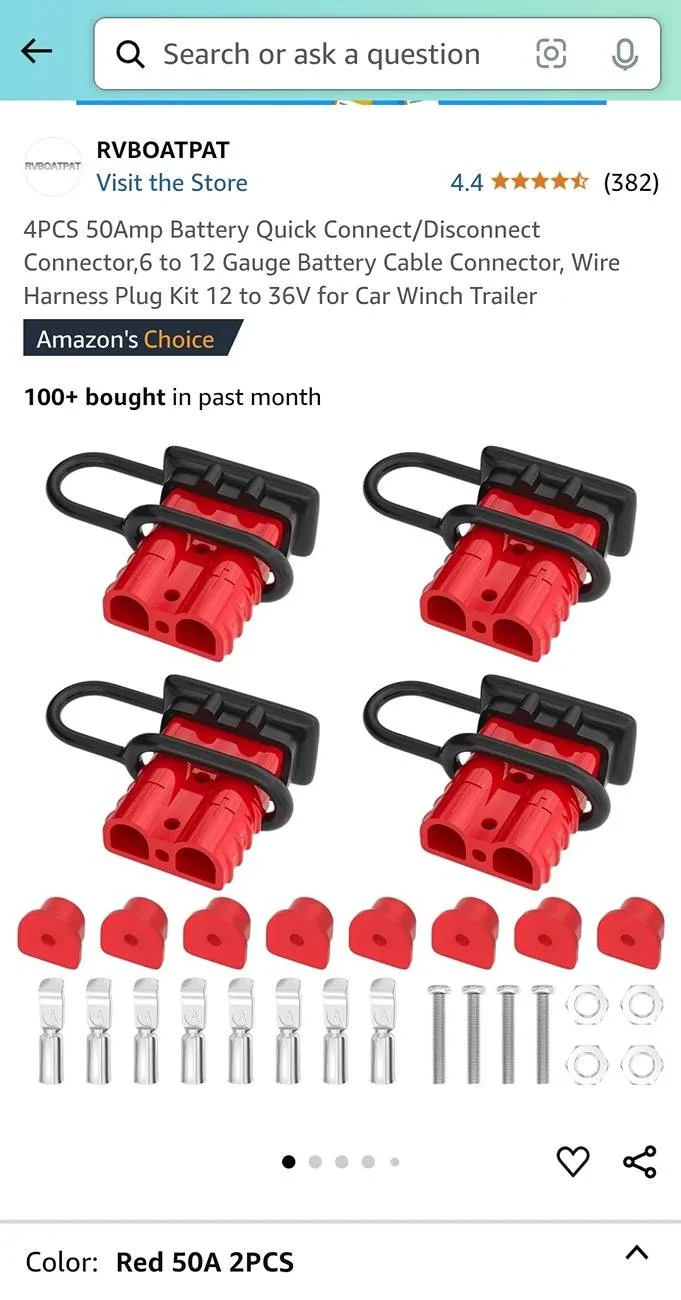

Jeep Gladiator Wire gauge and fuse size help Screenshot_20250102_193458_Amazon Shopping


Just shop around and find best price and color you want. Some will have a tab that blocks other colors from connecting to one or other.
Sponsored


OP
OP
JCappy

JCappy

Well-Known Member
First Name
John
Joined
Oct 19, 2023
Threads
16
Messages
658
Reaction score
863
Location
Canton, Ga
Vehicle(s)
2023 Sarge Green Mojave
Here is two of them.
Screenshot_20250102_193255_Amazon Shopping.jpg
Screenshot_20250102_193458_Amazon Shopping.jpg


Just shop around and find best price and color you want. Some will have a tab that blocks other colors from connecting to one or other.
Thanks. I'll look into those or a SAE plug. Maybe I can add one of them to what I already installed.

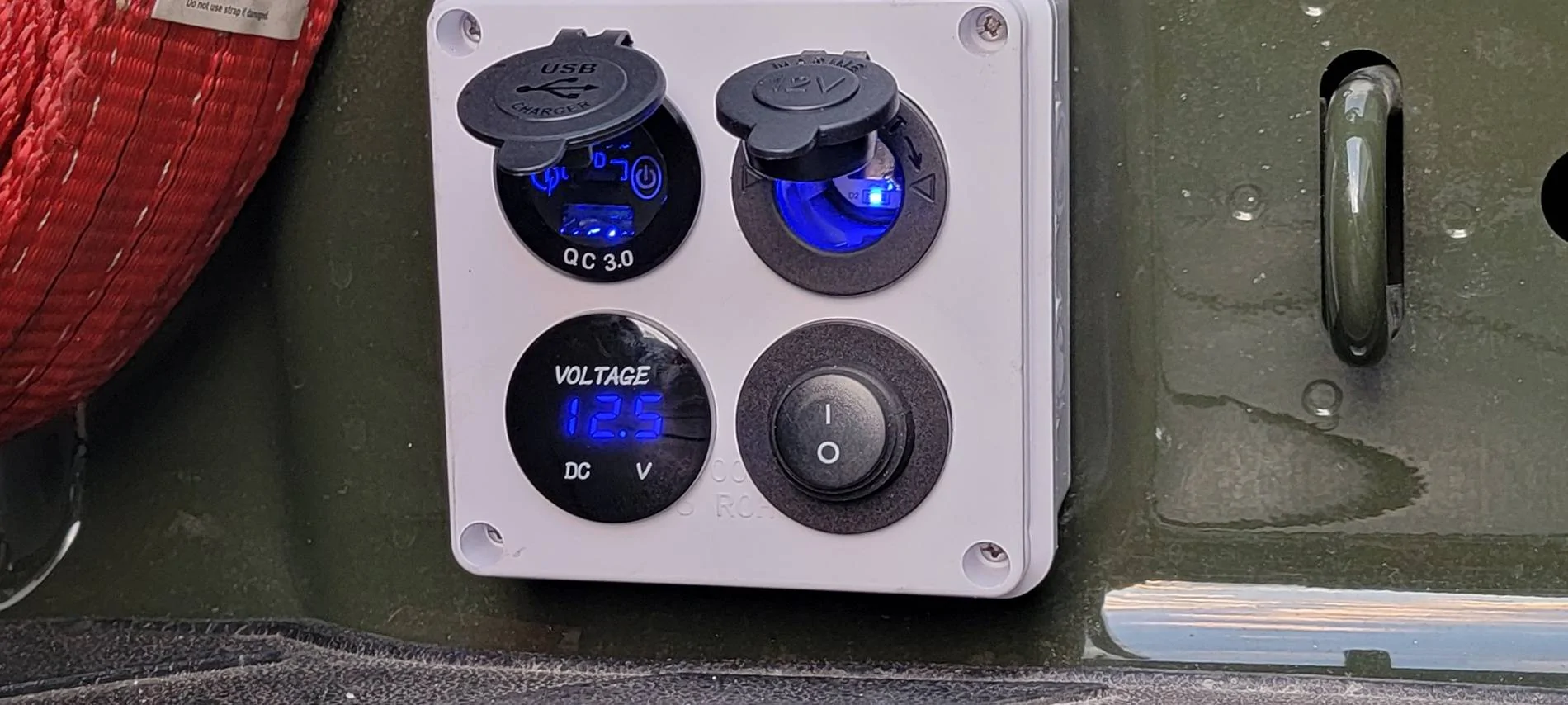

Jeep Gladiator Wire gauge and fuse size help 20250101_172256


Section8

New Member
First Name
Robbie
Joined
Nov 21, 2022
Threads
0
Messages
3
Reaction score
1
Location
NC
Vehicle(s)
2022 JT Rubicon
I’m doing something similar. Using this smaller size powerpole connector because I wanted a more secure connection than the standard 12v socket.

https://www.amazon.com/gp/aw/d/B097QG383J?psc=1&ref=ppx_pop_mob_b_asin_image

10ga wire to AUX 2 switch(set to be only be powered when truck is running). Going to power my Jackery which powers a smaller 32qt frig while traveling. Truck keeps Jackery topped off when ruining, frig on 100% Jackery when truck is off.

OP
OP
JCappy

JCappy

Well-Known Member
First Name
John
Joined
Oct 19, 2023
Threads
16
Messages
658
Reaction score
863
Location
Canton, Ga
Vehicle(s)
2023 Sarge Green Mojave
I’m doing something similar. Using this smaller size powerpole connector because I wanted a more secure connection than the standard 12v socket.

https://www.amazon.com/gp/aw/d/B097QG383J?psc=1&ref=ppx_pop_mob_b_asin_image

10ga wire to AUX 2 switch(set to be only be powered when truck is running). Going to power my Jackery which powers a smaller 32qt frig while traveling. Truck keeps Jackery topped off when ruining, frig on 100% Jackery when truck is off.
Yeah i'm not a hundred percent sure about the standard 12v plug. I believe I'm going to add an additional plug for a more secure fit. I've heard nightmares about that standard 12 V plug. I ended up using 8ga on mine. I plan on testing it out on a trip in February.


Zachanadandy

Well-Known Member
First Name
Zach
Joined
Oct 17, 2023
Threads
4
Messages
3,012
Reaction score
4,762
Location
Patterson, ca
Vehicle(s)
2023 gladiator Mojave
Occupation
Electrical foreman
Wire is cheap compared to the amount of labor running it back there. Personally I'd run a #6 minimum just in case. Maybe you want to add an air compressor one day? Maybe you decide you want a big inverter? The work running, dressing, securing, and protecting the wire from heat, sharp edges, and moving parts is basically the same. Then you KNOW you'll never have to do it again.

OP
OP
JCappy

JCappy

Well-Known Member
First Name
John
Joined
Oct 19, 2023
Threads
16
Messages
658
Reaction score
863
Location
Canton, Ga
Vehicle(s)
2023 Sarge Green Mojave
Wire is cheap compared to the amount of labor running it back there. Personally I'd run a #6 minimum just in case. Maybe you want to add an air compressor one day? Maybe you decide you want a big inverter? The work running, dressing, securing, and protecting the wire from heat, sharp edges, and moving parts is basically the same. Then you KNOW you'll never have to do it again.
This is true but I have no plans of adding anything else. It didn't take me long to run it and secure it. It's.
protected with loom and tie wrapped nicely. Gives me something to do with my free time lol.
