a/c pressure switch- schrader or no?

alpineovernappa

Well-Known Member
Joined
May 28, 2021
Threads
17
Messages
205
Reaction score
191
Location
Mid-Atlantic
Vehicle(s)
2021 JTSS 3.0 & 2006 LJ 6mt
Can the AC pressure switch be removed without opening up the refrigerant system? I’m familiar with older systems that utilize a Schrader valve between the pressure switch and the refrigerant line in order to maintain pressure when changing the switch, but I can’t find any information on whether this system is designed that way. Thanks!
Sponsored



DylanM

Well-Known Member
First Name
Dylan
Joined
Sep 1, 2023
Threads
1
Messages
1,029
Reaction score
2,582
Location
Texas
Vehicle(s)
'21 JTRD
Occupation
USAF Retired

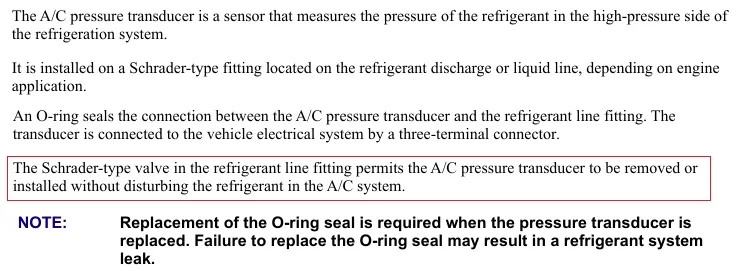

Per the service manual, it looks to be a yes.
Jeep Gladiator a/c pressure switch- schrader or no? ac ducer
