AlfaOBD settings

TimJohanson

Member
First Name
Tim
Joined
Jun 1, 2021
Threads
0
Messages
21
Reaction score
86
Location
USA
Vehicle(s)
2020 Gladiator sport
Vehicle Showcase
1
Programed front windows for one touch down.

Sponsored



ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
178
Messages
29,091
Reaction score
34,572
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
Programed front windows for one touch down.

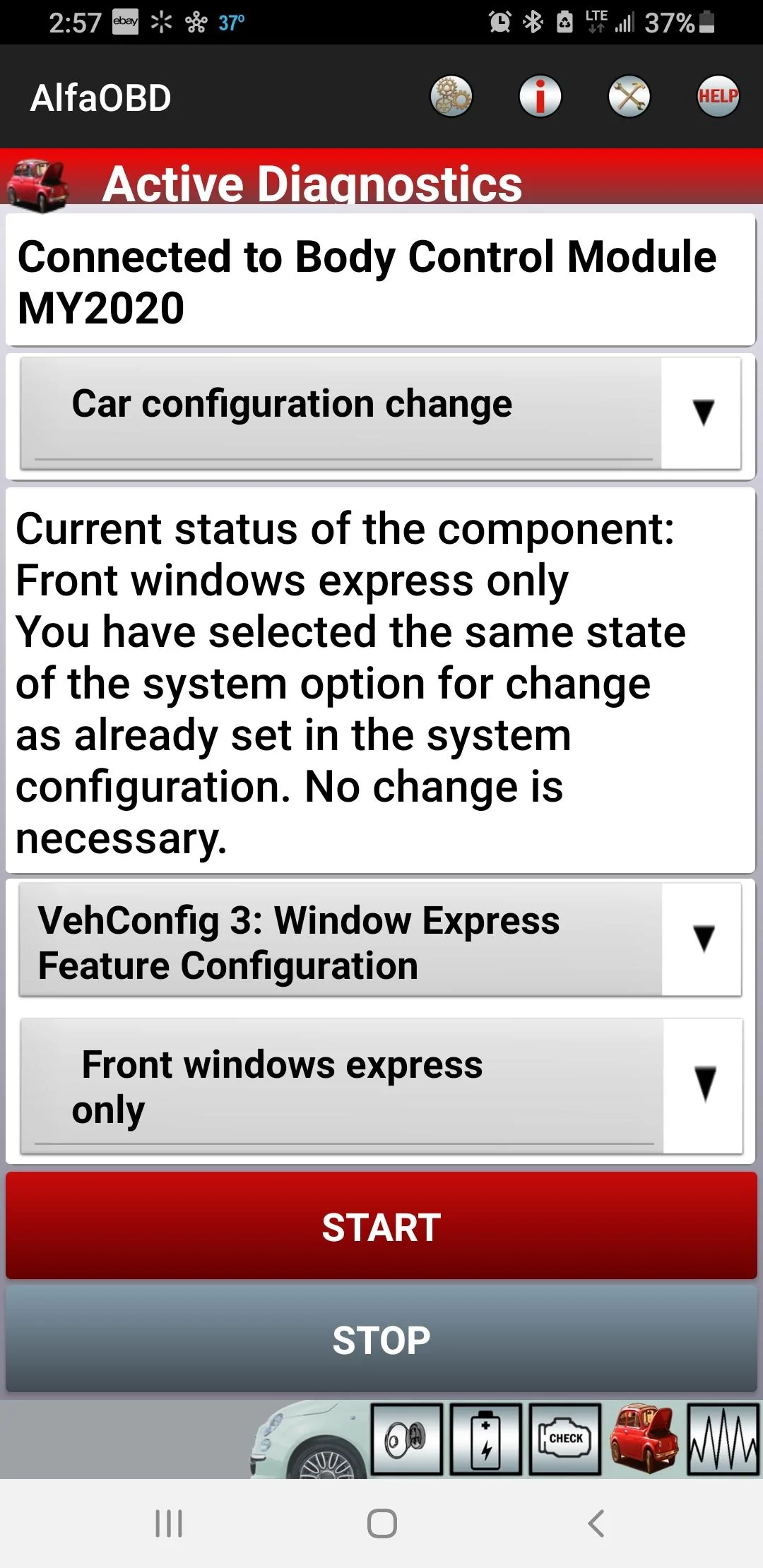

Jeep Gladiator AlfaOBD settings Screenshot_20220429-145728_AlfaOBD
They are already one-touch down.
Note that your screen says no change needed,
In other words, they come that way unless you somehow disabled it (or if the Sport is different)
But the image you posted says you have chosen a setting that's already that way, no change is needed.


TimJohanson

Member
First Name
Tim
Joined
Jun 1, 2021
Threads
0
Messages
21
Reaction score
86
Location
USA
Vehicle(s)
2020 Gladiator sport
Vehicle Showcase
1
They are already one-touch down.
Note that your screen says no change needed,
In other words, they come that way unless you somehow disabled it (or if the Sport is different)
But the image you posted says you have chosen a setting that's already that way, no change is needed.
Only the drivers side was one touch... screen shot was after I programed, It said driver side only before I programed.


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
178
Messages
29,091
Reaction score
34,572
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
They are supposed to be "front" - both.

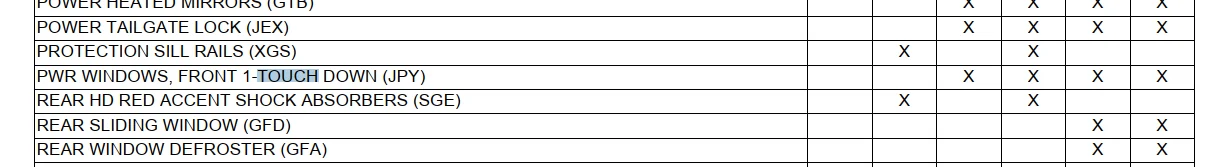

I didn't look at the packages, but the Sport S for example, as well as all other models, have 1-touch down Front windows as standard.

Jeep Gladiator AlfaOBD settings 1651375544177


TimJohanson

Member
First Name
Tim
Joined
Jun 1, 2021
Threads
0
Messages
21
Reaction score
86
Location
USA
Vehicle(s)
2020 Gladiator sport
Vehicle Showcase
1
They are supposed to be "front" - both.
I didn't look at the packages, but the Sport S for example, as well as all other models, have 1-touch down Front windows as standard.

Jeep Gladiator AlfaOBD settings 1651375544177
Right, but mine was just driver side for some reason.


Sponsored

Hamtme

Member
First Name
James
Joined
Jan 1, 2022
Threads
0
Messages
6
Reaction score
4
Location
Missouri
Vehicle(s)
2021 Jeep Gladiator, 2024 Ram 2500
Occupation
Farmer
I have alfaOBD on my laptop and it just updated this morning to 2.3.5.0


Schmoken

Member
Joined
May 18, 2022
Threads
0
Messages
5
Reaction score
7
Location
AR
Vehicle(s)
2022 Rubicon
Does anyone with a 22 have this app working?
I get a ecu verification failed error on ours. I see the same issue on the JL forum too. I sent the dev an email but never got a response.


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
178
Messages
29,091
Reaction score
34,572
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
Does anyone with a 22 have this app working?
I get a ecu verification failed error on ours. I see the same issue on the JL forum too. I sent the dev an email but never got a response.
Get your app updated - As far as I know, the very latest release handles 2022.
Contact their support.
I have a 2022 coming near the end of this month and will be using it then and will see for sure, but I am pretty sure I read that the latest updated (May, at least) handles it.

I got a response in hours when I had trouble updating mine because I bought it through Amazon and not Google so it wouldn't automatically update. That same day he sent me the file to use for my Amazon version along with the activation code.


Schmoken

Member
Joined
May 18, 2022
Threads
0
Messages
5
Reaction score
7
Location
AR
Vehicle(s)
2022 Rubicon
hmmm. I emailed him 6 days ago, nothing but crickets so far.

v2.2.8.0 is the latest I see.
Here's the JL guy with the same issue.


Sponsored

mert34

Well-Known Member
Joined
Feb 15, 2022
Threads
3
Messages
101
Reaction score
106
Location
AK
Vehicle(s)
2022 Mojave
Yeah i have a 22 and been waiting on support for a while, i emailed a few months ago and he said no eta on it. glad you got a different answer


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
178
Messages
29,091
Reaction score
34,572
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
hmmm. I emailed him 6 days ago, nothing but crickets so far.

v2.2.8.0 is the latest I see.
Here's the JL guy with the same issue.
Well ya got me beat - mine is v2.2.7.0
Guess I need to look for the next update for the 22 support.
Big thanks for your efforts digging up the info!


Jimmy07

Well-Known Member
First Name
Jimmy
Joined
Sep 6, 2020
Threads
3
Messages
237
Reaction score
214
Location
Illinois
Vehicle(s)
2017 Ram 2500 2019 Jeep Cherokee
Does anyone with a 22 have this app working?
I get a ecu verification failed error on ours. I see the same issue on the JL forum too. I sent the dev an email but never got a response.
Just click continue. The ECU part number isn’t in the database yet, but it’s the same BCM settings as previous years. You can also go into AlfaOBD settings and check the box for do not verify ECU to get around the prompt.


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
178
Messages
29,091
Reaction score
34,572
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
Just click continue. The ECU part number isn’t in the database yet, but it’s the same BCM settings as previous years. You can also go into AlfaOBD settings and check the box for do not verify ECU to get around the prompt.
Almost everything we do is in the BCM anyway. And when I did a dump of the BCM using JSCAN of my 2020 today, it was amazing how much was in there that you'd expect to be in other places.
Steering, remote starts, IBS and battery info, a ton of stuff, can be found in the BCM.

Unless you need to get to info like this, you don't really need ECU access -

Cam Unlocked Tmr Exh 2;07/08/2022;16:00:17:62;0

Cam Unlocked Tmr Exh 2;07/08/2022;16:00:17:74;0

Cam Unlocked Tmr Int 1;07/08/2022;16:00:17:84;0

Cam Unlocked Tmr Int 1;07/08/2022;16:00:17:94;0

Cam Unlocked Tmr Int 2;07/08/2022;16:00:18:02;0

Cam Unlocked Tmr Int 2;07/08/2022;16:00:18:12;0


Cam/Crank Difference Learn Exhaust 1;07/08/2022;16:00:18:30;-3.20000004768372

Cam/Crank Difference Learn Exhaust 1 (Low Lift Mode);07/08/2022;16:00:18:44;-3.09999990463257

Cam/Crank Difference Learn Exhaust 2;07/08/2022;16:00:18:54;-1.39999997615814

Cam/Crank Difference Learn Exhaust 2 (Low Lift Mode);07/08/2022;16:00:18:63;-1.39999997615814

Cam/Crank Difference Learn Intake 1;07/08/2022;16:00:18:72;1.79999995231628

Cam/Crank Difference Learn Intake 1 (Low Lift Mode);07/08/2022;16:00:18:80;1.79999995231628

Cam/Crank Difference Learn Intake 2;07/08/2022;16:00:18:89;-4.19999980926514

Cam/Crank Difference Learn Intake 2 (Low Lift Mode);07/08/2022;16:00:18:97;-4.40000009536743


Jimmy07

Well-Known Member
First Name
Jimmy
Joined
Sep 6, 2020
Threads
3
Messages
237
Reaction score
214
Location
Illinois
Vehicle(s)
2017 Ram 2500 2019 Jeep Cherokee
Almost everything we do is in the BCM anyway. And when I did a dump of the BCM using JSCAN of my 2020 today, it was amazing how much was in there that you'd expect to be in other places.
Steering, remote starts, IBS and battery info, a ton of stuff, can be found in the BCM.

Unless you need to get to info like this, you don't really need ECU access -

Cam Unlocked Tmr Exh 2;07/08/2022;16:00:17:62;0

Cam Unlocked Tmr Exh 2;07/08/2022;16:00:17:74;0

Cam Unlocked Tmr Int 1;07/08/2022;16:00:17:84;0

Cam Unlocked Tmr Int 1;07/08/2022;16:00:17:94;0

Cam Unlocked Tmr Int 2;07/08/2022;16:00:18:02;0

Cam Unlocked Tmr Int 2;07/08/2022;16:00:18:12;0


Cam/Crank Difference Learn Exhaust 1;07/08/2022;16:00:18:30;-3.20000004768372

Cam/Crank Difference Learn Exhaust 1 (Low Lift Mode);07/08/2022;16:00:18:44;-3.09999990463257

Cam/Crank Difference Learn Exhaust 2;07/08/2022;16:00:18:54;-1.39999997615814

Cam/Crank Difference Learn Exhaust 2 (Low Lift Mode);07/08/2022;16:00:18:63;-1.39999997615814

Cam/Crank Difference Learn Intake 1;07/08/2022;16:00:18:72;1.79999995231628

Cam/Crank Difference Learn Intake 1 (Low Lift Mode);07/08/2022;16:00:18:80;1.79999995231628

Cam/Crank Difference Learn Intake 2;07/08/2022;16:00:18:89;-4.19999980926514

Cam/Crank Difference Learn Intake 2 (Low Lift Mode);07/08/2022;16:00:18:97;-4.40000009536743
ECU is just a generic acronym for electronic control unit, which in this case is the body control module.
And yes, since the BCM is the central gateway to the entire vehicle, it gates messages to all other modules.
