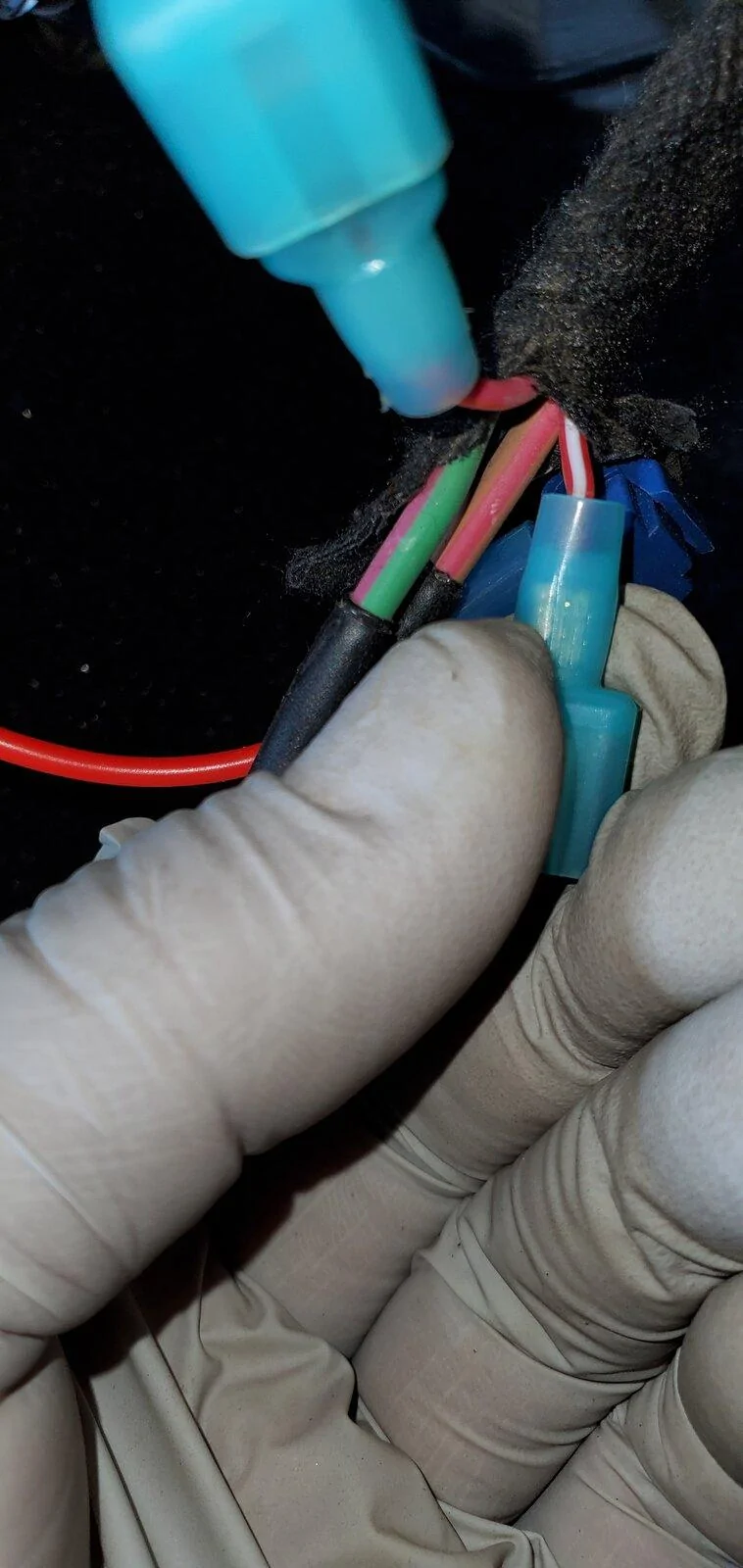

Either would work, Red would be better, I used blue because that's all I had at the moment.
Can you also show me how to connect to the 12V wiring? (Picture perhaps)
Have never messed with any type of wiring on any vehicle so I need all the help I can get.
Also saw a post on the JL forum about some aux connections on the passenger side interior (glove box/door area I think) as well as by the battery. Is that where you would/could connect and if so which color wires and with the same type of connector that you used on the driver side door?
Thanks a bunch!
Sponsored



Rupicon

Well-Known Member
First Name
Scott
Joined
May 1, 2019
Threads
3
Messages
56
Reaction score
56
Location
Salem VA
Vehicle(s)
2020 Gladiator, 2013 JKU Moab
Occupation
VP of Finance
Can you also show me how to connect to the 12V wiring? (Picture perhaps)
Have never messed with any type of wiring on any vehicle so I need all the help I can get.
Also saw a post on the JL forum about some aux connections on the passenger side interior (glove box/door area I think) as well as by the battery. Is that where you would/could connect and if so which color wires and with the same type of connector that you used on the driver side door?
Thanks a bunch!
Here’s a link that was shared with me when I asked a similar question. This will only hold true IF your jeep came from the factory with the aux switches.

https://www.jlwranglerforums.com/fo...cable-color-code-wiring-identification.13026/


jlc64uk

Active Member
First Name
Jeff
Joined
May 6, 2020
Threads
3
Messages
43
Reaction score
26
Location
Kentucky
Vehicle(s)
21 Gladiator Rubicon; 21 Ford Explorer
Occupation
Asst. Principal
Here’s a link that was shared with me when I asked a similar question. This will only hold true IF your jeep came from the factory with the aux switches.

https://www.jlwranglerforums.com/fo...cable-color-code-wiring-identification.13026/
Yes I do have the aux switch panel installed and that is the post I was referring to. Do you know which one of those wires would be the one that I would need to attach to? I assume I can use one of those Posi-taps to do that as well? Thanks agian.

OP
OP
GoVR46

GoVR46

Well-Known Member
First Name
David
Joined
Jun 5, 2020
Threads
18
Messages
598
Reaction score
1,251
Location
Arnold & San Francisco CA.
Vehicle(s)
2020 Gator Rubicon, 2014 Highlander, 2007 BMW 335i (725 whp)
Can you also show me how to connect to the 12V wiring? (Picture perhaps)
Have never messed with any type of wiring on any vehicle so I need all the help I can get.
Also saw a post on the JL forum about some aux connections on the passenger side interior (glove box/door area I think) as well as by the battery. Is that where you would/could connect and if so which color wires and with the same type of connector that you used on the driver side door?
Thanks a bunch!
Yes if you do have the factory AUX switches then you could tap into the RED wire with WHITE stripe.
I tried that location first but kept blowing the 10amp fuse because I was trying to run the window module and my dashcam off the same circuit.





W8lifts

Well-Known Member
First Name
Adam
Joined
Aug 23, 2020
Threads
6
Messages
77
Reaction score
80
Location
Dallas
Vehicle(s)
2020 Jeep Gladiator
Occupation
Engineering Specialist
Got it installed thanks for posts/how to, I will say, the autozone quick splice connections they sell, suck major balls.


Sponsored

Rupicon

Well-Known Member
First Name
Scott
Joined
May 1, 2019
Threads
3
Messages
56
Reaction score
56
Location
Salem VA
Vehicle(s)
2020 Gladiator, 2013 JKU Moab
Occupation
VP of Finance
So I got mine installed. It took a lot longer than I thought. Struggled getting the box in place. Then it was difficult splicing into the harness wires just because you didn’t have a whole lotta room to move. But I got everything buttoned up and it works...but I noticed something and wanted to see if this was happening to anybody else.

I roll all the windows down and they work perfectly. I hit the rear passenger window to automatically roll up. Starts fine. If I then try rolling up the front passenger window before the rear passenger window is up, the rear window will stop. The front window will close perfectly and then I have to hit the rear switch again. It almost seems like you can’t roll up the front windows at the same time as the rear windows? Has anybody noticed this? Not a big deal just curious if it was only me???


redrider

Well-Known Member
First Name
Joe
Joined
Apr 29, 2019
Threads
5
Messages
596
Reaction score
881
Location
Columbia
Vehicle(s)
1 truck 5 motorcycles
Will the window stop on the up stroke if an obstruction appears? Kind of like holding a baseball without the ball, I can use three fingers and a thumb to actuate all four. Jeeps are not the first to place the switches in the center dash area. Good write up.

OP
OP
GoVR46

GoVR46

Well-Known Member
First Name
David
Joined
Jun 5, 2020
Threads
18
Messages
598
Reaction score
1,251
Location
Arnold & San Francisco CA.
Vehicle(s)
2020 Gator Rubicon, 2014 Highlander, 2007 BMW 335i (725 whp)
Will the window stop on the up stroke if an obstruction appears? Kind of like holding a baseball without the ball, I can use three fingers and a thumb to actuate all four. Jeeps are not the first to place the switches in the center dash area. Good write up.
I have not tested having an obstruction in the window myself. Will try it out later to see what happens.


wchevron

Well-Known Member
First Name
Matt
Joined
Aug 28, 2020
Threads
37
Messages
433
Reaction score
716
Location
RI
Vehicle(s)
2021 JTR, 2020 JLU
I thought someone said, on the original thread, the window wouldn't stop with an obstruction but would be nice to get some first hand reports.

Just told my daughter we'd be installing this in her Jeep this weekend.

Response.... that's awesome.


calipoontappa

Well-Known Member
First Name
Mike
Joined
Sep 30, 2020
Threads
35
Messages
611
Reaction score
621
Location
San Francisco
Vehicle(s)
Jeep
Will the window stop on the up stroke if an obstruction appears? Kind of like holding a baseball without the ball, I can use three fingers and a thumb to actuate all four. Jeeps are not the first to place the switches in the center dash area. Good write up.
It will not stop.


Sponsored

calipoontappa

Well-Known Member
First Name
Mike
Joined
Sep 30, 2020
Threads
35
Messages
611
Reaction score
621
Location
San Francisco
Vehicle(s)
Jeep
I thought someone said, on the original thread, the window wouldn't stop with an obstruction but would be nice to get some first hand reports.

Just told my daughter we'd be installing this in her Jeep this weekend.

Response.... that's awesome.
it won’t stop. I tried it when I put mine in.


wchevron

Well-Known Member
First Name
Matt
Joined
Aug 28, 2020
Threads
37
Messages
433
Reaction score
716
Location
RI
Vehicle(s)
2021 JTR, 2020 JLU
How do you get through the firewall. I can’t find any holes. Do I drill one?


Rupicon

Well-Known Member
First Name
Scott
Joined
May 1, 2019
Threads
3
Messages
56
Reaction score
56
Location
Salem VA
Vehicle(s)
2020 Gladiator, 2013 JKU Moab
Occupation
VP of Finance
How do you get through the firewall. I can’t find any holes. Do I drill one?
Here is a video that I found to be very helpful. Only two minutes long...plug shows up around 1:40. I ended up leaving the plug in place, drilled a small hole, fed the wire through and then sealed up with rtv silicone sealant.



wchevron

Well-Known Member
First Name
Matt
Joined
Aug 28, 2020
Threads
37
Messages
433
Reaction score
716
Location
RI
Vehicle(s)
2021 JTR, 2020 JLU
Thanks. Have the red wire temp tied in to test. Rears aren’t working. Fronts seem to work okay


W8lifts

Well-Known Member
First Name
Adam
Joined
Aug 23, 2020
Threads
6
Messages
77
Reaction score
80
Location
Dallas
Vehicle(s)
2020 Jeep Gladiator
Occupation
Engineering Specialist
Thanks. Have the red wire temp tied in to test. Rears aren’t working. Fronts seem to work okay
When you say not working, are they completely dead or no auto up or down with or without key fob ?
