Our team here at Diode Dynamics is excited to introduce our highly anticipated Stage Series Single Color and RBGW LED Rock Lights!

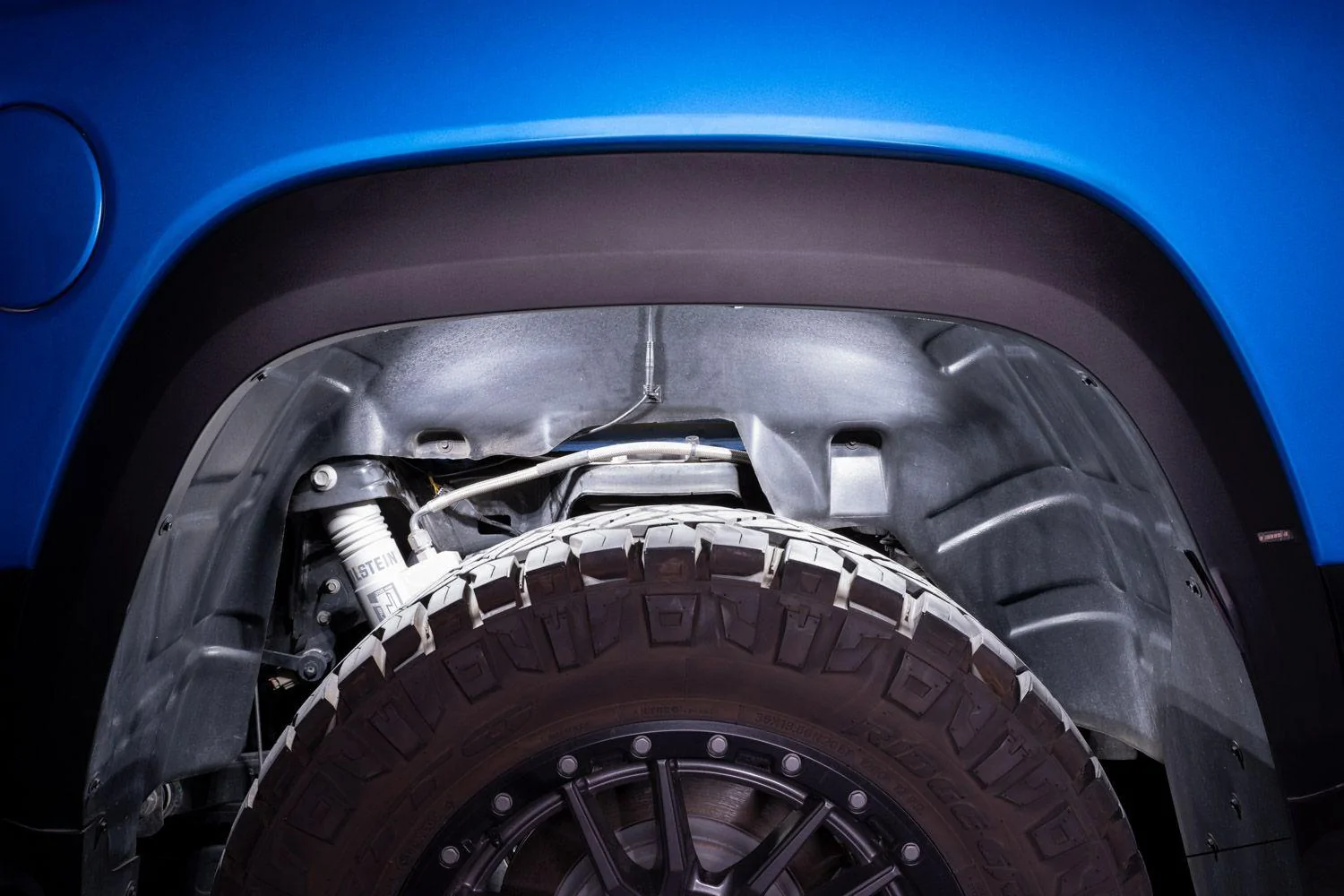

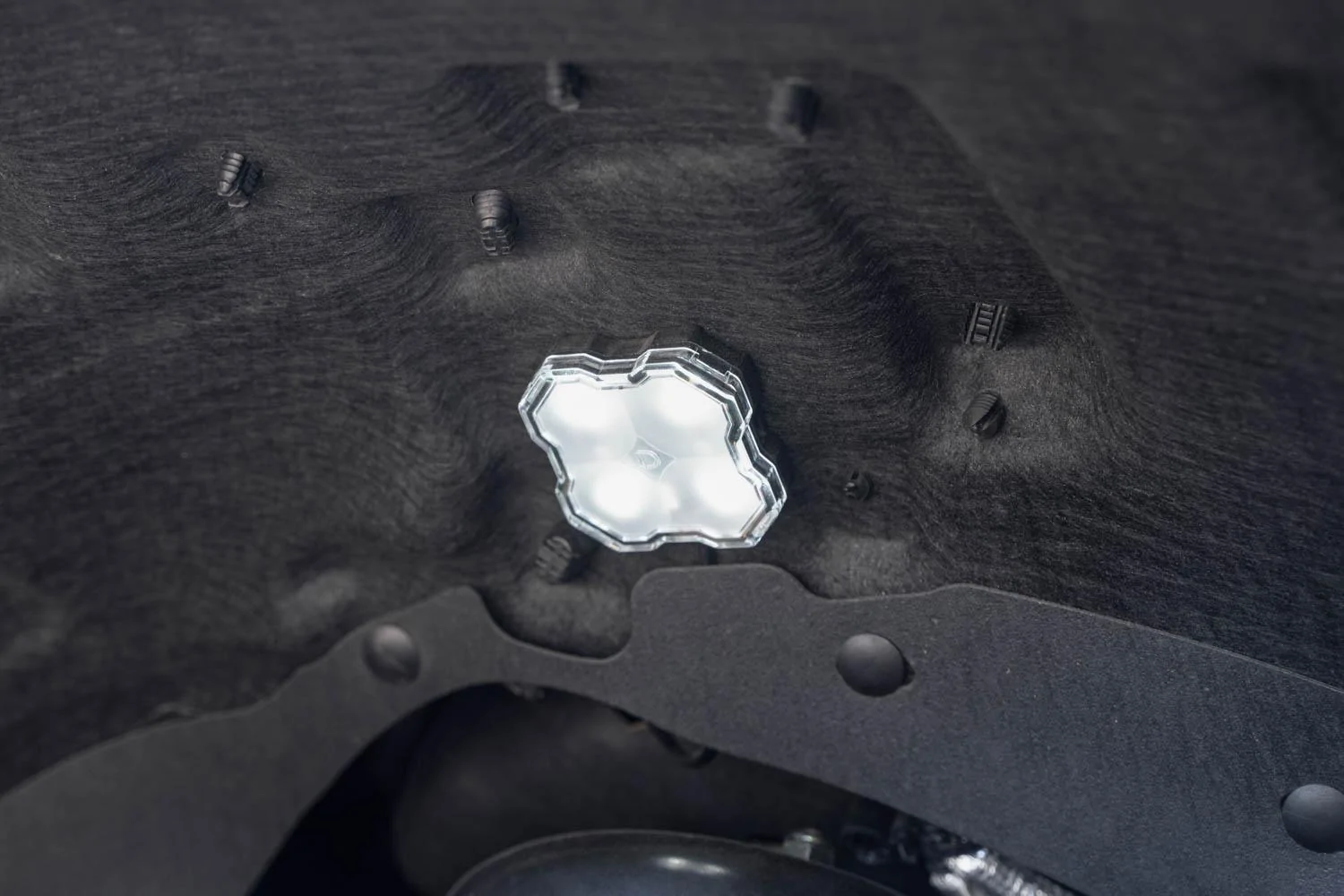

With high-power LED emitters, these USA-assembled units are a major step up from any other rock light on the market today. Rock lights are a perfect solution to add light underneath your vehicle on the trail. Or, with their compact size and numerous mounting solutions, you can add these anywhere you need some extra light - your cargo area, under the hood, on a roof rack, the side of a trailer, and more. The applications are endless!
Single Color Rock Lights. With a true power draw of over 10 watts, the Stage Series Rock Light provides a peak output of 1000 lumens. Even with claims of high power, generic rock lights run at only a few watts, making the Diode Dynamics Rock Light a huge step up for the entire category. Where generic rock lights require two or three units to light up one space on the vehicle, you’ll only need one to get the coverage and output you need.
Dual Power Levels. The Stage Series Rock Light uses a simple 3-wire system, allowing you to select a low-power or high-power mode. At 3 watts of output, the low-power mode is actually on-par with the max output of most generic rock lights! If you want to light up a campsite and you don’t need all 1000 lumens, the low-power mode is a great way to conserve battery power. This 3-wire setup also provides much more functionality on custom off-road builds. By tying the low and high power wires into your factory harness, you can use them as a dual-function running/brake light, or running/turn signal, all in one simple package.
Available Packs: Single, Dual, 4-Pack, or 8-Pack

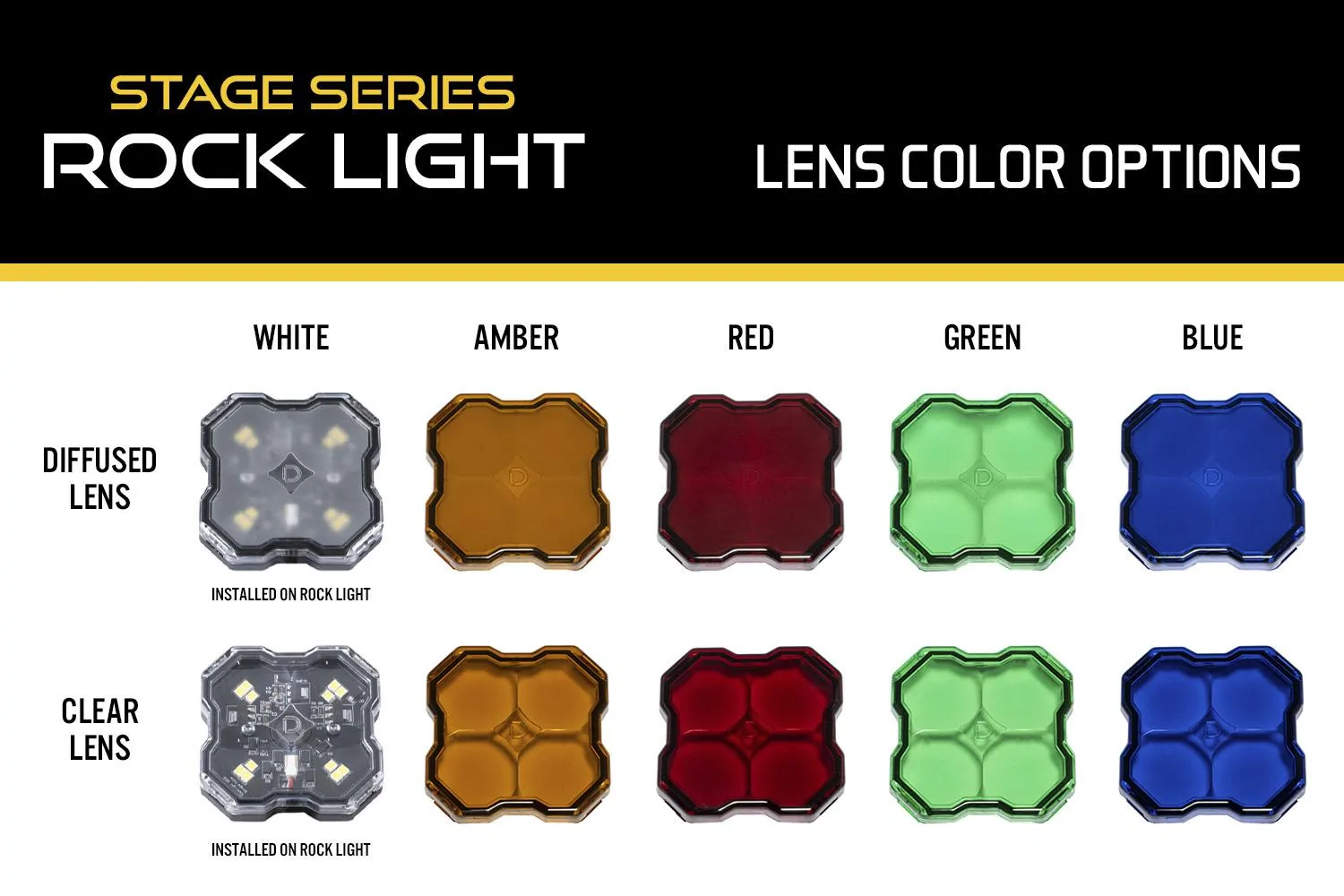

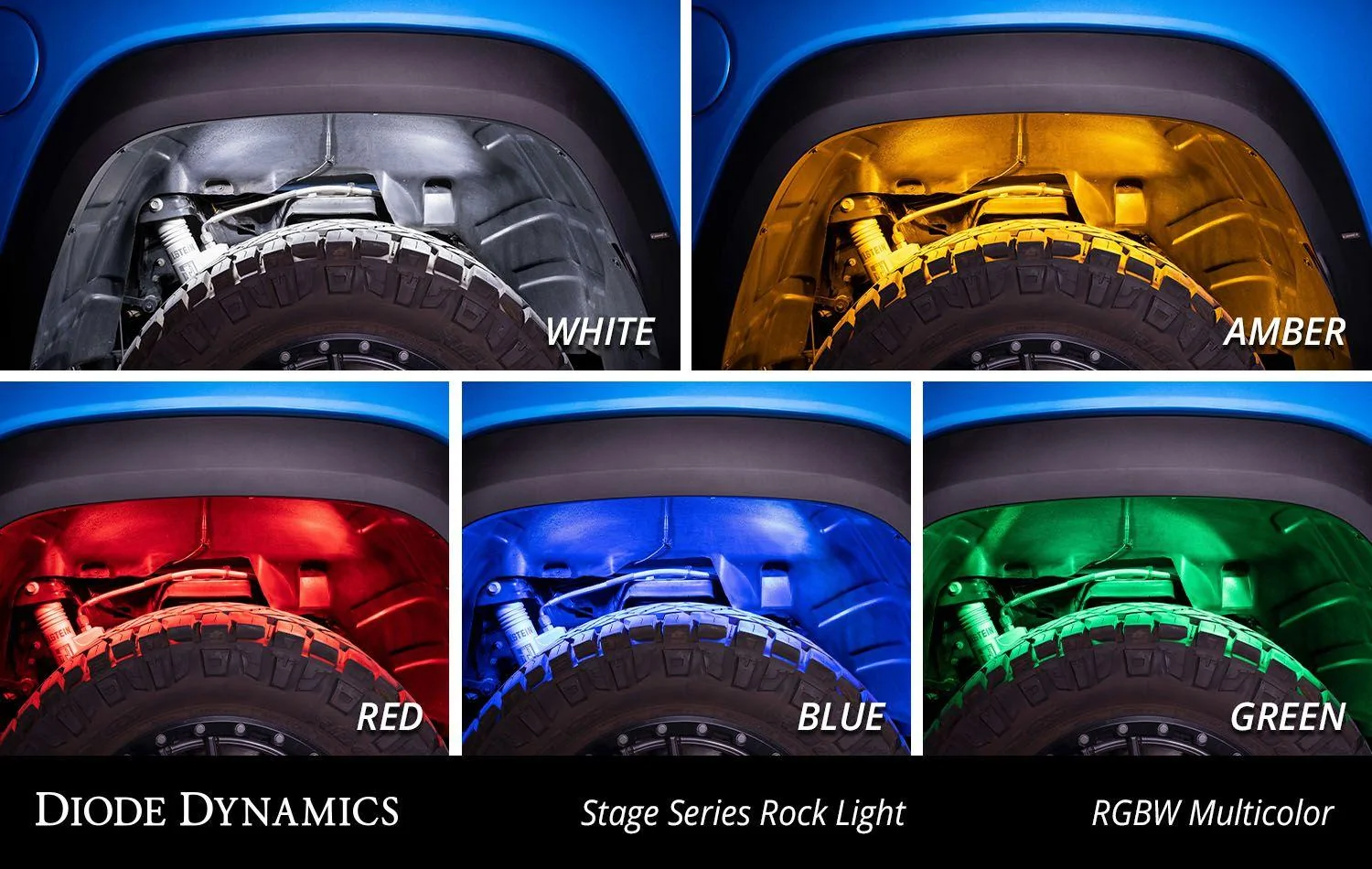

Choose Your Color. Stage Series LED Rock Lights are available in cool white, amber, red, green, and blue. With the same high-power white LEDs underneath, the interchangeable lenses allow you to change colors any time. White is a great option to get the maximum output possible. Green and blue provide serious style. And red or amber colors could become very functional options on an off-road setup, by powering the low and high power inputs with your running light and turn signal, for example.

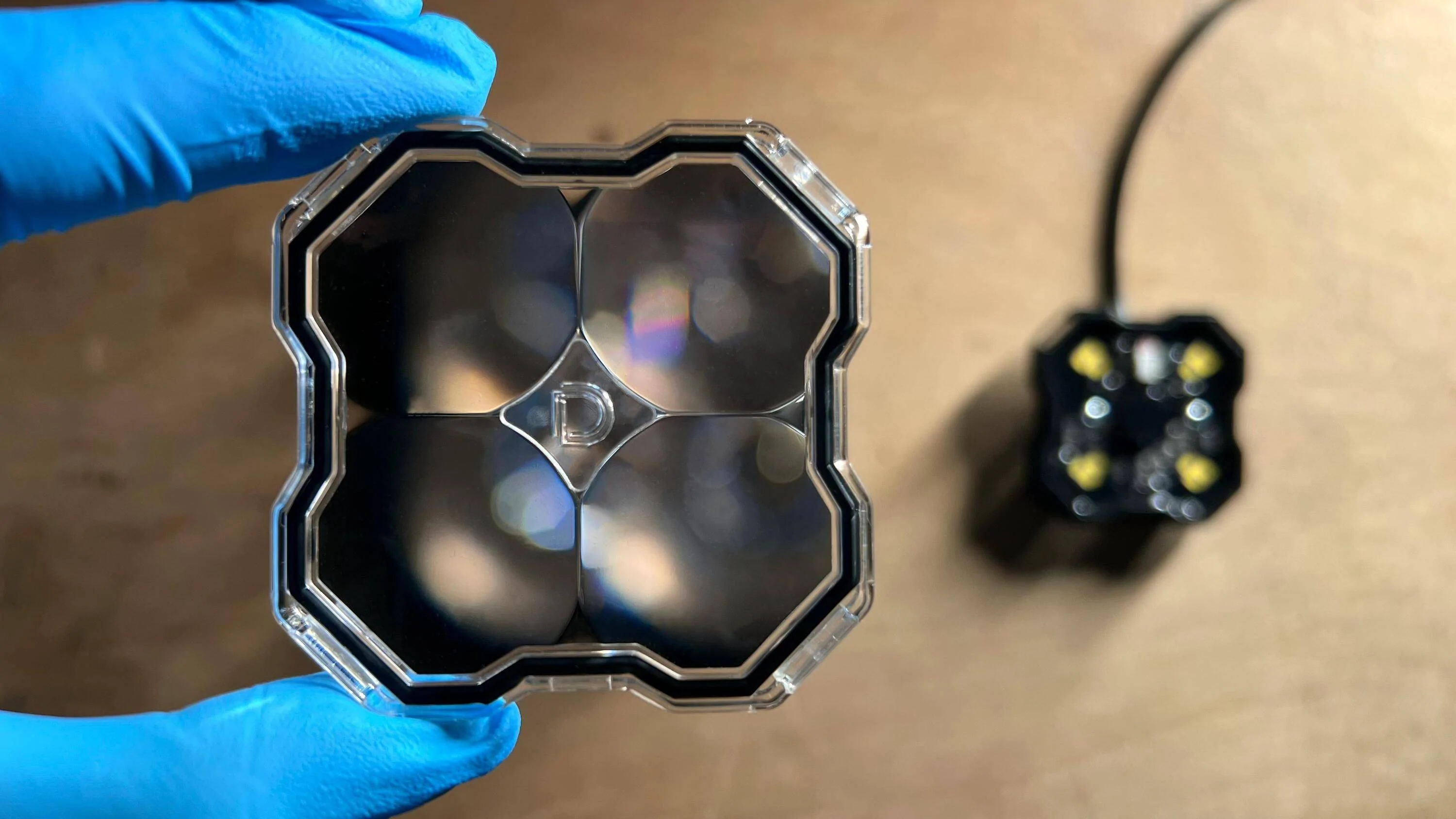

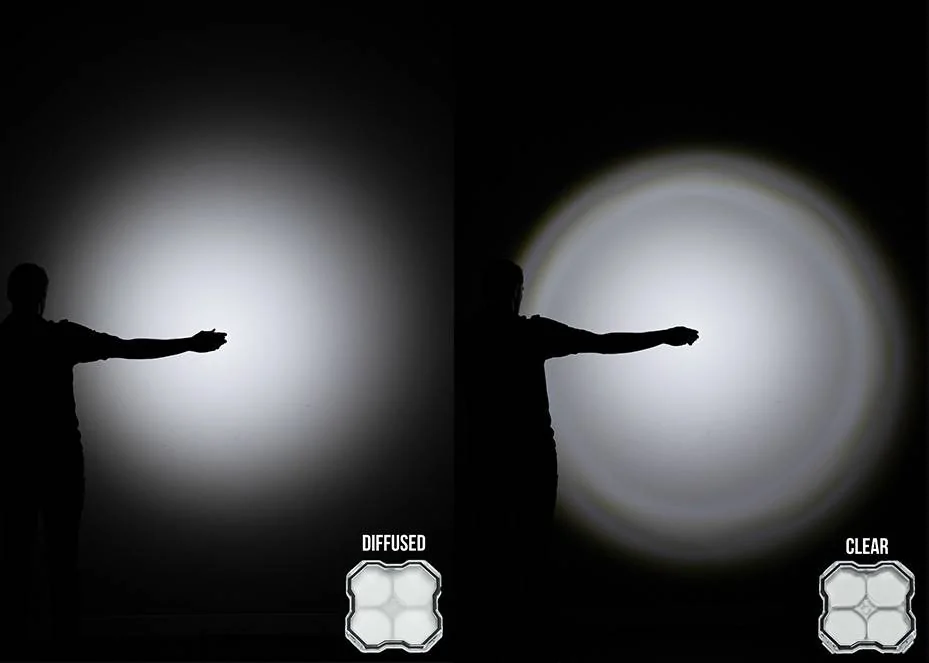

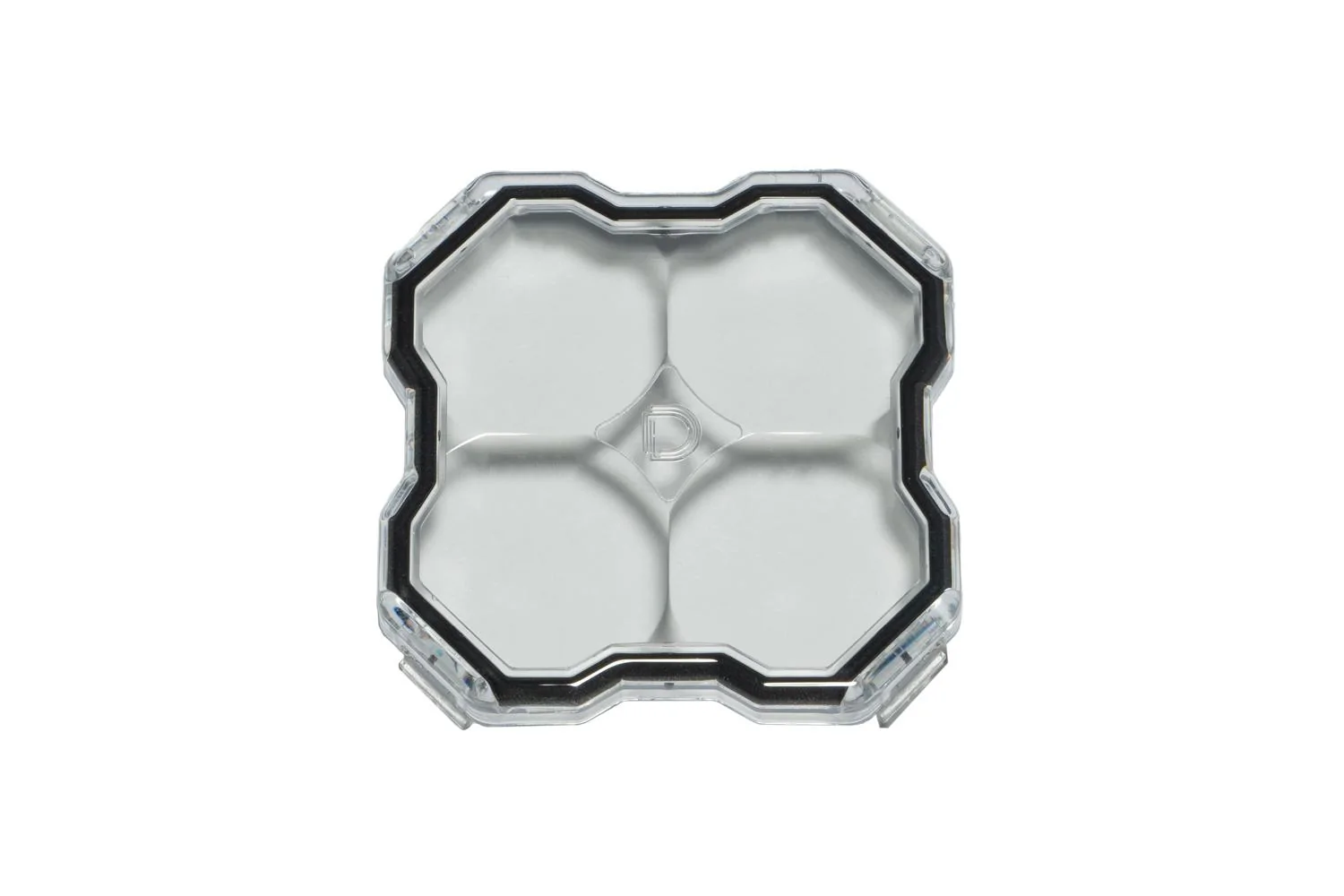

Optically-Engineered, Interchangeable Lenses. Most rock lights are built without optics in mind. They use a simple clear cover to protect from the elements. In true Diode Dynamics style, we’ve incorporated optical features to get the best performance possible. Four individual optics are molded into the outer lens, which provides excellent spread and even, consistent coverage from each light. The lens itself is a thick automotive-grade polycarbonate, made to take a beating on the trail. And the best part? The lenses are interchangeable and can be swapped out easily as needed.
Bluetooth Compatible with the Diode Dynamics App for Apple/Andriod
RGBW Rock Lights. With four high-intensity RGBW LED emitters, the Diode Dynamics Rock Light provides plenty of output in any color you can think of, paired with our RGBW remote or RGBW Bluetooth controller and app. The diffused optical feature of the lens provides excellent integration of colors. And unlike other multicolor lights, the extra white chip means that these will light up in a bright, pure white color when you want to maximize output. Want to show off? Use your controller to start a pattern, strobe, fade, or control the brightness. The best of both worlds!
Available Packs: Single, Dual, 4-Pack, or 8-Pack
Mount it Anywhere! These Rock Lights were designed to be mounted virtually anywhere on your vehicle. All rock lights come standard with a center bolt mounting point, which is neatly hidden underneath the lens. The aluminum heatsink also features hidden mounting tabs for quick zip-tie installation, if preferred.
If that’s not enough, we also offer a variety of mounting solutions, including a roll bar mount, magnetic mount, flush mount, and surface mount to cover any other potential application.
Surface Mount Displayed
Flush Mount Displayed
Roll Bar Mount Displayed
Magnetic Mount Displayed
Each of these accessory mounts is designed to mate up perfectly with the base rock light unit, for a professional and clean appearance when installed.

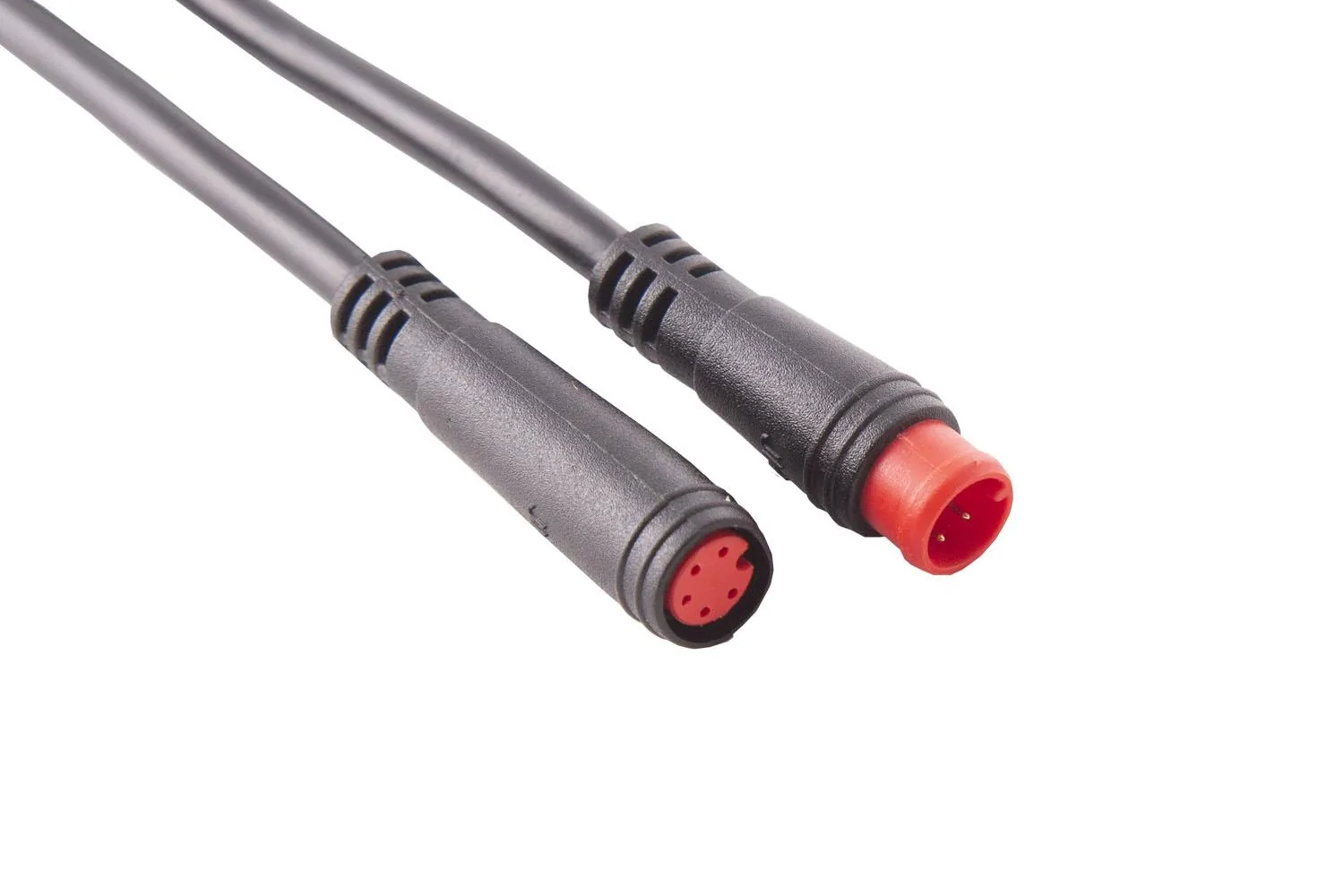

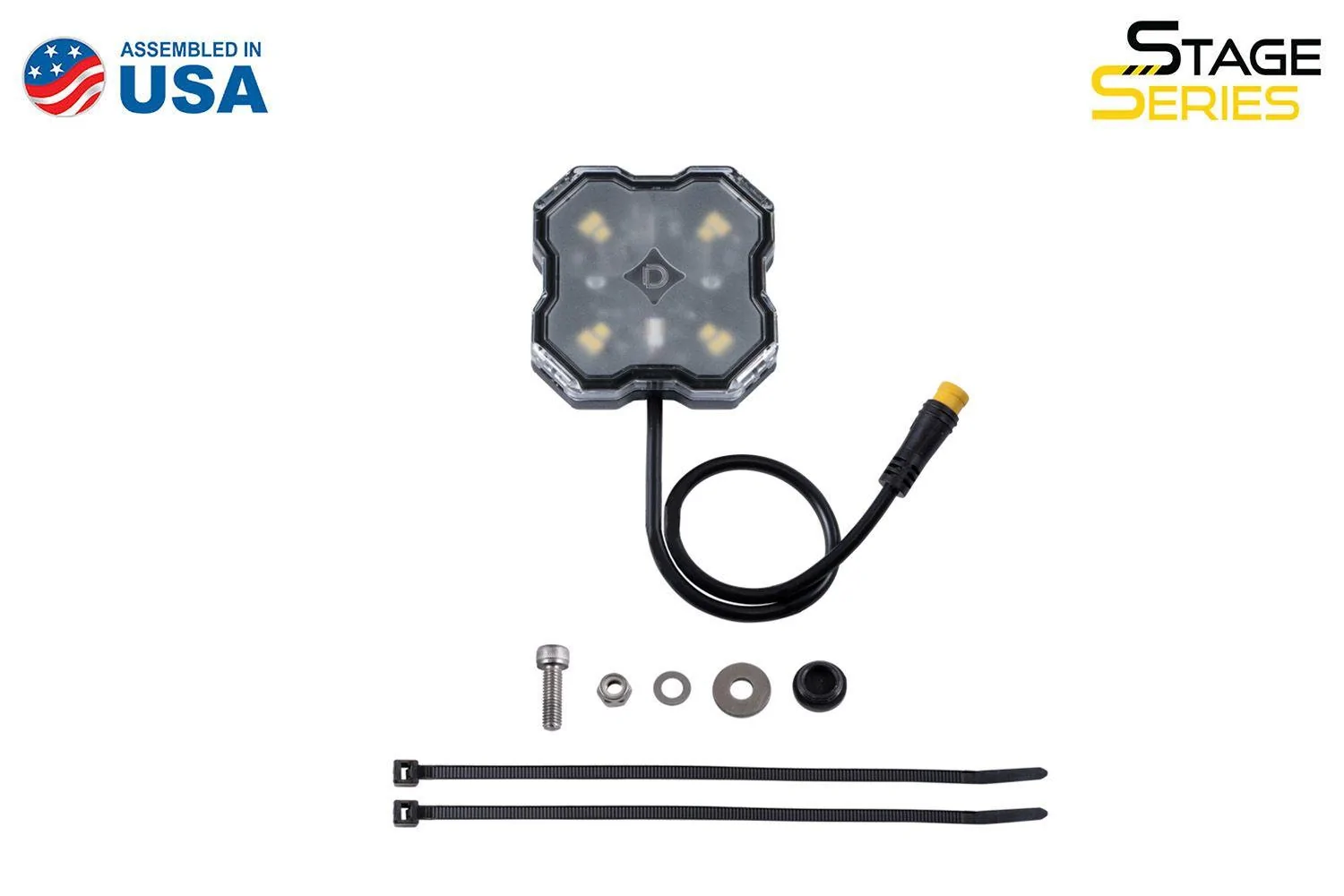

Simple Connections. For maximum convenience, these are available with either 10-inch bare wire leads, or an M8 barrel-style connector. The bare leads are a great option if you plan to wire them up yourself, while the M8 option provides a secure, waterproof connection and is compatible with our plug-and-play harnesses. At only 8mm in diameter, it’s still easy to route the wires to where you need them.
Proven Reliability. We know your rock lights will be put to the test, so you can rest assured that they have been designed for superior durability. They are IP68 waterproof rated and feature a cast aluminum housing and pin-fin heatsink, for effective thermal dissipation. The lens is designed with thick automotive-grade polycarbonate, and a UV coating. Backed by a limited 8-year warranty, they have been tested in-house from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. Rest assured, the Stage Series Rock Lights will handle whatever you throw at them.
If you have any questions, we'll be more than happy to help!
Monday-Friday 10 a.m.- 5 p.m. CST
Email: contact@diodedynamics
Phone: 314-205-3033
Did you know? All US forum members are eligible for a FREE SHIPPING code! Just send us a direct message.
