Winch wiring?

[99ls1tj]

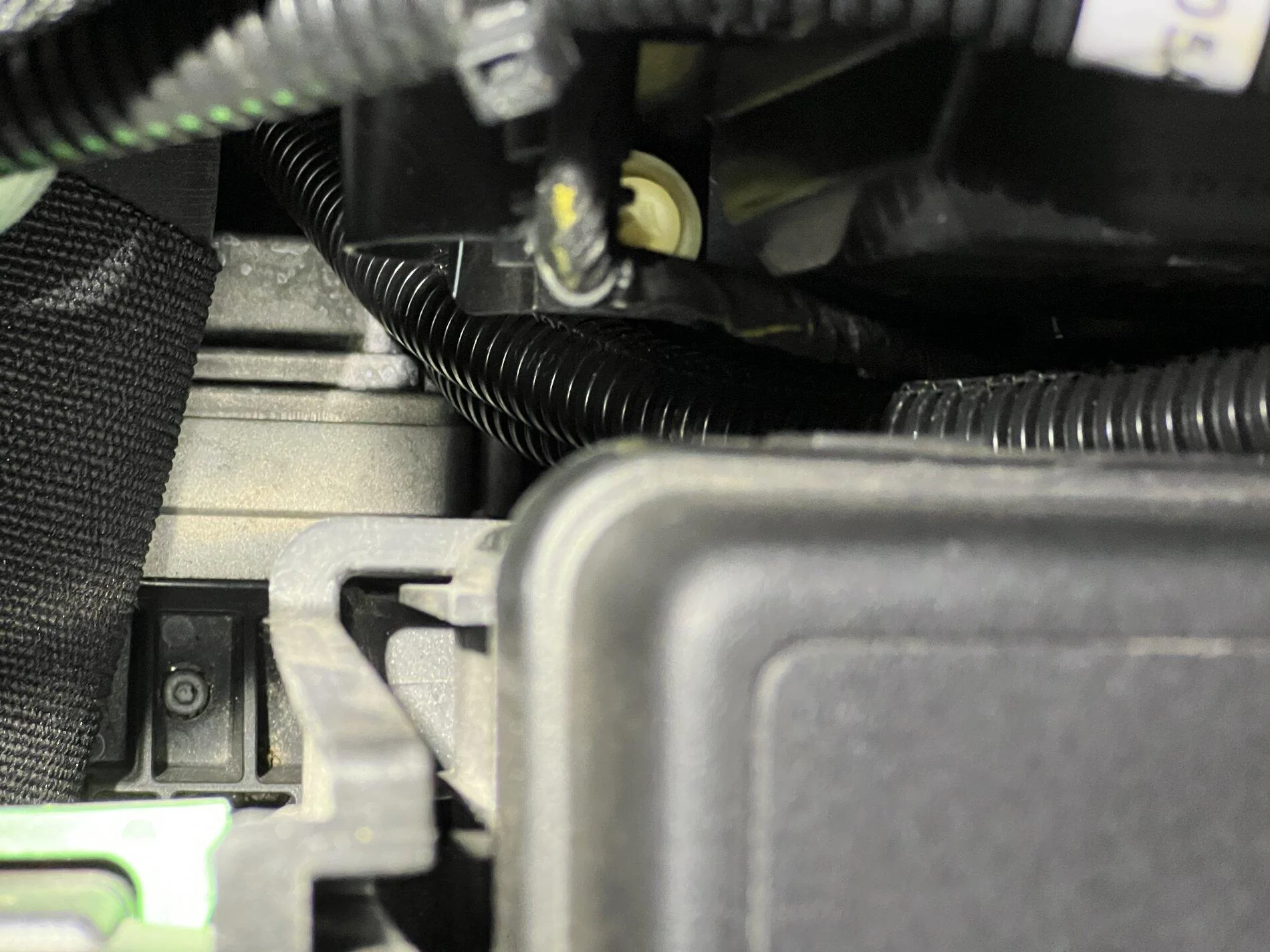

I realize it's not rocket science, but does anyone want to share how they ran the wiring for their winch with the ecodiesel? Space under the hood is really tight with these things. This is how I ran mine (up in the photo is front), but I'm thinking I may need to go back and route it outside the frame and come up onnthe passenger side of the fuse box. My current wiring route looks like it has a lot of potential for rubbing and heat issues. Thanks

Sponsored



[QuickOne]

I ran mine over the passenger frame rail, and up the grill just behind the fender liner. From there it leads to a cutoff switch I picked up from OK4wd. From there it runs along edge of the engine compartment to the battery. I can get some pics later today if that is helpful.



[99ls1tj]

I can get some pics later today if that is helpful.

Sure, thanks! I'm going to redo mine this weekend.



[QuickOne]

Sure, thanks! I'm going to redo mine this weekend.

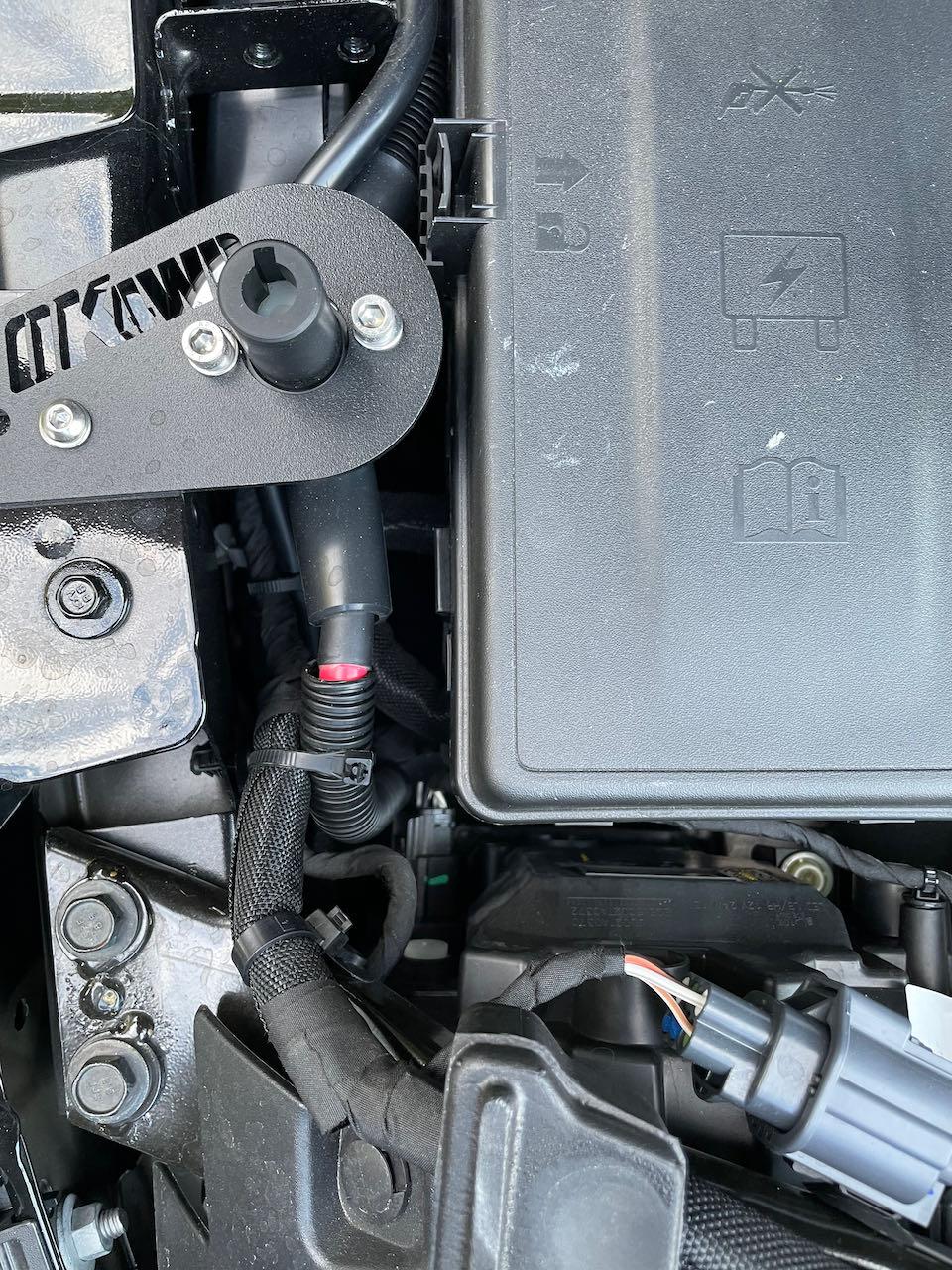

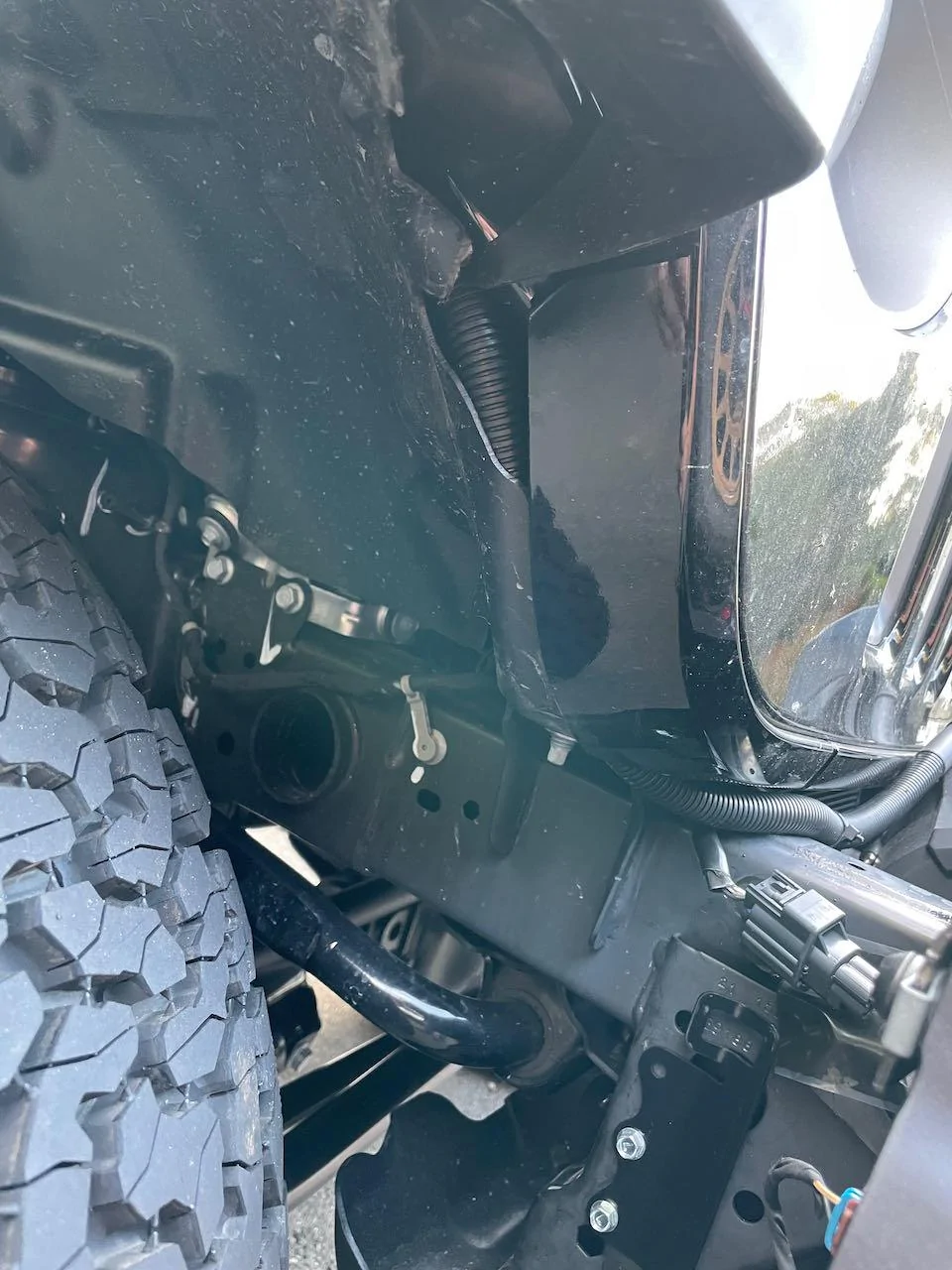

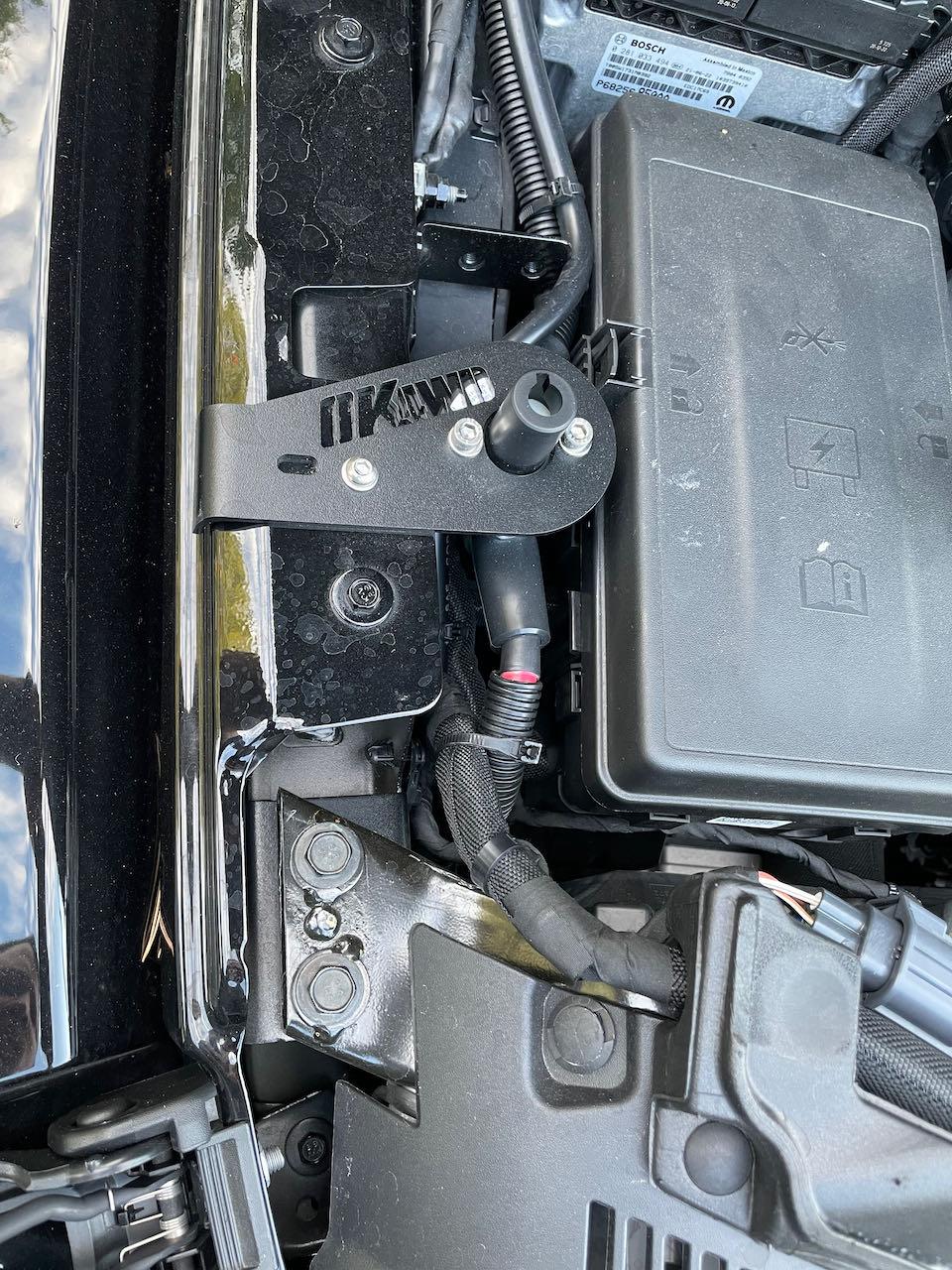

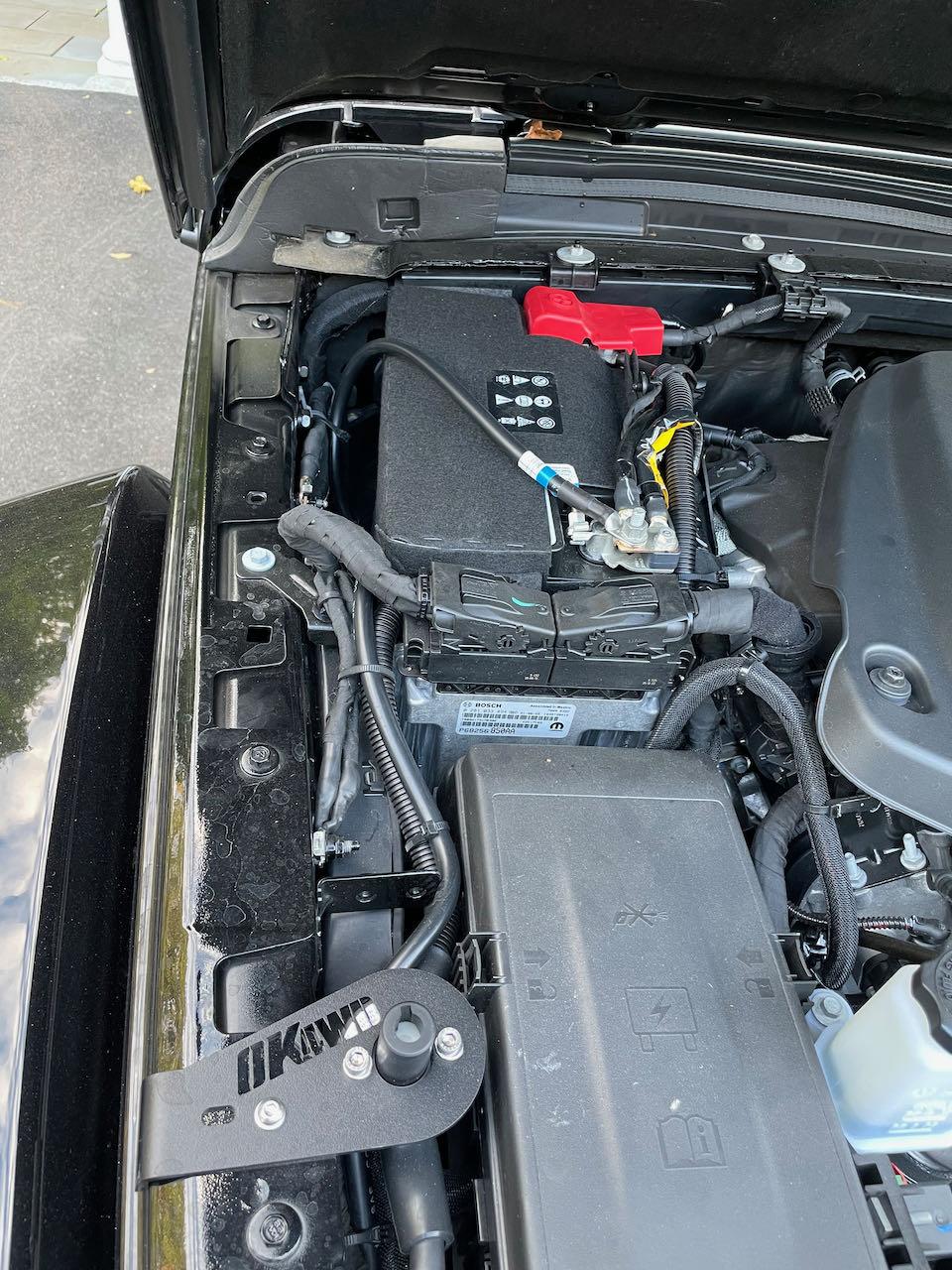

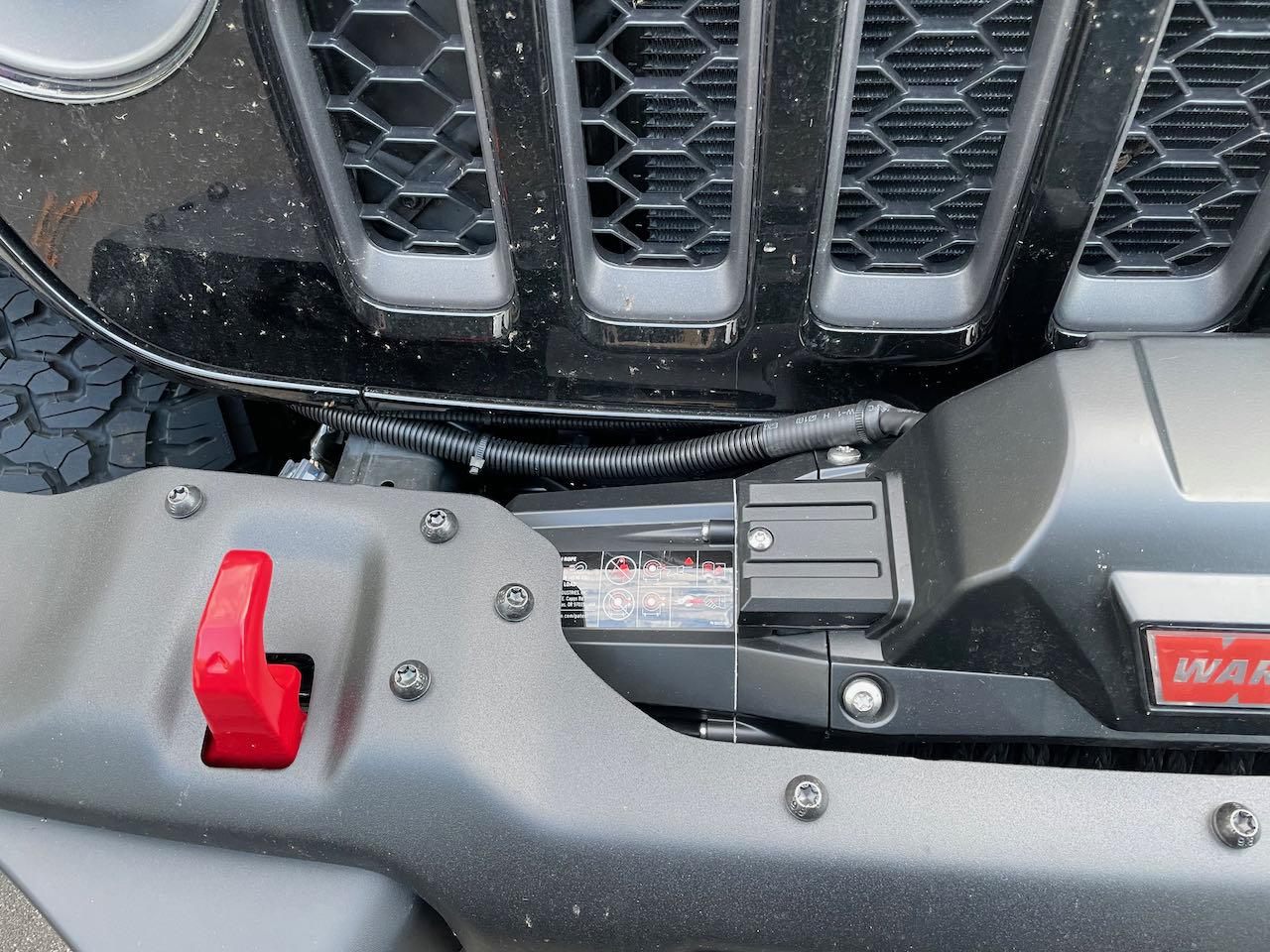

Pics attached. The bracket is specific to the gas engines, so I had to drill a new hole in it to fit the ecoD as it wouldn't fit in the intended original location, but, it works well



[99ls1tj]

Pics attached. The bracket is specific to the gas engines, so I had to drill a new hole in it to fit the ecoD as it wouldn't fit in the intended original location, but, it works well

Looks great! Thanks for the pics
