2024 Mojave X Add Bed 115v outlet

[YGBSM]

I actually found it last week

I couldn't park there with a GPS and a sherpa guiding me...

Sponsored



[DanJT]

I couldn't park there with a GPS and a sherpa guiding me...

:Just saying!!



[jmdusza01]

Assuming we meet the criteria mentioned above, do we have to run wire from the front to the rear or is that already in place?



[bill61]

Okay, I haven't tried this but it looks like there is a better way to get to the wire.

After watching this guy in your video link I think that the Leemen Upfit kit is actually doable (thanks for the video). The video shows how to get behind the speaker to find that connector end without a complete tear down of the dash.

https://leemenupfit.com/products/jeep-gladiator-110v-ac-bed-power-kit



[Chapol]

After watching this guy in your video link I think that the Leemen Upfit kit is actually doable (thanks for the video). The video shows how to get behind the speaker to find that connector end without a complete tear down of the dash.

https://leemenupfit.com/products/jeep-gladiator-110v-ac-bed-power-kit

The kit can be bought cheaper than that. I believe I paid $300-something.



[bill61]

The kit can be bought cheaper than that. I believe I paid $300-something.

Does that include the panel with the switch cut out?



[Chapol]

Does that include the panel with the switch cut out?

Oh, no that was for the 2024+ model kits. As those already come stock with that panel. But still worth shopping around.



[legacy_etu]

Found it!!! Only took 4 attempts. But had I seen that latest video prior to attempt #1, I would have been one and done.

Holy! What a nuisance!

I used the latest video that was posted to help with getting the biggest panel off so that the speaker pod could come out and there it was tucked up behind it. Knowing where it was. I'm sure I could have found it without the disassembly. However, to route it through to where the switch is wouldn't have been possible.

Besides that ridiculous location, the placement of some of these screws is just as bad. 4 times taking them off and on, didn't make it any better. Crazy...

I also couldn't figure out how to reattach the center 7mm on that metal cross bar (see vid). I tore that plastic and metal up! Then just put it in wrong just so it was at least there with all the pieces.

I did check and of course the outlet isn't already activated. It seems like a pain to buy the Tazer, etc... just to turn that setting on. But most likely a whole lot cheaper than paying the dealership to do it. I'll be getting a quote from them tomorrow.

You can use Jscan to enable it in the ECU instead of the Tazer. Costs like $28.



[bill61]

Oh, no that was for the 2024+ model kits. As those already come stock with that panel. But still worth shopping around.

I have a 2024. I haven’t even paid attention but I don’t recall seeing the spot for the switch.
I read this thread when it was first starting out and saw the major disassembly required so I abandoned the idea. But started reading it again last night and saw everyone had figured it out. THANKS TO ALL! So now I just might do this mod.

Edit: I do have the spot for the switch in my panel. So I just need the kit for the bed and switch. I’ll probably tackle that in a couple months.



[Chapol]

And tonight it's alive!!

I got my OBD2 and wire harness in the mail (amazon), installed Jscan app. Paid $20 for the single VIN permission and turned on the power to the outlet.

Seems like this whole install shouldn't have taken over two months to figure out. Given how "easy" it is when you actually know how to do it.

Now on to the next mod...?



[AllMoparParts.com]

Just in time for the weekend Cheers!

- Benny



[hanschien]

Had some free time today to install the the outlet and attempt the lower dash knee speakers again on a 2024.

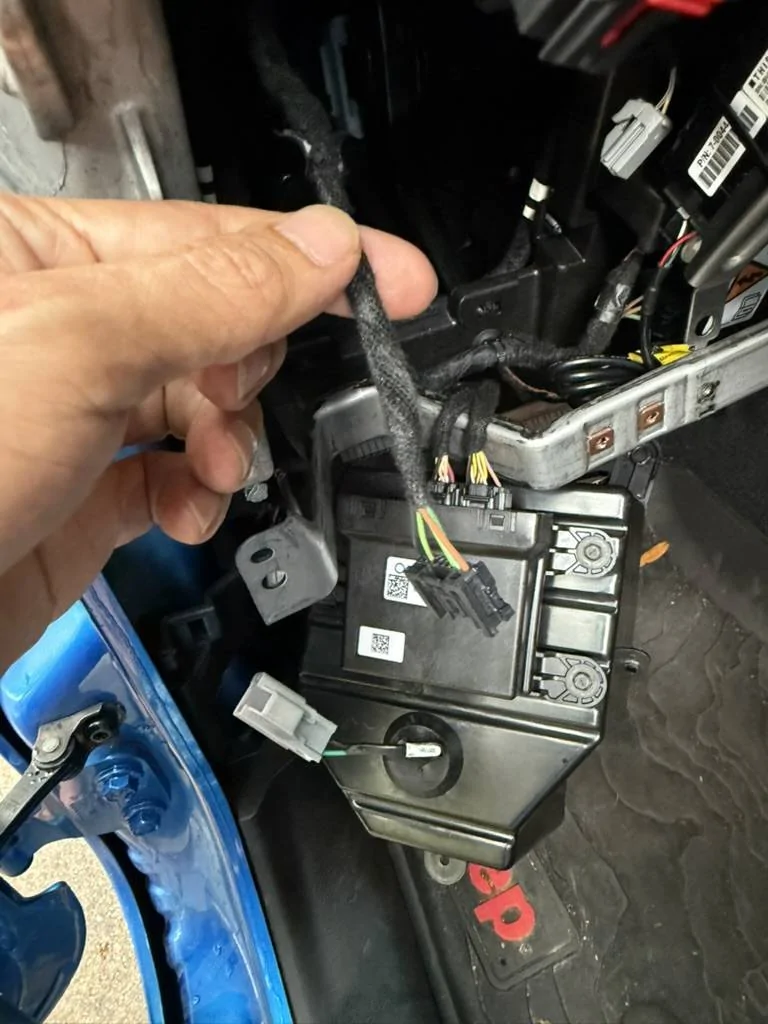

I found the connector tucked and taped with the harness for some kind of antenna hidden behind the main light controls. I don't think I could have gotten to it without removing the driver's side speaker pod.

@AllMoparParts.com, I ordered the kit from you but the 4 plastic nuts were not included in the package.



[AllMoparParts.com]

Had some free time today to install the the outlet and attempt the lower dash knee speakers again on a 2024.

I found the connector tucked and taped with the harness for some kind of antenna hidden behind the main light controls. I don't think I could have gotten to it without removing the driver's side speaker pod.

@AllMoparParts.com, I ordered the kit from you but the 4 plastic nuts were not included in the package.

I am sorry about this, If you send me your order number I will have them sent.

Thanks,
- Benny



[hanschien]

I am sorry about this, If you send me your order number I will have them sent.

Thanks,
- Benny

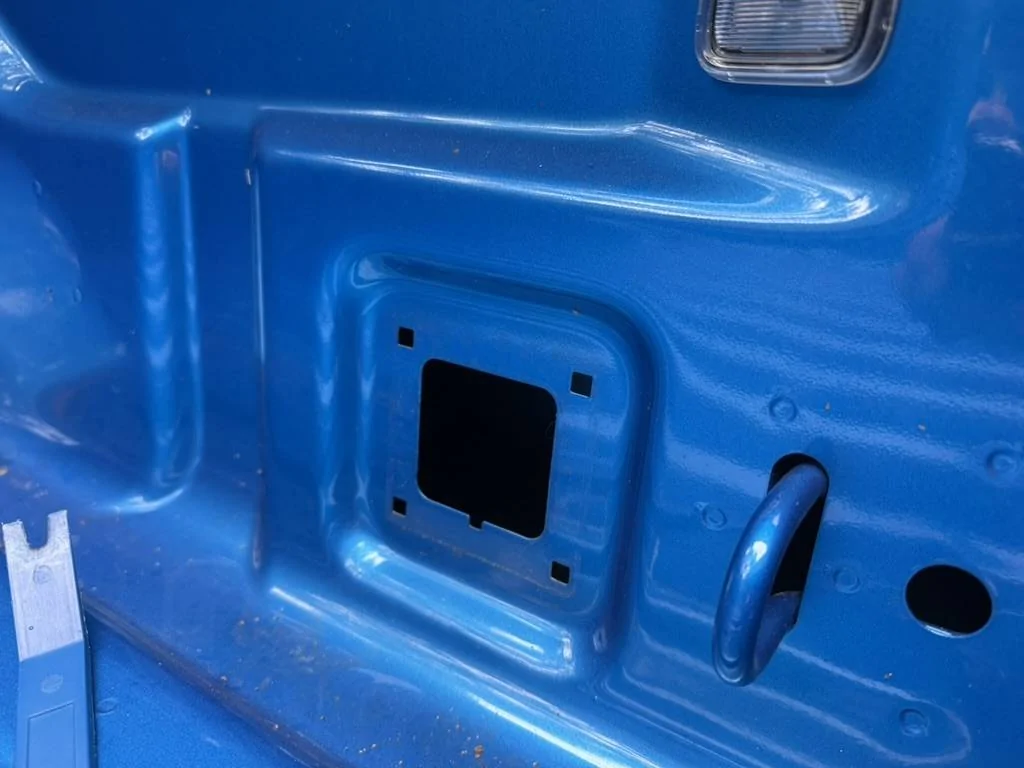

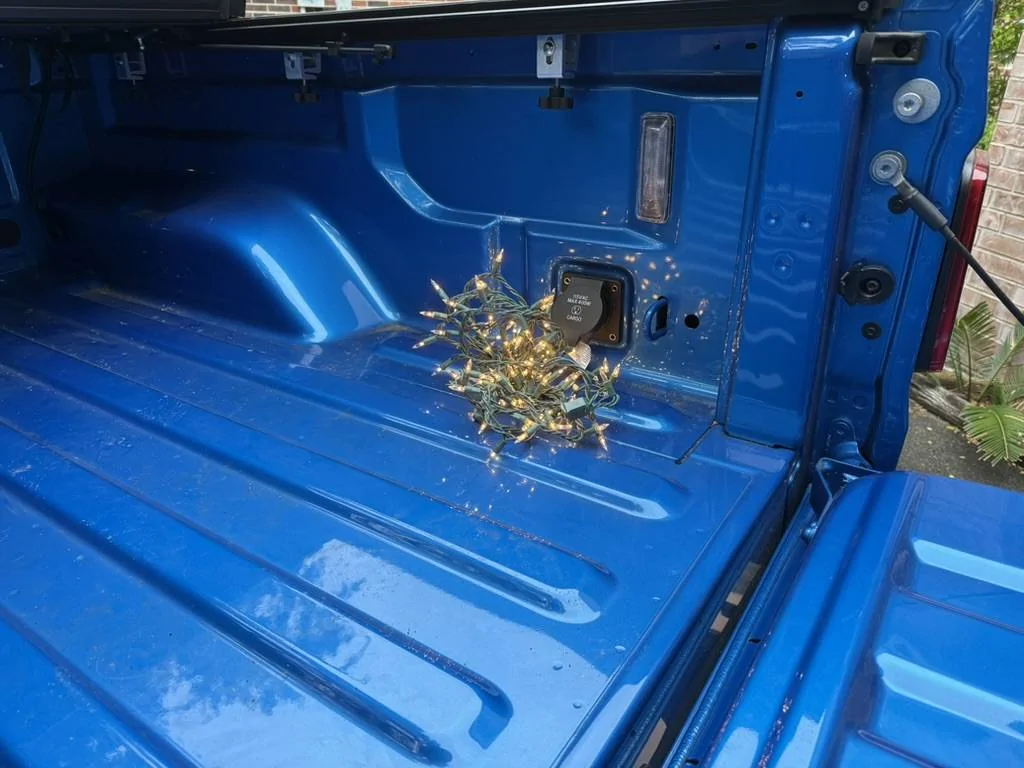

Thanks for reaching out and sending them quickly. I received them today and finished the outlet installation.



[AllMoparParts.com]

Your welcome, I am glad your all set now.

Thanks for your patience,
- Benny
