Actually exhaust design can modify the curve greatly. Velocity, scavenging, all impact LOW END torque greatly. You can shift the curve higher or lower, you can increase torque, HP, shift it, or decrease it all with exhaust changes.
If a pipe is designed for only bottom end torque, it will give up top-end horsepower and vice versa.
Racers building large-displacement high-horsepower engines often design a pipe for top-end power to reduce low-end torque. You gear accordingly.
For example of how an exhaust change could indeed change the look of the dyno results - consider this -
A larger exhaust changes the shape of the power curve.
It makes it more peaky, but the area under the curve is reduced.
Average power is less but peak power is more. You sharpen it.
Too large is bad, you want velocity and not turbulence. Velocity helps pull the exhaust out as there's a slight vacuum behind each pulse of exhaust - and faster pulses means more pull - scavenging.

tuning exhaust can totally change the look of the dyno results.
I changed mine on my 73 just by putting an H in behind the headers. Some prefer the more expensive X design.





Advertisement



kpohanka

Well-Known Member
First Name
Kevin
Joined
Jun 9, 2019
Messages
81
Reaction score
47
Location
Fairfax VA
Vehicle(s)
JT Gladiator Rubicon, CRX Del Sol Sir, AP1 S2000
Good info thanks for letting me know. They just looked wildly different so I assumed. Also seems like a lot of power from an NA catback..


Klutch

Well-Known Member
Joined
May 25, 2019
Messages
533
Reaction score
560
Location
Colorado Springs
Vehicle(s)
1986 Jeep Comanche, 2000 Jeep Cherokee
Catback designs are common because most vehicles have one cat and it's difficult and expensive to replace it with dual cats. I just got my JT, but it appears to have a cat on each exhaust bank right below each exhaust manifold. So, it would seem a true dual exhaust wouldn't be too difficult on a gladiator.

OP
ACE Engineering

ACE Engineering

Rock Sponsor (Level 1)
First Name
ACE
Joined
Dec 19, 2017
Messages
133
Reaction score
231
Location
Warren, MI
Vehicle(s)
2018 Jeep Wrangler JLU Sport S, 2017 Jeep Wrangler JKU, 2009 Jeep Wrangler JK-8
  • Thread starter
  • Thread Starter
  • #19
Good info thanks for letting me know. They just looked wildly different so I assumed. Also seems like a lot of power from an NA catback..
No tune or octane change whatsoever (both 87 octane) - simply bolt-on Cat-Back exhaust results on Dyno sheet.

Thank you,


willjtl

Member
First Name
william
Joined
Jul 27, 2019
Messages
23
Reaction score
13
Location
southern California
Vehicle(s)
2020 jeep Gladiator rubicons launch edition
Occupation
Sales professional
Vehicle Showcase
1
Still like the afe power quad design

OP
ACE Engineering

ACE Engineering

Rock Sponsor (Level 1)
First Name
ACE
Joined
Dec 19, 2017
Messages
133
Reaction score
231
Location
Warren, MI
Vehicle(s)
2018 Jeep Wrangler JLU Sport S, 2017 Jeep Wrangler JKU, 2009 Jeep Wrangler JK-8
  • Thread starter
  • Thread Starter
  • #21

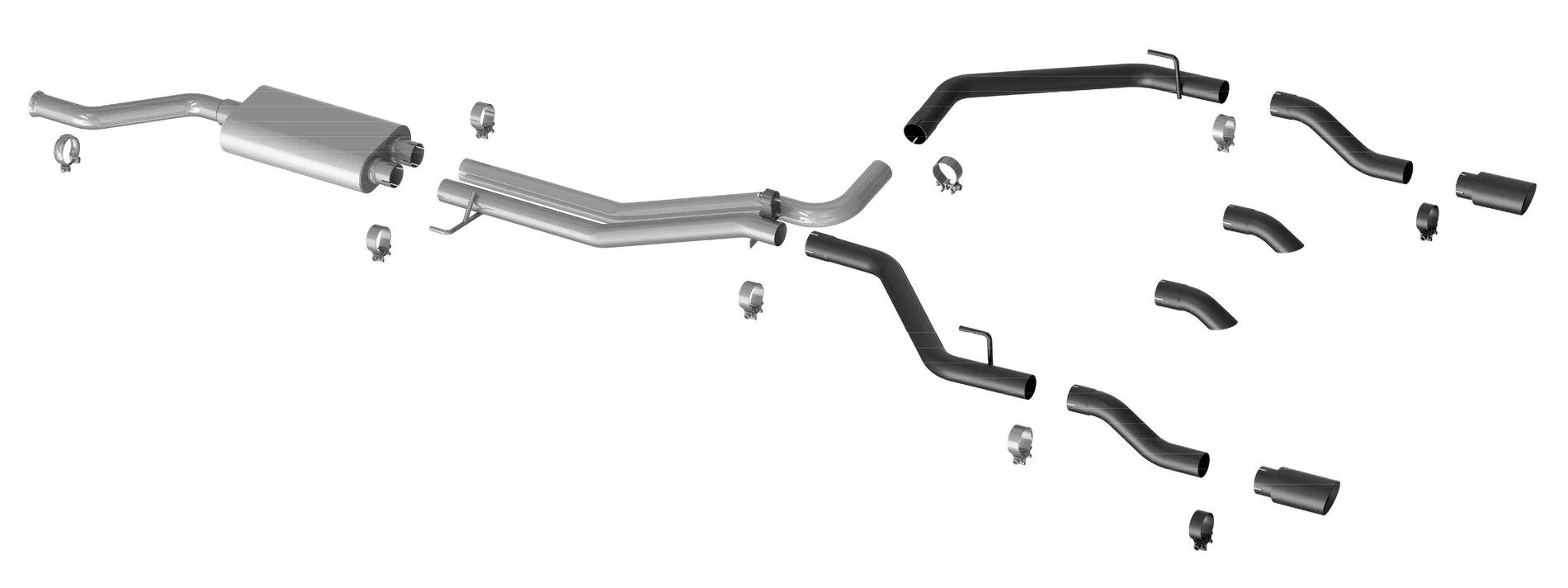

Here's some updated info as well as a schematic of what comes in the kit.

System Design:

This Jeep system is designed with true dual tailpipes exiting the muffler. This provides for unique sound development by using the muffler to tune the exhaust flow. This is not possible in a single in and out muffler used in other systems. The dual tailpipes also help maintain a lower flow restriction which means less back pressure.

Muffler:

The muffler is manufactured using 304 SS and is an all-welded construction design for strength. It utilizes tuning chambers for sound control and is manufactured with large diameter interior tubes to minimize back pressure restrictions and to improve performance.

Pipes:

The pipes are also manufactured with 304 SS material for both longer life and strength. They are 2 ½ inch diameter and are all Mandrel Bend construction which maintains the interior diameter at it’s maximum in the bend area. This prevents reduced flow and increased back pressure.

Thank you,


Captn_Obvious

Well-Known Member
First Name
Mark
Joined
May 31, 2019
Messages
124
Reaction score
60
Location
Atlanta GA
Vehicle(s)
2020 JT Gladiator Rubicon (Sting Grey)

Here's some updated info as well as a schematic of what comes in the kit.

System Design:

This Jeep system is designed with true dual tailpipes exiting the muffler. This provides for unique sound development by using the muffler to tune the exhaust flow. This is not possible in a single in and out muffler used in other systems. The dual tailpipes also help maintain a lower flow restriction which means less back pressure.

Muffler:

The muffler is manufactured using 304 SS and is an all-welded construction design for strength. It utilizes tuning chambers for sound control and is manufactured with large diameter interior tubes to minimize back pressure restrictions and to improve performance.

Pipes:

The pipes are also manufactured with 304 SS material for both longer life and strength. They are 2 ½ inch diameter and are all Mandrel Bend construction which maintains the interior diameter at it’s maximum in the bend area. This prevents reduced flow and increased back pressure.

Thank you,
I do like the exhaust note produced.


HTXGladiator

Well-Known Member
First Name
Jason
Joined
Aug 7, 2019
Messages
408
Reaction score
378
Location
The Woodlands, TX
Vehicle(s)
2020 Gladiator Rubicon, 2014 HD XL1200X
Vehicle Showcase
1

Here's some updated info as well as a schematic of what comes in the kit.

System Design:

This Jeep system is designed with true dual tailpipes exiting the muffler. This provides for unique sound development by using the muffler to tune the exhaust flow. This is not possible in a single in and out muffler used in other systems. The dual tailpipes also help maintain a lower flow restriction which means less back pressure.

Muffler:

The muffler is manufactured using 304 SS and is an all-welded construction design for strength. It utilizes tuning chambers for sound control and is manufactured with large diameter interior tubes to minimize back pressure restrictions and to improve performance.

Pipes:

The pipes are also manufactured with 304 SS material for both longer life and strength. They are 2 ½ inch diameter and are all Mandrel Bend construction which maintains the interior diameter at it’s maximum in the bend area. This prevents reduced flow and increased back pressure.

Thank you,
Would the system be negatively affected in any way if you just attached the turndown tips at the end of the silver pipe, without taking it all the way to the back?

OP
ACE Engineering

ACE Engineering

Rock Sponsor (Level 1)
First Name
ACE
Joined
Dec 19, 2017
Messages
133
Reaction score
231
Location
Warren, MI
Vehicle(s)
2018 Jeep Wrangler JLU Sport S, 2017 Jeep Wrangler JKU, 2009 Jeep Wrangler JK-8
  • Thread starter
  • Thread Starter
  • #24
Would the system be negatively affected in any way if you just attached the turndown tips at the end of the silver pipe, without taking it all the way to the back?
It has not been dyno'd in that configuration, but you should not see any decreases in performance. If anything, that configuration is less restrictive.

Thank you,


kpohanka

Well-Known Member
First Name
Kevin
Joined
Jun 9, 2019
Messages
81
Reaction score
47
Location
Fairfax VA
Vehicle(s)
JT Gladiator Rubicon, CRX Del Sol Sir, AP1 S2000
Would the system be negatively affected in any way if you just attached the turndown tips at the end of the silver pipe, without taking it all the way to the back?
Most states require that the exhaust exits behind rear axle. Those with state inspections anyways.

OP
ACE Engineering

ACE Engineering

Rock Sponsor (Level 1)
First Name
ACE
Joined
Dec 19, 2017
Messages
133
Reaction score
231
Location
Warren, MI
Vehicle(s)
2018 Jeep Wrangler JLU Sport S, 2017 Jeep Wrangler JKU, 2009 Jeep Wrangler JK-8
  • Thread starter
  • Thread Starter
  • #26
Most states require that the exhaust exits behind rear axle. Those with state inspections anyways.
This kit comes with both. So if you're concerned about emission laws, you have the tips for on-road. Then when it's time to wheel, those can be removed.

Thank you,


Bbannongmu

Well-Known Member
First Name
JTR.Spartacus
Joined
Jan 18, 2020
Messages
1,113
Reaction score
1,056
Location
Earth
Website
m.facebook.com
Vehicle(s)
2020 Jeep Gladiator Rubicon
Build Thread
Link
Occupation
Certified Emergency Manager
Vehicle Showcase
1

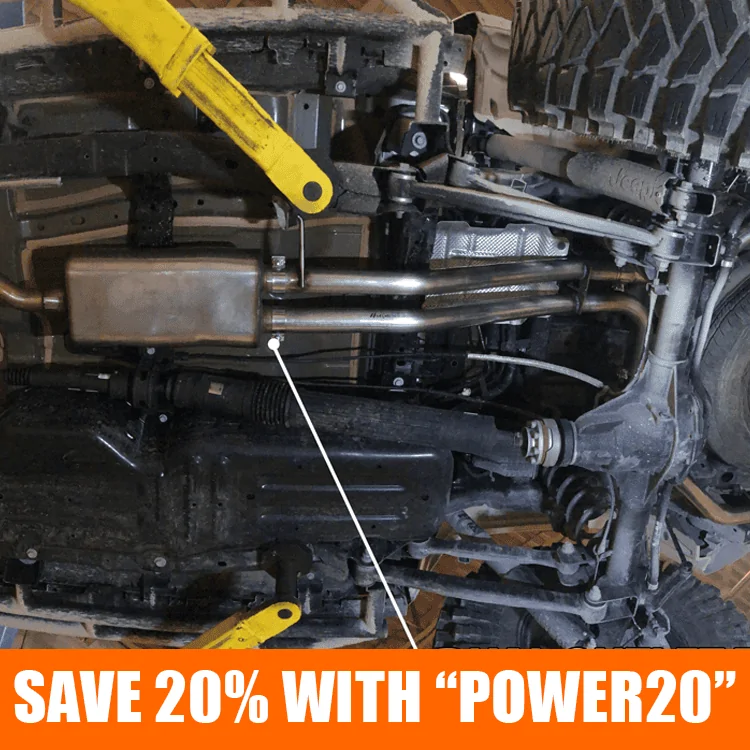

Just saw this on Ace’s site. Seems like a great deal! I’m waiting on my Ace JT Expedition bumper and Rock Sliders now. (And the credit card bill). Hope a deal comes back around when I’m ready for exhaust.



RH 67

Well-Known Member
First Name
Dave
Joined
Jul 25, 2019
Messages
684
Reaction score
452
Location
SoCal
Vehicle(s)
2020 Black Rubicon Gladiator, Alfa Romeo Quad
Occupation
Retired DOD, Army SF, SS.
I really like the exhaust note.
ACE Engineering, there is no exhaust hanger on the passenger side of the Gladiator, does the kit include one? Thanks.
