@RSI North America Inc do you have any actual photos of the Gladiator with the Smart tray, no smart Cap. Can’t seem to find any, not a rendering please. Thanks.
I haven’t found any information on the canopy/tray system and no photos of a gladiator either. Hopefully they can provide some.



Advertisement





SwampNut

Well-Known Member
First Name
Carlos
Joined
Apr 20, 2020
Messages
852
Reaction score
781
Location
Peoria AZ
Vehicle(s)
2020 Gladiator Launch Edition
Occupation
Geek
Overall the design is simply awesome, and inspiring on what you could do. I hate your marketing though as far as "fiberglass vase." That's totally wrong and presumes I'm dumb. I've owned and rebuilt many boats, they are very very tough and resilient.

I know someone who needs a work truck that's not only 4WD, but more agile and capable than your standard pickup. He was super excited when I send him the SmartTray system info.

OP
RSI North America Inc

RSI North America Inc

Peak Sponsor (Level 2)
Joined
Nov 19, 2019
Messages
105
Reaction score
181
Location
Nevada
Website
www.rsismartcap.com
Vehicle(s)
Jeep Gladiator, F150 Raptor
  • Thread starter
  • Thread Starter
  • #33
@RSI North America Inc do you have any actual photos of the Gladiator with the Smart tray, no smart Cap. Can’t seem to find any, not a rendering please. Thanks.
Unfortunately, we don't have any photos yet of the Gladiator with the SmartTray option. My guess is we will sometime this summer as the SmartTray's are currently slated for a November launch. As soon as we have them we will absolutely post to the forum. Thanks for your inquiry.


EWP

Member
Joined
Jun 12, 2020
Messages
11
Reaction score
27
Location
Texas
Vehicle(s)
Jeep
Put my deposit down today. Can’t wait!!

OP
RSI North America Inc

RSI North America Inc

Peak Sponsor (Level 2)
Joined
Nov 19, 2019
Messages
105
Reaction score
181
Location
Nevada
Website
www.rsismartcap.com
Vehicle(s)
Jeep Gladiator, F150 Raptor
  • Thread starter
  • Thread Starter
  • #35
Put my deposit down today. Can’t wait!!
That's fantastic news! Thank you for the post and the pre-order. We would love to see some picts once you get it on your Gladiator!


Etoimos

Rock Sponsor (Level 1)
First Name
Keith
Joined
Dec 3, 2018
Messages
353
Reaction score
452
Location
In the mountains
Website
adventuresofetoimos.com
Vehicle(s)
2020 JTR , 2012 JKUR
Vehicle Showcase
2
@RSI North America Inc where is the positive vent located at? I can's see it in any of the photos. And can you confirm that the top of the cap is slightly higher than the top of the truck? Do you know by how much?

OP
RSI North America Inc

RSI North America Inc

Peak Sponsor (Level 2)
Joined
Nov 19, 2019
Messages
105
Reaction score
181
Location
Nevada
Website
www.rsismartcap.com
Vehicle(s)
Jeep Gladiator, F150 Raptor
  • Thread starter
  • Thread Starter
  • #37
@RSI North America Inc where is the positive vent located at? I can's see it in any of the photos. And can you confirm that the top of the cap is slightly higher than the top of the truck? Do you know by how much?

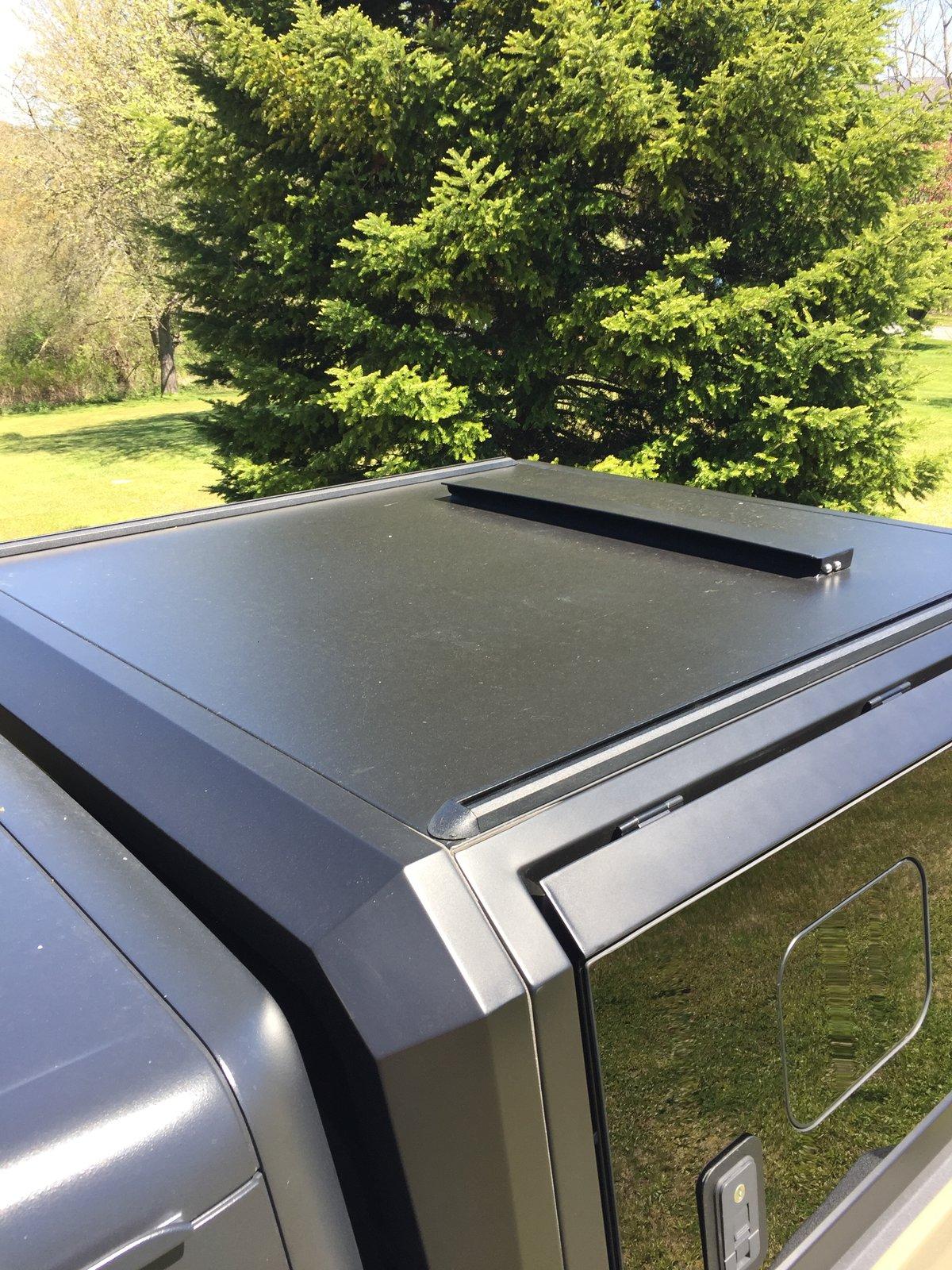

The total height of the SmartCap Gladiator Edition with the Positive Pressure air vent is 22.84". Typically, the roof of the cap is in line with the crown of the cab roof.

Photo May 21, 11 52 45 AM.jpg


Etoimos

Rock Sponsor (Level 1)
First Name
Keith
Joined
Dec 3, 2018
Messages
353
Reaction score
452
Location
In the mountains
Website
adventuresofetoimos.com
Vehicle(s)
2020 JTR , 2012 JKUR
Vehicle Showcase
2
The total height of the SmartCap Gladiator Edition with the Positive Pressure air vent is 22.84". Typically, the roof of the cap is in line with the crown of the cab roof.
Thanks for the quick reply. I've got a couple more questions for you.

1. Is the vent taller than the mounting rails? The pic makes it look that way but I don't think it really is.
2. What is the dimensions of the Bins and the MOLLE panels inside them?
3. What are the dimensions of the drawers in the Drawer Bin?
4. Is the Drawer Bin only available on the driver's side?
5. What does the Evo cap weigh?
6. What is the distance between the bed and bottom of the Bins?

Thanks for taking the time to answer all of those.

Last edited:

Jaxmax

Well-Known Member
First Name
Jack
Joined
Jun 28, 2020
Messages
171
Reaction score
146
Location
Bally, Pa.
Vehicle(s)
Jeeps....... 2021 Mojave , 2019 Wrangler
Occupation
Electrical Manager
Evo cap weighs about 170lbs.

OP
RSI North America Inc

RSI North America Inc

Peak Sponsor (Level 2)
Joined
Nov 19, 2019
Messages
105
Reaction score
181
Location
Nevada
Website
www.rsismartcap.com
Vehicle(s)
Jeep Gladiator, F150 Raptor
  • Thread starter
  • Thread Starter
  • #40
Thanks for the quick reply. I've got a couple more questions for you.

1. Is the vent taller than the mounting rails? The pic makes it look that way but I don't think it really is.
2. What is the dimensions of the Bins and the MOLLE panels inside them?
3. What are the dimensions of the drawers in the Drawer Bin?
4. Is the Drawer Bin only available on the driver's side?
5. What does the Evo cap weigh?
6. What is the distance between the bed and bottom of the Bins?

Thanks for taking the time to answer all of those.
See below for specific answers.
1. Is the vent taller than the mounting rails? The pic makes it look that way but I don't think it really is. Yes, the Positive Pressure Air Vent is slightly taller. The Roof Rails are 20mm high and Air Vent is 30mm).

2. What is the dimensions of the Bins and the MOLLE panels inside them?
Please review the attached drawings that show all dimensions in mm.

3. Are the Bins free-standing inside the bed, or do they have supports that go to the bed floor?
They are supported by stainless steel bolts around the perimeter of the gullwing door opening.

4. What side are the dimensions of the drawers in the Drawer Bin?
Please review the attached drawings that show all dimensions in mm.

5. Is the Drawer Bin only available on the driver's?
Yes, and the Camp Kitchen is a passenger right side mount.

1 Full Bin Dimensions Front View.png


2 Full Bin Dimensions Side View.png


3 Drawer Bin Dimensions Front View.png


4 Drawer Bin Dimensions Side View 1.png


5 Drawer Bin Dimensions Side View 2.png

Last edited:

Etoimos

Rock Sponsor (Level 1)
First Name
Keith
Joined
Dec 3, 2018
Messages
353
Reaction score
452
Location
In the mountains
Website
adventuresofetoimos.com
Vehicle(s)
2020 JTR , 2012 JKUR
Vehicle Showcase
2
See below for specific answers.
1. Is the vent taller than the mounting rails? The pic makes it look that way but I don't think it really is. Yes, the Positive Pressure Air Vent is slightly taller. The Roof Rails are 20mm high and Air Vent is 30mm).

2. What is the dimensions of the Bins and the MOLLE panels inside them?
Will need to get back to you on this. Engineering is putting that information together now.

3. Are the Bins free-standing inside the bed, or do they have supports that go to the bed floor?
They are supported by stainless steel bolts around the perimeter of the gullwing door opening.

4. What side are the dimensions of the drawers in the Drawer Bin?
Will need to get back to you on this. Engineering is putting that information together now.

5. Is the Drawer Bin only available on the driver's?
Yes, and the Camp Kitchen is a passenger right side mount.
Thanks for the detailed responses. It's a bummer that the vent is taller than the rails. That means nothing can be flush mounted over that area of the cap.

One last question (for now lol), what is the spacing between the two rails?

OP
RSI North America Inc

RSI North America Inc

Peak Sponsor (Level 2)
Joined
Nov 19, 2019
Messages
105
Reaction score
181
Location
Nevada
Website
www.rsismartcap.com
Vehicle(s)
Jeep Gladiator, F150 Raptor
  • Thread starter
  • Thread Starter
  • #42
Thanks for the detailed responses. It's a bummer that the vent is taller than the rails. That means nothing can be flush mounted over that area of the cap.

One last question (for now lol), what is the spacing between the two rails?
The width between the rails is 1190mm or 46.85".


OneTraveler

Well-Known Member
Joined
Nov 28, 2018
Messages
123
Reaction score
124
Location
Alaska
Vehicle(s)
15 Cherokee Trailhawk; 20 Gladiator Rubicon
The width between the rails is 1190mm or 46.85".
Hope you don't mind one more dimension request.

Already have a cap reserved AND I ordered the cross bars for mounting RTT. Could you share the dimensions of the rack cross bars? I'm looking at fabbing up some clamps that I like better than the skimpy ones supplied with RTT...would love to have them ready to go when I actually get cab/rails.

Thanks in advance!


Etoimos

Rock Sponsor (Level 1)
First Name
Keith
Joined
Dec 3, 2018
Messages
353
Reaction score
452
Location
In the mountains
Website
adventuresofetoimos.com
Vehicle(s)
2020 JTR , 2012 JKUR
Vehicle Showcase
2
2. What is the dimensions of the Bins and the MOLLE panels inside them?
Will need to get back to you on this. Engineering is putting that information together now.
The width between the rails is 1190mm or 46.85".
Thanks again for the info and quick responses, this is really good customer support (but perhaps the dimensions should be listed on the site some place?).

You said that for the bin details the Engineering department is putting that info together still. Does that mean the bins are not currently available and that none of those have been shipped to the US with the first three batches of caps for the JT?


cgflyer

Well-Known Member
First Name
Steve
Joined
Mar 15, 2019
Messages
282
Reaction score
208
Location
Lorton, VA
Vehicle(s)
2020 Gladiator Rubicon MT, 2013 Ford Focus ST
Occupation
United States Coast Guard
I love the SmartTray and will be saving my benjamins for one...gonna be a lot of aftermarkets for sale off my build I think!
