My Build Rules:
  1. Function over form: Yes I want it to look good (form) but more importantly it must work well (function).
  2. Quality trusted parts: Yes I have a budget but I am willing to stretch it to get good quality tested parts.
  3. Does not restrict daily use or drive-ability: I traded in my dream vehicle that I purchased new after building it online for 15 years straight. A 2017 Lexus LX570 fully loaded. After 2 years it barely had 10k miles on it and I hardly ever drove it. NOT THE GLADIATOR! It's my daily driver. You should enjoy your dream everyday in usage not as a trophy you look at and polish! My wife and I both traded in Lexus SUVs and got Jeeps. Its her 1st Jeep and she's now 100% Jeep girl and I like it!



I think Japan is upset if your trading in that fleet.



Advertisement





WhatExit?

Well-Known Member
First Name
Dan
Joined
Sep 13, 2018
Messages
1,921
Reaction score
3,058
Location
48th State
Vehicle(s)
2020 JT Rubicon Launch Edition - Granite Crystal Metallic | 2017 Ford Raptor SuperCrew - Metallic
Vehicle Showcase
1

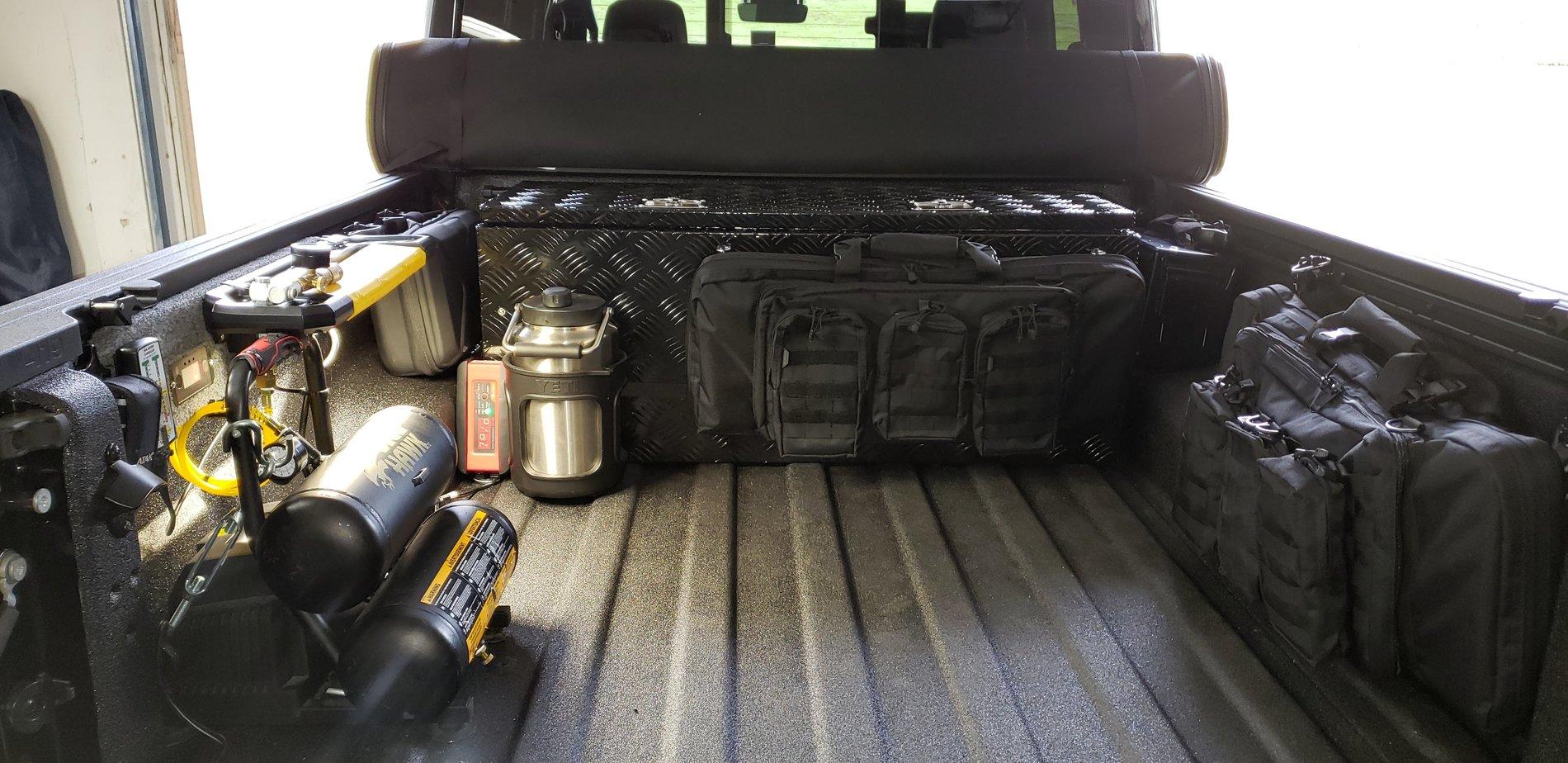

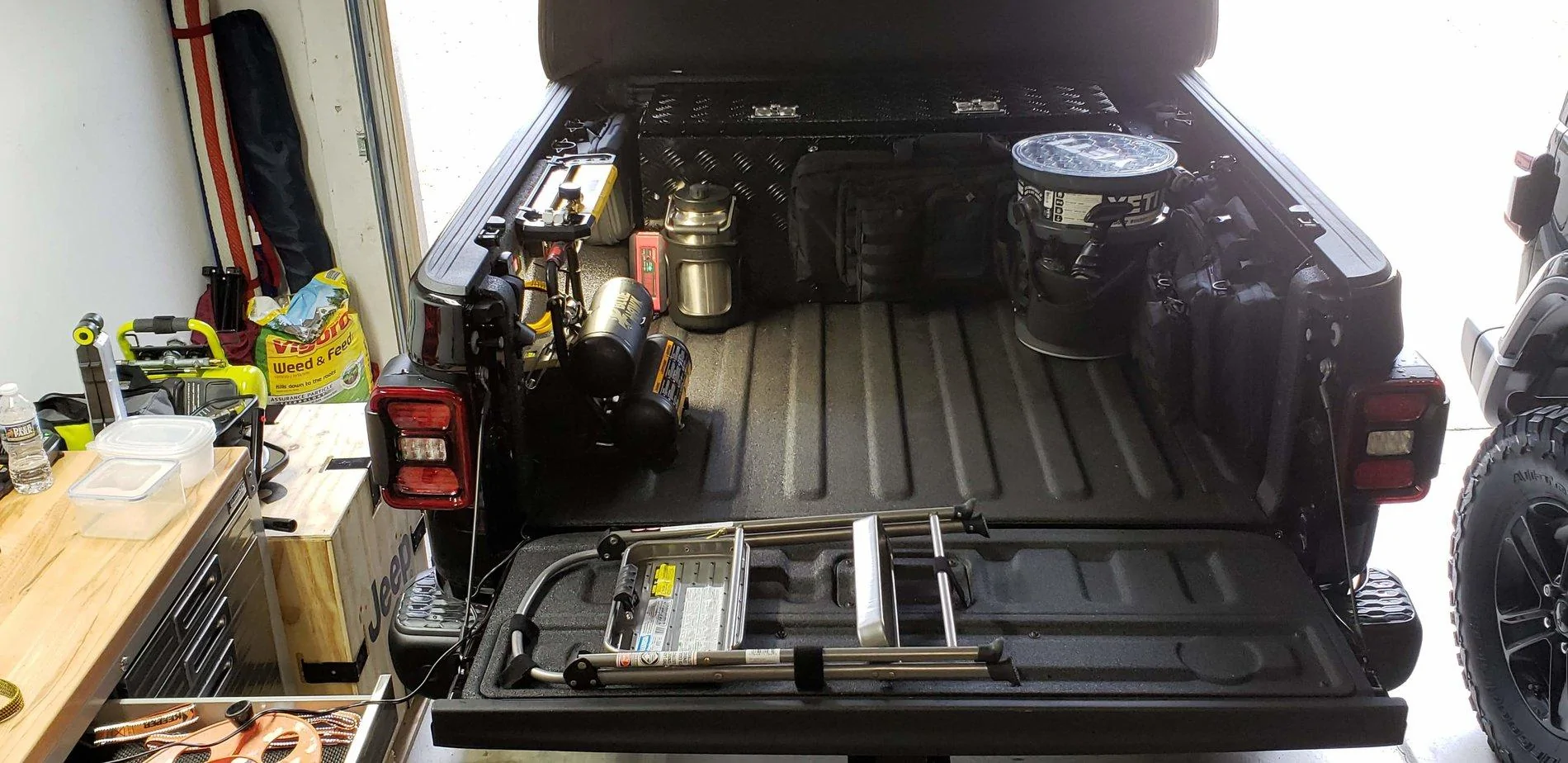

I did a lot of work on the Gladiator this weekend. Here is the list:

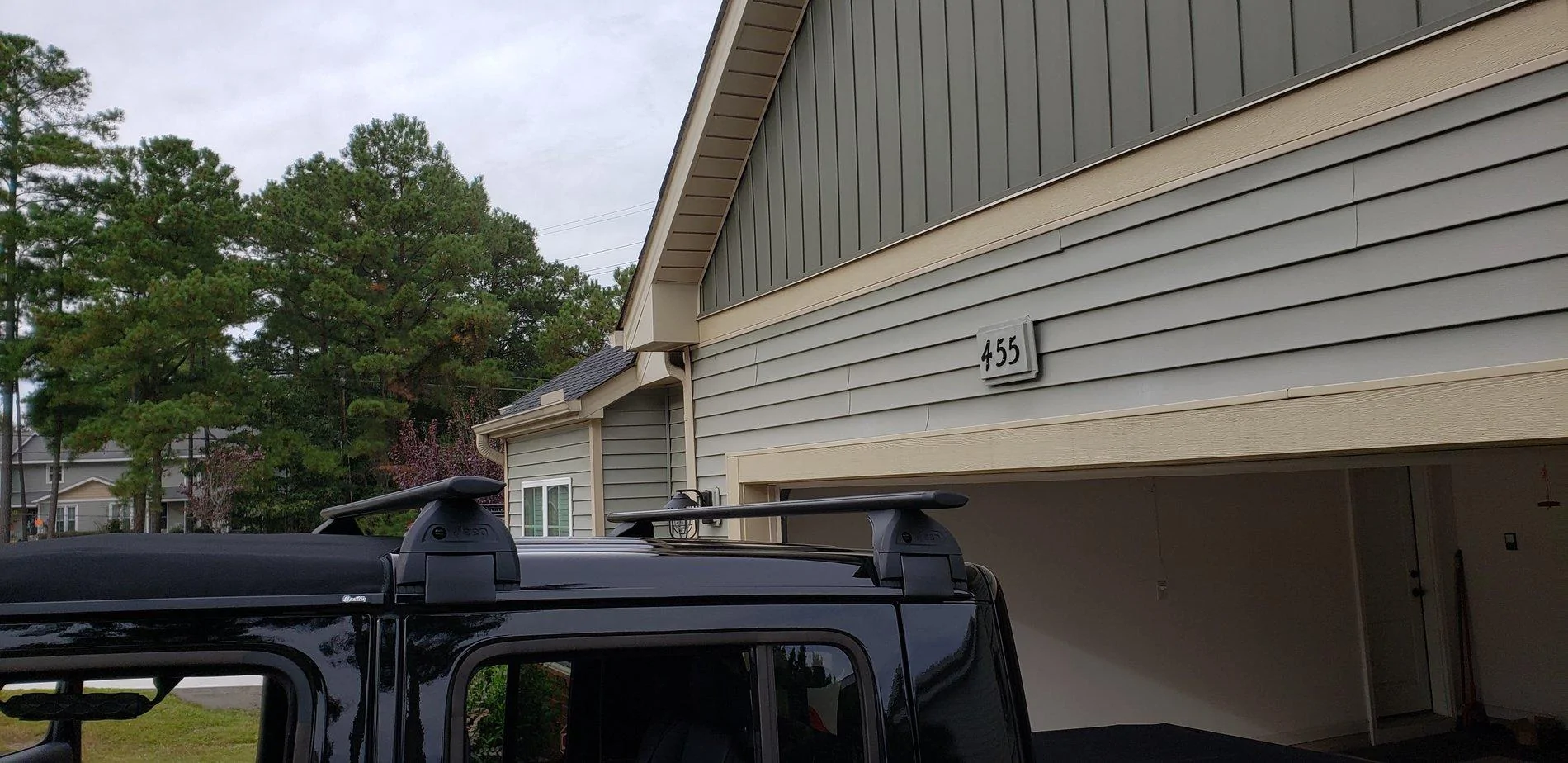

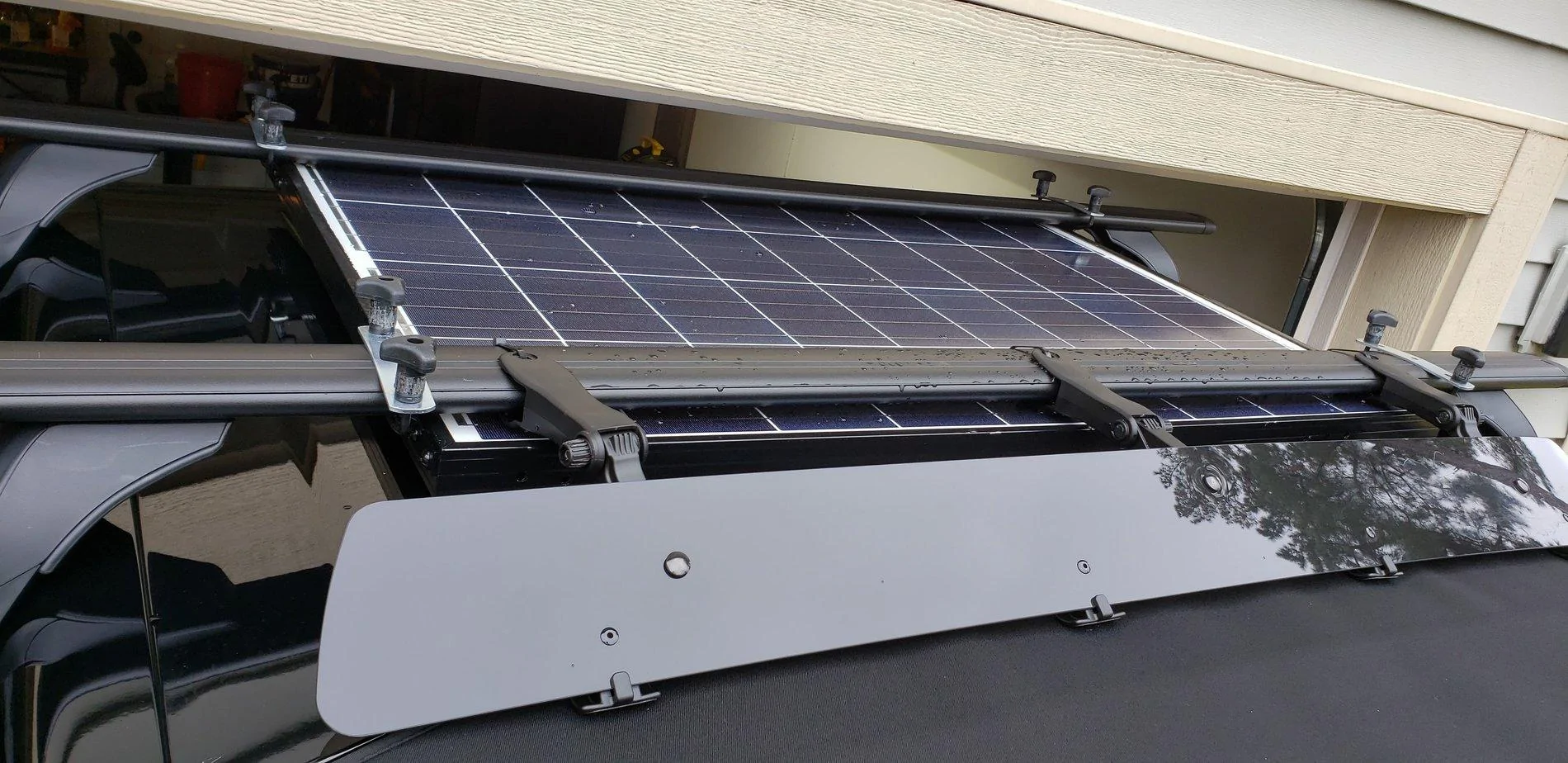

  1. I painted the aluminum edges and the bottom of my 100 watt solar panel black and installed it on my roof rack crossbars. I bought this from Sams Club and had it installed previously on the JK that was replace by my JT

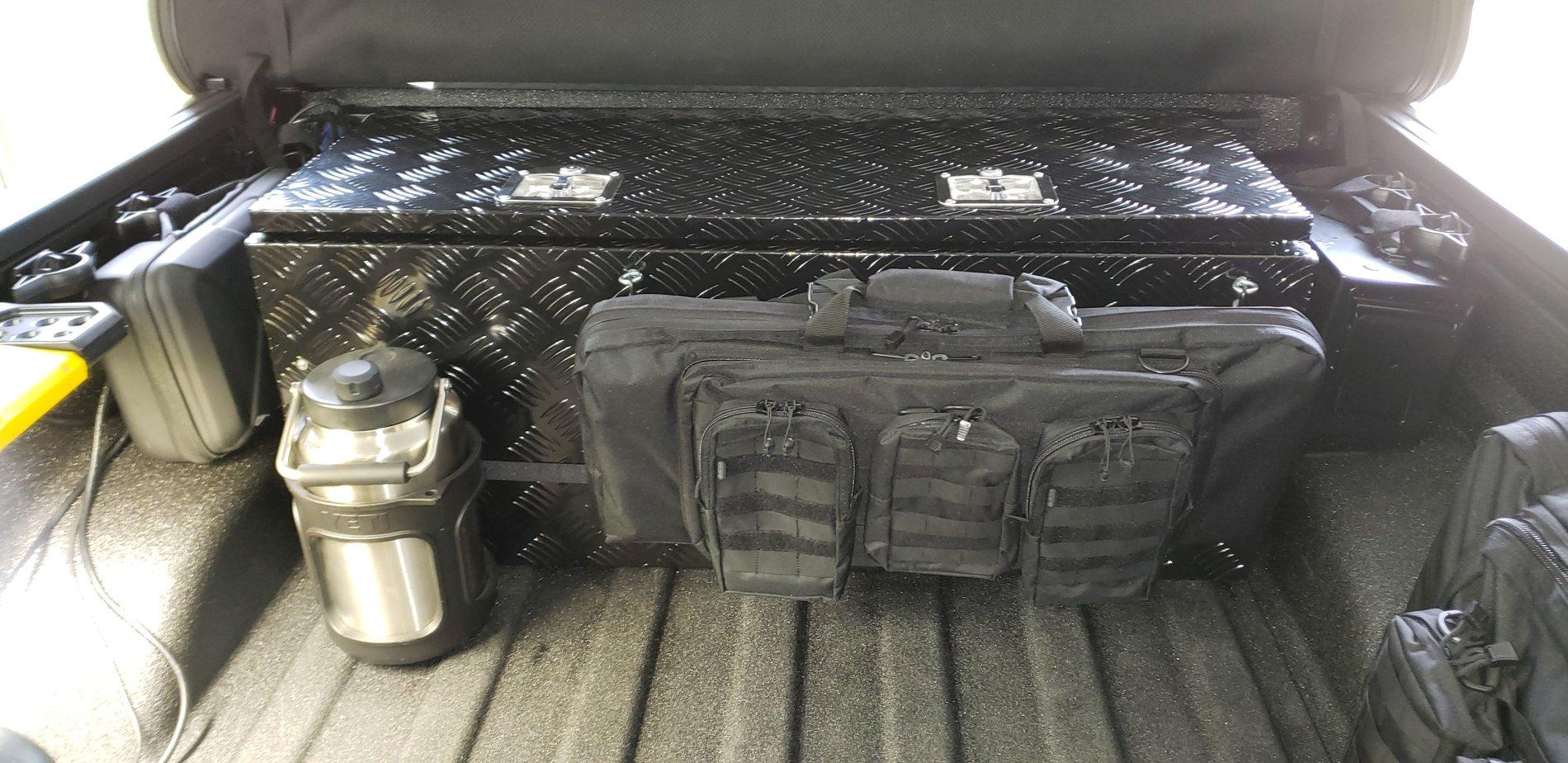

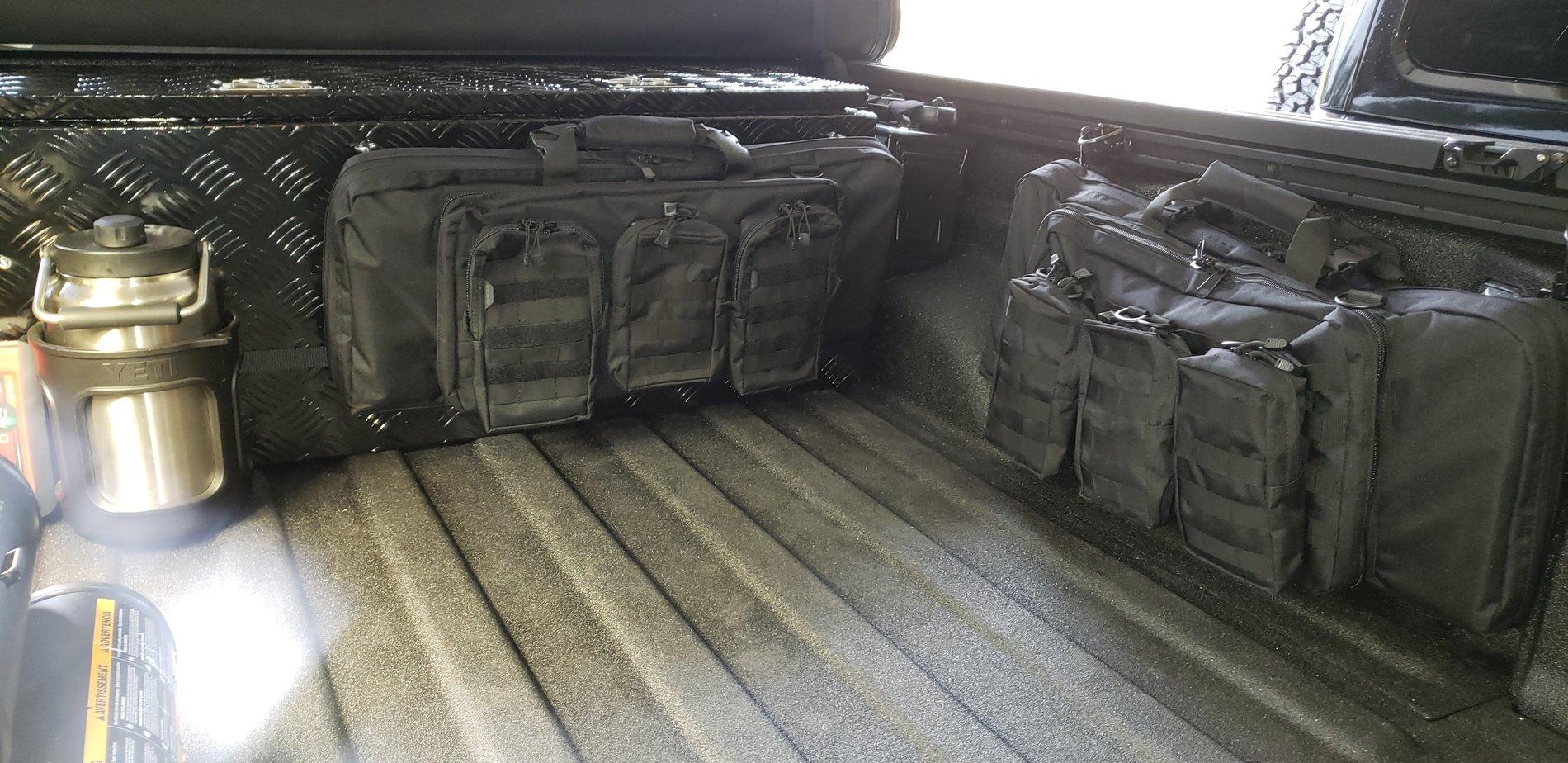

  2. I installed a black aluminum storage box to hold my 2nd battery, 3000 watt inverted, solar panel controller and other gear.42"x18"x16" Aluminum Pickup Truck Bed Trailer Key Lock Storage Tool Box (Black) https://www.walmart.com/ip/42-x18-x...ler-Key-Lock-Storage-Tool-Box-Black/693103375 Dual Battery Kit https://www.equipt1.com/products/portable-power-pack?_pos=6&_sid=1d379866f&_ss=r, Dual Battery Controller https://www.equipt1.com/products/dual-battery-controller?_pos=2&_sid=1d379866f&_ss=r, 3000 watt inverter https://www.amazon.com/gp/product/B00VPYV78E/ref=ppx_yo_dt_b_asin_title_o02_s00?ie=UTF8&psc=1

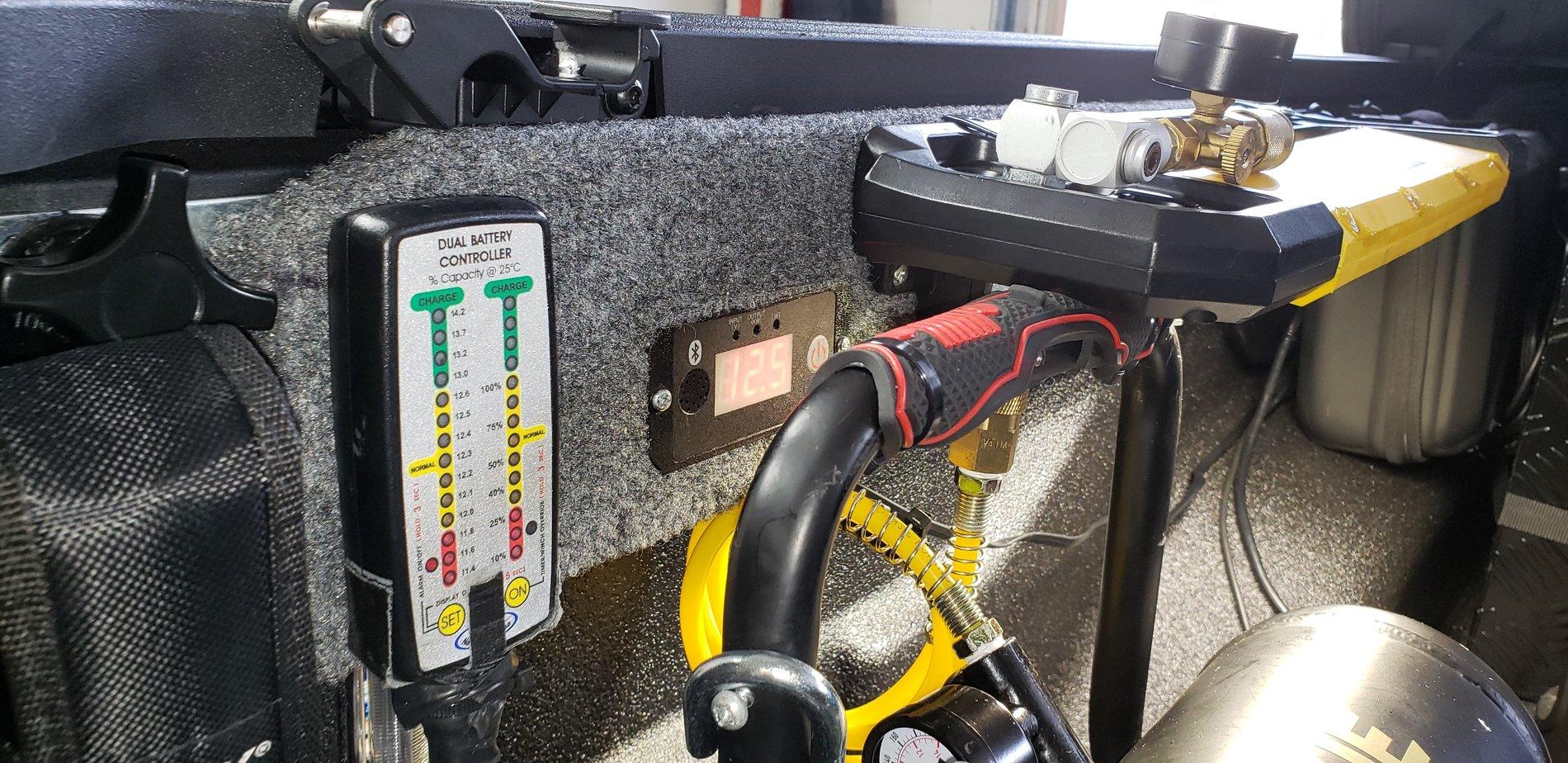

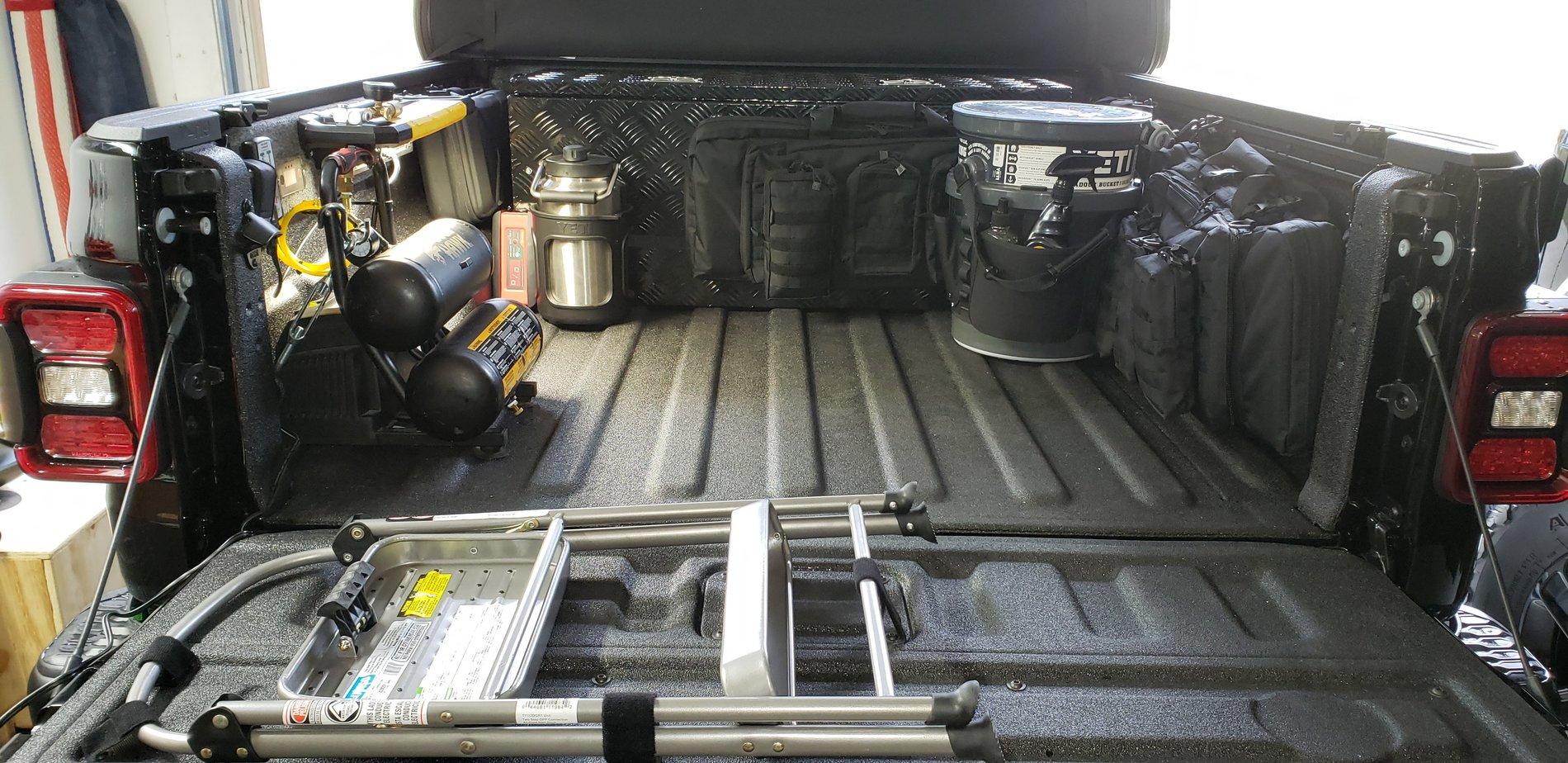

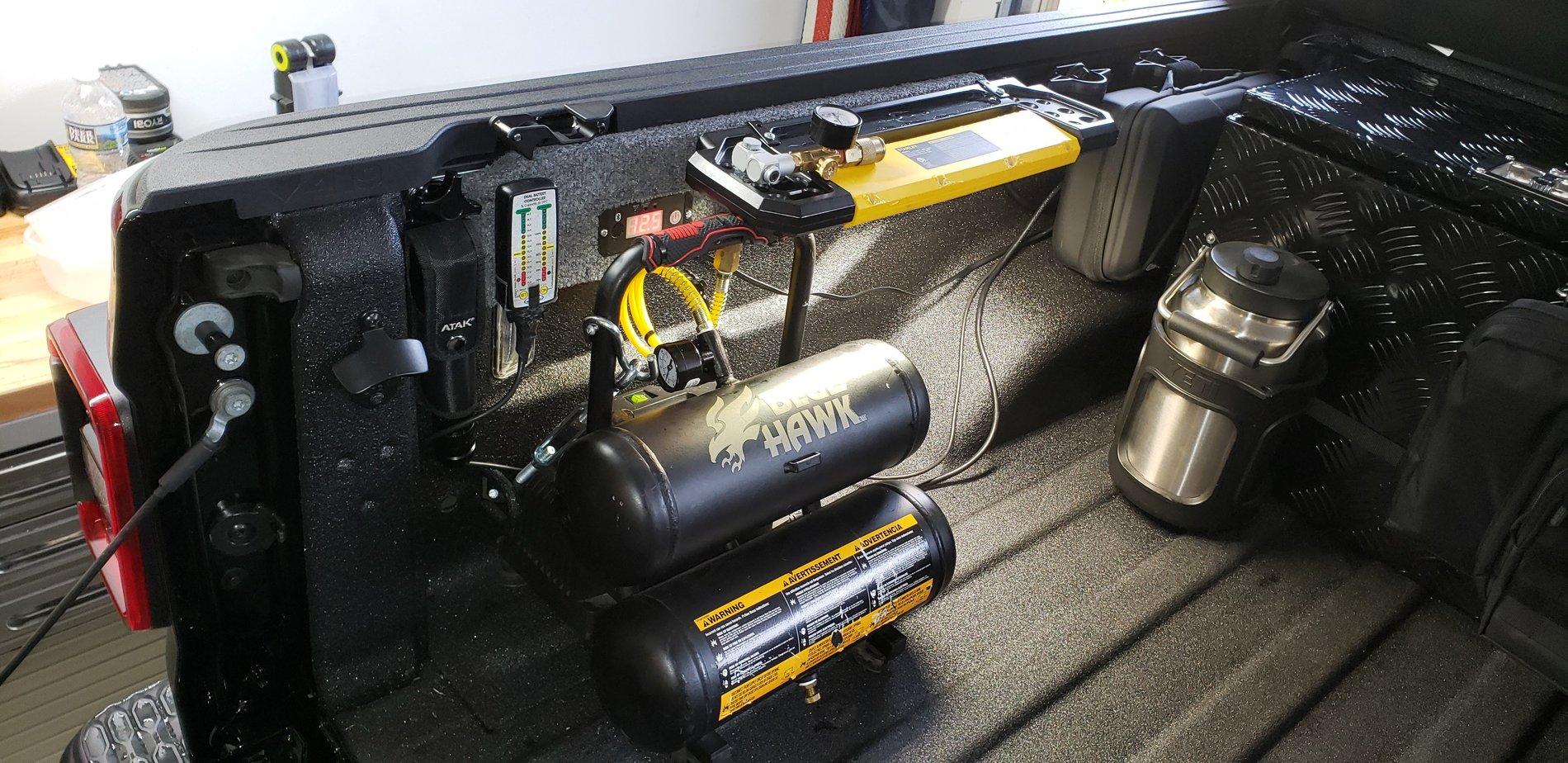

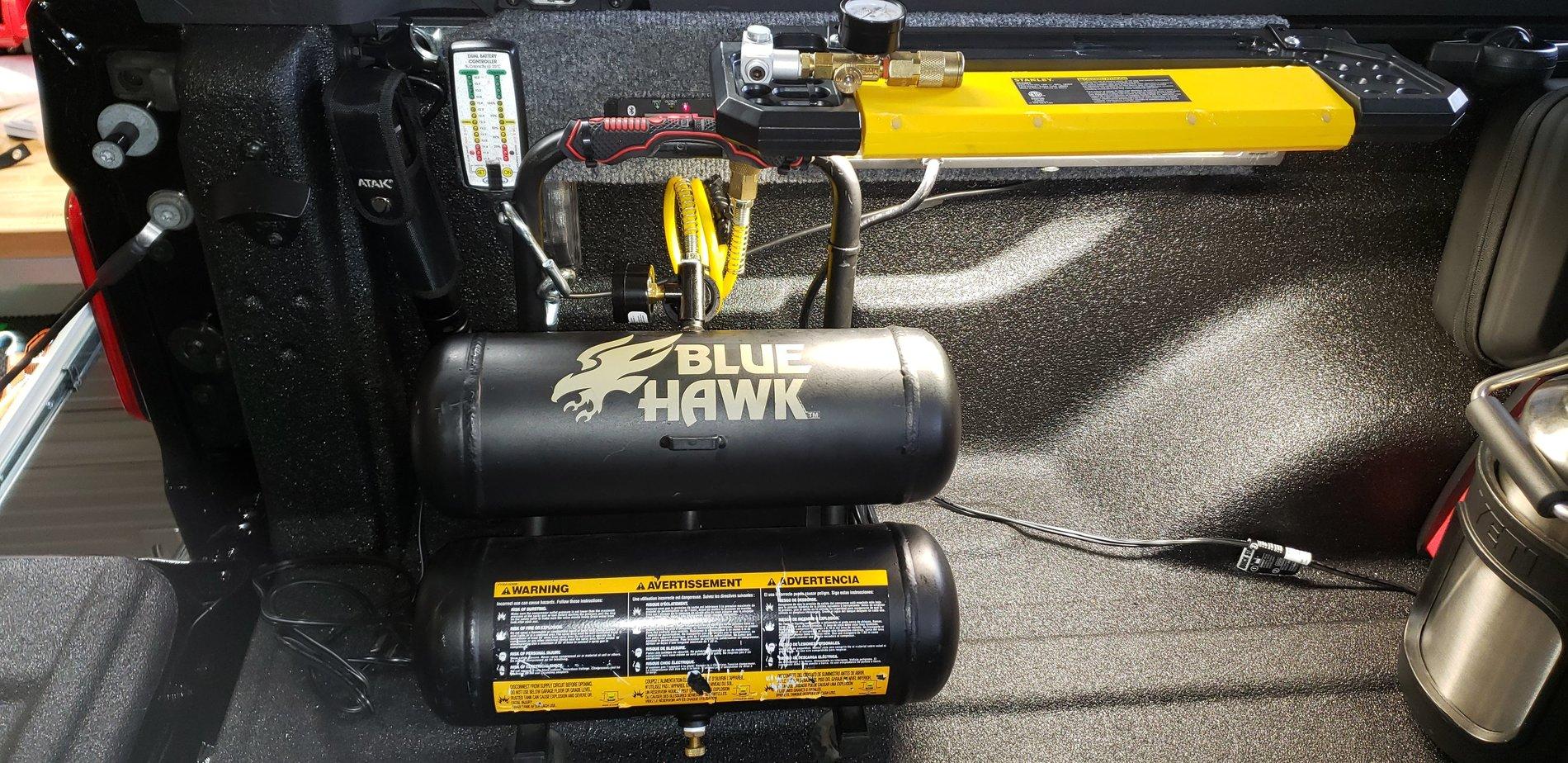

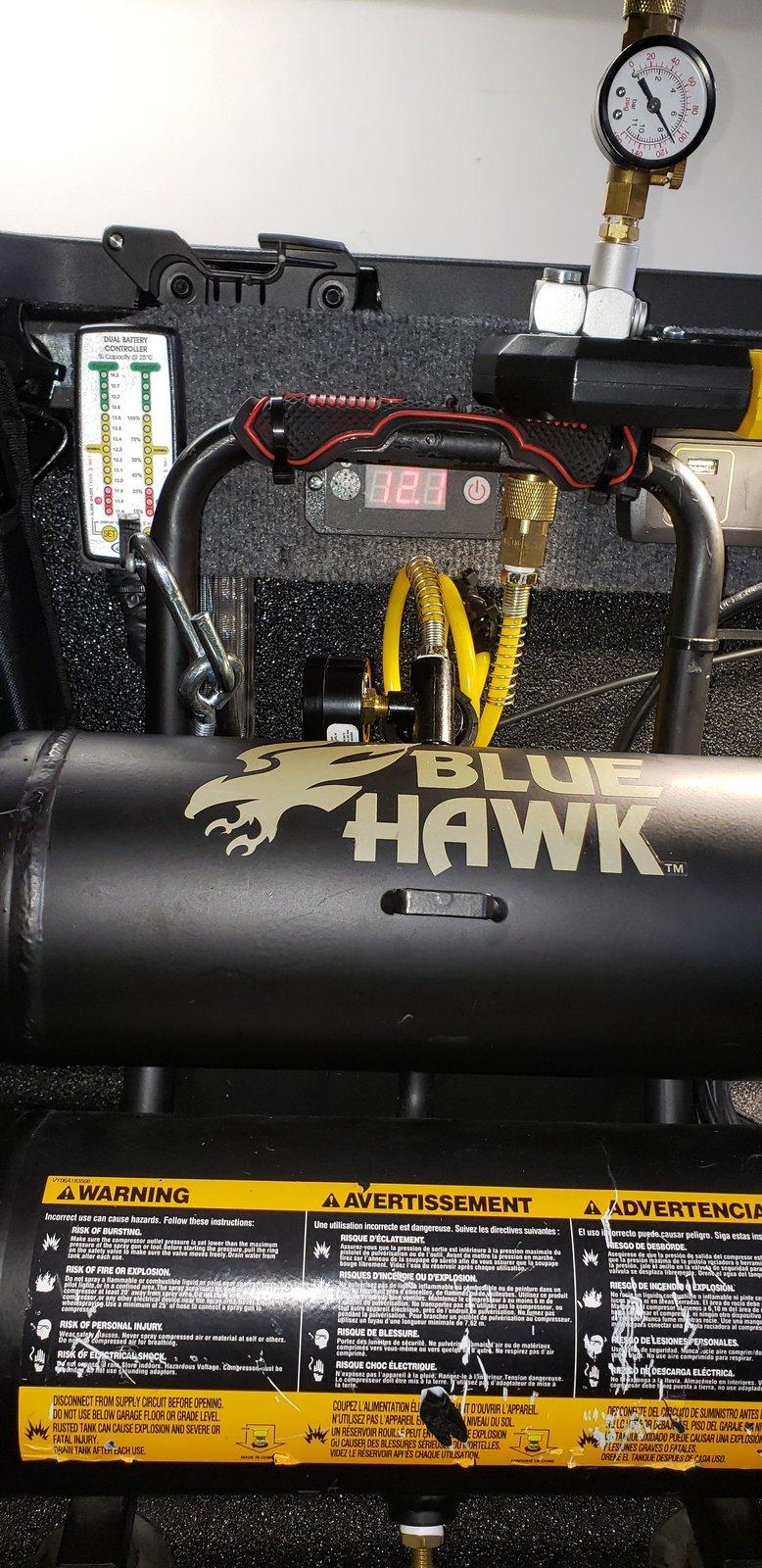

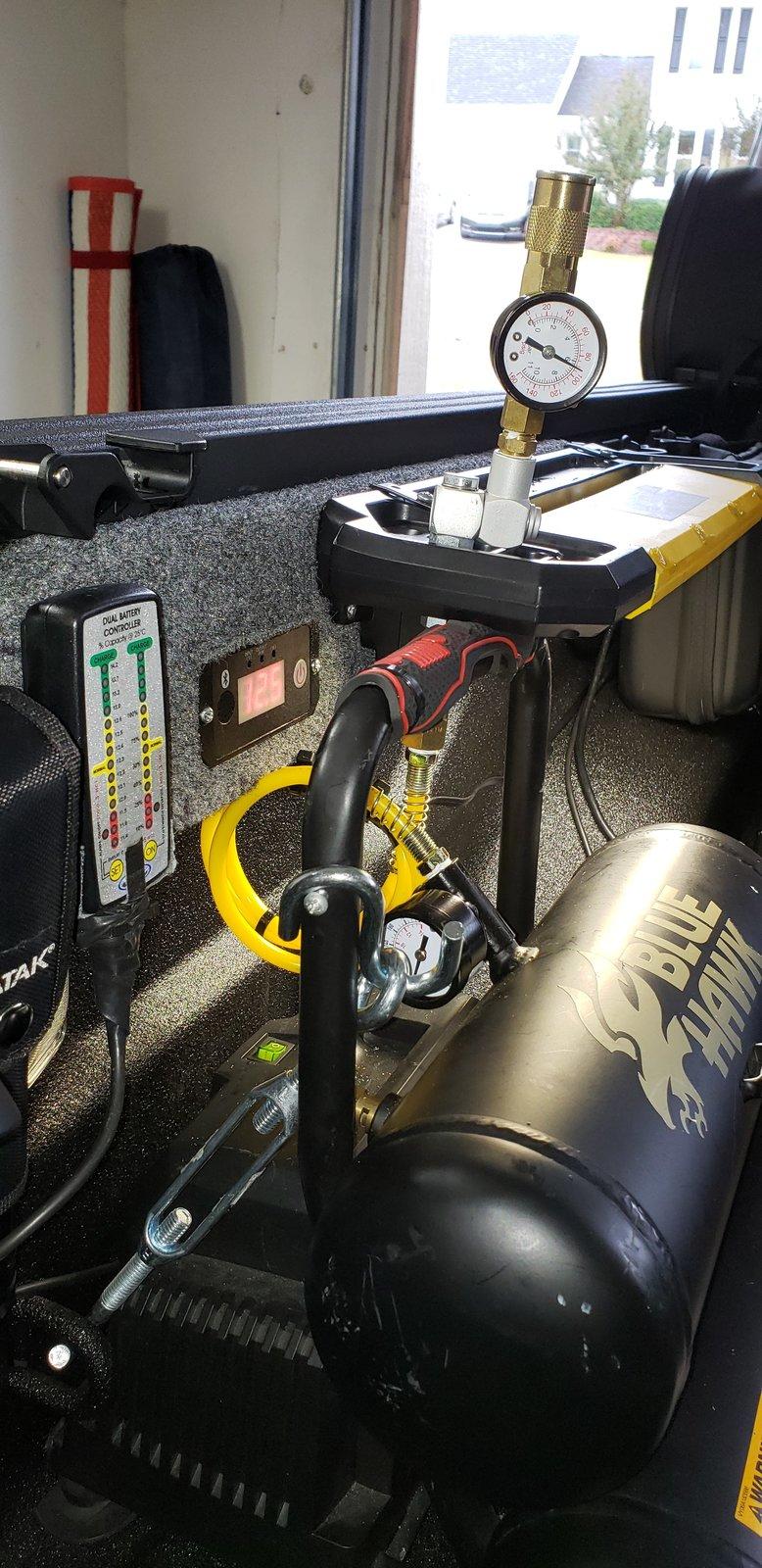

  3. I mounted the my air compressor, Yeti Gallon jug, https://www.amazon.com/YETI-Mountin...gallon+jug&qid=1571707522&s=automotive&sr=1-1 , https://www.amazon.com/YETI-COOLERS...7C2WKKK3443&psc=1&refRID=XDMJR82S07C2WKKK3443, tool box (Black Ammo can) and my 4000 amp Lithium Ion jumper. https://www.amazon.com/NOCO-GB150-U...8BTKP0MDY5Z&psc=1&refRID=3T2Y5DC5V8BTKP0MDY5Z,
  4. I also Mounted by Yeti bucket.























I like your build!

I’m a huge fan of dual battery systems but I’m discouraged as I’m not going to spend the money involved in a Genesis system. Therefore I continue to be interested in a battery box - a DIY battery box.

I’d like to learn more about what you’ve put together and the components you’ve used if you care to post a thread or provide more details. Thanks!

OP
Tlhicks

Tlhicks

Well-Known Member
First Name
Troy
Joined
Oct 2, 2019
Messages
79
Reaction score
177
Location
Fayetteville NC
Vehicle(s)
2020 Jeep Gladiator Rubicon Launch edition
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #20
I like your build!

I’m a huge fan of dual battery systems but I’m discouraged as I’m not going to spend the money involved in a Genesis system. Therefore I continue to be interested in a battery box - a DIY battery box.

I’d like to learn more about what you’ve put together and the components you’ve used if you care to post a thread or provide more details. Thanks!
Sure Here is my Dual Battery Setup.

Portable Battery Box with built in controller : https://www.equipt1.com/products/portable-power-pack?_pos=6&_sid=1d379866f&_ss=r
Dual Battery controller remote: https://www.equipt1.com/products/dual-battery-controller?_pos=2&_sid=1d379866f&_ss=r
Marine AGM Deep cycle battery: https://www.samsclub.com/p/duracell...nd-rv-battery-group-size-31dtmagm/prod3590232
100watt solar panel: https://www.samsclub.com/p/100-watt-solar-panel-gs-star-100w/prod21250405?xid=plp_product_1_1
30 AMP solar controller:https://www.northerntool.com/shop/tools/product_200660264_200660264
On board battery charger: https://www.amazon.com/Schumacher-S...argid=aud-799727667774:pla-570643182189&psc=1
3000 watts inverter: https://www.amazon.com/gp/product/B00VPYV78E/ref=ppx_yo_dt_b_asin_title_o02_s00?ie=UTF8&psc=1
My 2nd battery charges 3 ways: Alternator when vehicle is running, Solar when sunny and plugged in at the house. I had this system in my Lexus LX470 during the hurricane last year and I ran my house, 4 rooms of lights, 2 refrigerators, 2 TVs, 2 Fans, and Wireless router all for 20 hours straight on a 1/2 tank of gas and brewed coffee on my portable rugged keurig which is also installed in my JT: https://www.homedepot.com/p/OXX-COFFEEBOXX-Black-Single-Serve-Coffee-Maker-CBK250B/301313771

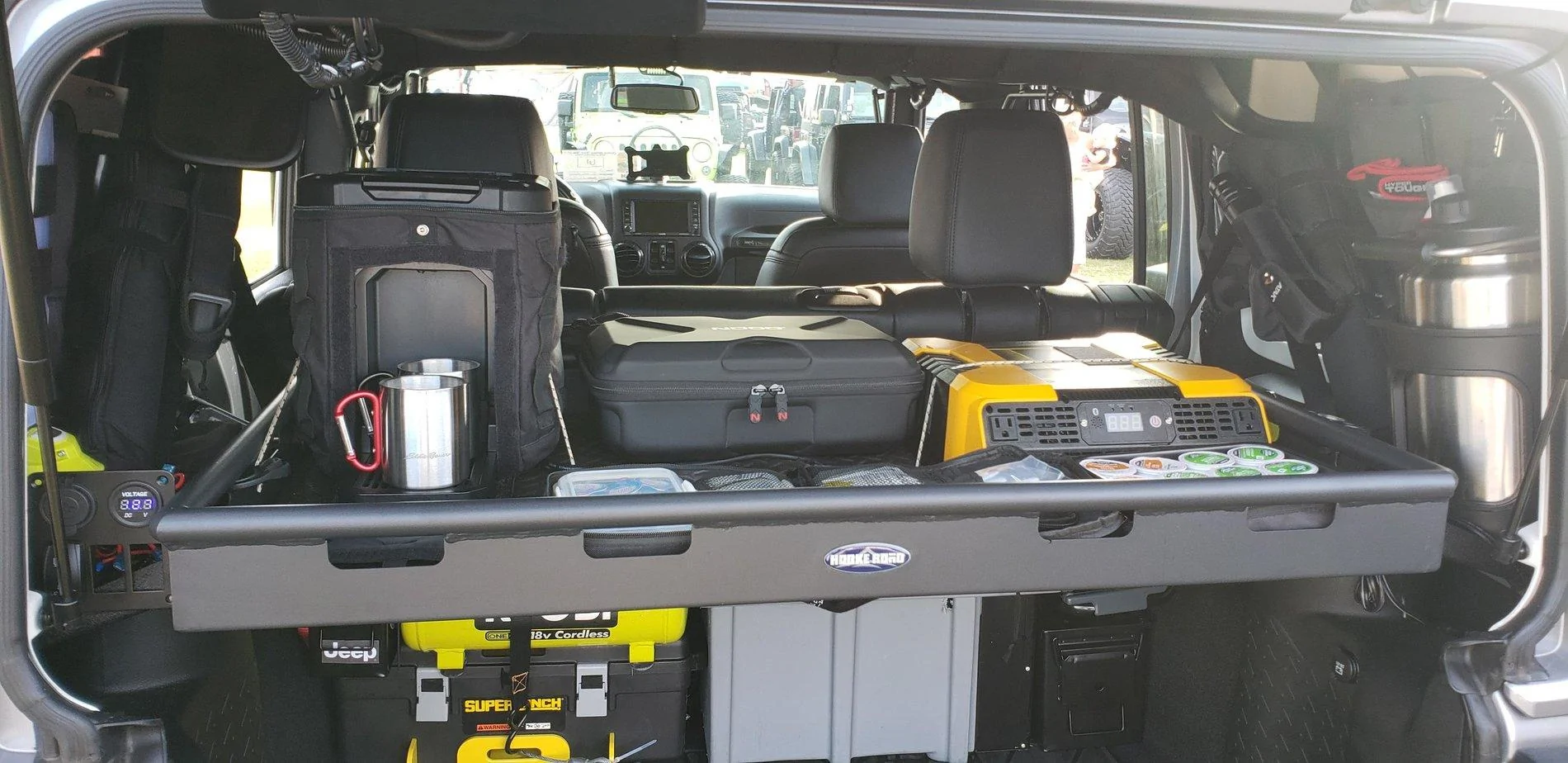

This is it when it was in my JK its all now in the JT Black Box



WhatExit?

Well-Known Member
First Name
Dan
Joined
Sep 13, 2018
Messages
1,921
Reaction score
3,058
Location
48th State
Vehicle(s)
2020 JT Rubicon Launch Edition - Granite Crystal Metallic | 2017 Ford Raptor SuperCrew - Metallic
Vehicle Showcase
1
Sure Here is my Dual Battery Setup.

Portable Battery Box with built in controller : https://www.equipt1.com/products/portable-power-pack?_pos=6&_sid=1d379866f&_ss=r
Dual Battery controller remote: https://www.equipt1.com/products/dual-battery-controller?_pos=2&_sid=1d379866f&_ss=r
Marine AGM Deep cycle battery: https://www.samsclub.com/p/duracell...nd-rv-battery-group-size-31dtmagm/prod3590232
100watt solar panel: https://www.samsclub.com/p/100-watt-solar-panel-gs-star-100w/prod21250405?xid=plp_product_1_1
30 AMP solar controller:https://www.northerntool.com/shop/tools/product_200660264_200660264
On board battery charger: https://www.amazon.com/Schumacher-S...argid=aud-799727667774:pla-570643182189&psc=1
3000 watts inverter: https://www.amazon.com/gp/product/B00VPYV78E/ref=ppx_yo_dt_b_asin_title_o02_s00?ie=UTF8&psc=1
My 2nd battery charges 3 ways: Alternator when vehicle is running, Solar when sunny and plugged in at the house. I had this system in my Lexus LX470 during the hurricane last year and I ran my house, 4 rooms of lights, 2 refrigerators, 2 TVs, 2 Fans, and Wireless router all for 20 hours straight on a 1/2 tank of gas and brewed coffee on my portable rugged keurig which is also installed in my JT: https://www.homedepot.com/p/OXX-COFFEEBOXX-Black-Single-Serve-Coffee-Maker-CBK250B/301313771

This is it when it was in my JK its all now in the JT Black Box

Thanks! Why such a high power charger with two batteries ( or did you already have this)?

Tell me about the wiring - did you run both hot and ground from the engine compartment? What gauge wire did you use? And lastly how did you get the wire into the bed?

I’m sure I’ll have a few more questions for you - I appreciate your information for sure

OP
Tlhicks

Tlhicks

Well-Known Member
First Name
Troy
Joined
Oct 2, 2019
Messages
79
Reaction score
177
Location
Fayetteville NC
Vehicle(s)
2020 Jeep Gladiator Rubicon Launch edition
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #23
Thanks! Why such a high power charger with two batteries ( or did you already have this)?

Tell me about the wiring - did you run both hot and ground from the engine compartment? What gauge wire did you use? And lastly how did you get the wire into the bed?

I’m sure I’ll have a few more questions for you - I appreciate your information for sure
The kit came with 20 feet of 4 gauge black and red wiring with 100 amp fuse and Anderson plug to connect to the battery controller check the links they have all the details. I ran it under the JT and there is a hole with a plug in the lower right and left bottom of the rear wall of the truck bed. I choose a large controller for expand-ability, additional panels if needed, fridge etc...

OP
Tlhicks

Tlhicks

Well-Known Member
First Name
Troy
Joined
Oct 2, 2019
Messages
79
Reaction score
177
Location
Fayetteville NC
Vehicle(s)
2020 Jeep Gladiator Rubicon Launch edition
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #24

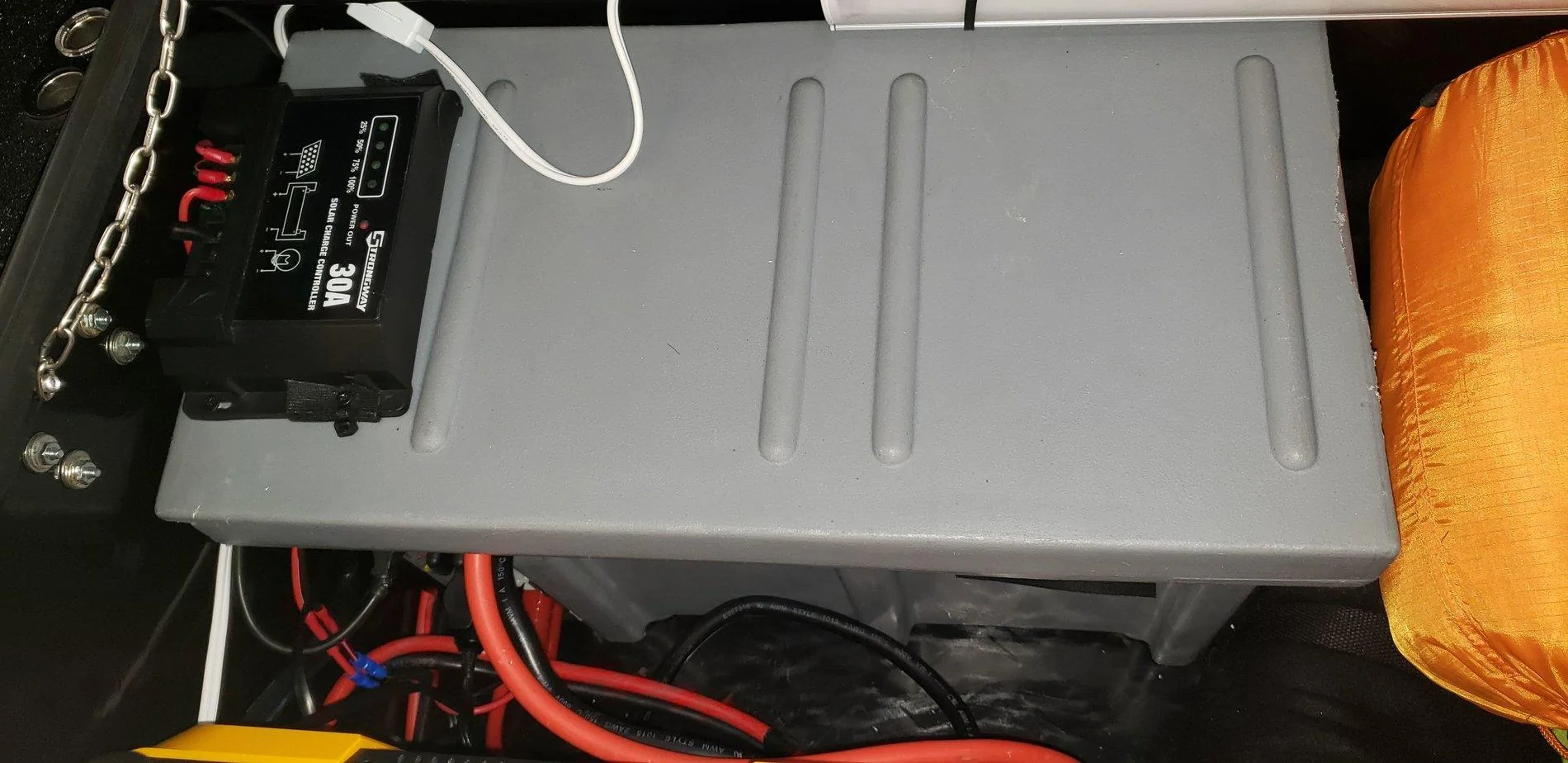

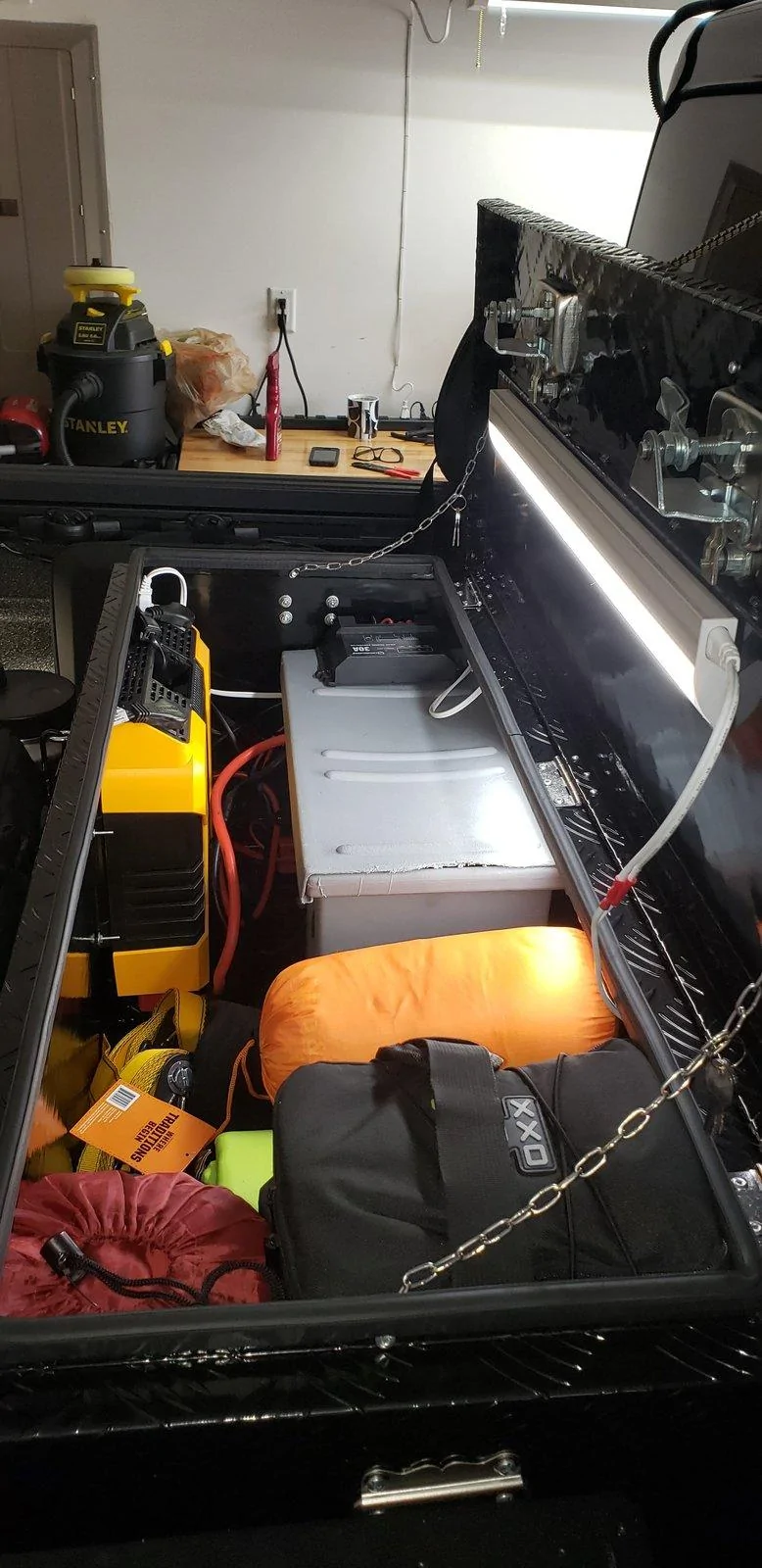

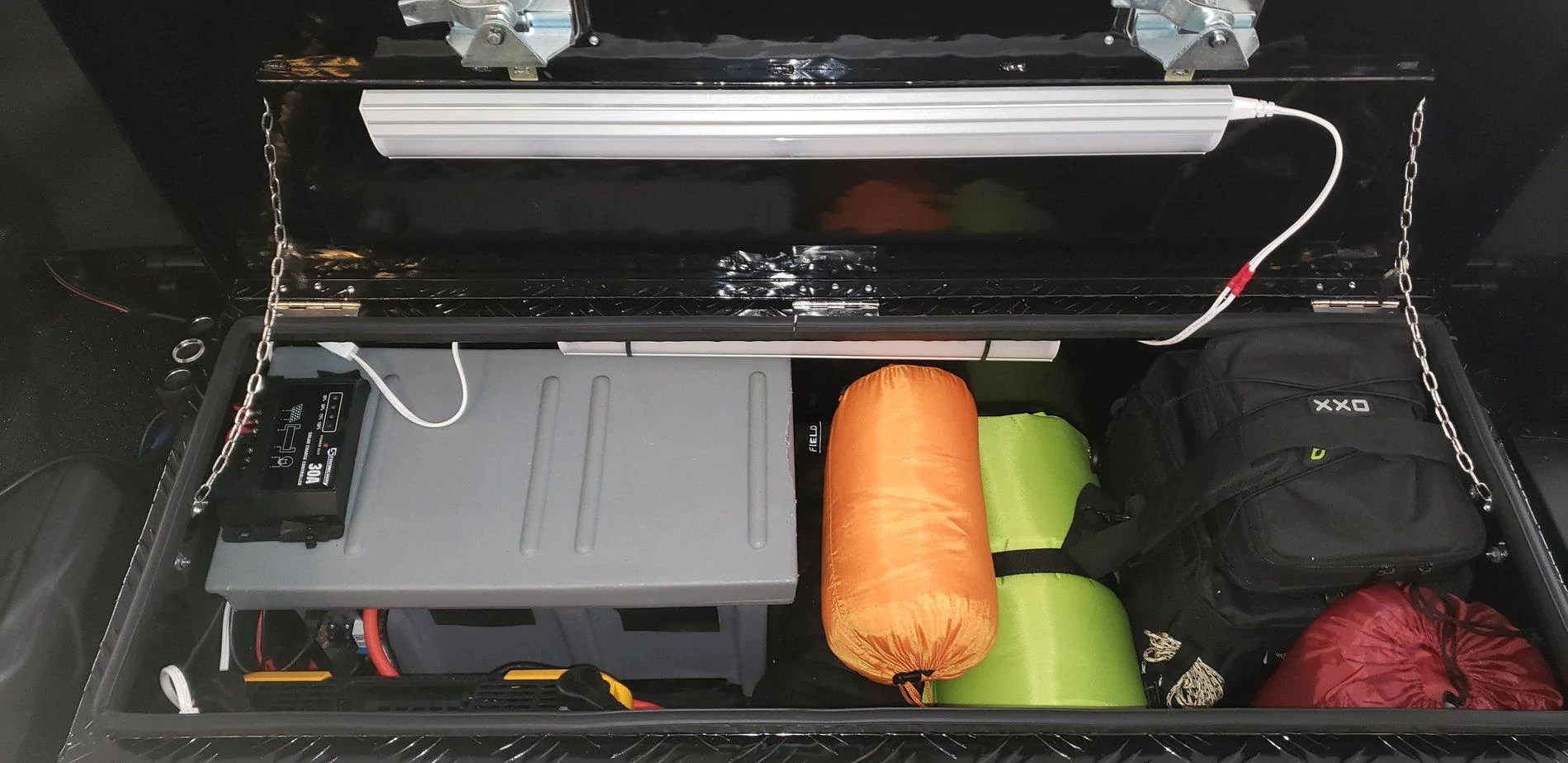

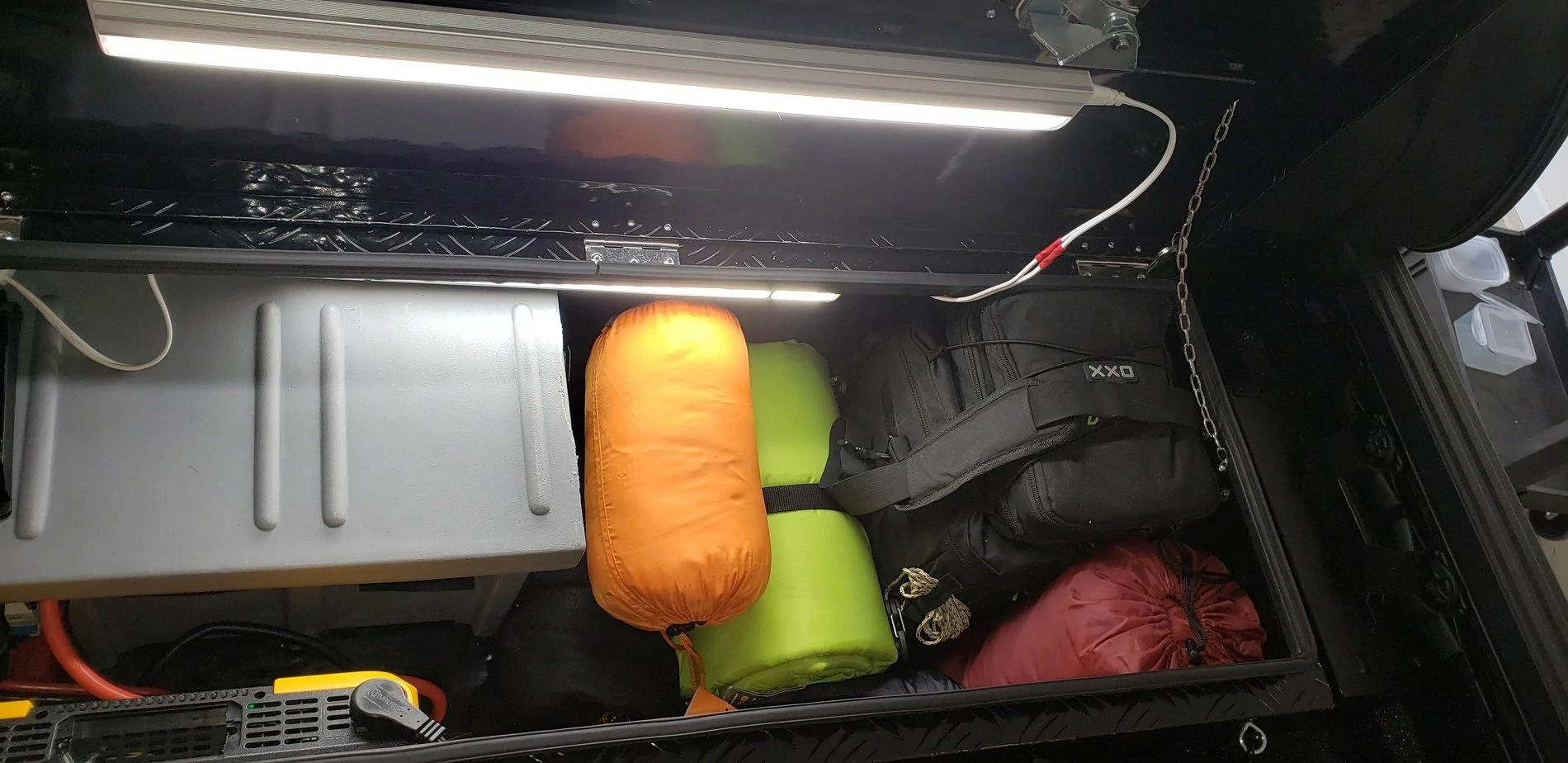

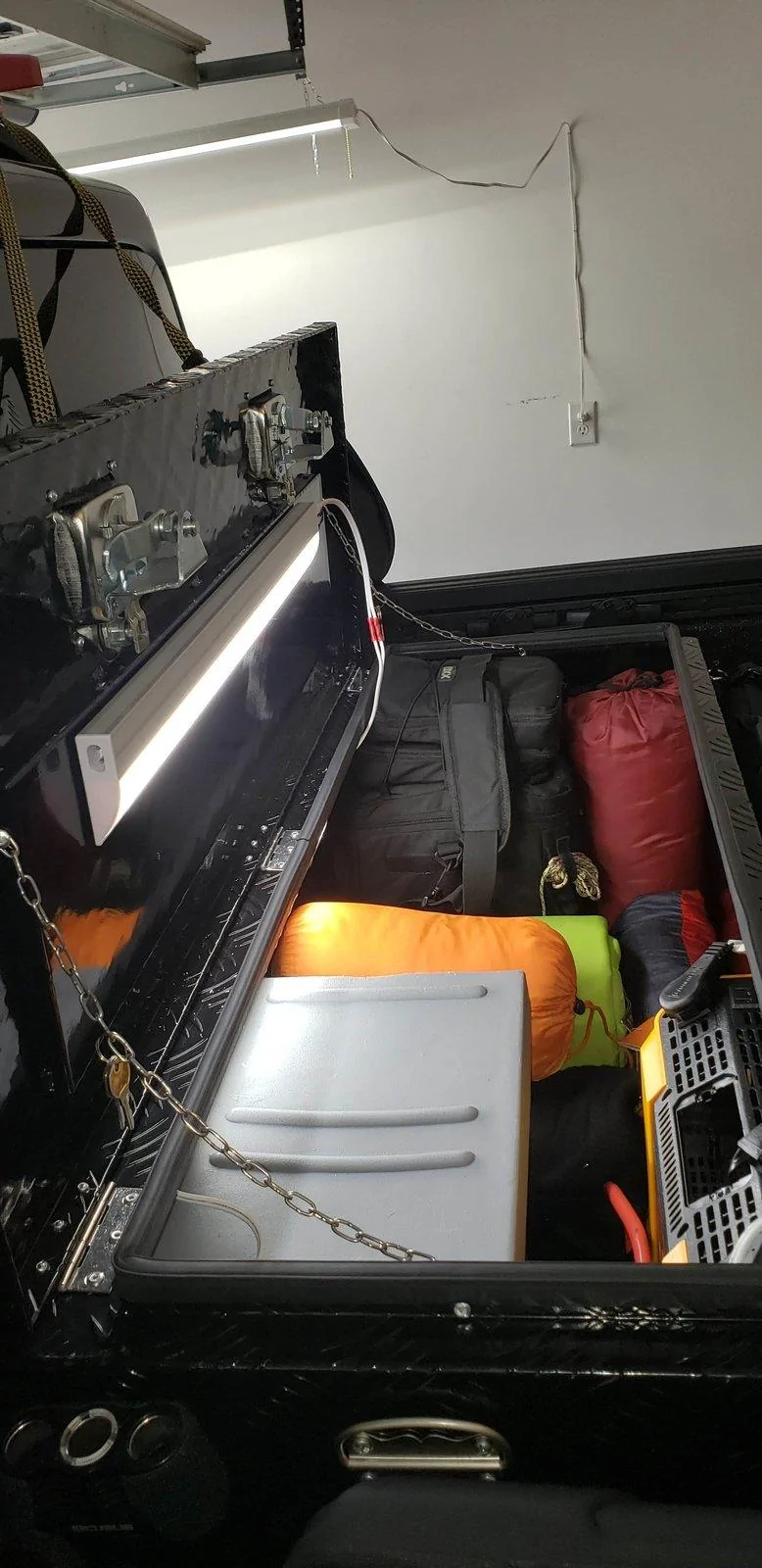

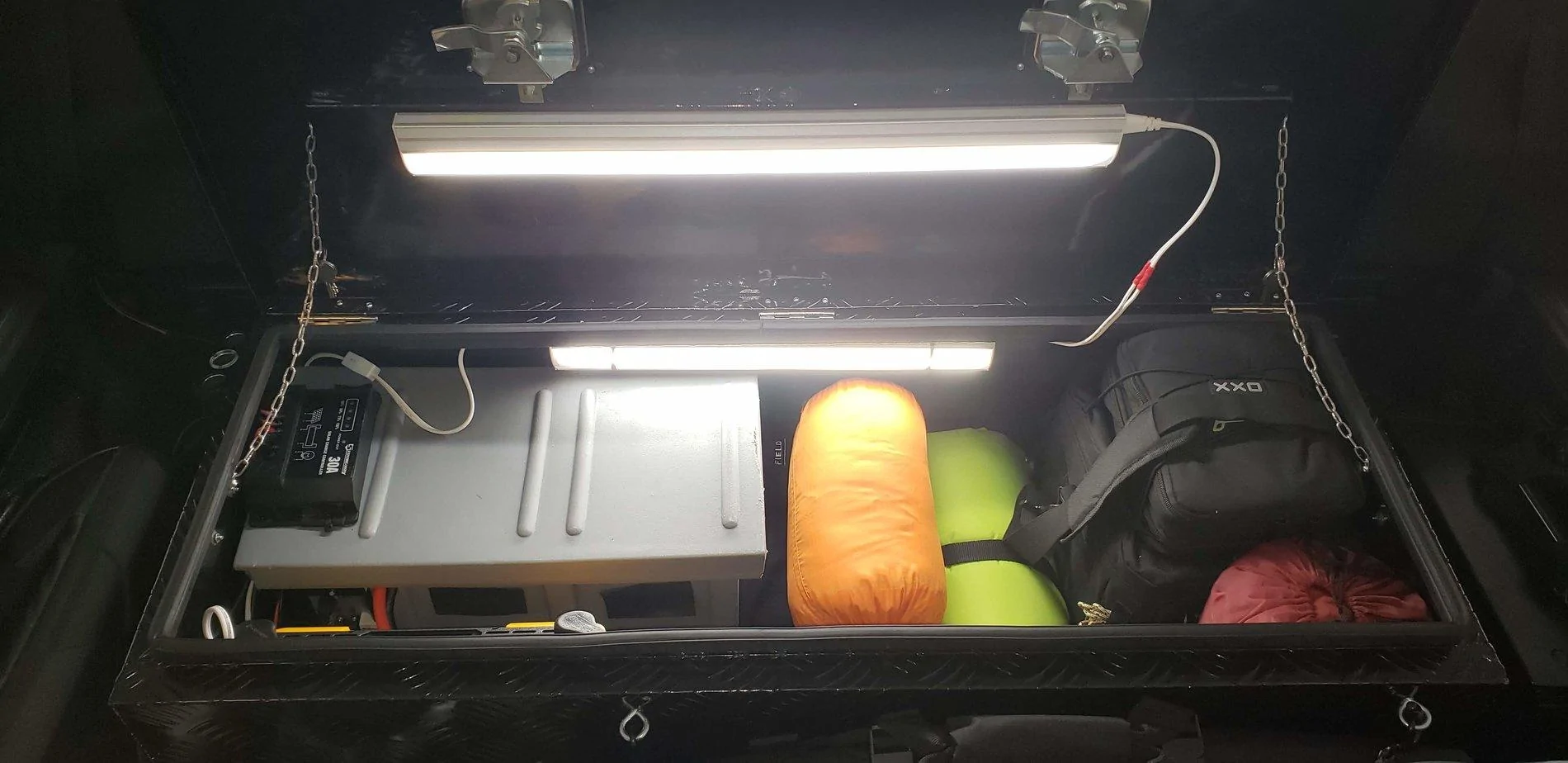

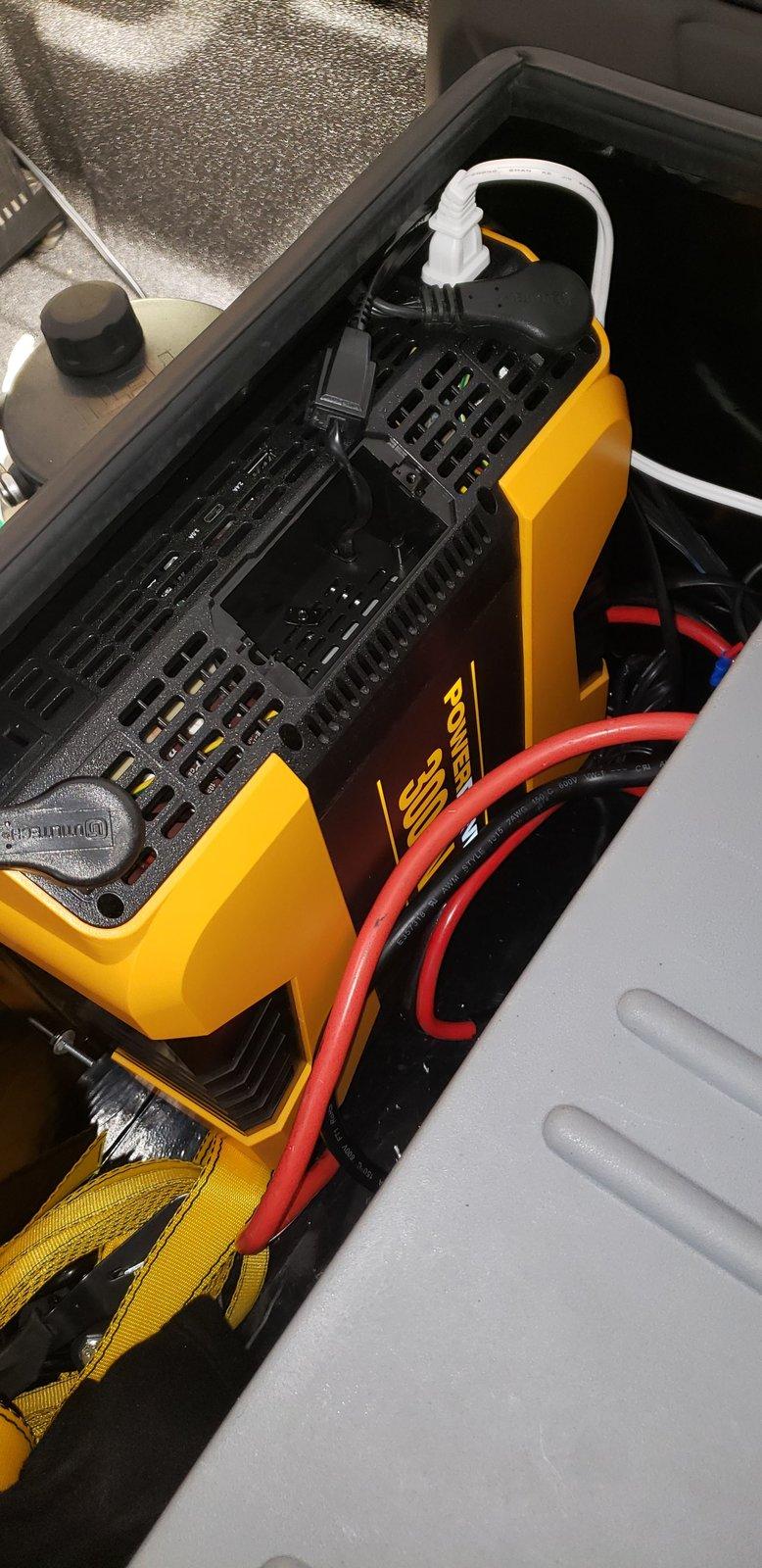

Here is a look inside HOOAH's "BLACKBOX" After all we have all wondered whats really inside the black box.
















OP
Tlhicks

Tlhicks

Well-Known Member
First Name
Troy
Joined
Oct 2, 2019
Messages
79
Reaction score
177
Location
Fayetteville NC
Vehicle(s)
2020 Jeep Gladiator Rubicon Launch edition
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #25

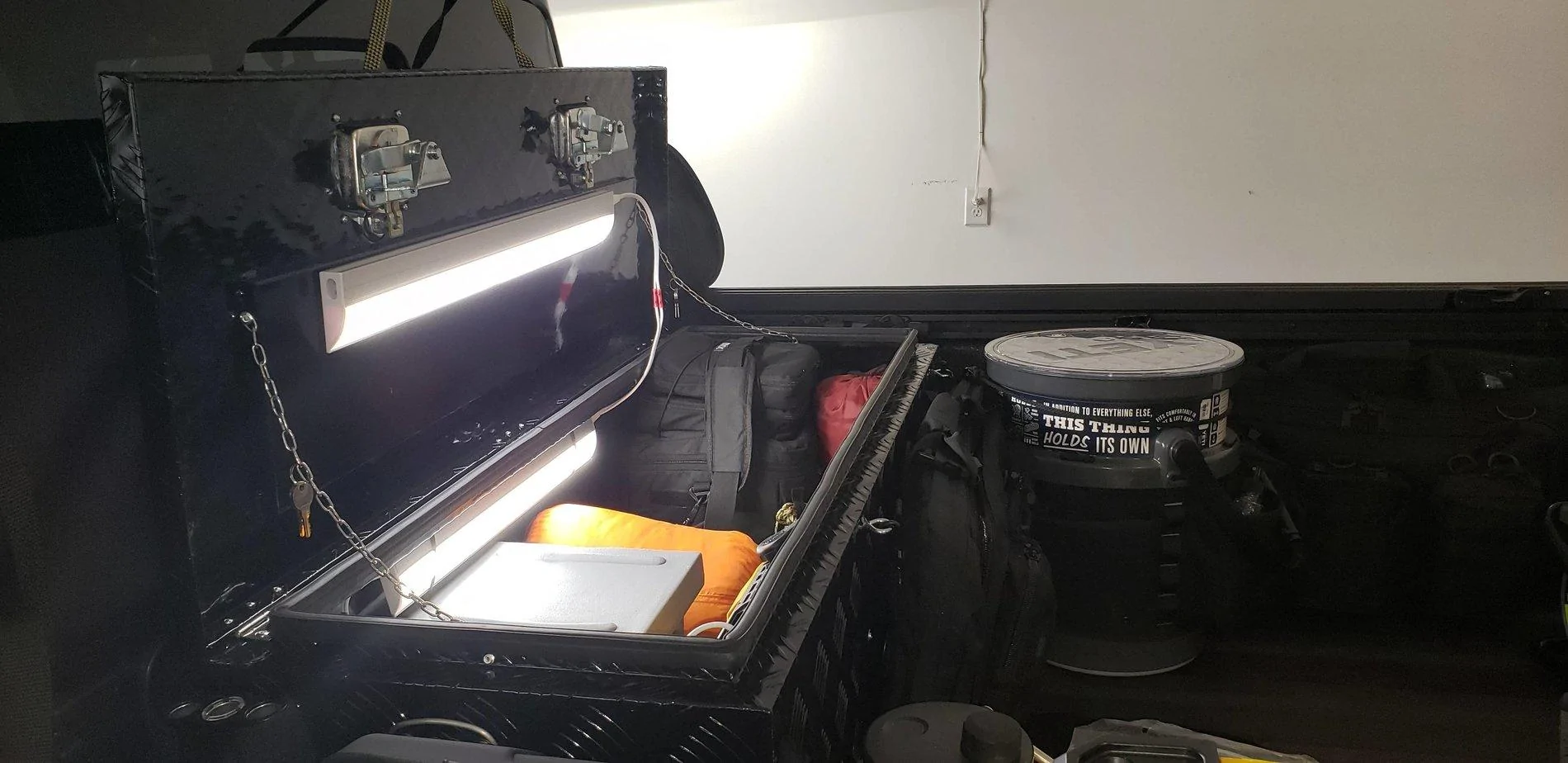

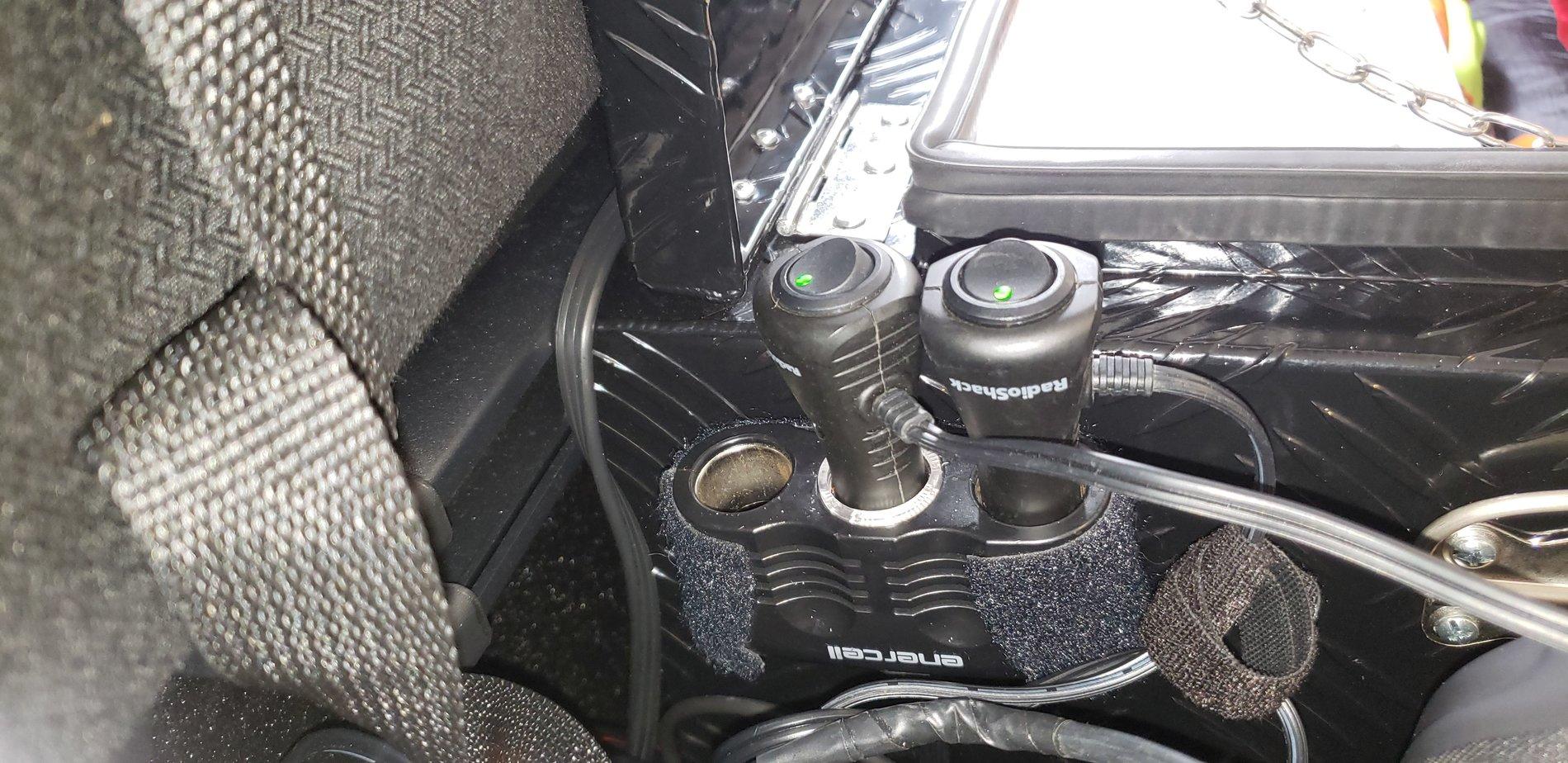

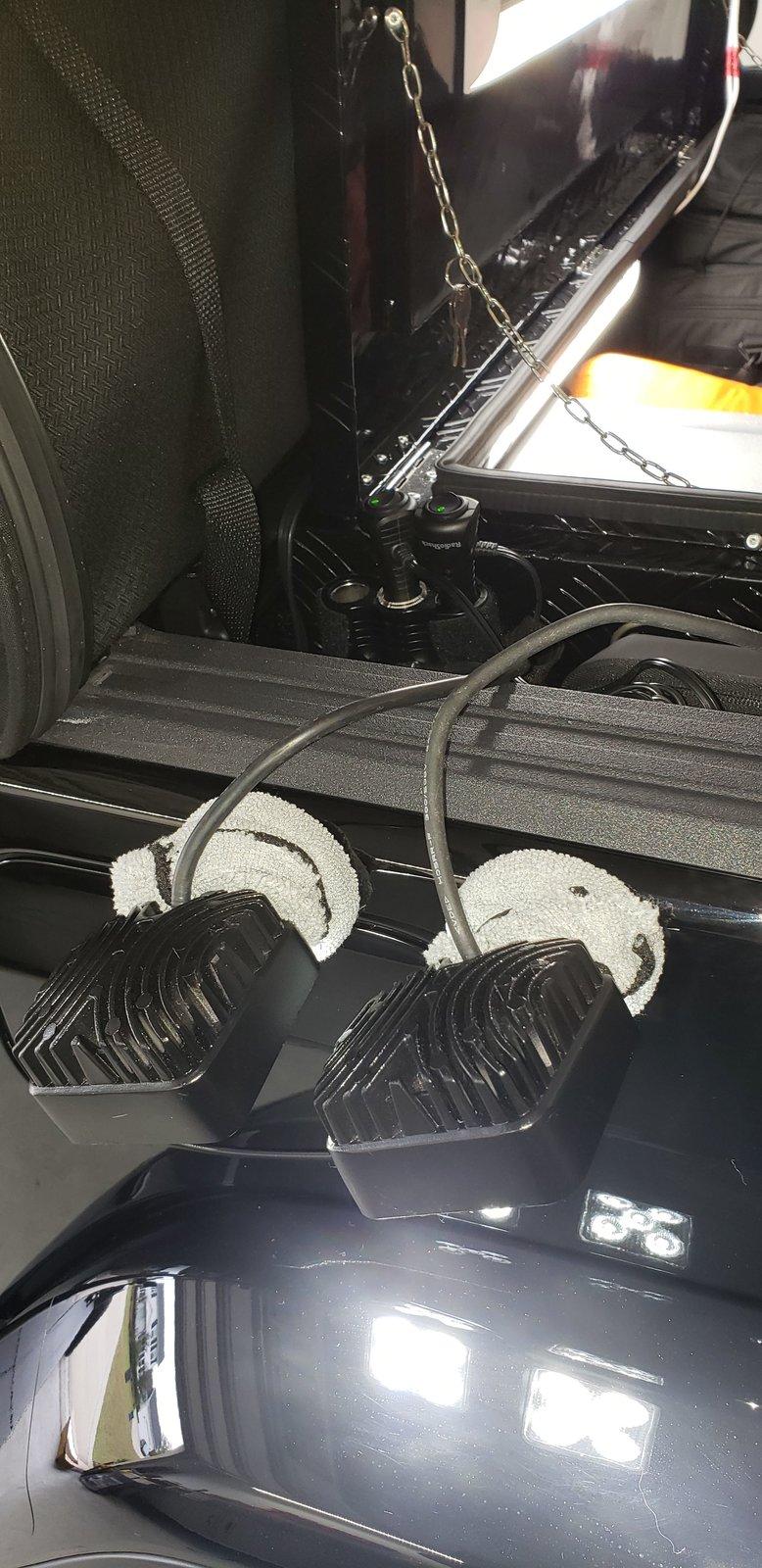

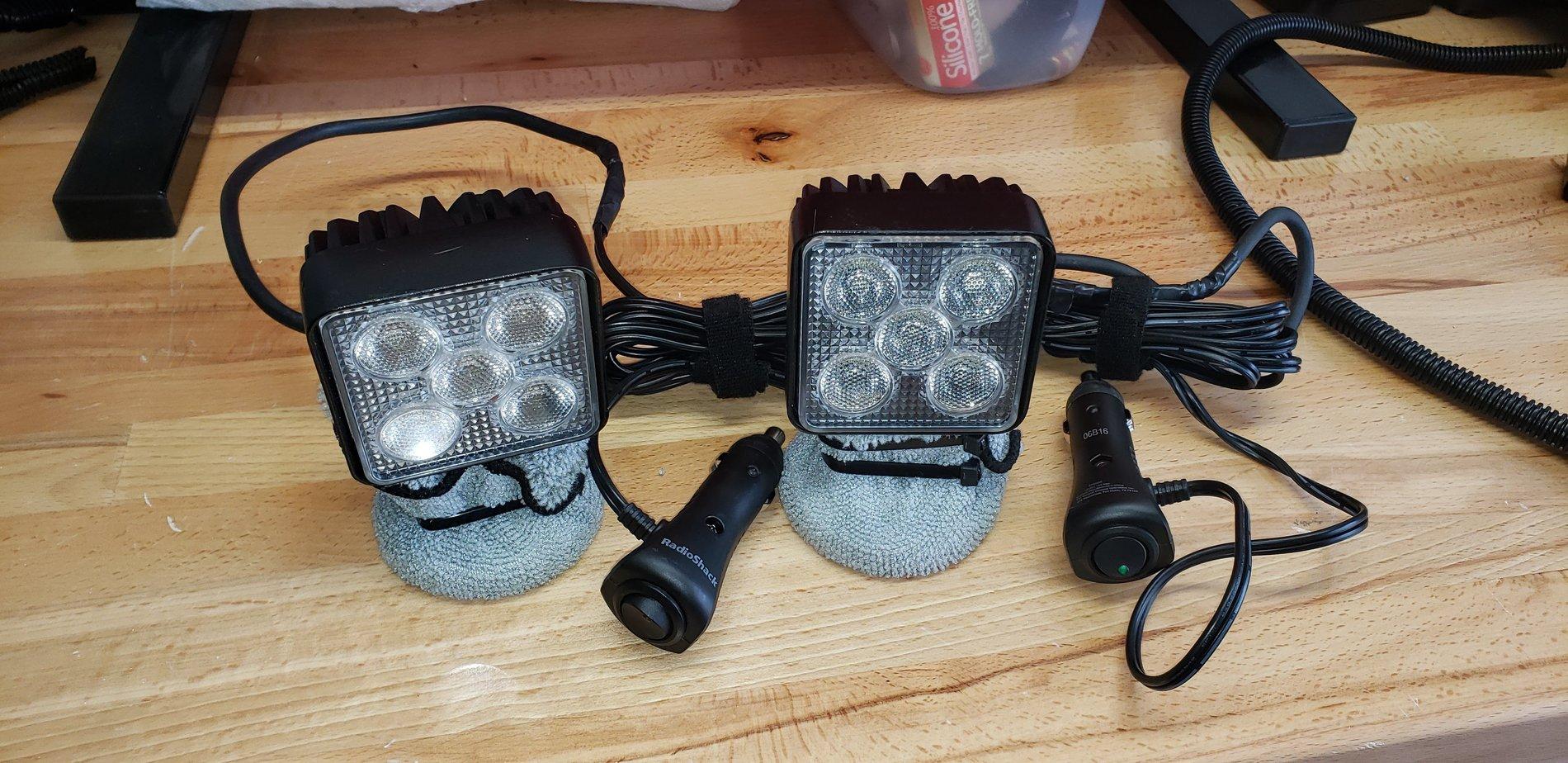

What do you get when you combine a pair of 12 volt work lights from Northern tools, A pair of switched cigarette lighter adapters from Radio Shack, I microfiber tower, a couple of zip ties and a pair of heavy duty magnets from Home Depot? check it out.....







Place anywhere lighting!!!

OP
Tlhicks

Tlhicks

Well-Known Member
First Name
Troy
Joined
Oct 2, 2019
Messages
79
Reaction score
177
Location
Fayetteville NC
Vehicle(s)
2020 Jeep Gladiator Rubicon Launch edition
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #26

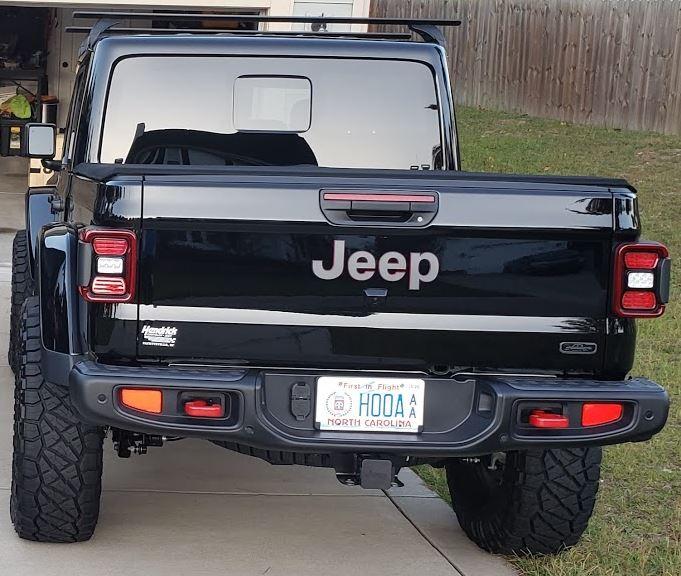

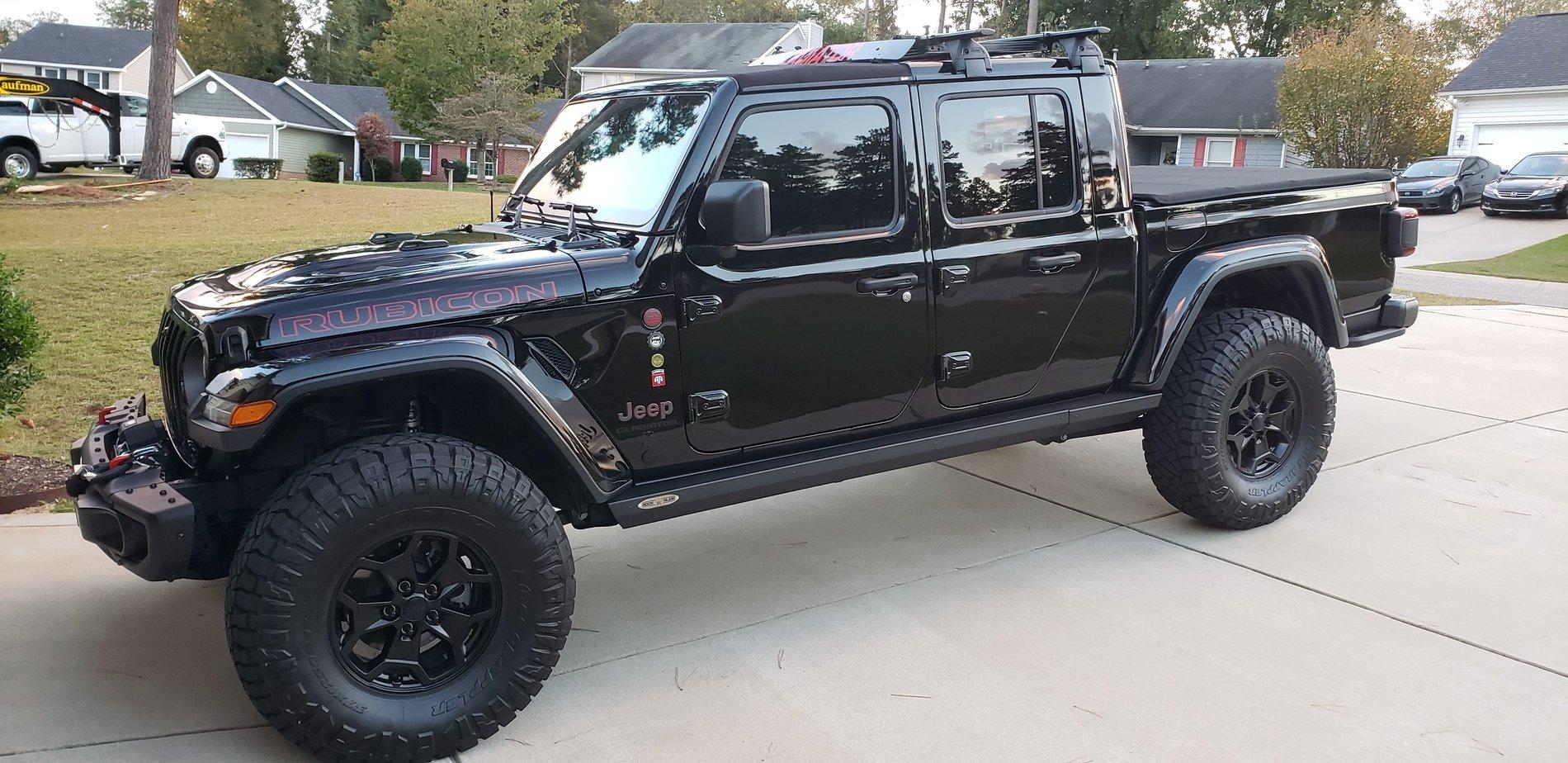

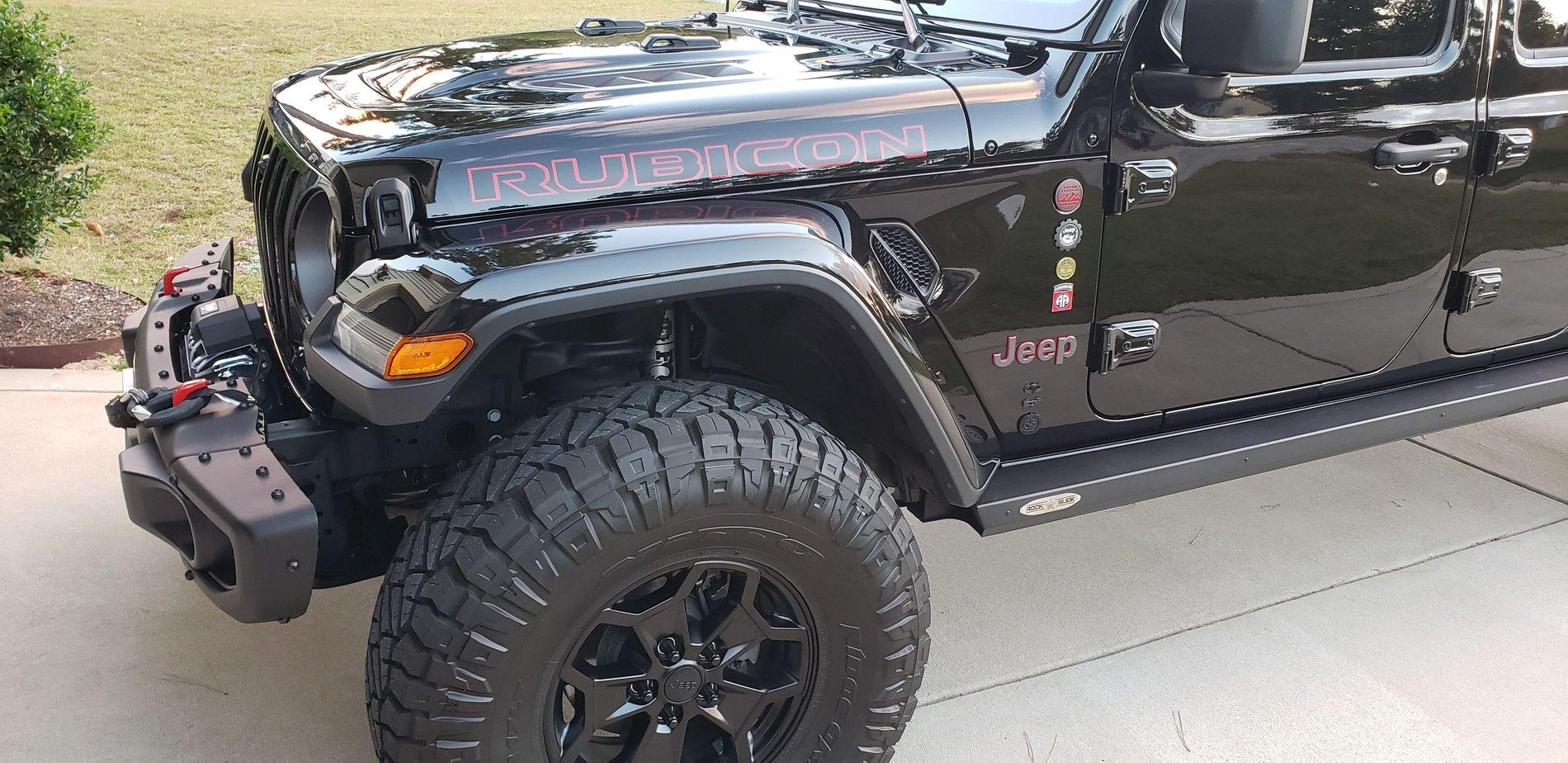

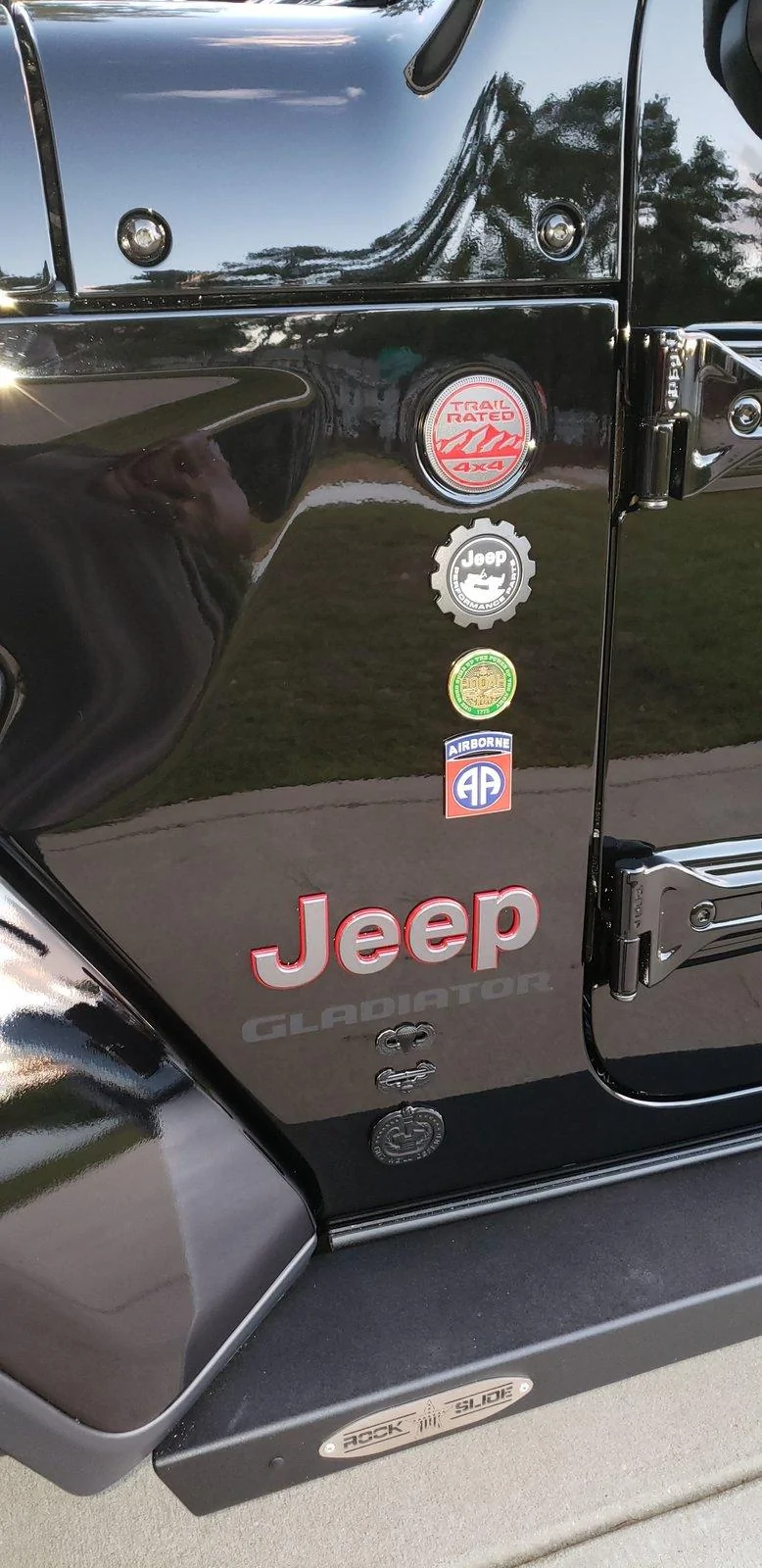

So I decided to go a different route when it comes to badges for my JT. I spent many years in the military doing the craziest shit, stressing my body to earn badges (and the added pay and promotions that go with them of course). To the point that at 54 years old my knees and back remind me daily of the 50 times I jumped out of aircraft with full combat gear or repelled out of helicopters head first or damn near a year in combat with the 82nd Airborne Division and almost 3 years as a Drill Sargent. Along with countless 12 mile road marches and PT in boots. Or a year as the point man for the SRT (Special Reaction Team = Military SWAT Team). Those memories, along with the associated aches and pains, represent the proudest, most demanding yet exhilarating times of my life. So I decided to display those badges. I do hope to hit the trails soon and earn real Jeep badges. Which I will proudly display right along side these. HOOAH!







TRI-JAB

Well-Known Member
First Name
Jason
Joined
Aug 25, 2019
Messages
735
Reaction score
1,107
Location
Northern South Carolina
Vehicle(s)
Samson - 2020 Sting Grey Gladiator, 2007 BMW Z4, 2013 BWM 335i xDrive
Thanks for the Links and Pics! I just ordered a few items from your list. They'll all be here way before my JT pulls into the driveway.

Go Steelers! GO ARMY!

OP
Tlhicks

Tlhicks

Well-Known Member
First Name
Troy
Joined
Oct 2, 2019
Messages
79
Reaction score
177
Location
Fayetteville NC
Vehicle(s)
2020 Jeep Gladiator Rubicon Launch edition
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #28
Thanks for the Links and Pics! I just ordered a few items from your list. They'll all be here way before my JT pulls into the driveway.

Go Steelers! GO ARMY!
Glad to be useful! Congratulation on your New JT! HOOAH!


TRI-JAB

Well-Known Member
First Name
Jason
Joined
Aug 25, 2019
Messages
735
Reaction score
1,107
Location
Northern South Carolina
Vehicle(s)
Samson - 2020 Sting Grey Gladiator, 2007 BMW Z4, 2013 BWM 335i xDrive
Do you happen to know the centerline distance between your cross rails? I am trying to figure out some solutions to hauling all of my toys... I have cross rails on my GC that I can take off before trading it in, I'd just need to get new attachments. Thinking this could be the best way to haul my SUPs or 10 ft Kayaks if I have the bikes on the back.

Great build - looks awesome! Thanks.

OP
Tlhicks

Tlhicks

Well-Known Member
First Name
Troy
Joined
Oct 2, 2019
Messages
79
Reaction score
177
Location
Fayetteville NC
Vehicle(s)
2020 Jeep Gladiator Rubicon Launch edition
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #30

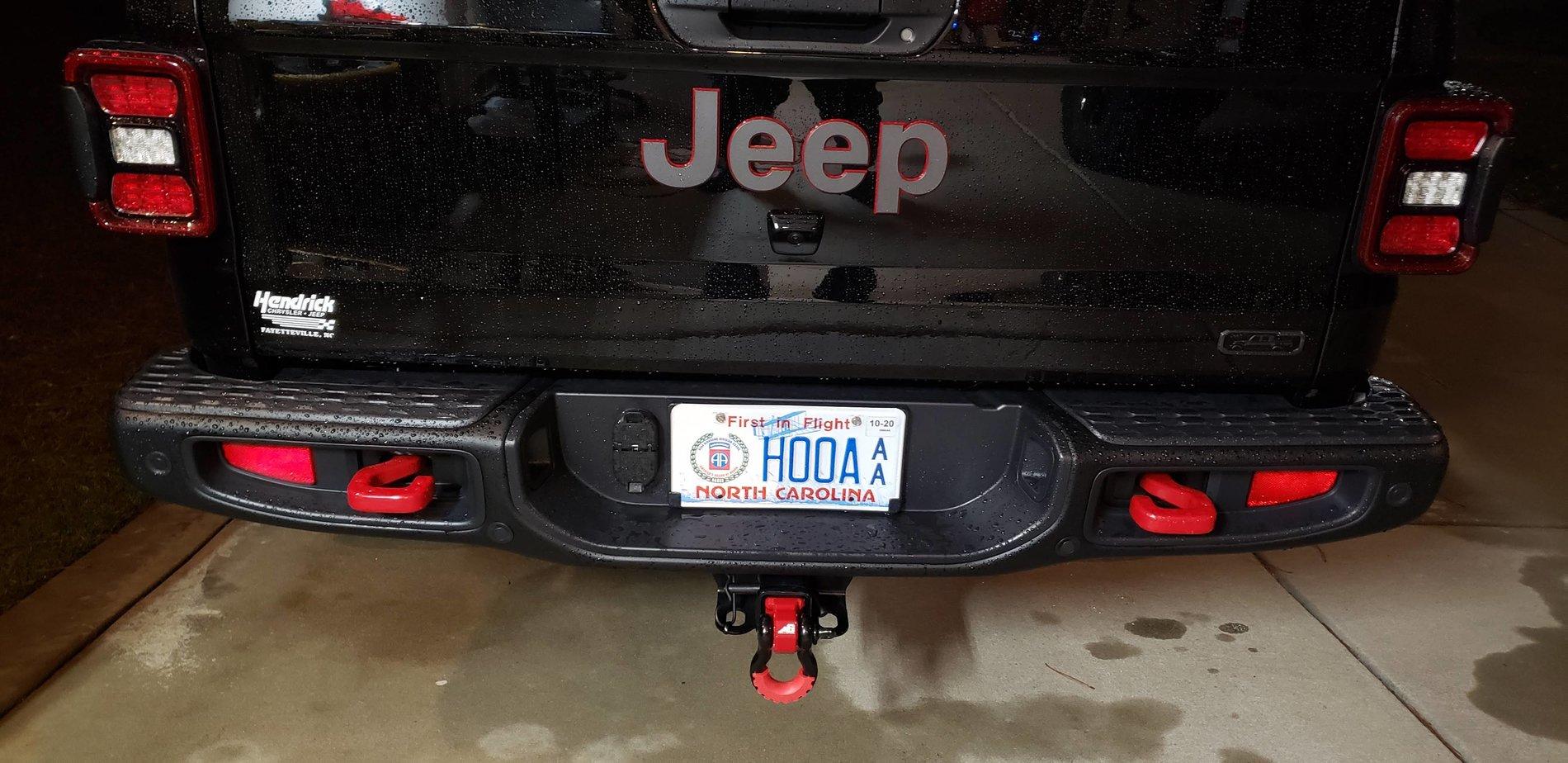

I added a few more small but functional additions.

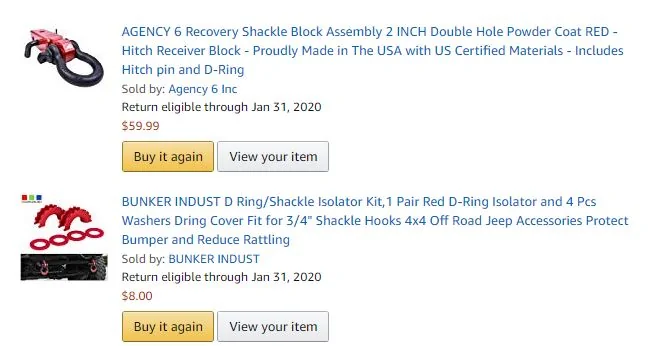

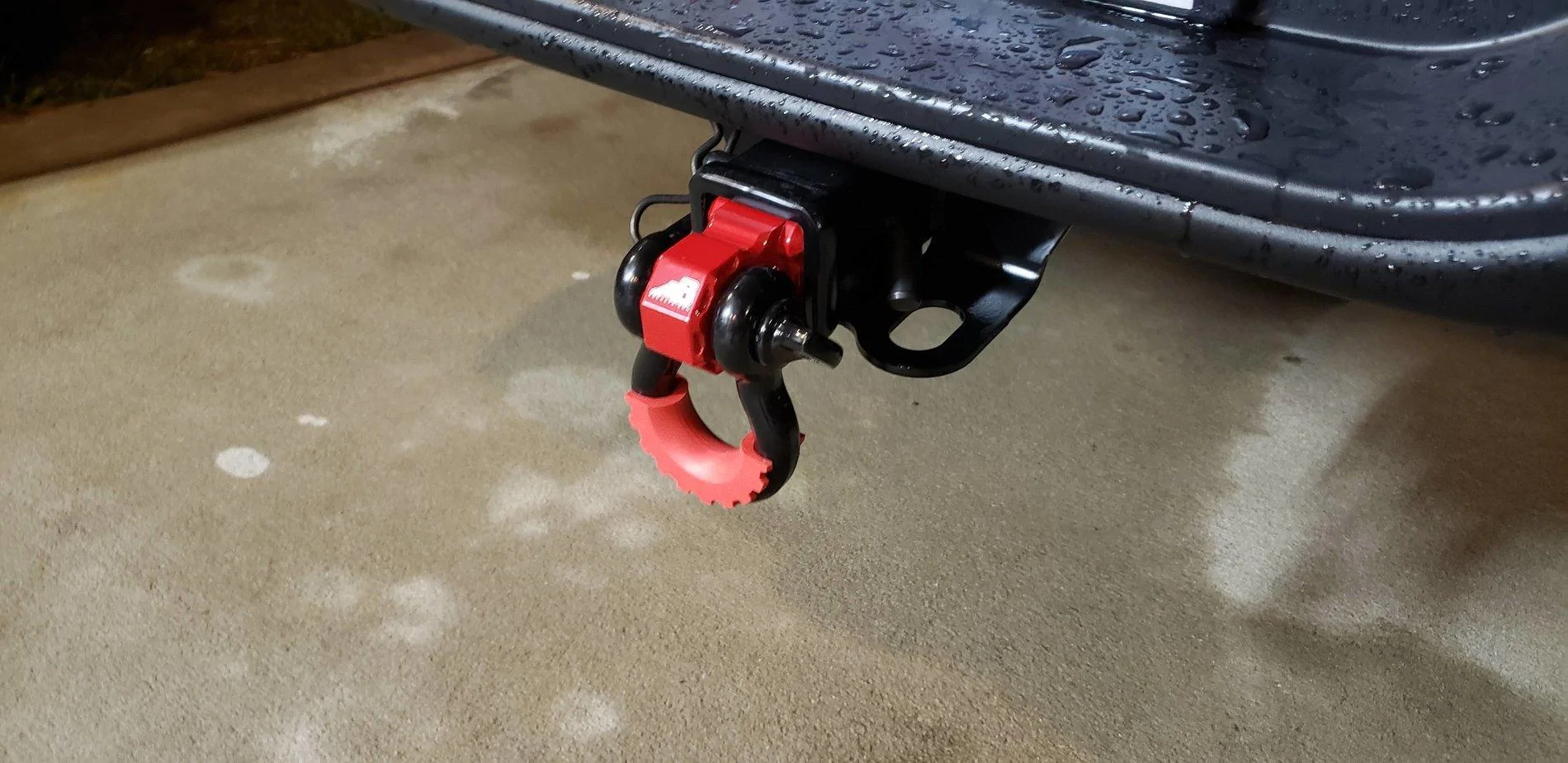

1) AGENCY 6 Recovery Shackle Block Assembly 2 INCH Double Hole Powder Coat RED - Hitch Receiver Block - Proudly Made in The USA with US Certified Materials - Includes Hitch pin and D-Ring.

https://www.amazon.com/gp/product/B07PPB6QWF/ref=ppx_yo_dt_b_asin_title_o02_s00?ie=UTF8&psc=1

2) BUNKER INDUST D Ring/Shackle Isolator Kit,1 Pair Red D-Ring

https://www.amazon.com/gp/product/B07K84K6DL/ref=ppx_yo_dt_b_asin_title_o02_s00?ie=UTF8&psc=1

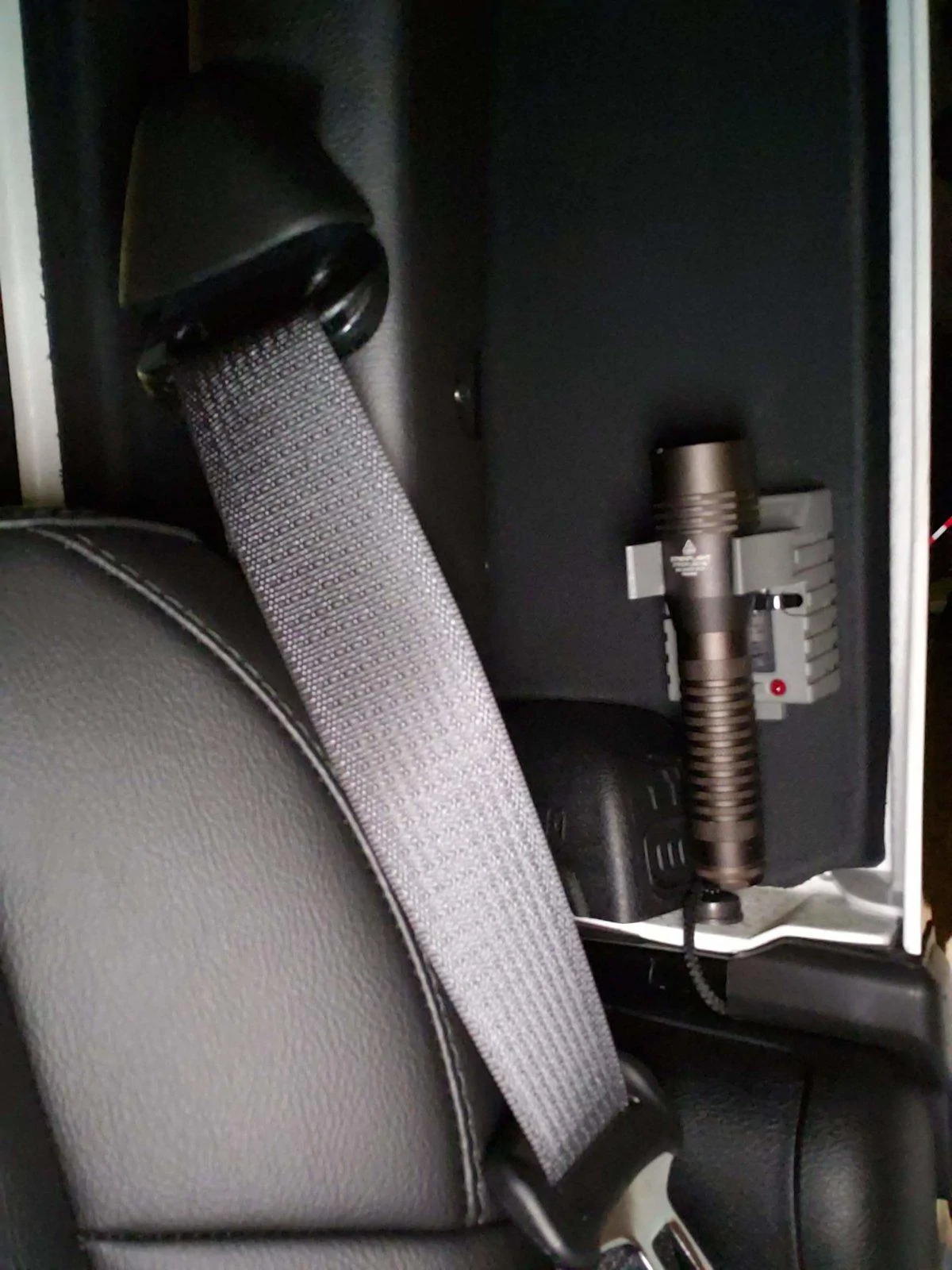

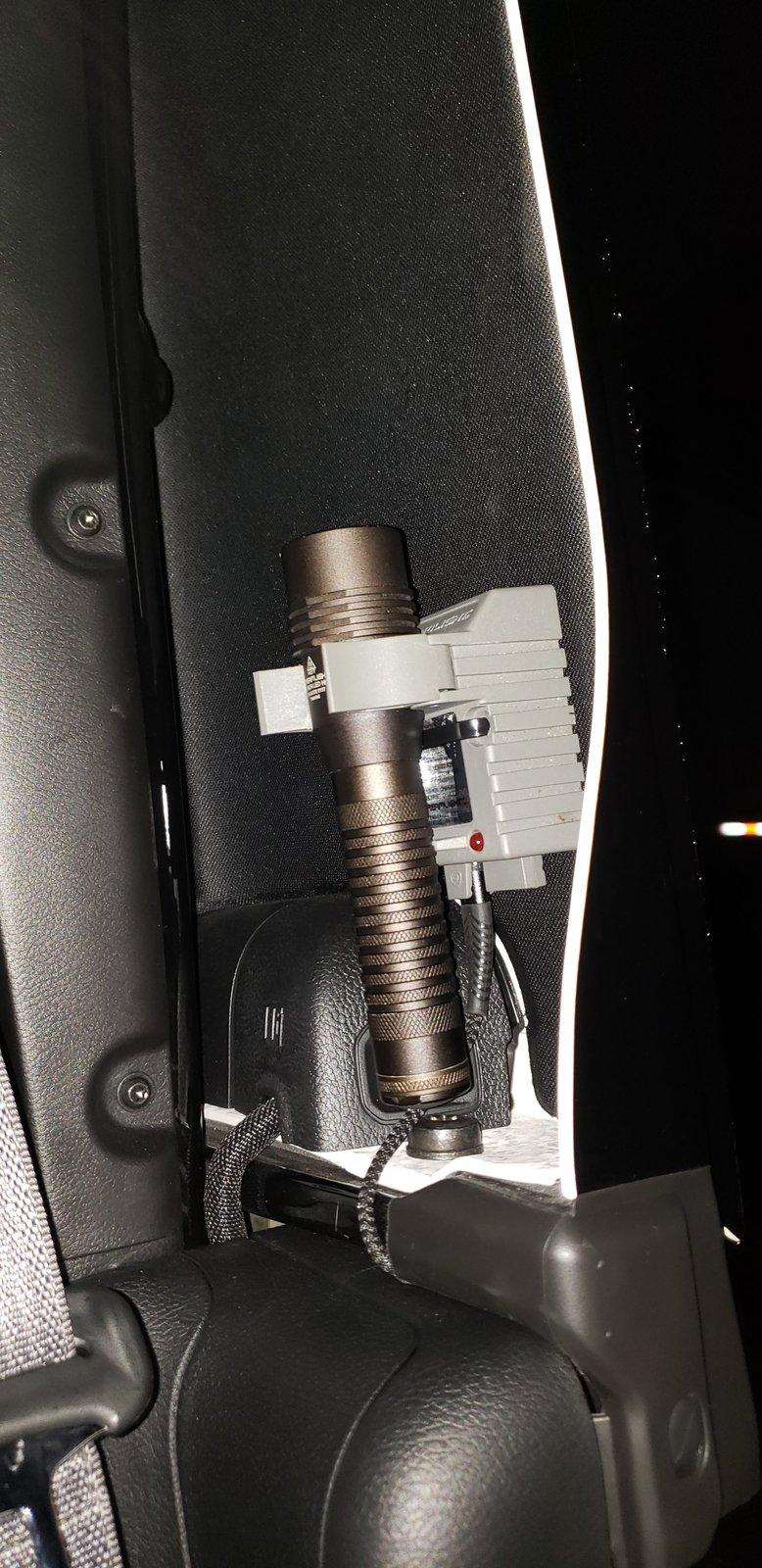

3) Streamlight rechargeable flashlight 500 lumens

https://www.amazon.com/Streamlight-...flashlight&qid=1573183804&s=automotive&sr=1-3
