The dreaded sunvisor

Uparms

Well-Known Member
First Name
Jay
Joined
Feb 23, 2019
Messages
455
Reaction score
321
Location
Delaware
Vehicle(s)
2020 JT, 72 CJ5, 2005 TJ-L, 2002 TJ, 92 YJ
Vehicle Showcase
1

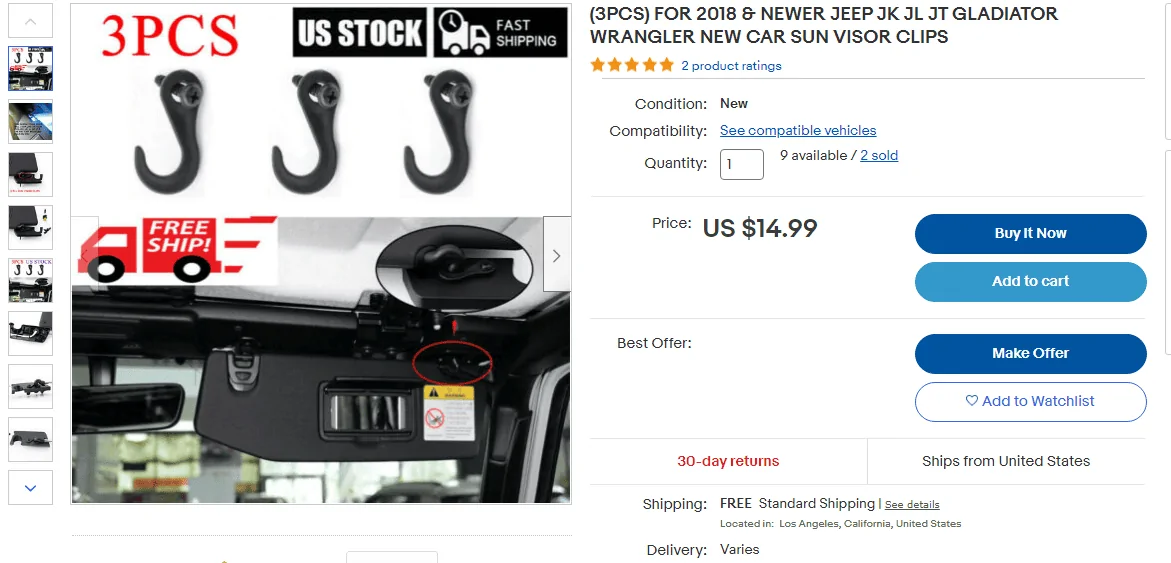

Well the BRP and EBay offers above look just in time for some, and long overdo for others but if you want have some fun with a hacksaw , washer and a machine shaft collar you can do these for about 3 dollars a side. I'll post ugly pics later. Some of the posts on this forum showing this home mod show either the JL or possible the JK visor and the JT is slightly different. Glad the aftermarket stepped up. The 29.99 is more then my dealer charges for 1 visor ( but the kit looks to repair two sides??). Good options eitherway.

https://www.google.com/search?q=mac...HbldAG4Q_AUoAnoECAEQBA&biw=1600&bih=757&dpr=1


Uparms

Well-Known Member
First Name
Jay
Joined
Feb 23, 2019
Messages
455
Reaction score
321
Location
Delaware
Vehicle(s)
2020 JT, 72 CJ5, 2005 TJ-L, 2002 TJ, 92 YJ
Vehicle Showcase
1
Another find, I's be curious if these 3 options on this thread will hold up better than addressing the fix from the top side?? I wonder if the trim screw won't fail eventually.



P.Lo

Well-Known Member
First Name
Philippe
Joined
Feb 1, 2020
Messages
145
Reaction score
221
Location
LKN
Vehicle(s)
2020 Gladiator Overland
45,000 miles on my JT and I have no idea what this is about. 🤷‍♂️

*knock on wood


Orange01z28

Well-Known Member
First Name
Andrew
Joined
Aug 19, 2020
Messages
561
Reaction score
540
Location
Queen Creek Arizona
Vehicle(s)
2020 JT Sport S
Now i have to fix the passenger side visor mirror. I smacked the thing so hard when i was p;issed at it once that it popped out


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Messages
13,061
Reaction score
13,556
Location
Runnells, Iowa
Vehicle(s)
'20 JTO, '21 WK2, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3

Uparms

Well-Known Member
First Name
Jay
Joined
Feb 23, 2019
Messages
455
Reaction score
321
Location
Delaware
Vehicle(s)
2020 JT, 72 CJ5, 2005 TJ-L, 2002 TJ, 92 YJ
Vehicle Showcase
1
Hokey and rough, ain't no tech writer or photog. Damn strong, 3 bucks. 6MM or 5/16 shaft collar and 1 washer.

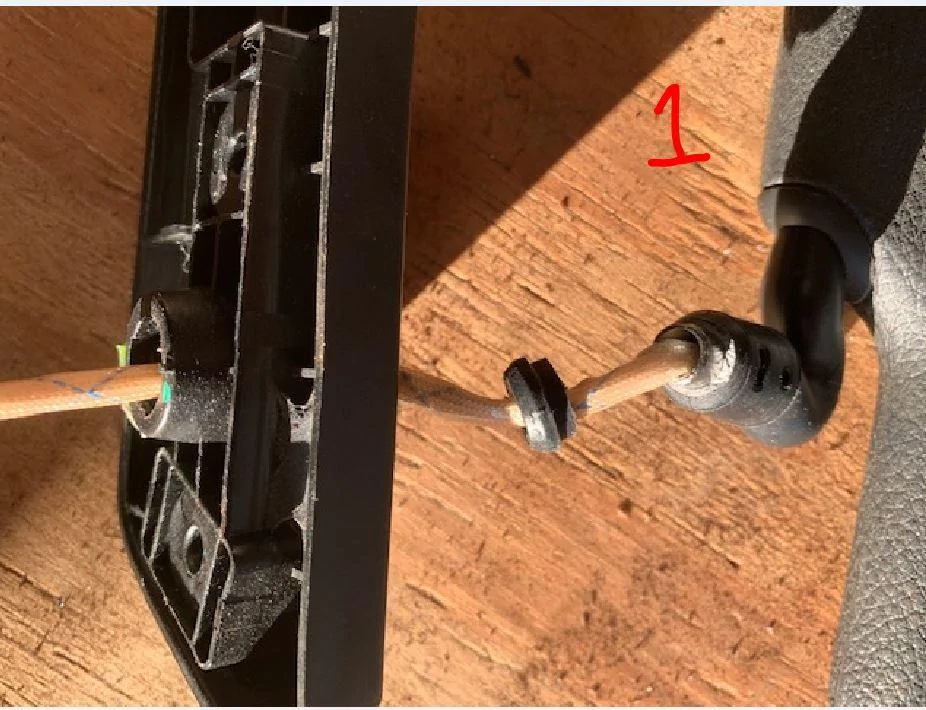

1 - shows the broken part, snip and dispose.

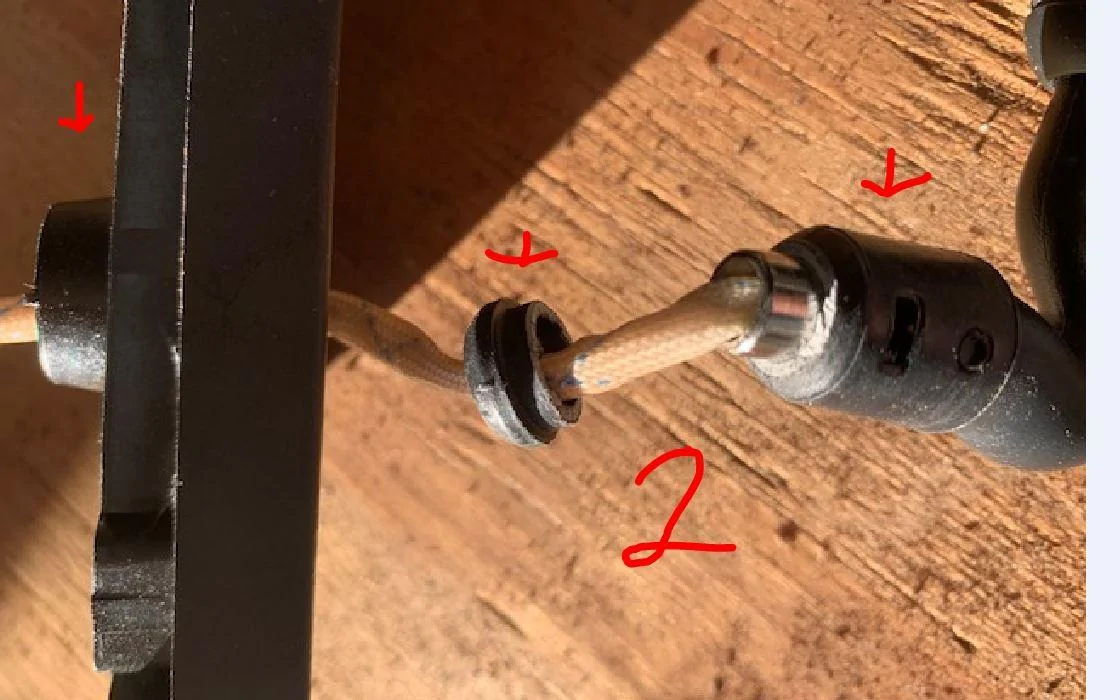

2- shows same, I trimed 3/8 off the metal shaft plastic and flush on the left trim piece.

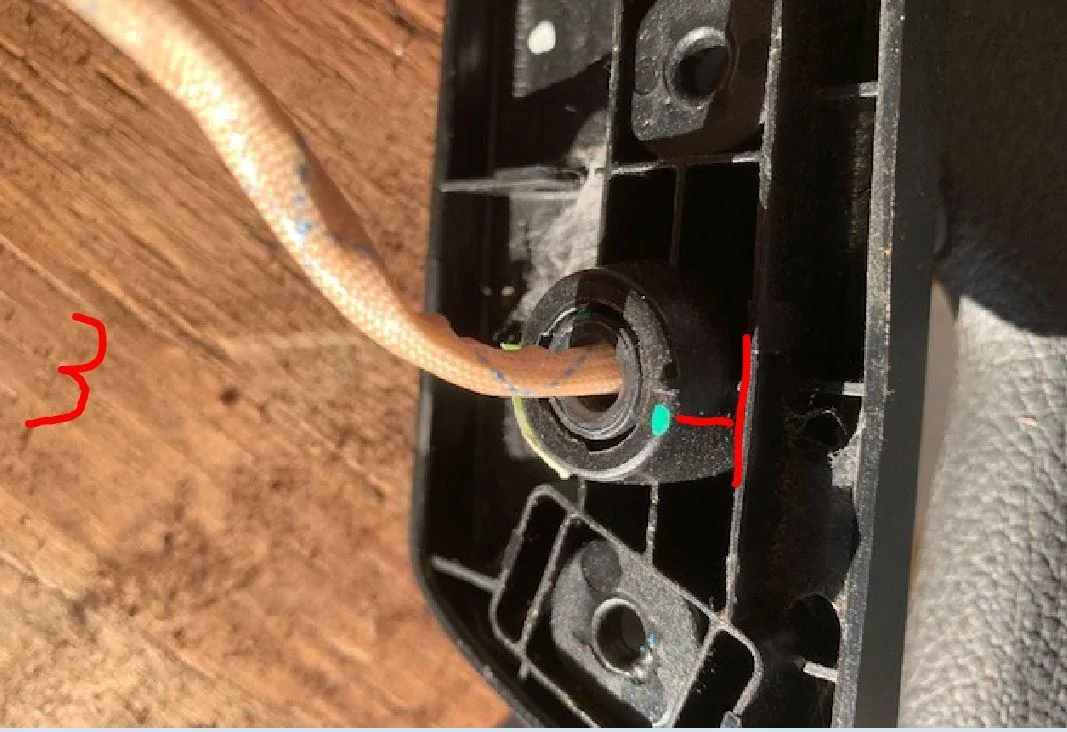

3- Shows before cut on the trim piece

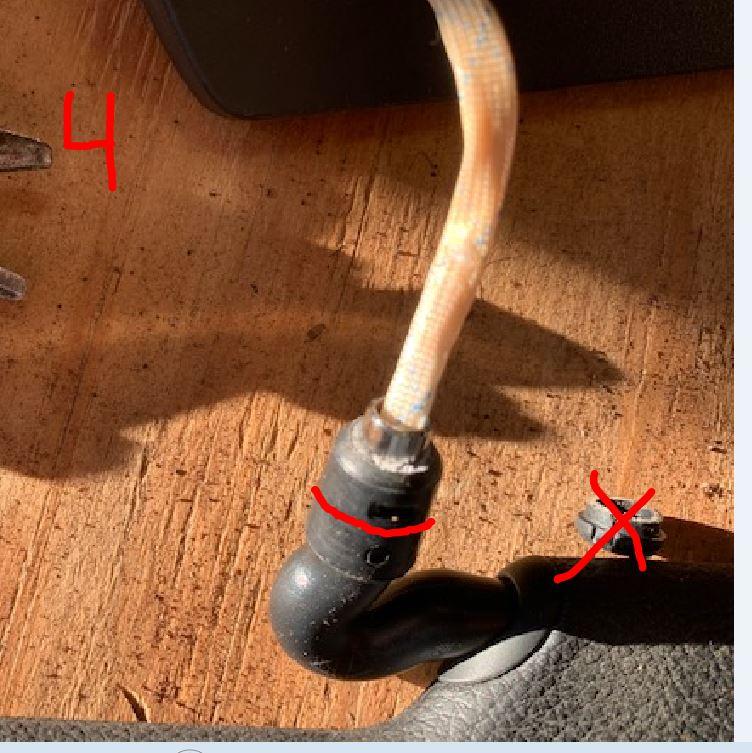

4 - Shows before cut on the shaft

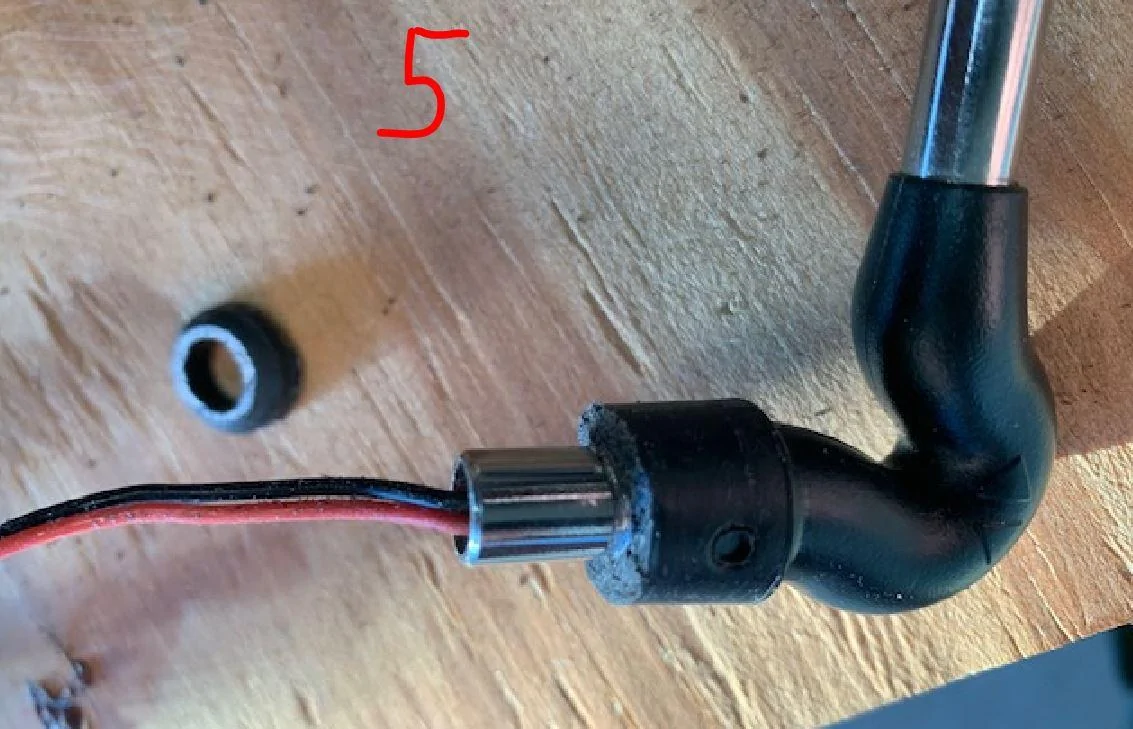

5 - shows after timing the shaft, hacksaw, careful, slow. Might have used a vice with padding??

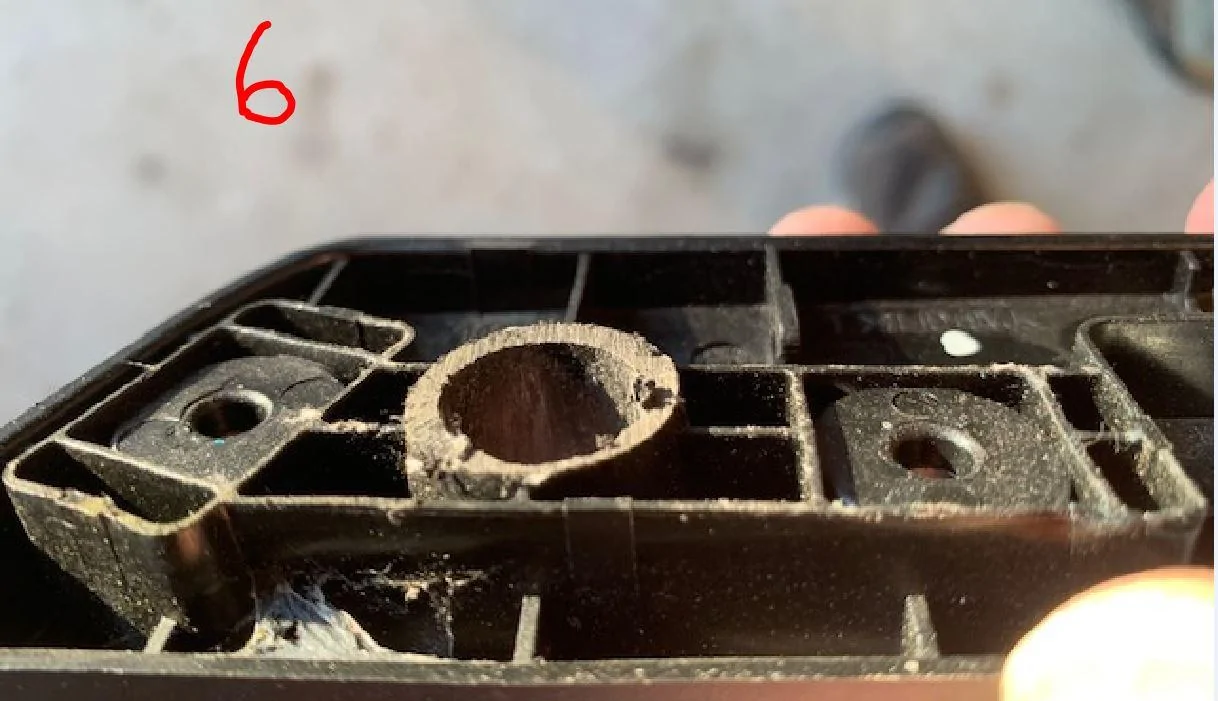

6 - Trim piece cut flush, hack job but done.

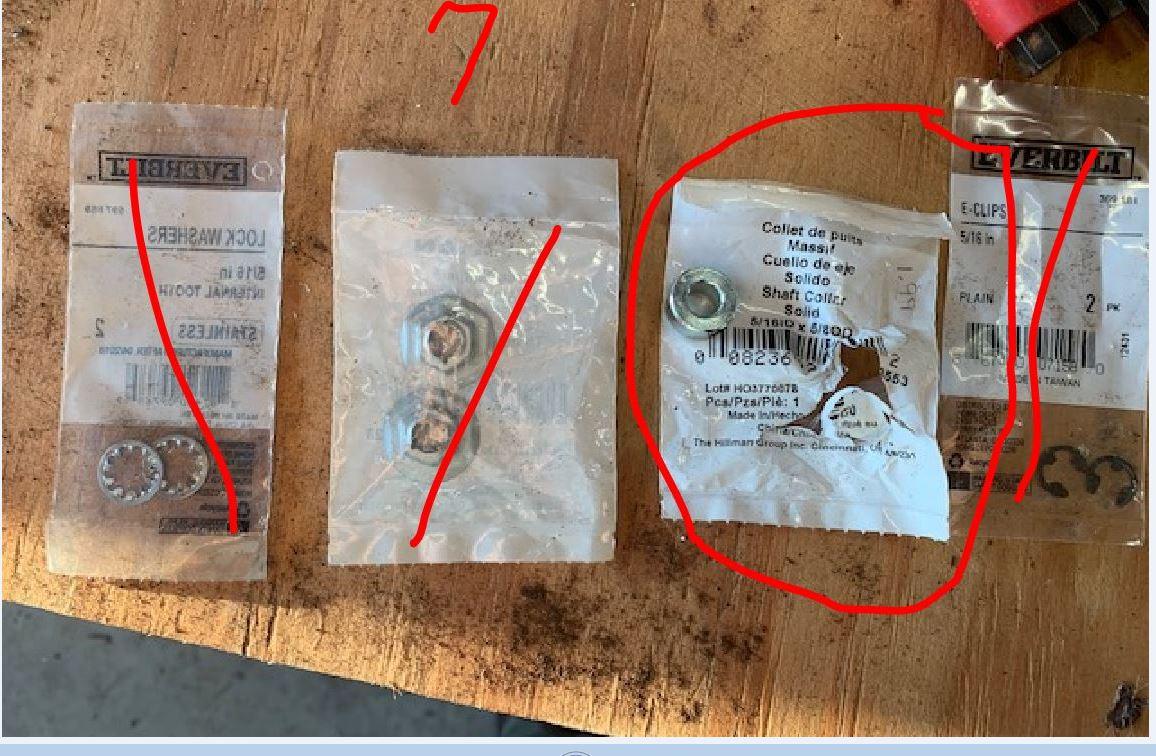

7 - Bought 4 packages only used the shaft collar ( and a washer).

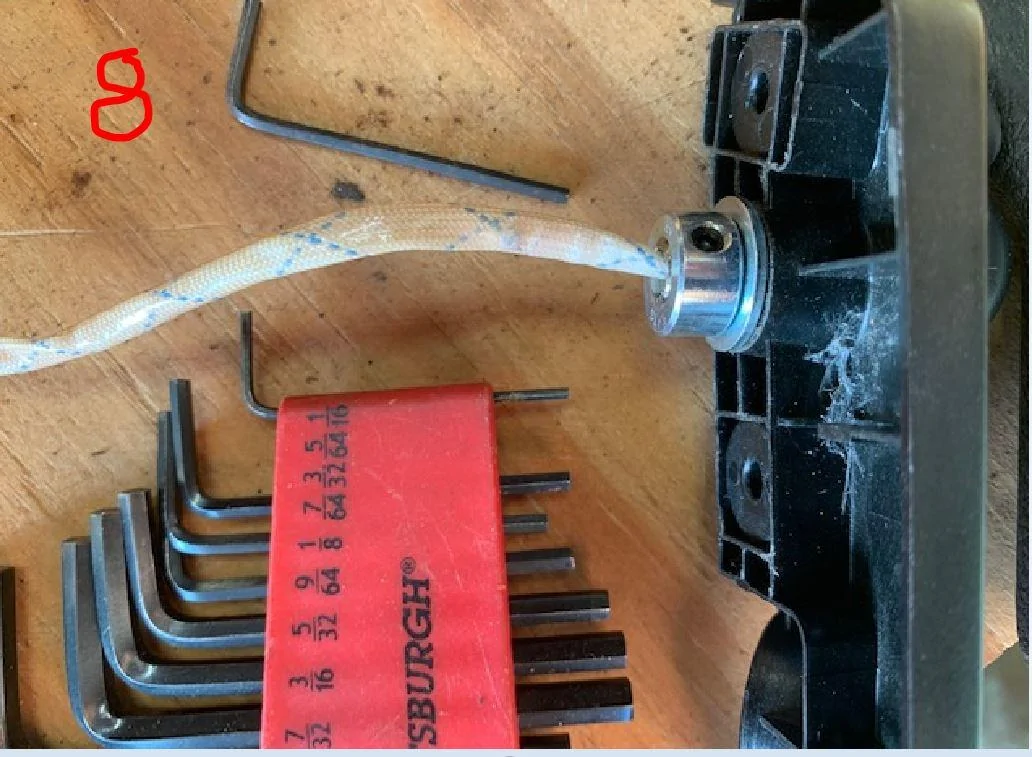

8- Finished product. Been in the truck 2 months now and I use the visor northbound in the AM and southbound in the PM, 7 days a week.

This was the second one that broke. Drivers side. 5 year old grand daughter broke the passenger side last year but hey, she loves this truck!















Last edited:

ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Messages
13,061
Reaction score
13,556
Location
Runnells, Iowa
Vehicle(s)
'20 JTO, '21 WK2, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
There's so many ways to fix that thing it's silly. Most of the ways make it stronger, better than it was, less likely to break again.
If mine ever does break, unless it's covered under warranty by my dealer, I'll fix it. I have many dozens of drawers full of hardware from years of fabricating things.
Dremel (two of them) and countless attachments, no problem.

Above is yet another creative way to fix it and with that metal sleeve riding a washer - where's it gonna go?
