Under seat sub box built (pic heavy)

Lscardsfan

Member
Joined
May 10, 2020
Threads
3
Messages
11
Reaction score
1
Location
Kentucky
Vehicle(s)
2015 Dodge Ram

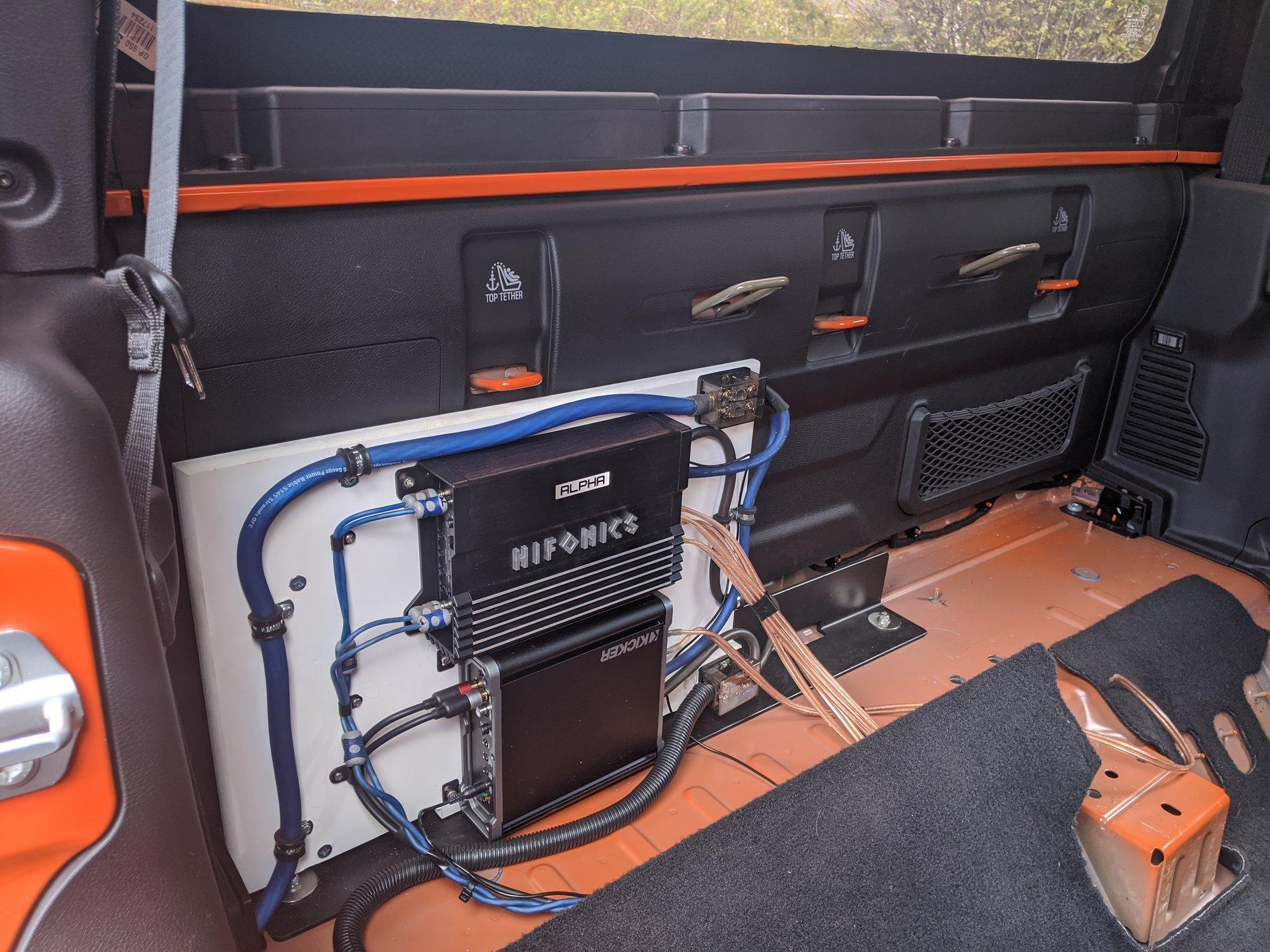

The angle iron (its way over kill, but what I had on hand) is drilled and place over the factory studs that hold down the lower cargo tray(removed) then just fender washers and 2 nuts
The PVC board is bolted to 2 peices of flat stock that I welded to the angle iron.

This bracket is way more than needed for an amp rack, but I previously had a powered sub woofer installed in this location and that was much heavier

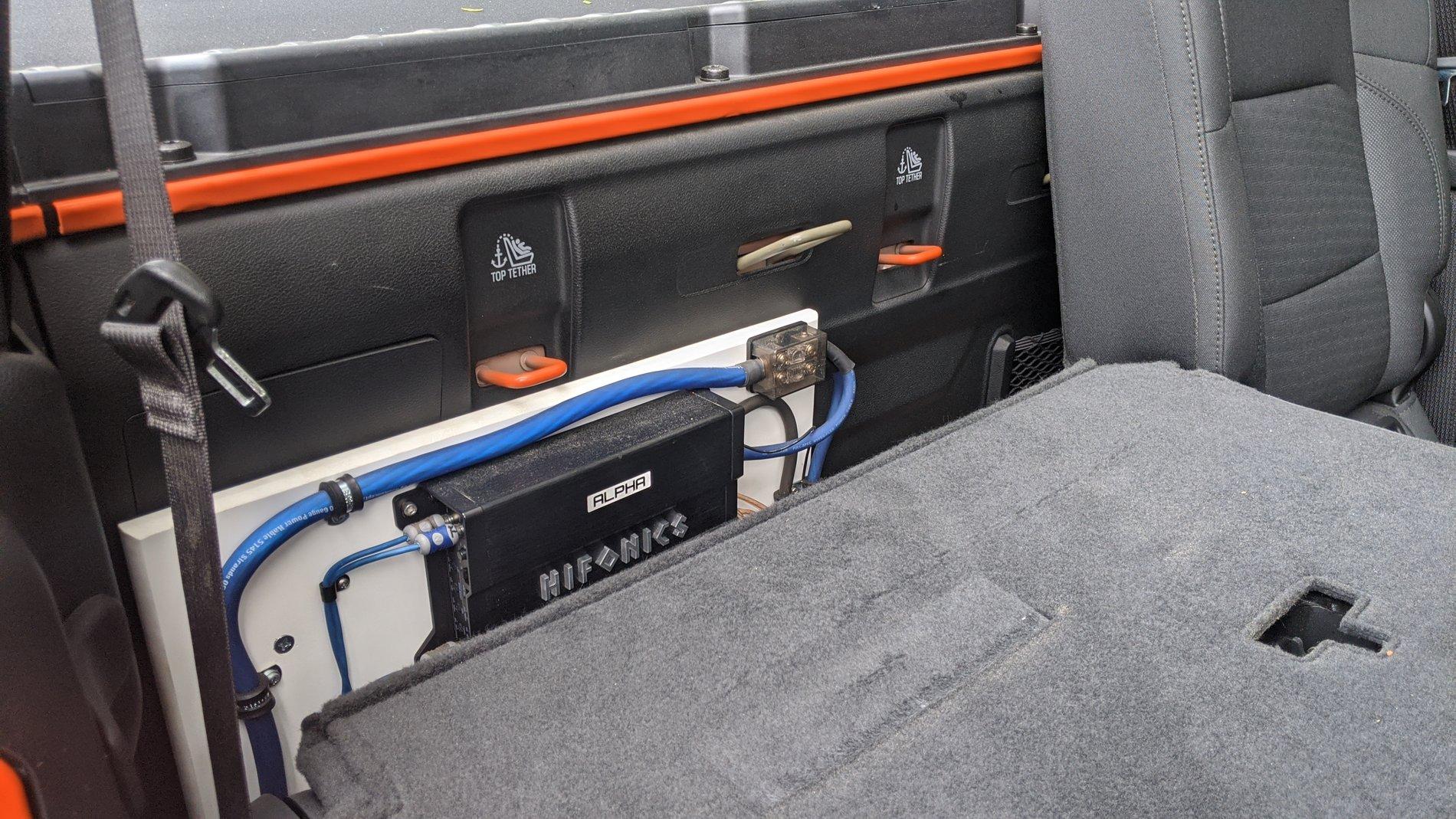

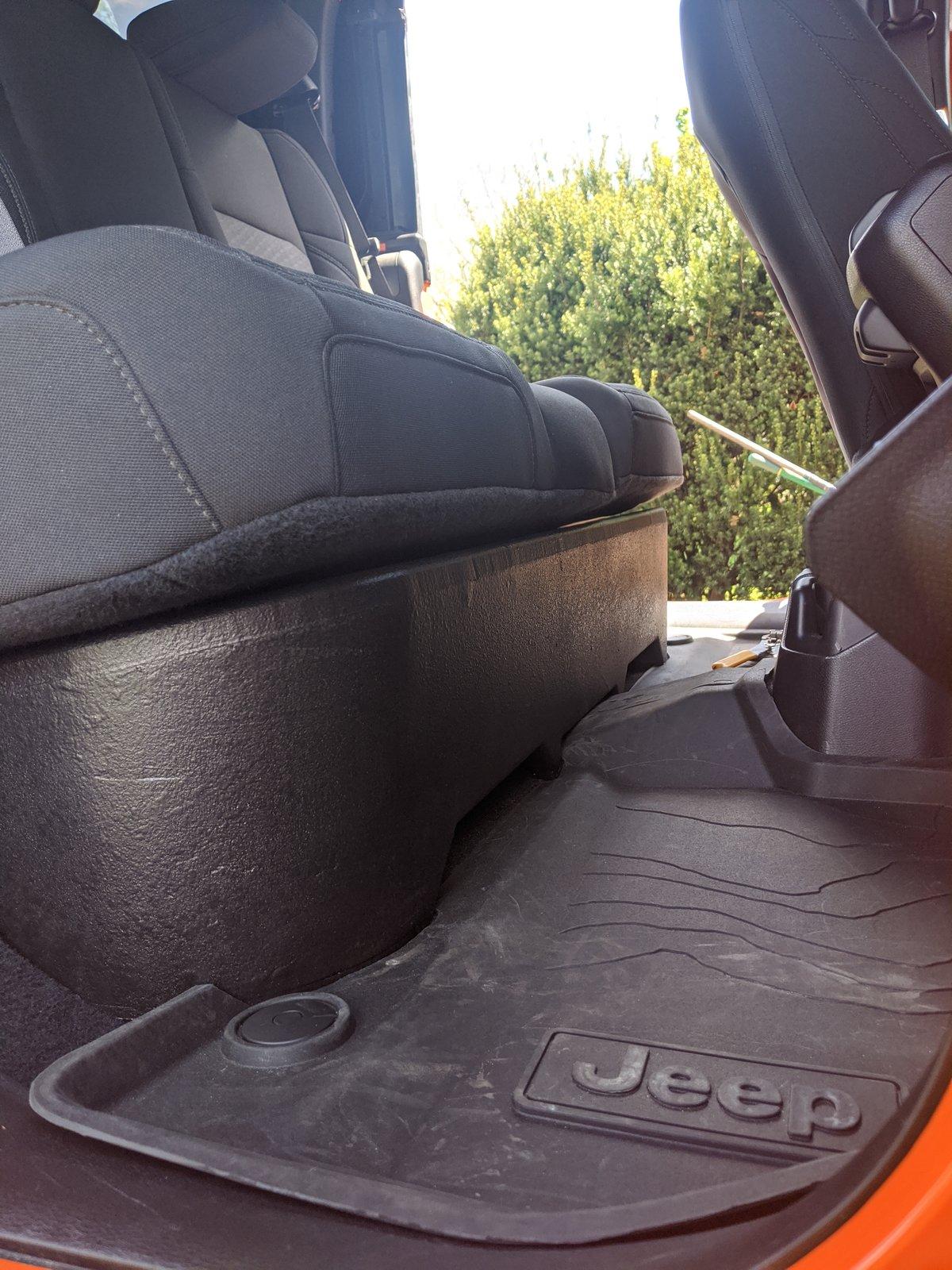

Thanks for the info. Would you mind posting a picture of what it looks like final with the seats installed and folded down? I think I’m going to steal your idea! I’m assuming the lower panel/cargo tray separates easy from the main rear plastic panel that’s in your picture?

OP
OP

BigRed97

Well-Known Member
First Name
Tim
Joined
Sep 25, 2019
Threads
31
Messages
491
Reaction score
273
Location
Boston, MA
Vehicle(s)
Gladiator Sport S
Yes the plastic cargo tray come off easily



JeepRealtor

Well-Known Member
First Name
Jeff
Joined
Apr 3, 2019
Threads
4
Messages
171
Reaction score
147
Location
West Bloomfield, MI
Website
www.thekashatteam.com
Vehicle(s)
2020 Jeep Gladiator Rubicon Launch Edition (Bright White), 2019 Ford Expedition Limited Stealth Package (Magnetic)
Occupation
Realtor
Just got the text from my JL Audio dealer that’s my stealthbox arrived today. Gonna pick it up tomorrow. Hopefully the rest will arrive soon and I can begin install.


Dallas91

Well-Known Member
First Name
Justin
Joined
Apr 9, 2019
Threads
8
Messages
94
Reaction score
169
Location
Illinois
Vehicle(s)
18 Silverado ltz
Do you have a cad drawing of measurements that you'd be willing to share? I'm looking at doing a singular 8 in skar audio sub in a bandpass box. But racking my brain on the angles of the seat and keeping it in spec for the subs requirements including tuning of the port.


Sponsored

OP
OP

BigRed97

Well-Known Member
First Name
Tim
Joined
Sep 25, 2019
Threads
31
Messages
491
Reaction score
273
Location
Boston, MA
Vehicle(s)
Gladiator Sport S
Do you have a cad drawing of measurements that you'd be willing to share? I'm looking at doing a singular 8 in skar audio sub in a bandpass box. But racking my brain on the angles of the seat and keeping it in spec for the subs requirements including tuning of the port.
CAD drawings :CWL::CWL:......tape measure man


Dallas91

Well-Known Member
First Name
Justin
Joined
Apr 9, 2019
Threads
8
Messages
94
Reaction score
169
Location
Illinois
Vehicle(s)
18 Silverado ltz
Ha. I was hoping to cheat to avoid that so I can figure the cubes and port length to make the box to exact specifications. Thanks though.


Capt.Grumps1075

Well-Known Member
First Name
Stephen
Joined
Oct 15, 2020
Threads
6
Messages
104
Reaction score
99
Location
Lufkin
Vehicle(s)
2020 Gladiator sport s
Occupation
Towboat Captain
You took what I've had in my mind and brought it too reality. Looks great. Hows the sound and I guess I'm missing it, but what size subs are you using. I'm going with 10s

OP
OP

BigRed97

Well-Known Member
First Name
Tim
Joined
Sep 25, 2019
Threads
31
Messages
491
Reaction score
273
Location
Boston, MA
Vehicle(s)
Gladiator Sport S
Ha. I was hoping to cheat to avoid that so I can figure the cubes and port length to make the box to exact specifications. Thanks though.
I went sealed to avoid all that math...and I like tighter bass

You took what I've had in my mind and brought it too reality. Looks great. Hows the sound and I guess I'm missing it, but what size subs are you using. I'm going with 10s
I originally planned L7T 10s (shallow) but once I actually built the box it was just a little to tight for comfort,(1.1ftÂł, giving each sub just over .5ftÂł)
So i went with L7T 8s(shallow) and I'm VERY HAPPY.
The sound from these little guys is unbelievable. I have never turned the remote knob over 50% and they hit HARD & CLEAN.
